12inch Professional Stage Monitor PA Speaker System

1 / 5

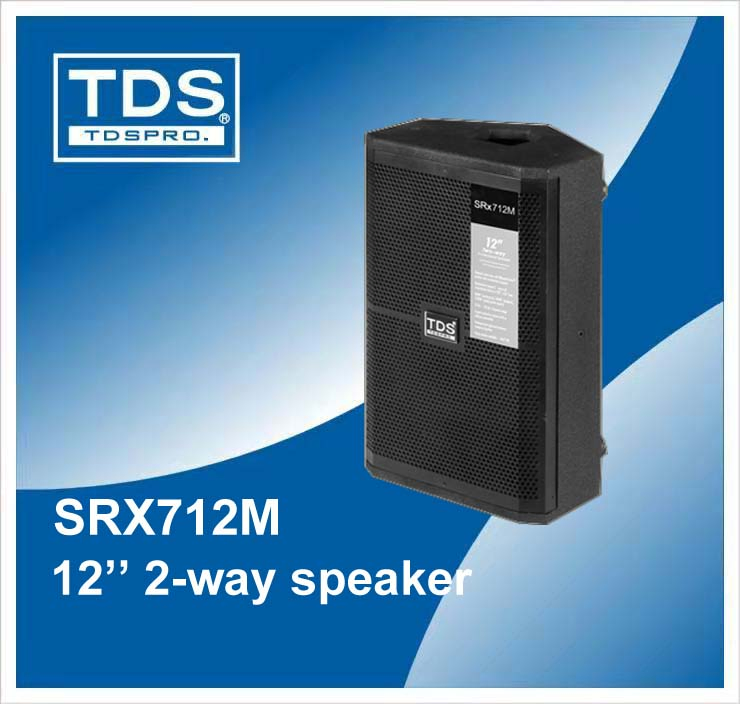

12inch Professional Stage Monitor PA Speaker System

Customization:	Available
Noise:	<95dB
Activity:	Passive

Send Inquiry

Product Description

Basic Information

Model NO.

SRX712M

Speaker Material

Wood

Application

Commercial

Certification

CE, RoHS

THD

<0.03%

System Type

12inch, 2-Way Professional Speaker

Frequency Response

83Hz -- 18kHz

Dispersion (Hxv)

90 X 50

Handling Power

500W(RMS) / 1000W(Peak)

Transport Package

Carton or Flightcase

Specification

CE CCC

HS Code

851822000

Product Description

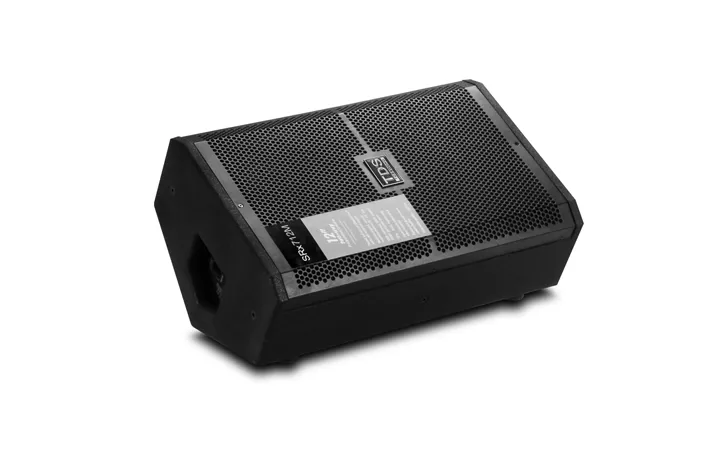

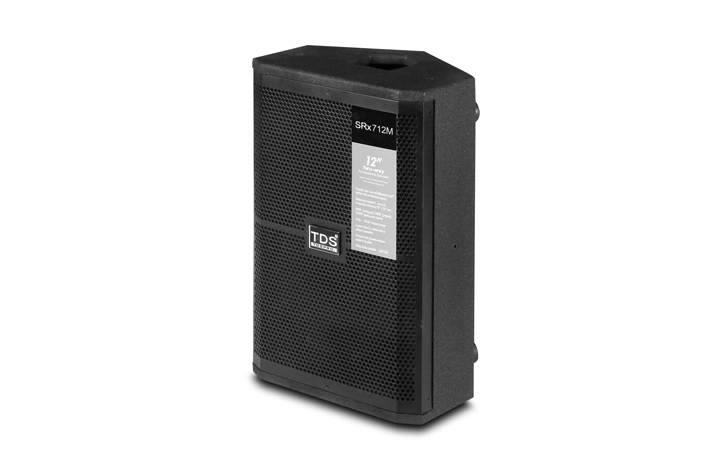

The SRX712M is a compact 12-inch professional speaker, engineered for high-performance audio delivery. It is exceptionally well-suited for small-scale live performances, specifically designed for stage monitor usage, music bars, coffee rooms, and more. Featuring a top hat integrated into the bottom of the cabinet, the speaker can be mounted on a tripod stand as a main sound reinforcement speaker or suspended for fixed installations. The compact design combined with high-efficiency transducers provides a powerful impression in stage monitoring.

Compact Design

Lightweight enclosures designed for easy transport and versatile placement without sacrificing power.

Dual-Angle Socket

Features a dual-angle pole socket for applications requiring precise tripod mounting and coverage.

High Efficiency

Equipped with high-efficiency transducers to deliver clear, loud, and accurate sound reinforcement.

Technical Specifications

System Type	12inch, 2-way passive professional speaker.
Frequency Response	83Hz --18 KHz ± 3dB
Sensitivity (1W/1M)	96dB.
Impedance	8 ohm
Rated Power	500W (AES), 1000W (PEAK).
Dispersion	90° (H) X 50° (V)
Drivers (LF)	LF driver 12'' transducer (100mm) voice coil
Drivers (HF)	HF driver 1'' exit (44mm) voice coil.
Maximum SPL	131dB continuous, 137dB peak.
Connectors	2 x Neutrik NL4.
Dimensions	(W) 349mm x (H) 546mm x (D) 260mm
Weight	15kg

FAQ

What are the primary applications for the SRX712M?

It is primarily designed for stage monitoring, fixed installations in clubs, and background music reinforcement in venues like coffee rooms or bars.

Can this speaker be mounted on a tripod?

Yes, it features a dual-angle pole socket at the bottom, allowing it to be mounted on a standard speaker stand for use as a main PA speaker.

What is the peak power handling of this model?

The SRX712M has a rated power of 500W (AES/RMS) and can handle peaks up to 1000W.

Is the cabinet made of plastic or wood?

The cabinet is constructed from high-quality wood, providing better acoustic resonance and durability for professional use.

Does it support hanging installation?

Yes, its compact and versatile design allows it to be hung for fixed installation speaker requirements.

What connectors does the speaker use?

The speaker is equipped with 2 x Neutrik NL4 connectors for reliable professional audio connectivity.

Product Detail

12inch Professional Stage Monitor PA Speaker System
