Basic Information
Specification:
T38*24, Steel Galvanized
Usage:
Terminal Building, Station, Playground, Hotel, Factory, Market, Office Building, Home, Gymnasium
Function:
Fireproofing, Jar-Proof, Anti-Corrosion, Damp-Proof
Transport Package:
Carton
Capacity:
10,000,000 Units
Product Description

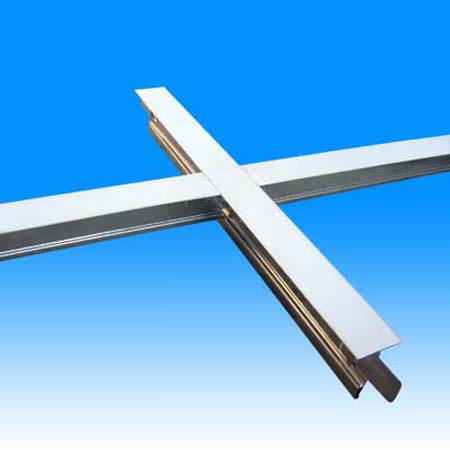

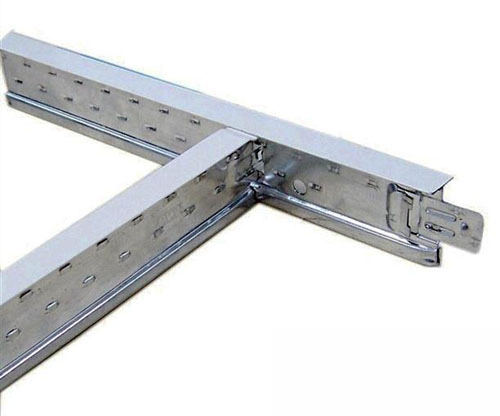

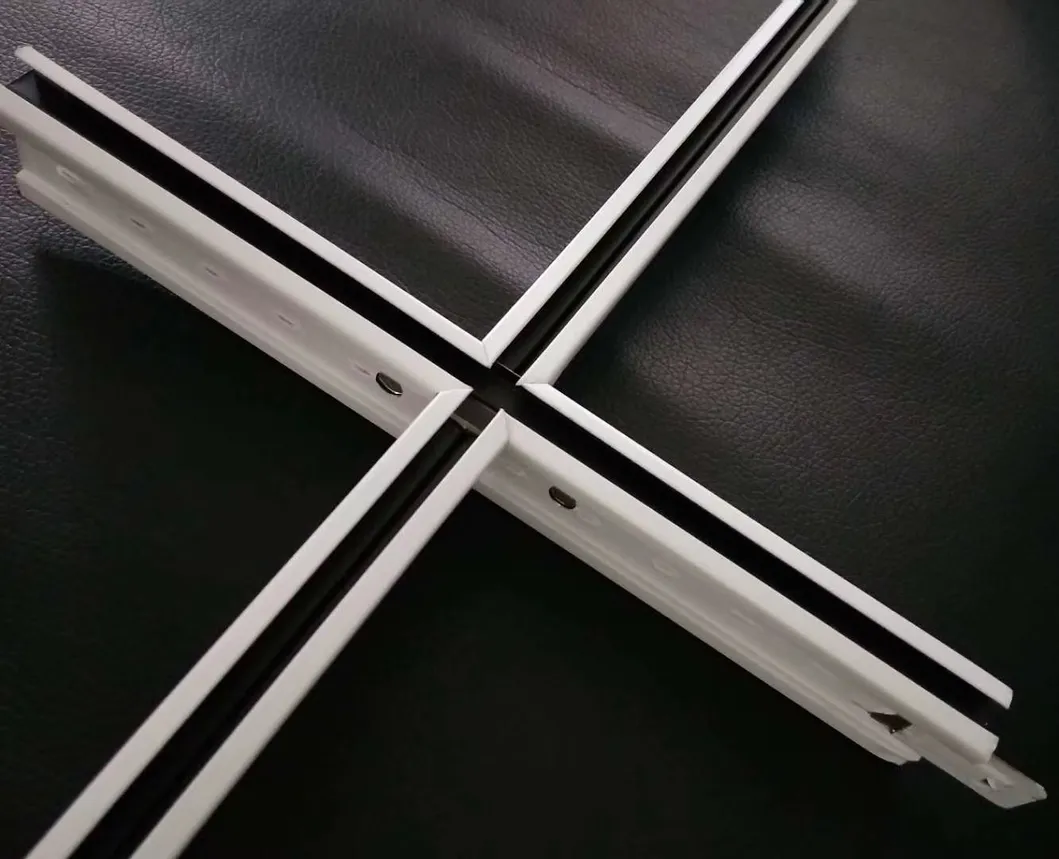

Suspended Ceiling Frame Hanging Metal Long Cross T Grids are double web cold-rolled sections, manufactured from hot-dipped galvanized steel. The tees section is pre-painted capped, ensuring that the system is manufactured to a very high quality level.
Standard Specification
| Property |
Details |
| Core Material | Steel Galvanized |
| Standard | ASTM C635 & ASTM C636 |
| Color Options | White / Silver / Wooden / Customized |
| Stitch | Stitch or without stitch available |
| Thickness | 0.25mm / 0.3mm / 0.4mm / Customized |
| Main Runner | 38/32*24*3600mm |
| Long Cross | 38/32/26*24*1200mm |
| Short Cross | 38/32/26*24*600mm |
| Wall Angle | 24*24*3000mm |
| Package | Cartons |
| Other dimensions can be customized according to requirements. |

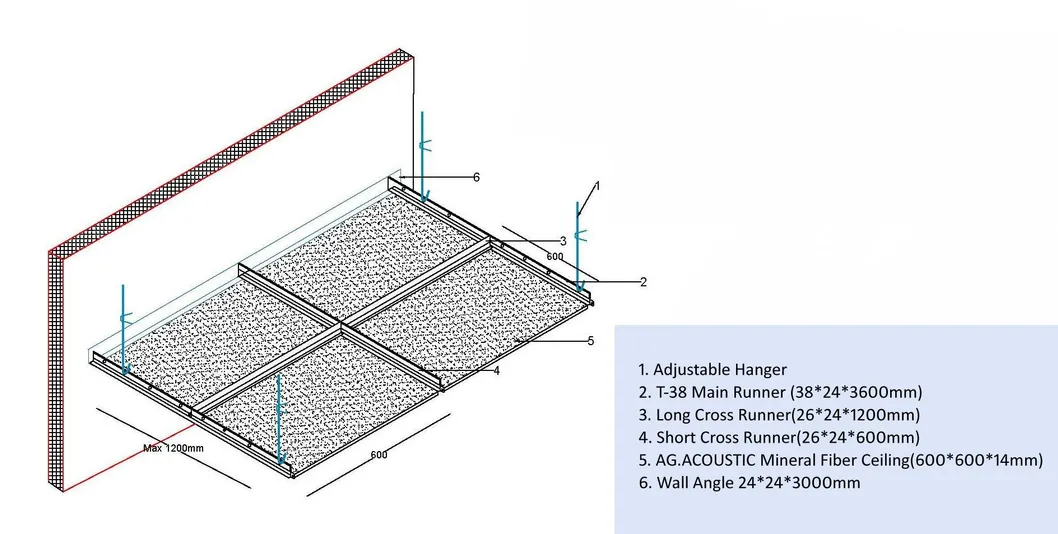

Installation Structure Diagram

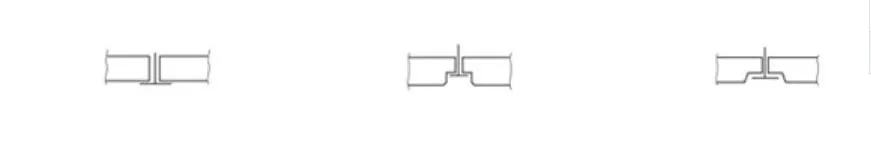

* It can be used for different edge treatments as shown below:

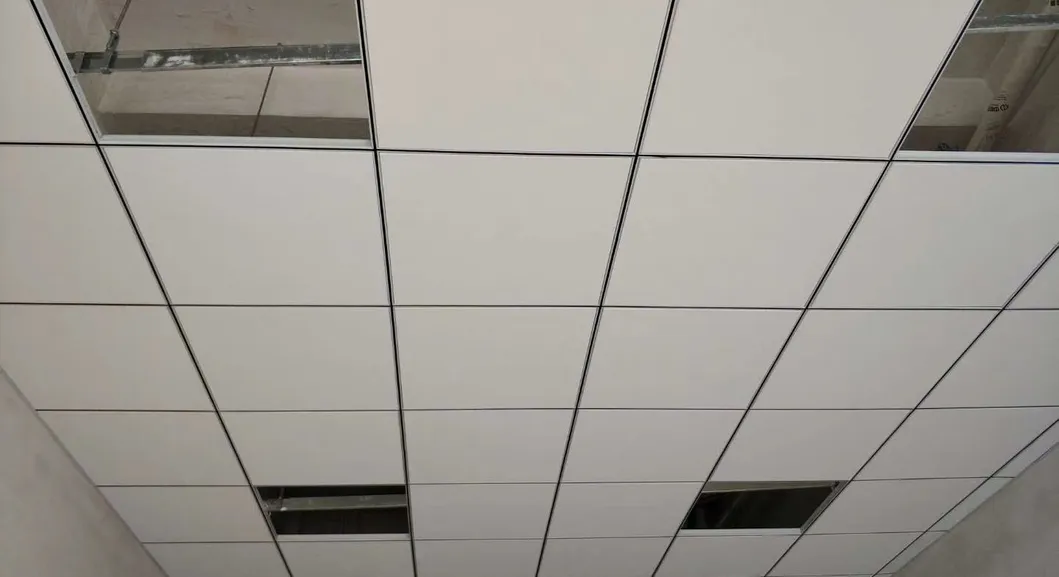

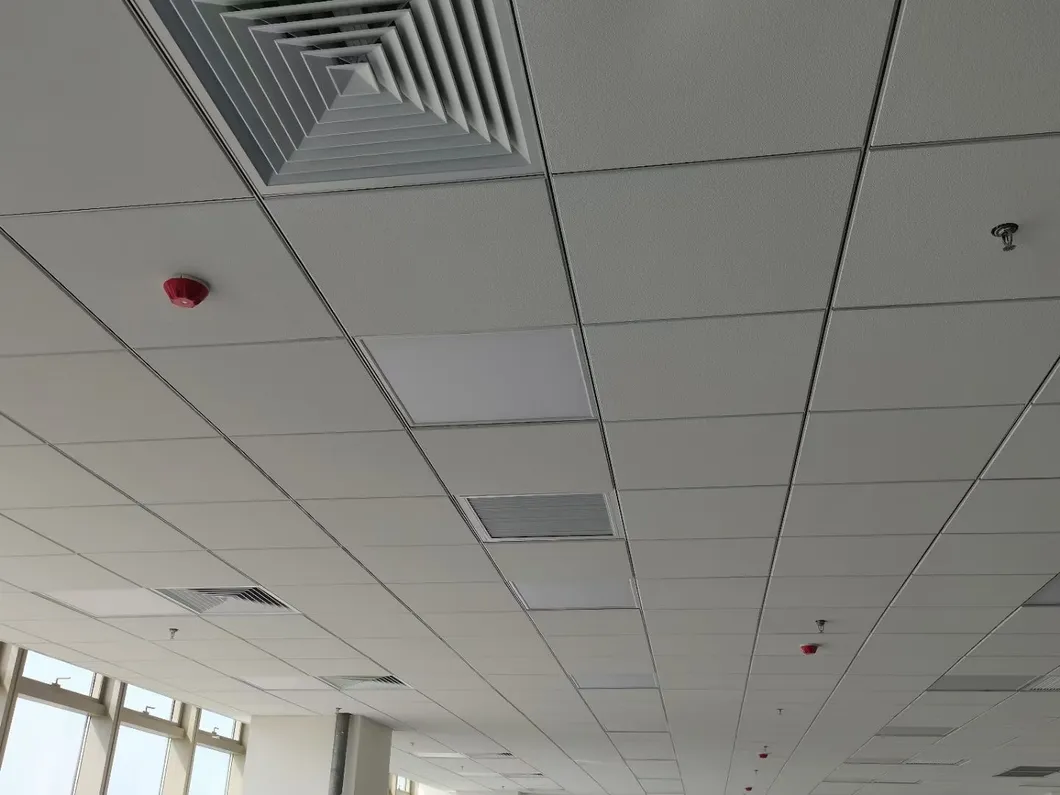

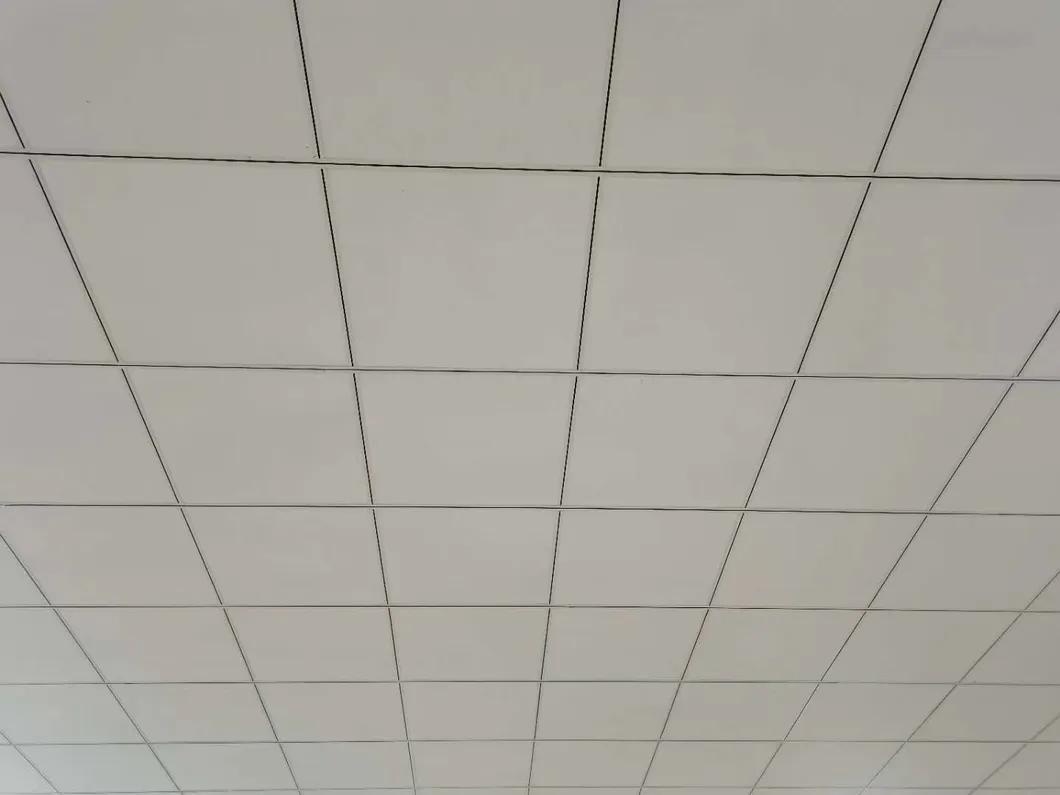

Applications
🏢
With excellent quality and reasonable pricing, these grids are extensively used in building materials for:
Schools, studio rooms, reception areas, lecture theaters, offices, hospitals, sport halls, workshops, and commercial buildings.
Frequently Asked Questions (FAQ)
What materials are used for the suspended ceiling grids?
The grids are manufactured from high-quality hot-dipped galvanized steel with double web cold-rolled sections for enhanced durability.
What functional benefits does this ceiling system offer?
The system provides vital features including fireproofing, jar-proof properties, anti-corrosion, and damp-proof resistance.
Can the dimensions and colors be customized?
Yes, we offer various thicknesses (0.25mm to 0.4mm) and colors like White, Silver, and Wooden textures. Custom dimensions are available upon request.
Which international standards do these T-grids comply with?
Our ceiling suspension systems are manufactured to meet ASTM C635 and ASTM C636 standards.
Where are these ceiling frames typically installed?
They are ideal for diverse environments including terminal buildings, offices, hospitals, schools, gymnasiums, and commercial workshops.
What are the components included in a standard grid system?
A complete set typically includes the Main Runner, Long Cross Tees, Short Cross Tees, and Wall Angles to ensure a stable structure.
