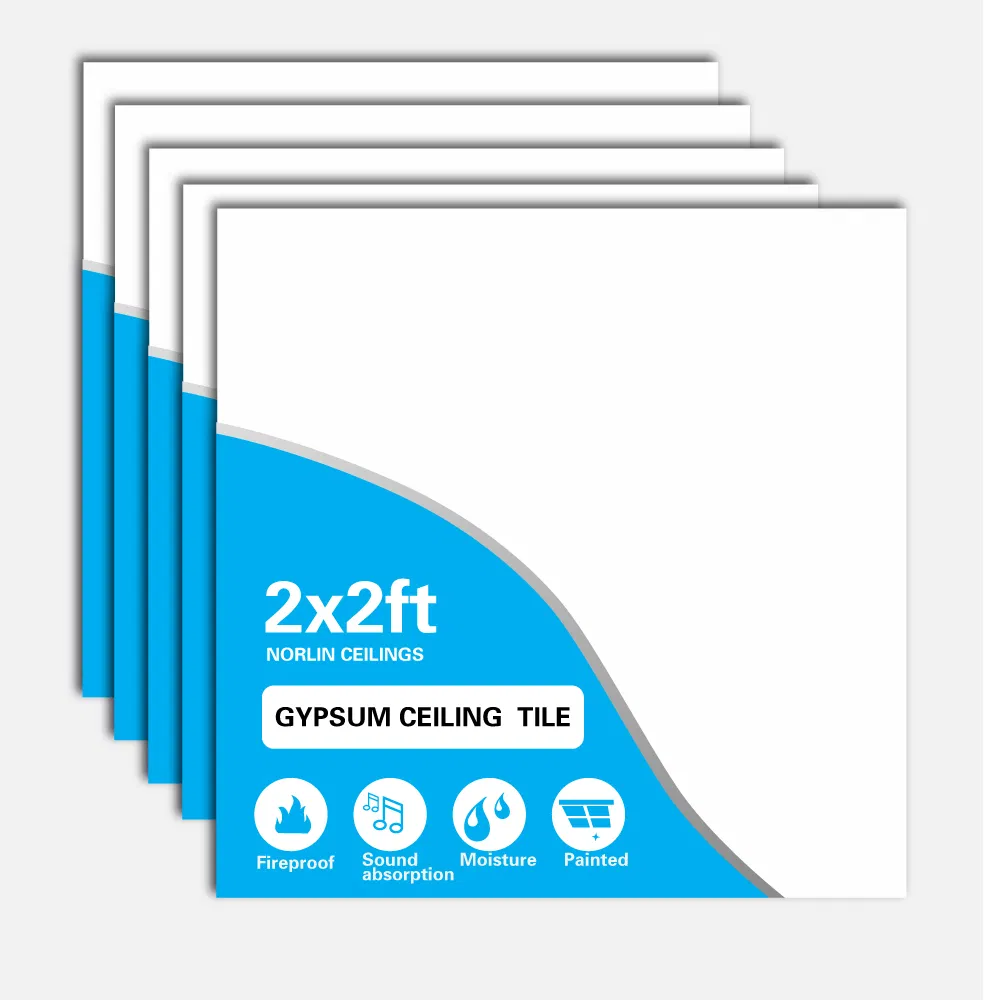

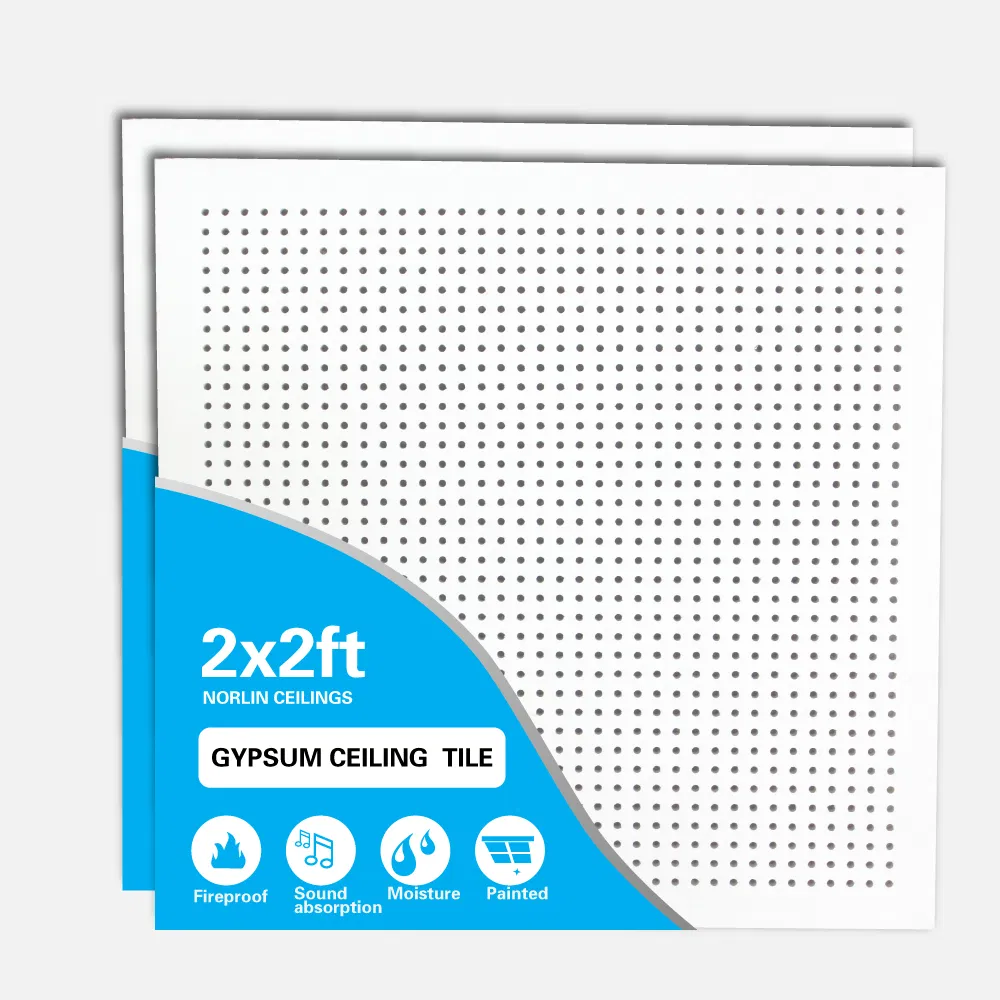

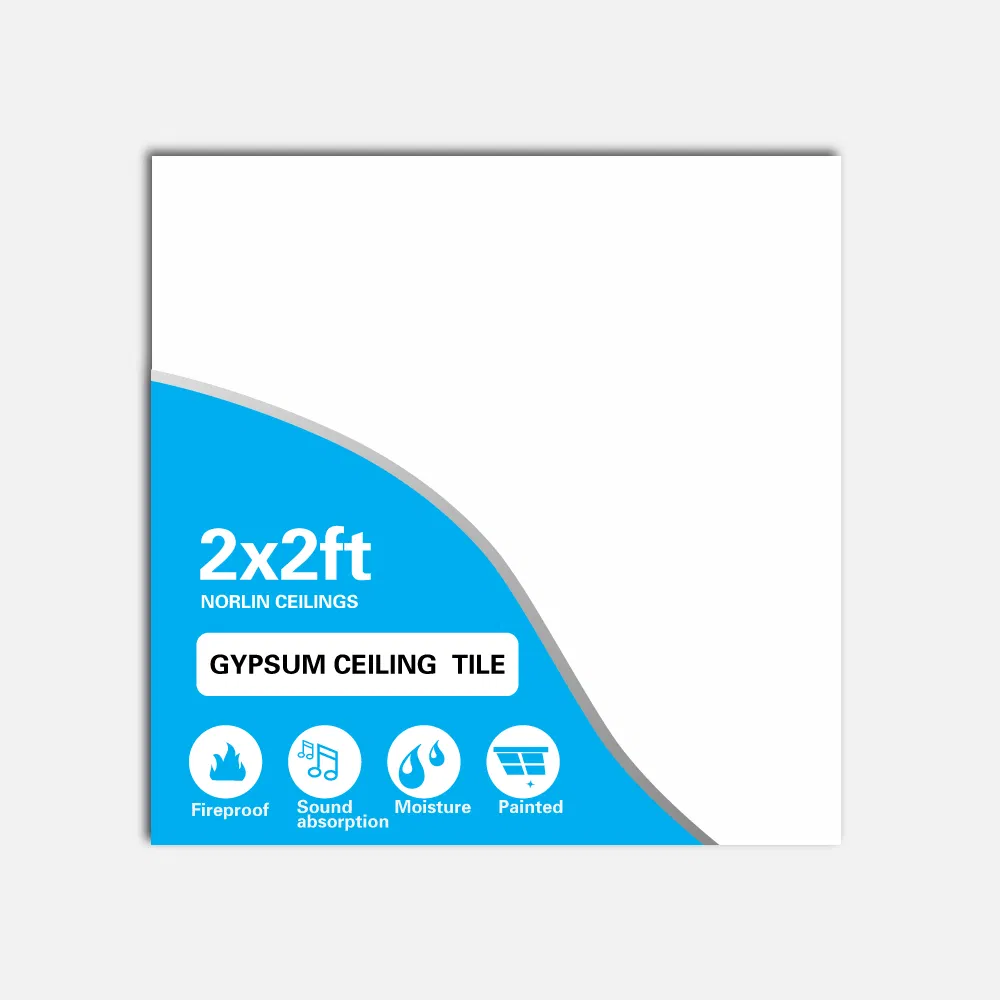

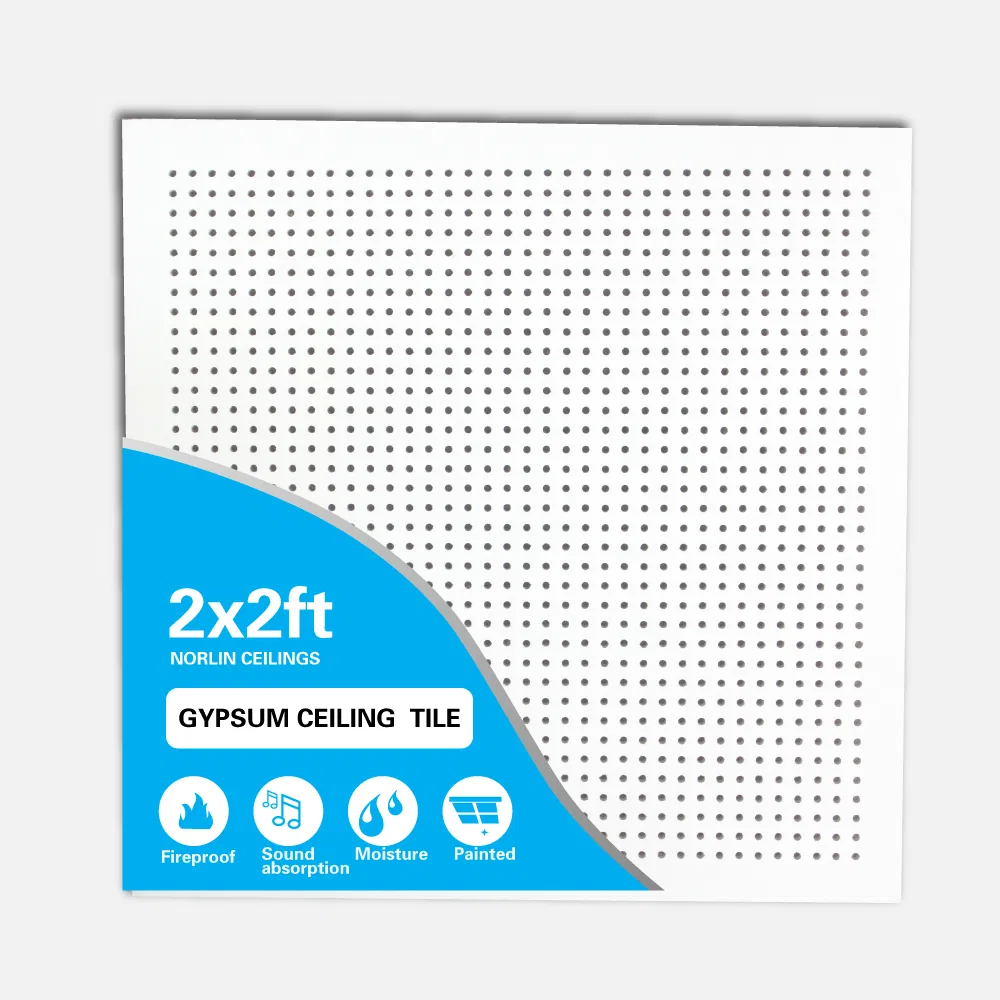

Acoustic Plater Board Ceiling Suspended Grid System 600*600

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.
600A
Type
Decorative Plasterboard
Shape
Rectangle
Surface
Perforated
Function
Fireproof, Soundproof
Color
White
Certification
CE
Material
Perforated Gypsum Board
Size
1200*2400 mm / 1188*1998 mm
Thickness
12mm
Sound Absorption
Nrc 0.85-1.0
Origin
China
Acoustic Plater Board Ceiling
Suspended Grid System
🔍 Product Overview

Deliver an aesthetic impact and significantly improve acoustics with high-quality Perforated plasterboard PRO. The edge-to-edge pattern layout and unique installation method make this a superior option for modern architecture. Purpose-built to provide exceptional acoustic control, it offers ultimate design freedom for various interior projects.

The edge-to-edge chamfered design connects directly to adjoining boards, removing the need for spacers and ensuring perfect alignment. Boards can be finished with specialized fillers to create a continuous, seamless finish. High levels of acoustic absorption are achieved through a combination of perforation patterns and a highly effective black acoustic fabric backing, which also prevents dust from entering the room.

🏗️ Typical Applications

This perforated plasterboard is typically used as a high-performance solution for ceilings in commercial constructions where acoustic performance is critical. Suitable applications include:

  • Offices and Retail Spaces
  • Hotels and Foyers
  • Theatres and Cinemas
  • Leisure and Residential Buildings
  • Shopping Centres and Restaurants
📊 Technical Specifications
MaterialPerforated Gypsum board / Acoustic Gypsum ceiling
Size1200X2000mm, 600X600mm
EdgeSquare
Sound AbsorptionNRC 0.73 - 1.0
BacksideAcoustic non-woven fabric (White or Black)
Density8.4 Kg/m2
Thickness9.5mm, 12.5mm
Round Hole Sizes6mm, 8mm, 10mm, 12mm
Square Hole Sizes8*8mm, 12*12mm
Perforation Rate6.8% - 21.3%
InstallationScrews / Light steel keel

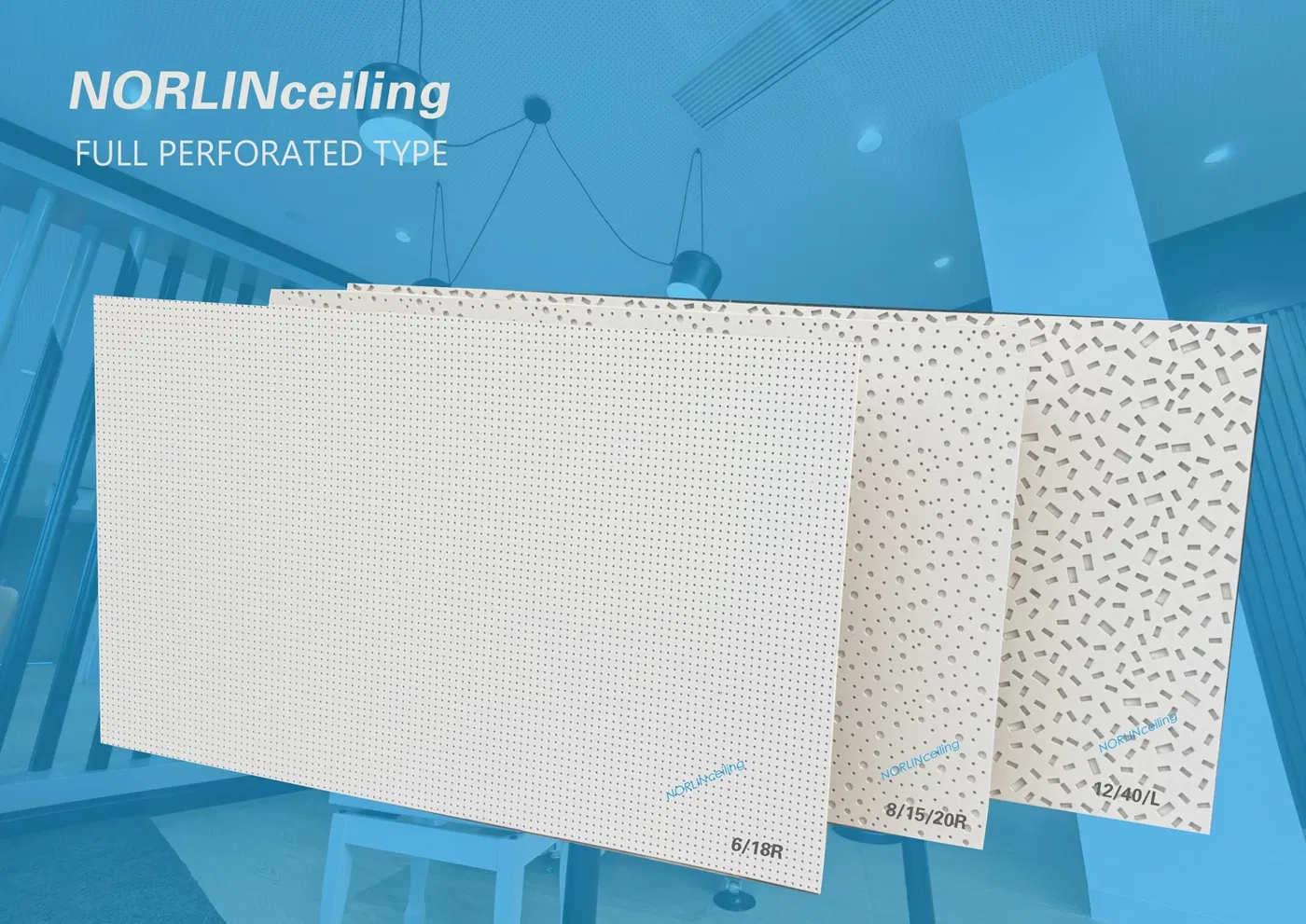

Perforation Patterns

Matrix 8mm Round: Provides a pattern of 8mm round perforations at 18mm centres, providing a 15.5% open area.

Matrix 12mm Round: Features a pattern of 12mm round perforations spaced at 25mm centres, providing a 18.1% open area.

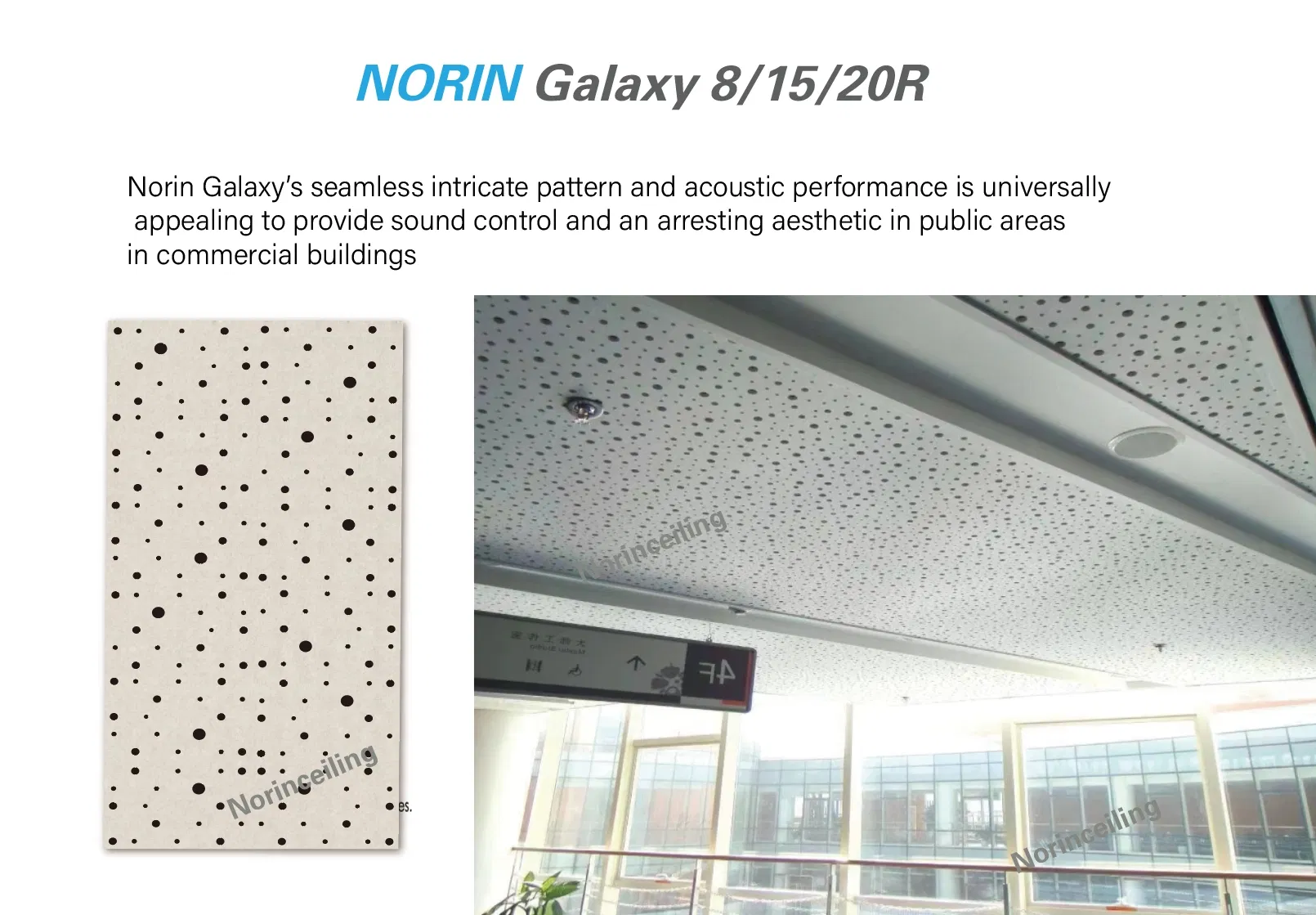

Galaxy 8/12/20R: Features an irregular scattered pattern consisting of 8mm, 15mm, and 20mm round perforations, providing a 10% open area.

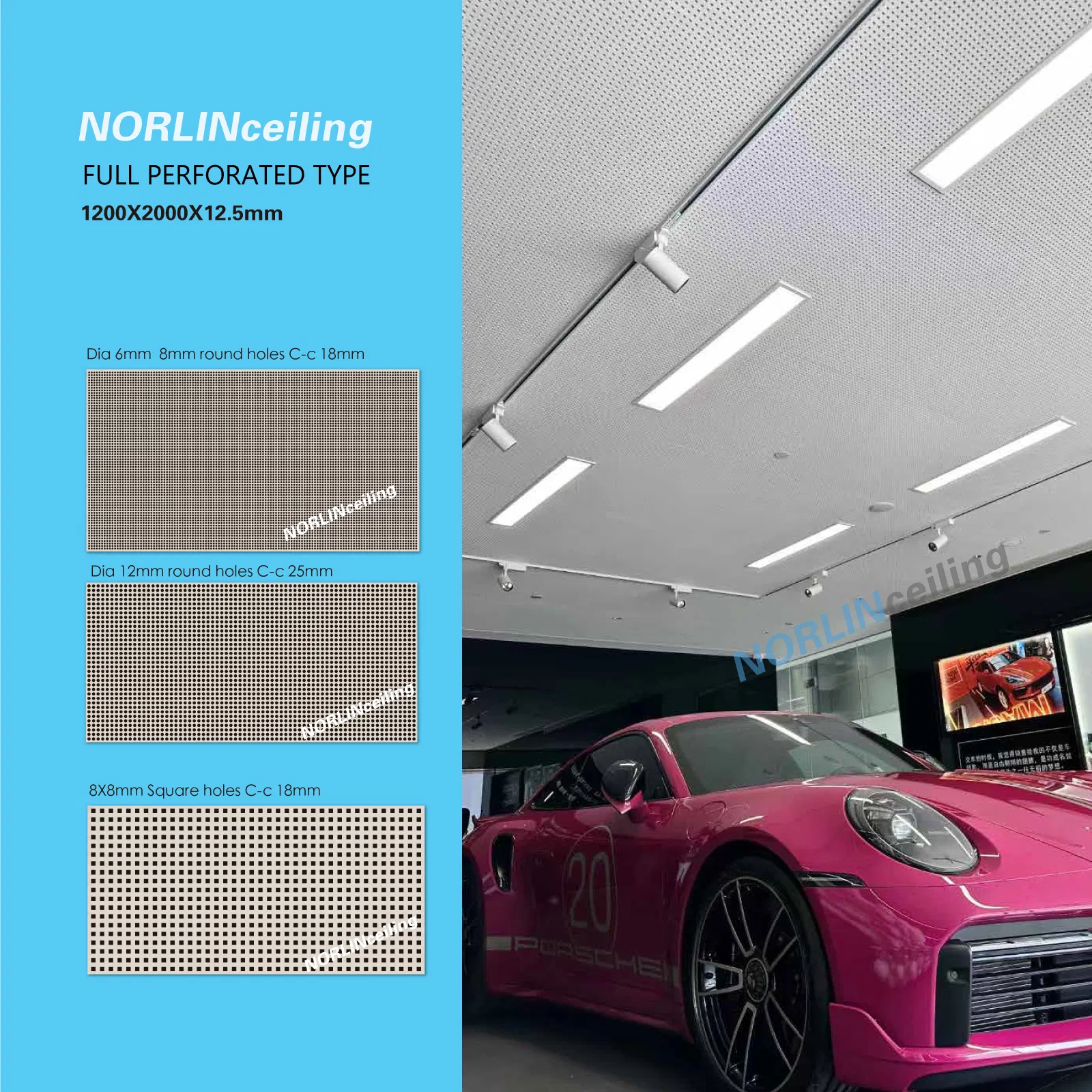

Pattern Detail

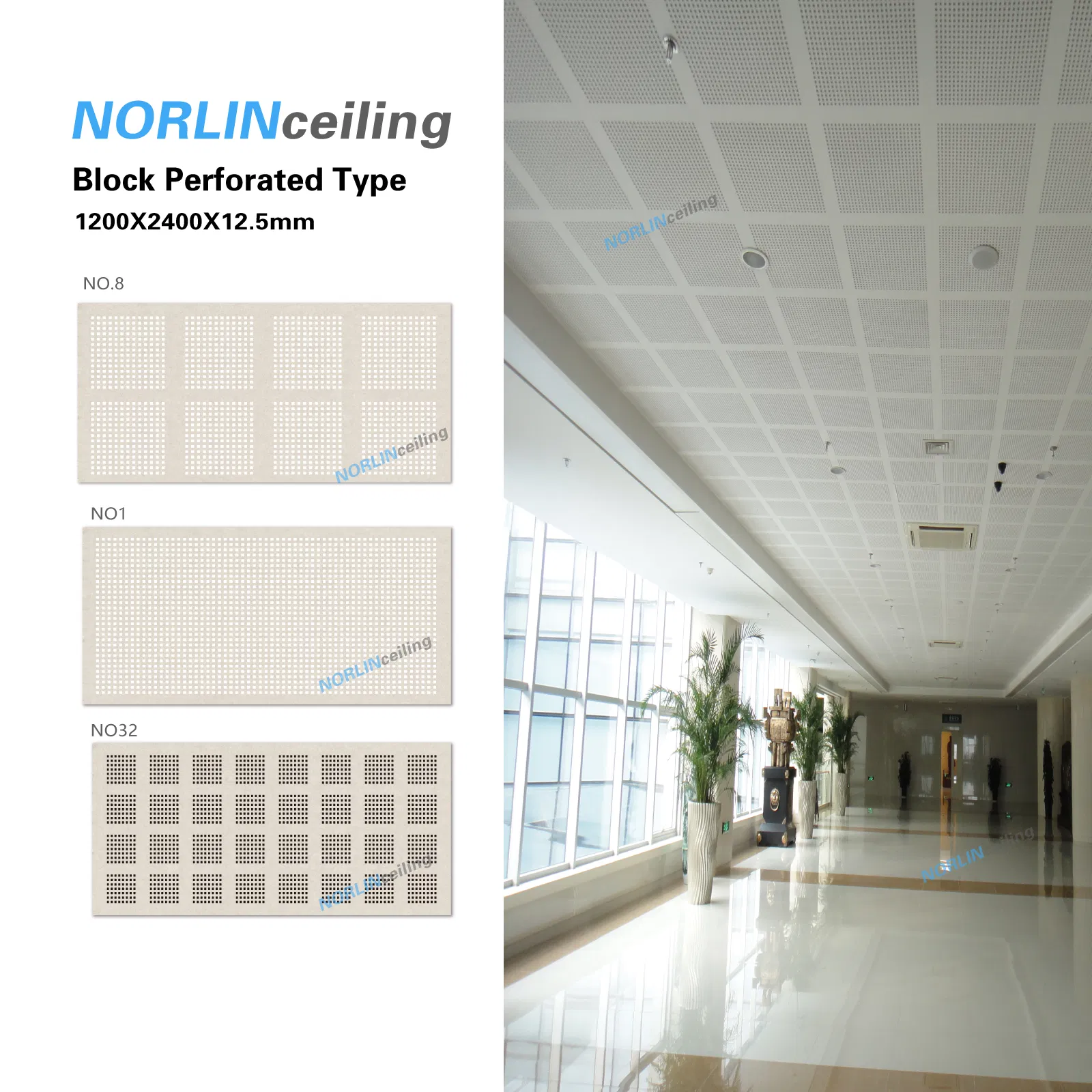

Ceiling Installation

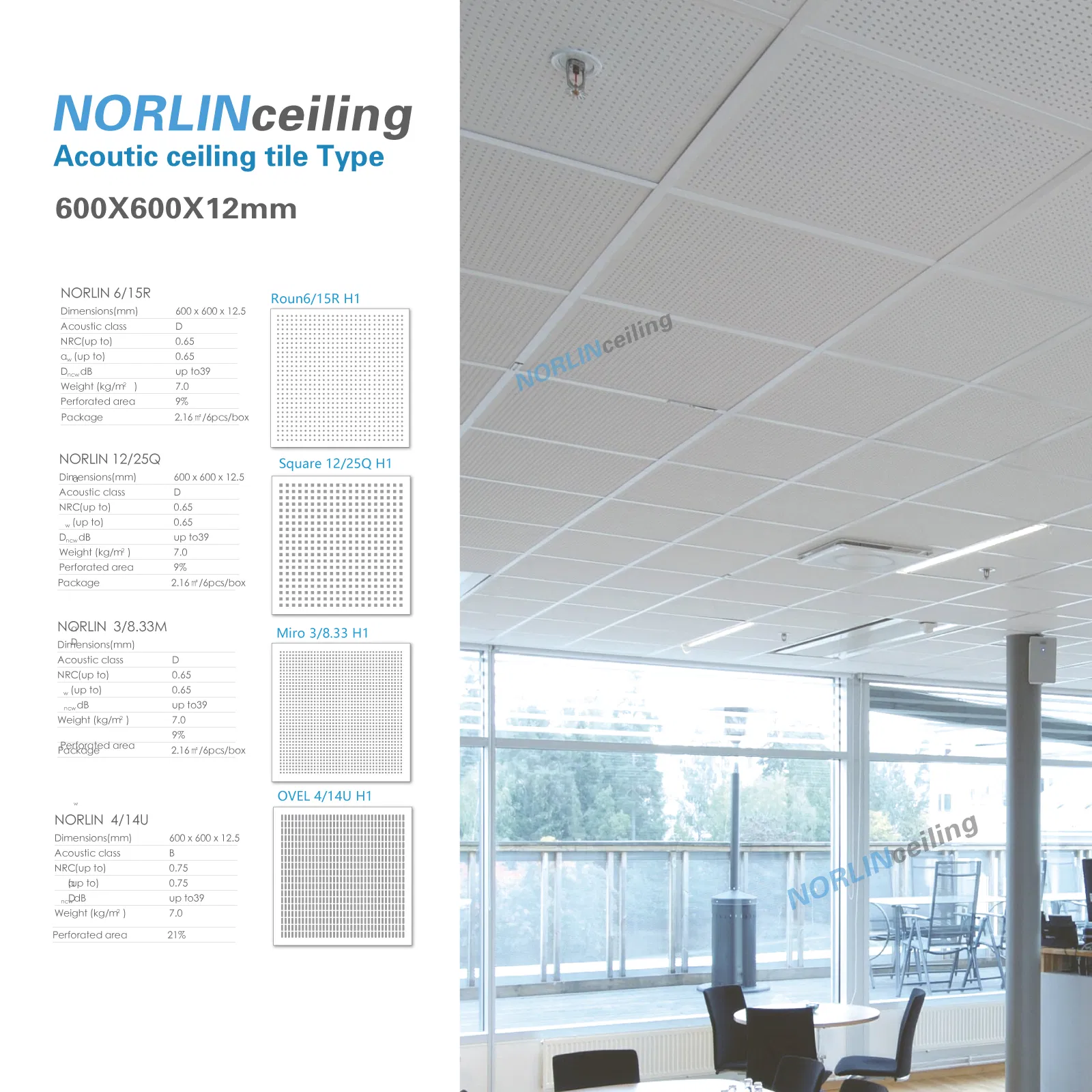

Board Backing

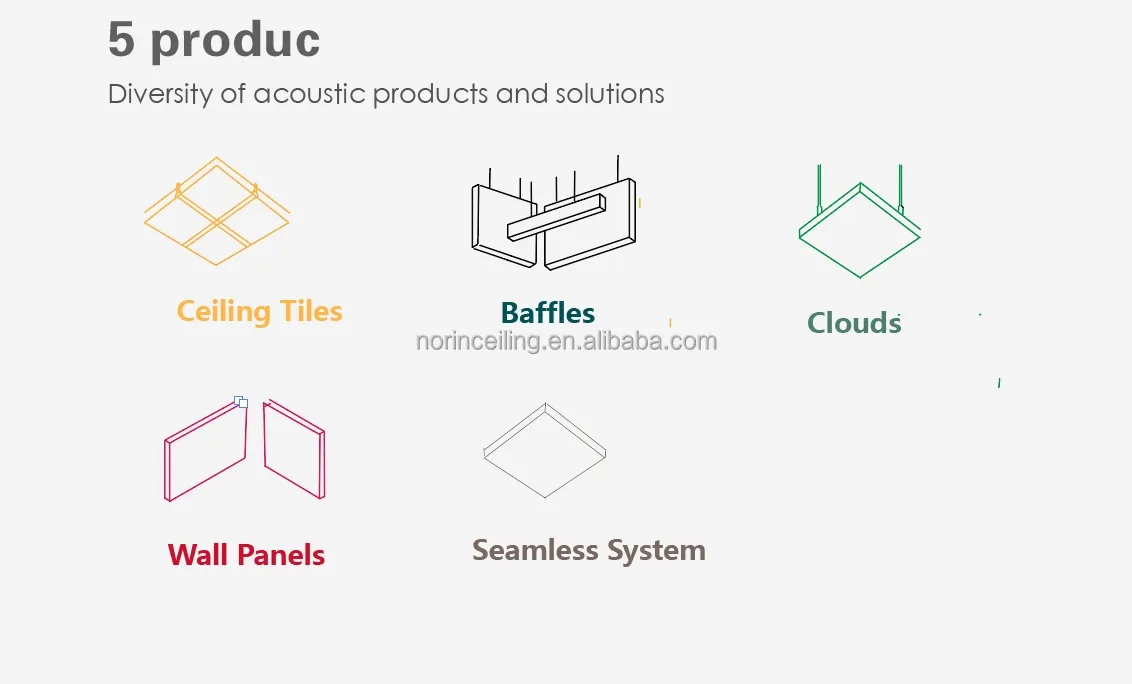

🏭 Production Capabilities

With 18 years of experience in numerous global projects, our acoustic solutions cover glass fiber, rock wool, mineral wool, and gypsum materials. We provide customized surface textures, colors, and shapes to meet specific architectural requirements. Our focus is on providing cost-efficient, high-quality products that assist our clients in achieving superior acoustic environments.

Factory Production
Frequently Asked Questions
What is the primary benefit of perforated plasterboard?
The primary benefit is superior acoustic control. The perforations allow sound waves to pass through and be absorbed by the acoustic backing, significantly reducing echo and reverberation in a room.
Can these boards be used for walls as well as ceilings?
Yes, while they are predominantly installed in ceilings, perforated plasterboard is also suitable for use in wall applications where high-level acoustic performance is required.
How is a seamless finish achieved during installation?
A seamless finish is achieved by using edge-to-edge chamfered boards that connect directly, followed by the application of specialized ready-mixed fillers and sanding before painting.
What is the fire rating of these gypsum boards?
These boards are designed as fireproof ceiling solutions, meeting standard commercial building safety certifications for fire resistance.
Does the acoustic fabric backing come in different colors?
The highly effective acoustic non-woven fabric backing is typically available in both white and black colors to match the aesthetic requirements of the design.
What is NRC and why is it important?
NRC stands for Noise Reduction Coefficient. It measures how much sound a surface can absorb. With an NRC of 0.85-1.0, these boards are highly efficient at making environments quieter and clearer.
