Dubuild Panel
1 / 5

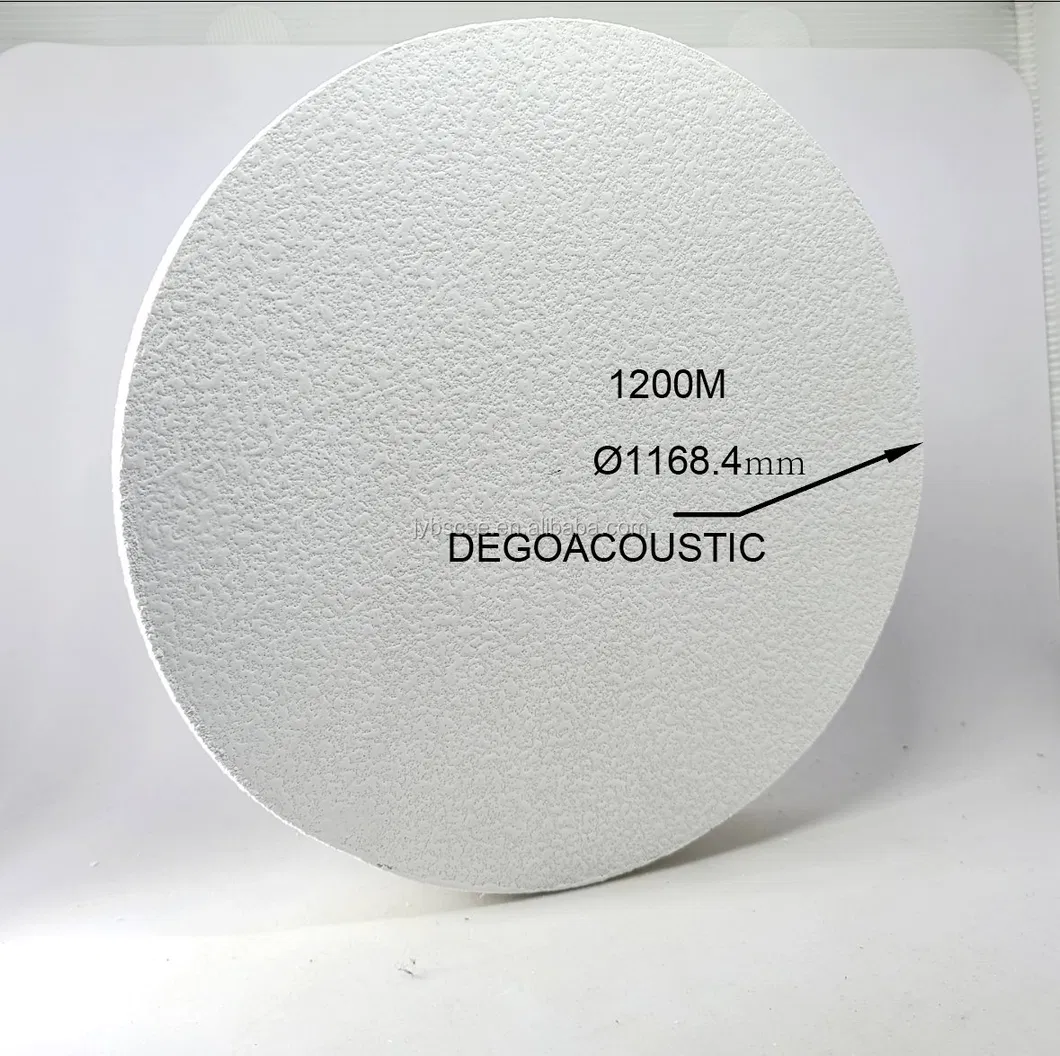

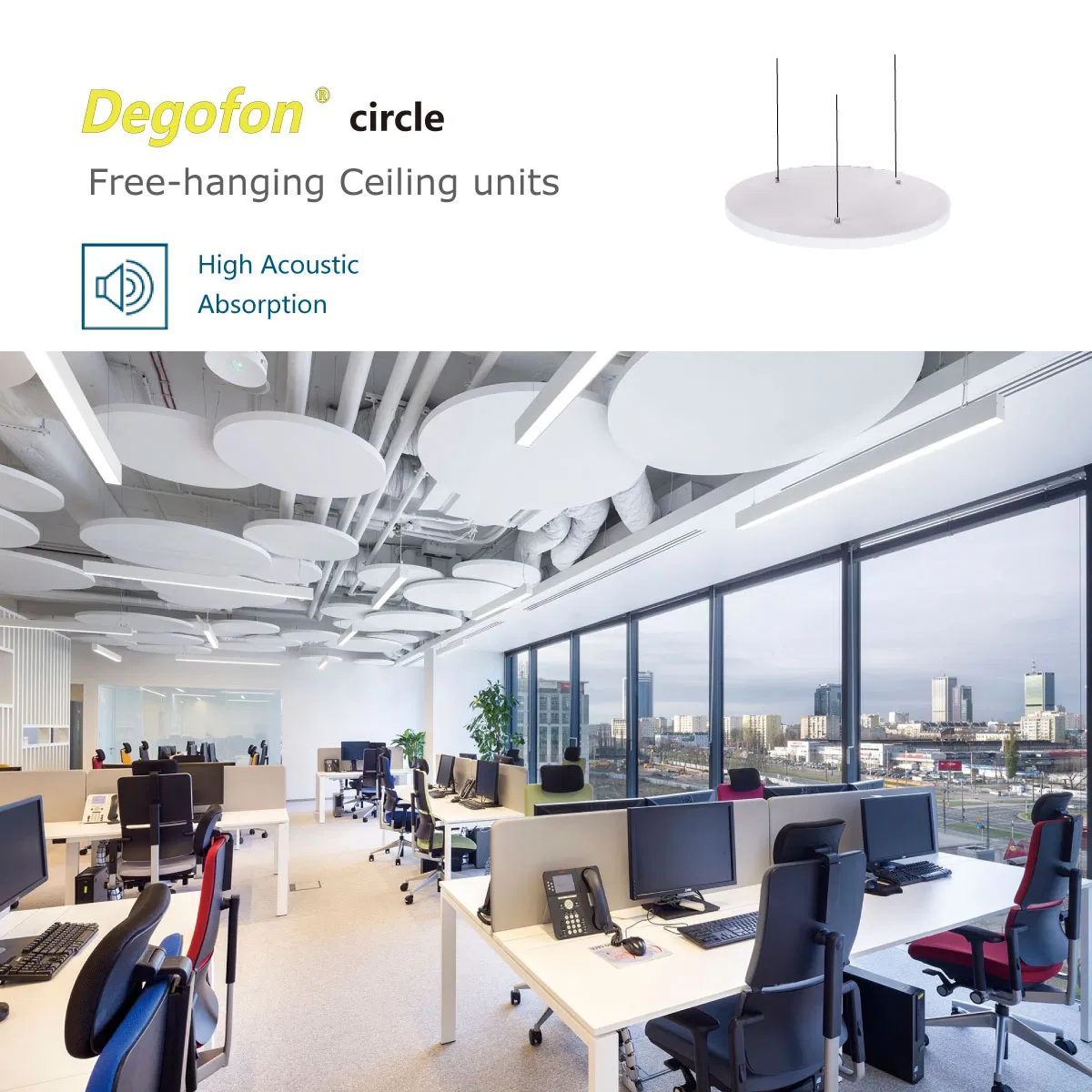

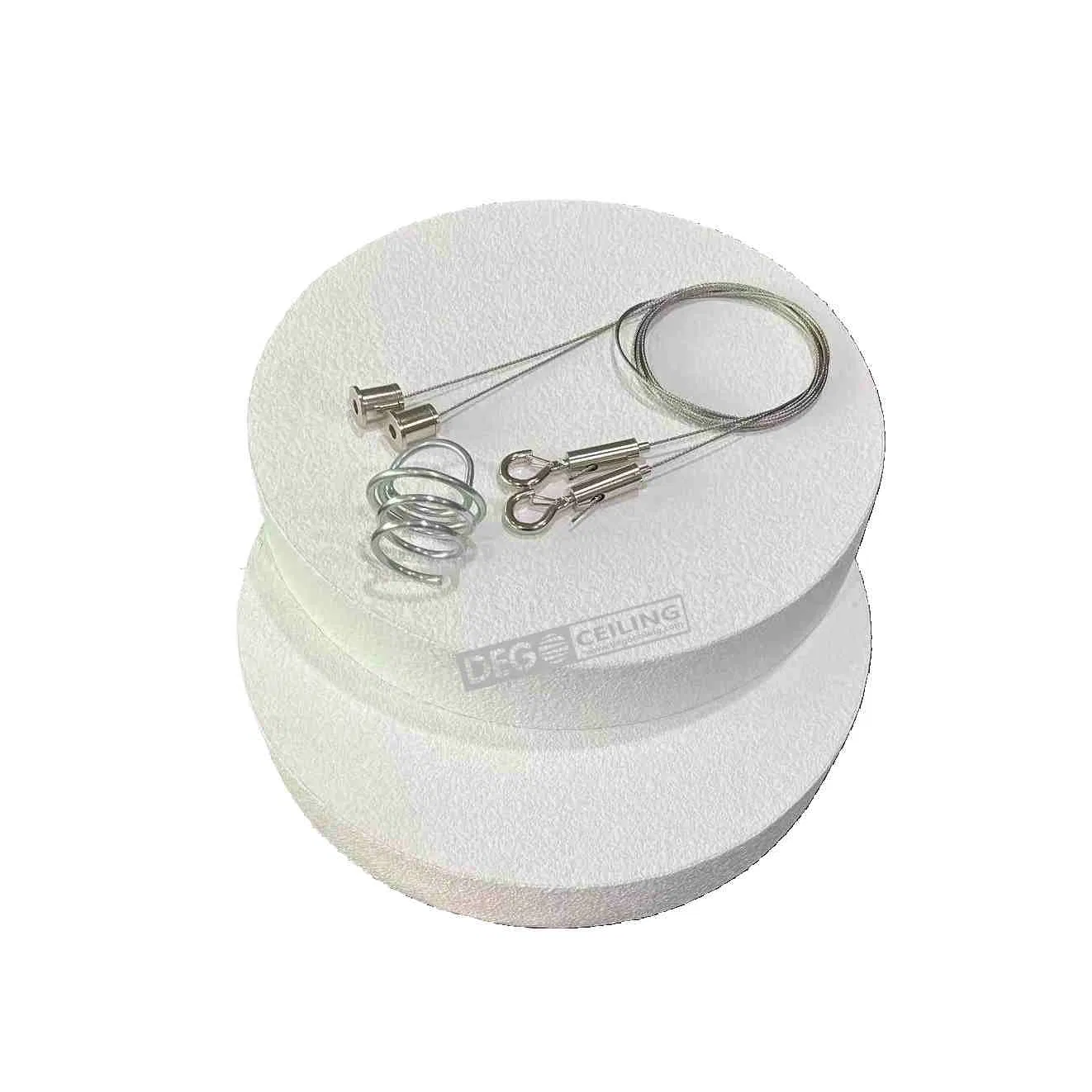

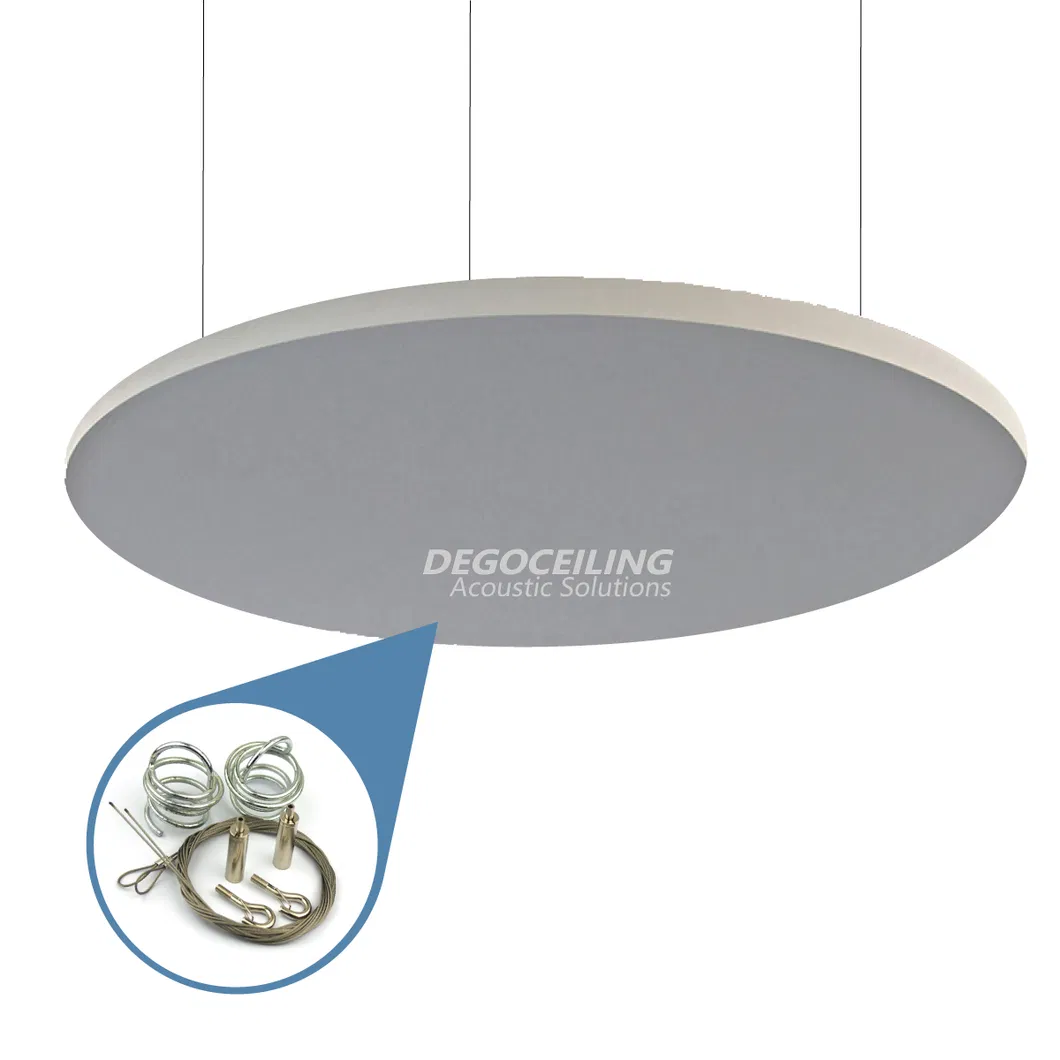

Unframed free hanging units available in Ø1200x40mm (4.5kg) or Ø800x40mm (2kg). Manufactured from high-density glass wool core with a white surface on both sides. Straight cut and painted edges offer high design possibilities.

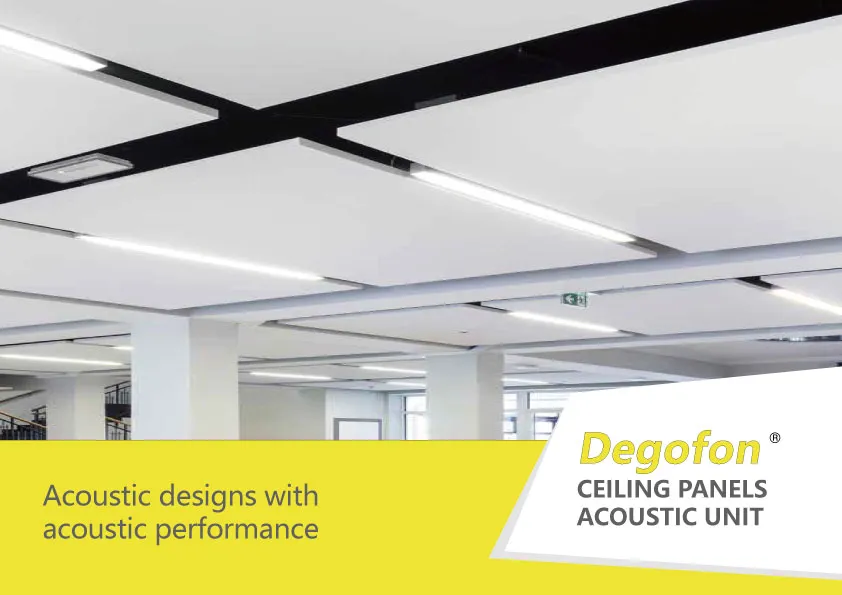

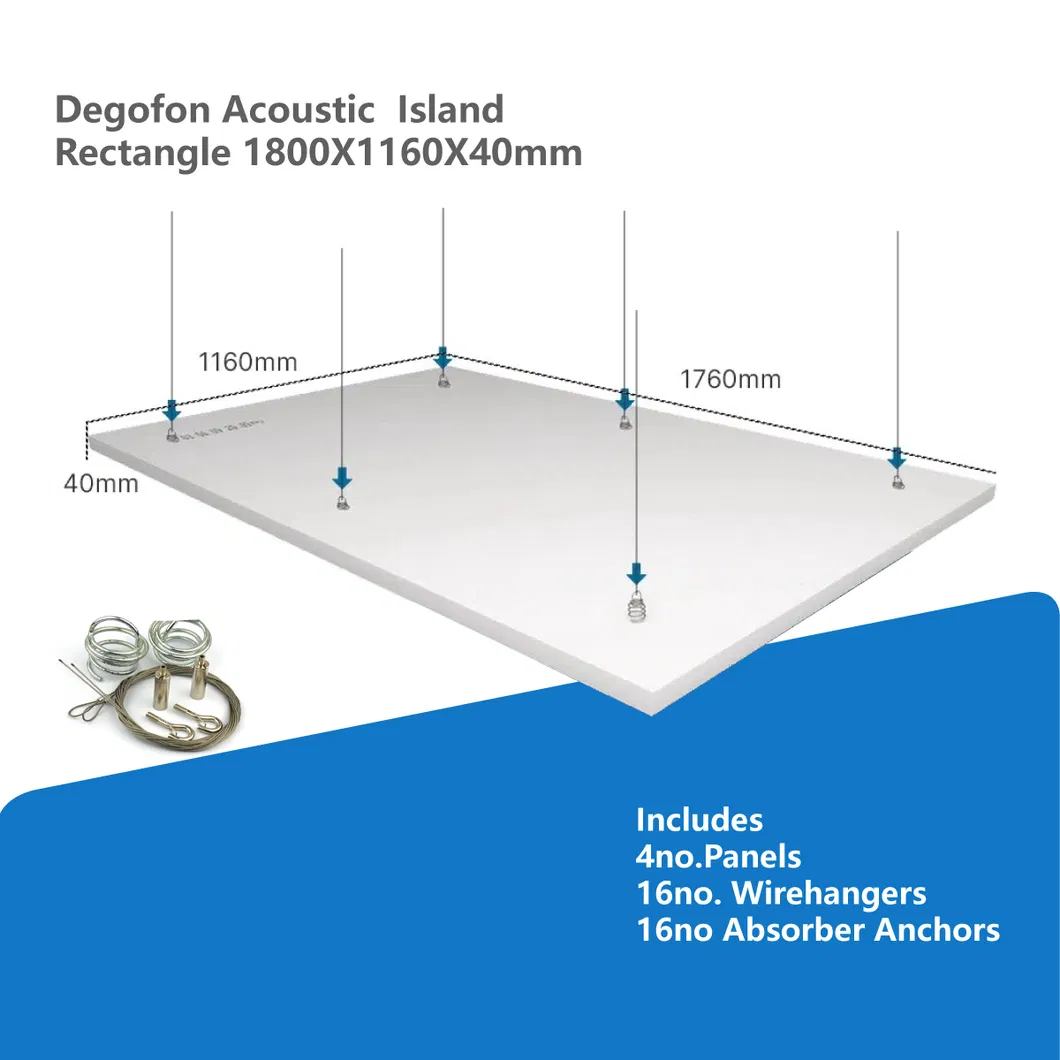

Effective sound reduction with excellent visual characteristics. Maximum sizes reach 2400mm x 1200mm with a 40mm thickness. The acoustic fabric is glued to the face and surroundings to form a sleek, frameless look.

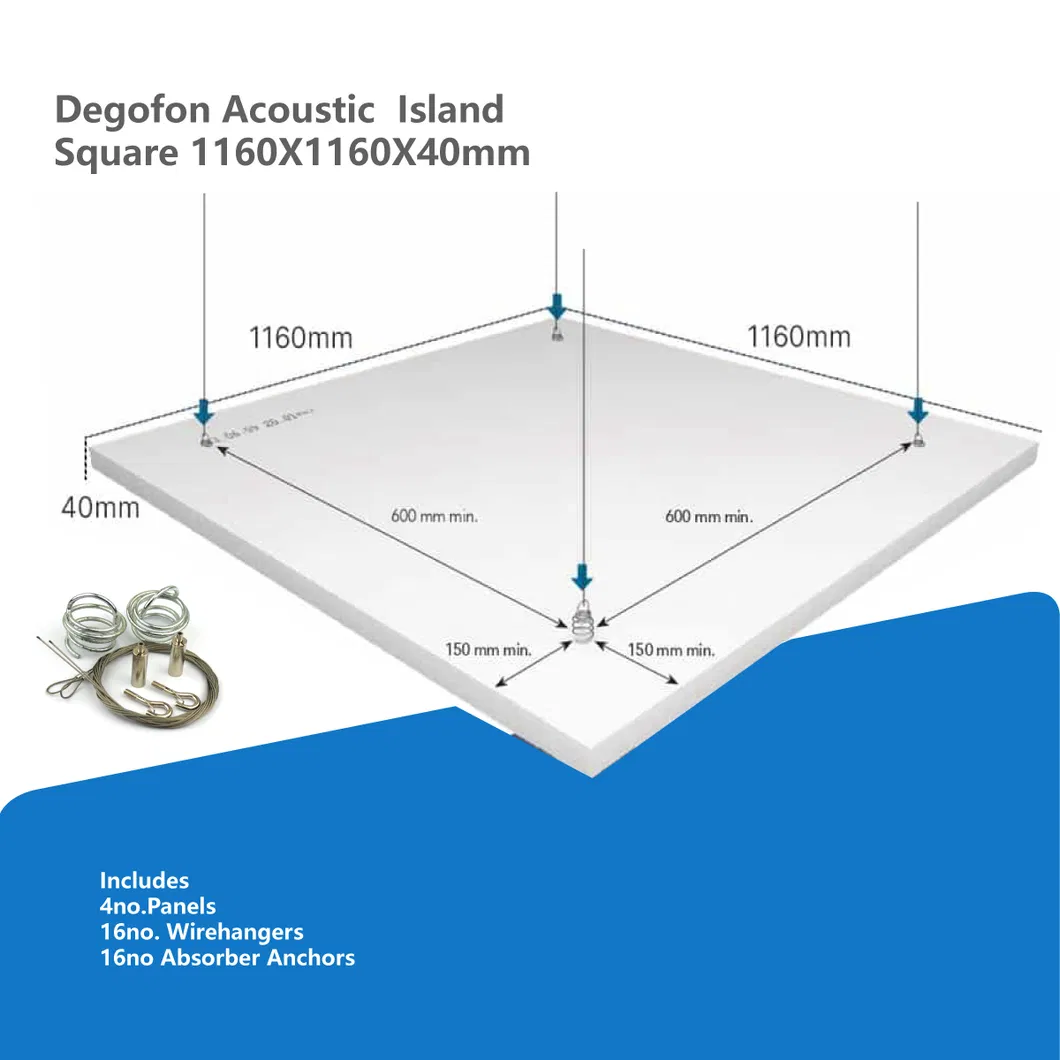

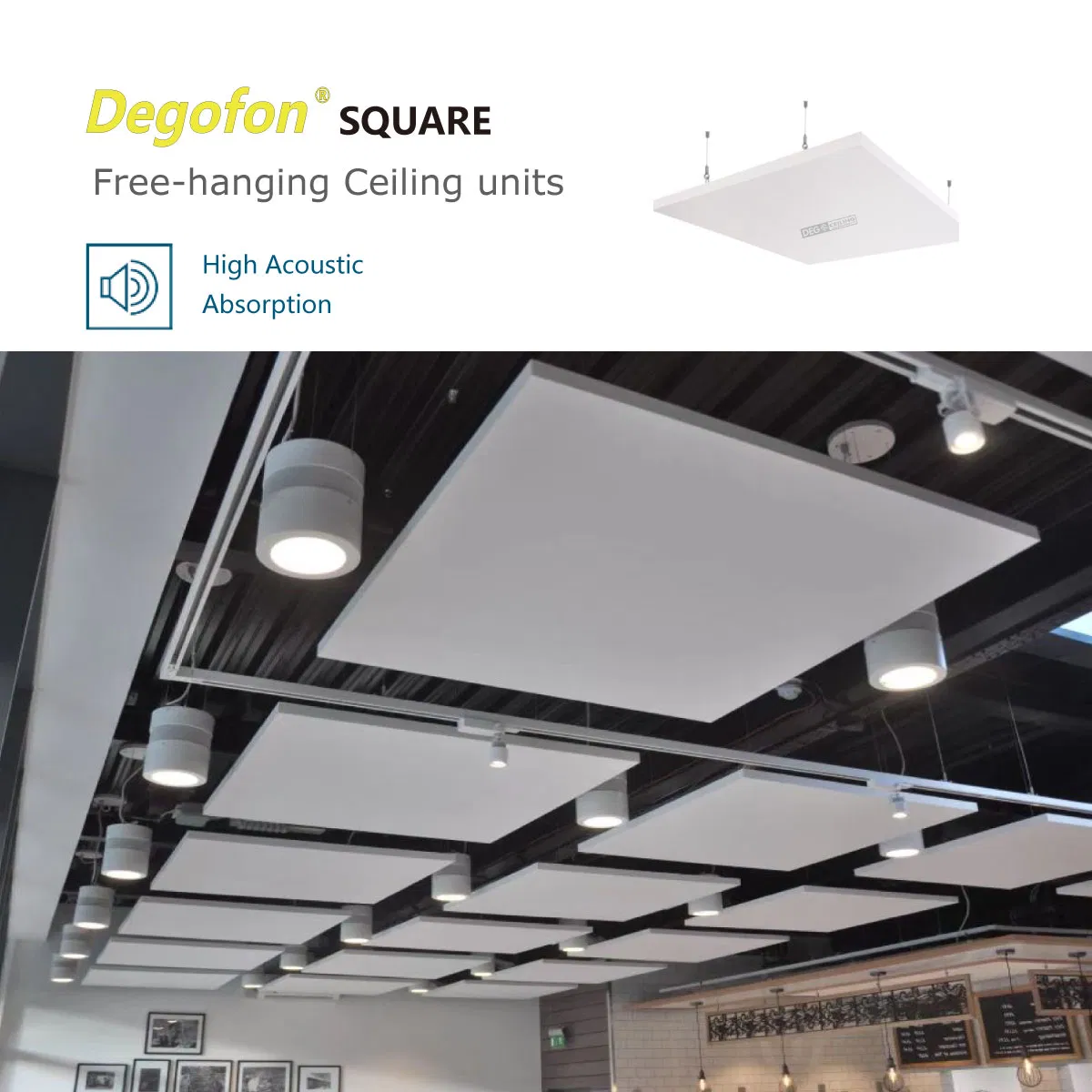

Size 1200x1200x40mm (4.5kg). Manufactured from high-density fiberglass glass wool, offering a high degree of design flexibility regarding colors and layout.
| Material | Fiberglass wool with acoustic surface |
| Surface Finish | Factory applied acrylic latex paint |
| Thickness | 30, 40, 50 mm |
| Acoustic Absorption | NRC 0.85 / 0.95 |
| Light Reflectance | LR 0.85 |
| Fire Class | A2 |
| Weight | 4.5kg/m2 (40mm thickness) |

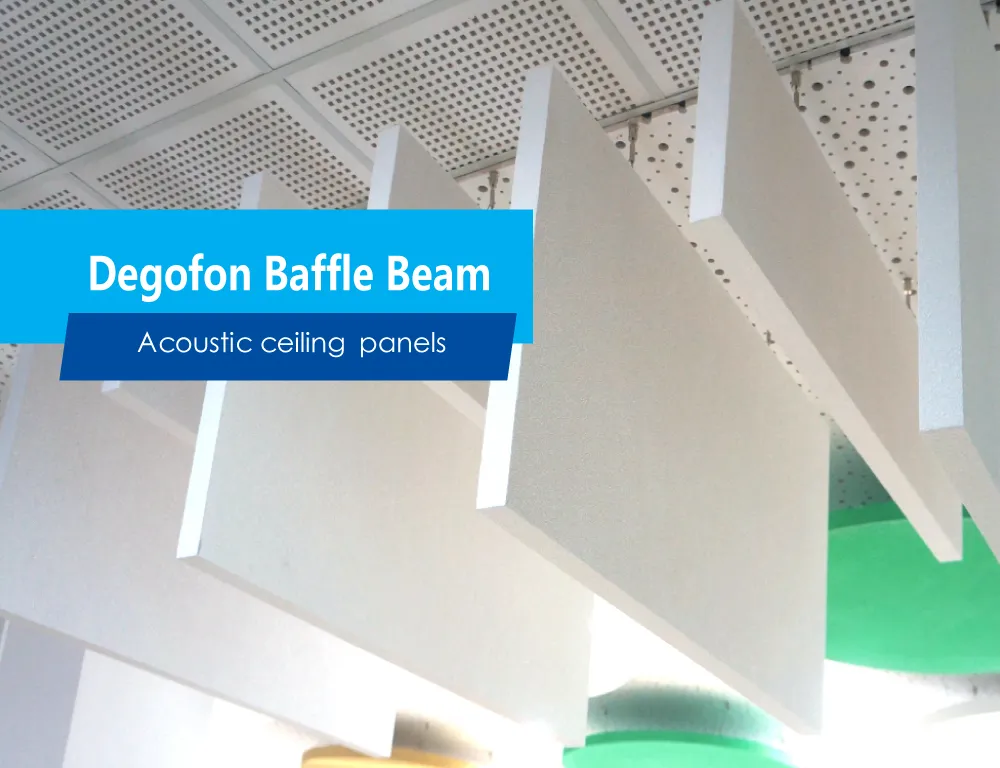

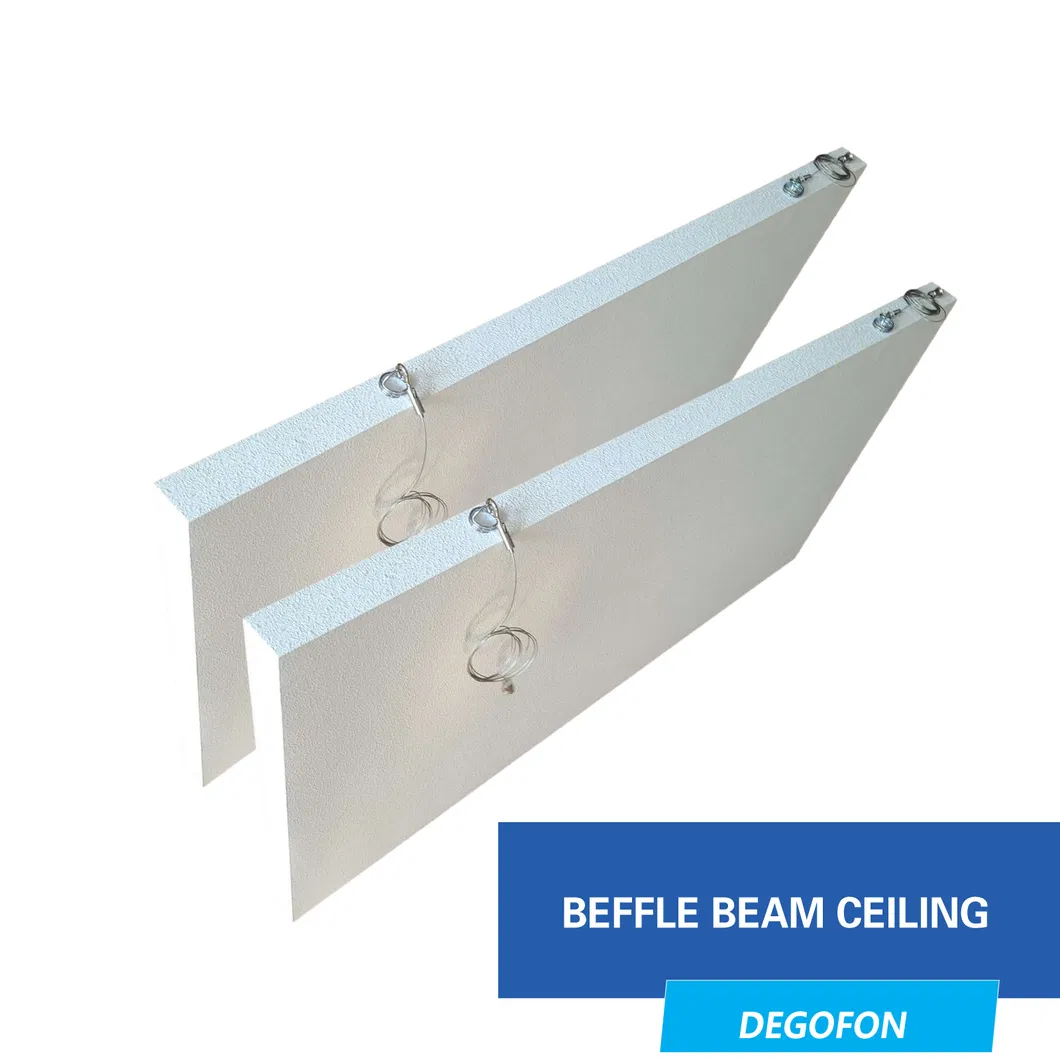

Vertical baffles create a uniquely modern visual with linear rectangles, undulating waves, and zig-zag patterns. Ideal for atria to provide sound absorption without interrupting sightlines.
