Basic Information
Model NO.
AG. ACOUSTIC-SK
Specification
T38*24, Steel Galvanized
Shape
T-type
Material
Steel
Function
Fireproofing, Anti-Corrosion
HS Code
73089000
Product Description
ⓘ

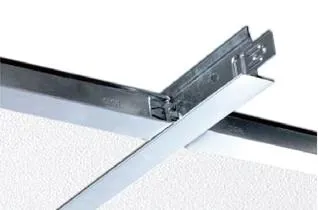

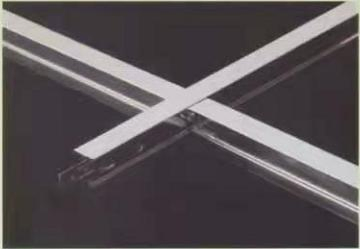

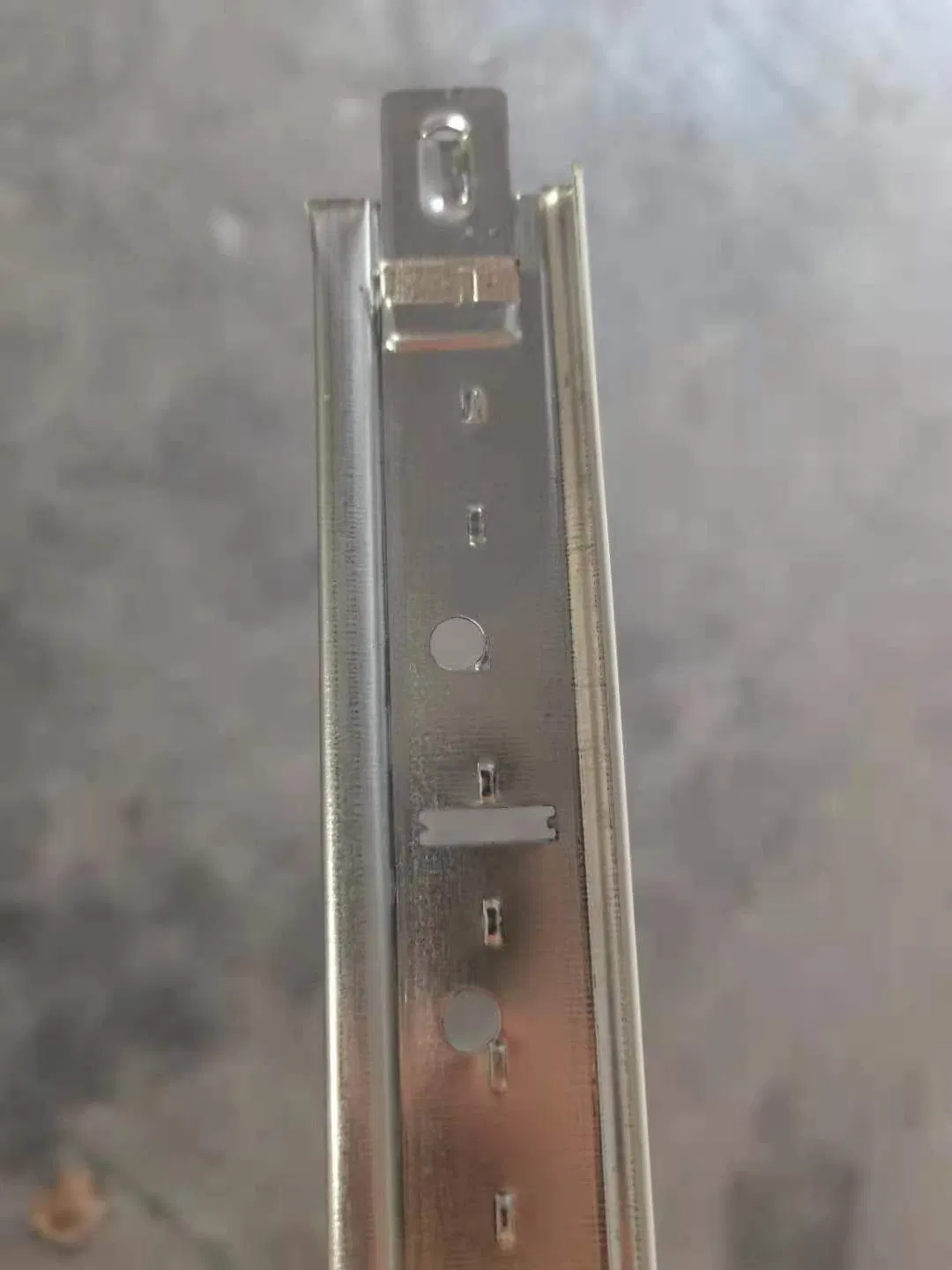

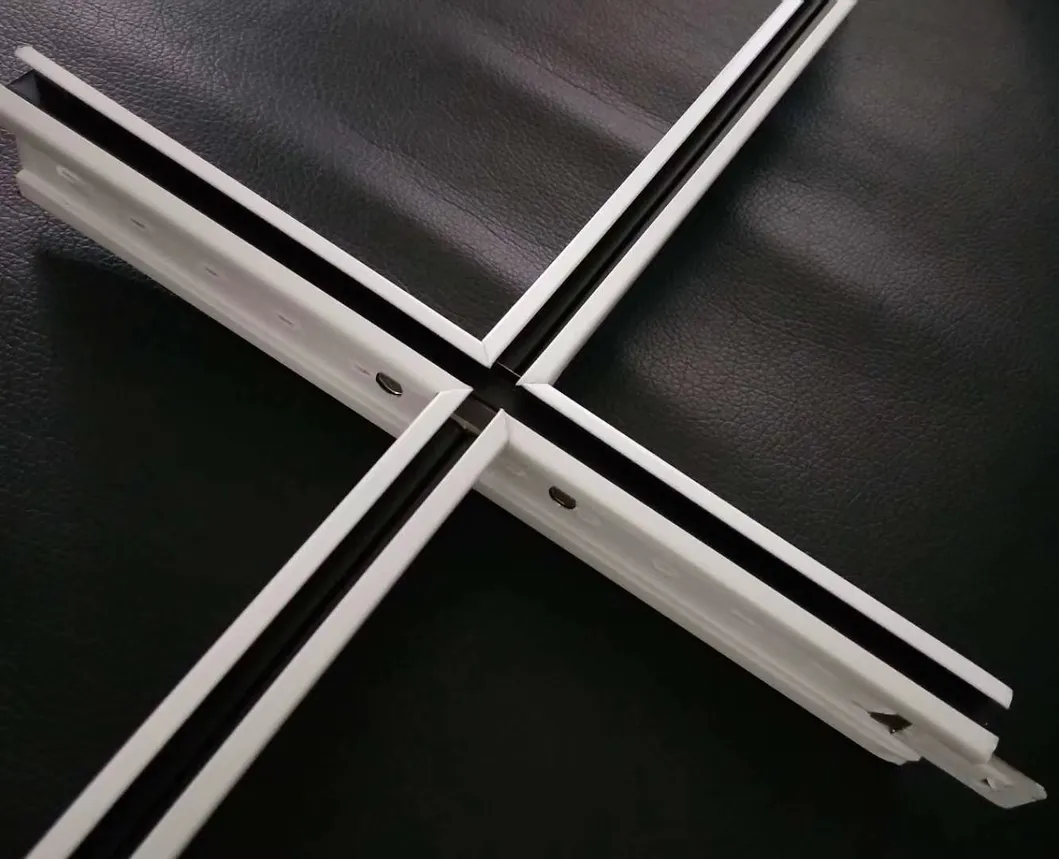

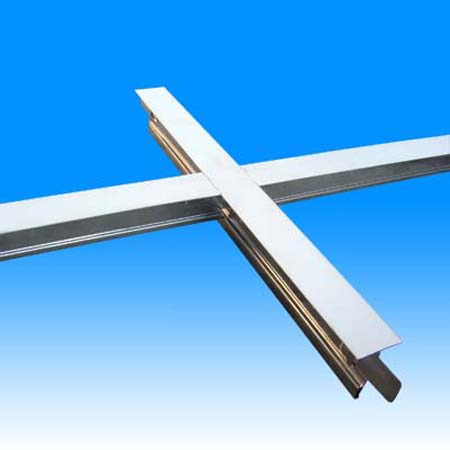

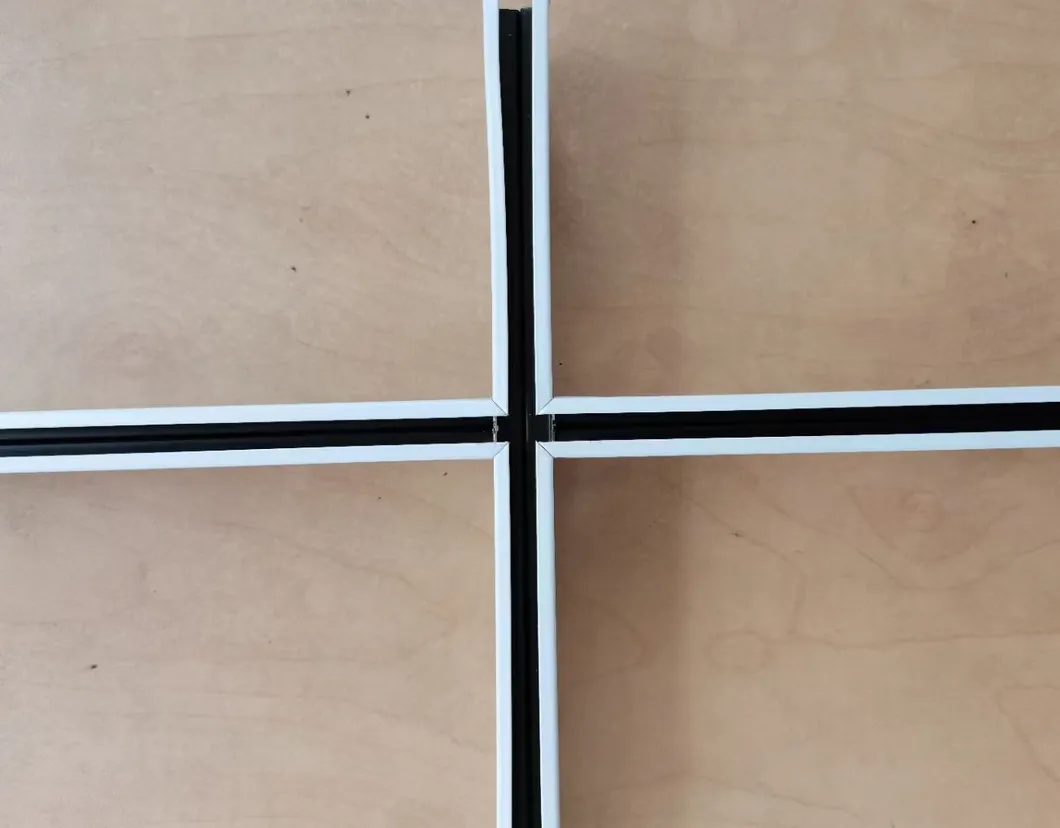

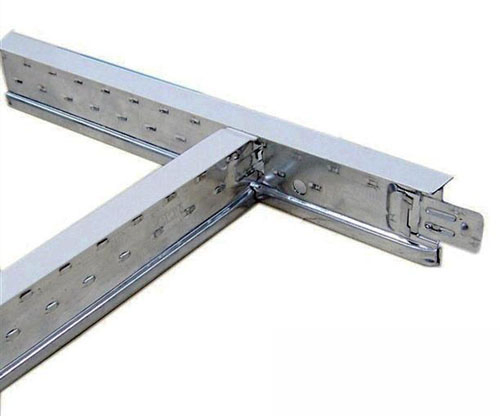

Ceiling suspension grids are double web cold-rolled sections, manufactured from hot-dipped galvanized steel. The tees section is with pre-painted capped, ensuring that the system is manufactured to a very high quality level.
Standard Specification
| Core Material |
Steel Galvanized |
| Standard |
ASTM C635 & ASTM C636 |
| Available Colors |
White / Silver / Wooden / Customized |
| Stitch Option |
Stitch or without stitch both available |
| Thickness |
0.25mm / 0.3mm / 0.4mm / Customized |
| Main Runner |
38/32*24*3600mm |
| Long Cross |
38/32/26*24*1200mm |
| Short Cross |
38/32/26*24*600mm |
| Wall Angle |
24*24*3000mm |
| Other dimensions can be customized according to requirements. |

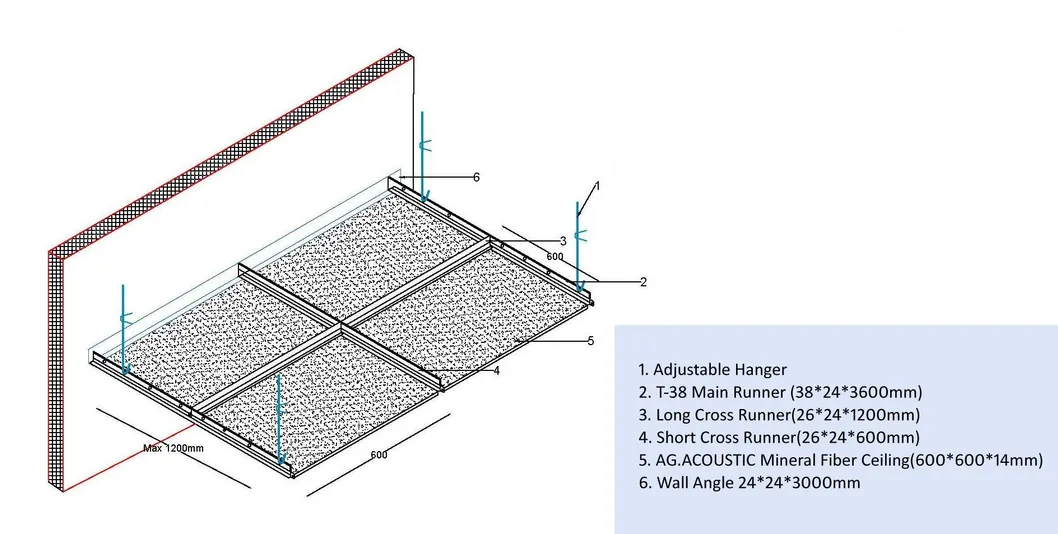

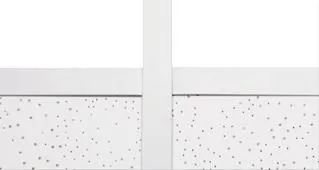

Installation Structure Diagram

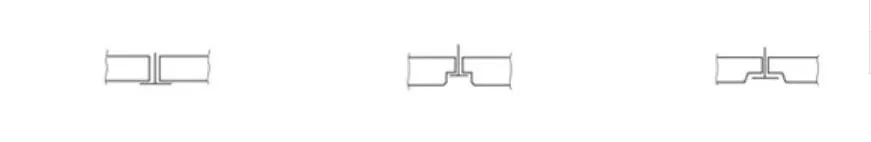

* Suitable for various edge treatment requirements.

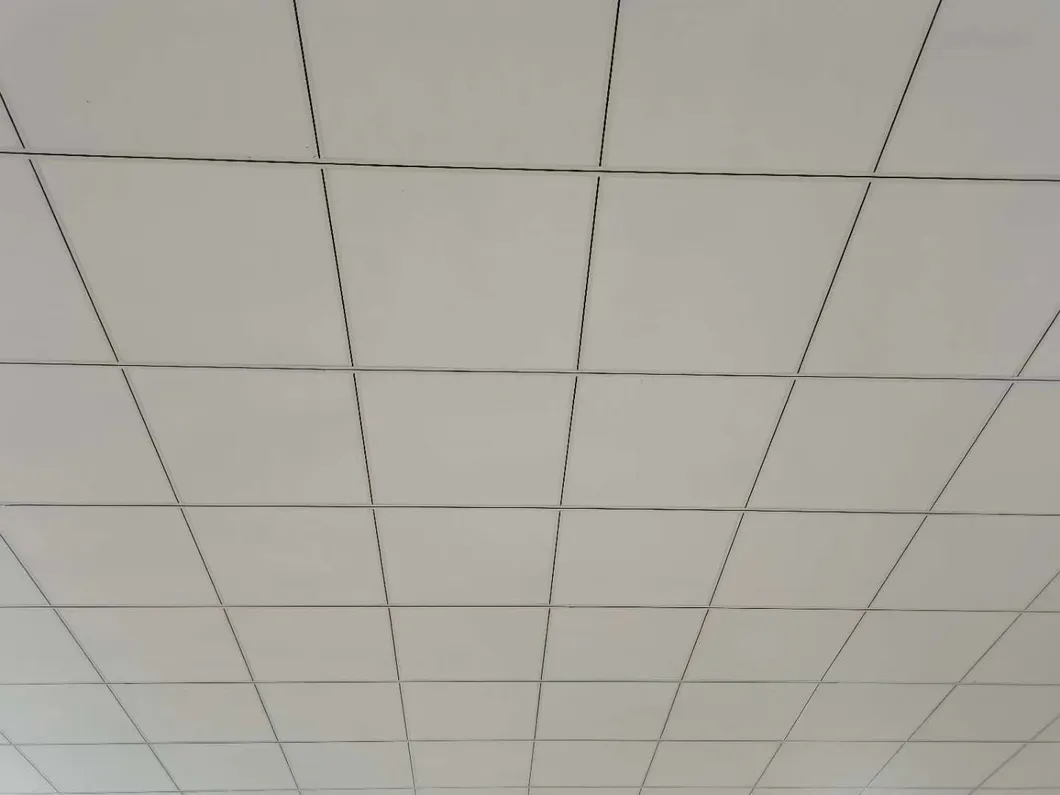

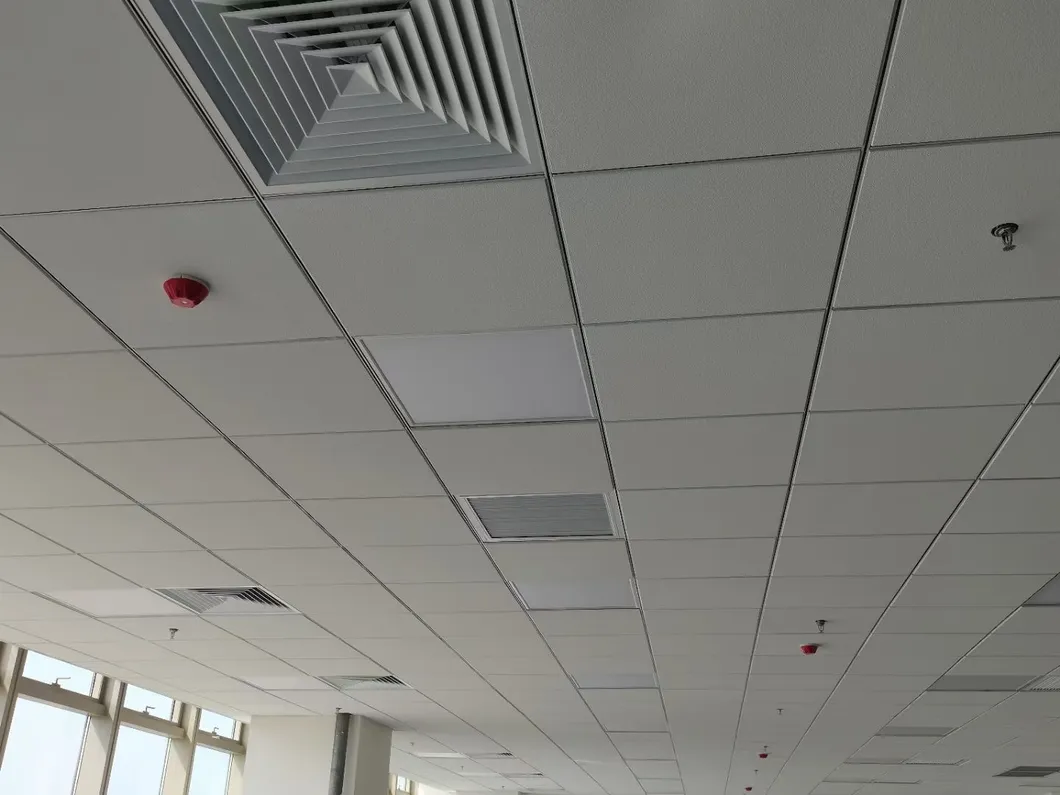

Wide Application

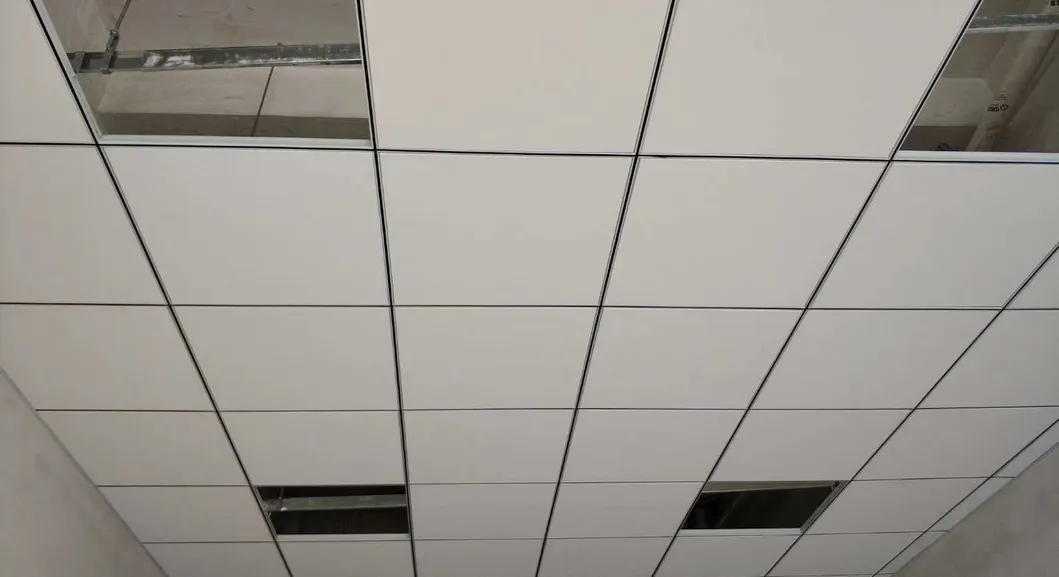

Extensively used in building material and various industries including schools, studio rooms, reception areas, lecture theaters, offices, hospitals, sport and recreation halls, workshops, and commercial buildings.
Frequently Asked Questions
1. What materials are used in this suspension system?
The system is manufactured from high-quality hot-dipped galvanized steel with double web cold-rolled sections.
2. Which international standards does the product comply with?
The ceiling suspension system meets the ASTM C635 and ASTM C636 standards for structural performance and installation.
3. Can the dimensions and colors be customized?
Yes, we offer customized thickness (0.25mm to 0.4mm) and various colors including White, Silver, and Wooden finishes to meet specific project needs.
4. What are the primary functional benefits of this system?
The system provides excellent fireproofing, jar-proof properties, anti-corrosion durability, and damp-proof protection.
5. Where is this tee grid system typically installed?
It is suitable for terminal buildings, stations, playgrounds, hotels, factories, offices, hospitals, and gymnasiums.
6. Does the system support different edge treatments?
Yes, the structure is designed to be compatible with different ceiling tile edge treatments for a professional finish.
