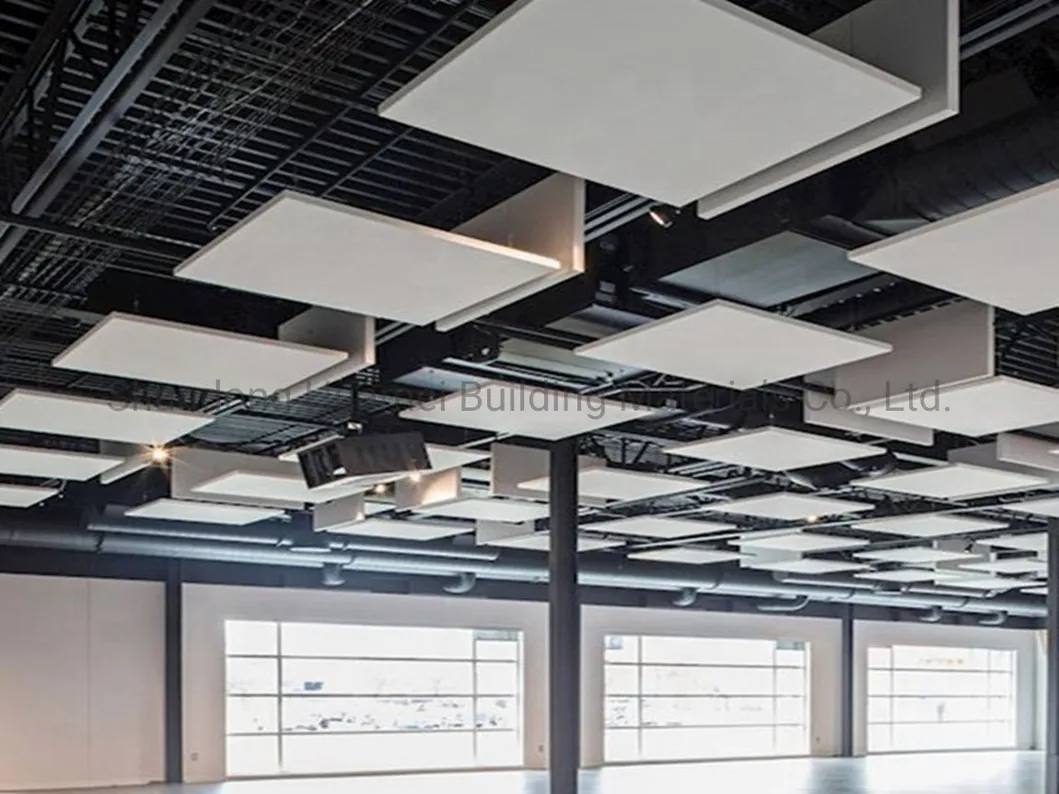

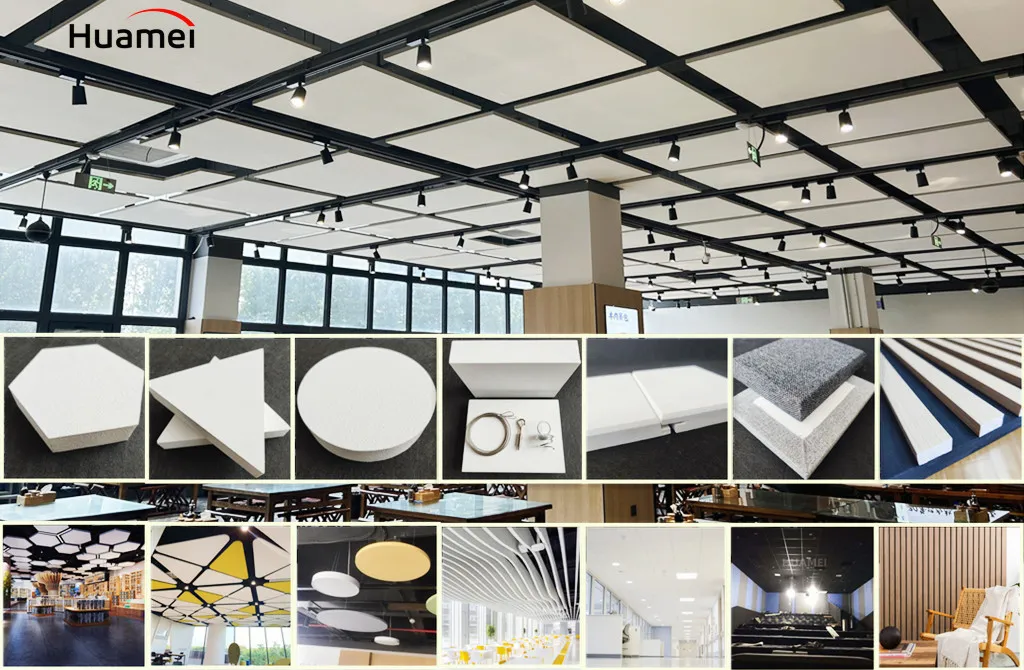

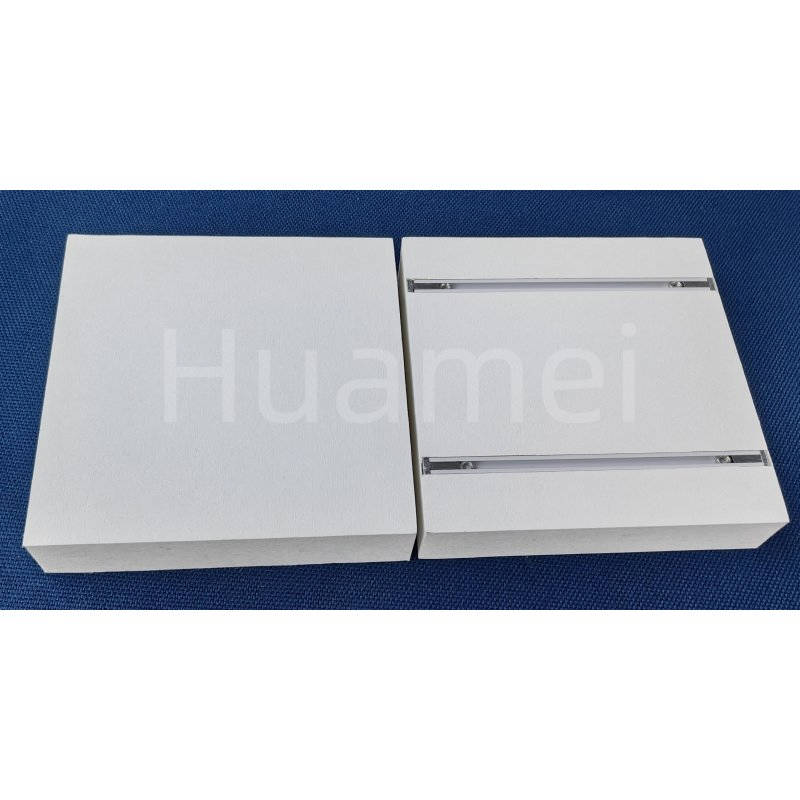

Square acoustic ceiling clouds are 1200x1200x40mm in size with a weight of 7kg/pcs. Manufactured from high-density glass wool with fiberglass felt on all sides. Edges are straight cut and wrapped by fiberglass felt.

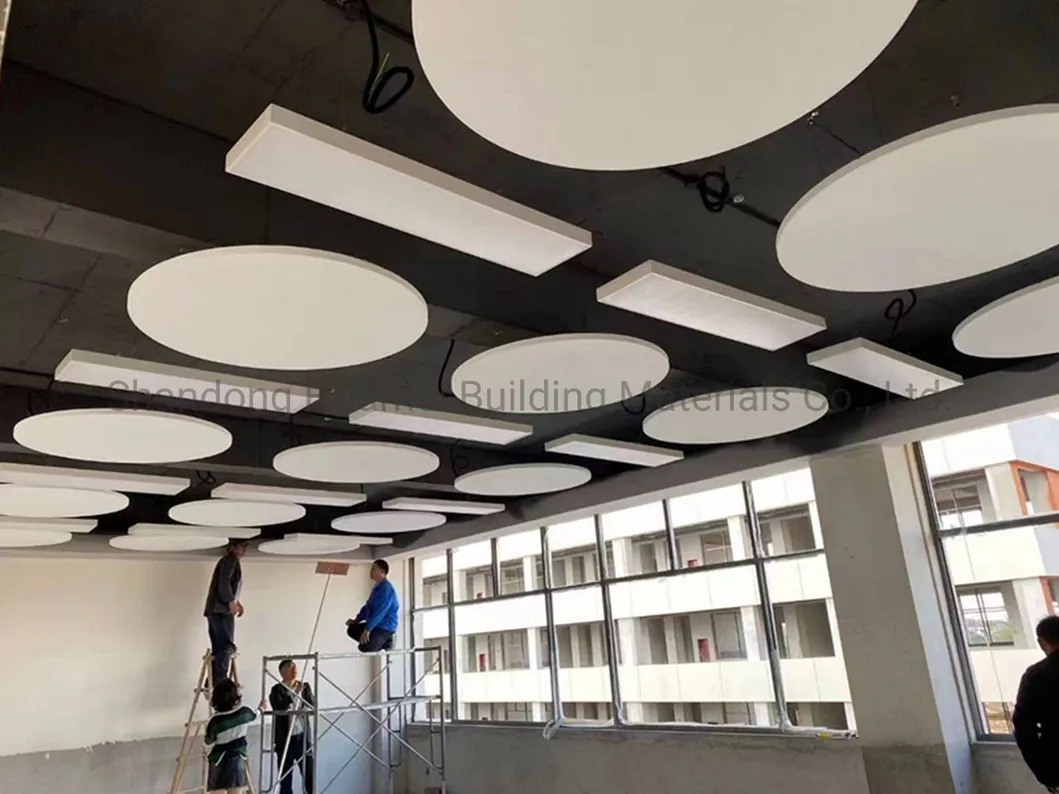

Round acoustic ceiling clouds are Φ1200x40mm in size with a weight of 5.5kg/pcs. These clouds capture ambient energy by absorbing sound as it hits the face of the panel, while trapping reflections from the ceiling on the back side.

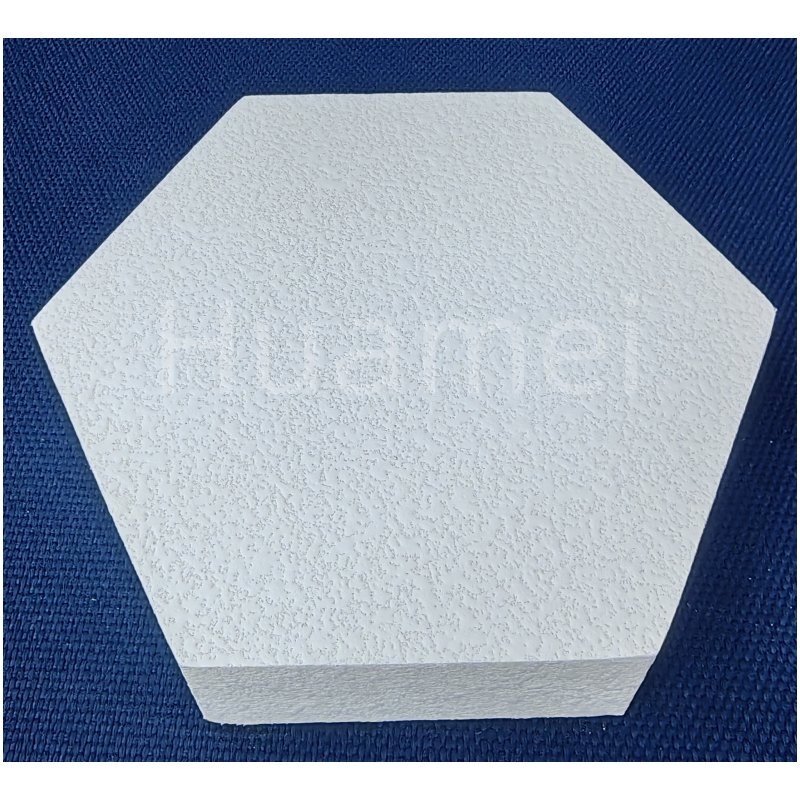

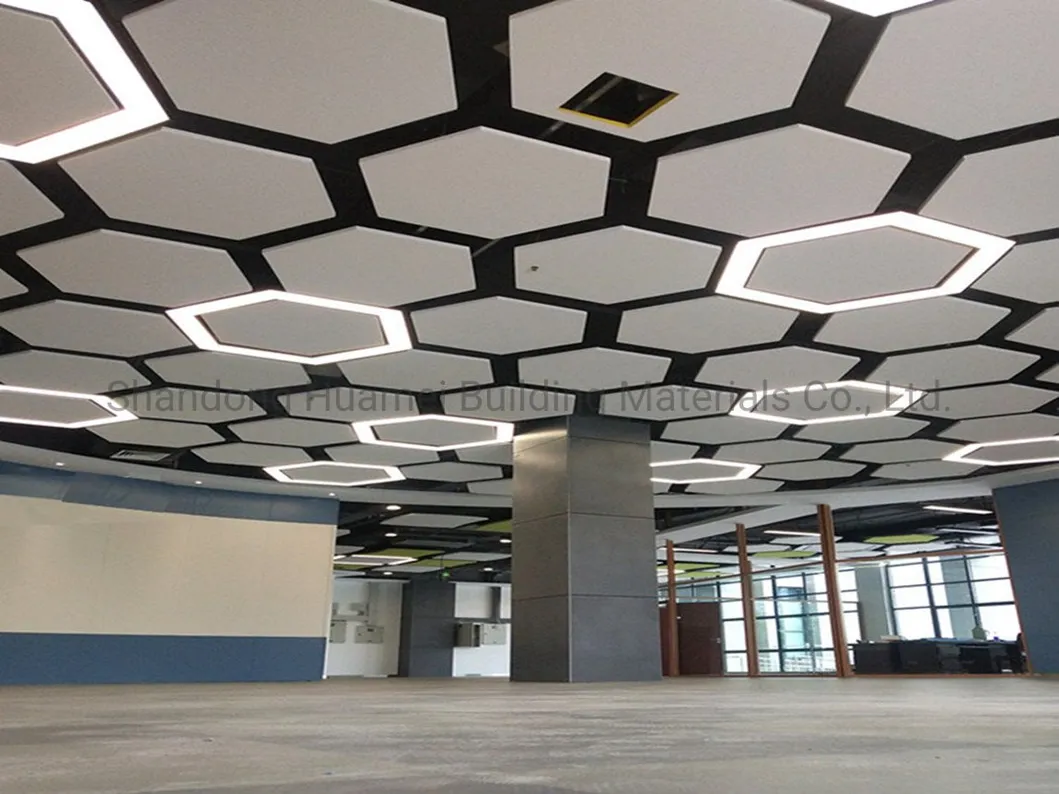

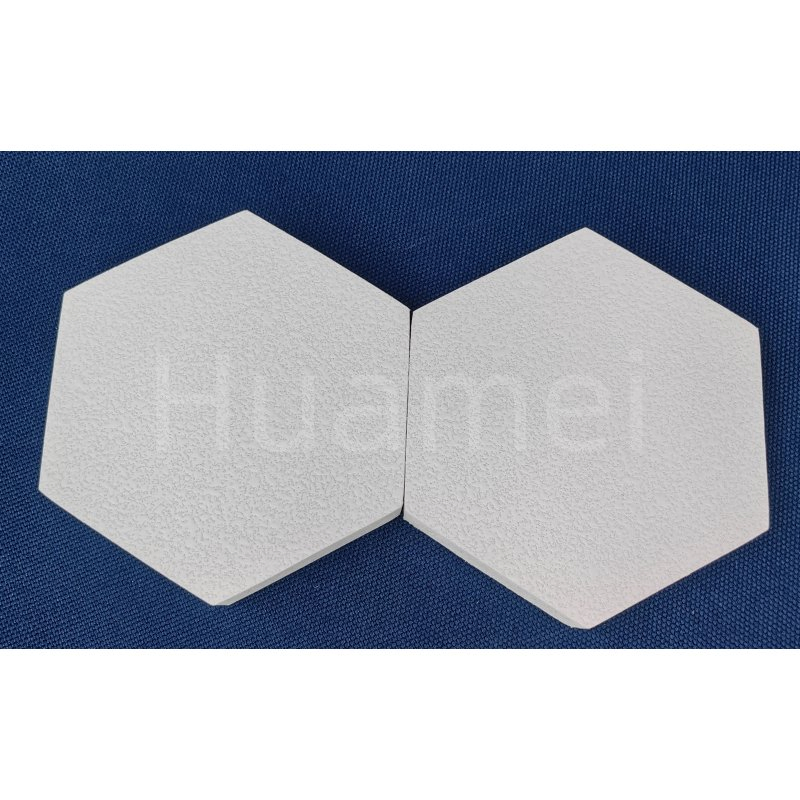

Hexagon acoustic ceiling clouds are Φ1200x40mm in size with a weight of 4.5kg/pcs. Laboratory tested for acoustic performance (NRC 0.9) and fire safety (Class-A1 rating by SGS).

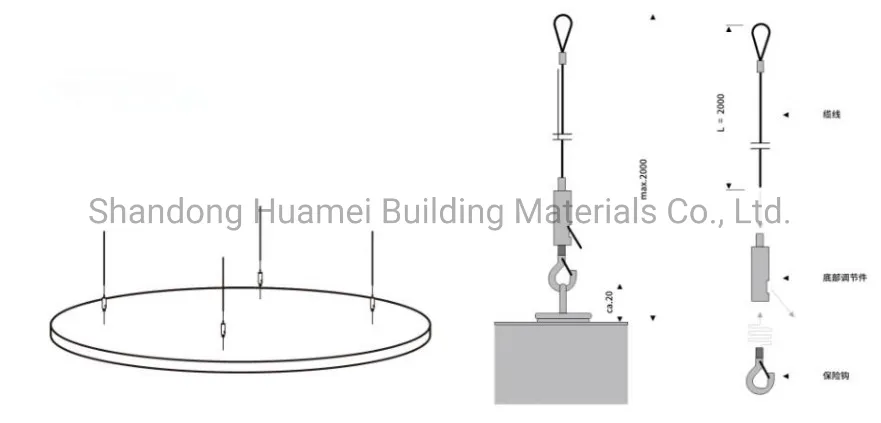

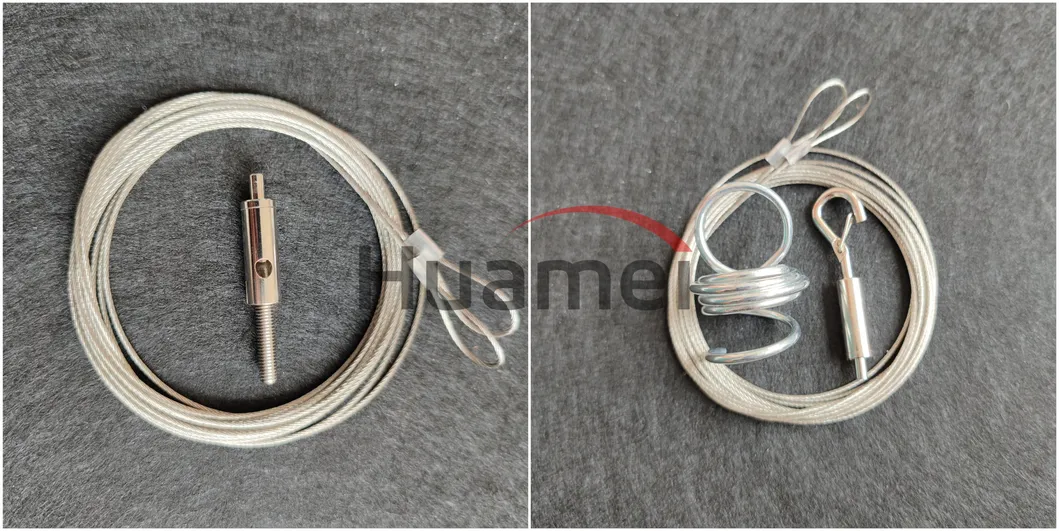

The suspension accessories are composed of a spiral spring, 2m cable, and adjusting hook for easy and flexible mounting.
| Main Materials | High density glasswool and fiberglass tissue |
|---|---|
| Surface Finishing | Special painted laminated with decorative fiberglass tissue |
| Surface Designs | White plane / white point / black plane or other colors |
| NRC | 0.8-0.9 (Tested by SGS) |
| Fire-Resistant | Class A (Tested by SGS) |
| Thermal-Resistant | ≥0.4(m².k)/W |
| Humidity | Stable with RH up to 95% at 40°C |
| Light Reflectivity | 0.85 |
| Density | 120-130kg/cbm |

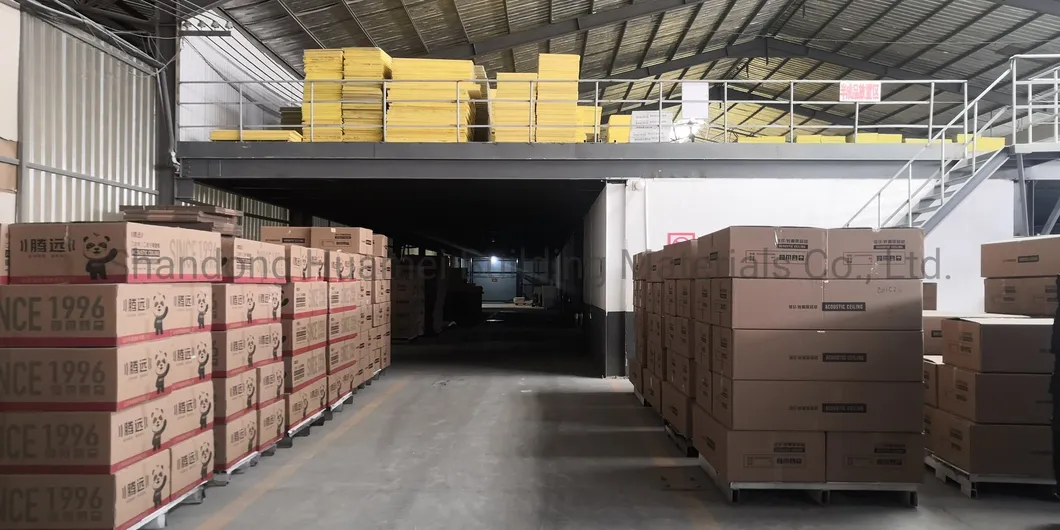

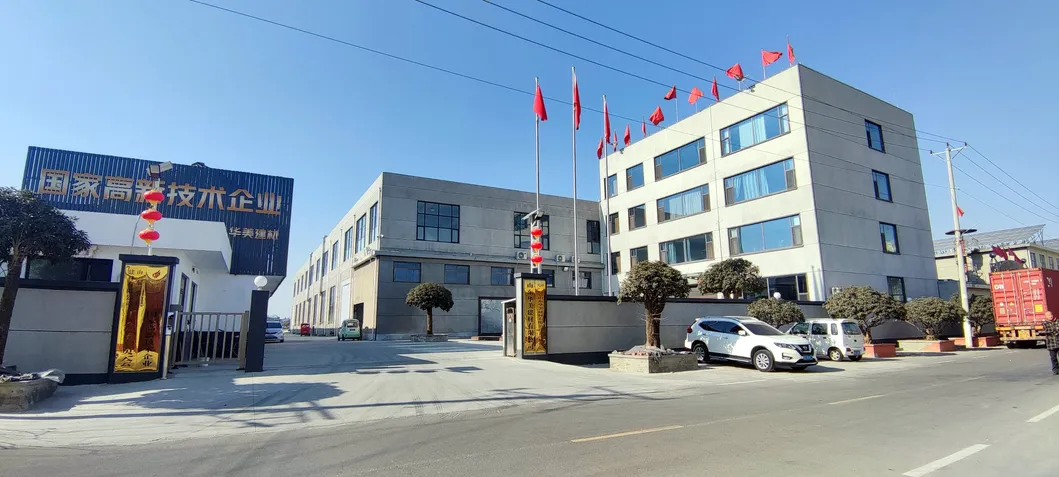

With a production history of nearly 20 years, the facility specializes in fiberglass, rock wool, and gypsum ceiling products. Products are widely used in offices, supermarkets, and public buildings globally, featuring waterproof, fireproofing, and heat-preventing properties.
