Dubuild Panel
1 / 5
| Model NO. | 100 |
| Ceiling Tile Shape | Square |
| Surface Treatment | Film Coating |
| Function | Fireproof Board Ceiling, Soundproof Ceiling, Heat Insulation Ceiling, Waterproof Ceiling |
| Feature | Perforated Ceilings |
| Pattern | With Pattern |
| Color | White |
| Certification | ISO |
| Application | Office, Hotel, Household, Public |
| Specification | 600*600 / 1200*2400 |

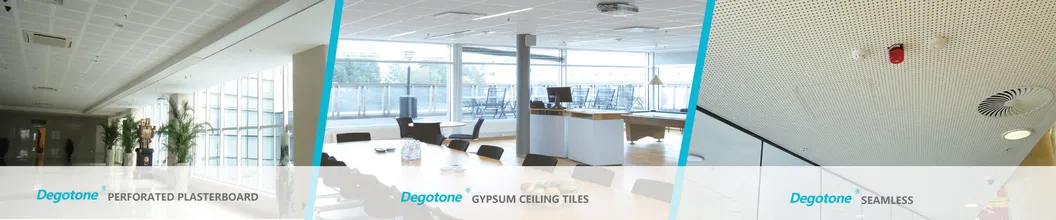

Degotone ® gypsum acoustic solutions bring a new creative freedom to ceiling and wall lining design. Whether the concept calls for sweeping yet elegant links between open areas or a simple, natural transition between rooms, these attractive boards for flat or curved surfaces can be decorated without affecting acoustic performance.

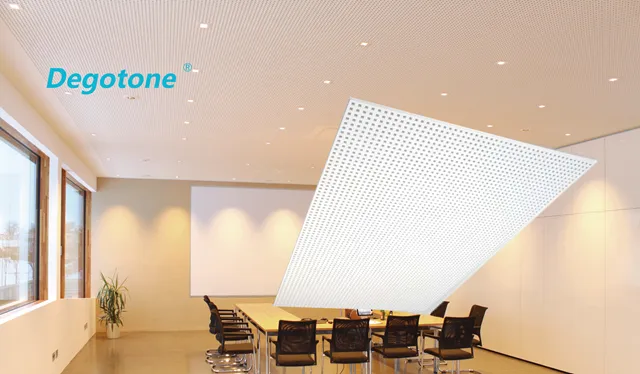

Superior modern acoustic solution delivering a monolithic design with edge-to-edge pattern layouts. Nominally 2000mm x 1200mm x 12.5mm with square cut edges for a continuous finish.

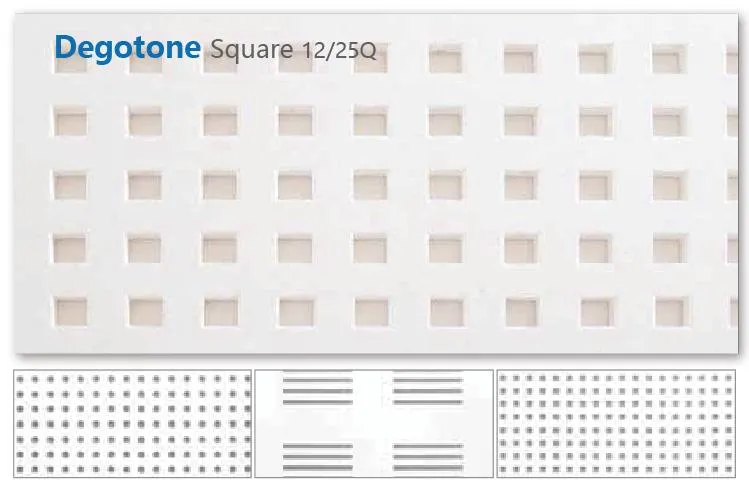

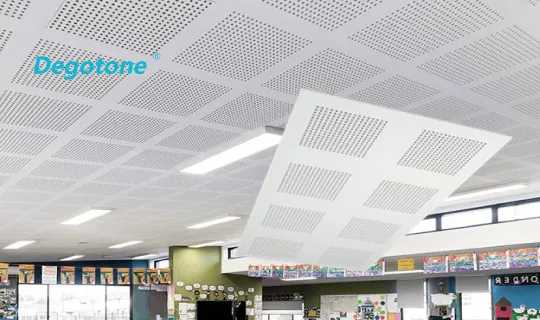

Features contemporary perforation patterns with varying open area percentages to provide a range of acoustic performance. Nominally 1200mm x 2000mm x 12.5mm.

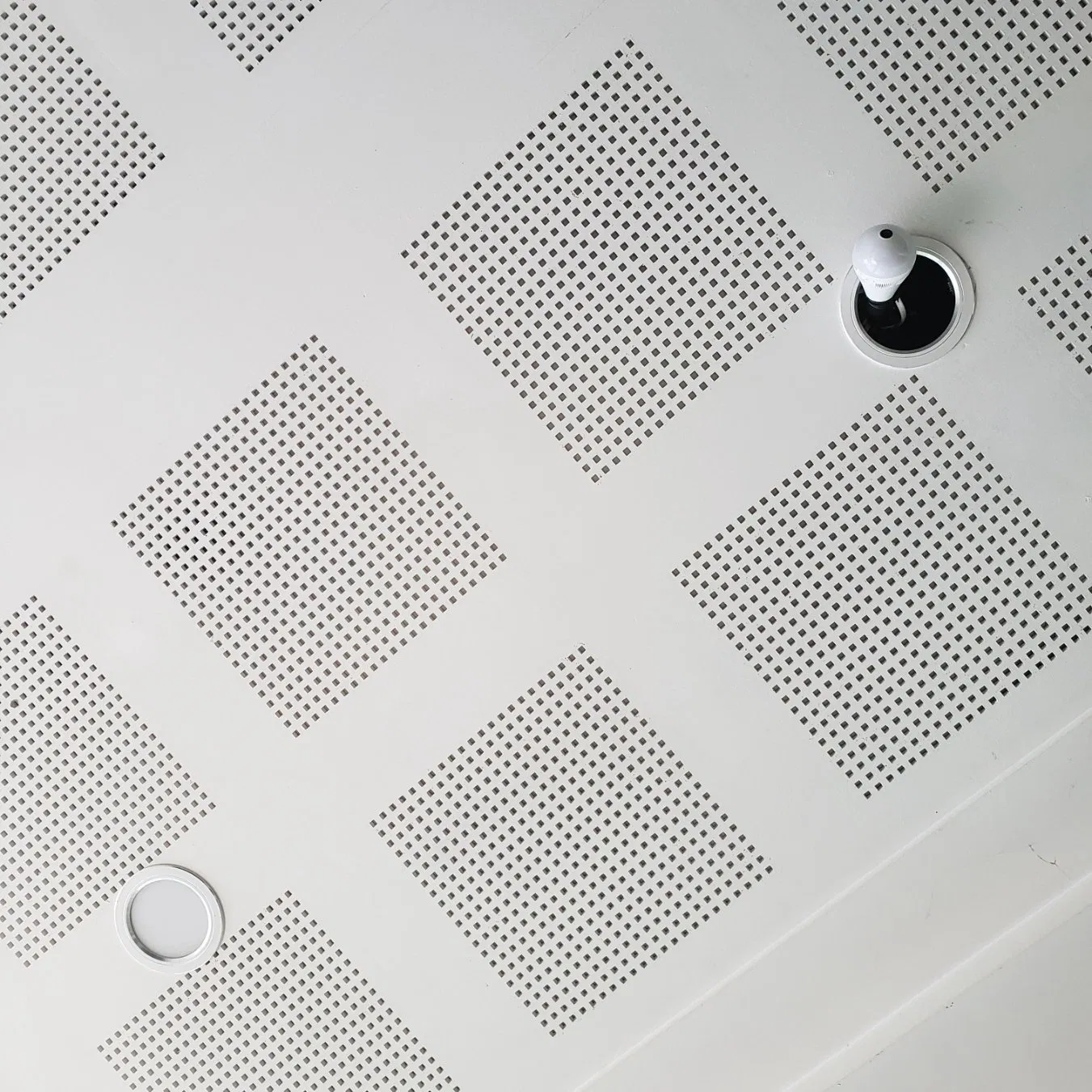

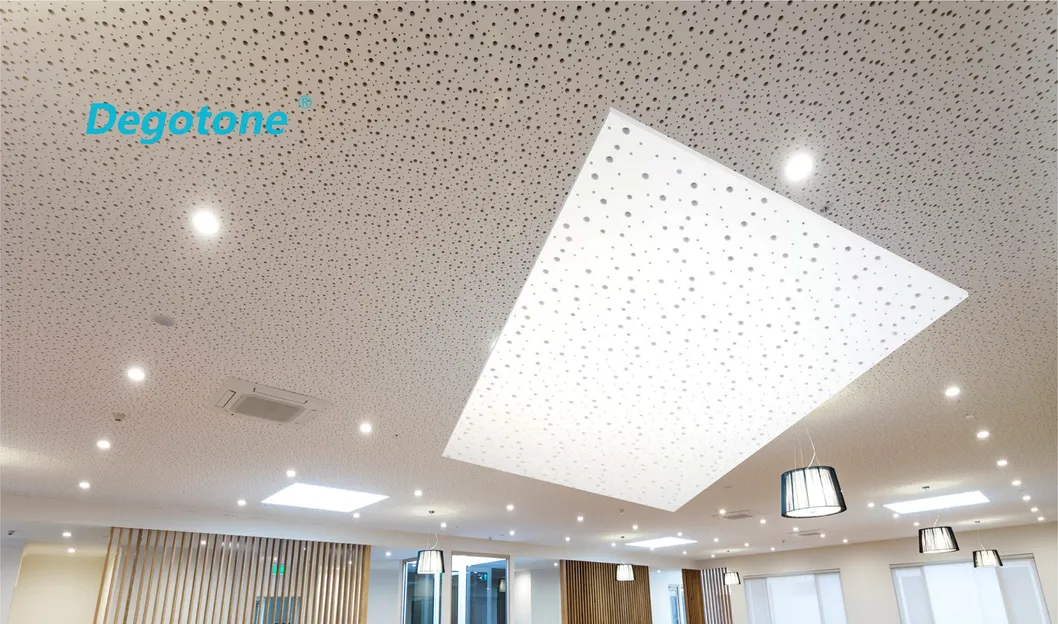

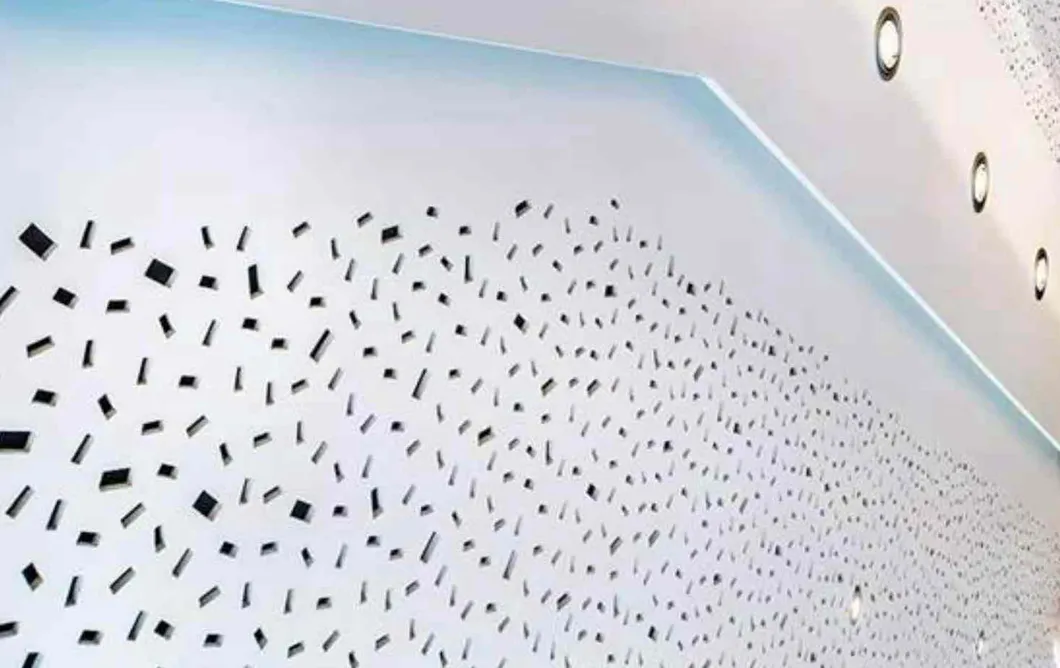

Seamless intricate patterns designed for sound control and arresting aesthetics in public areas of commercial buildings.

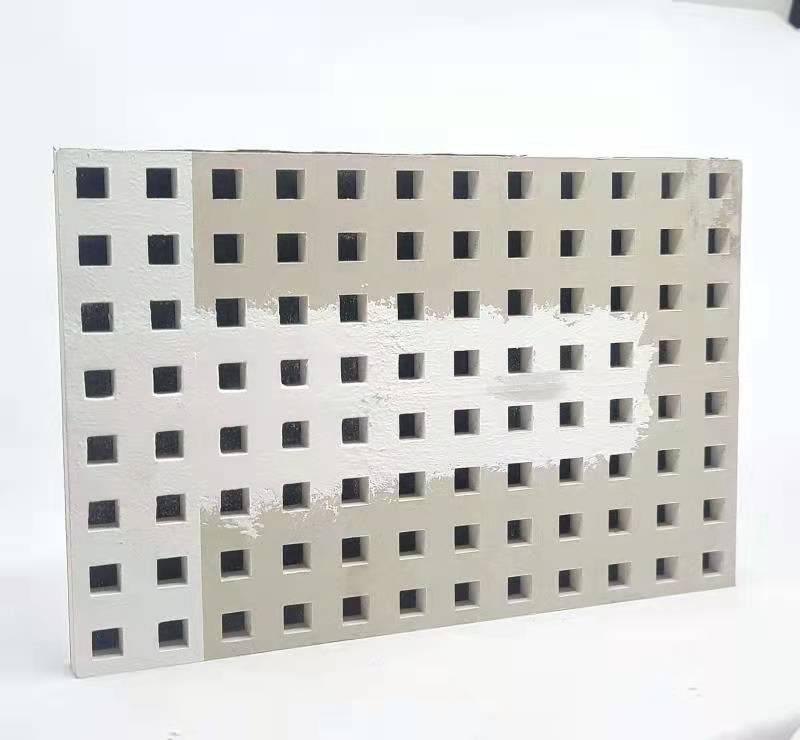

Three different sizes of rectangular full-depth perforated high-strength boards (2000X1200X12.5mm) laminated with acoustic non-woven paper.
NRC up to 0.90; αw up to 0.70 (LM). Class C, D, and E absorbers available.
Class 0 Fire Rating; RH70 humidity resistance; Impact resistant options for sports halls.
Ideal for Offices, Retail, Hotels, Leisure, Residential, and Cinemas.

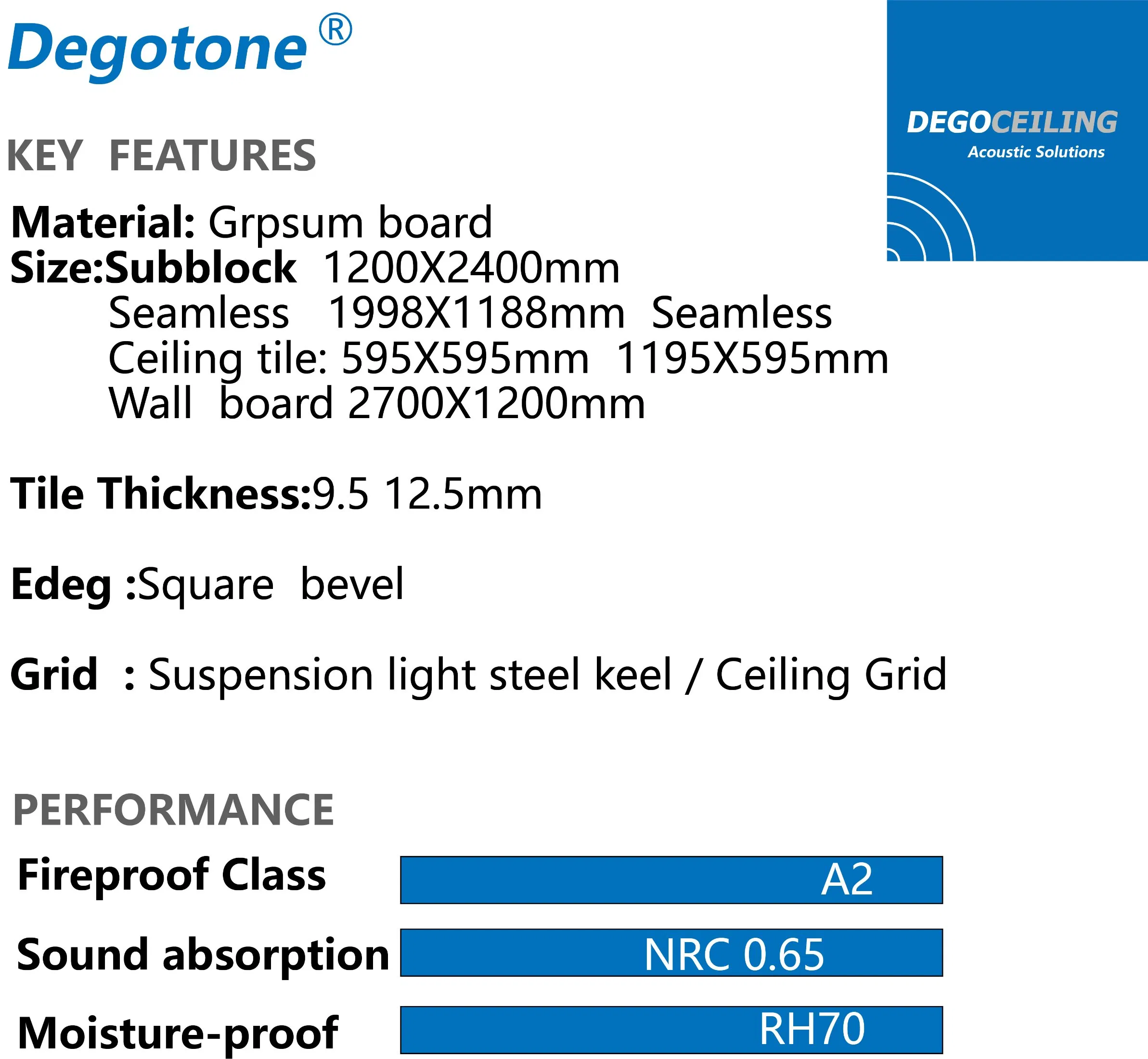

| Material | Strong Gypsum board |
| Standard Sizes | 1200X2400X12.5mm, 1188X1998X12.5mm, 600x600mm |
| Edge Detail | Bevel Square / Square Cut |
| Sound Absorption | NRC 0.43 - 0.73 (up to 0.90 with insulation) |
| Backside | Acoustic non-woven cloth (White or Black) |
| Density | 9.4 Kg/m2 |
| Perforation Rate | 6.8% - 21.3% |

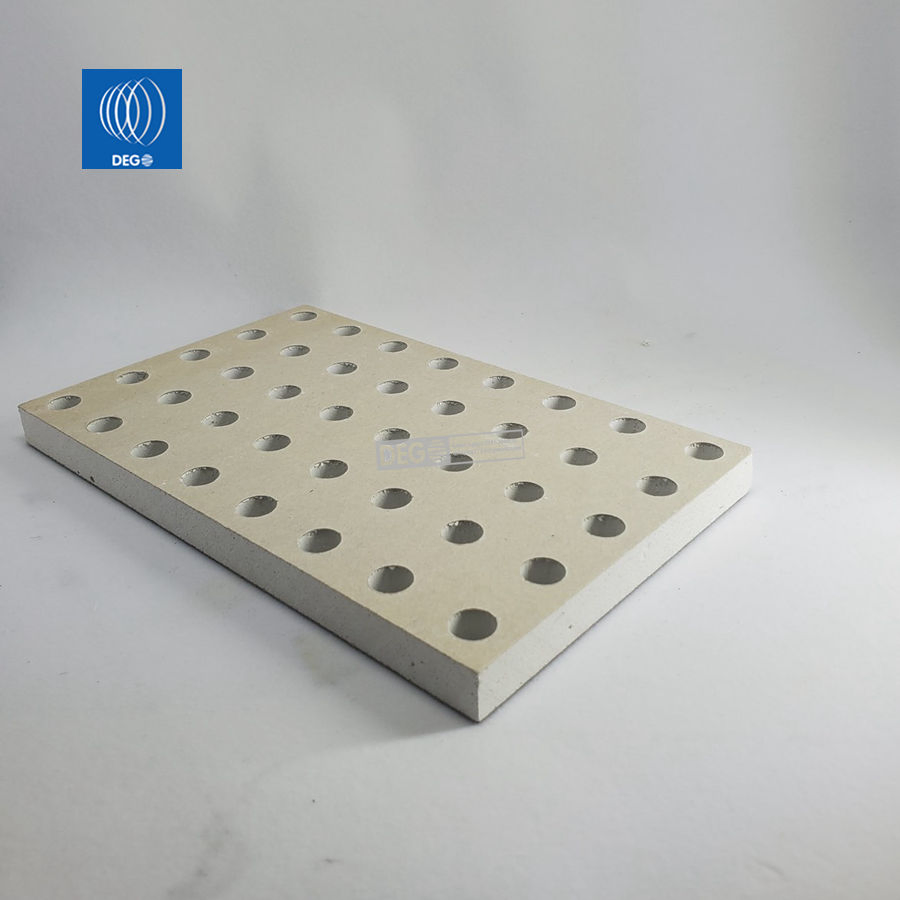

| Hole Sizes | Round: 6, 8, 10, 12, 15mm; Square: 5x5, 10x10, 12x12mm |

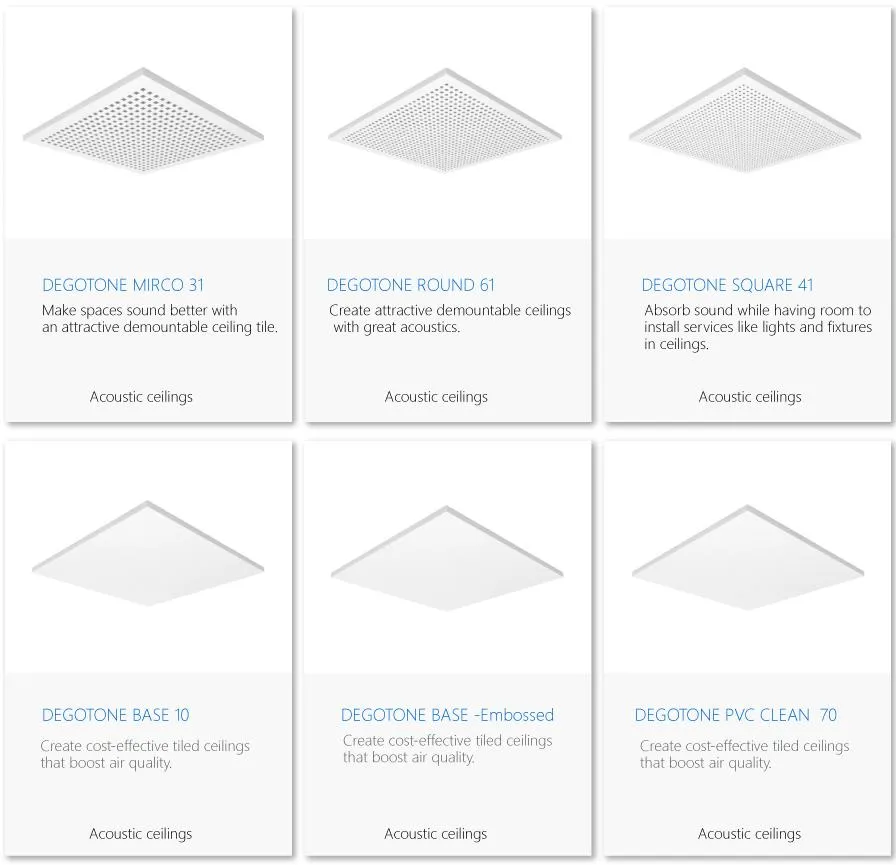

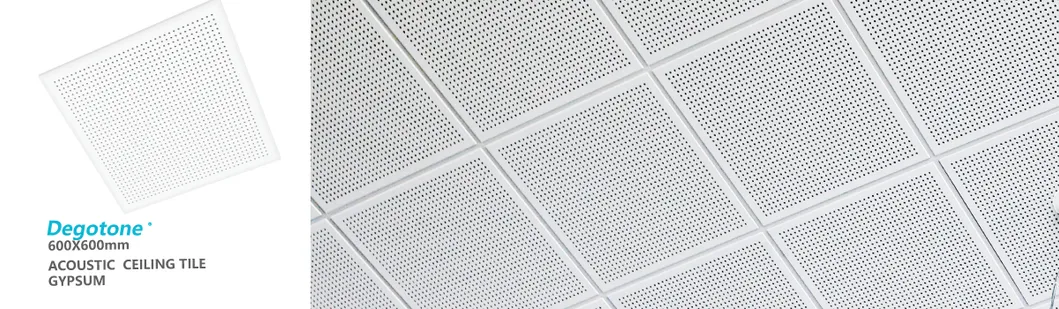

Perforated ceiling tiles are 13mm thick and available in 600mm x 600mm to suit common exposed grid systems. The white vinyl facing is easy to clean and provides a medium level of sound absorption to reduce echoes.
