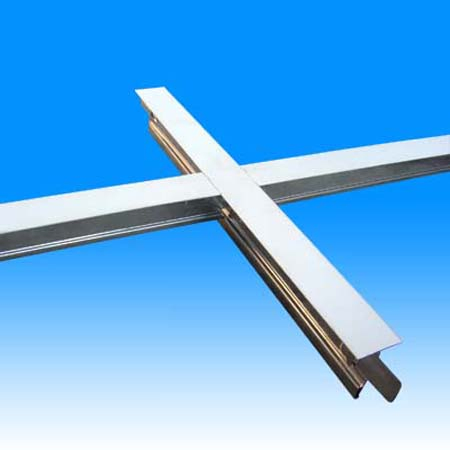

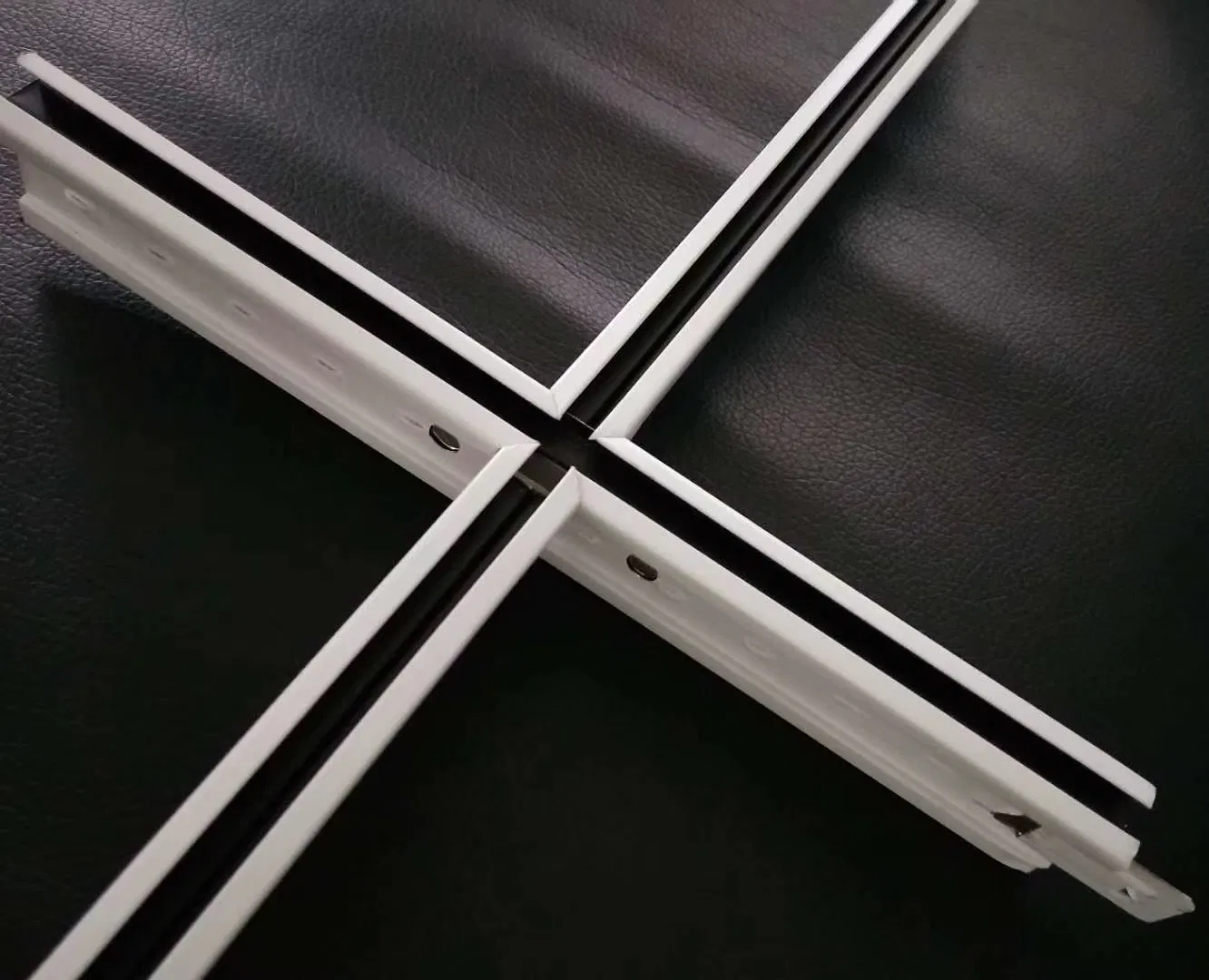

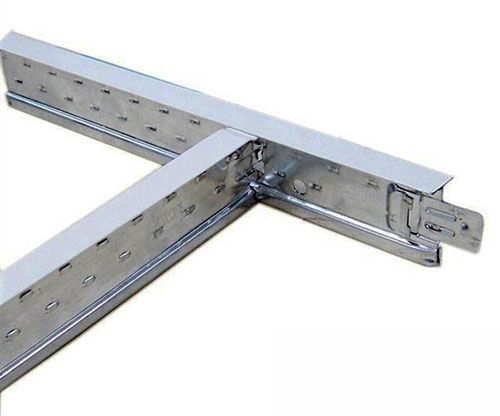

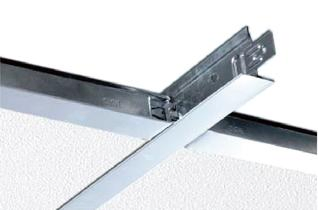

AG. Acoustic Suspensed False Ceiling Frame Steel Metal Tee Grids
AG. Acoustic Suspensed False Ceiling Frame Steel Metal Tee Grids
AG. Acoustic Suspensed False Ceiling Frame Steel Metal Tee Grids
AG. Acoustic Suspensed False Ceiling Frame Steel Metal Tee Grids
AG. Acoustic Suspensed False Ceiling Frame Steel Metal Tee Grids
1 / 5
AG. Acoustic Suspensed False Ceiling Frame Steel Metal Tee Grids
AG. Acoustic Suspensed False Ceiling Frame Steel Metal Tee Grids
AG. Acoustic Suspensed False Ceiling Frame Steel Metal Tee Grids
AG. Acoustic Suspensed False Ceiling Frame Steel Metal Tee Grids
AG. Acoustic Suspensed False Ceiling Frame Steel Metal Tee Grids

AG. Acoustic Suspensed False Ceiling Frame Steel Metal Tee Grids

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
AG. ACOUSTIC-SK
Specification
T38*24, Steel Galvanized
Shape
T-type
Usage
Terminal Building, Station, Playground, Hotel, Factory, Market, Office Building, Home, Gymnasium
Function
Fireproofing, Jar-Proof, Anti-Corrosion, Damp-Proof
Material
Steel
Origin
China
HS Code
73089000
Product Description

Suspended False Ceiling Frame Steel Metal Tee Grids are double web cold-rolled sections, manufactured from hot-dipped galvanized steel. The tees section is with pre-painted capped, ensuring that the system is manufactured to a very high quality level.

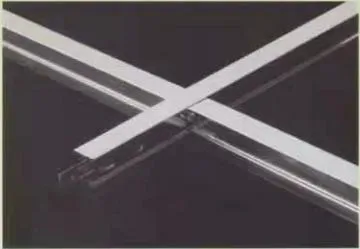

Ceiling Grid Detail 1
Ceiling Grid Detail 2

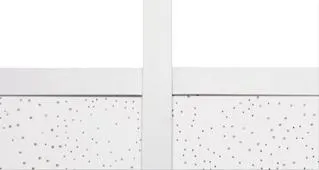

Ceiling Grid Detail 3

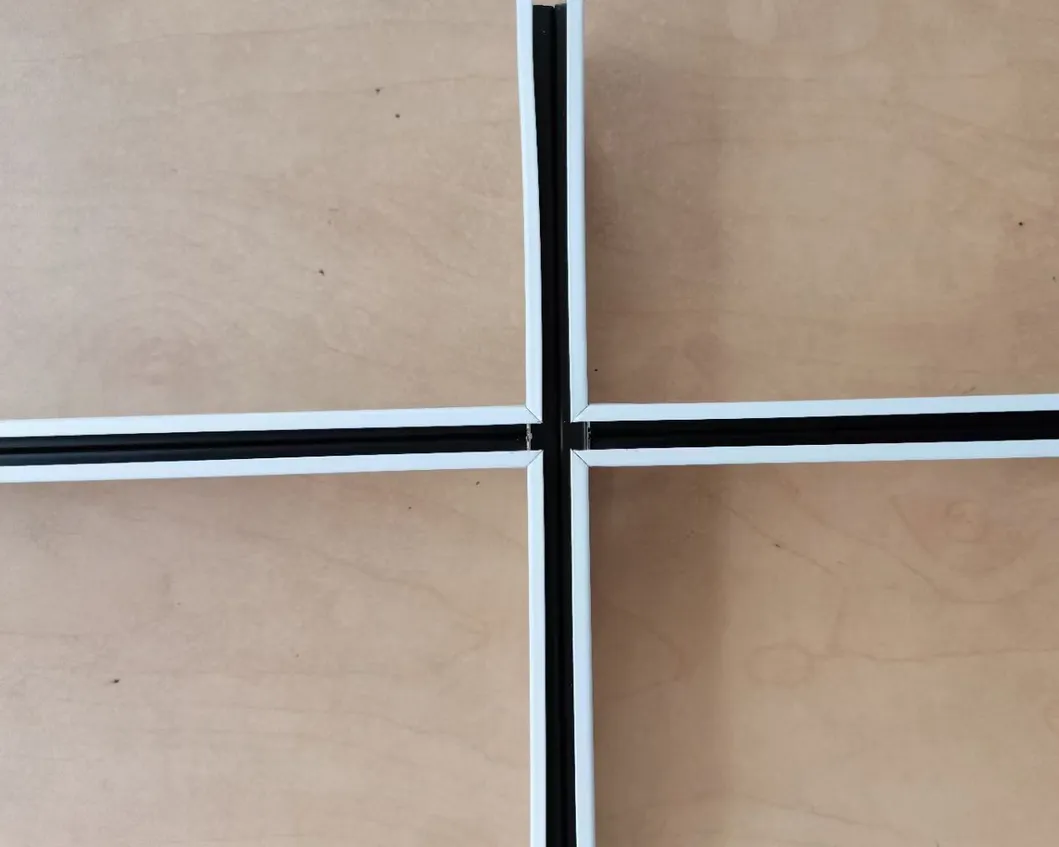

Product Structure 1
Product Structure 2
Standard Specification
Core Material Steel Galvanized
Standard ASTM C635 & ASTM C636
Color White / Silver / Wooden / Customized
Stitch Stitch or without stitch both available for option
Thickness 0.25mm / 0.3mm / 0.4mm / Customized
Main Runner 38/32*24*3600mm
Long Cross 38/32/26*24*1200mm
Short Cross 38/32/26*24*600mm
Wall Angle 24*24*3000mm
Package Cartons
Other dimensions can be customized according to clients' requirements.

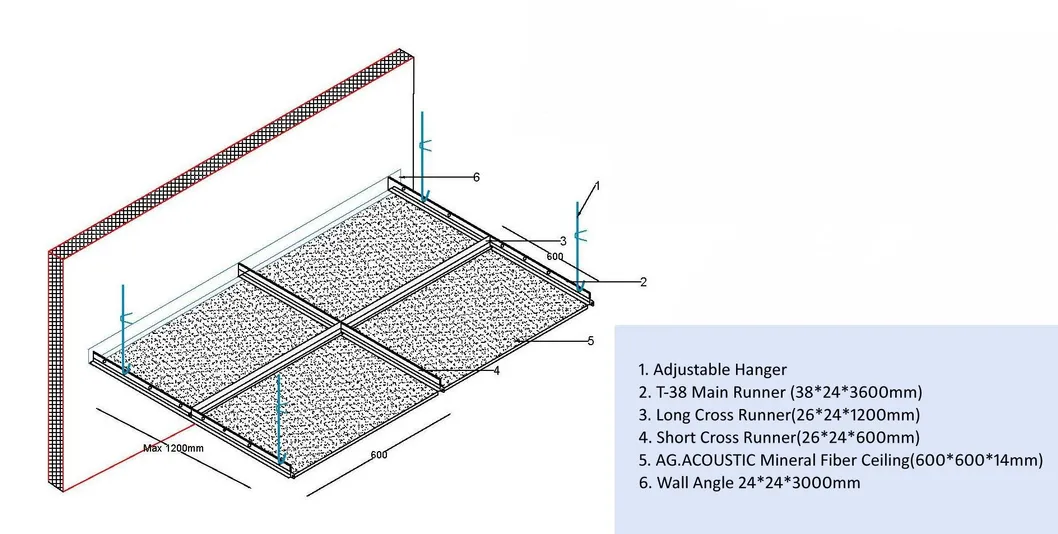

Installation Structure Diagram
Installation Diagram

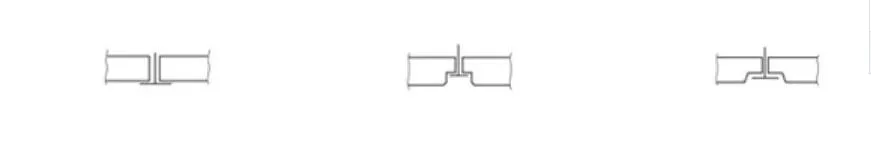

Note: It can be used for different edge treatments as shown below:

Edge Treatment
Application
With excellent quality and reasonable price, these grids are extensively used in building material industries such as schools, studio rooms, reception areas, lecture theaters, offices, hospitals, sport and recreation halls, workshops, and commercial buildings.

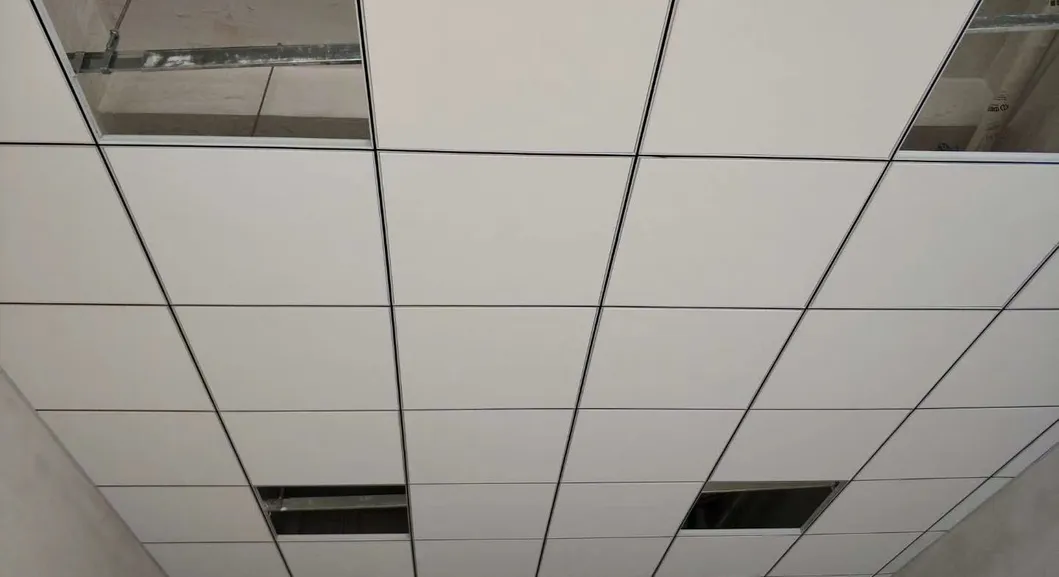

Application Scene 1

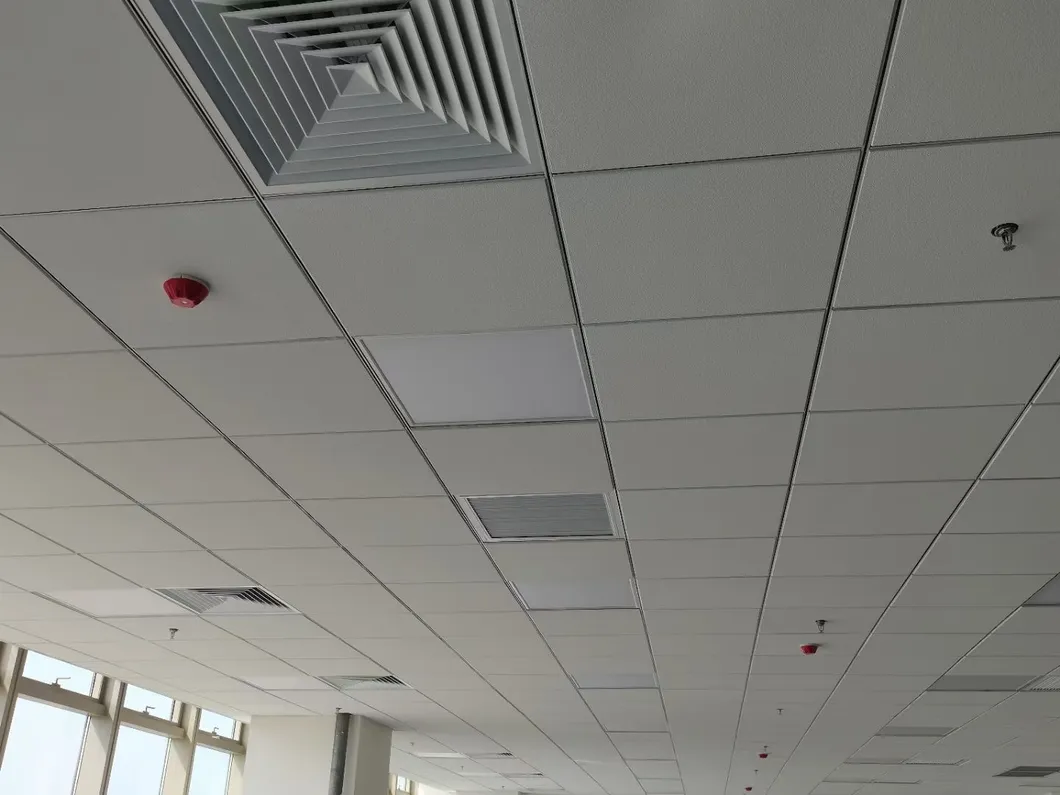

Application Scene 2

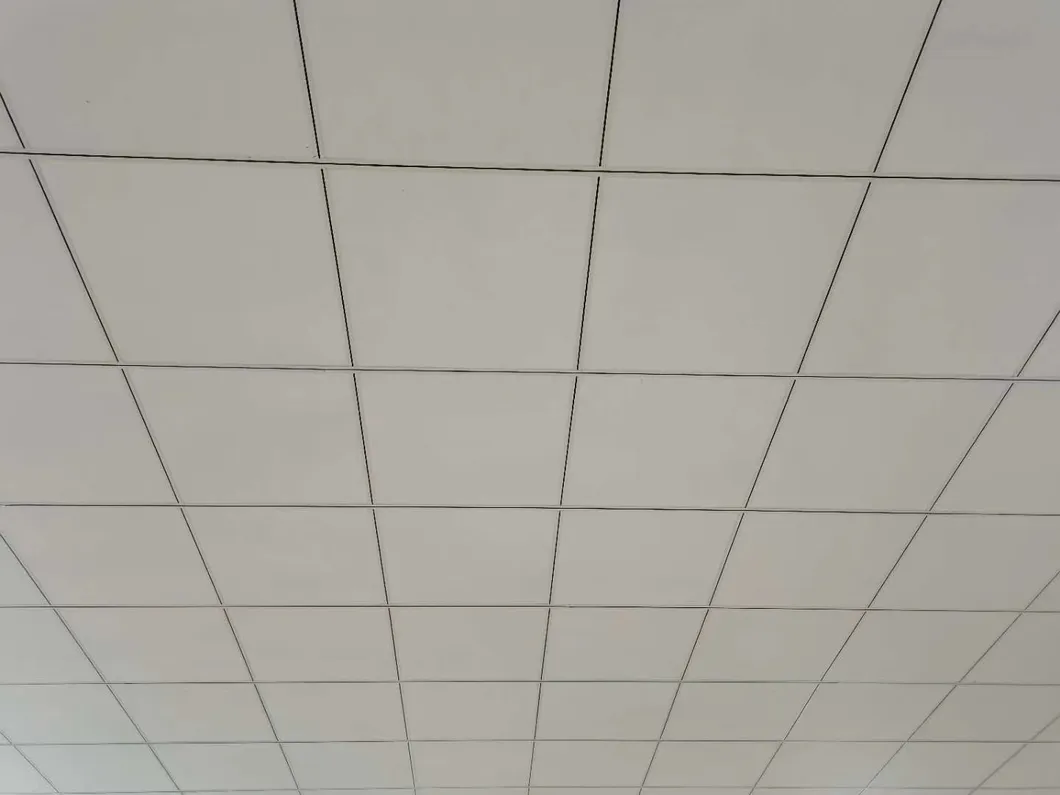

Application Scene 3
Frequently Asked Questions
What is the primary material used for these ceiling grids?
The grids are manufactured from high-quality hot-dipped galvanized steel with a double web cold-rolled section for enhanced durability.
Are these ceiling frames fireproof?
Yes, the system is designed with fireproofing functions, along with jar-proof, anti-corrosion, and damp-proof properties.
Can the dimensions of the tee grids be customized?
Absolutely. While we have standard sizes for Main Runners and Cross Tees, other dimensions and thicknesses (0.25mm to 0.4mm) can be customized based on specific project requirements.
What international standards do these products meet?
Our ceiling suspension grids comply with ASTM C635 and ASTM C636 standards, ensuring high quality and safety for construction projects.
What color options are available for the ceiling grids?
Standard colors include White, Silver, and Wooden finishes. Custom colors can also be provided to match your interior design needs.
Where are these ceiling systems typically installed?
They are ideal for a wide range of environments including offices, hospitals, schools, stations, hotels, and commercial buildings.
