AG. Acoustic Suspension Ceiling Hanging System Tee Grids Steel Galvanized

1 / 5

AG. Acoustic Suspension Ceiling Hanging System Tee Grids Steel Galvanized

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specification

Model NO.

SK Series

Specification

T38*24, Steel Galvanized

Shape

T-type

Material

Hot-dipped Galvanized Steel

Origin

China

HS Code

73089000

Fireproofing Jar-Proof Anti-Corrosion Damp-Proof

Product Overview

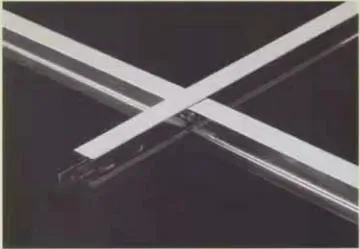

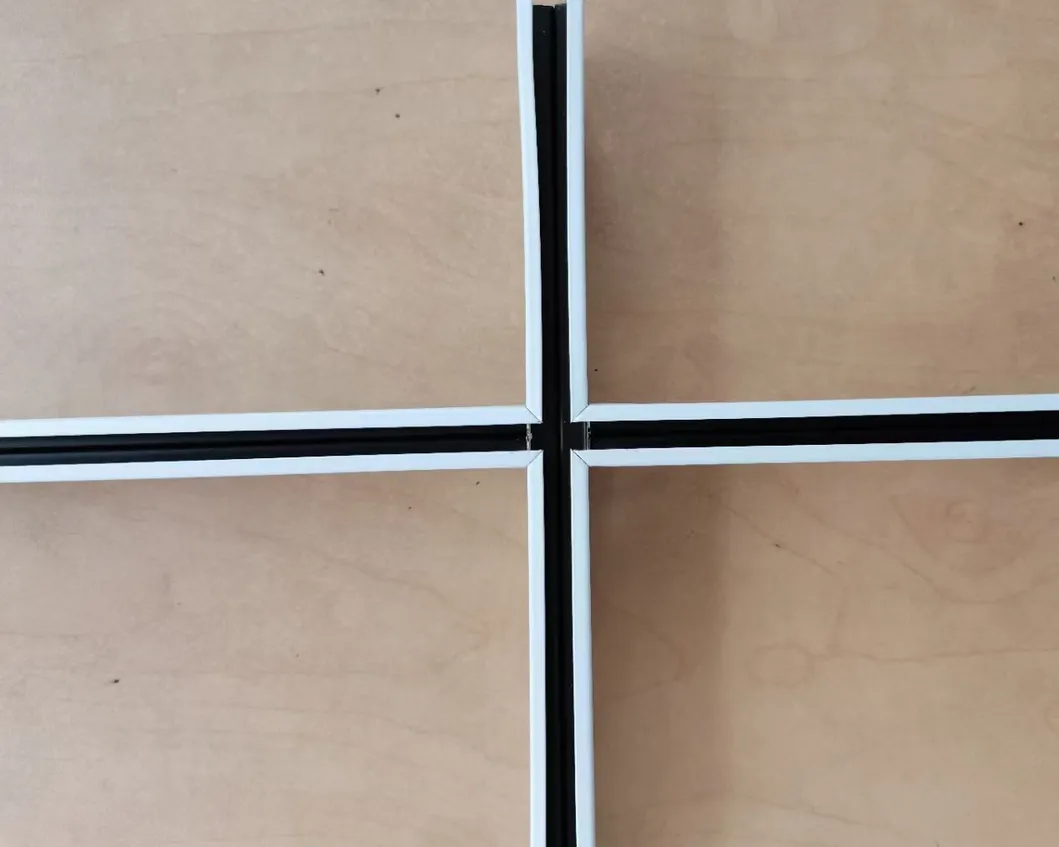

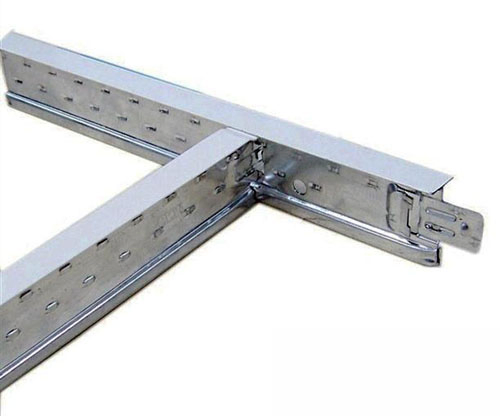

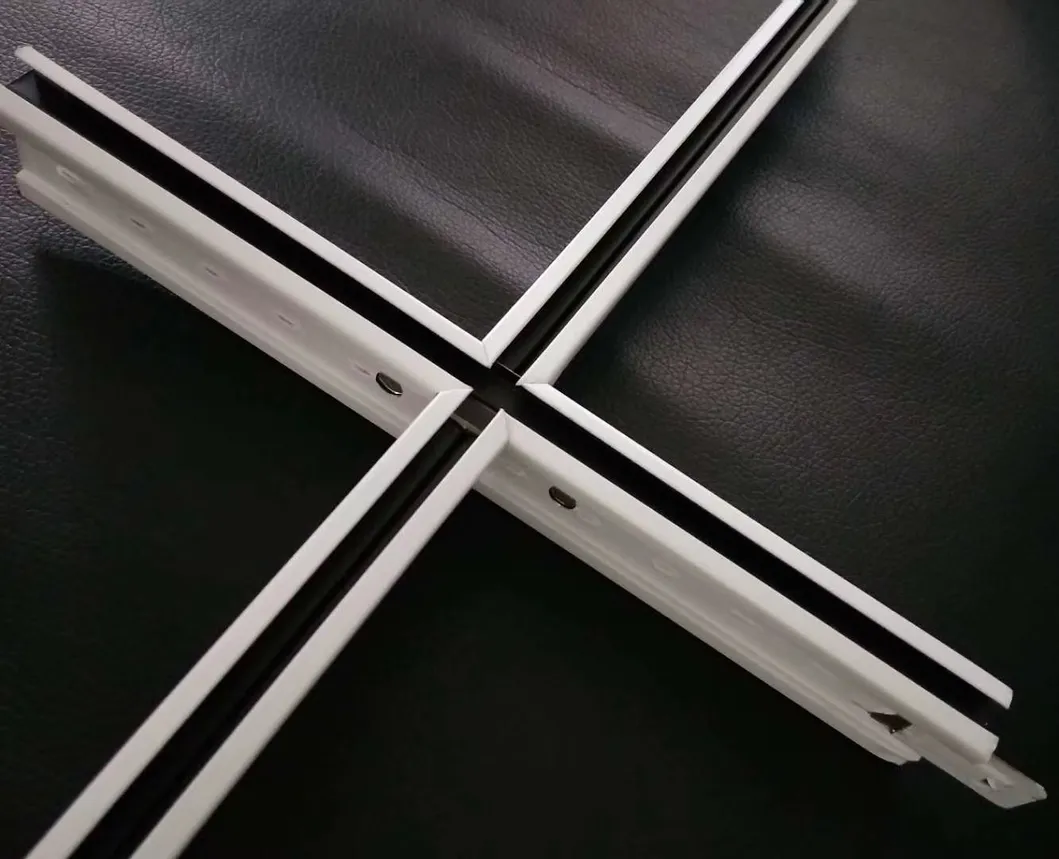

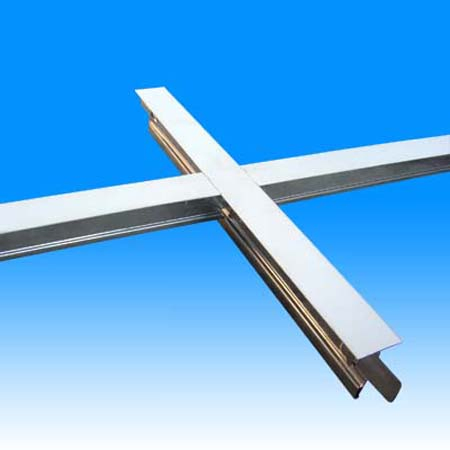

The suspension ceiling hanging system tee grids are double web cold-rolled sections, manufactured from high-grade hot-dipped galvanized steel. The tee sections feature a pre-painted capped finish, ensuring that the system is manufactured to an exceptionally high quality level for architectural requirements.

Standard Parameters

Core Material	Steel Galvanized
Standard	ASTM C635 & ASTM C636
Available Colors	White / Silver / Wooden / Customized
Stitch Option	With or without stitch both available
Thickness	0.25mm / 0.3mm / 0.4mm / Customized
Main Runner	38/32 * 24 * 3600mm
Long Cross	38/32/26 * 24 * 1200mm
Short Cross	38/32/26 * 24 * 600mm
Wall Angle	24 * 24 * 3000mm
Package	Protective Cartons

* Other dimensions can be customized according to specific project requirements.

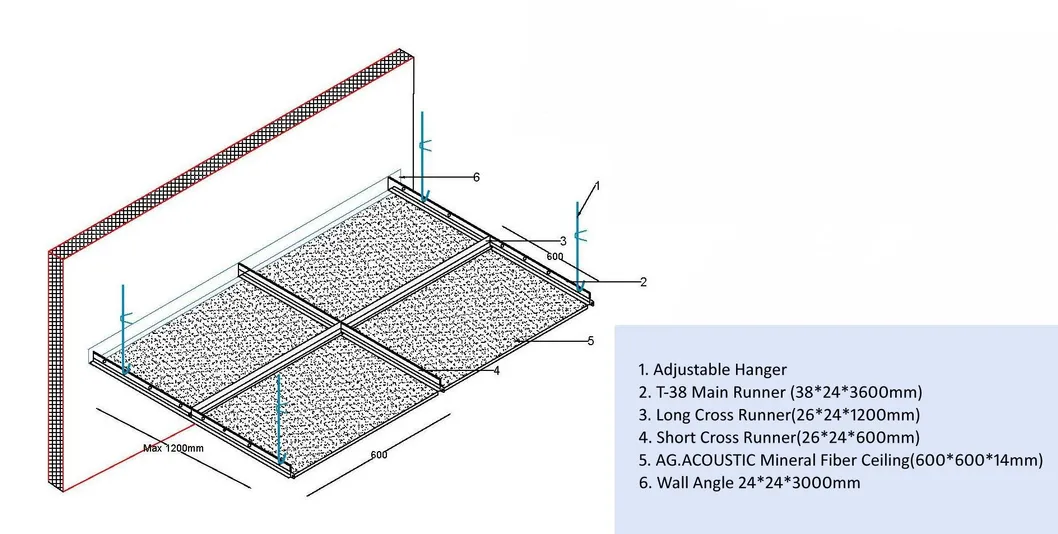

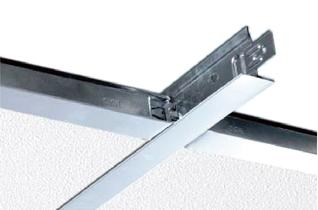

Installation & Structure

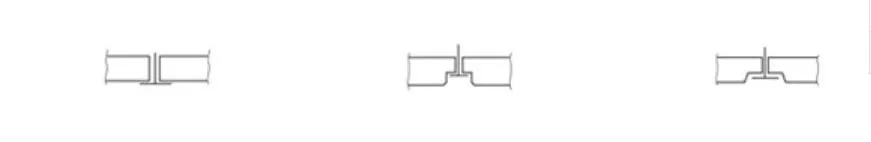

It can be used for various different edge treatments as shown below:

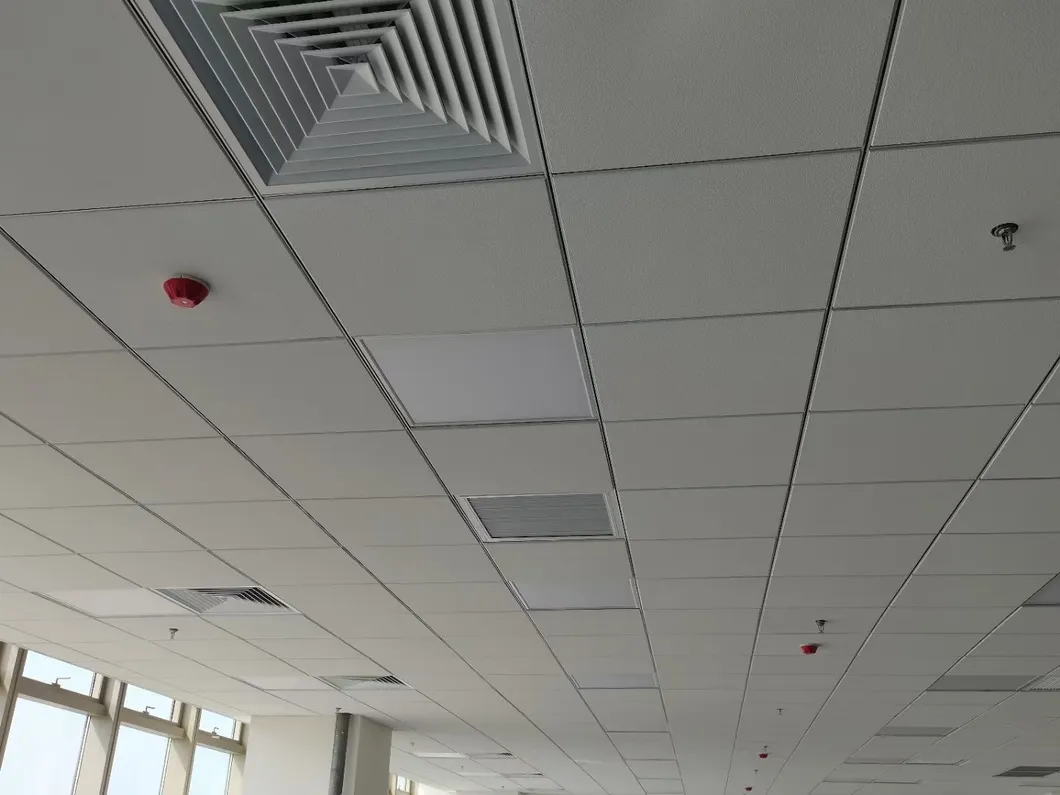

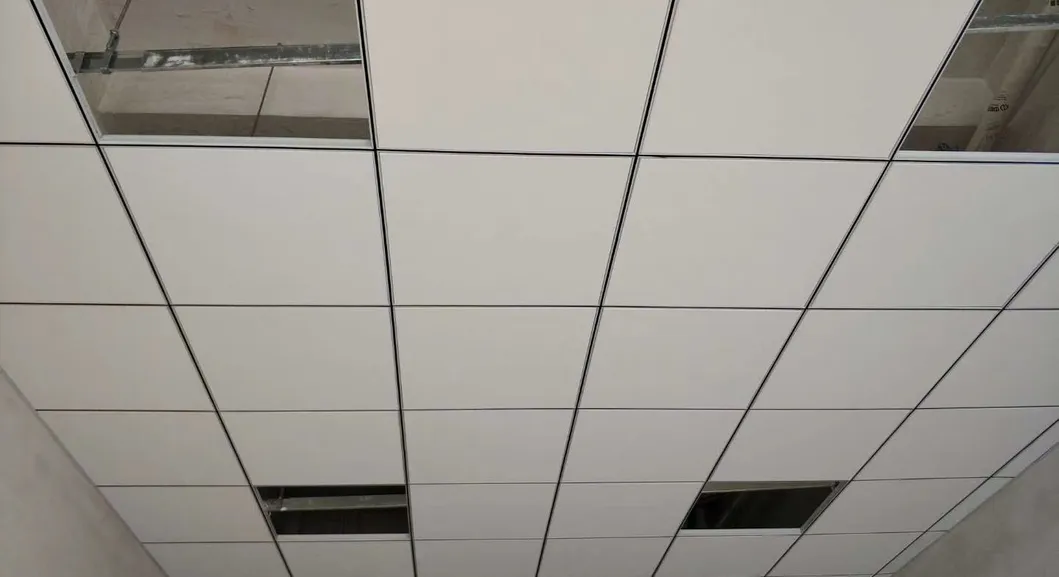

Wide Application

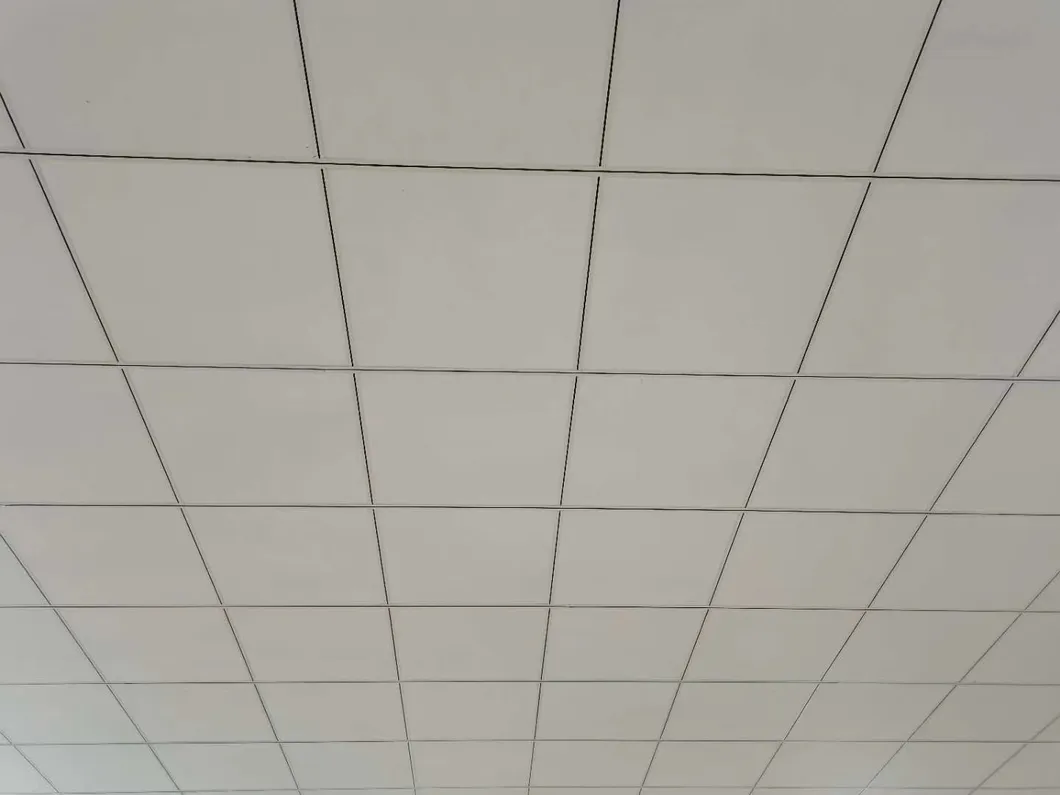

With excellent structural integrity and aesthetic finish, these grids are extensively used across various building sectors. Suitable for schools, studios, reception areas, lecture theaters, offices, hospitals, sports halls, workshops, and commercial complexes.

Frequently Asked Questions

What materials are used in the ceiling suspension grids?

The system is manufactured from high-quality hot-dipped galvanized steel, featuring double web cold-rolled sections for superior strength and durability.

What international standards do these grids comply with?

Our suspension ceiling systems are designed and tested to meet ASTM C635 and ASTM C636 standard specifications.

Are there different color options available for the tee grids?

Yes, while White and Silver are standard, we also offer Wooden finishes and can provide customized colors to match your interior design requirements.

What are the primary protective functions of this system?

The system provides multiple protective features including fireproofing, jar-proof performance, anti-corrosion, and damp-proof capabilities.

Can the grid dimensions be customized for specific projects?

Absolutely. While we have standard sizes for Main Runners and Cross Tees, other dimensions can be customized according to specific construction demands and client requirements.

In which types of buildings can this system be installed?

It is highly versatile and suitable for terminal buildings, stations, playgrounds, hotels, factories, offices, gymnasiums, and residential homes.
