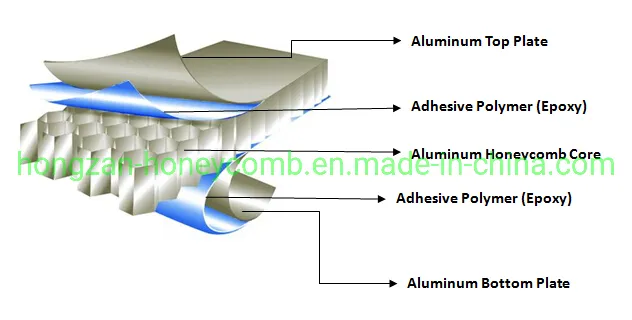

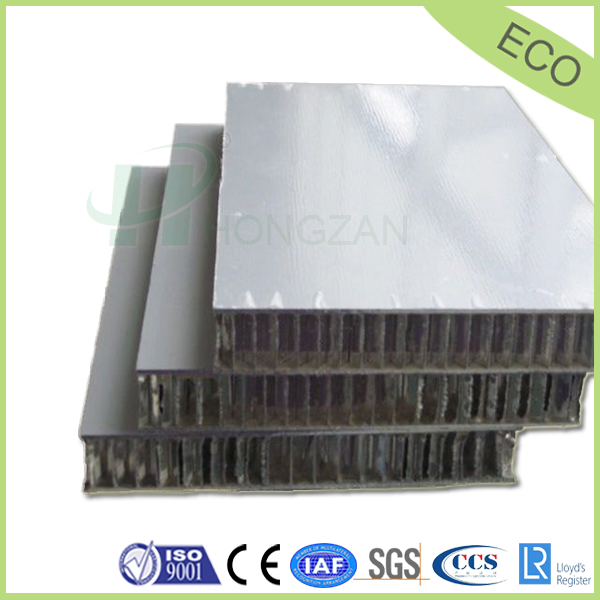

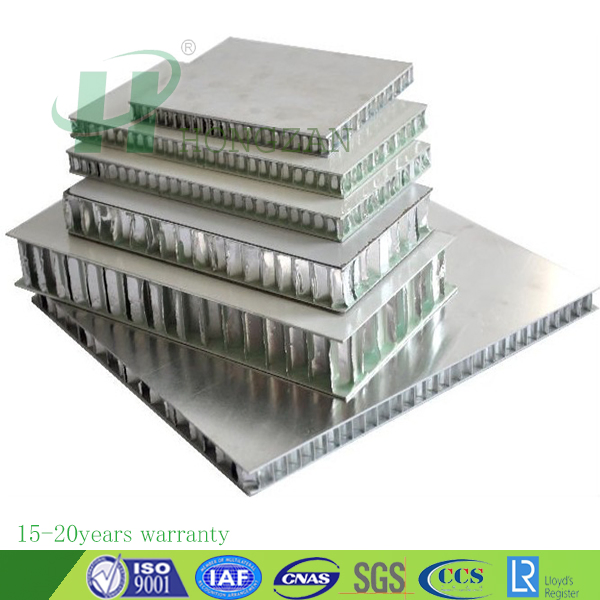

Aluminum honeycomb panels are premium environmental composite materials known for their perfect strength, super flatness, and excellent sound and heat insulation. Utilizing high-quality raw materials and high-precision processing, the panels maintain color stability for 15-20 years via fluorocarbon lacquer (PVDF/PE) coatings.
Sound & Heat Insulation: Enclosed cells stop air flow and block heat/sound waves (20-30DB reduction), making it an ideal energy-saving material.
| Property | 20mm Thickness | 25mm Thickness |
|---|---|---|
| Weight (kg/m²) | 7.4 | 7.8 |
| Inertia Moment I (cm⁴/m) | 19.85 | 31.67 |
| Section Modulus W (cm³/m) | 19 | 24 |
| Rigidity E.I (KN cm²/m) | 139,000 | 2,217,000 |
| Aluminium Alloy | AA 5754A (ALMg3) | |
| Tensile Strength (N/mm²) | Rm ≥ 220 | |
| Sound Insulation (ISO717-RW) | 23 dB | 25 dB |
| Material Specification | Details |
|---|---|
| Regular Size | 1,220 * 2,440 mm / 3,000 * 6 mm |
| Max. Size | 2,000 * 10,000 * 200 mm |
| Available Thickness | 5 mm - 300 mm |
| Surface Treatment | PVDF, PE, Powder Coating, Anodized |
| Production Capacity | 50,000 SQM per month |

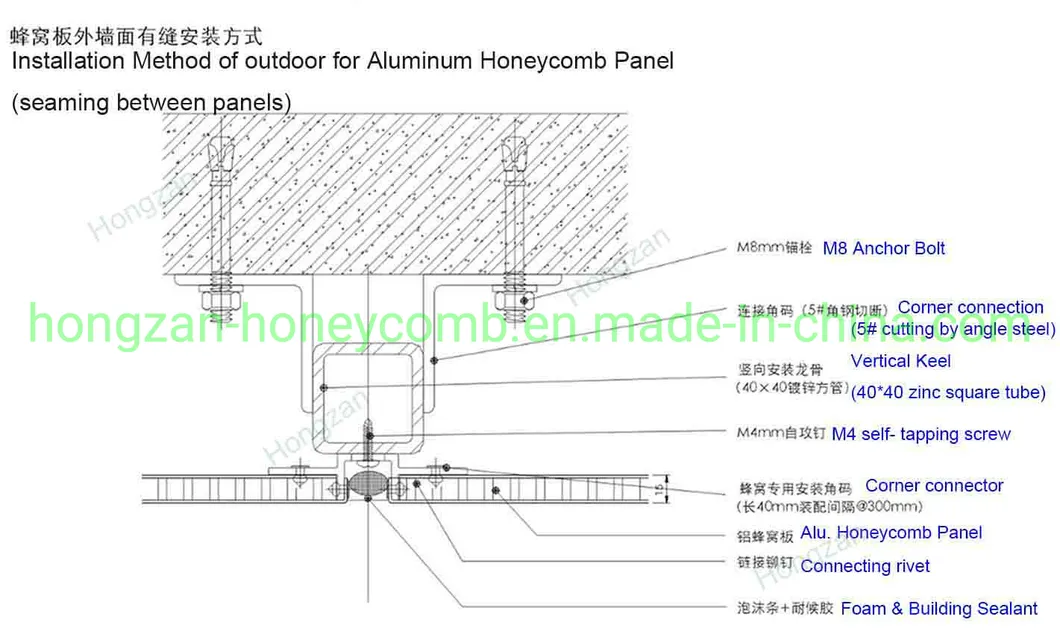

Type A: Standard Seaming

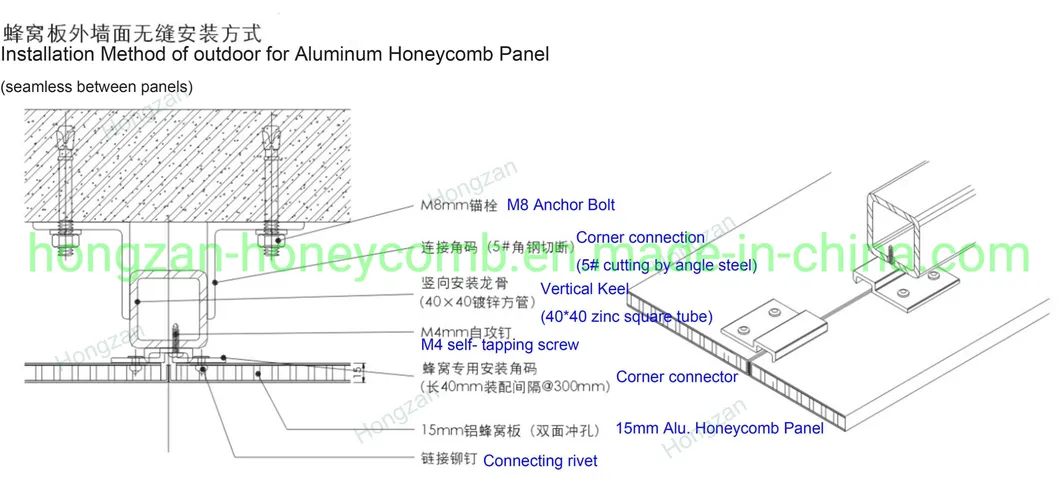

Type B: Standard Seamless
