Product Overview & Basic Info
Why Choose Our Honeycomb Panels?
Manufacturing honeycomb cores and panels in-house allows for direct pricing without middle-traders.
Complete solutions including fixing systems and shop drawings from an experienced production team.
3 times lighter than traditional solid panels, significantly reducing building weight and installation labor costs.
Versatile Applications

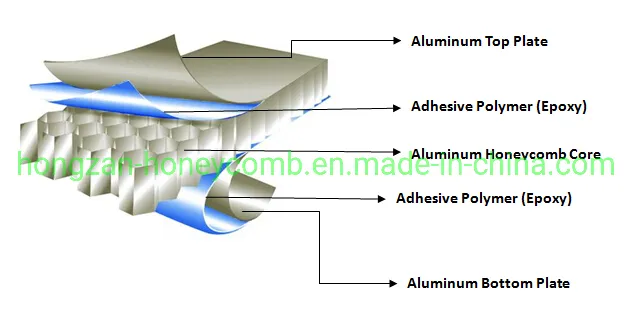

Core Features & Structure

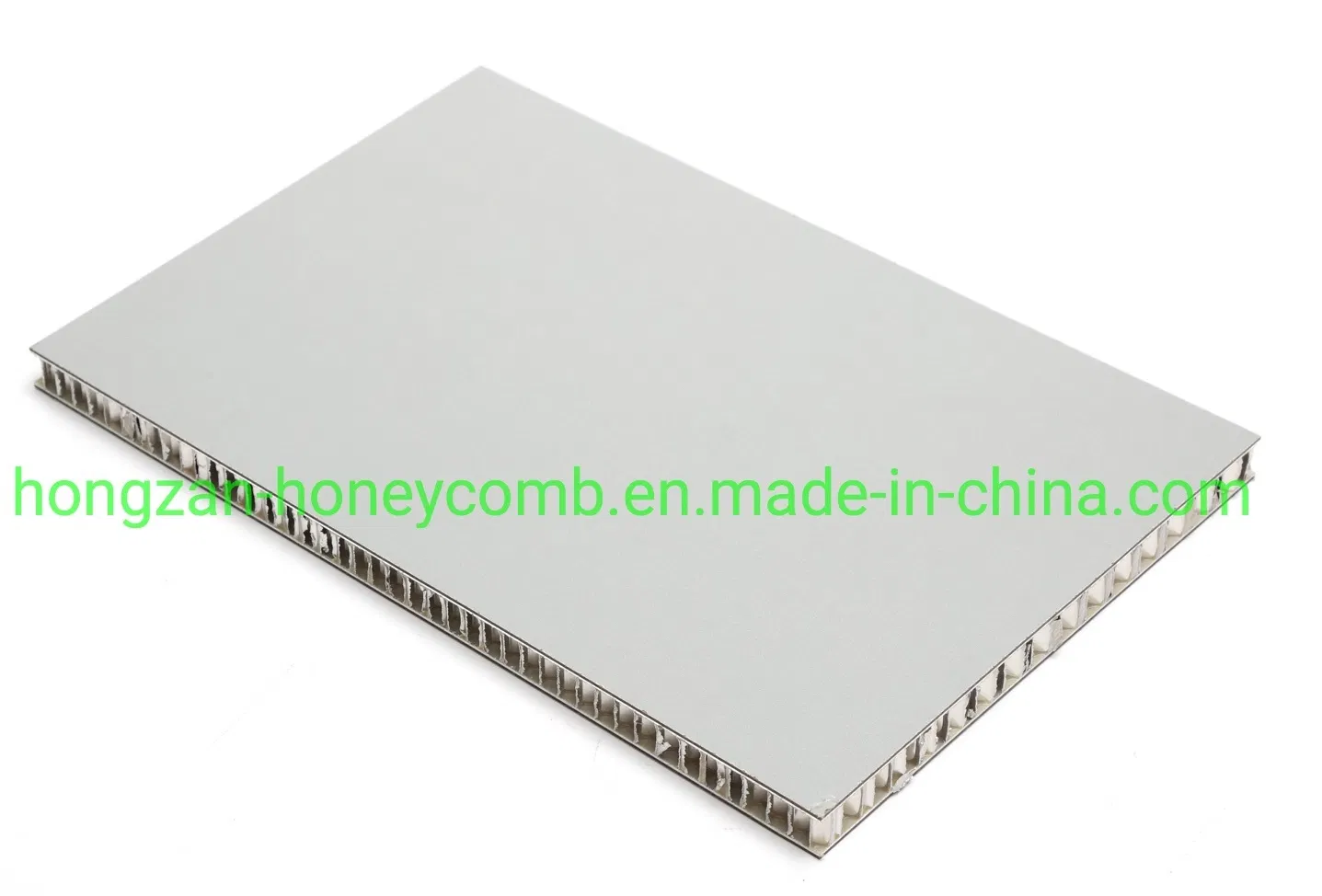

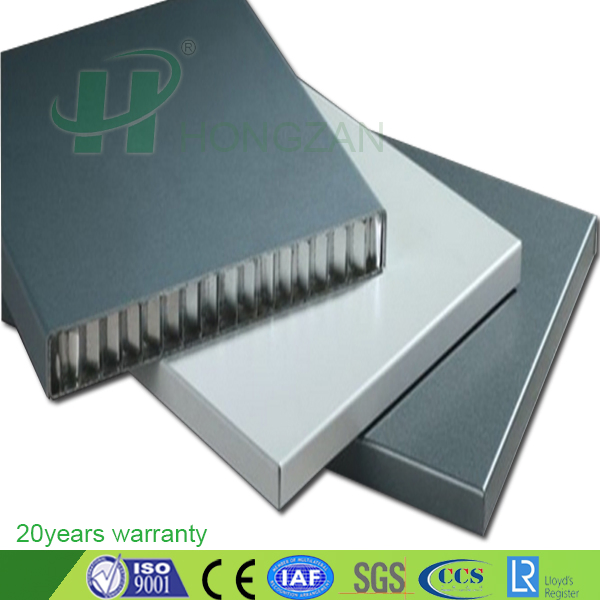

Aluminum honeycomb panels are high-quality composite materials providing perfect strength, super flatness, and excellent sound & heat insulation.
Honeycomb panels have 1/5 the weight of solid aluminum panels for the same rigidity. The interconnected cores resist shearing and bending, making them ideal for high-rise external walls.
Enclosed honeycomb cells stop air flow and block sound waves (20-30DB reduction). Heat conduction coefficient is as low as 0.104-0.130W/M.k.
Technical Specifications
| Property | 20mm Panel | 25mm Panel |
|---|---|---|
| Weight (kg/m²) | 7.4 | 7.8 |
| Inertia Moment I (cm⁴/m) | 19.85 | 31.67 |
| Section Modulus W (cm³/m) | 19 | 24 |
| Rigidity E.I (KN cm²/m) | 139,000 | 2,217,000 |
| Tensile Strength | Rm ≥ 220 N/mm² | |
| Sound Insulation Factor | 23 | 25 |
Installation & Detailed Photos

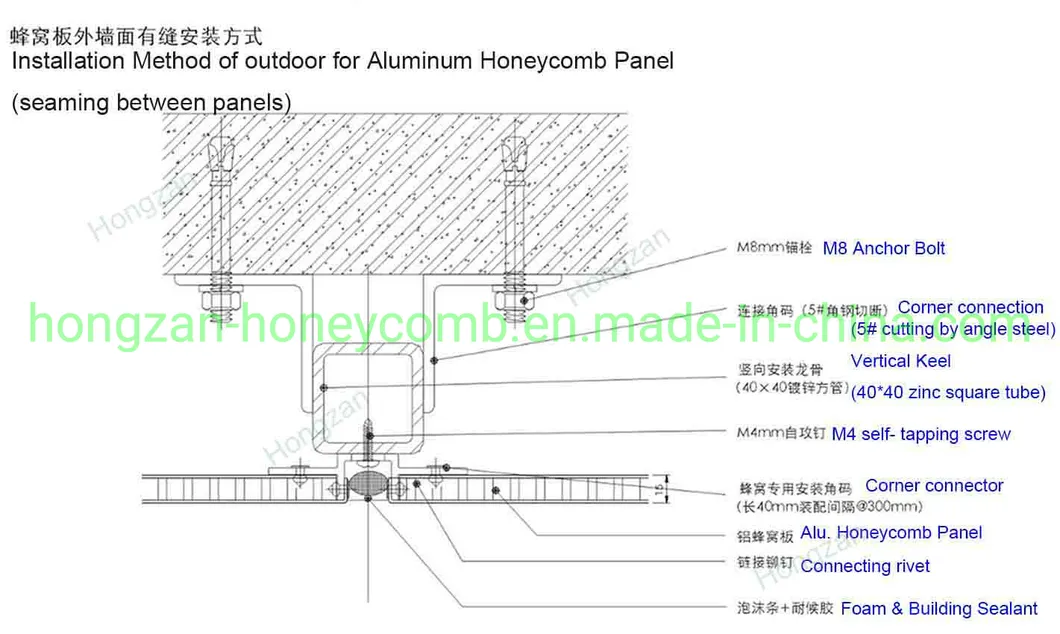

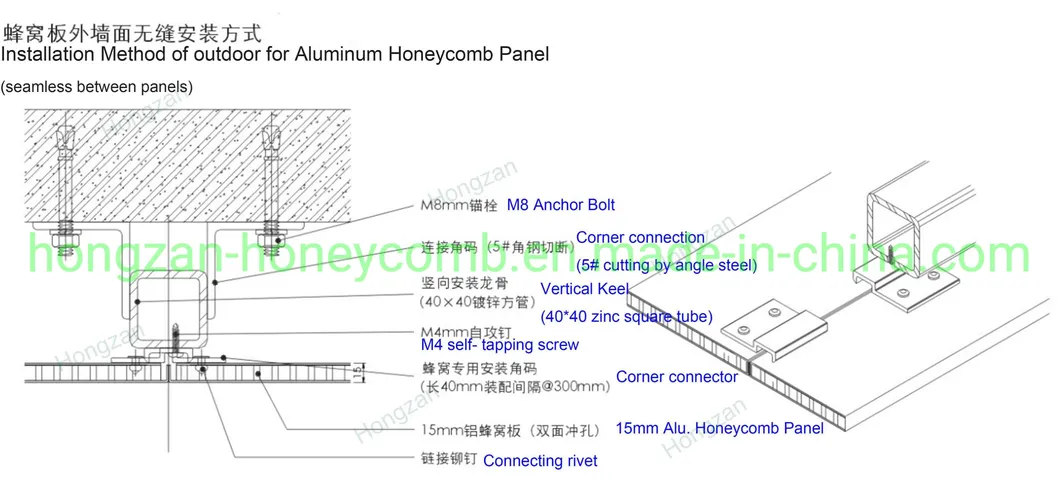

Standard Installing Systems:

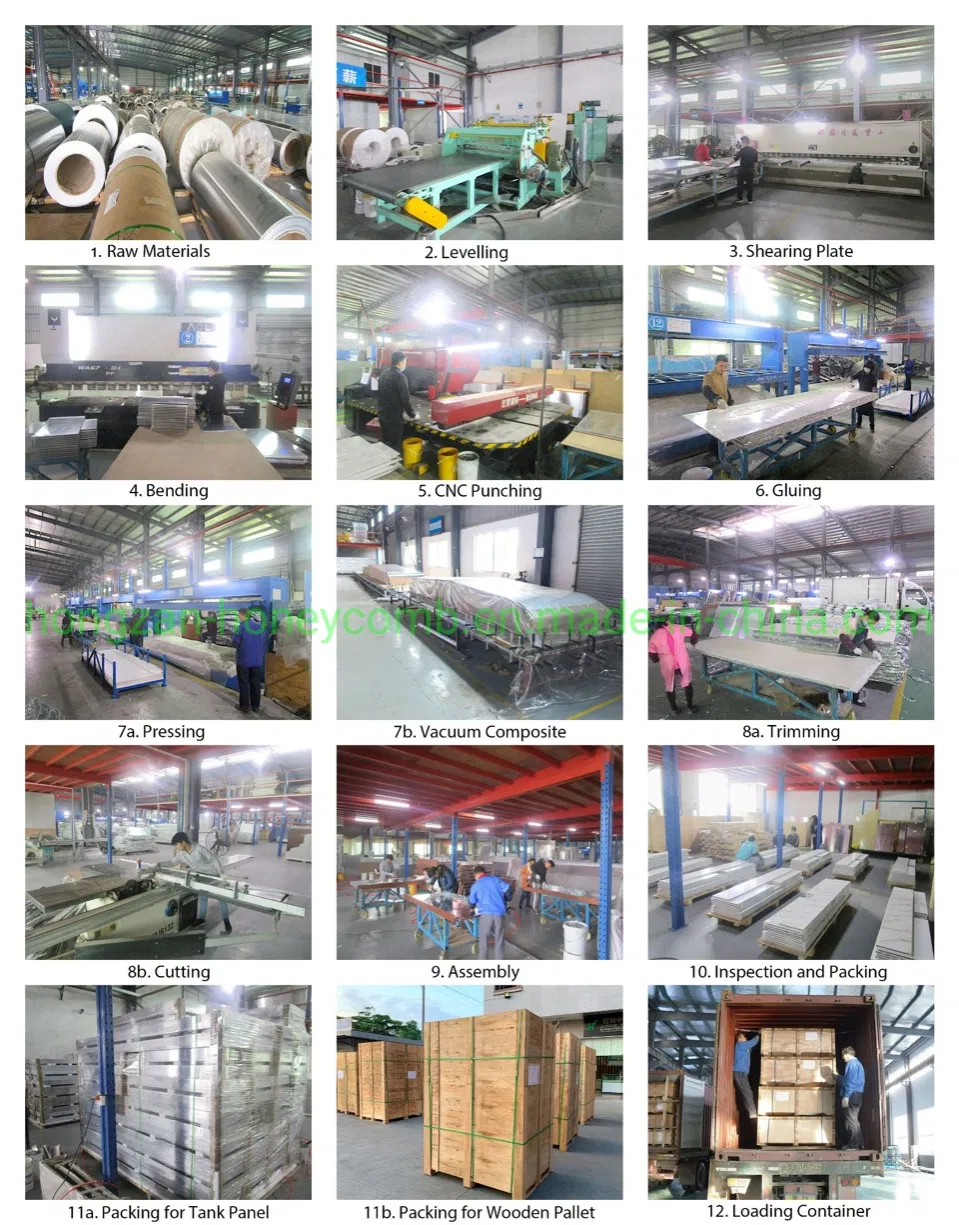

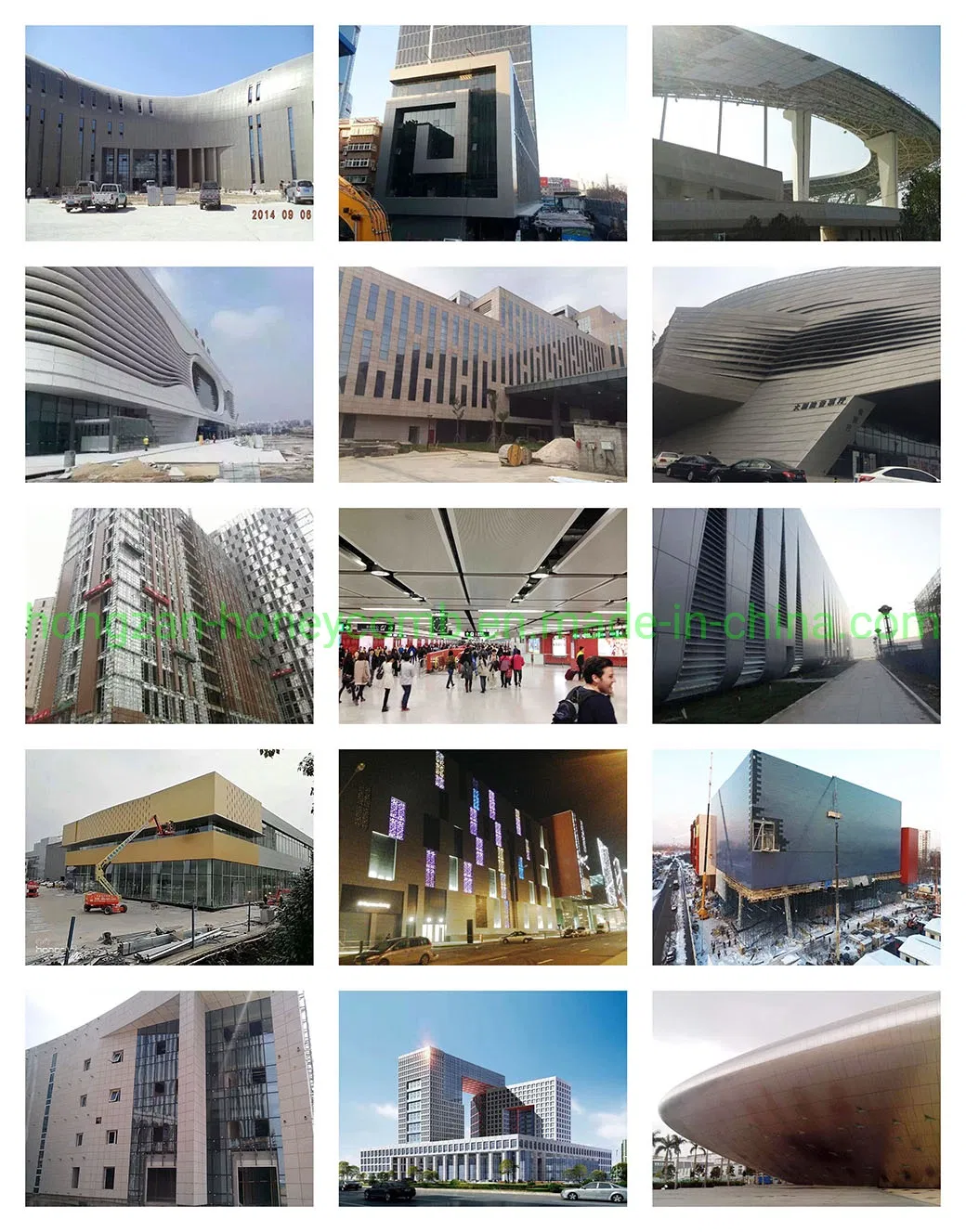

Factory & Project Showcase:
Frequently Asked Questions
