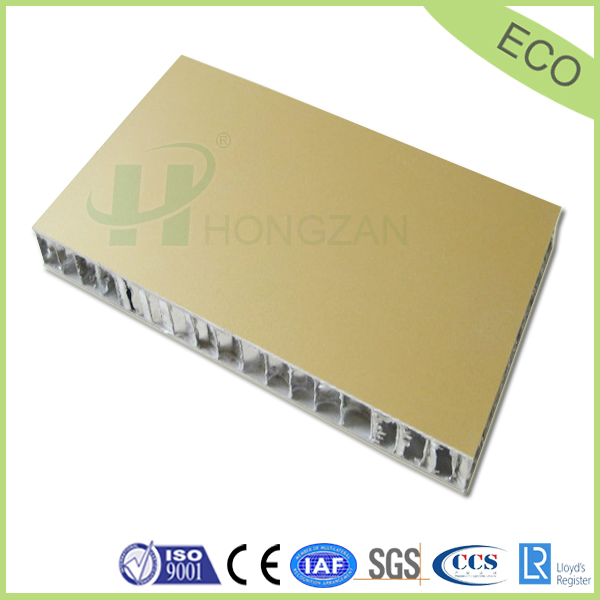

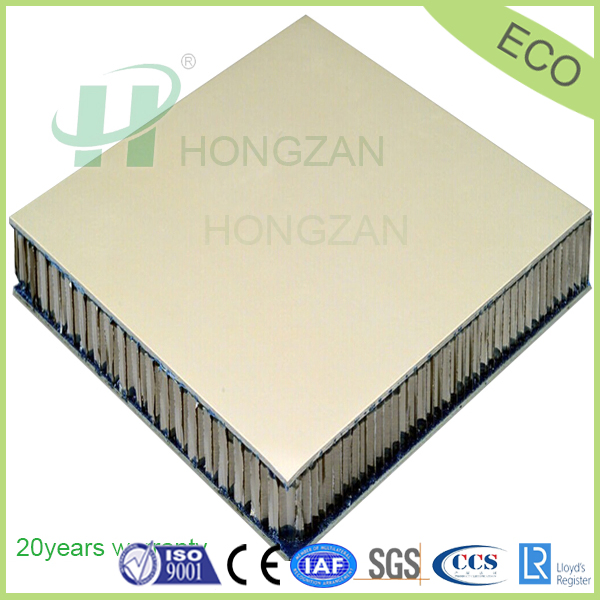

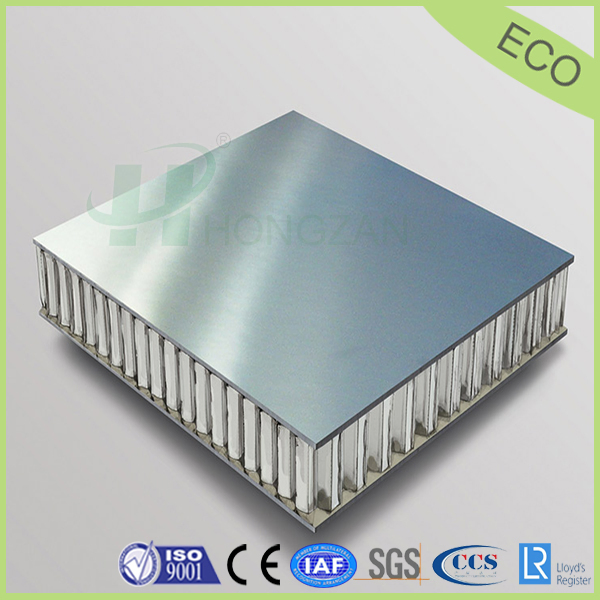

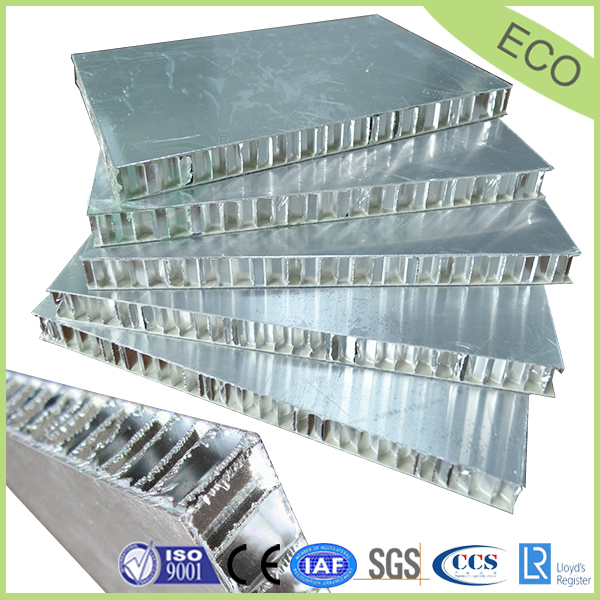

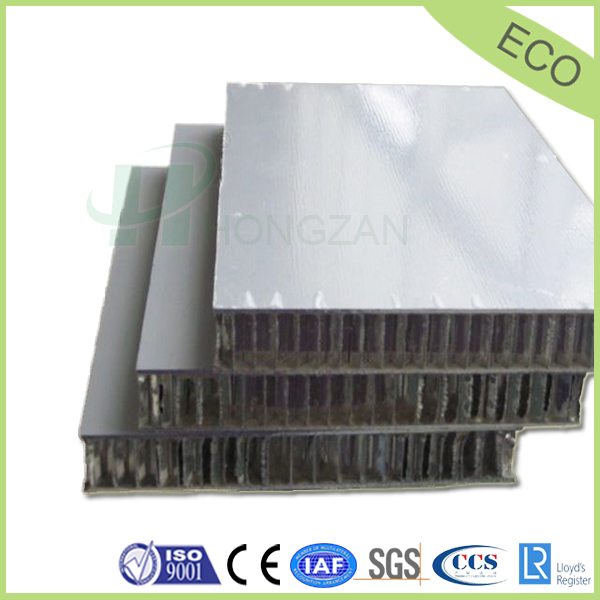

Aluminum honeycomb panels are high-quality composite materials primarily used for ship and building decoration. The surface employs fluorocarbon lacquer (PVDF/PE) pre-roll coating, ensuring color stability for 15-20 years.

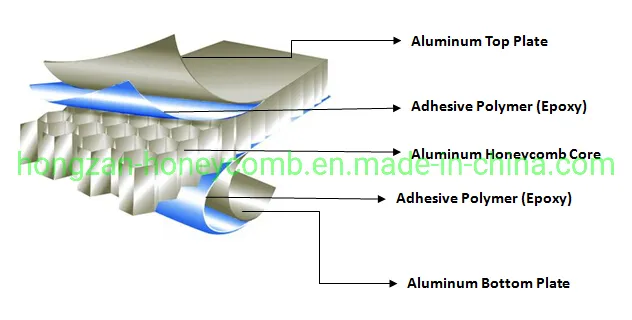

The interconnected honeycomb cores act like numerous I-beams, resisting shearing and bending pressure. This allows even large-sized panels to maintain extreme straightness and intensity with minimum weight.
| Property | 20mm Thickness | 25mm Thickness |
|---|---|---|
| Weight (kg/m²) | 7.4 | 7.8 |
| Inertia Moment I (cm⁴/m) | 19.85 | 31.67 |
| Section Modulus W (cm³/m) | 19 | 24 |
| Rigidity E.I (KN cm²/m) | 139,000 | 2,217,000 |
| Tensile Strength (N/mm²) | Rm ≥ 220 | |
| Sound Insulation (ISO717-RW) | 23 dB | 25 dB |

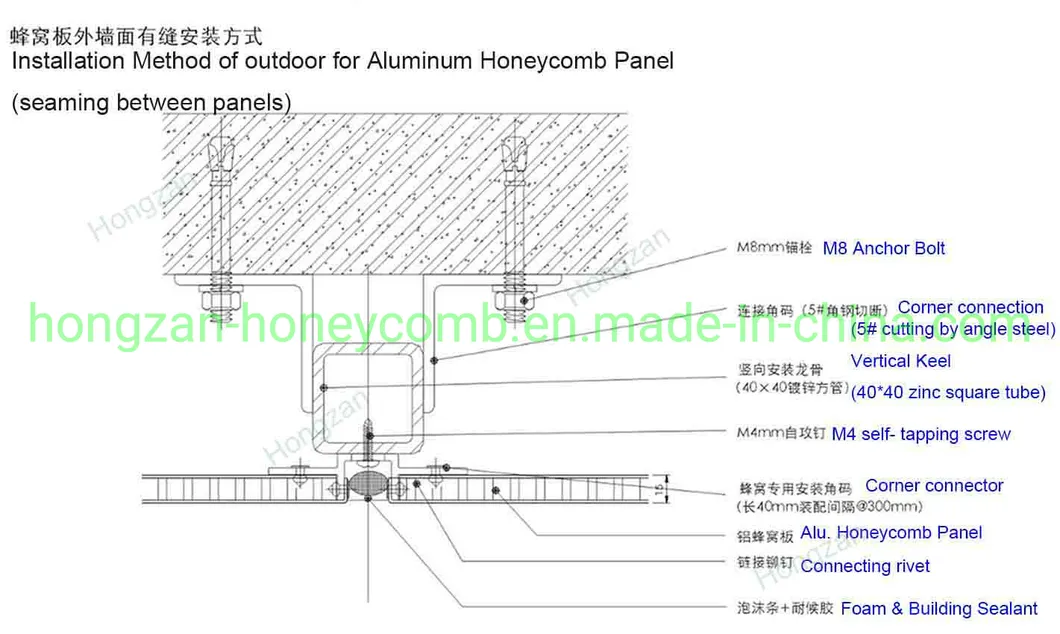

Type A: Standard Seaming Method

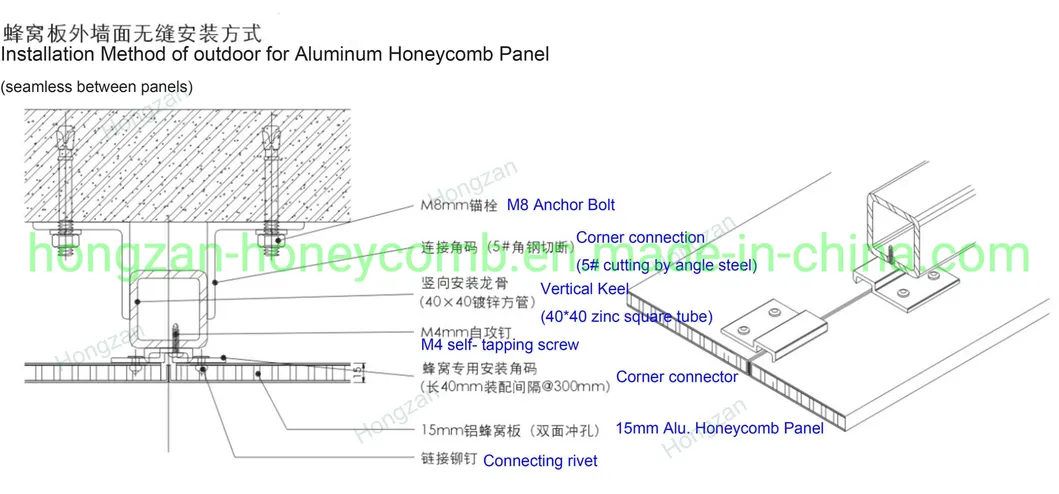

Type B: Standard Seamless Method
