Dubuild Panel
1 / 5

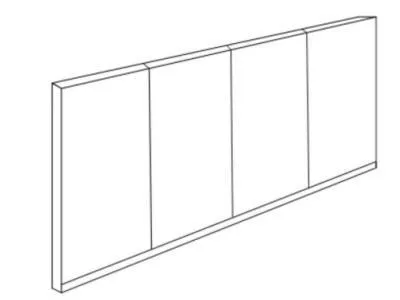

Walls can be used as standalone noise barriers or as part of an enclosure to effectively block and absorb unwanted sound.

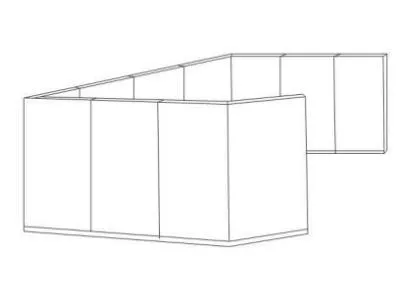

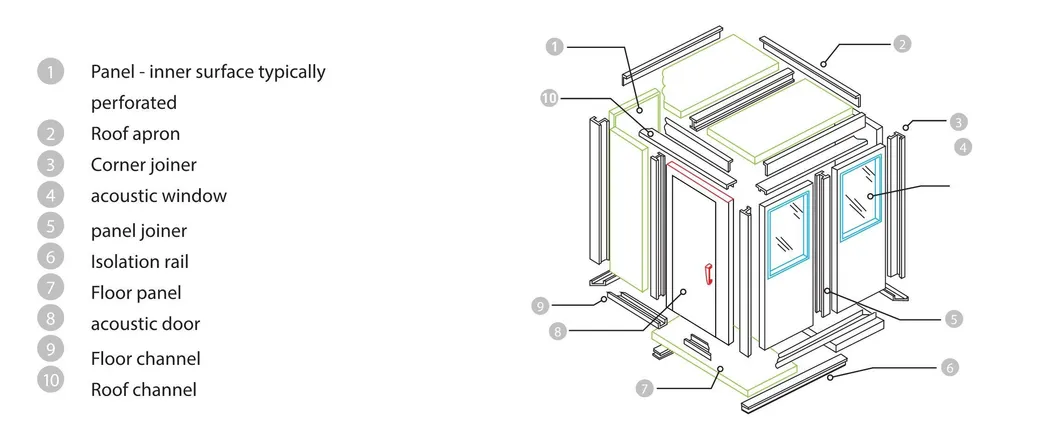

Using corner joiners, a right angle can be formed on straight barrier walls to create open acoustic enclosures and shields for targeted noise control.

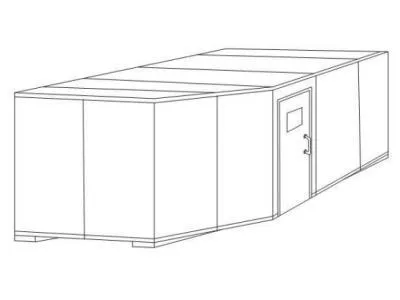

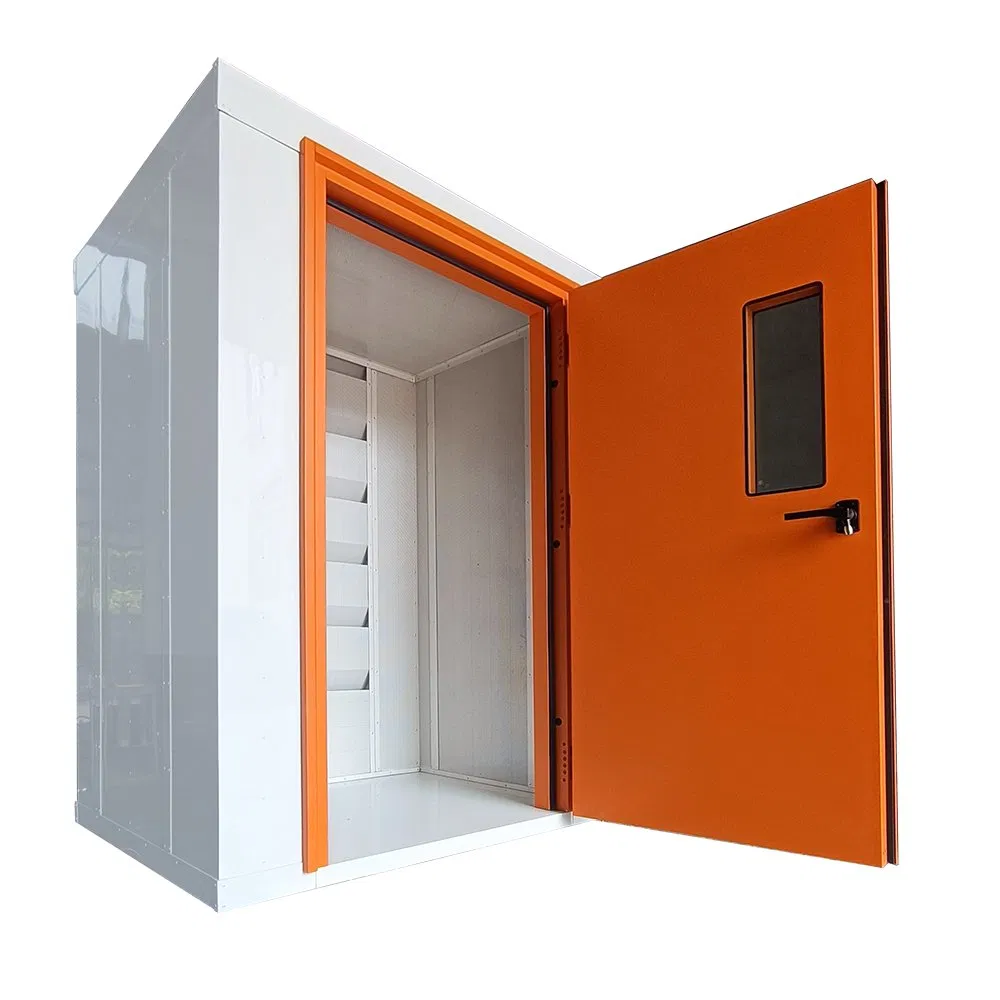

Using acoustic roof panels and access doors, complete enclosures can be made to reduce sound from machinery or isolate staff working in noisy industrial environments.
Where structurally transmitted noise and vibration must be controlled, acoustic enclosures are built upon a floating floor system on vibration isolators tailored to project requirements.
| Panel | Acoustic Rating | Thickness | Weight | |||
|---|---|---|---|---|---|---|
| Rw | R"w | STC | NIC | |||
| NP-1 | 45 | 43 | 44 | 42 | 102mm | 50kg/m² |
| NP-2 | 59 | 59 | 61 | 58 | 102mm | 51.1kg/m² |
| NP-3 | 58 | 54 | 59 | 57 | 102mm | 61.8kg/m² |
| NP-4 | 45 | 42 | 44 | 43 | 102mm | 38.2kg/m² |
| NP-5 | 54 | 52 | 54 | 53 | 102mm | 56.9kg/m² |

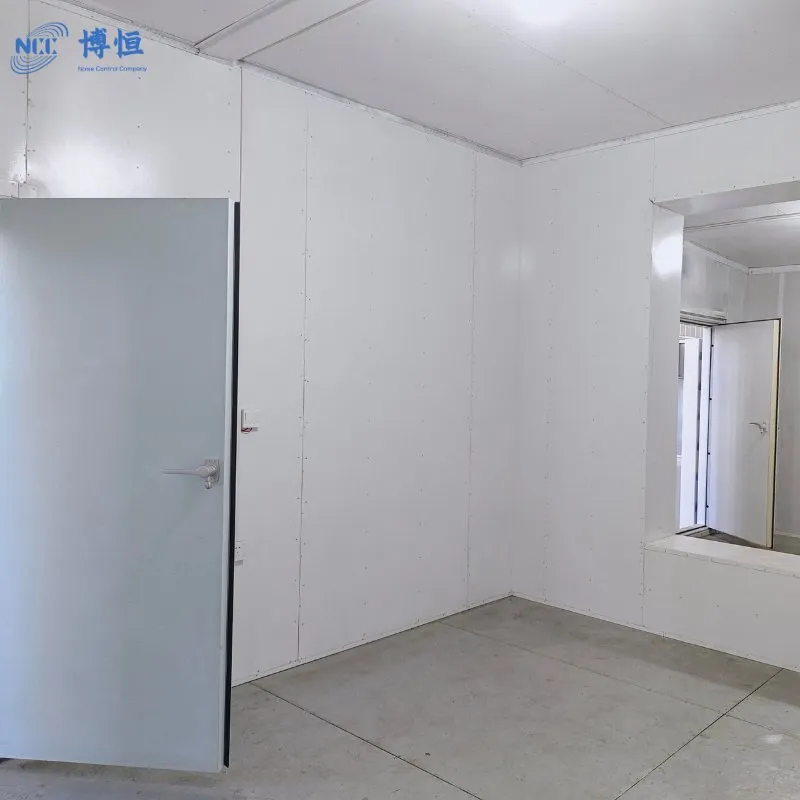

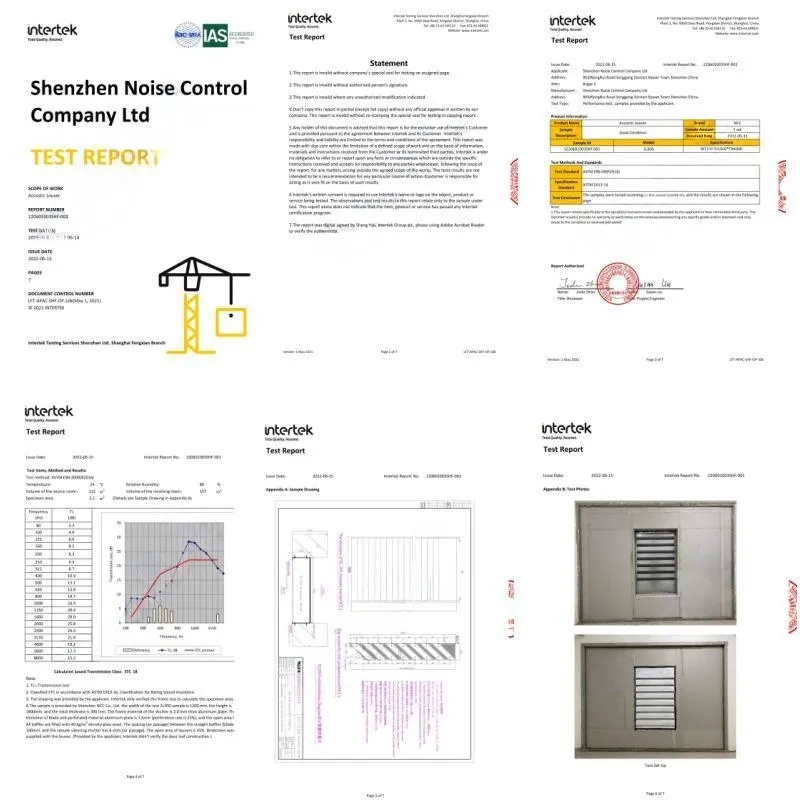

We utilize a high-end laboratory for rigorous pre-production sample testing. All reports meet American Standards, with sound testing conducted via Intertek.

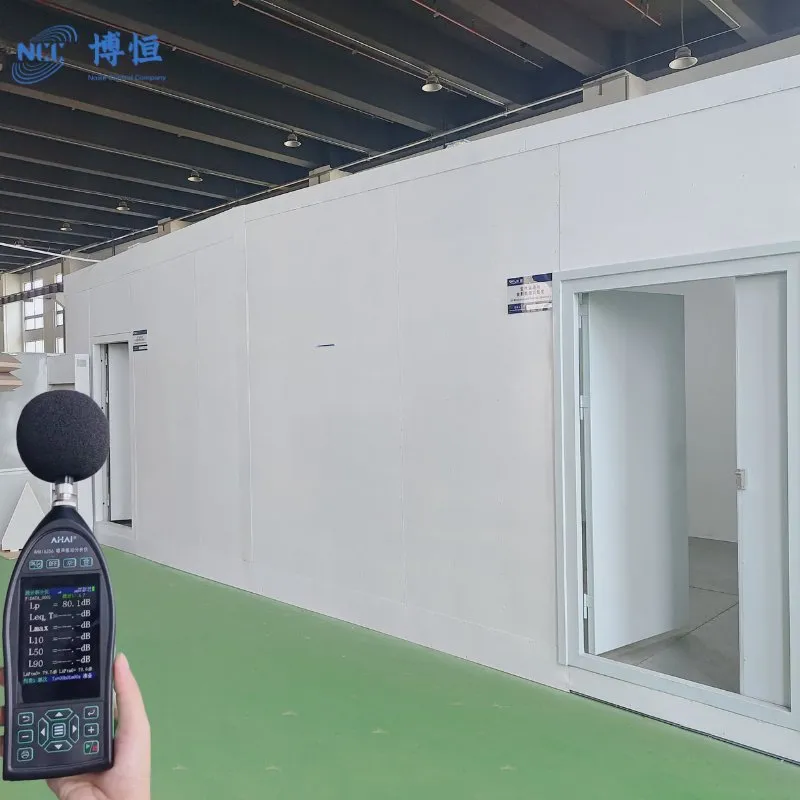

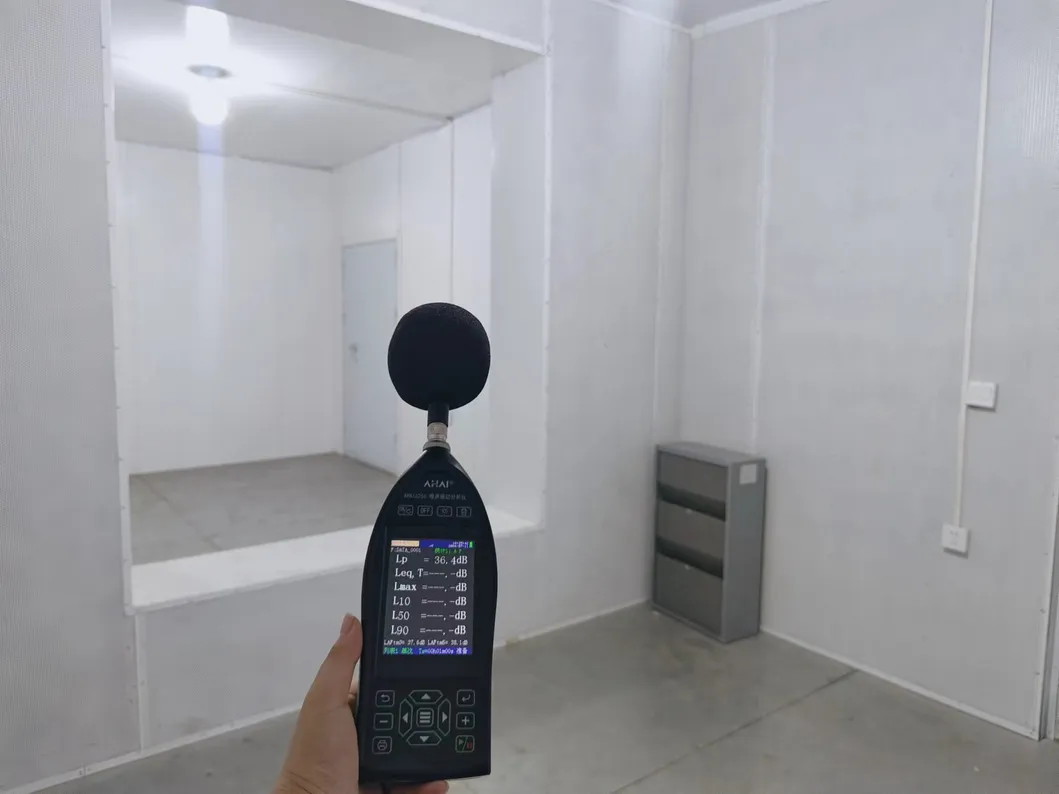

As illustrated, external noise of 80.1 dB is reduced to 36.4 dB or lower within our acoustic laboratory, ensuring extreme accuracy for all test outcomes.

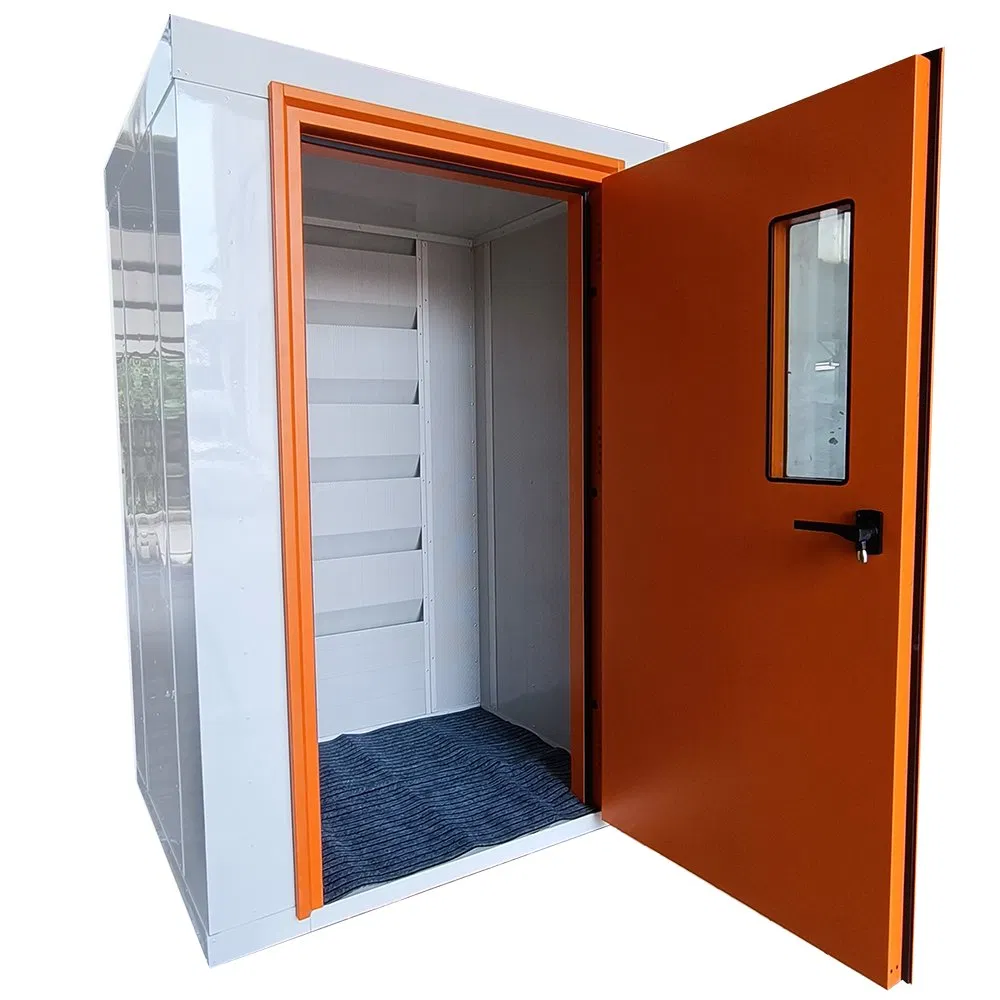

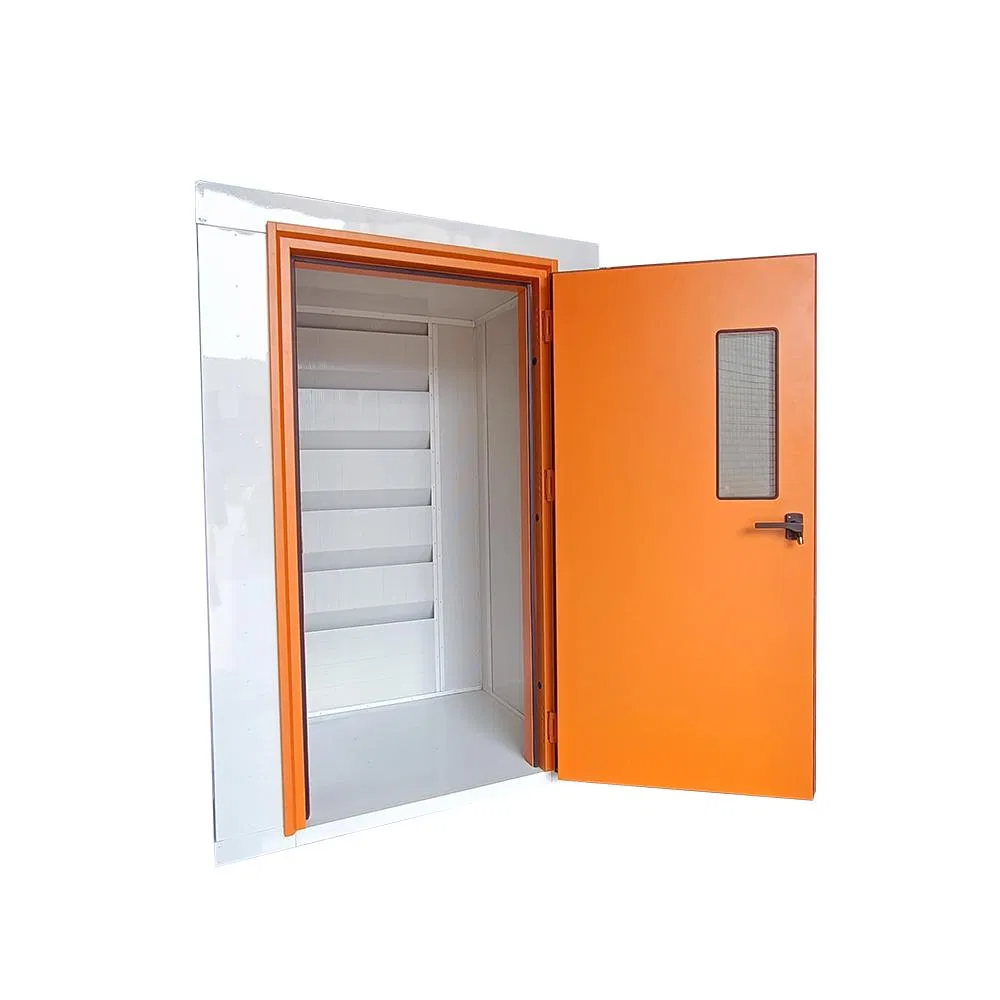

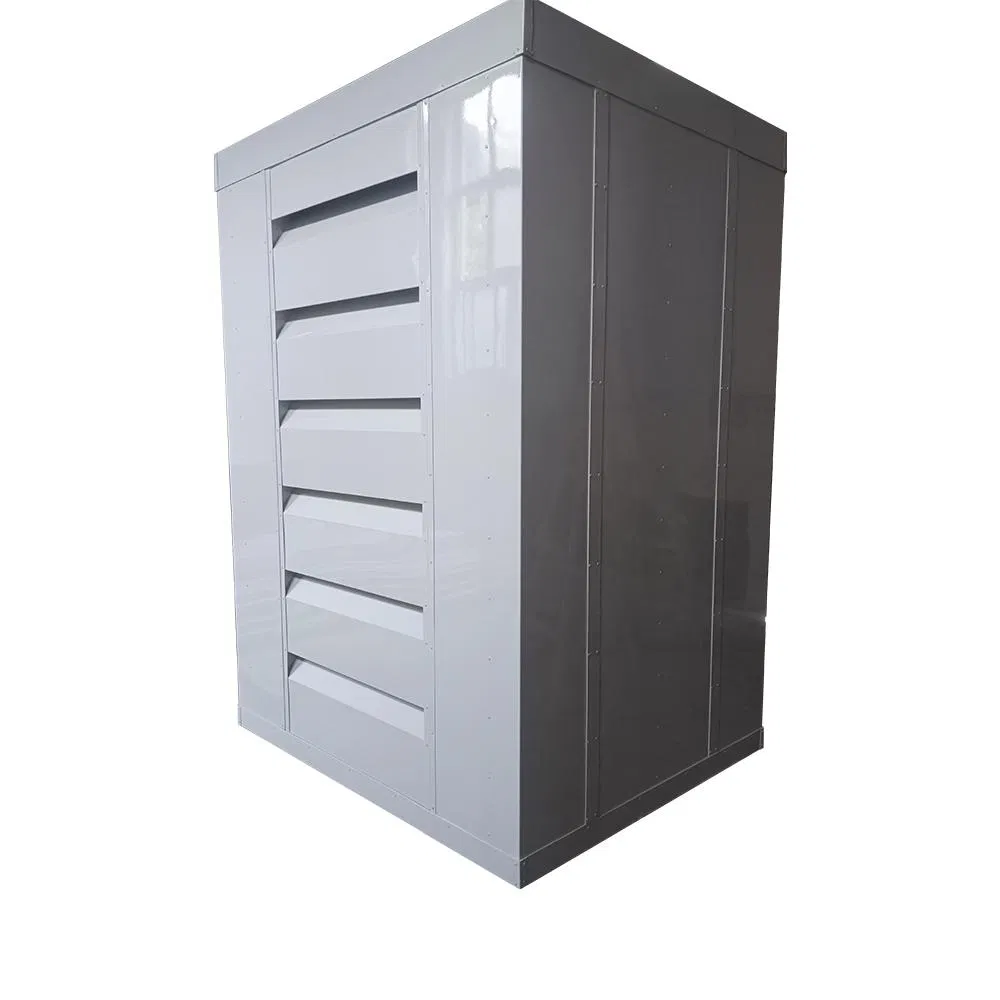

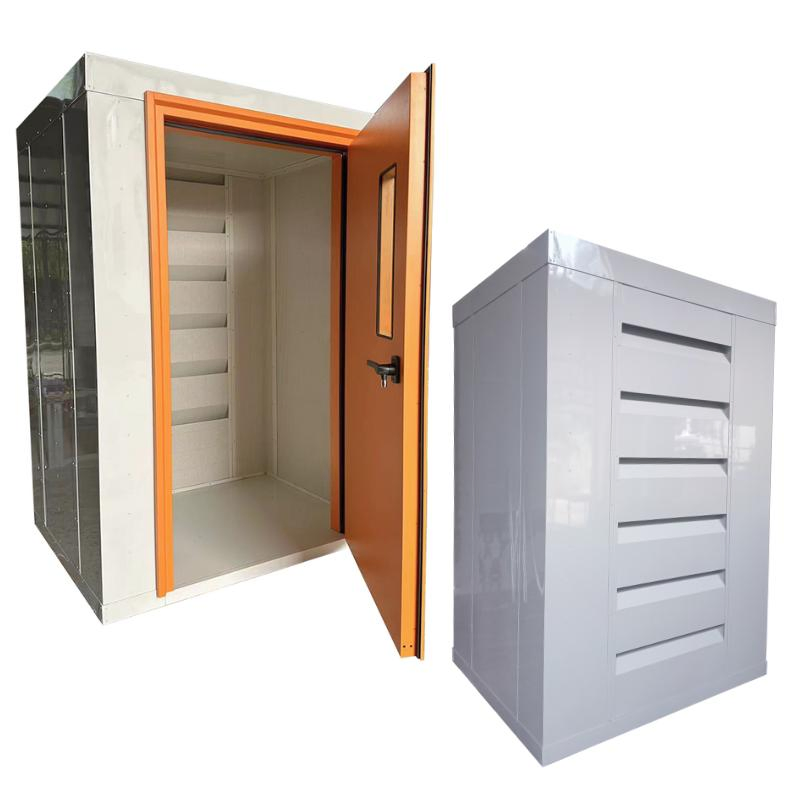

Acoustic Panels are multi-purpose, permitting air flow while shielding the environment from noise. Our louvres are available in standard modular sizes to meet diverse architectural requirements.
All packing uses Rubber clip boards, eliminating the need for fumigation.

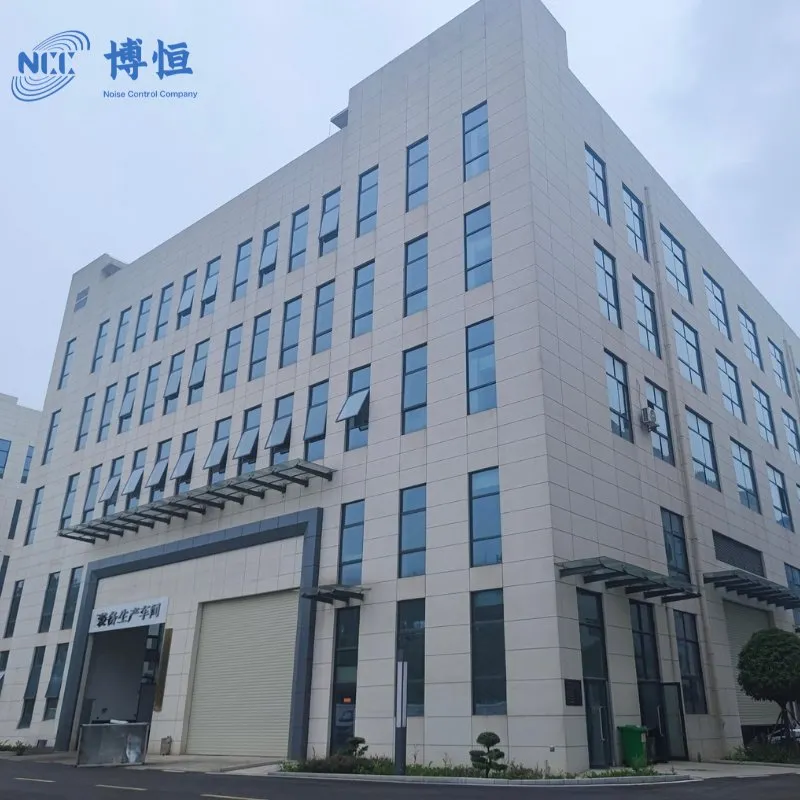

We are a turnkey supplier of noise control, providing one-stop solutions from concept to completion. Our services include solution consulting, synchronous R&D, structural design, fluid calculation, and professional installation. With decades of experience in acoustic engineering, we provide solutions that meet specific needs and budgets across aerospace, medical, and industrial fields.
