Dubuild Panel
1 / 5

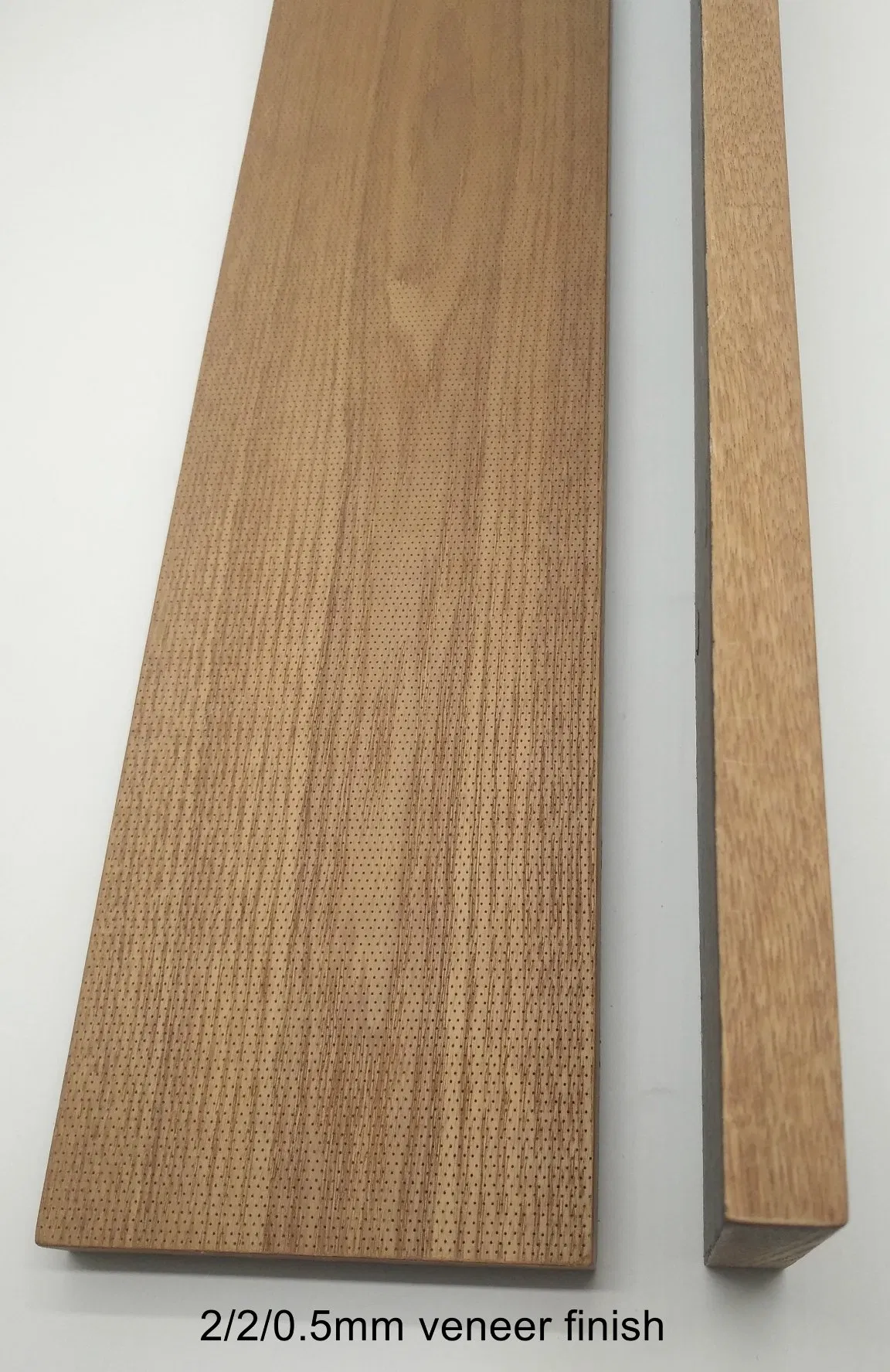

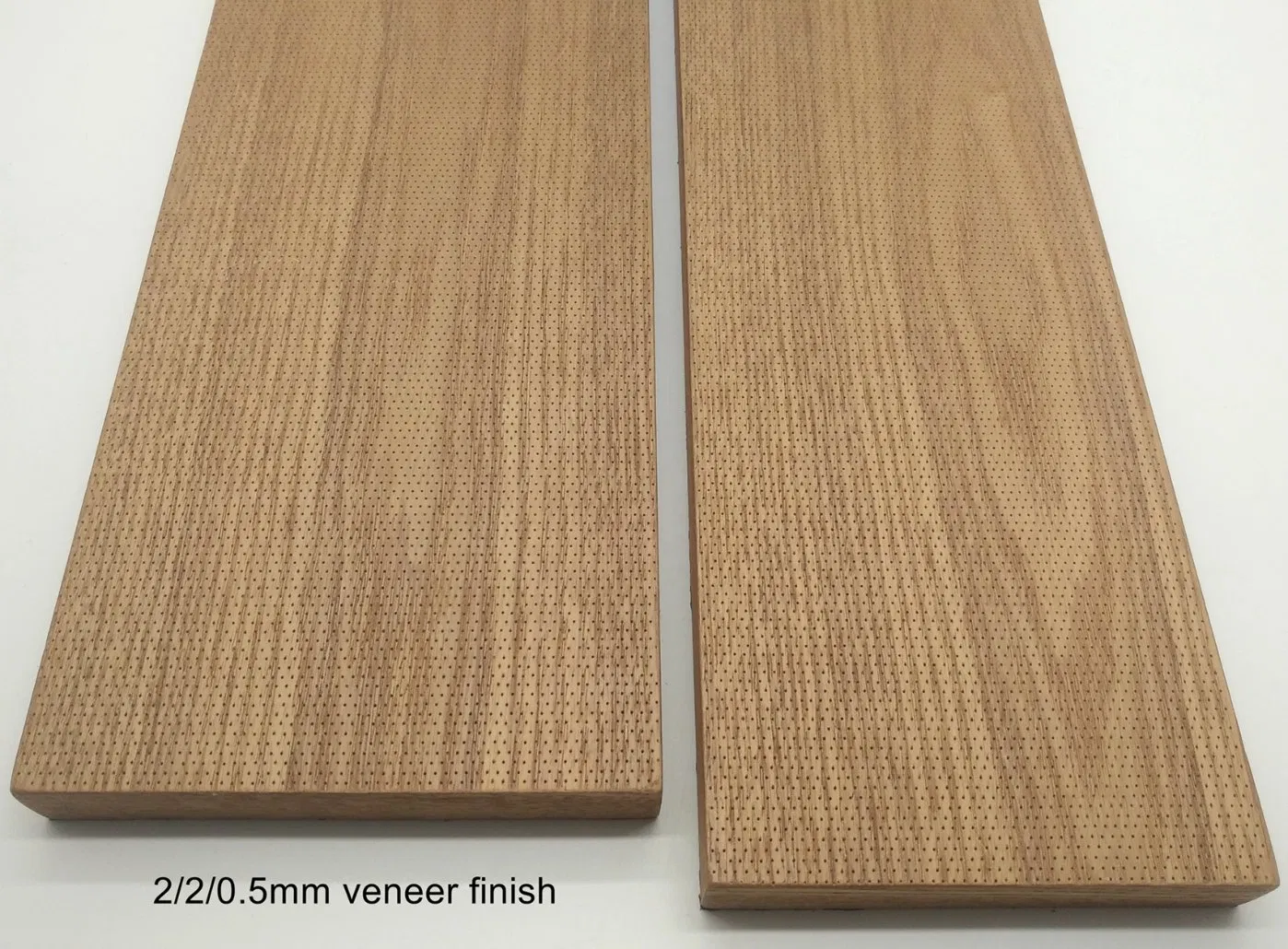

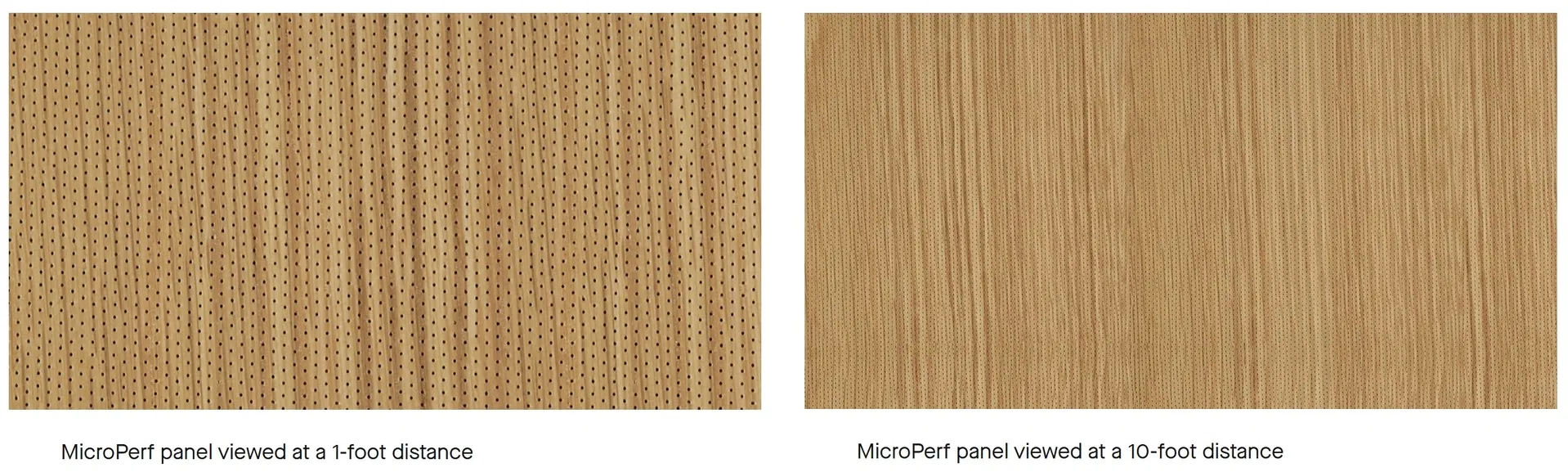

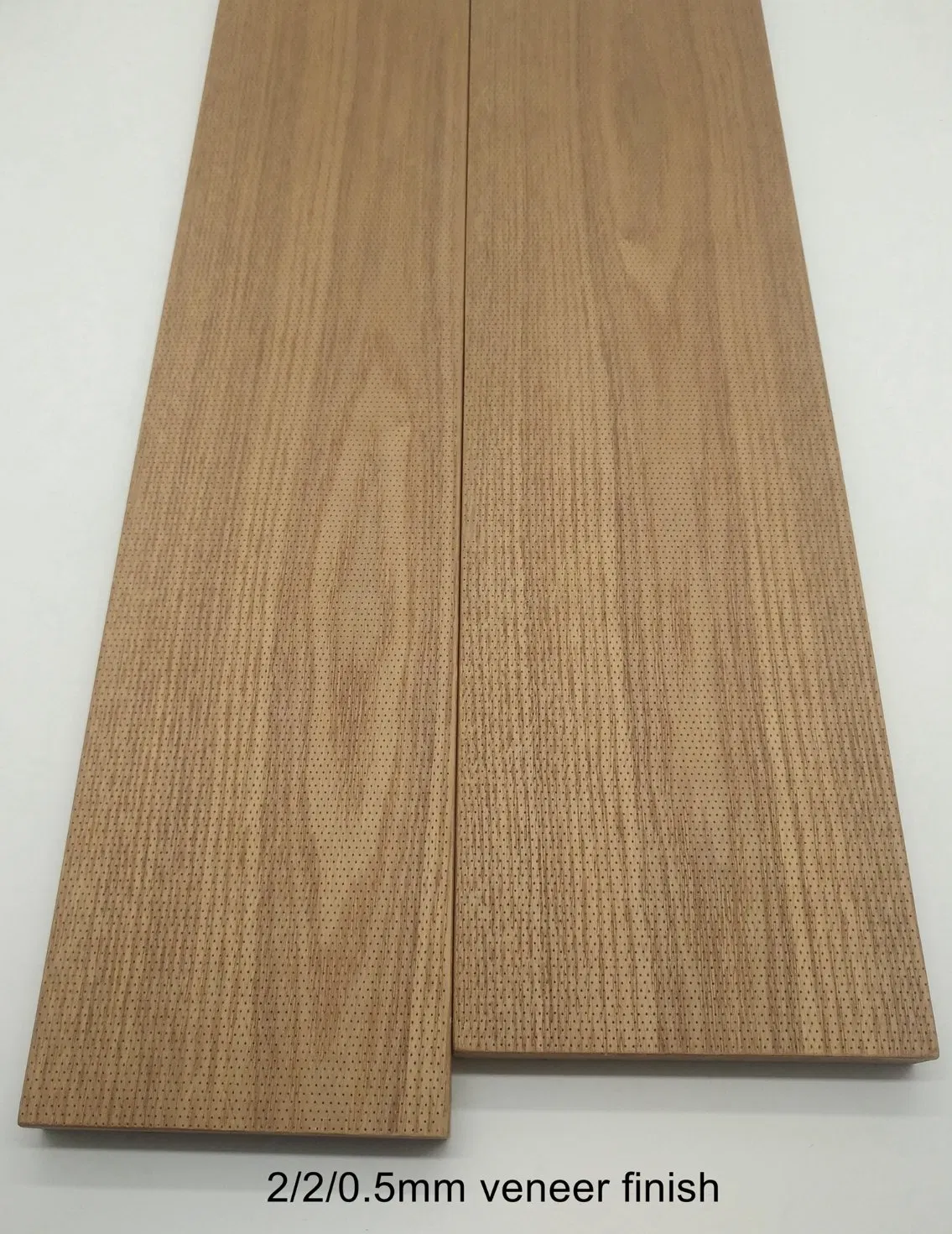

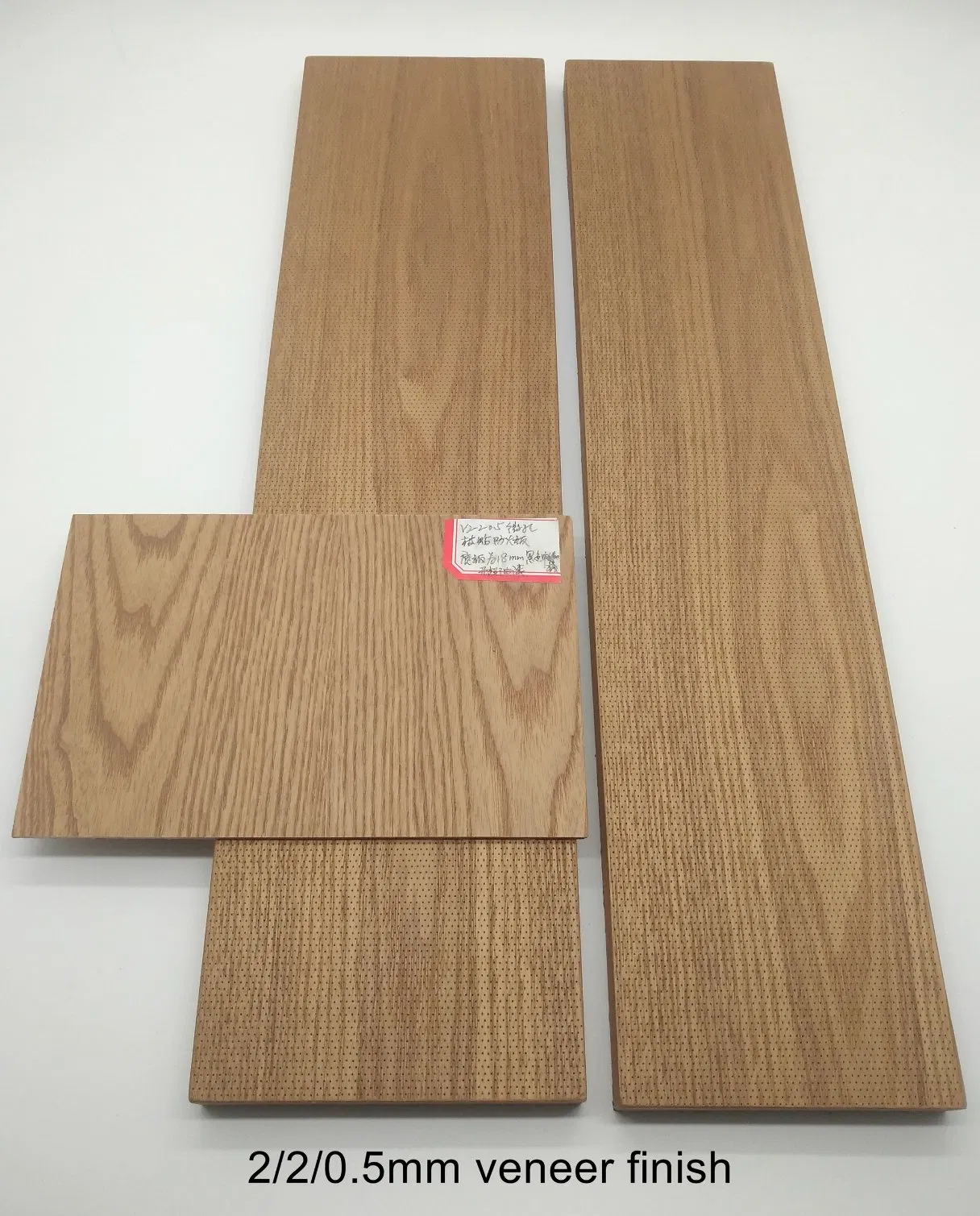

Featuring precision micro-perforation, the panels are designed with ultra-fine holes that are nearly invisible to the eye. This discreet detailing not only enhances the aesthetic appeal of any space but also delivers excellent sound absorption. Combining effective acoustic performance with a refined decorative finish, these panels are the ideal choice for modern interiors.
| Technical Feature | Specifications |

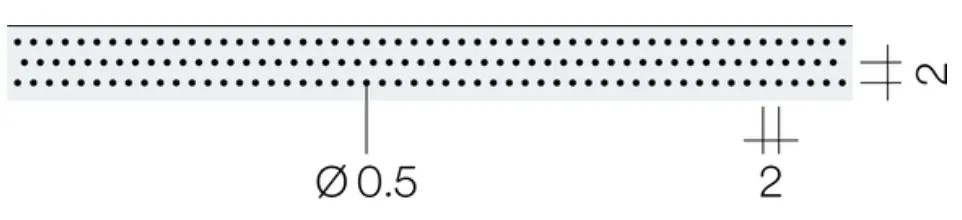

| Perforation Pattern | Staggered or Straight hole arrangement |
| Finish Options | Laminate, Natural Veneer, or RAL colors |
| Core Colors | Red MDF or Black MDF |
| Panel Sizes | Standard: 2400*1200mm | Custom: up to 3020*1220mm |

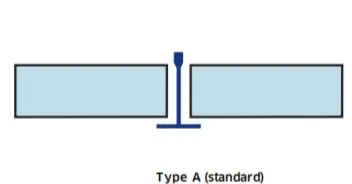

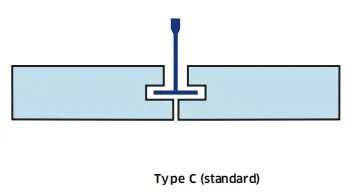

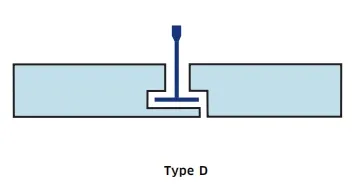

| Edge Profiles | Type A (90° cut), Type C (Grooved), Type D (Tongue & Grooved) |
| Backing | Soundtex black acoustic fleece |

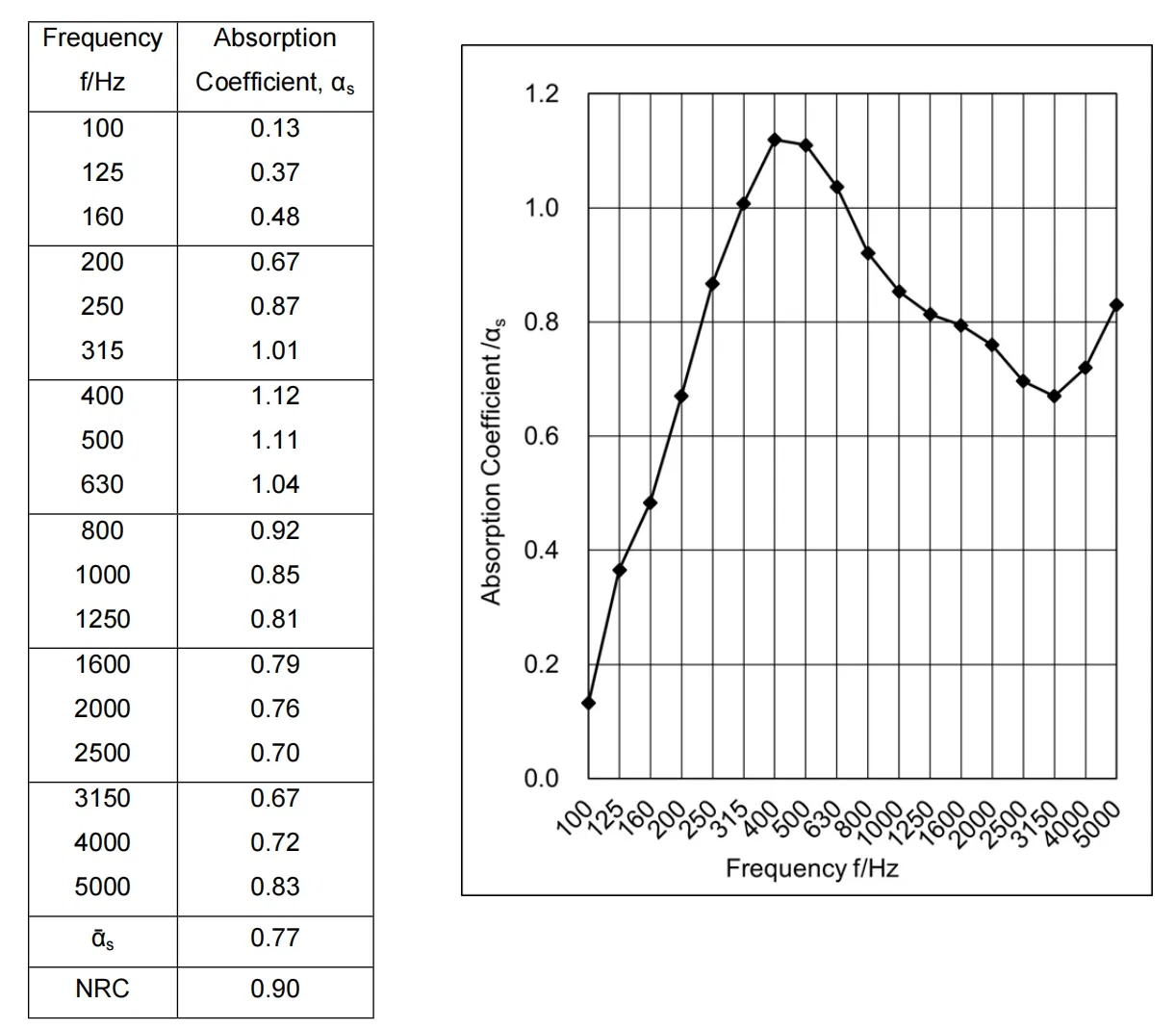

Tested according to ISO354:2003 standards in a reverberation room. These panels effectively capture sound energy and convert it into heat through friction within the air cavity.

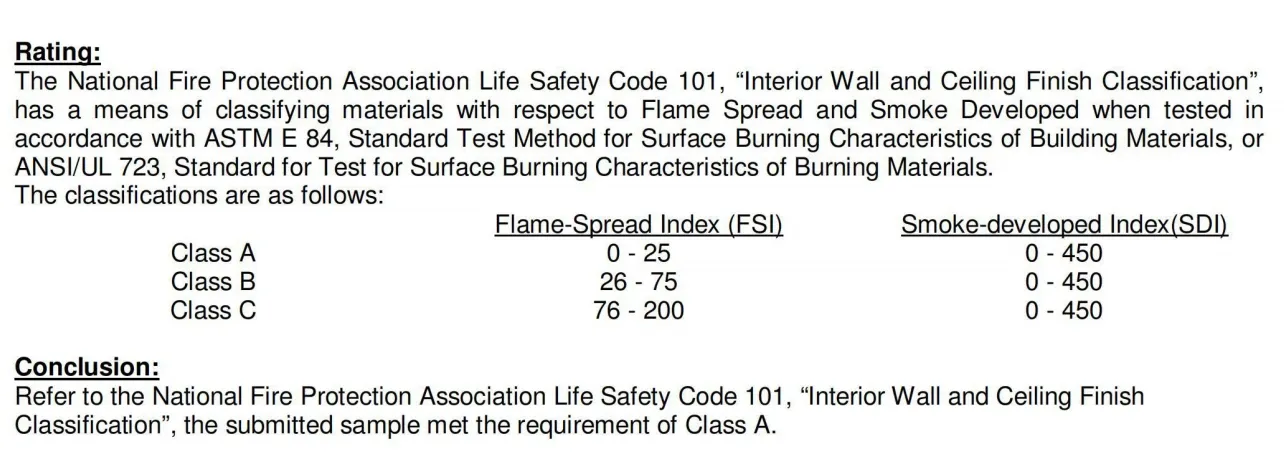

Flame spread and smoke developed tested in accordance with ASTM E84 Standard. Ideal for high-safety requirement building environments.

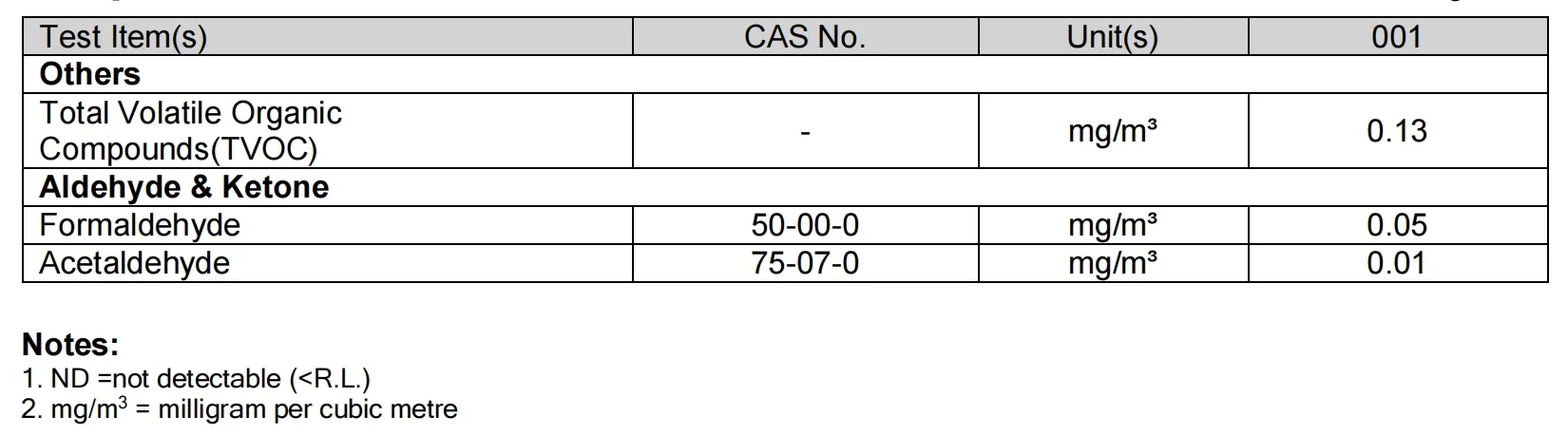

Formaldehyde levels tested at 0.05mg/m³ using Environmental Chamber analysis (ISO16000 standards). Ensures healthy indoor air quality.

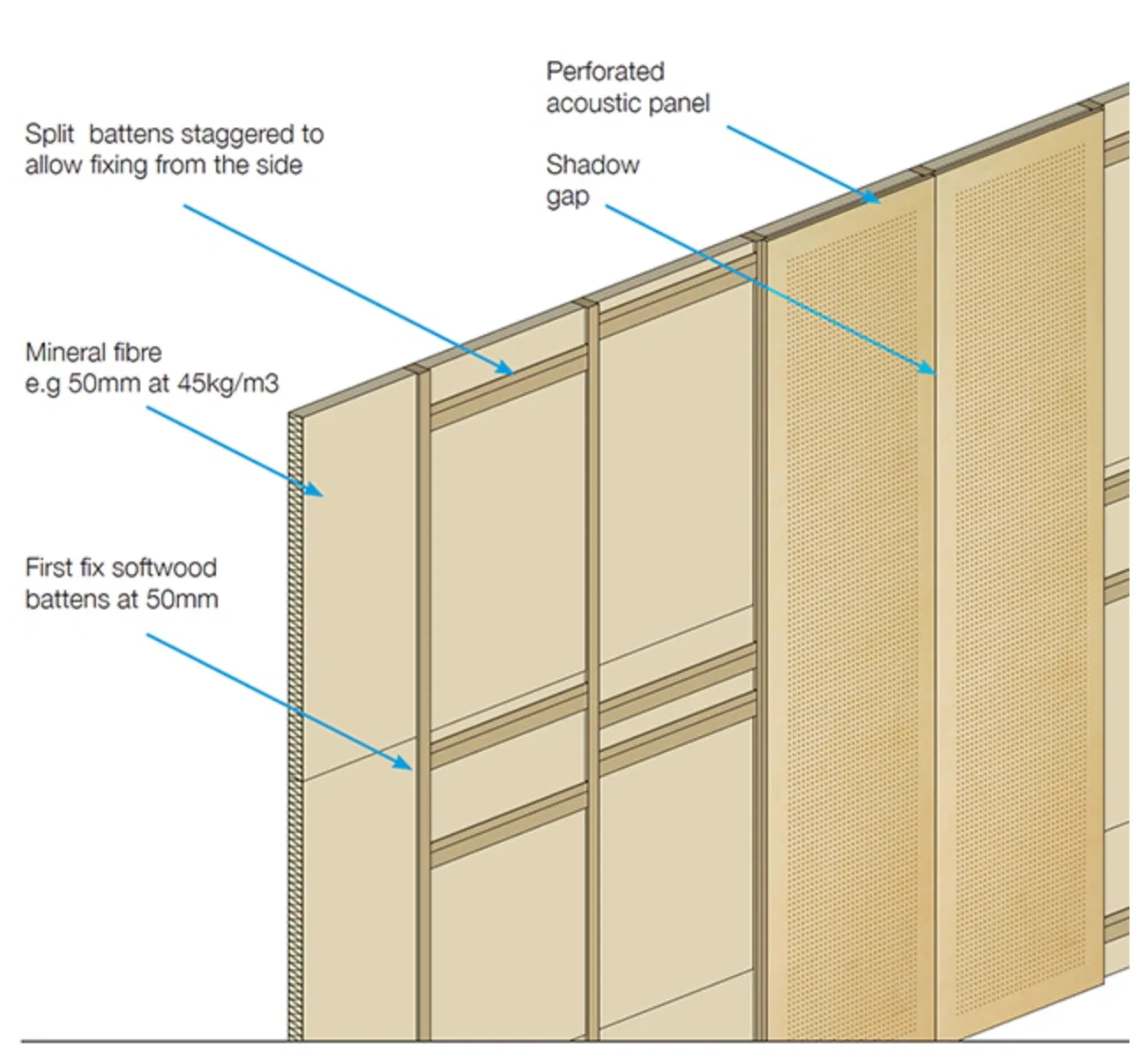

Typically mounted on a fireproofing wooden frame with invisible split battens. The frame is filled with sound-absorbing material (e.g., Rockwood at 45kg/m³).
Pro Tip: Leave a space of 2.5mm per meter in height and width around the panel to allow for natural expansion.

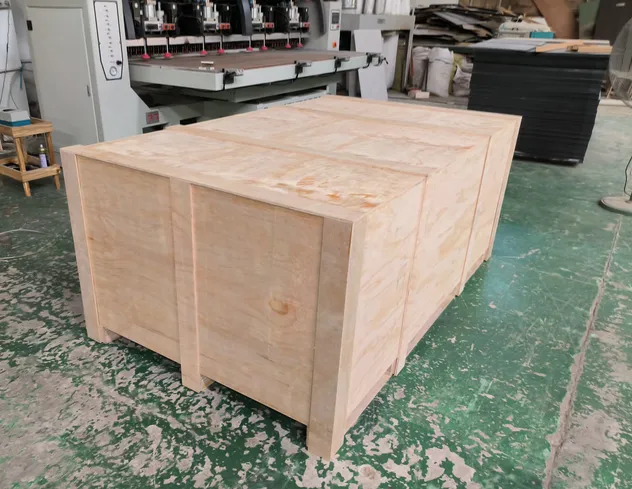

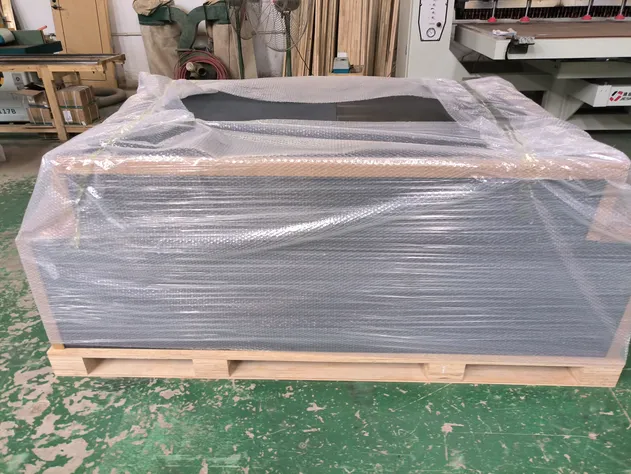

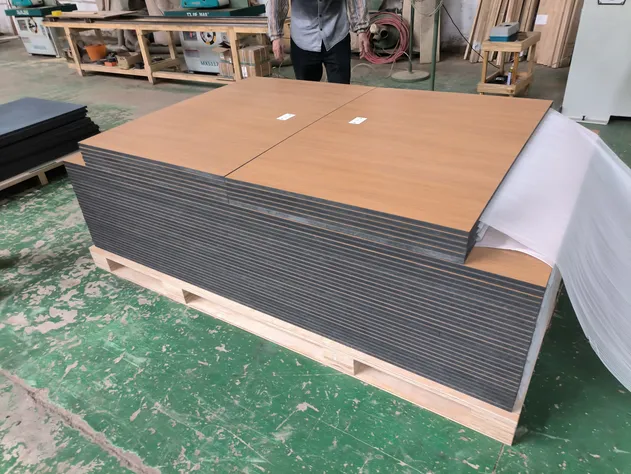

Rest assured, panels are well protected during transit. Wrapped in protective bubble film to shield from moisture and scratches, then securely placed inside high-strength wooden cartons designed to withstand rough handling.
