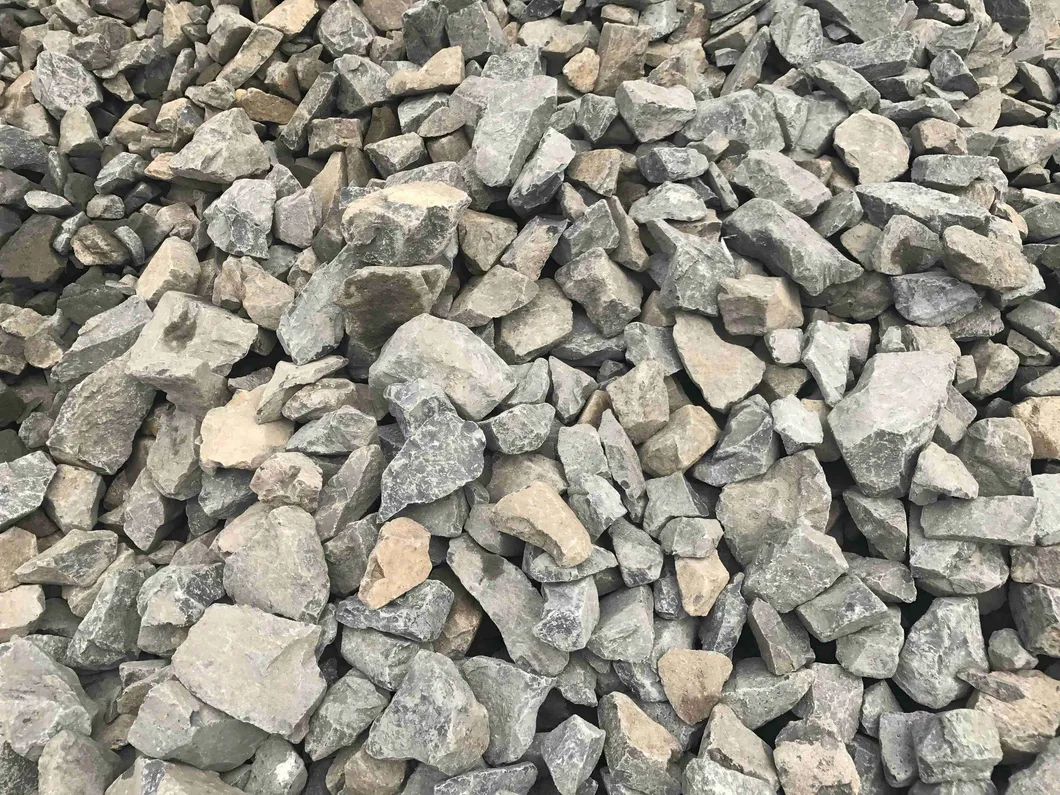

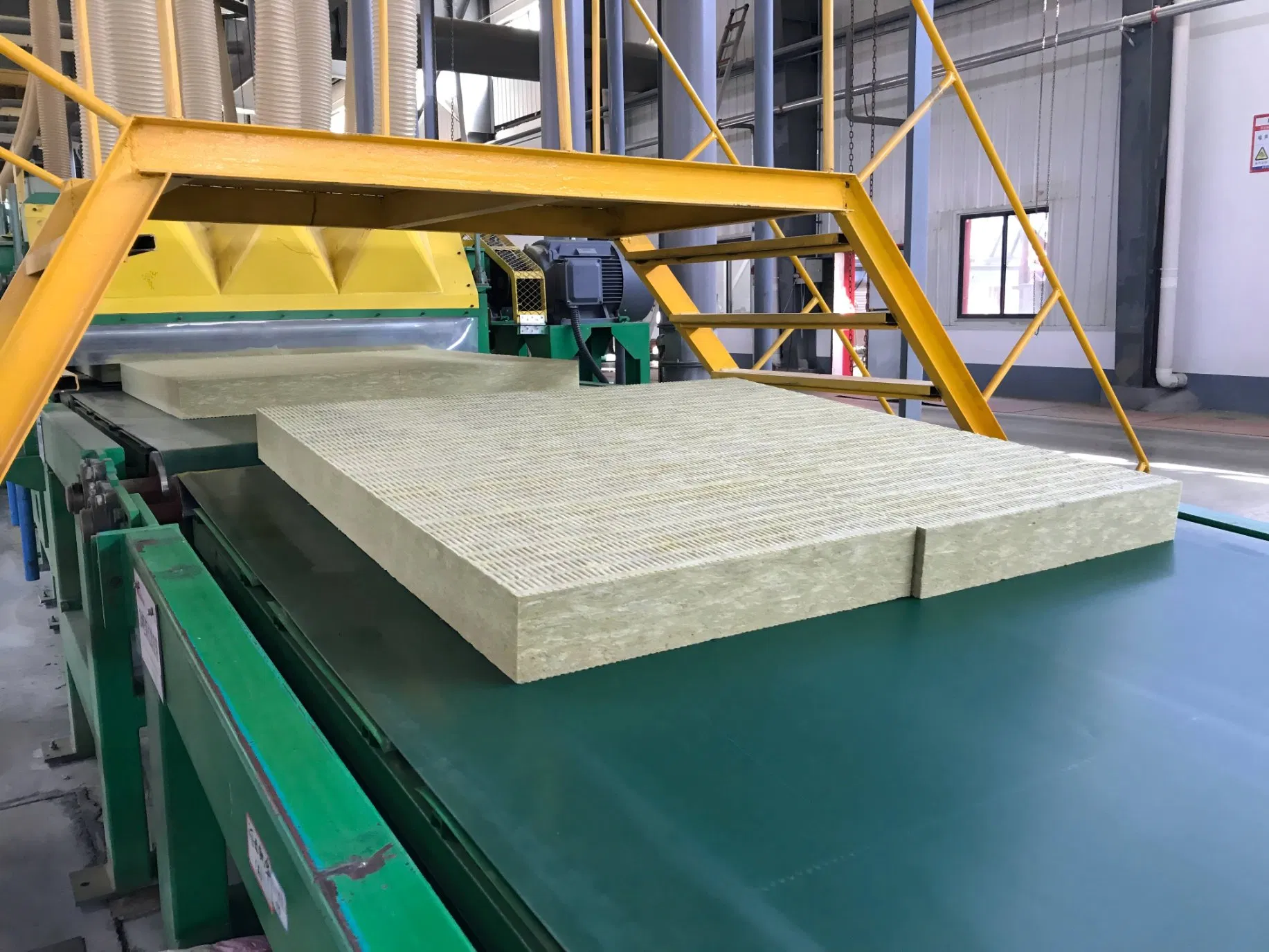

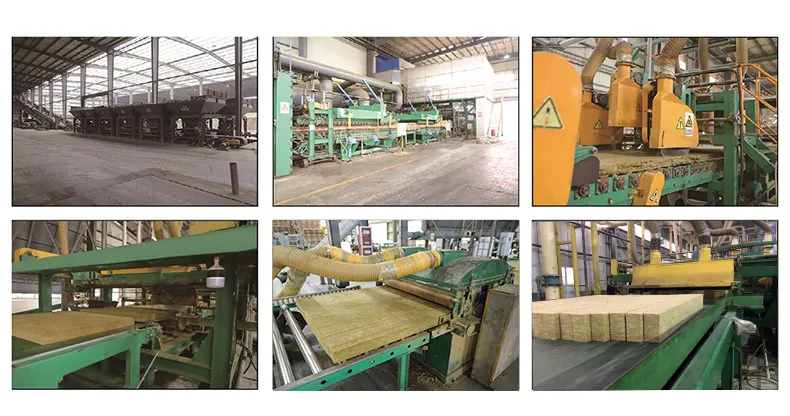

Rock Wool Board is made from basalt, an inorganic raw material. It is produced by heating basalt at 1350˚C - 1400˚C and centrifuging it at high speed into fibers. Advanced three-dimensional production technology is used. Then, a few binding agents are added, and it is shaped by thermal curing.

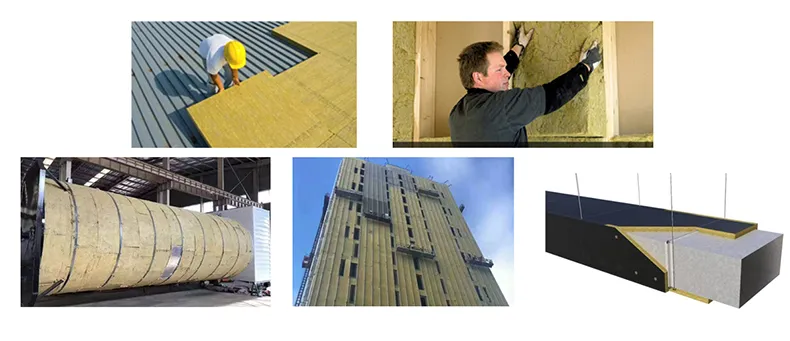

It is lightweight and easy to install, mainly used for thermal and acoustic insulation. Products are widely applied in building exterior walls, curtain-wall roofs, industrial and civil buildings, composite core boards, marine bulkheads, and fire-door cores.
| Properties | Unit | Value (Density: 40-200kg/m3) |
|---|---|---|
| Combustion Performance | -- | Class A1 non-combustion |
| Mean Fiber Diameter | um | 4.4 |
| Shot Content | % | 3% |
| Hydrophobic Rate | % | ≥98.0 |
| Melt Temperature | ºC | >1000 |
| Thermal Conductivity (25ºC) | W(m.k) | ≤0.048 |
| Dimensional Stability | % | ≤1.0 |
Building Sector: Exterior wall insulation thin plastering systems, non-bearing insulation structures, curtain walls, and fireproof doors. It offers excellent wind pressure resistance and durability.
Industrial Sector: Petrochemical plants, power plants, and industrial tanks. Features high temperature resistance, hydrophobicity, and corrosion resistance.
Standard Size: 120.00cm X 60.00cm X 100.00cm (Customizable)

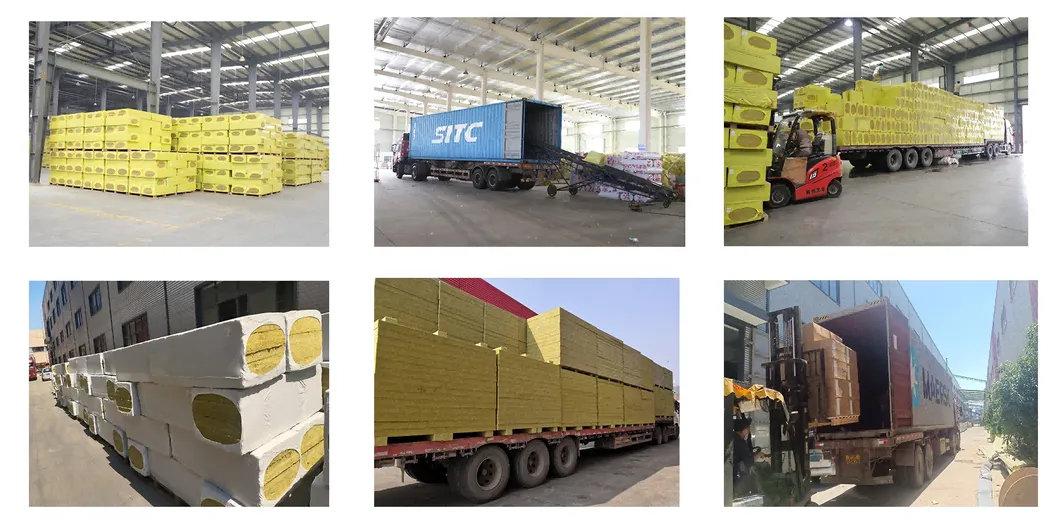

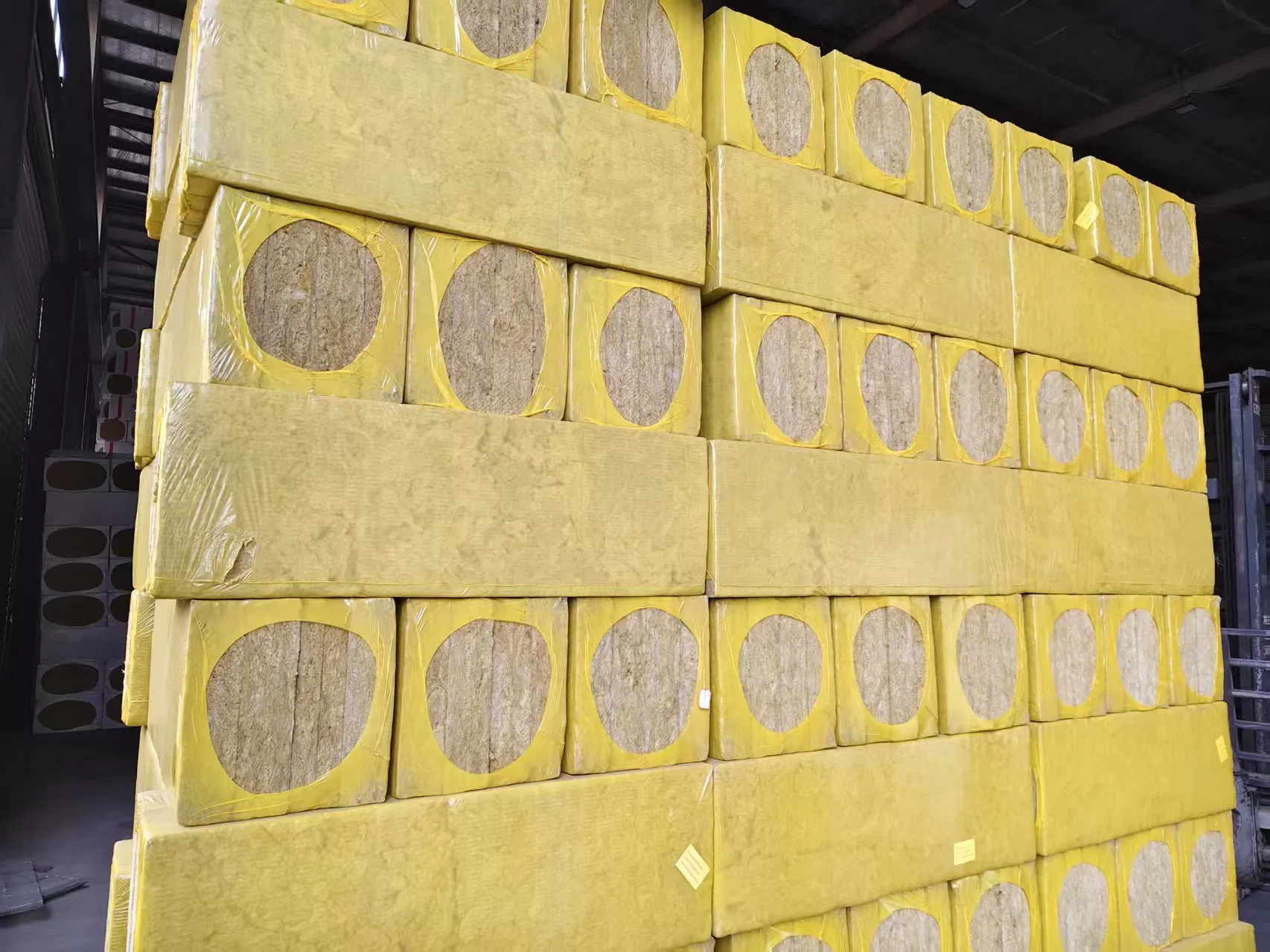

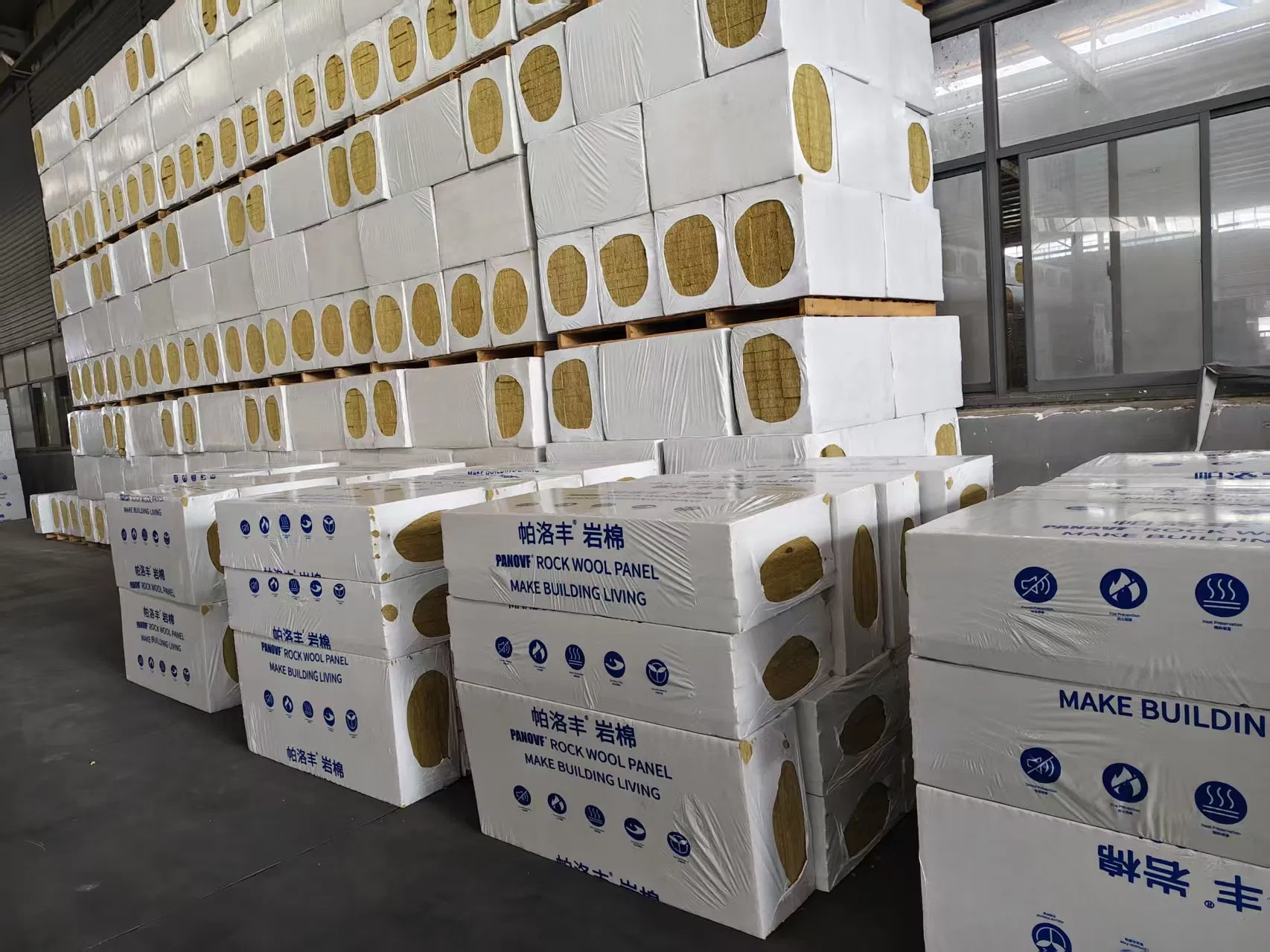

Weight: Approx. 24KG per package
