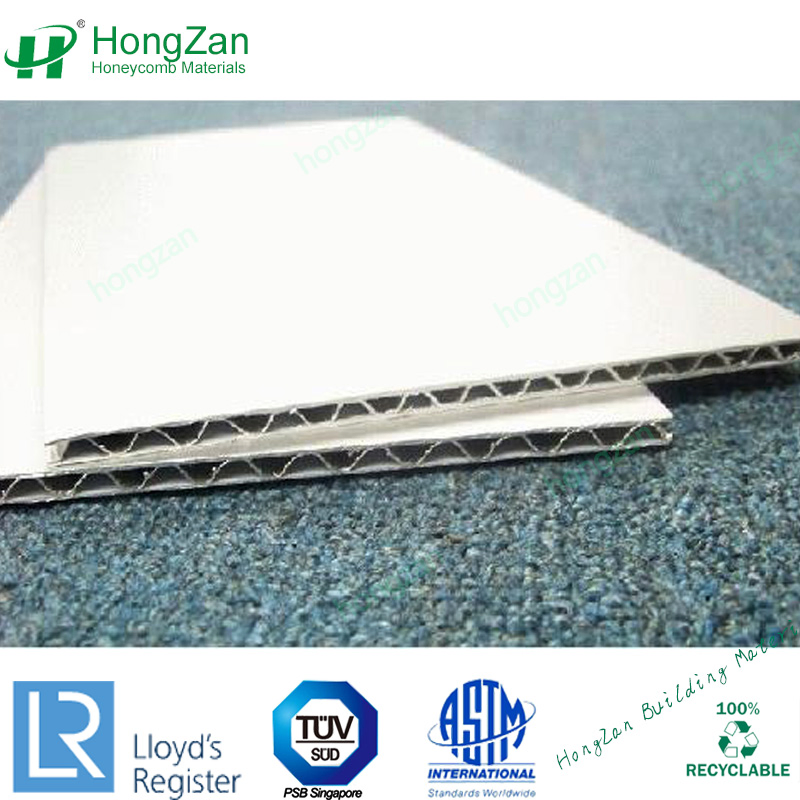

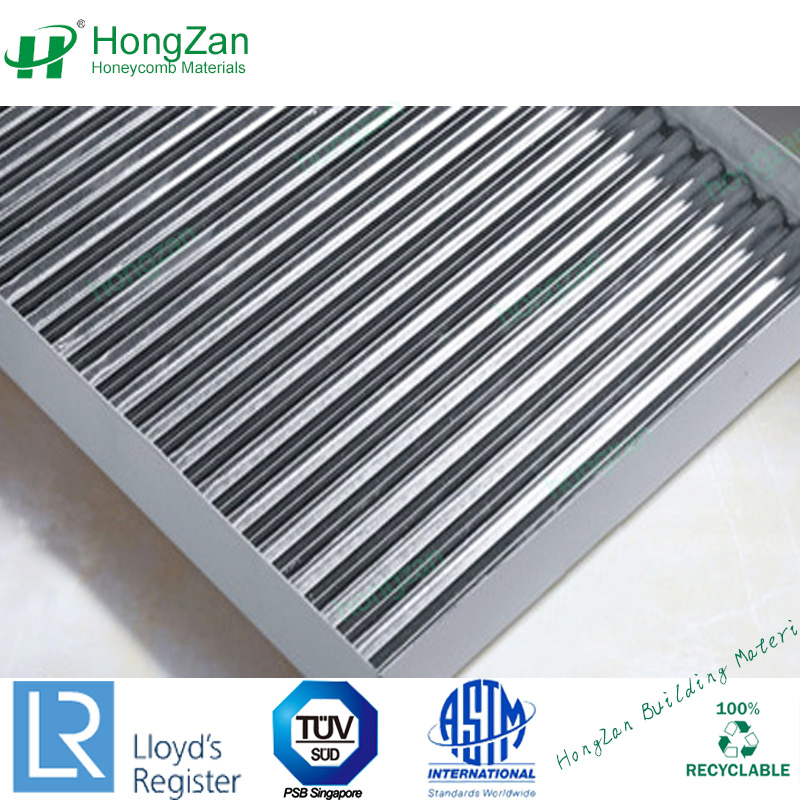

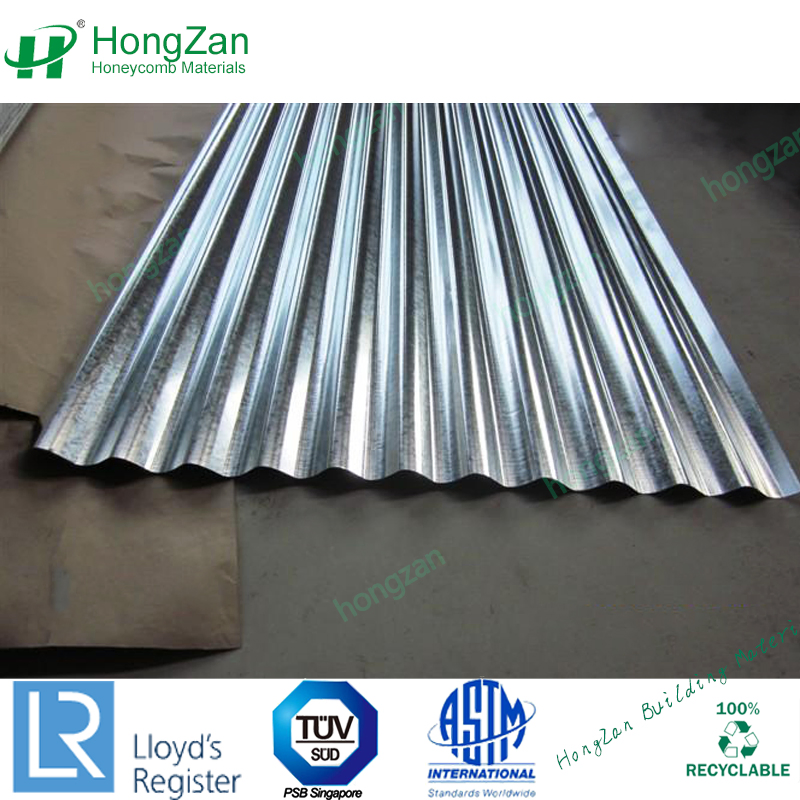

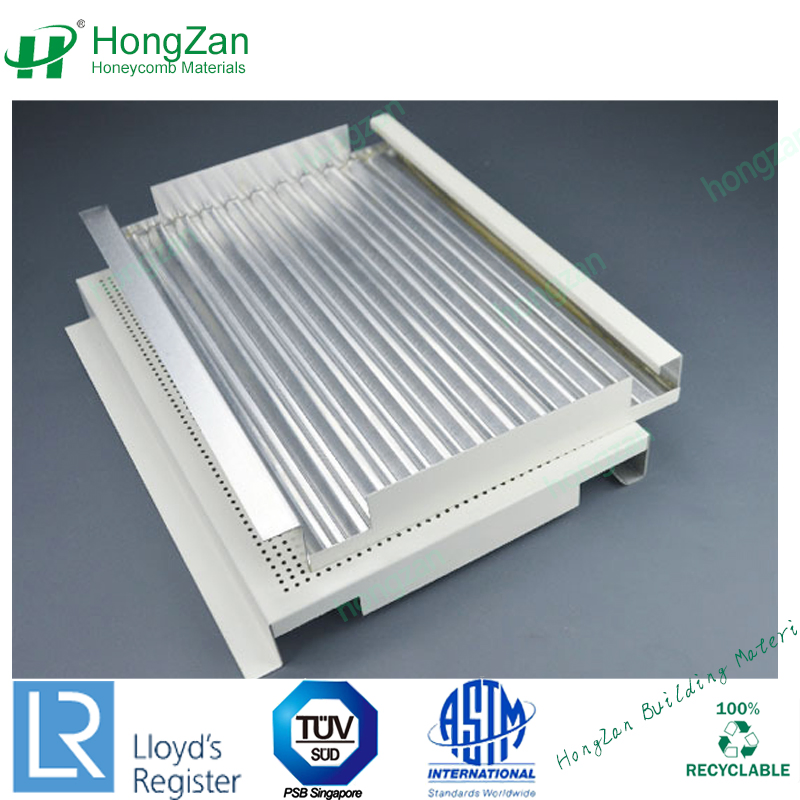

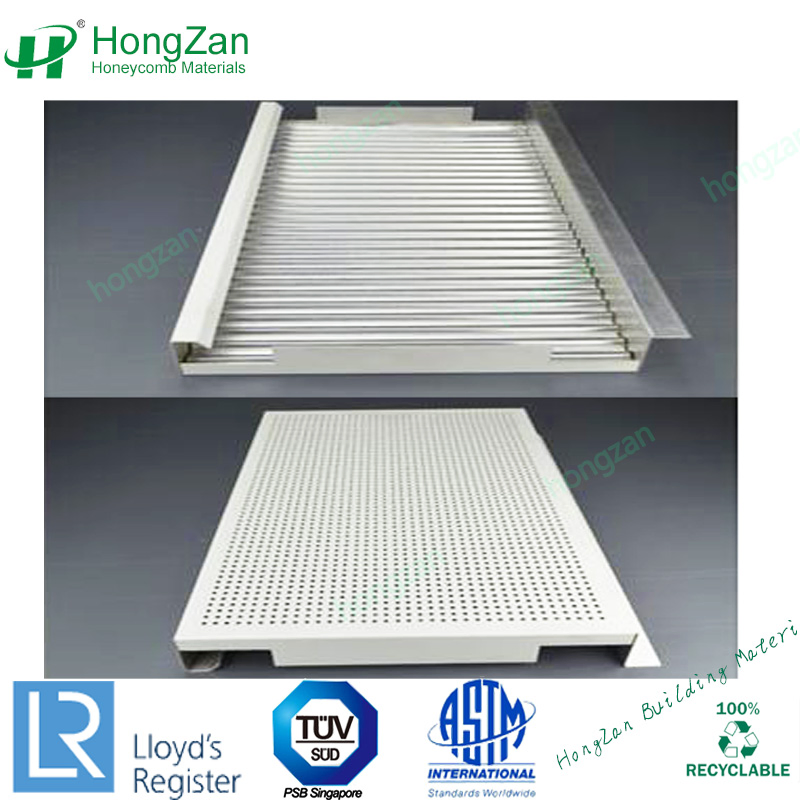

Corrugated Panel A2 Aluminum Corrugated Core Composite Sandwich Panel Wall Panels
Corrugated Panel A2 Aluminum Corrugated Core Composite Sandwich Panel Wall Panels
Corrugated Panel A2 Aluminum Corrugated Core Composite Sandwich Panel Wall Panels
Corrugated Panel A2 Aluminum Corrugated Core Composite Sandwich Panel Wall Panels
Corrugated Panel A2 Aluminum Corrugated Core Composite Sandwich Panel Wall Panels
1 / 5
Corrugated Panel A2 Aluminum Corrugated Core Composite Sandwich Panel Wall Panels
Corrugated Panel A2 Aluminum Corrugated Core Composite Sandwich Panel Wall Panels
Corrugated Panel A2 Aluminum Corrugated Core Composite Sandwich Panel Wall Panels
Corrugated Panel A2 Aluminum Corrugated Core Composite Sandwich Panel Wall Panels
Corrugated Panel A2 Aluminum Corrugated Core Composite Sandwich Panel Wall Panels

Corrugated Panel A2 Aluminum Corrugated Core Composite Sandwich Panel Wall Panels

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information Overview
Model NO.
AHP-040
Surface Finishing
Coating
Panel Thickness
6mm,10mm,12mm,15mm
Aluminum Thickness
0.7mm,0.8mm,1.0mm,1.2mm
Function
Fireproofing, Anti-static, Anti-Bacterial, Mould-proof, Super Flatness, Strength, Fire-Resistance, etc.
Usage
External Wall, Curtain Wall, Interior, Advertising, Wall Cladding,Ceiling,Partition,Ship,Door
Certification
CE, ASTM, ISO, Green Leaf, Imo-Med,BS,En,Fire-Fated
Surface Treatment
PVDF,PE,Powder Coated, Mirror, Polished, Brushed
Thickness
5mm up to 300mm Optional
Advantages
Ultra-Light,High Rigid, Fire-Rated, Easy Install
Core
Hexagonal Aluminum Core
Production Capacity
50000sqm Per Month
Curtain Wall Aluminum Composite Honeycomb Panel
  • Budget Optimization: Direct manufacturing of honeycomb cores and panels in-house ensures cost-effective solutions.
  • Full Engineering Solution: Comprehensive fixing systems and shop drawings provided by an experienced production team.
  • Logistics Efficiency: 3 times lighter than traditional solid panels, significantly reducing transportation and labor costs.
  • Safety & Durability: Ultra-lightweight and fire-rated features enhance building longevity and safety.
  • One-Stop Service: Complete end-to-end service to save time and resource investment.
Wide Range of Applications

This high-performance material is suitable for various industrial and architectural needs:

  • Building exterior and internal curtain walls; canopies
  • Marine partitions, ceilings, decks, and ship hull decoration
  • Toilet and cleanroom partitions
  • Renovation additions for old buildings
  • Interior walls, partitions, ceilings, and balconies
  • Advertisement display platforms and signboards
  • Tunnel wallboards and industrial materials
  • Truck body, vehicle, and boat components
Technical Structure & Characteristics

Aluminum honeycomb panels are environmental composite materials with perfect strength, super flatness, and excellent insulation properties.

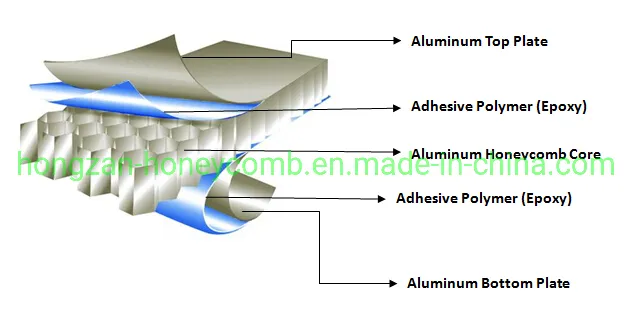

Aluminum Honeycomb Structure
Feature Description
Sound Insulation Divided cells stop air flow and block waves (20-30DB noise reduction).
Thermal Control Heat conduction coefficient of 0.104-0.130W/M.k.
Weight Advantage Only 1/5 the weight of aluminum panels of the same rigidity.
Flatness High flatness with continuous roller coating technology (PVDF/PE).
Technical Parameters
Thickness 20mm 25mm
Weight (kg/m²) 7.4 7.8
Section Modulus W (cm³/m) 19 24
Rigidity E.I (KN cm²/m) 139,000 2,217,000
Tensile Strength Rm ≥ 220 N/mm²
Coating Finish PVDF Spray Baking / PE Coating
Installation Methods

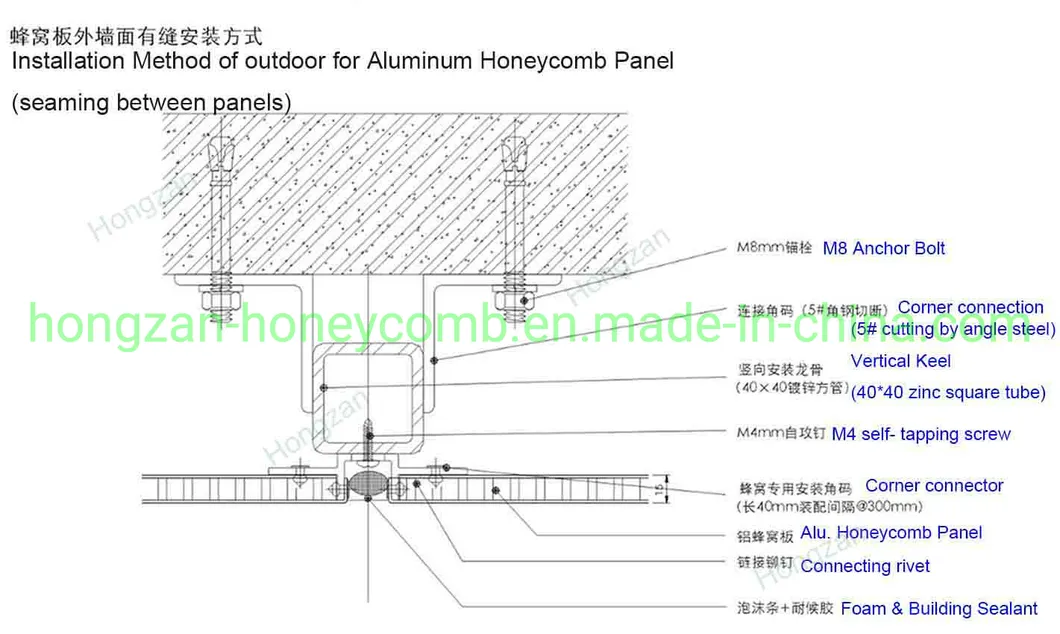

Type A: Standard seaming method (Outdoor)

Installation Type A

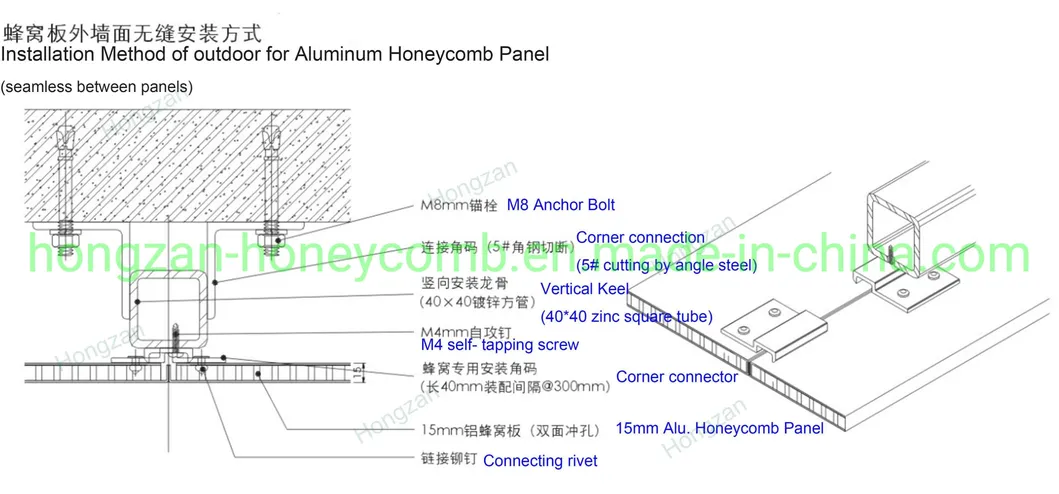

Type B: Standard seamless method (Outdoor)

Installation Type B
Factory Display & Quality Control

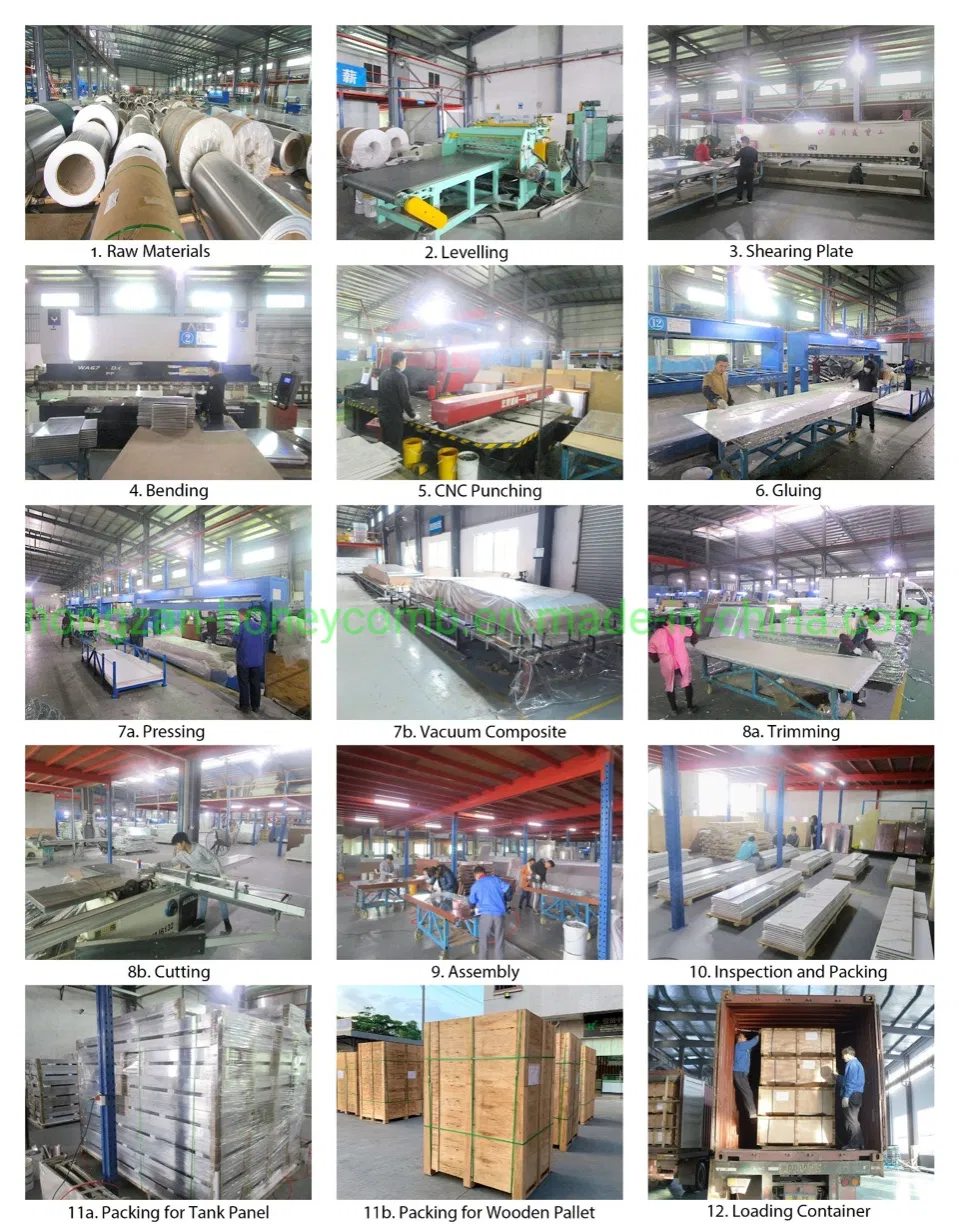

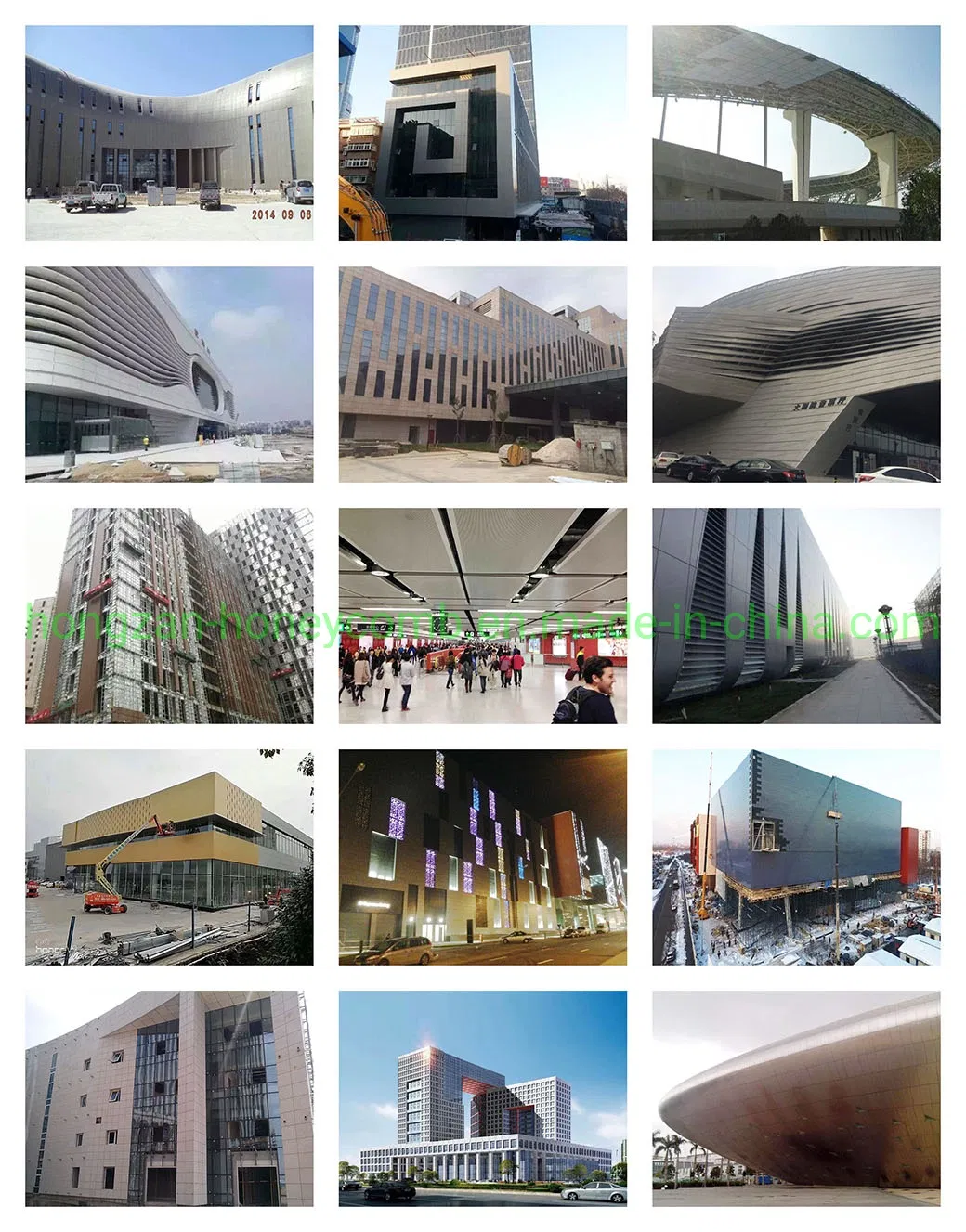

Factory Detail Projects Study

Certifications: ISO 9001:2008, IMO MED, BS 476/475, EN13501-1, ASTM, CE EN Certificates.

Certificates
Frequently Asked Questions
Do you provide free samples?
Yes, we provide product samples free of charge for quality evaluation.
How do you ensure reliable product quality?
We maintain a strict QA system under ISO 9001:2008 standards. Products have passed BS, IMO, CE EN, and ASTM tests. We can provide full technical reports and welcome third-party inspections.
What is your monthly production capacity?
Our current production capacity is approximately 50,000 square meters per month for aluminum honeycomb panels.
Can you handle customized specifications?
Yes, all aspects including color, surface texture, size, shape, and pattern can be customized according to architectural design requirements.
Are your panels fire-rated for high-rise buildings?
Absolutely. Our honeycomb panels are fire-rated and designed to meet safety standards for external wall decoration in high-rise constructions.
Do you offer live video factory tours?
Yes, we are happy to arrange live video tours of our production facilities to provide transparency during the procurement process.
