Custom Grille Wood Slats Wall Board Sound Insulation Board CE Certification

Still deciding? Get samples of $ !
Order Sample

Product Description

 Technical Specifications
Model NO.VGWSAP24060
Thickness21mm
Slat Width25mm
NRC0.90

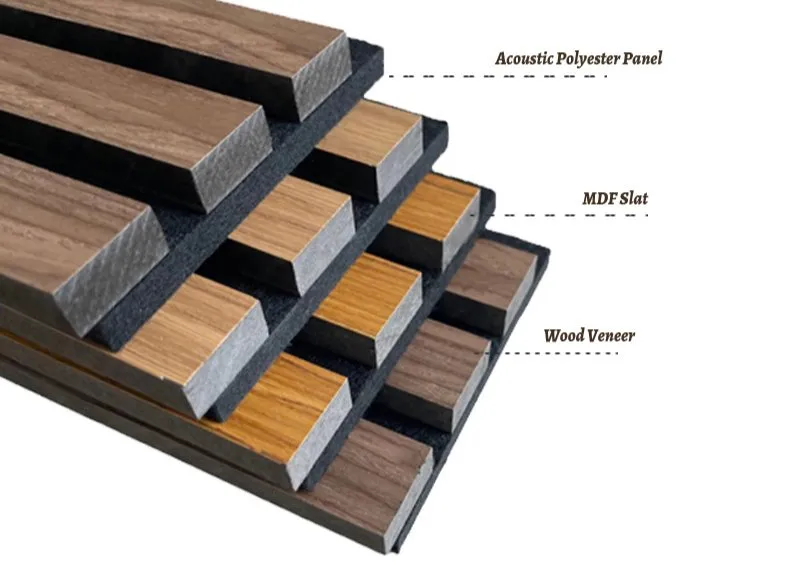

MaterialMDF+Polyester Fiber
MOQ100m²
Panel TypeWooden Acoustic Panels
Eco-FriendlyE0 Grade
SurfaceVeneer Finish

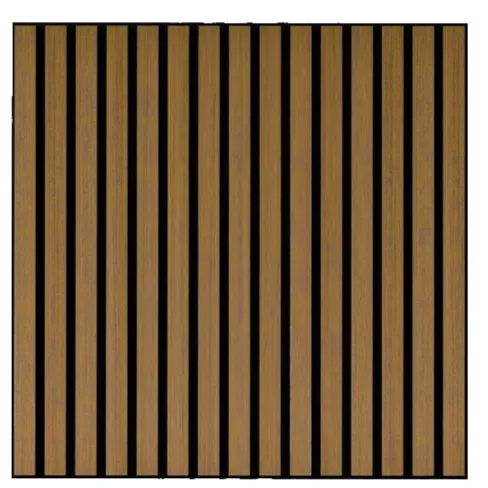

Specification2400*600mm
Product Overview

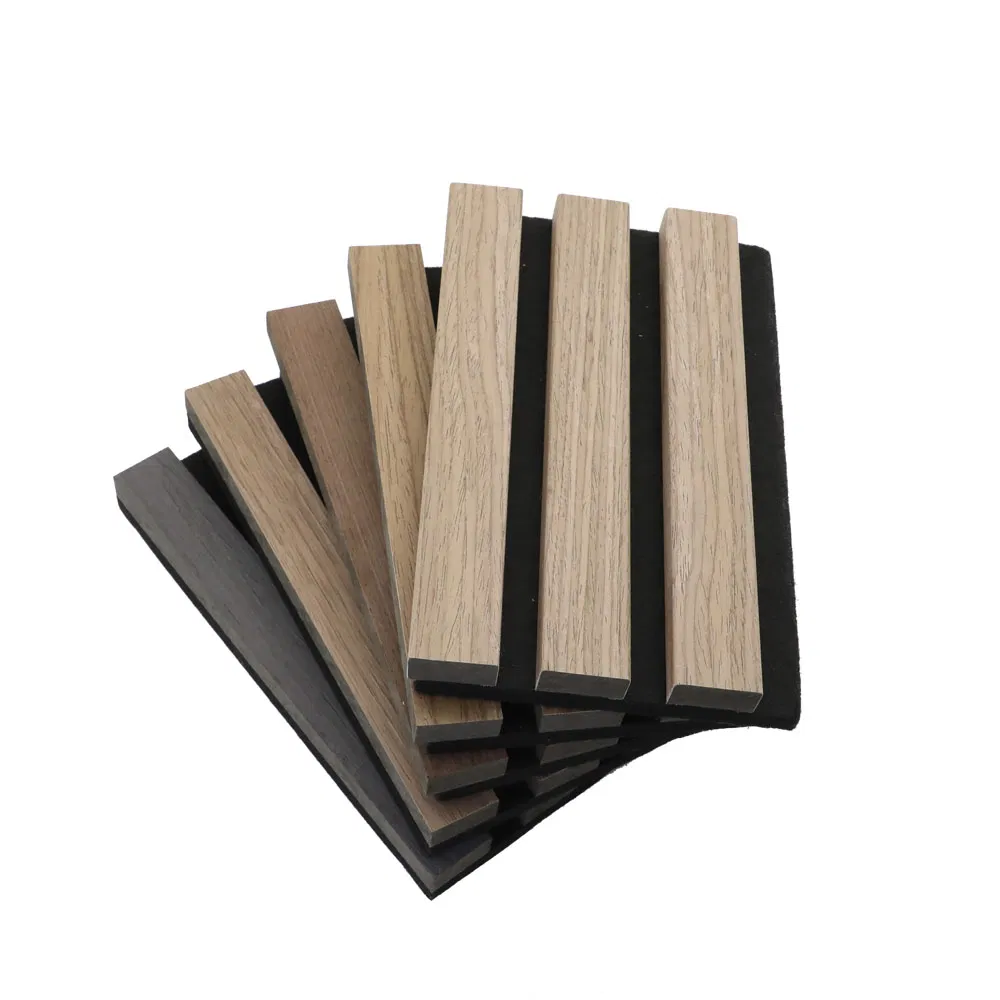

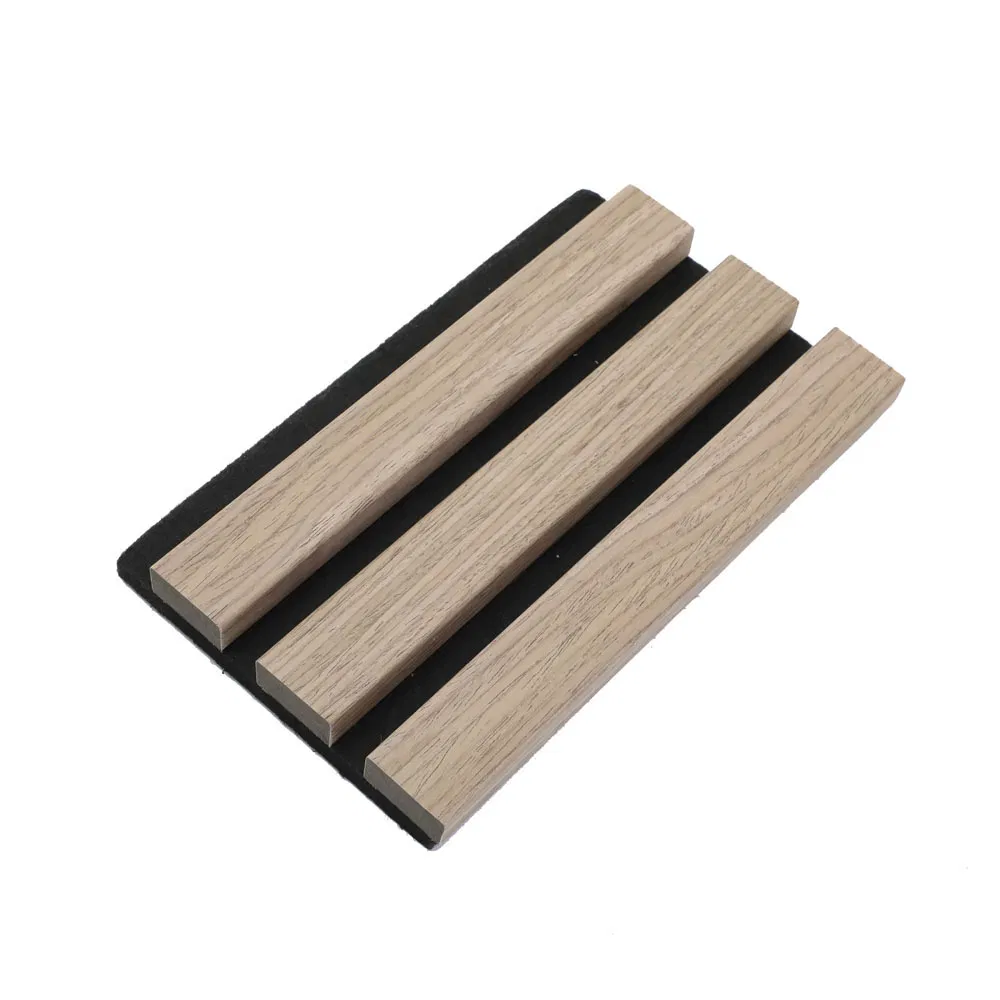

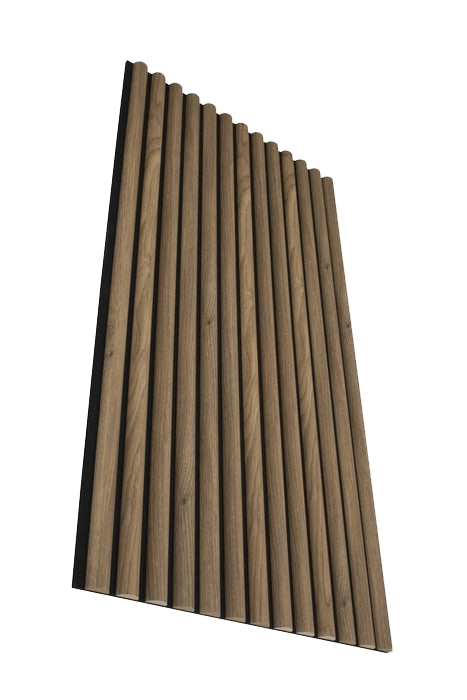

Wooden Acoustic Slat Panel crafted from veneered lamellas, our panels feature a base of specially developed acoustic felt made from recycled materials, ensuring sustainability and superior sound absorption. Handcrafted to match the latest trends, our panels are easy to install on walls or ceilings, creating a quiet, beautifully contemporary, soothing, and relaxing environment.

Core Performance
Application Hotels, Cinemas, Concert halls Material MDF, 100% Polyester Fiber
Feature Highly Effective Sound Absorption Function Noise Reduction & Decoration
Installation Glue, wood frame, gun nail Finish Natural Veneer
Key Benefits
Consistent product quality with zero defects.

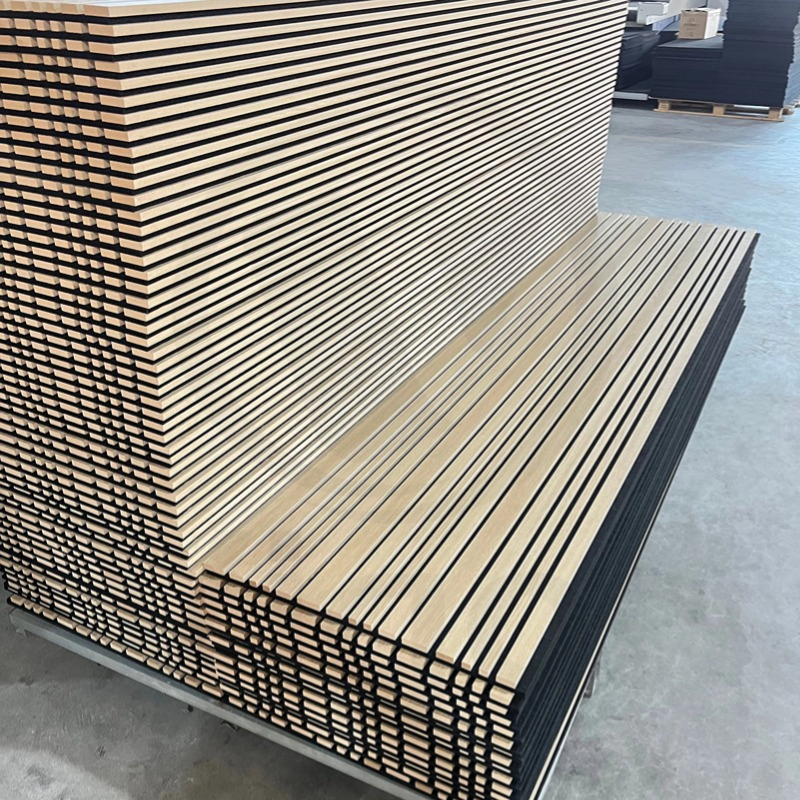

High capacity for large-scale industrial or residential orders.
Dual-function: Superior sound absorption and strong decorative appeal.
Eco-friendly materials with E0 emission standards.
Standard size: 2400mm x 600mm for easy installation.
Design & Dimensions

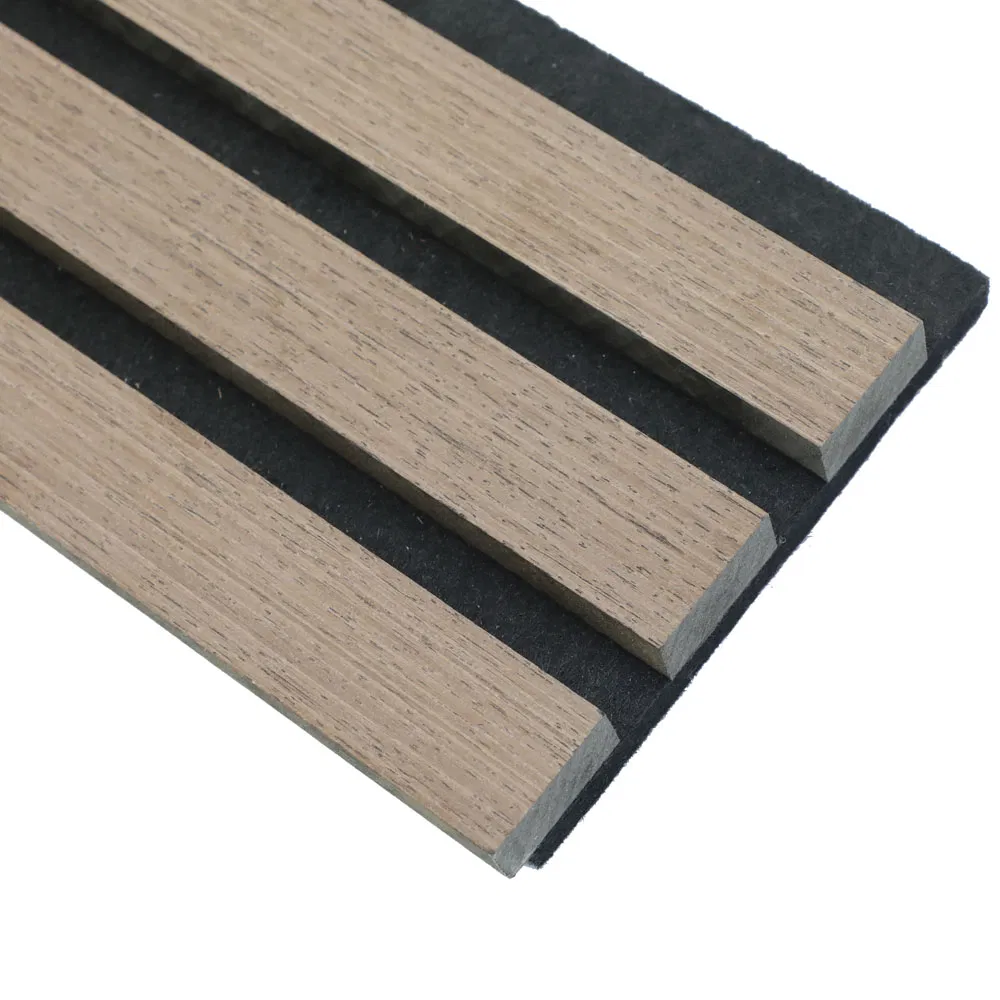

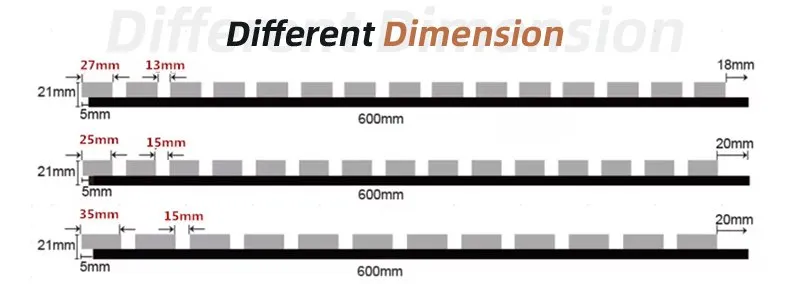

Each panel measures 2400mm x 600mm, featuring 12mm deep and 25mm wide lamellas, spaced 15mm apart, mounted on a 9mm thick acoustic felt base. Total thickness is 21mm.

Versatile Applications

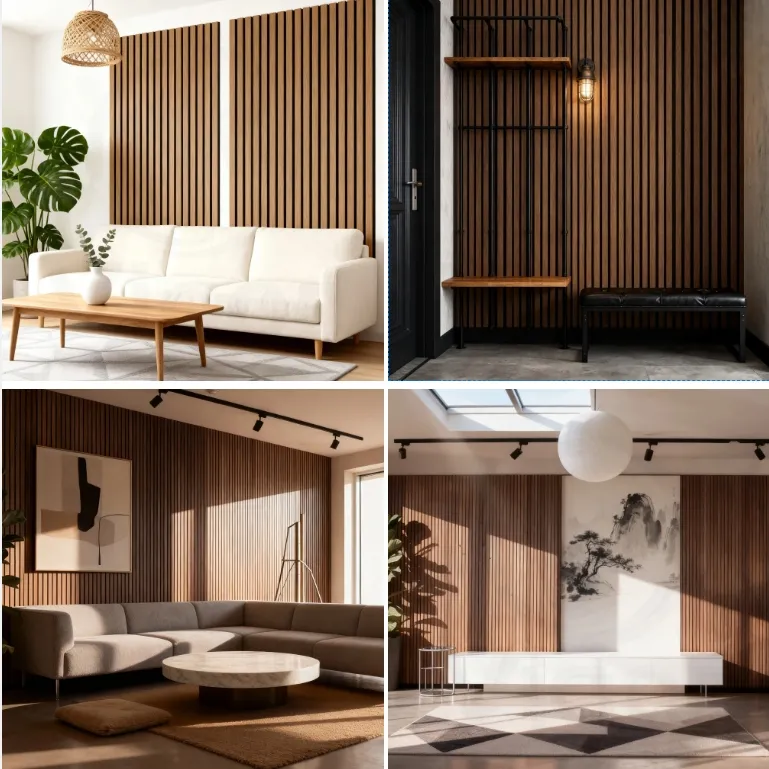

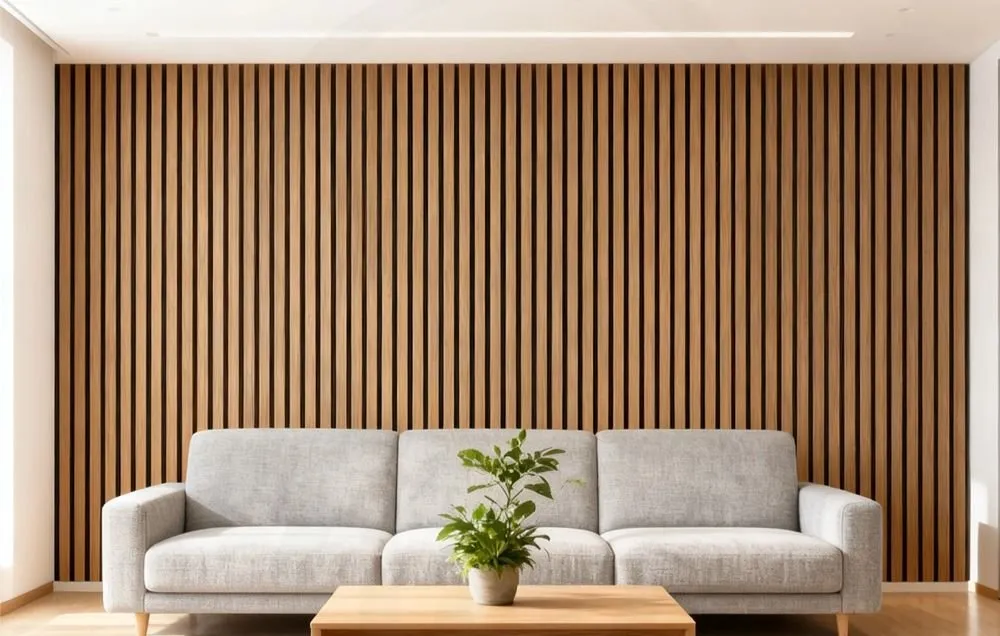

Our PET slatted wood acoustic panels are perfect for creating slatted walls and ceilings. Ideal for studios, home theaters, music halls, schools, offices, KTVs, and partitions.

Packaging & Delivery
Package Size242cm * 62cm * 12cm
Gross Weight56.000kg
Lead Time (1-100m²)15 Days
Lead Time (>600m²)30 Days
Frequently Asked Questions
Do you offer customized sizes for the panels?

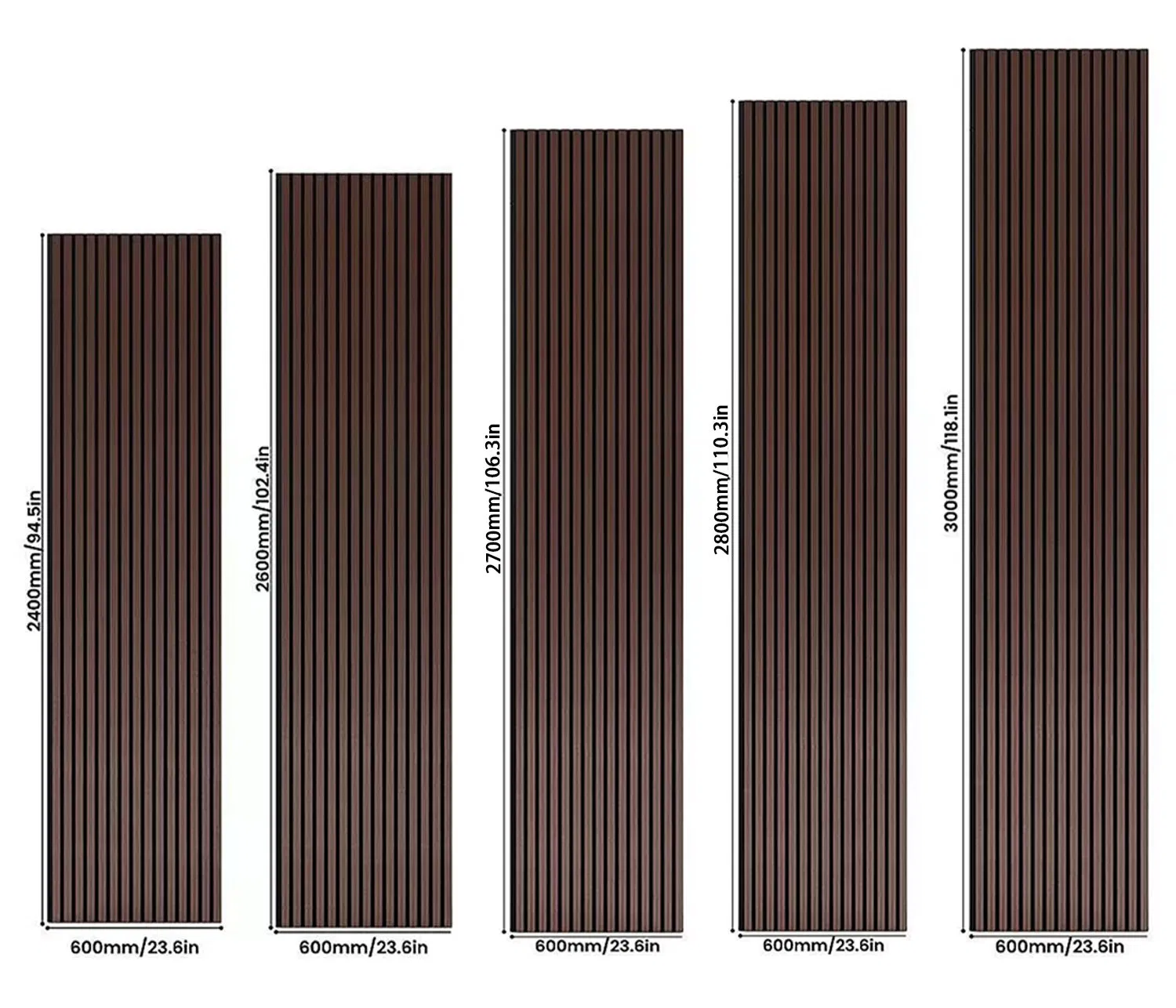

Yes! While our standard dimensions are 2400 * 600 * 21mm, we offer full customization to meet your specific project requirements.
How can I enhance the sound insulation effect?
For peak sound absorption, we recommend installing the panels with batons. Alternatively, mounting them directly onto the wall with screws through the acoustic felt backing also provides significant noise reduction.
Can I request samples before placing a bulk order?
Yes, we provide complimentary samples from our warehouse. The shipping or sample cost can be refunded once a bulk order is confirmed.
What are the main parameters needed for a quote?
To provide an accurate quotation, please specify the application area, desired density, dimensions, preferred color, and total quantity.
Is there a significant color variation in the wood finish?
We source premium wood to ensure consistency. However, since natural wood is used, slight variations may occur, which adds to the authentic aesthetic of the panels.
What is the standard lead time for production?
For samples, the lead time is approximately 5 days. For bulk orders, the typical production time is around 10 to 20 days depending on the volume.
