Product Description
83 Models All-Aluminum Partitions
Our mature technical team provides customized production of various glass doors and partition systems, leveraging our position in China's primary glass partition production base.

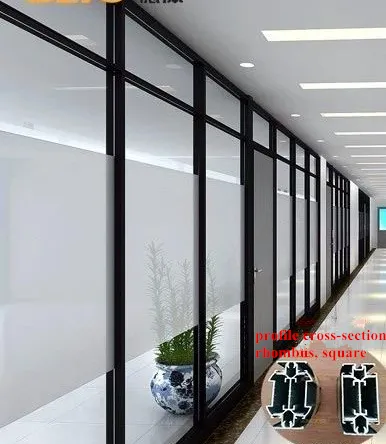

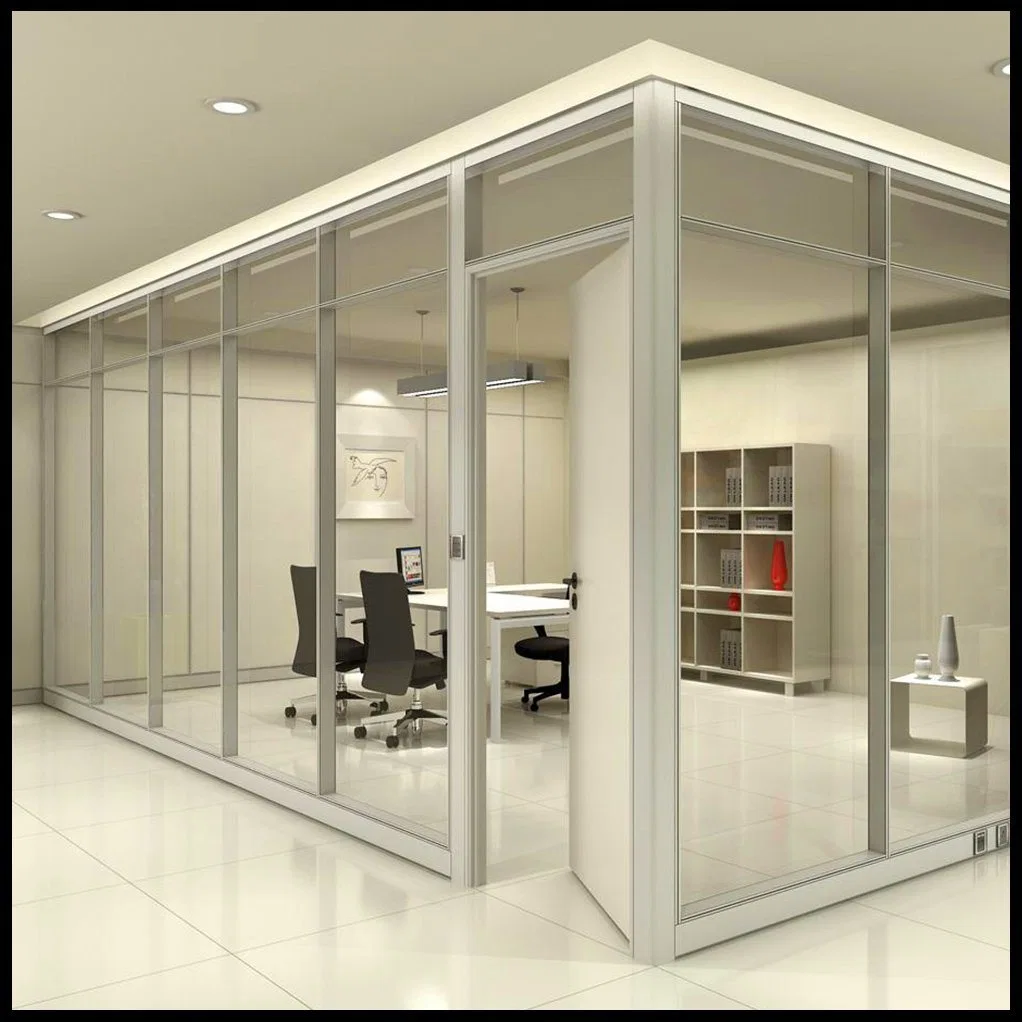

83 Models All-Aluminum Single Glass
The single-glass partition is a single-layer partition wall composed of glass and aluminum metal profiles, offering excellent space utilization and cost-efficiency. Available in flat and prismatic designs.
Frame & Material Features
- Wall Thickness: 83mm frame structure.
- Assembly: High-quality aluminum alloy profiles with snap-on assembly (no exposed screws).
- Profile Styles: Plane or Diamond.
- Stock Colors: Bronze wire drawing, iron gray, champagne, sand grain black, oxidation sanding, carbon grey, sand grain white, black wire drawing.
Technical Specifications
- Glass Options: 8mm, 10mm, 12mm thickness.
- Standard Module: Max 1200W × 2800H × 26D (mm), horizontal separation available.
- Fire Resistance: Grade exceeding 60 minutes.
- Sound Insulation: 38-50dB (standard office environment compliant).

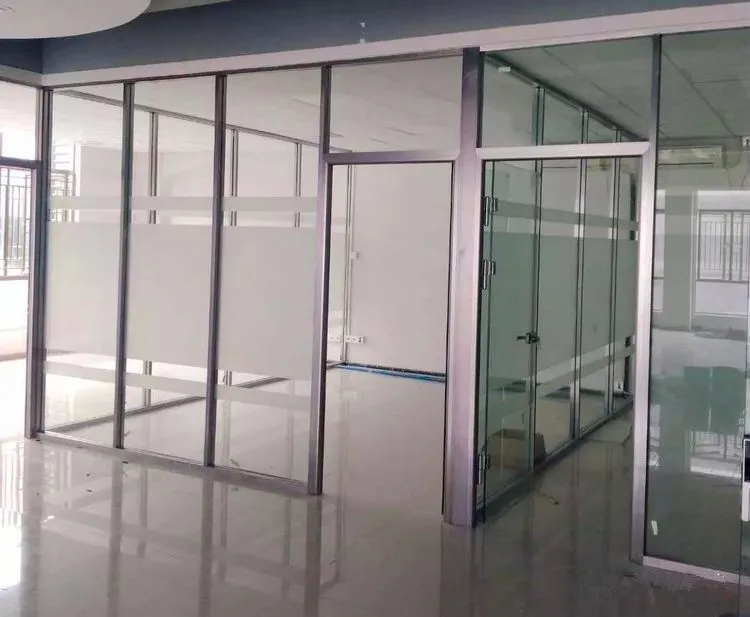

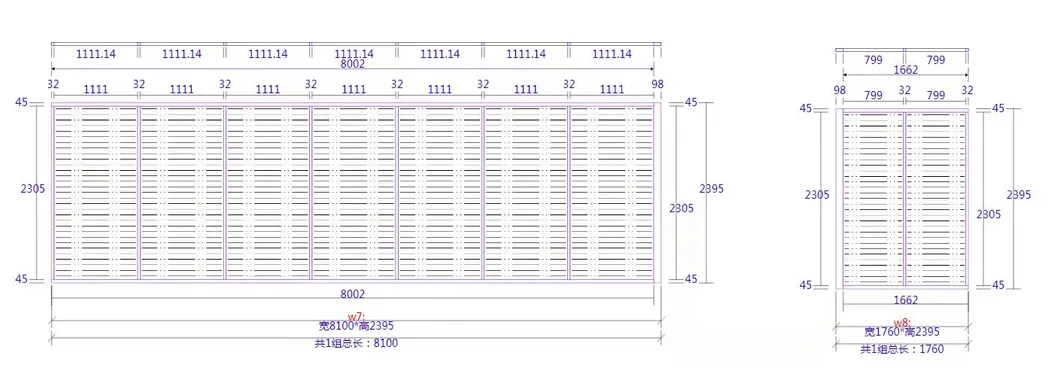

Design Drawings

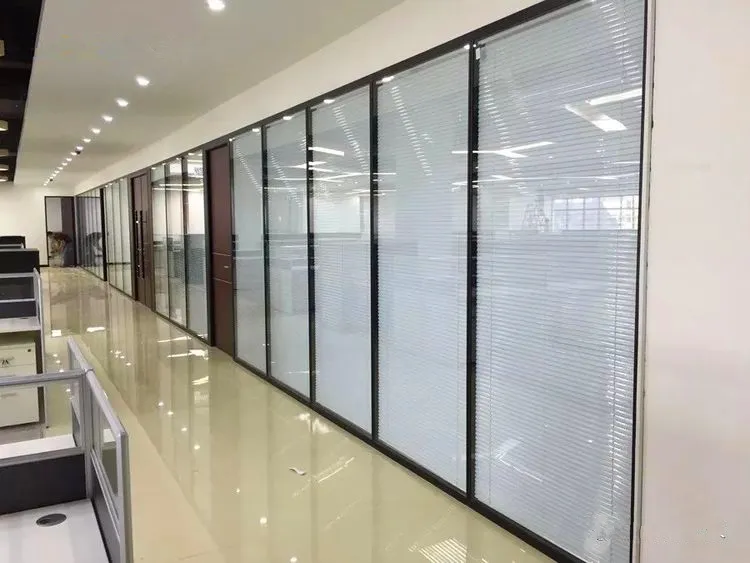

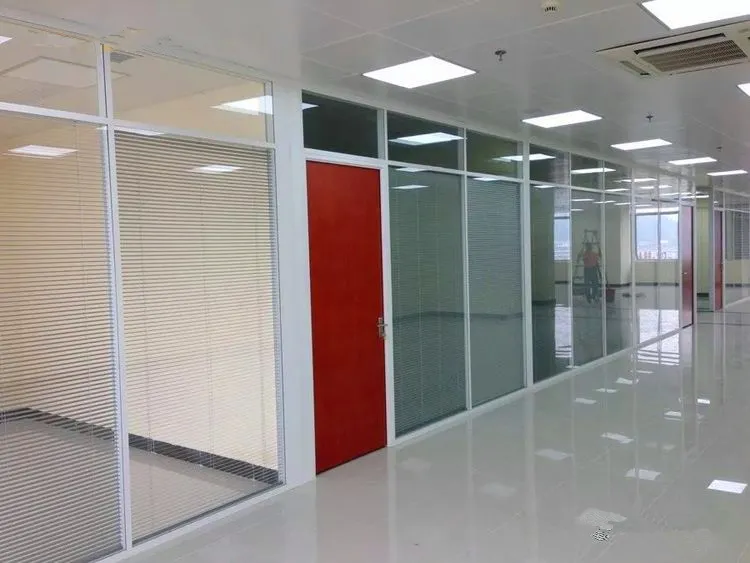

83 All-Aluminum Double-Glass Models
Double-glass partitions feature a dual-layer structure for enhanced durability and a stronger aesthetic sense. Ideal for high-end office buildings and private work areas.
Double-Glass System Components
- Frame Material: Aluminum alloy frame + tempered safety glass.

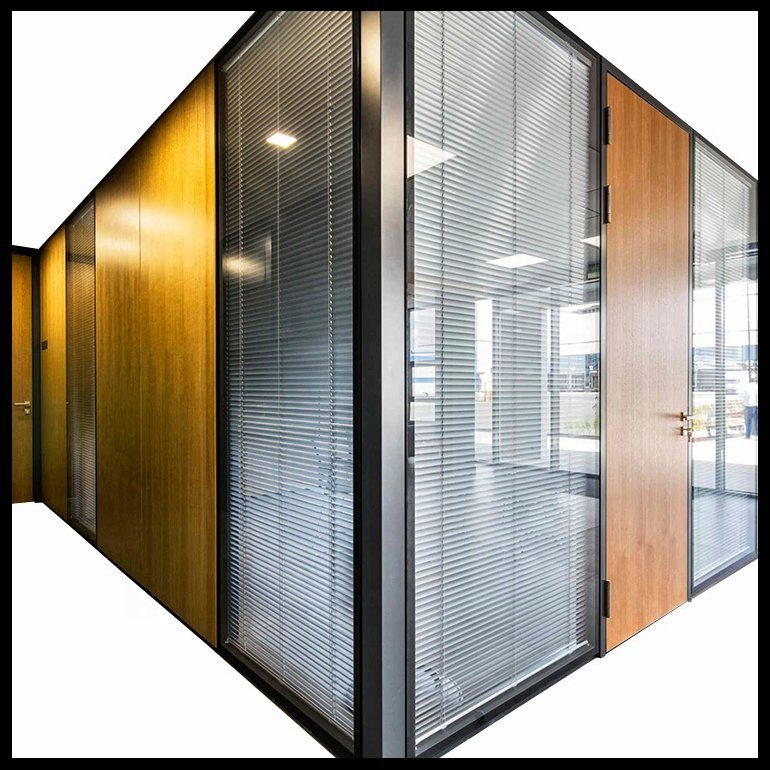

- Integrated Louvers: Manual knob, electric, or magnetic control (sealed for sound insulation).
- Profile Thickness: 1.0-3.0mm depending on structural requirements.
- Compatible Plates: Transparent tempered glass, frosted glass, fireproof glass, or MDF.
- Louver Specs: 16mm/25mm width; 1.6mm-2.0mm thickness.

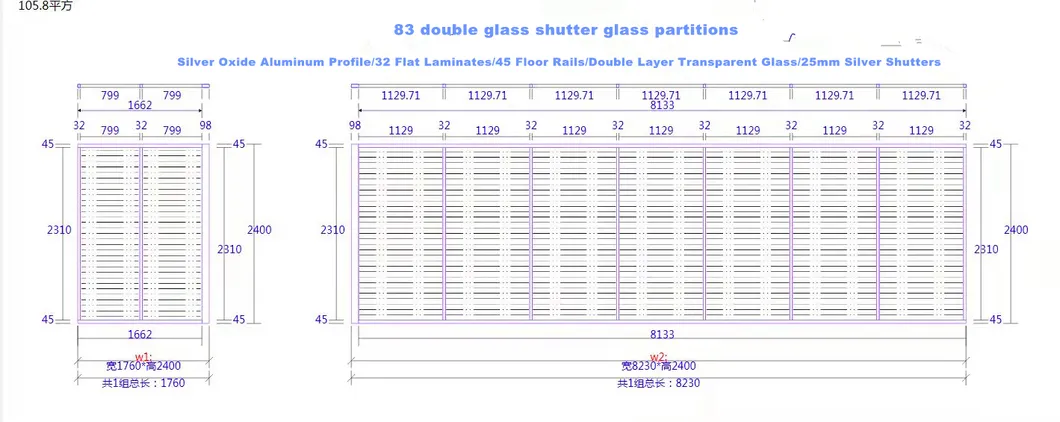

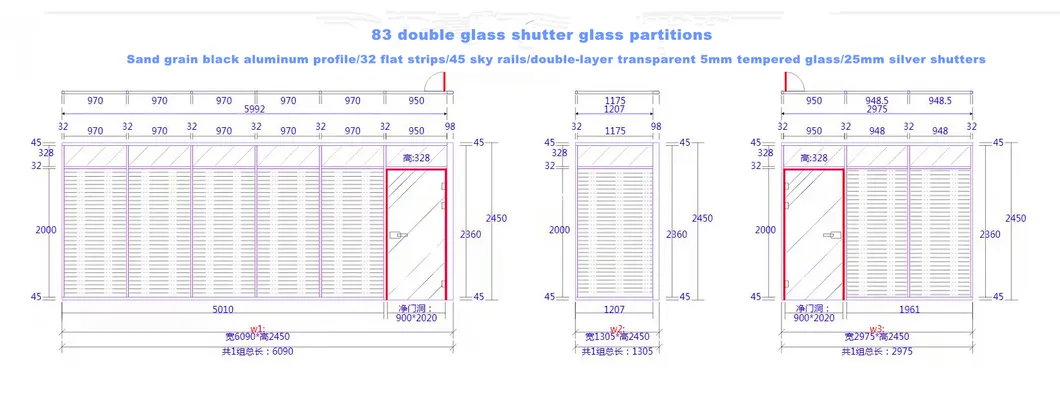

Double-Glass Design & Sectional Views
Sectional View of 83 Frame
Frequently Asked Questions
1. What is the total wall thickness of the 83 series partition?
The total wall thickness for both single and double glass models in the 83 series is 83mm.
2. Does the glass partition provide sound insulation?
Yes, our systems provide sound insulation between 38-50dB, which meets standard office environment requirements.
3. Are the aluminum profiles available in different colors?
We offer a wide range of stock colors including bronze, iron gray, champagne, sand grain black, carbon grey, and more. Custom colors are also available.
4. Can I integrate blinds into the double glass partition?
Yes, double-glass models can include integrated louvers with manual knob, electric, or magnetic control options.
5. What is the fire resistance rating of these partitions?
Our glass partition systems have a fire resistance grade of more than 60 minutes.
6. What types of glass can be used?
You can choose from transparent tempered glass, frosted glass, fireproof glass, or even MDF panels for specific design needs.
