83 Models All-Aluminum Single and Double Glass Partitions
Our mature technical team provides customized production of various glass doors, leveraging our position in China's premier glass partition production base.

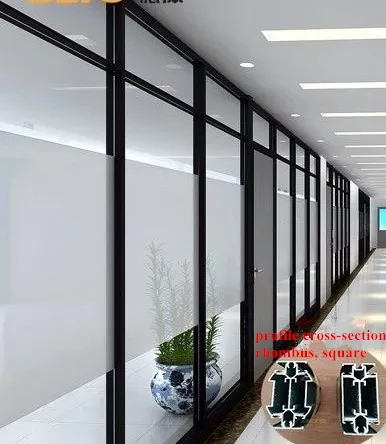

83 Models All-Aluminum Single Glass
Single-glass partition is a single-layer partition wall composed of glass and aluminum metal profiles. It offers excellent space utilization and cost-efficiency. Available in flat and prismatic designs.
Product Features
- Wall Thickness: 83mm frame structure.
- Assembly: High-quality aluminum alloy profiles with snap-on assembly (no exposed screws).
- Profile Types: Plane or Diamond.

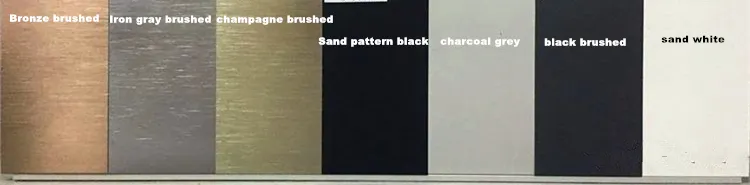

- Stock Colors: Bronze wire drawing, iron gray, champagne, sand grain black, oxidation sanding, carbon grey, sand grain white, black wire drawing.
Technical Specifications
- Glass Thickness: 8mm, 10mm, 12mm
- Max Module Size: 1200W × 2800H × 26D (mm)
- Fire Resistance: > 60 minutes
- Sound Insulation: 38-50dB (Standard office environment)

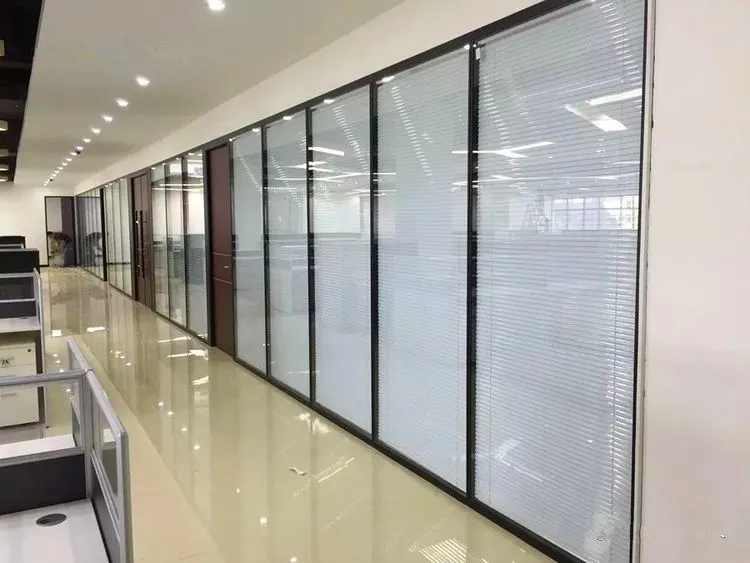

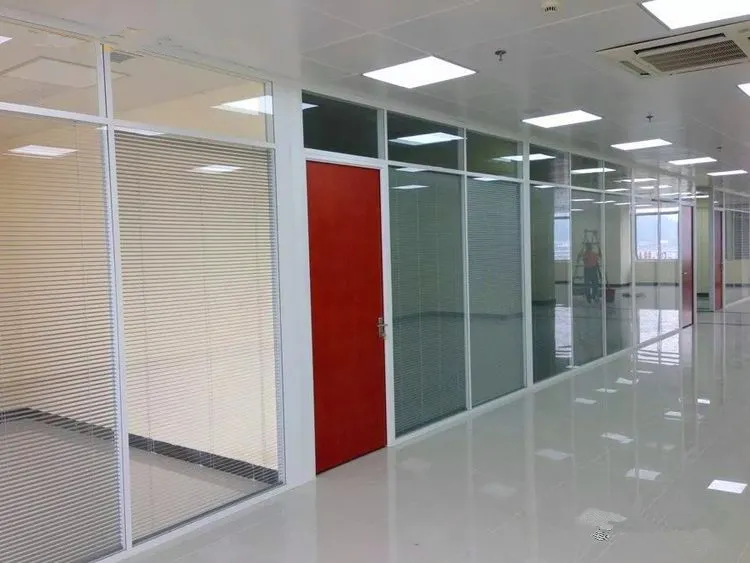

83 All-Aluminum Double-Glass Models
Double-glass partitions are firm, durable, and provide a stronger overall aesthetic. Ideal for high-end office buildings, open office areas, and private meeting spaces.

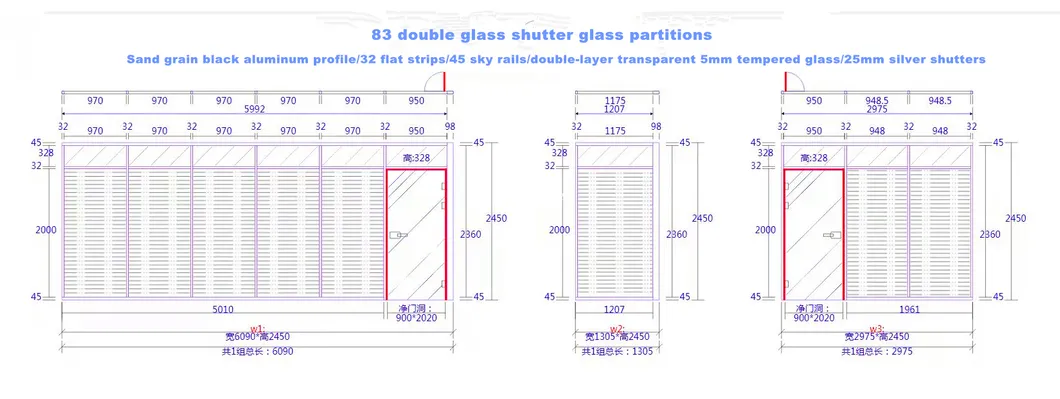

Double Glass Configuration
- Structure: Aluminum alloy frame + tempered safety glass + optional louvers.
- Control: Louvers available with knob, electric, or magnetic control.
- Profile Thickness: 1.0-3.0mm depending on structural requirements.
- Compatible Plates: Transparent tempered glass, frosted glass, fireproof glass, MDF, etc.
- Glass Thickness: 5mm, 6mm, 8mm options.
- Louver Specs: Width 16mm/25mm; Thickness 1.6mm-2.0mm.

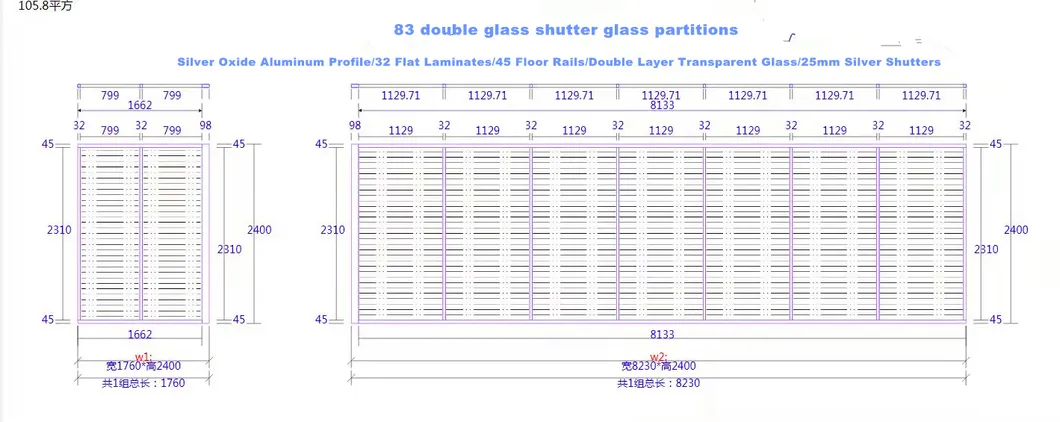

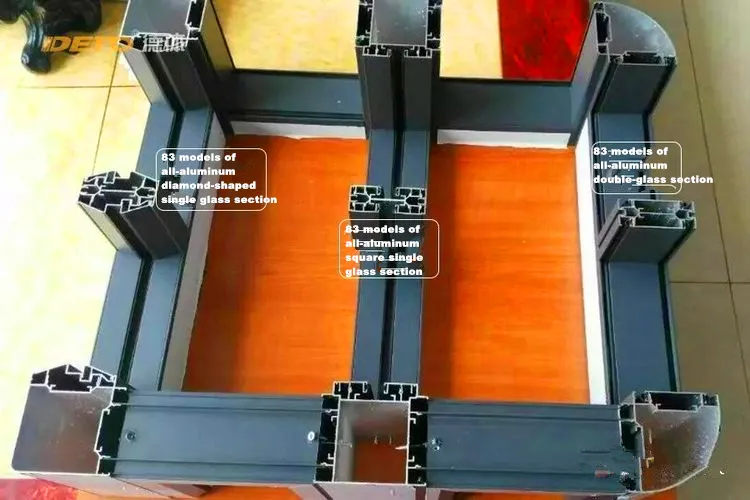

Sectional View
?
Frequently Asked Questions
What is the total wall thickness of the 83 series partitions?
The total wall thickness for both the single and double glass 83 series models is 83mm.
What are the sound insulation capabilities of these glass walls?
Our partitions provide sound insulation between 38-50dB, which is fully compliant with standard office environment requirements.
Can I customize the color of the aluminum profiles?
Yes, we offer a wide range of stock colors including bronze, iron gray, champagne, sand grain black, carbon grey, and more. Custom colors are also available.
Are the partitions fire-resistant?
Yes, the 83 series glass partitions have a fire resistance grade of more than 60 minutes.
What types of glass can be used in the double-glass model?
You can choose from transparent tempered glass, frosted glass, fireproof glass, or even MDF panels. Glass thickness options include 5mm, 6mm, and 8mm.
Do the double-glass partitions support integrated blinds?
Yes, louvers (blinds) with widths of 16mm or 25mm can be integrated between the glass layers, with manual, magnetic, or electric control options.
