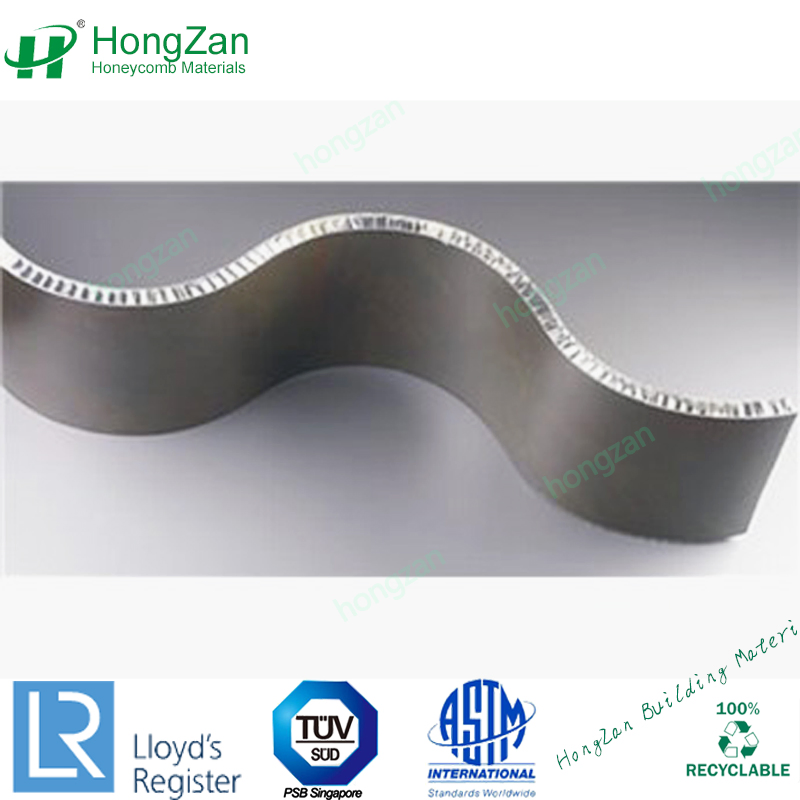

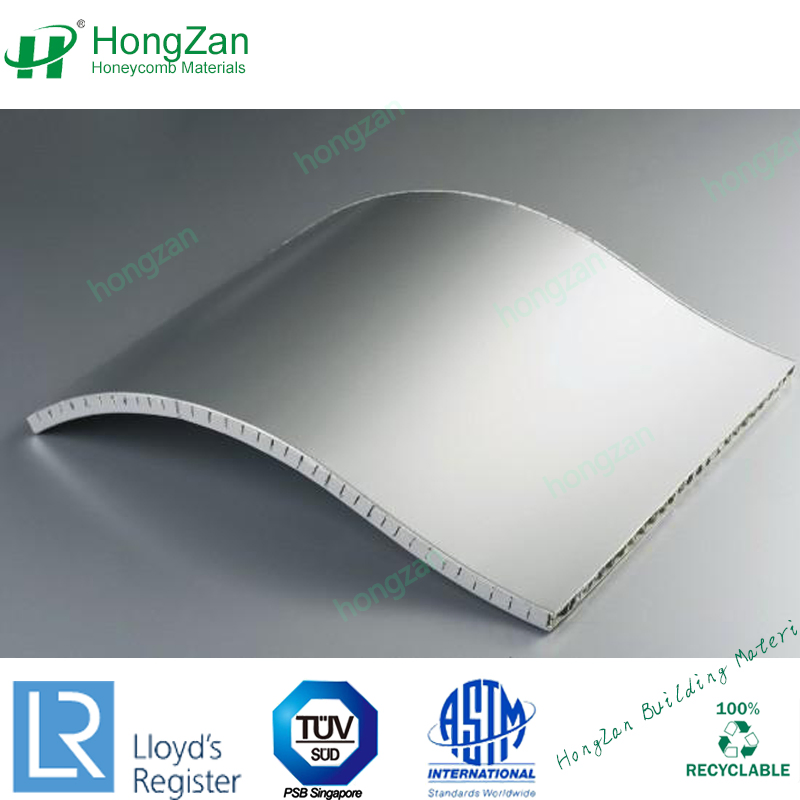

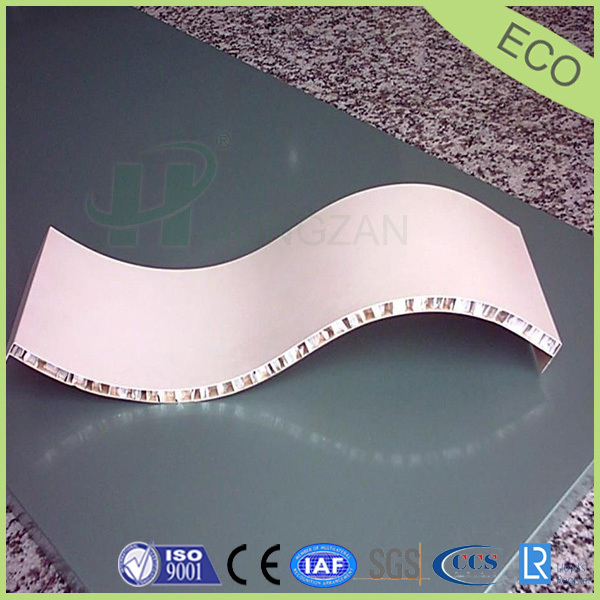

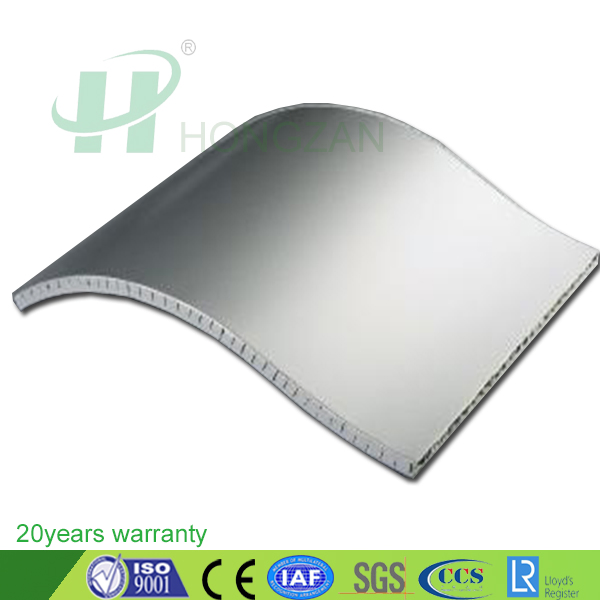

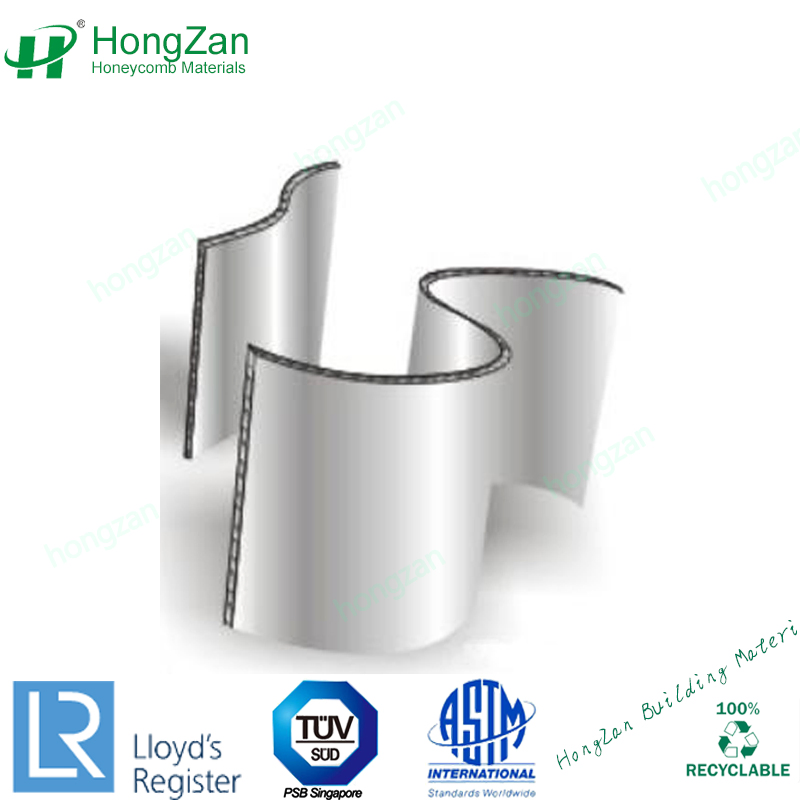

Customized Shaped Honeycomb Panel Lightweight Aluminium Honeycomb Panel
Customized Shaped Honeycomb Panel Lightweight Aluminium Honeycomb Panel
Customized Shaped Honeycomb Panel Lightweight Aluminium Honeycomb Panel
Customized Shaped Honeycomb Panel Lightweight Aluminium Honeycomb Panel
Customized Shaped Honeycomb Panel Lightweight Aluminium Honeycomb Panel
1 / 5
Customized Shaped Honeycomb Panel Lightweight Aluminium Honeycomb Panel
Customized Shaped Honeycomb Panel Lightweight Aluminium Honeycomb Panel
Customized Shaped Honeycomb Panel Lightweight Aluminium Honeycomb Panel
Customized Shaped Honeycomb Panel Lightweight Aluminium Honeycomb Panel
Customized Shaped Honeycomb Panel Lightweight Aluminium Honeycomb Panel

Customized Shaped Honeycomb Panel Lightweight Aluminium Honeycomb Panel

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
AHP-036
Surface Finishing
Coating
Panel Thickness
6mm - 20mm (Customizable)
Aluminum Thickness
0.7mm - 1.2mm
Function
Fireproofing, Anti-static, Anti-Bacterial
Usage
Curtain Wall, Interior, Ceiling, Ship
Certification
CE, ASTM, ISO, IMO-Med
Surface Treatment
PVDF, PE, Powder Coated
Core
Hexagonal Aluminum Core
MOQ
200sqm
Our Advantages
1
Cost Efficient: Direct manufacturing of aluminum honeycomb cores and panels in-house helps save your budget by eliminating middlemen.
2
Full Solution: Get complete fixing systems and professional shop drawings from our experienced engineering team.
3
Lightweight: Honeycomb panels are 3 times lighter than traditional solid panels, significantly reducing transportation and labor costs.
4
High Rigid & Safe: Ultra-lightweight and fire-rated structures increase building durability and safety.
Applications
  • • Building exterior/internal curtain walls
  • • Marine partitions, ceilings, and decks
  • • Toilet partitions
  • • Decoration for old building renovations
  • • Advertisement boards and signboards
  • • Tunnel wallboards and ceilings
  • • Cleanroom wall cladding

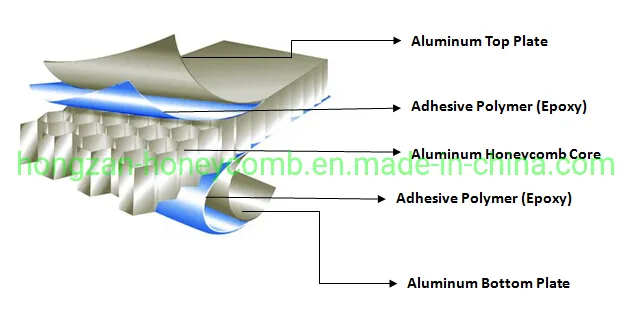

Structure of Aluminum Honeycomb Panel
Structure of Honeycomb Panel
Aluminum honeycomb panels are environmental composite materials with perfect strength, super flatness, and excellent sound & heat insulation. The surface employs fluorocarbon lacquer (PVDF/PE) which can maintain color for 15-20 years.
Technical Data
Property 20mm Panel 25mm Panel
Front Aluminum Panel1.00mm1.00mm
Back Aluminum Panel1.00mm1.00mm
Weight (kg/m²)7.47.8
Inertia Moment (cm⁴/m)19.8531.67
Section Modulus (cm³/m)1924
Rigidity (KN cm²/m)139,0002,217,000
Compression Strength4N/mm²
Sound Insulation (ISO717-RW)23 dB25 dB
Installation Instructions

Type A: Standard Seaming

Standard Seaming Installation

Type B: Standard Seamless

Standard Seamless Installation
Detailed Photos & Projects

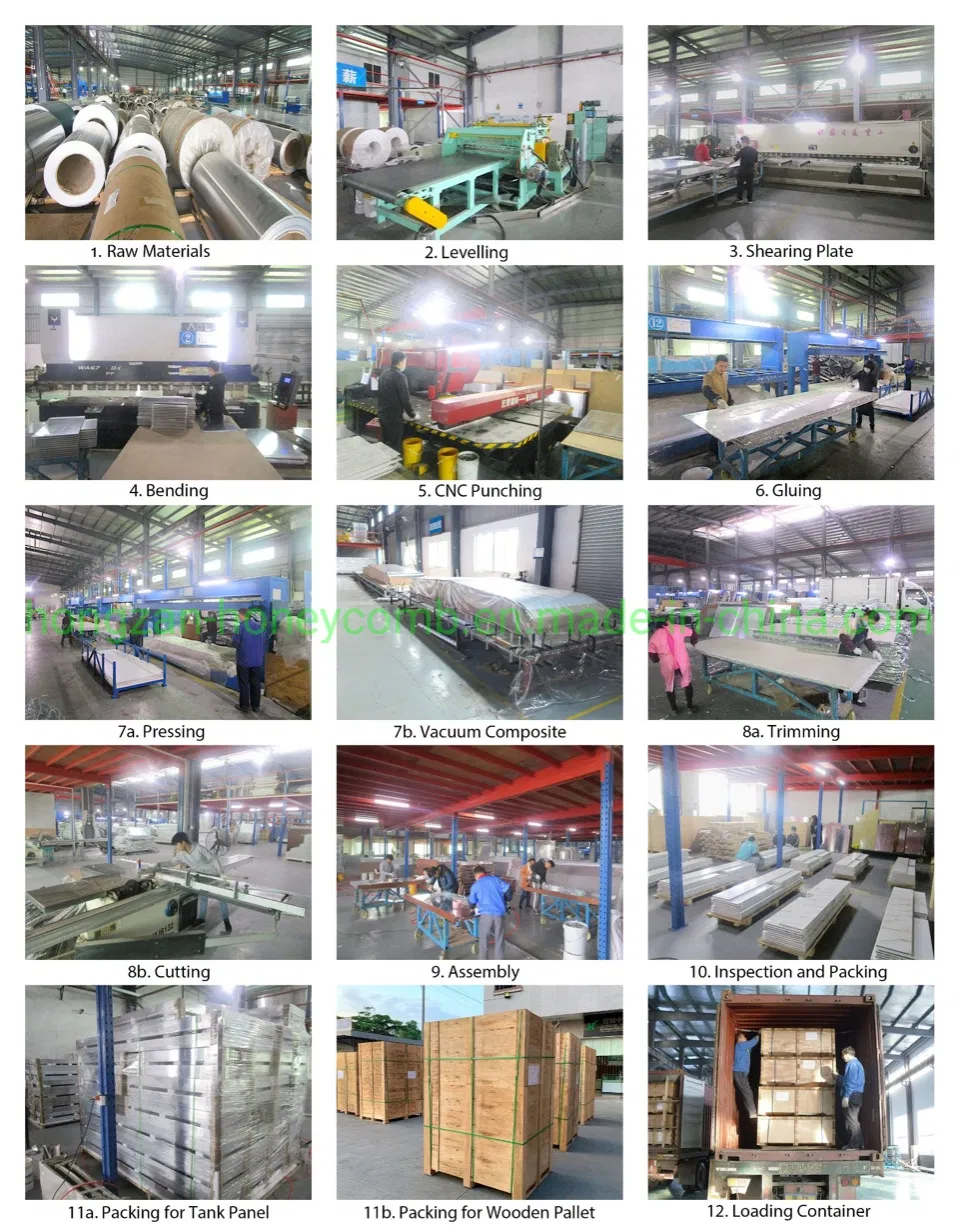

Factory and Packing

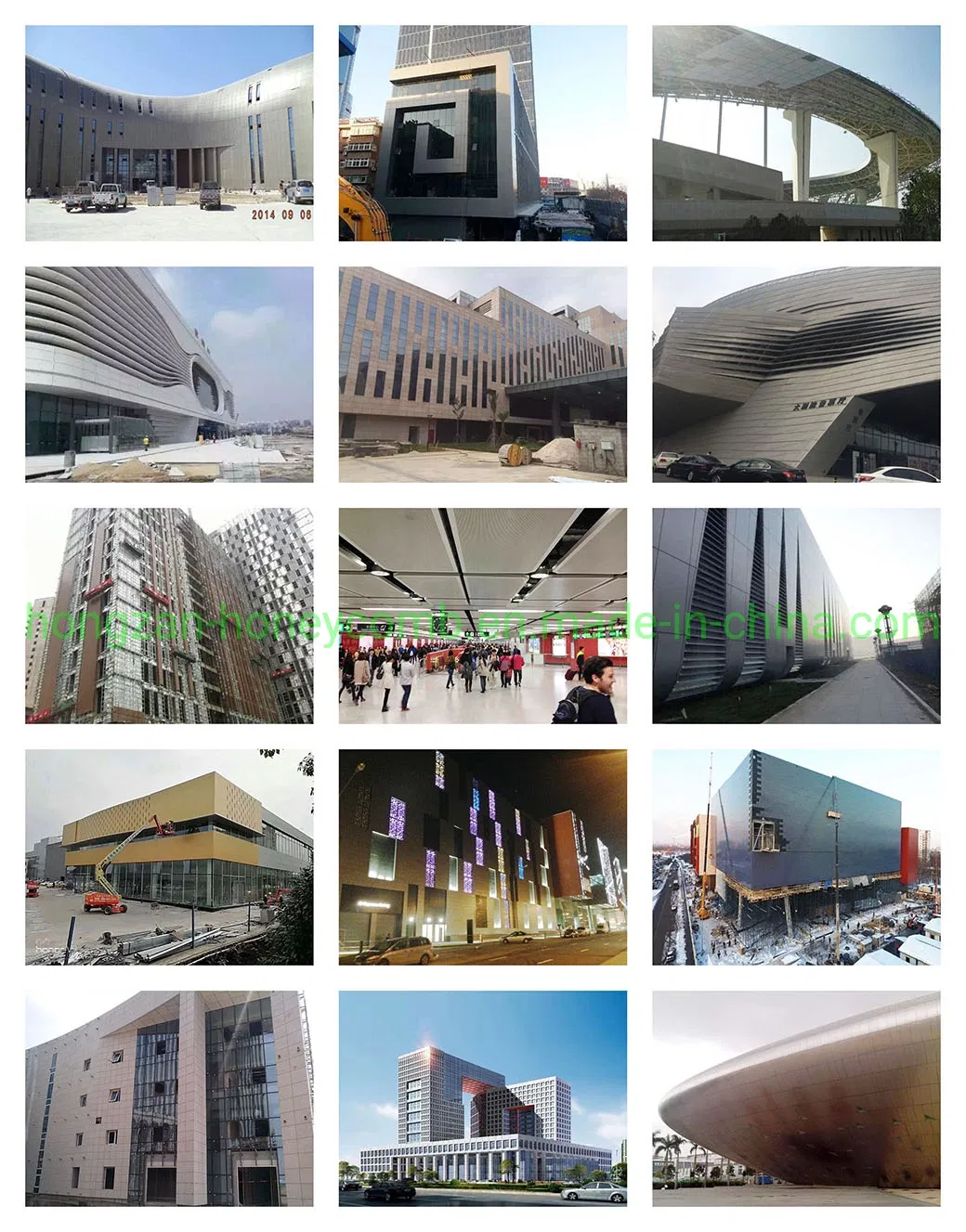

Project Case Study
Certifications
Certificates
  • ISO 9001:2008 Quality Management
  • IMO MED / A class fire rate by Lloyd's
  • BS 476, 475 by TUV PSD Singapore
  • EN13501-1 by ITS
  • ASTM Standards
  • CE EN Certificates
Frequently Asked Questions
Do you provide free samples?
Yes, we provide product samples free of charge to help you evaluate the quality and specifications.
Do you offer the best price?
As a manufacturer with direct export rights, we provide competitive factory pricing coupled with high-quality standards.
How do you ensure reliable quality?
We maintain a strict QA system under ISO 9001:2008. Our products have passed BS, IMO, CE, and ASTM testing. You are also welcome to send a QC team for inspection.
What is your monthly production capacity?
Our current production capacity is approximately 50,000 square meters per month for aluminum honeycomb panels.
Can we have a video tour of your factory?
Absolutely! We welcome virtual visits via live video to showcase our manufacturing facilities and processes.
Are customized sizes and shapes available?
Yes, all kinds of panels including curved, folded, and irregular shapes can be fabricated according to your specific architectural requirements.
