Product Description

Basic Information
Model NO.
MTG-G16
Color
Customize
Certification
E0, Class B, CE, ASTM, ISO
Thickness
15mm
Size
2440*197*15mm
NRC
0.75~0.9
Material
Groove Wooden Acoustic Panels
Fire Rating
Class B / B2
Eco-Friendly
E1 / E0 Standard
Installation
Gun Nail, Aluminum Keel & Clips
Capacity
1000 Square Meter Per Day
HS Code
39209400
Packaging & Delivery
Package Size
245.00cm * 20.00cm * 10.00cm
Gross Weight
22.000kg
Lead Time
15 days (1 - 1500 sqm)
30 days (1501 - 3000 sqm)
45 days (3001 - 4500 sqm)
Product Description
🟦 Wooden Veneer Melamine Decorative MDF Timber Acoustic Wall Panel

Our wooden timber acoustic panel is manufactured using advanced production equipment designed according to acoustic principles. It offers excellent sound absorption, ensuring reverberation times meet acoustic design standards. This results in clearer, smoother sound with a rich stereo feel. Available in various finishes and base materials, it is ideal for both decorative wood effects and heat preservation requirements.

Base Material: Commonly used MDF (optional fire density board or other specified materials).
Veneer Options: Natural wood veneer, melamine, spray paint, fire prevention board, etc.
Backing: German imported fire-resistant sound-absorbing felt glued to the back.
Feature Specification Details
SurfaceMelamine
CoreMDF (E1), ECO (E0), or MGO (Class A Fire Resistance)
Size2440*197mm
Thickness15mm
Center Distance16mm
BackingSoundtex acoustic felt attached
NRC0.75 ~ 0.9
Fireproof GradeB2
InstallationAluminum keel and clips, wood frame, or gun nail
Test ReportsEco protection, Sound absorption, Flame retardant
Product Display
Acoustic Panel Display 1

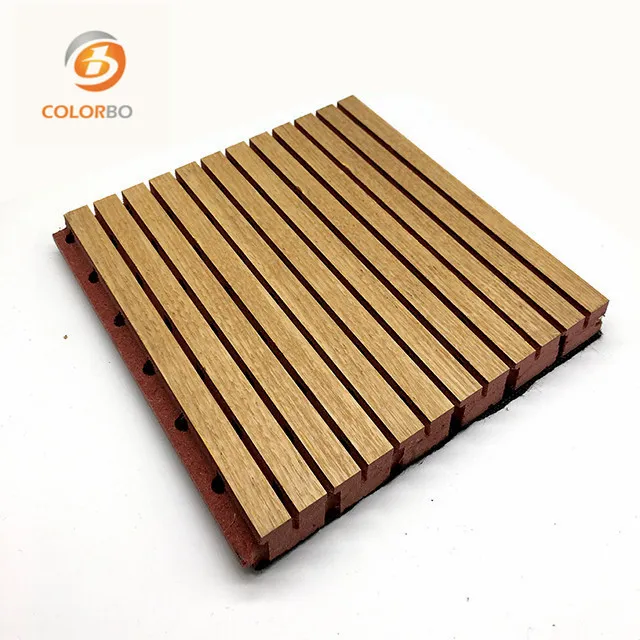

Acoustic Panel Display 2

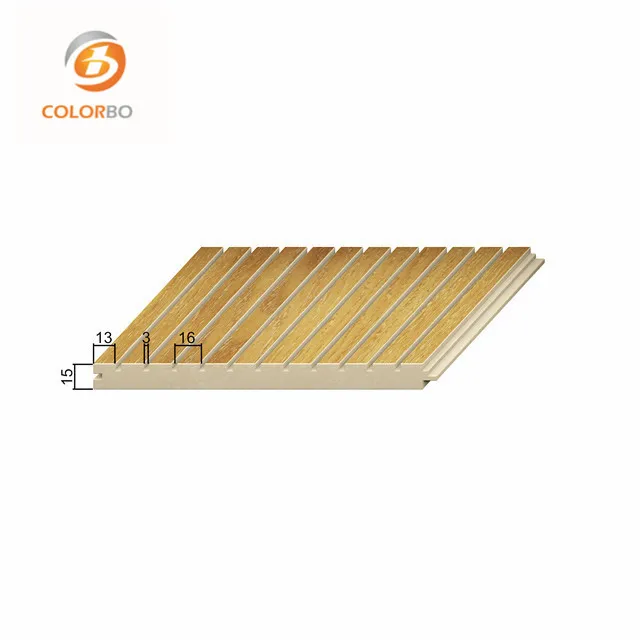

Acoustic Panel Display 3

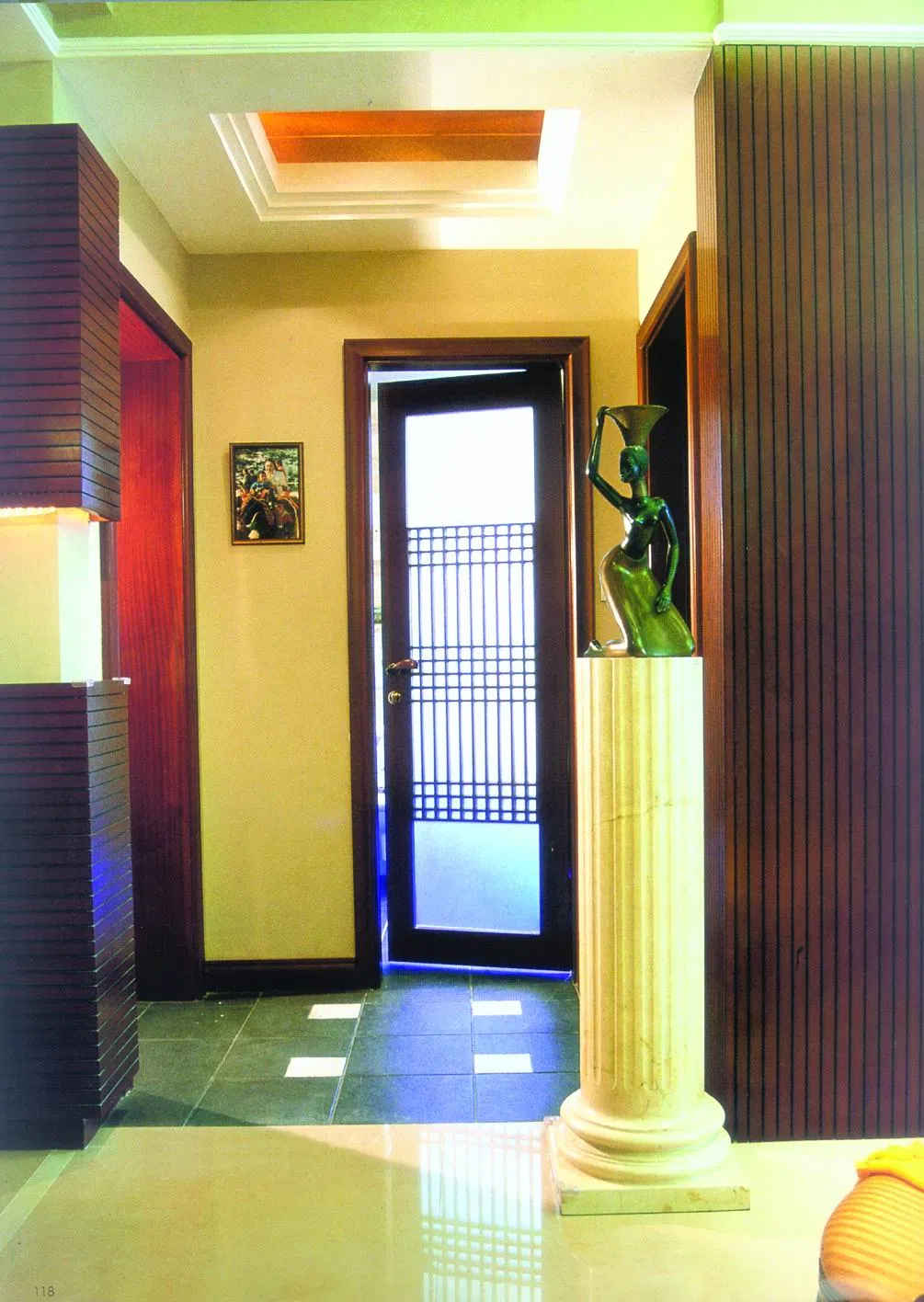

Acoustic Panel Structure
🎨 Melamine Color Chart
Melamine Color Chart
Frequently Asked Questions
How can I obtain an accurate quotation for these acoustic panels?
Please provide detailed product requirements, including the specific model, core material choice (MDF, ECO, or MGO), and preferred surface finish.
Are samples available for quality testing?
Most of our samples are provided free of charge. We kindly ask that the customer covers the postage or shipping costs.
What are the typical shipping arrangements from China?
We can arrange delivery to your nearest port or directly to your door via sea or air freight. We work with reliable shipping agents to ensure safe and timely delivery.
What are the standard payment terms and MOQ?
Our standard terms are a 30% down payment via T/T, with the remaining 70% balance due upon delivery. The Minimum Order Quantity (MOQ) is 100 Square Meters.
What is the warranty period for the panels?
We provide a 12-month warranty following delivery. Additionally, we offer 24-hour online technical support to assist with any queries.
How are the acoustic panels installed?
Installation can be done using aluminum keels and clips, wood frames, or gun nails. Detailed installation instructions and video guides are available upon request.
