Dubuild Panel
1 / 5
| Available Colors | Blue, Brown, Wood Grain, Black, Red, Yellow, Green, Grey, Customizable |
| Surface Treatment | Fiberglass Tissue |
| Eco-Friendly Rating | E0 |
| Flame Retardant | A1 Class |
| Thickness Options | 30mm, 40mm, 50mm, 60mm, 70mm etc. |
| NRC Rating | 0.9 (Superior Sound Absorption) |

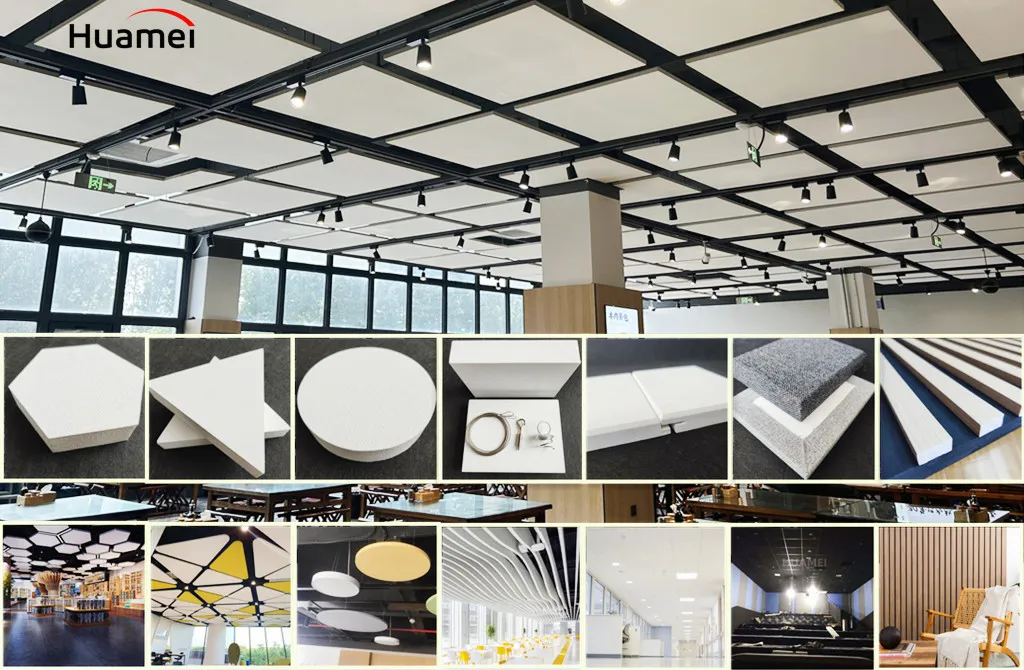

| Available Shapes | Square, Circle, Hexagon, Triangle, Rectangle, etc. |
| Main Materials | High-Density Glasswool, Fiberglass Tissue |
| Application | Dust Free Rooms, Public Spaces, Hotels, Offices, Households |

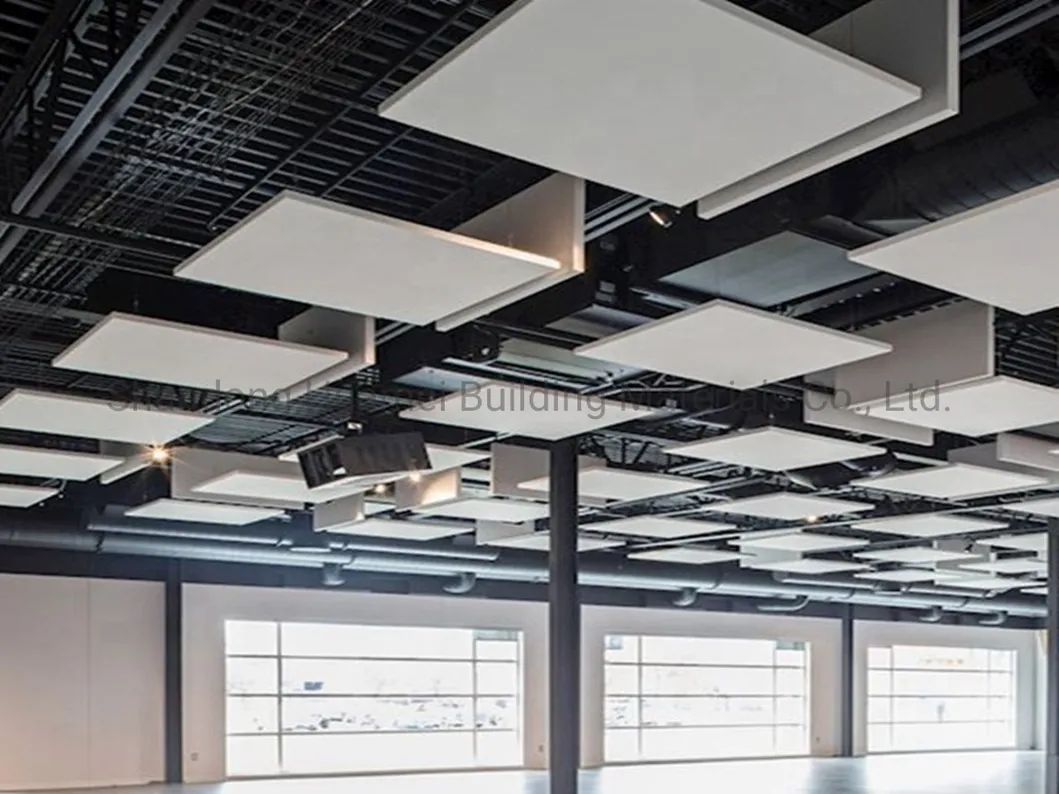

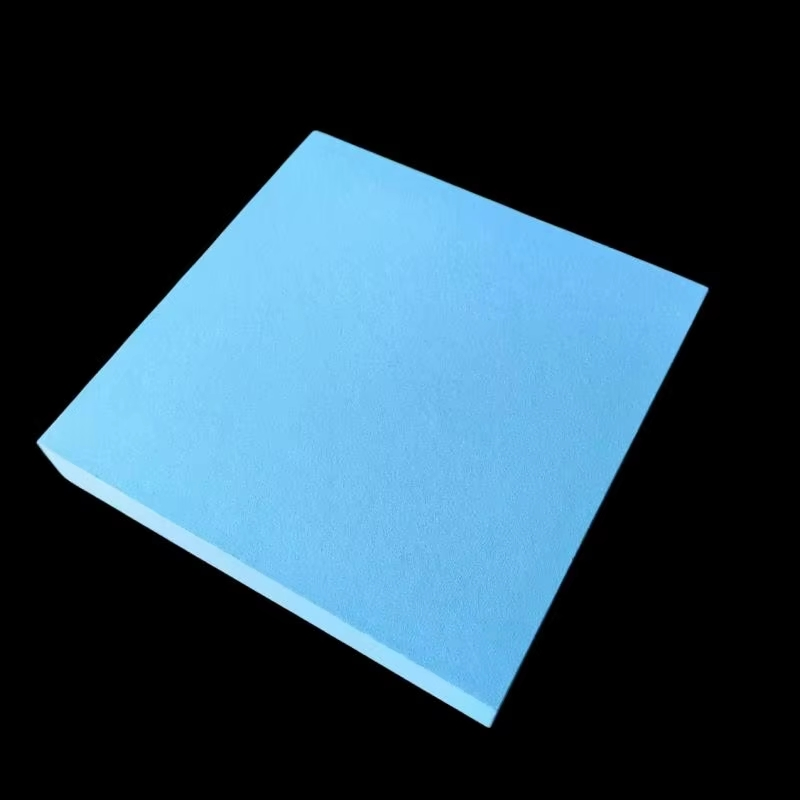

1. Square Acoustic Ceiling Clouds: Size 1200x1200x40mm, Weight 7kg/pcs. Manufactured from high-density glass wool with fiberglass felt on all sides and straight-cut edges.

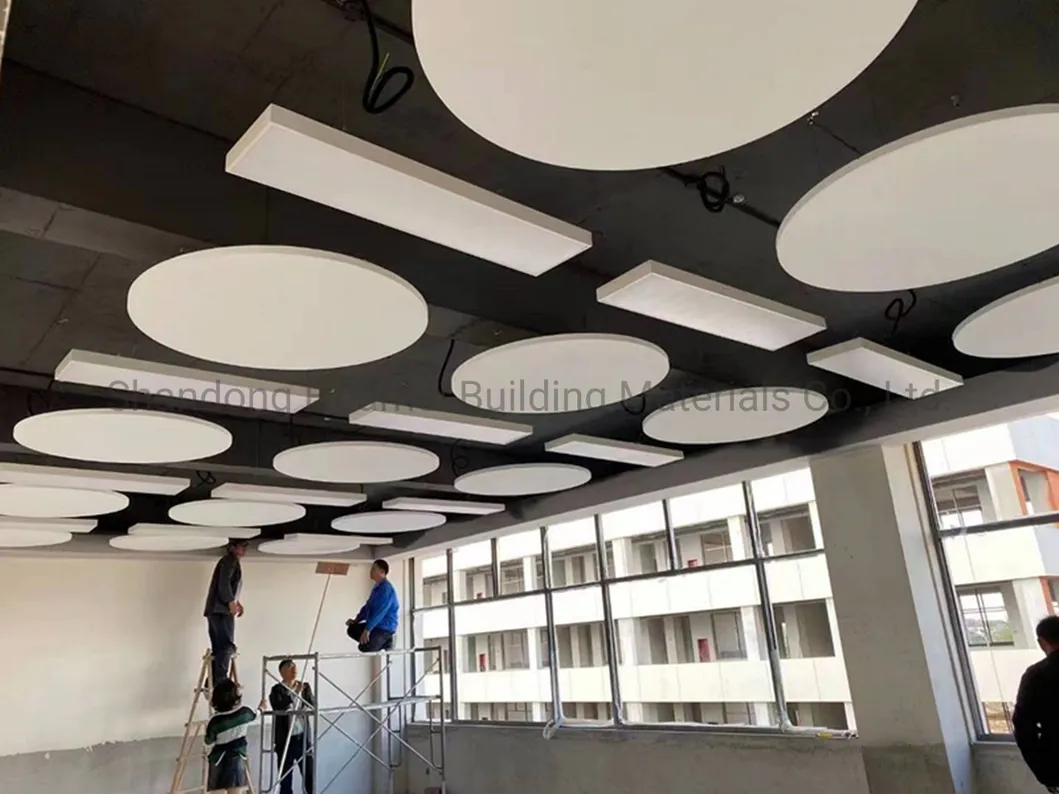

2. Round Acoustic Ceiling Clouds: Size Φ1200x40mm, Weight 5.5kg/pcs. These clouds are a tasteful option for reducing reverberations and improving intelligibility in any architectural space.

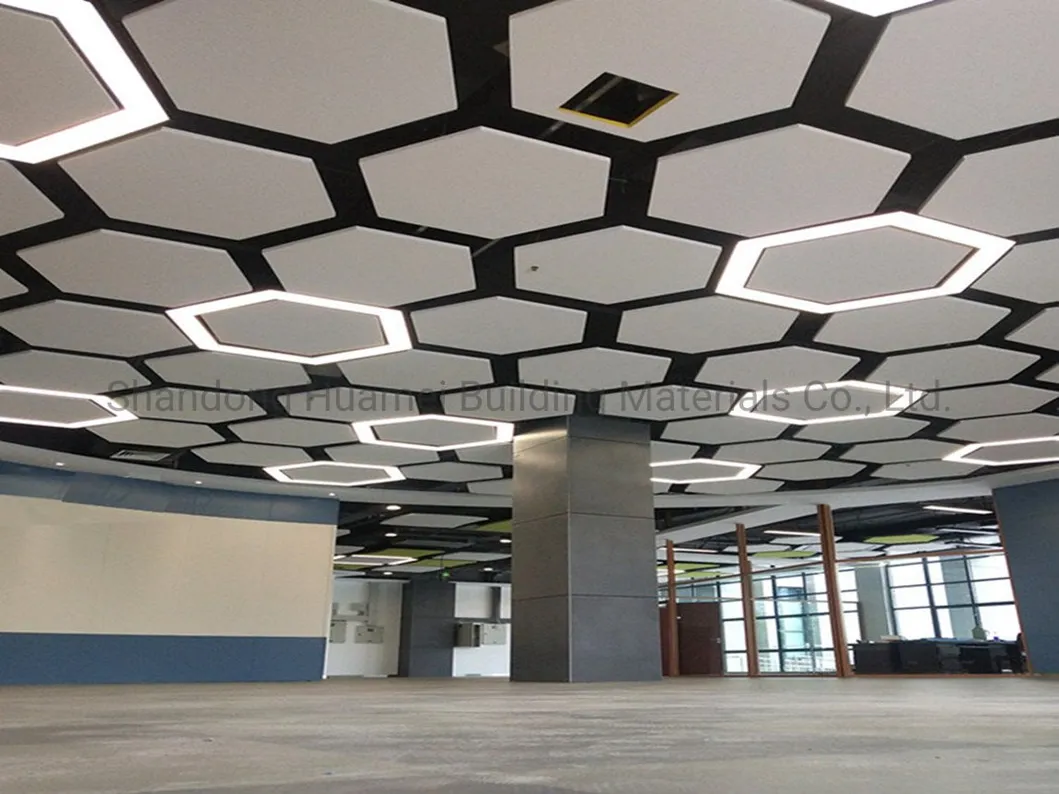

3. Hexagon Acoustic Ceiling Clouds: Size Φ1200x40mm, Weight 4.5kg/pcs. Laboratory tested for acoustic performance (NRC 0.9) and fire safety (Class-A1 rating by SGS).

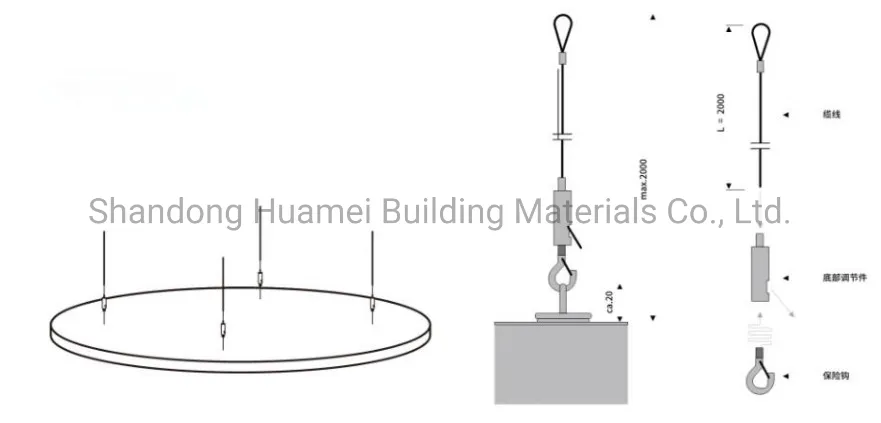

The suspension accessories are designed for easy and secure mounting, composed of a spiral spring, 2m adjustable cable, and adjusting hook.
| Surface Design | White plane / white point / black plane or custom colors |
| Fire Resistance | Class A (EN13501-1:2007+A1:2009) |
| Thermal Resistance | ≥0.4(m².k)/W |
| Humidity Resistance | Stable with RH up to 95% at 40°C; no sagging or warping |
| Moisture Rate | ≤1% |
| Light Reflectivity | 0.85 |
| Density | 120-130kg/cbm |
| Certificates | SGS / CE / ISO9001:2008 |

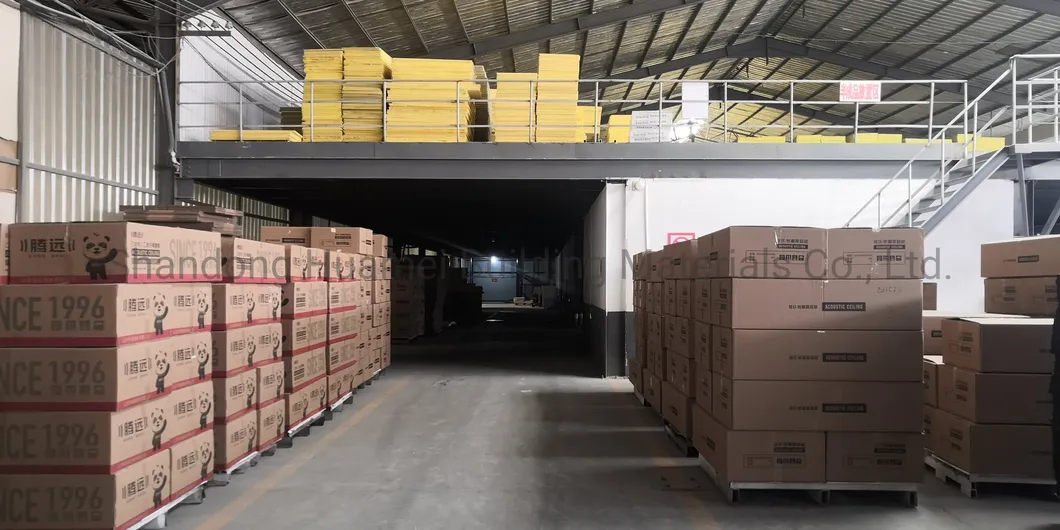

With a production history of nearly 20 years, our facility specializes in fiberglass ceiling products, rock wool ceiling products, and acoustic suspended panels. Our products are widely exported to the Middle East, Southeast Asia, South America, Australia, Africa, and Europe.
