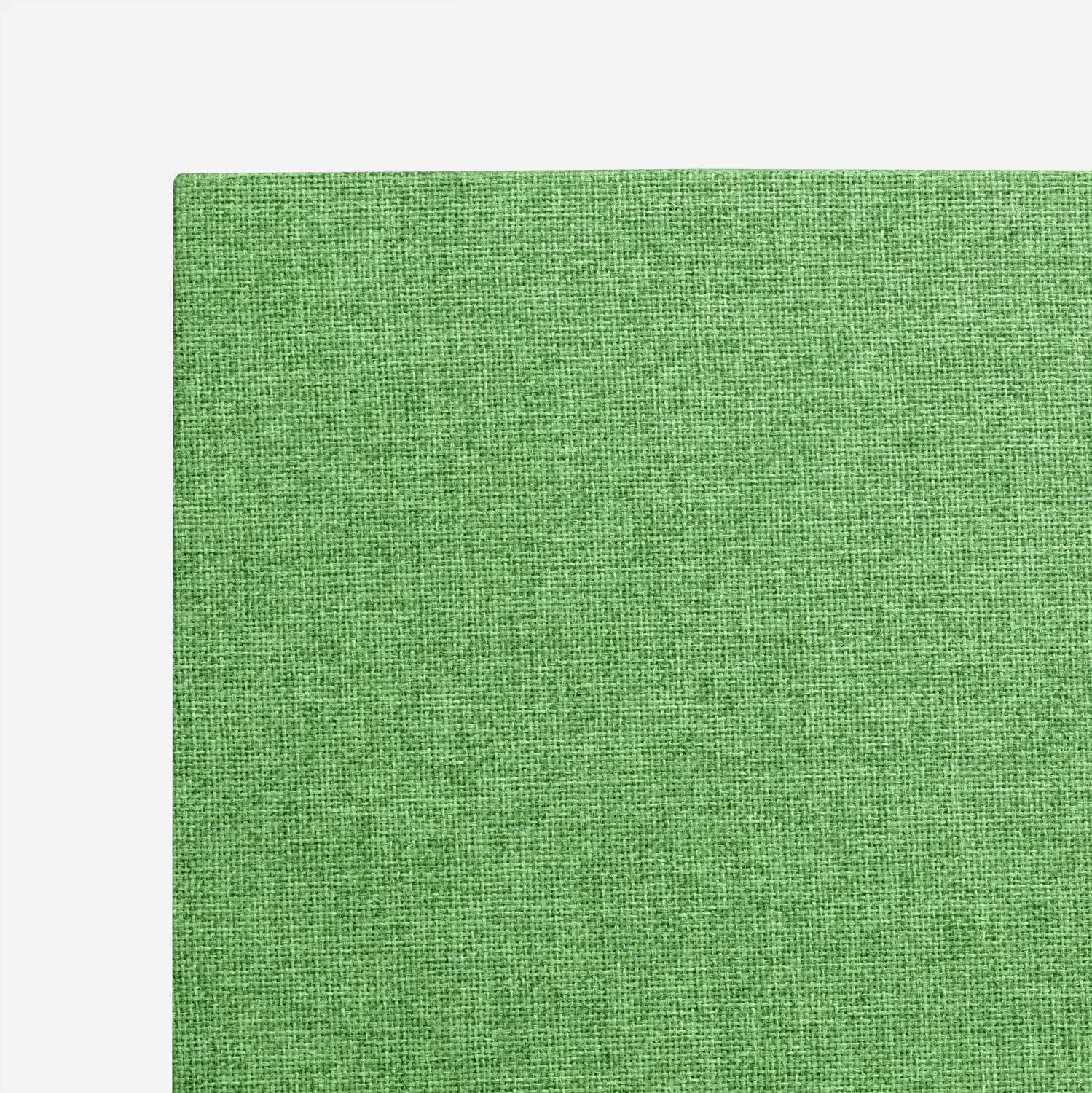

Fabric Wrapped Panel Acoustic Wall Panel Sound Proof Material

Still deciding? Get samples of $ !
Order Sample

Product Description

ℹ️

Basic Information

Model NO.
Fabric Wrapped Panel
Base Material
Glass Fiber
Thickness
25mm, 50mm
Density
100kg/M3
Fire Rating
Class B / B1
Eco-Friendly
E1 Grade
Surface
Fabric Surface
Installation
Adhesive / Glue / Wooden Keel
Specification
2400*1200mm
Certification
ASTM, BS, EN
📋

Product Description

Fabric wrapped acoustic panels are a premier solution for sound absorption and noise control across diverse environments. These panels are designed for both public and private spaces, offering specialized functionality based on your specific acoustic requirements. Whether you need standard sound absorption, high-impact resistance, or tackable surfaces, these panels provide a versatile answer.

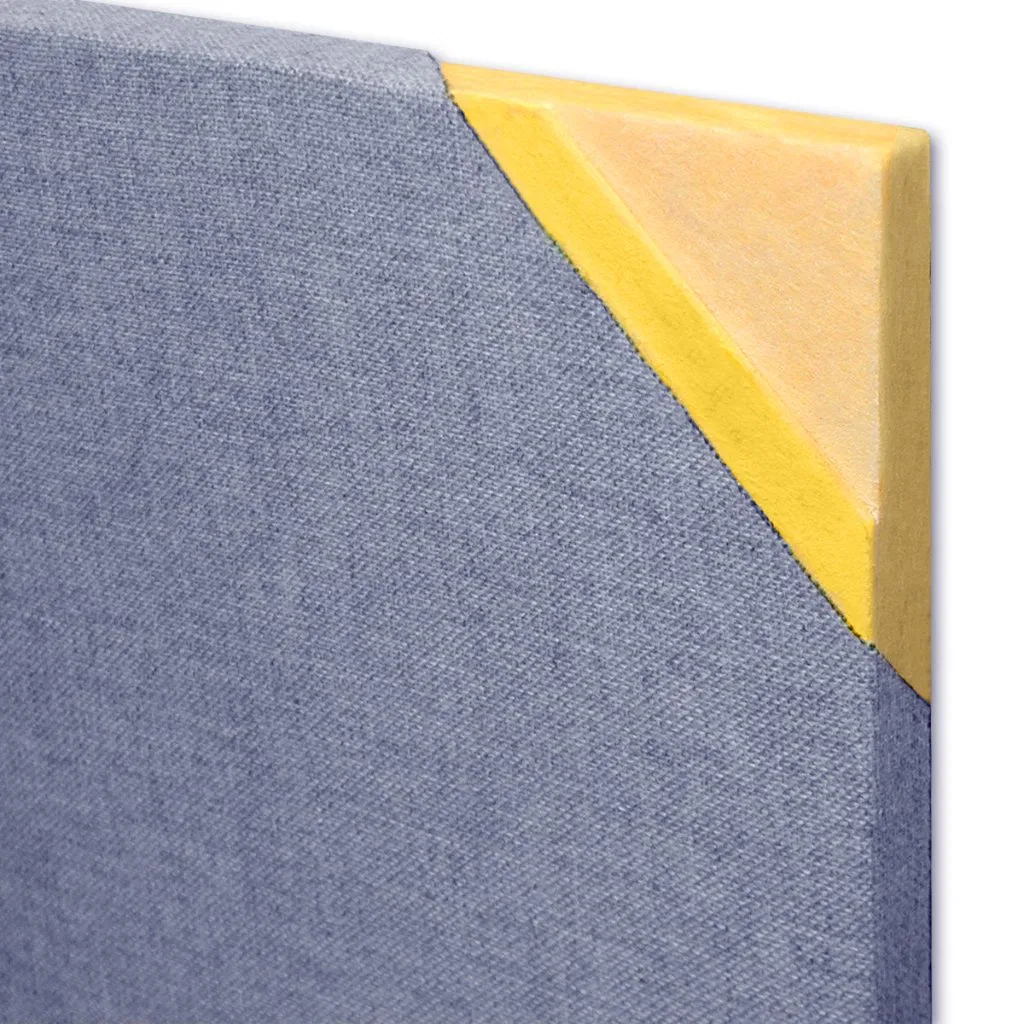

Utilizing a sophisticated fabric track system, these panels combine high-resolution aesthetics with superior acoustical performance. They effectively reduce echo and reverberation, providing an elegant design element to any application. Constructed with an extruded track system and an acoustical core, they are wrapped in premium panel fabric or custom printed images.

Key Features

  • Significantly improve speech intelligibility in crowded spaces.
  • Professional designer appearance with customizable fabric finishes.
  • High-resolution custom artwork compatibility for unique branding or decor.
  • Versatile application: restaurants, studios, auditoriums, conference rooms, and residential homes.
  • Flexible design: Fabric can be updated without replacing the acoustical core.
📊

Technical Specifications

SizesUp to 2400*1200mm
Thickness25mm to 50mm
Core Material98kg/m3 Semi-rigid fiberglass acoustical board
Fire RatingASTM Class A / B1
FinishAcoustic Fabric or specified style
Edge DesignSquare
NRC Rating0.85 ~ 1.15

Sound Absorption Performance (Hz)

Thickness 125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz NRC
25mm 0.14 0.27 0.80 1.11 1.14 1.14 0.85
50mm 0.22 0.81 1.24 1.30 1.21 1.16 1.15
🖼️

Product Showcase

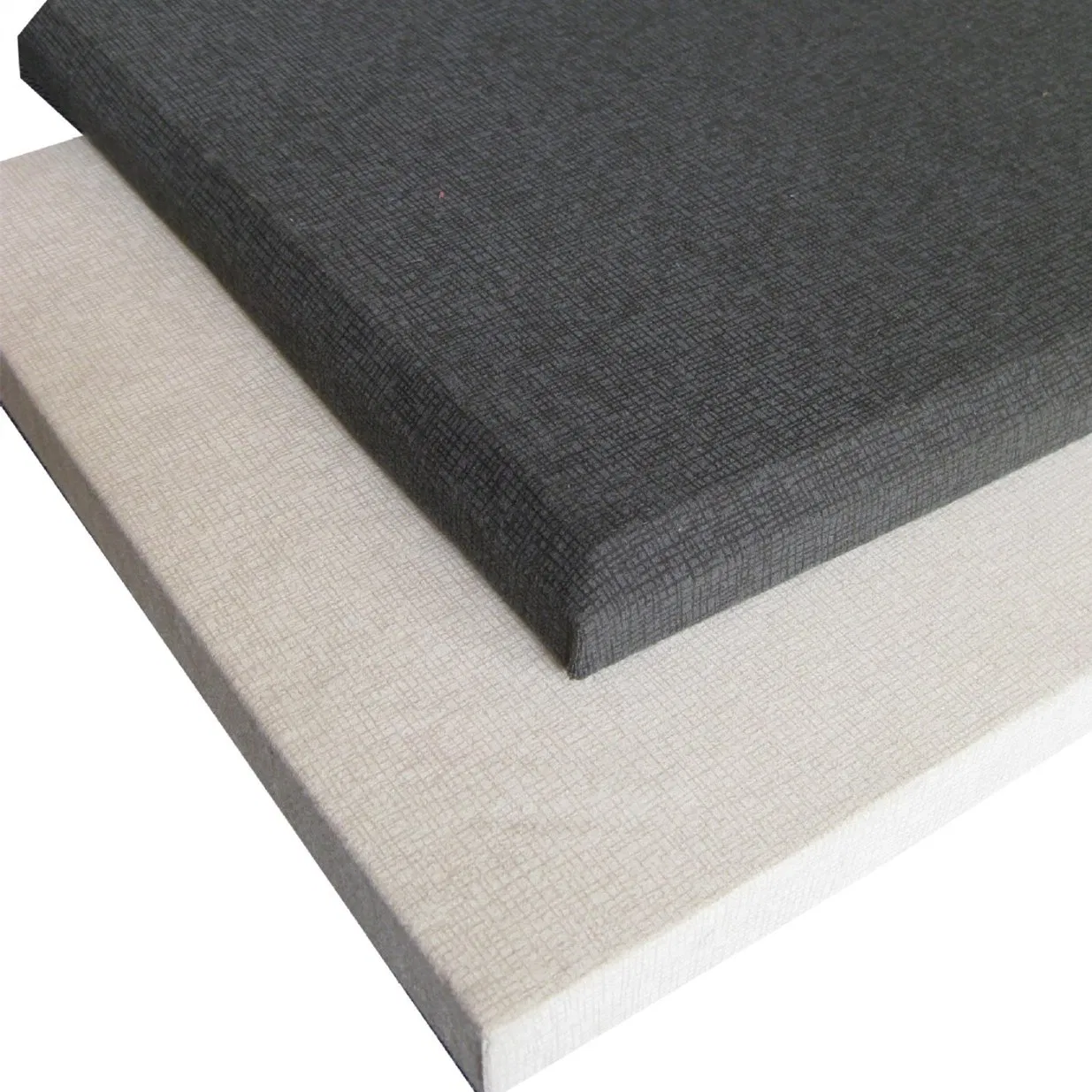

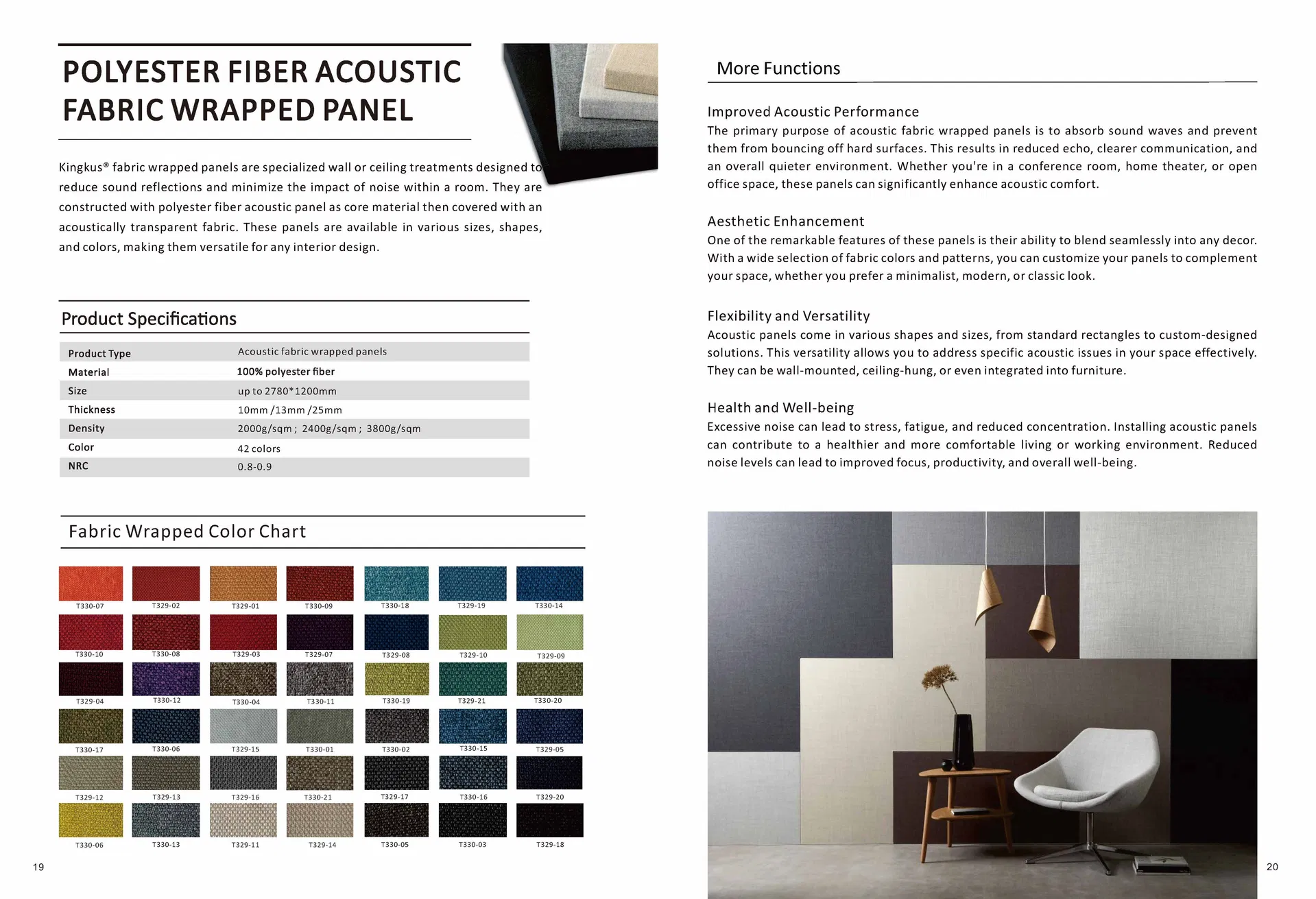

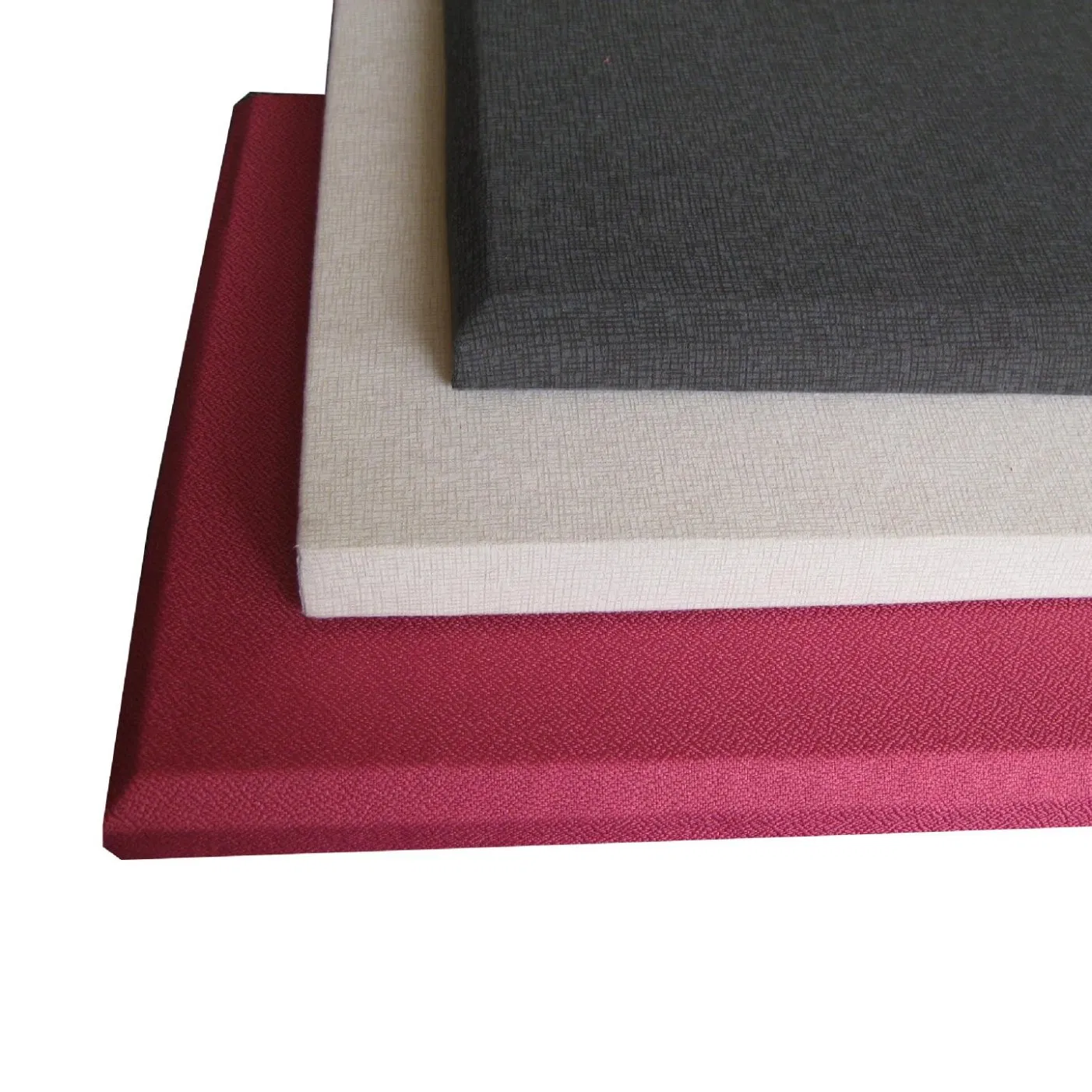

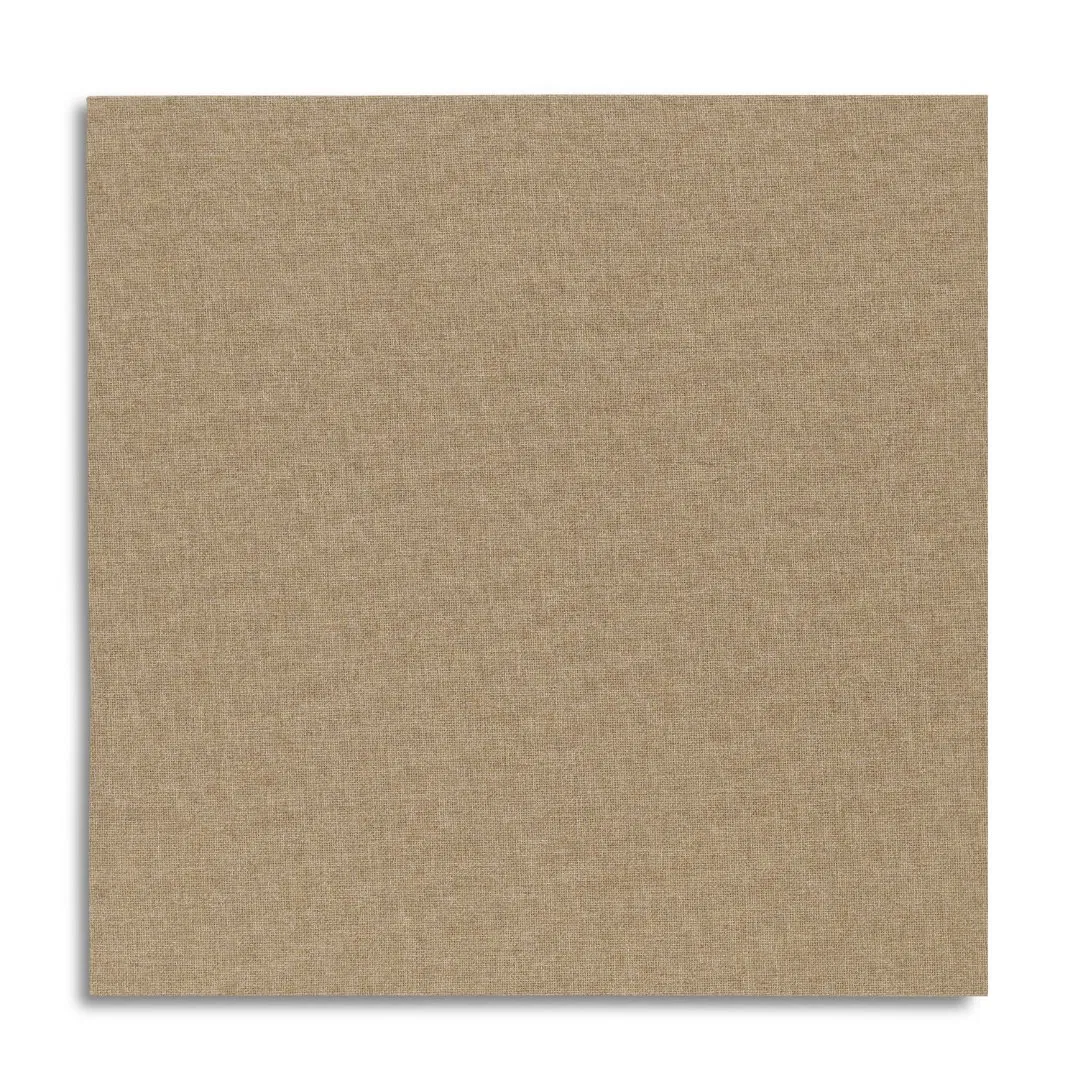

Fabric Wrapped Panel Acoustic Wall Panel

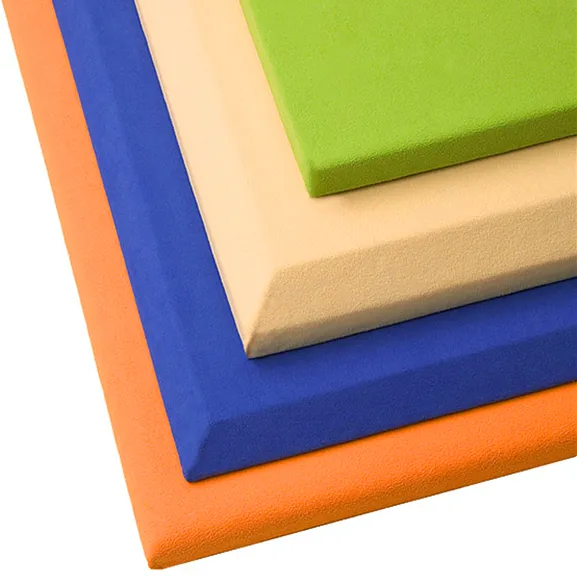

Acoustic Detail 1

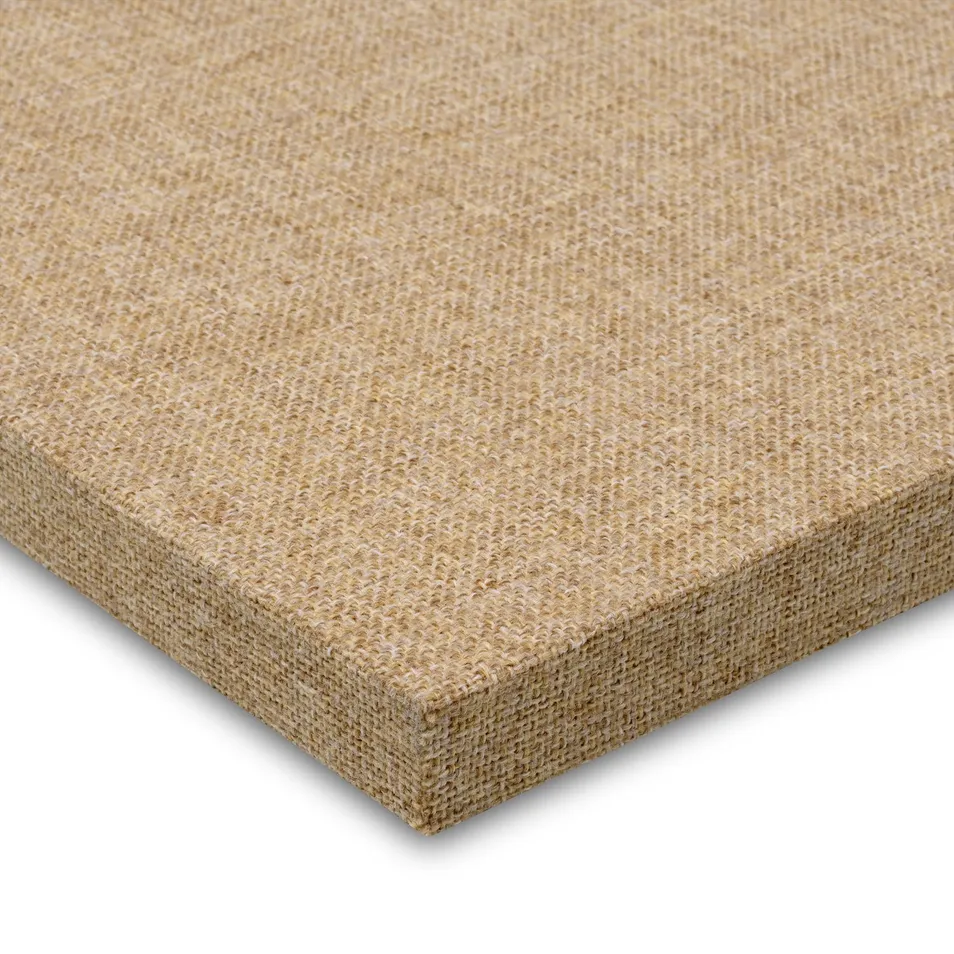

Acoustic Detail 2

Certifications & Quality

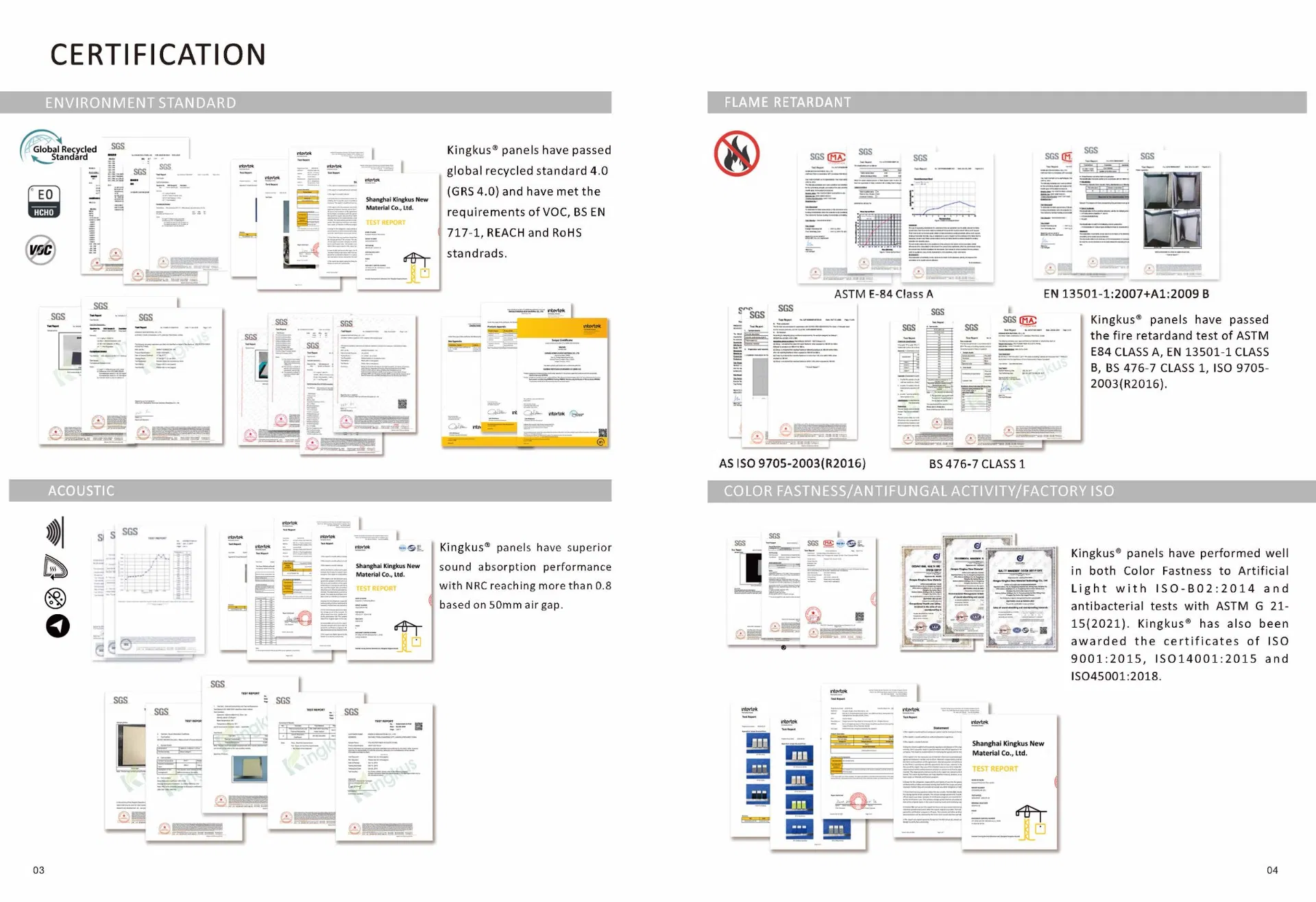

Certification Document

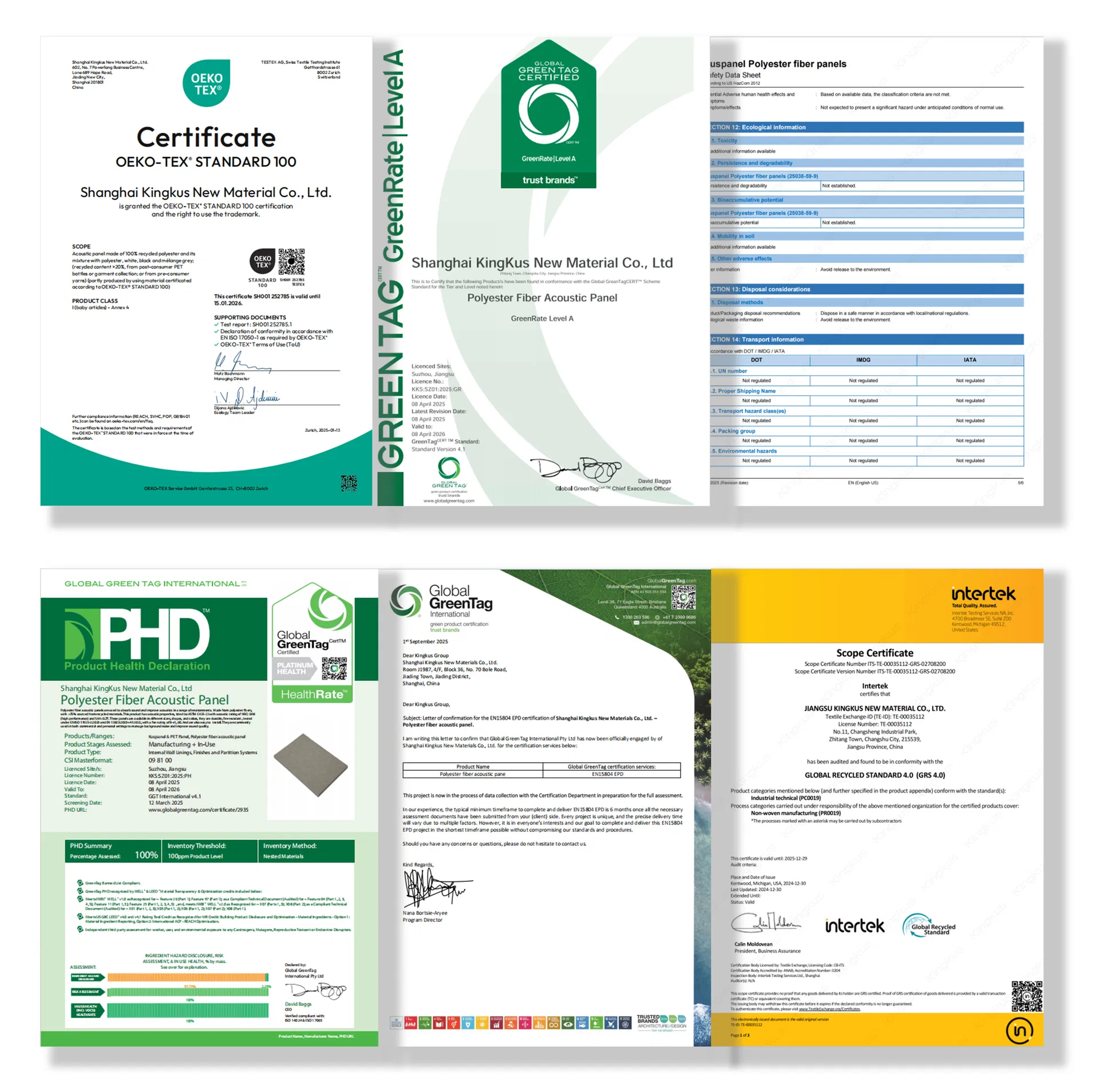

Quality Testing
🏢

Sustainability & Expertise

Environmental protection is a core responsibility. Every year, efforts are made to achieve higher standards of sustainability through rigorous evaluation of materials, manufacturing processes, and the ecological impact of products.

With deep roots in the building and decor materials industry since 1997, expertise in polyester fiber and fiberglass acoustic products has grown significantly. By maintaining a robust material supply chain and focusing on unique, attractive designs, high-quality production is consistently delivered to meet global acoustical solution needs.

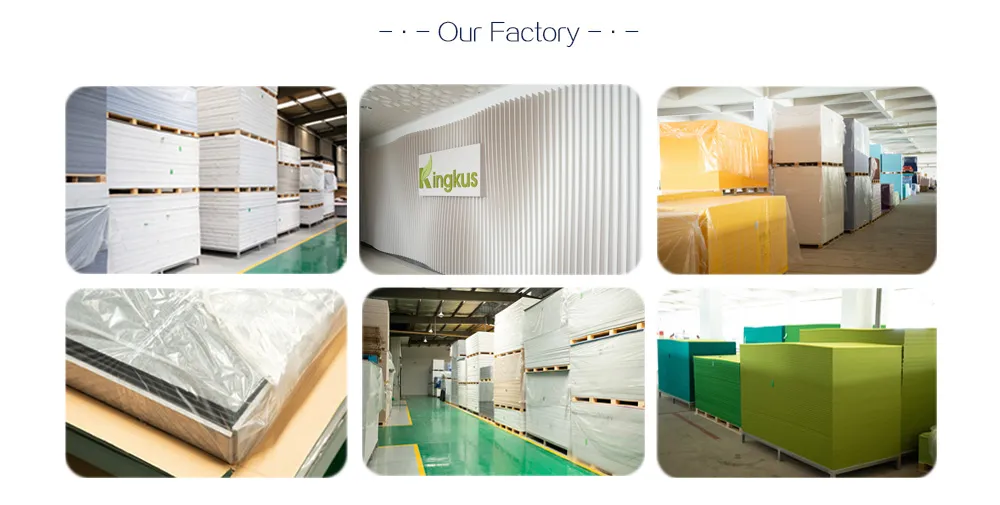

Production Facility

Frequently Asked Questions

1. What is the main function of fabric wrapped acoustic panels?
They are primarily used for sound absorption, reducing echo, and controlling noise levels in rooms like studios, offices, and theaters.
2. What fire safety ratings do these panels meet?
Our panels have passed major international tests including European (EN 13501-1 class B), British (BS476-7 Class 1), and American (ASTM E84 class A) standards.
3. Are the materials used eco-friendly?
Yes, the panels meet the Formaldehyde class E0/E1 standards, ensuring they are safe for indoor use in residential and commercial environments.
4. Can the fabric surface be customized?
Absolutely. You can choose from a wide range of standard fabrics or even supply high-resolution custom artwork to be printed on the panel face.
5. How are the panels installed on walls?
Installation is versatile; they can be mounted using industrial-strength adhesive, glue, or attached to a wooden keel system.
6. What is the typical lead time for orders?
For regular stock items like 9mm and 12mm PET panels, delivery can be as fast as 3 days. Custom fabric wrapped panels depend on project specifications.
