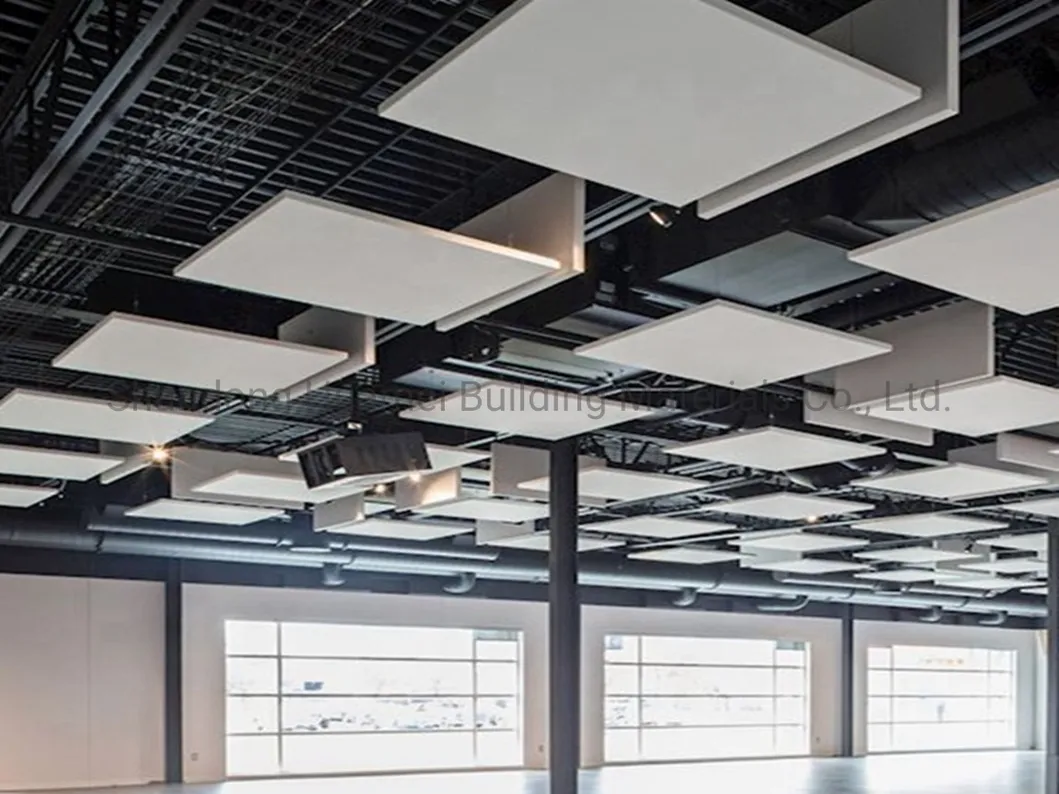

Square acoustic ceiling clouds feature a 1200x1200x40mm size with a weight of 7kg/pcs. Manufactured from high-density glass wool with fiberglass felt on all sides. The edges are straight cut and wrapped by fiberglass felt for a clean finish.
These clouds are a tasteful option for reducing reverberations and improving intelligibility in any space, capturing ambient energy by absorbing sound on both the front and back sides.

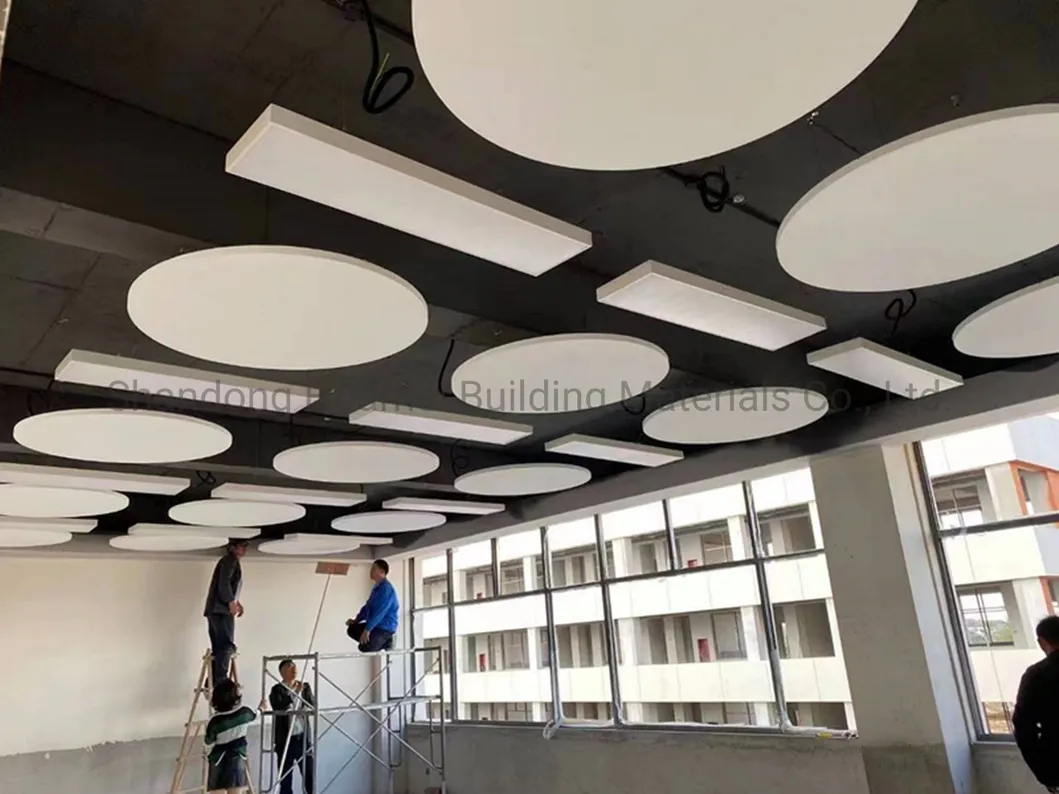

Round acoustic ceiling clouds feature a Φ1200x40mm size with a weight of 5.5kg/pcs. The high-density glass wool construction and unique shape offer creative, architecturally pleasing solutions for modern interiors.

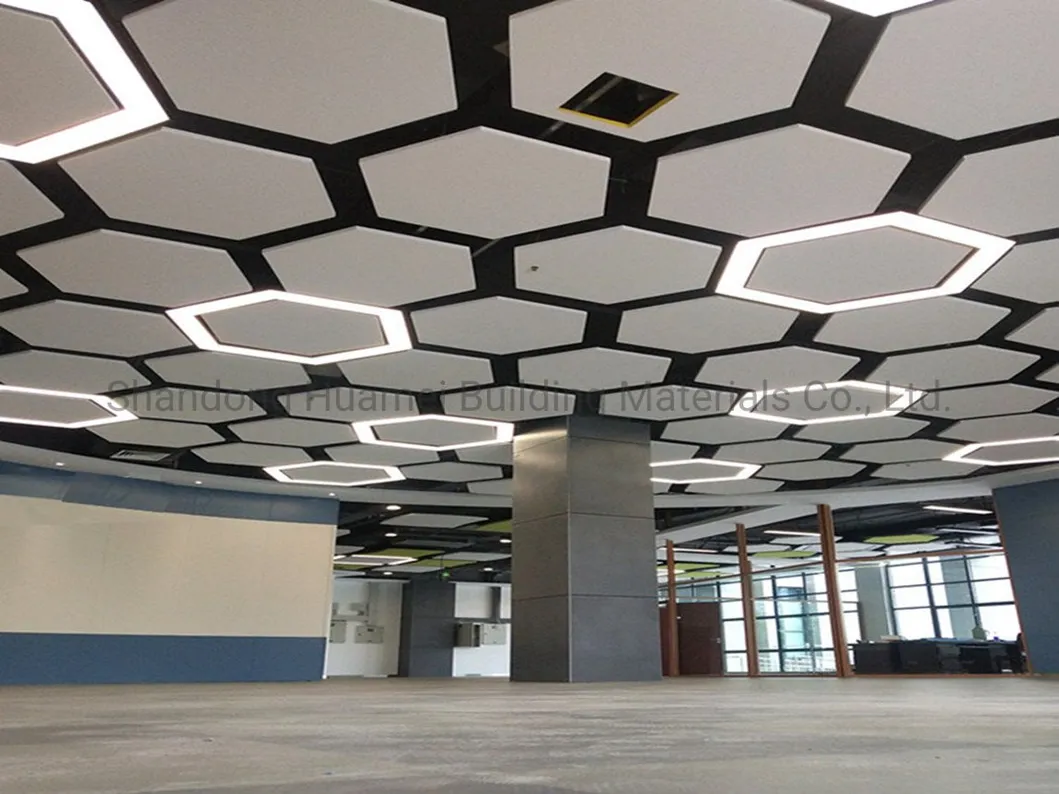

Hexagon acoustic ceiling clouds feature a Φ1200x40mm size with a weight of 4.5kg/pcs. Laboratory tested for acoustic performance (NRC 0.9) and fire safety (Class-A1 rating by SGS), making them safe for various installations.

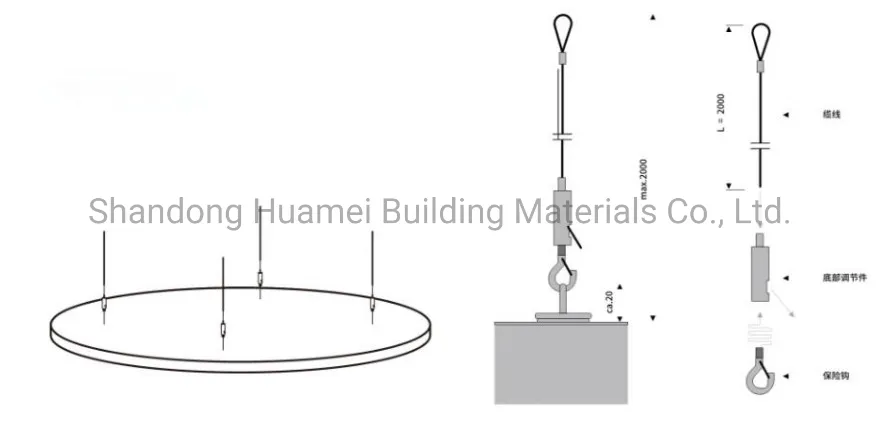

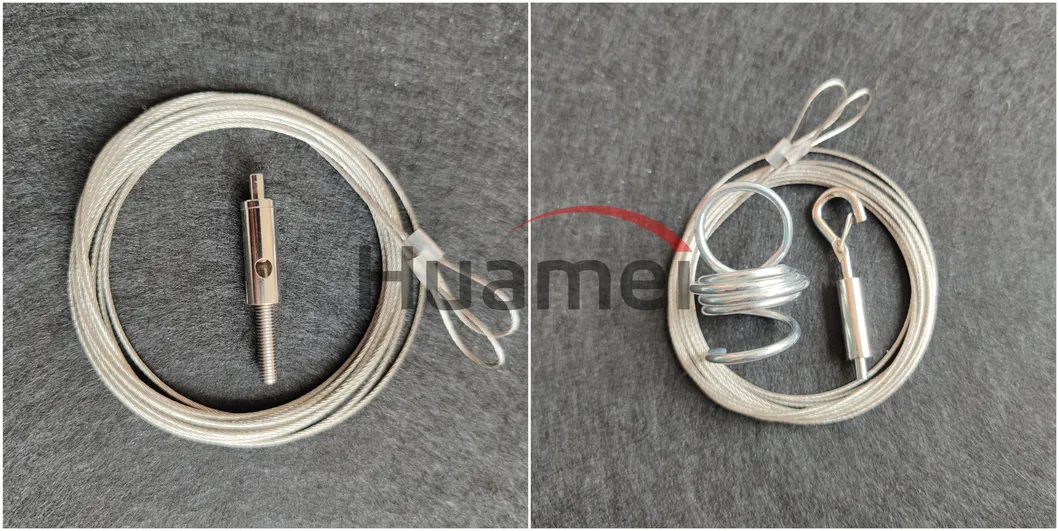

The suspension accessories are composed of a spiral spring, 2m cable, and an adjusting hook for precise leveling and secure mounting.
| Main Materials | High density glasswool and fiberglass tissue |
| Surface Finishing | Special painted laminated with decorative fiberglass tissue |
| NRC | 0.8-0.9 (Tested by SGS) |
| Fire-Resistant | Class A1 (EN13501-1:2007+A1:2009) |
| Thermal-Resistant | ≥0.4(m2.k)/W |
| Humidity | Stable with RH up to 95% at 40°C |
| Light Reflectivity | 0.85 |
| Density | 120-130kg/cbm |
Specializing in fiberglass ceiling products, rock wool ceiling products, and acoustic suspended panels. The products feature waterproof, moisture-proof, and fireproofing properties, widely used in offices, supermarkets, and public buildings.
Our acoustic clouds are laboratory tested and achieve a high NRC (Noise Reduction Coefficient) of 0.9, providing excellent sound absorption.
Yes, the products achieve a Class A1 fire-resistant rating, the most stringent safety classification tested by SGS.

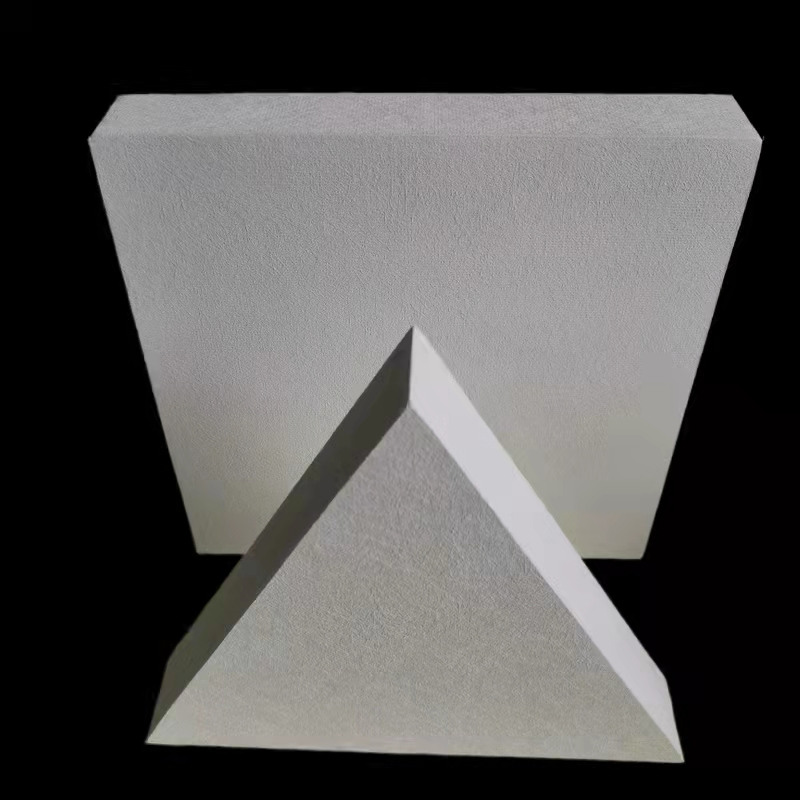

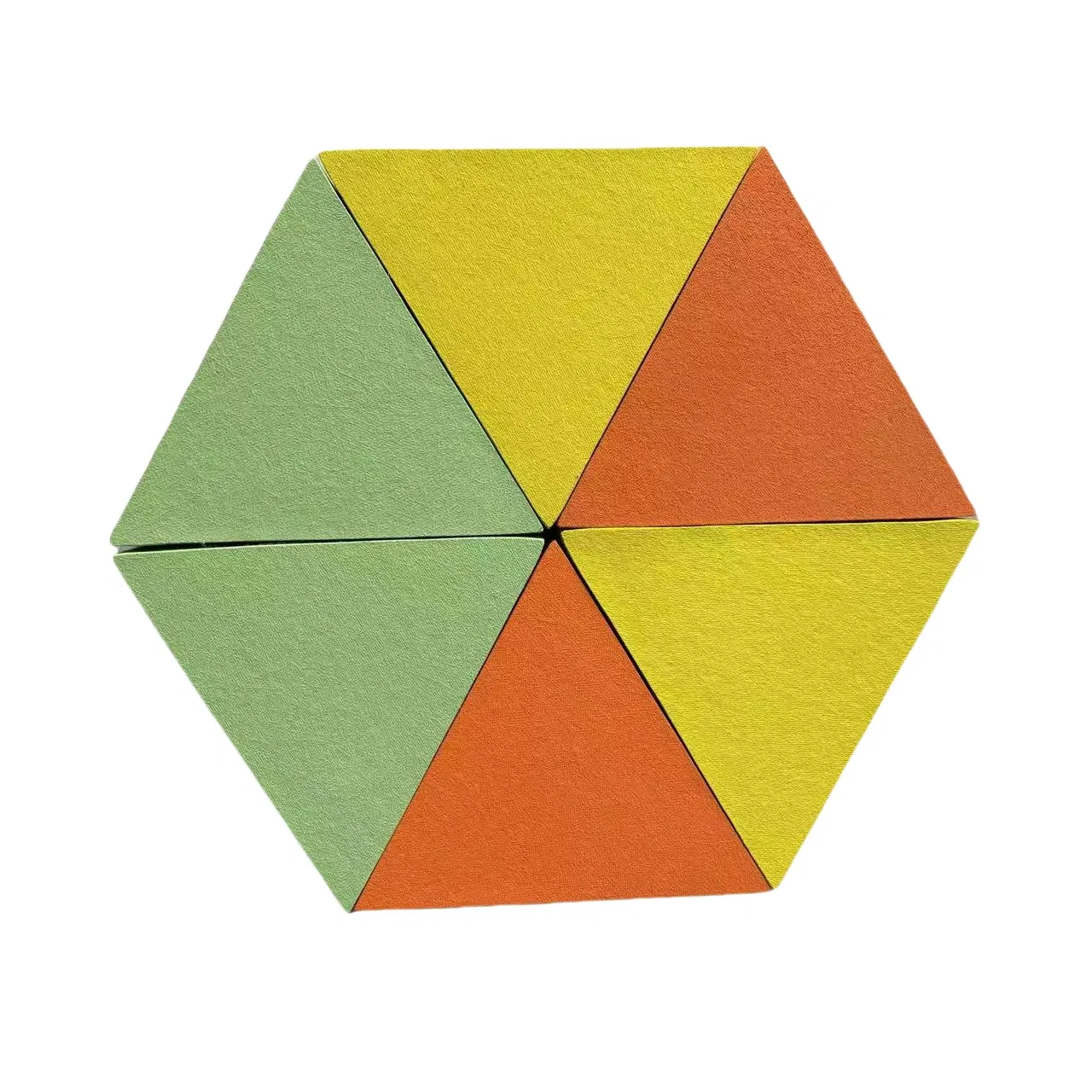

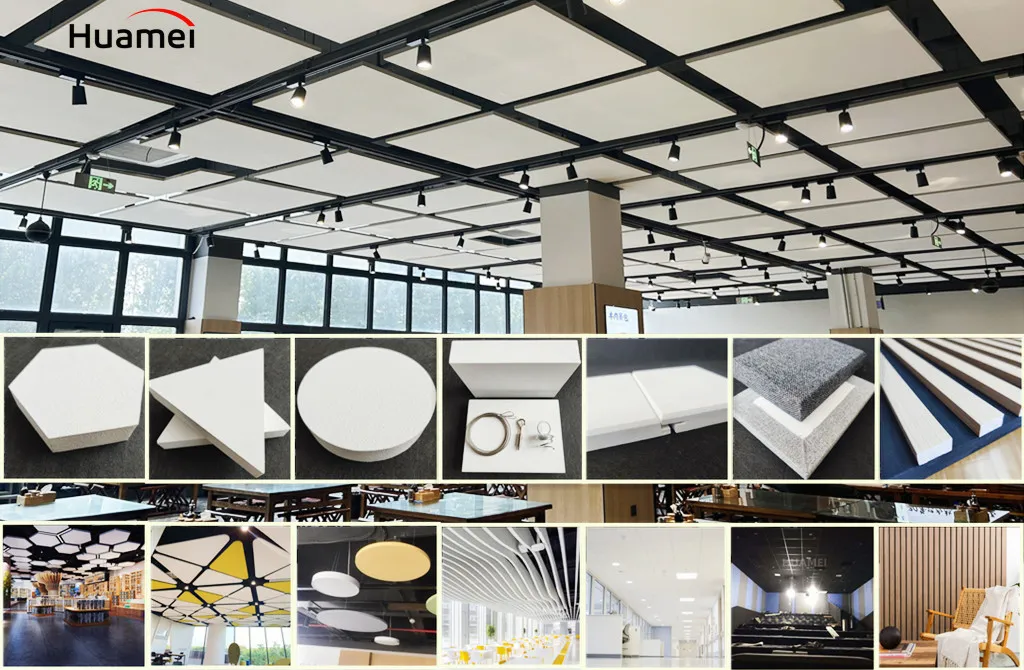

Standard shapes include Square, Round, and Hexagon. We also offer customizable shapes like Triangle and Rectangle. Standard sizes range from 1200x1200mm up to 1200x2400mm.
They are designed for easy suspension using a spiral spring system, 2m adjustable cables, and hooks included in the suspension accessories kit.
Absolutely. They are dimensionally stable with Relative Humidity (RH) up to 95% at 40°C, preventing sagging, warping, or delaminating.
Available colors include White, Black, Blue, Brown, Red, Yellow, Green, and Grey. We also offer customizable colors and wood grain finishes.
