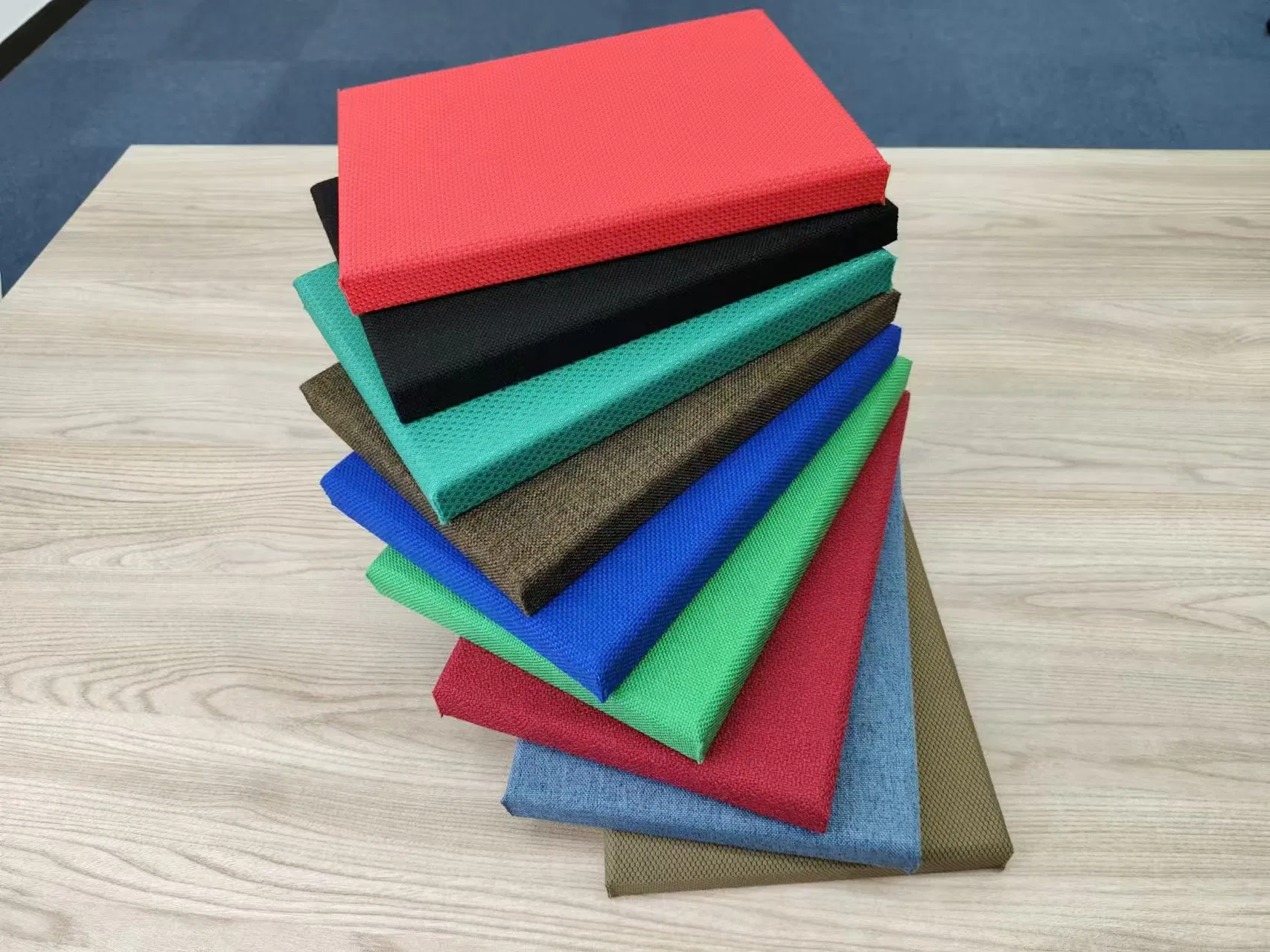

Clothing Fabric Fireproof Soundproof Acoustic Panel Fabric Wrapped Acoustic Fiberglass Wall Panel

Still deciding? Get samples of $ !
Request Sample

Product Description

📋
Basic Information
Model NO.
Fiberglass Wall panel
Color
Colorful
Environmental
E1
Fire Rating
Class A / A1
Installation
Adhesive or Clip System
Thickness
20-100mm
Material
High Density Fiberglass Wool
NRC
0.9 - 0.95
Density
100-160kg/M3
Light Reflection
85% (White)
Humidity Resistance
Up to 95% RH
Cleaning
Vacuum/Damp Cloth
🛠️
Product Description

Fiberglass Fabric Wrapped Acoustic Wall Panels are more than just art panels; they are a gateway to superior sound control. Using high-density glass wool as the core material and covered with premium fireproof fabric, these panels effectively eliminate wave reflection.

These panels are designed to control and adjust indoor reverberation time, significantly reducing noise pollution. Key benefits include excellent acoustic absorption, moisture-proof properties, improved fire safety, and visually appealing designs that complement modern architecture.

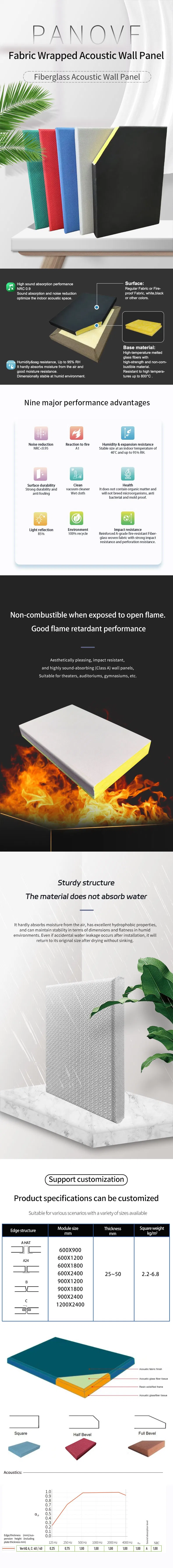

Acoustic Panel Display
Fiberglass Details

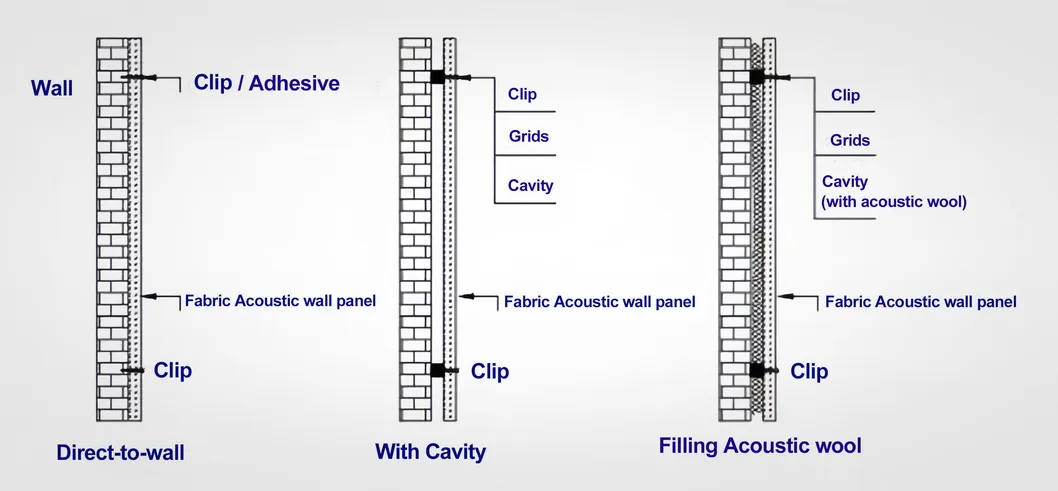

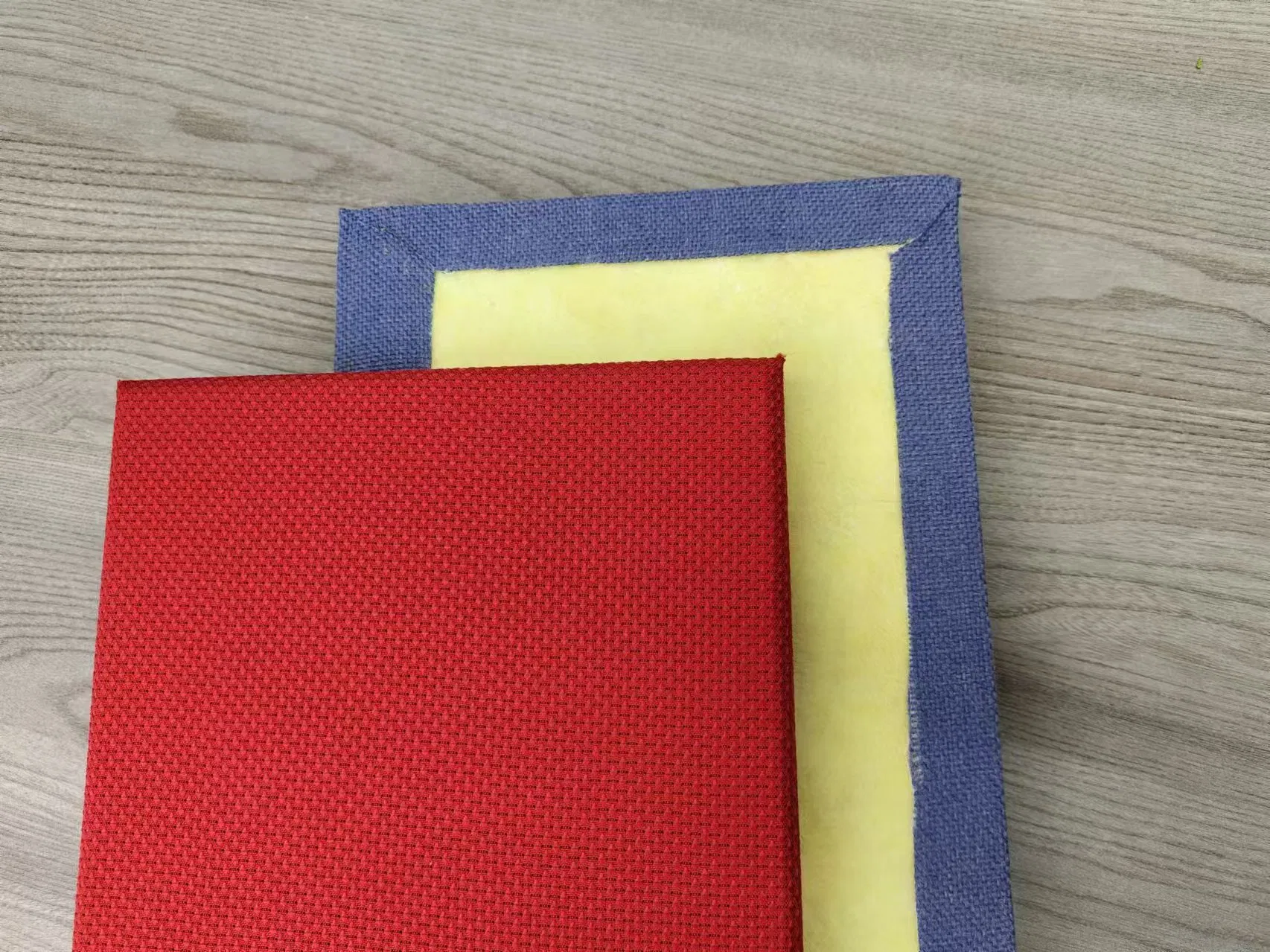

Panel Structure

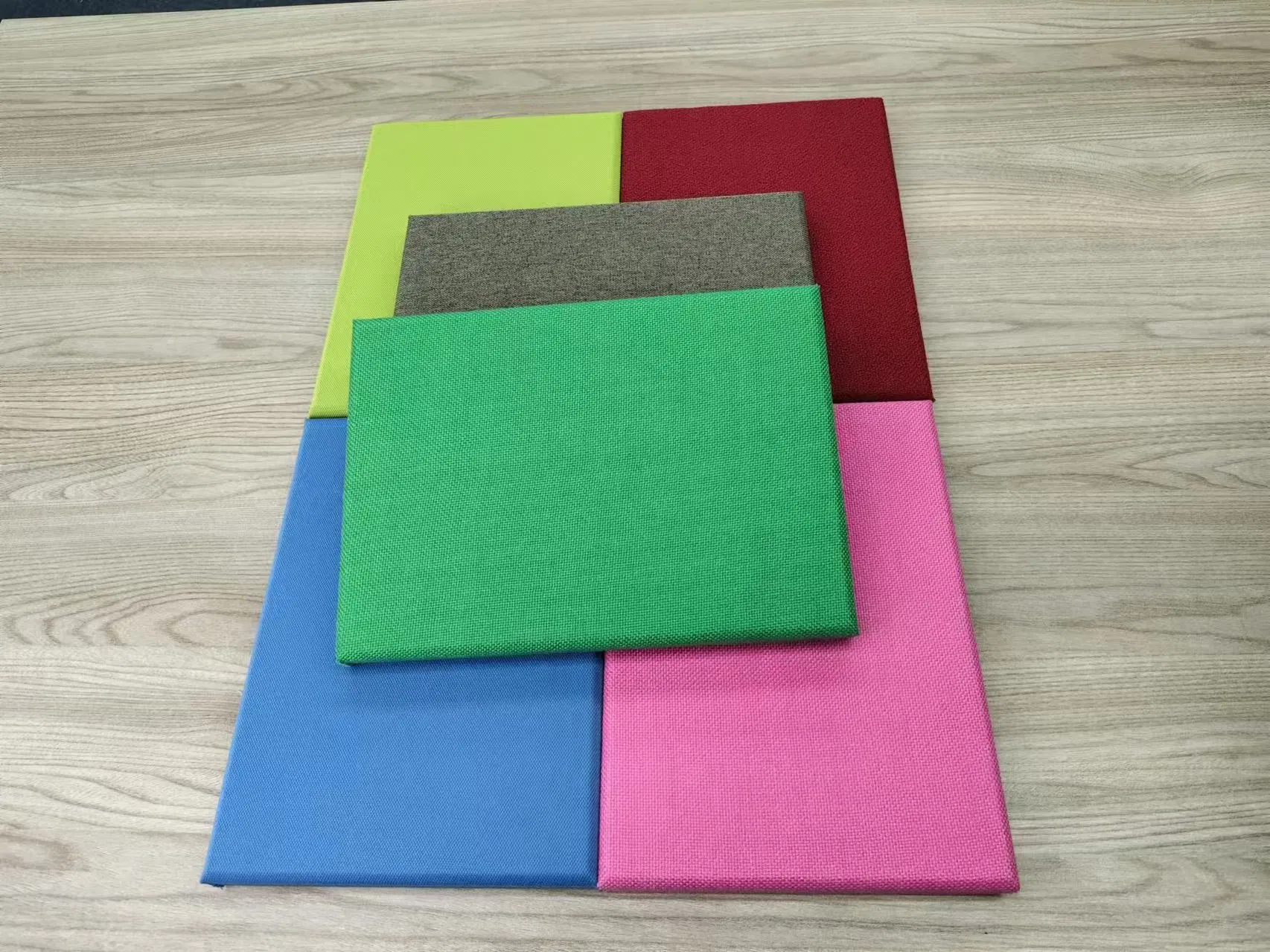

Color Options

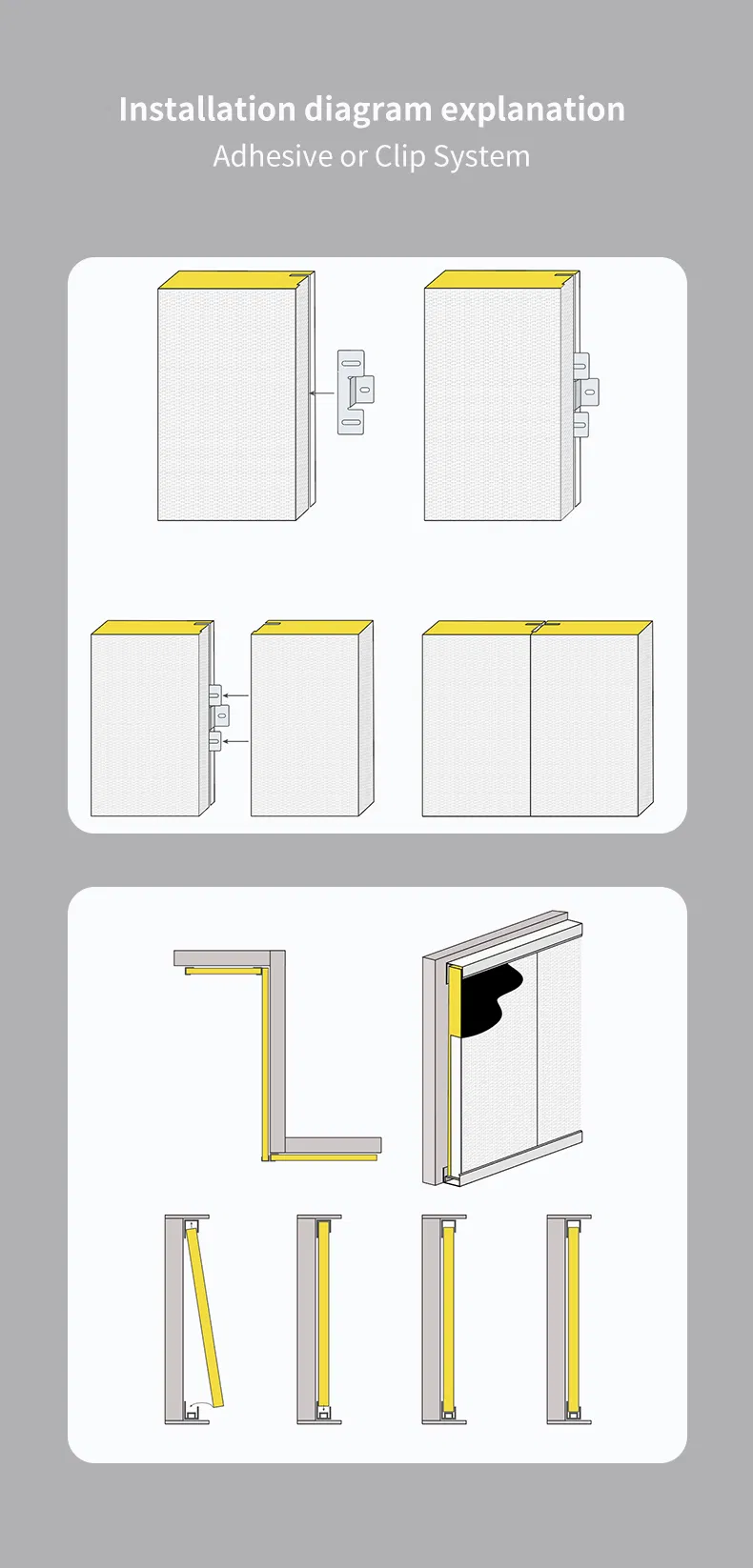

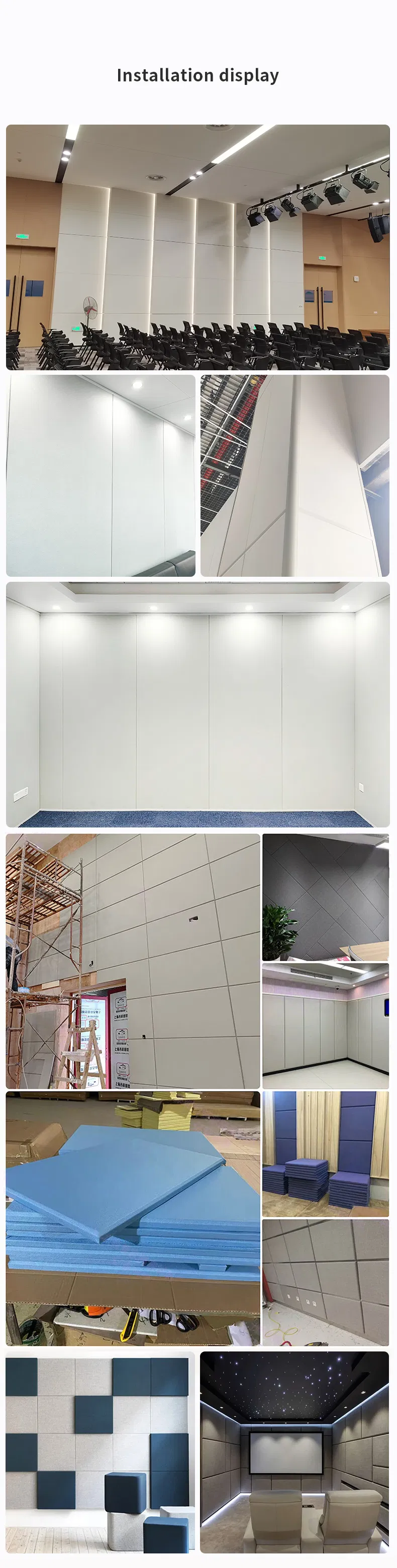

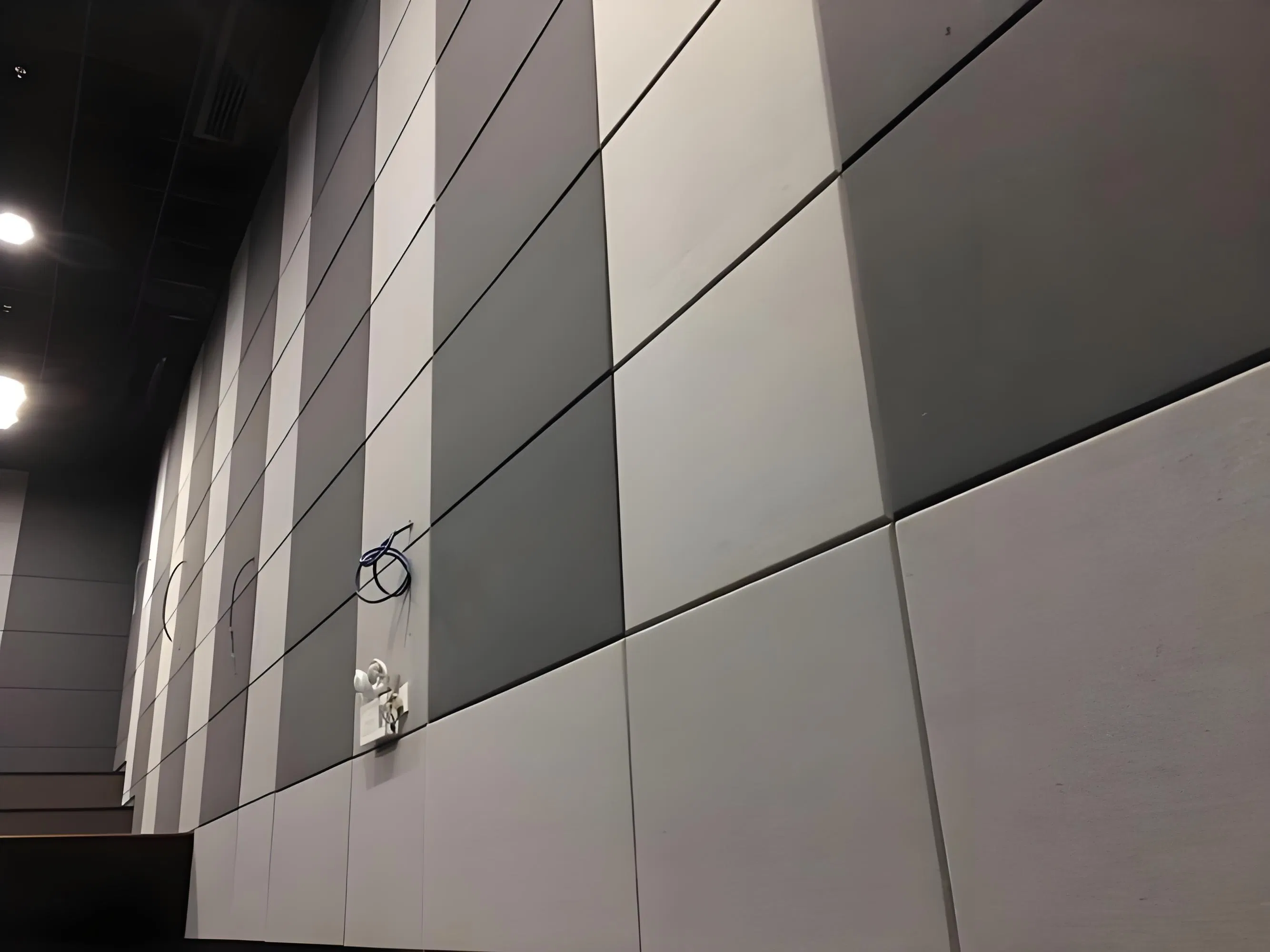

Wall Installation
📊
Technical Parameters
Main MaterialHigh-density Fiberglass wool
Face FinishCloth or fireproof fabric
NRCUp to 0.95
Edge StructureBevel / Square
Fire ResistanceClass A
Humidity ResistanceDimensionally stable with RH up to 95% at 40°C
Moisture Absorption≤ 1%
Environmental ImpactTiles and packings are fully recyclable
CertificatesSGS / ISO9001:2008 / CE
Normal Size600x600mm, 600x1200mm, 900x2400mm (Customizable)
🏢

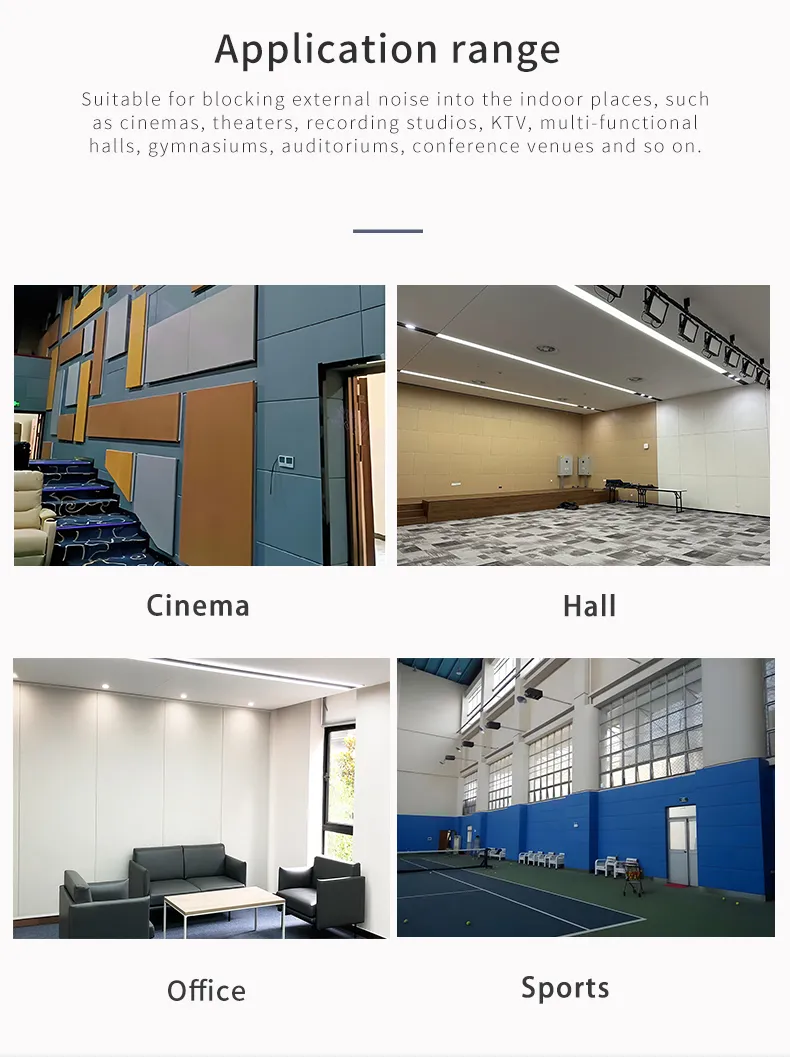

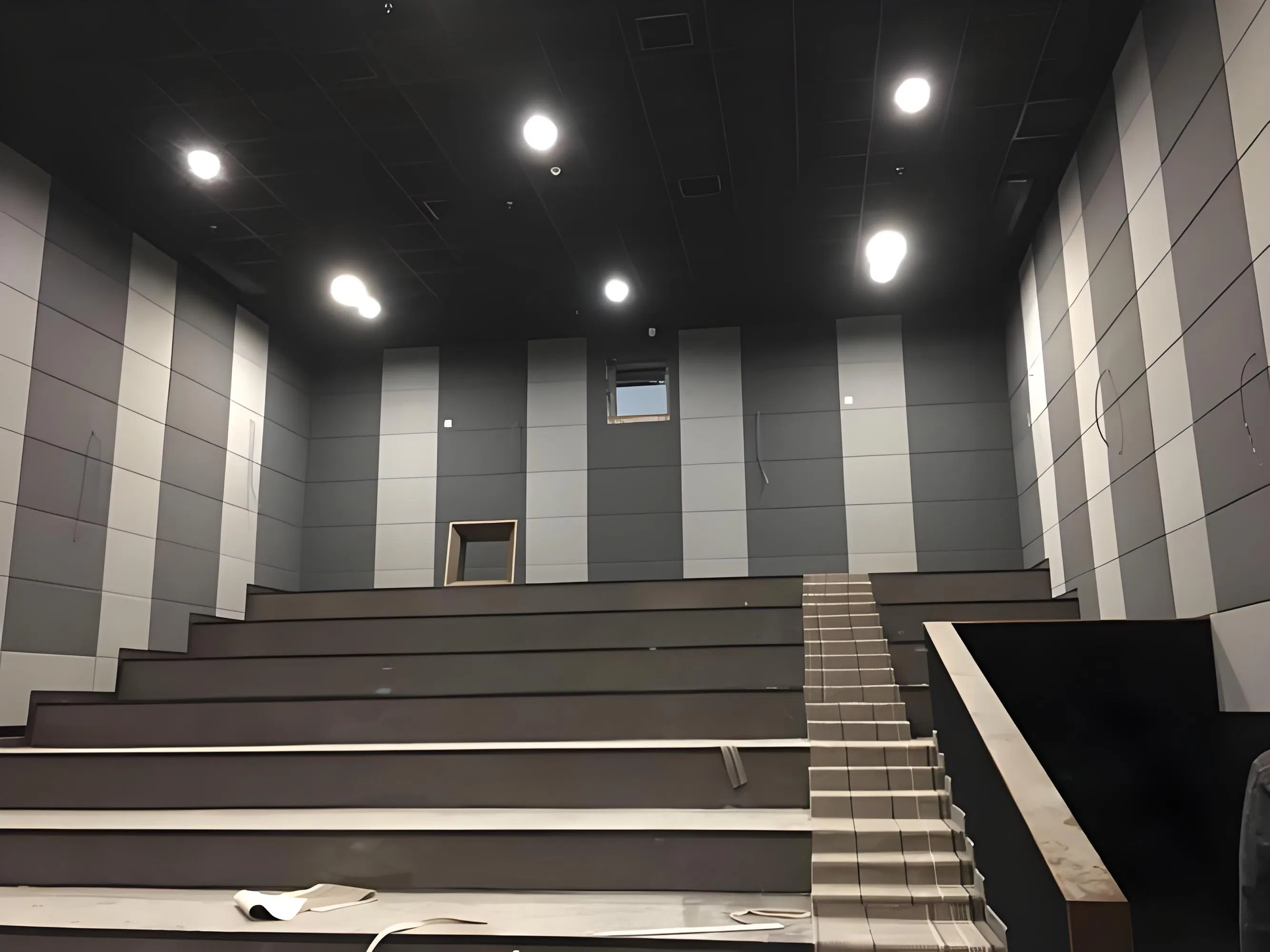

Application & Use Cases

These soundproofing panels are suitable for a wide range of environments including theaters, recording studios, multi-functional halls, offices, and modern factories. By reducing background noise levels, they restore the clarity of original sound, creating a comfortable and functional acoustic environment.

Acoustic Panel Application
🏭
Production & Logistics

Our manufacturing involves advanced researching, developing, and producing activities. We specialize in rock wool and fiberglass acoustic ceilings, sound-absorbing wall panels, and mineral fiber decorative fabrics.

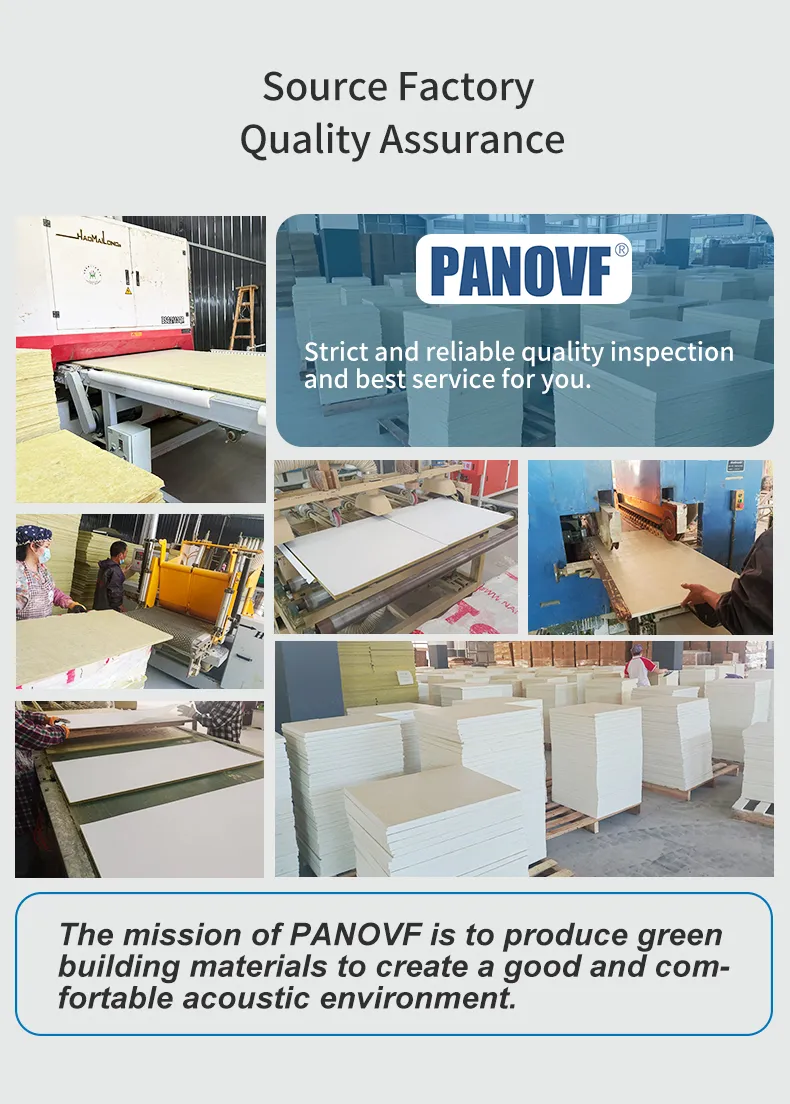

Production Facility

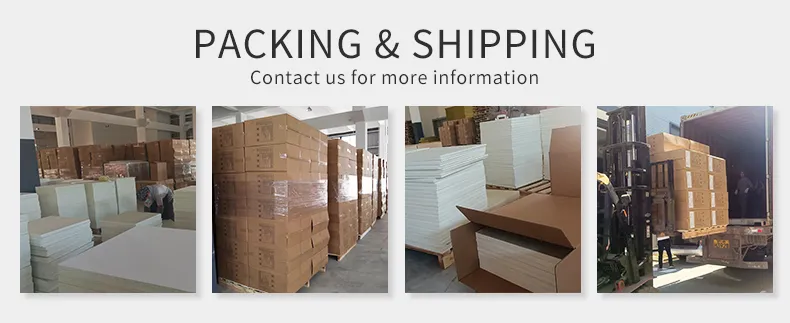

Packaging
Shipping
📜
Certifications

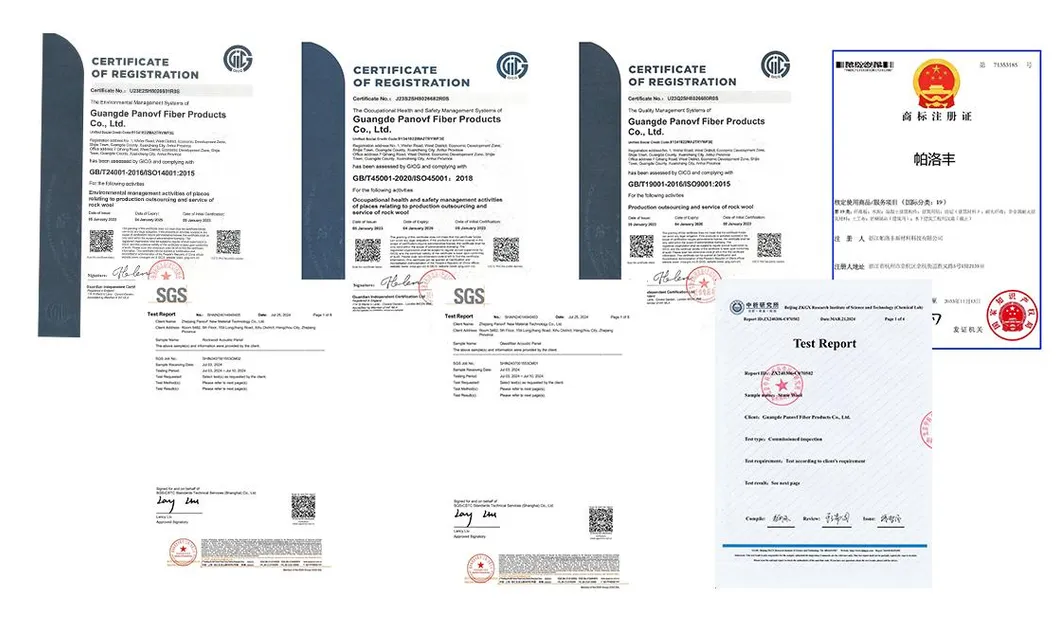

Quality Certifications
Frequently Asked Questions
What are these sound panels made out of?
Most of our sound panels are made of high-density compressed Fiberglass or Rockwool boards wrapped in specialized acoustic fabric.
How do acoustic panels work to reduce noise?
As sound waves enter the panel, microfibers in the core vibrate and convert sound energy into a low-grade form of heat (kinetic energy), reducing the echoes reflected back into the room.
Are the panels durable for high-traffic areas?
Yes. Upgrades are available to make edges crush-proof for use in gymnasiums, and special membranes can be added to the face for enhanced durability.
What is the typical lead time for an order?
The standard lead time is 7-15 days after receipt of advanced payment, depending on the specific order quantity.
Can I request a sample before placing a bulk order?
We offer free samples which can be sent within 1-3 days once the freight payment is confirmed.
What are the fire safety ratings of these panels?
Our fiberglass acoustic wall panels carry a Class A fire rating, ensuring they meet strict safety standards for public buildings.
