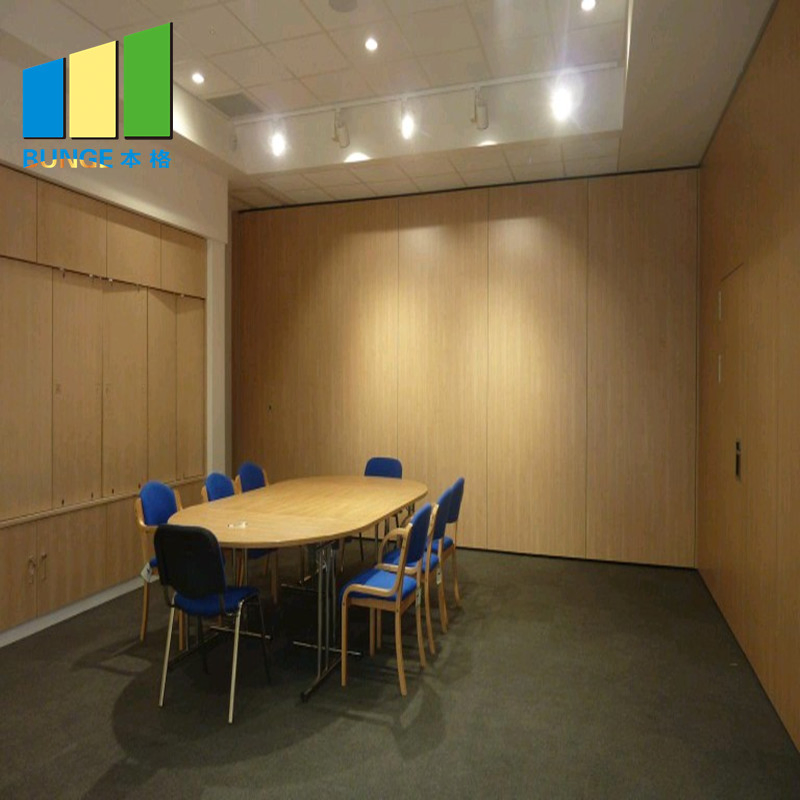

Foldable Partition Wall Panel Acoustic New Aluminum Profile for Office

Customization:	Available
After-sales Service:	Movable Partition Walls
Warranty:	3 Years

Send Inquiry

Product Description

Basic Info

Model NO.

85 mm partition wall

Product Name

Foldable Partition Wall

Style

Modern

Material

Wood / Aluminum Frame

Certification

ISO9001

Application

Office Partitions, Space Divider

Height

4 - 6 Meters

Stc Conffcient

32 - 50 dB

Feature

Soundproof, Movable, Folding, Sliding

Finish

Melamine, Fabric, PU Leather, etc.

Product Description

Foldable Partition Wall Panel Acoustic New Aluminum Profile for Office

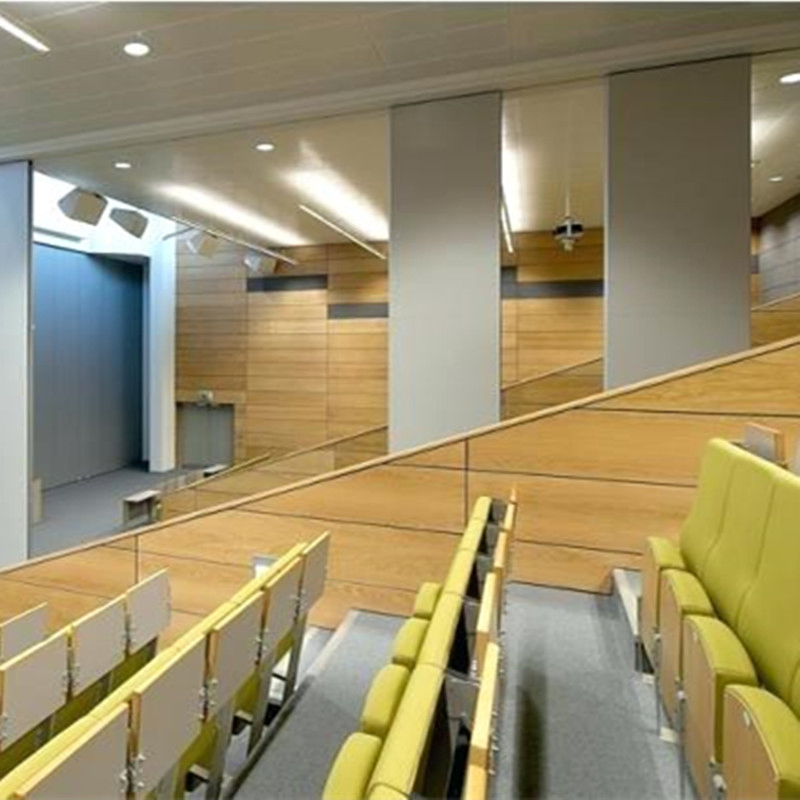

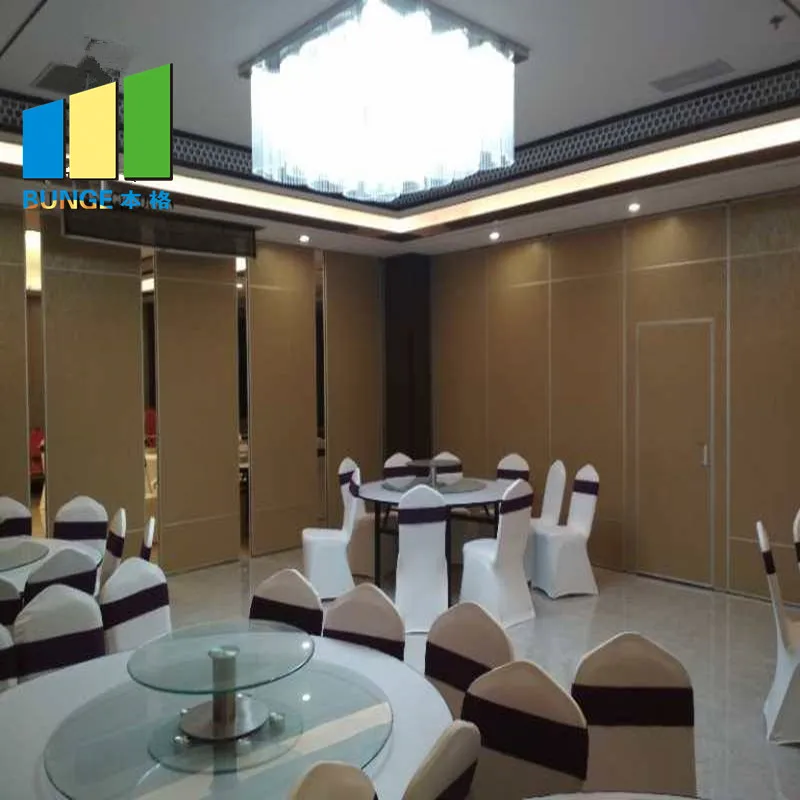

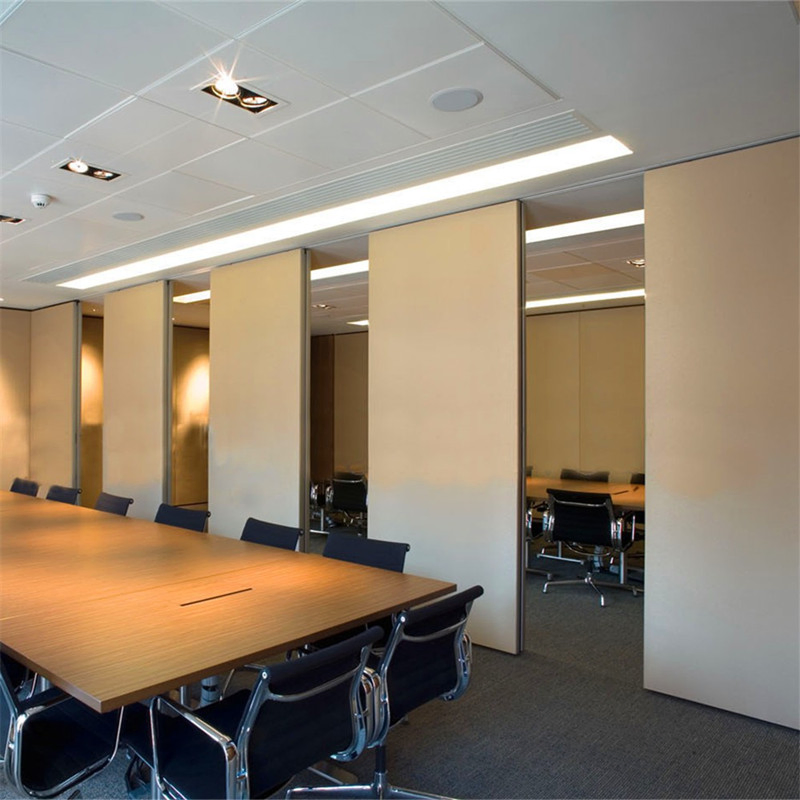

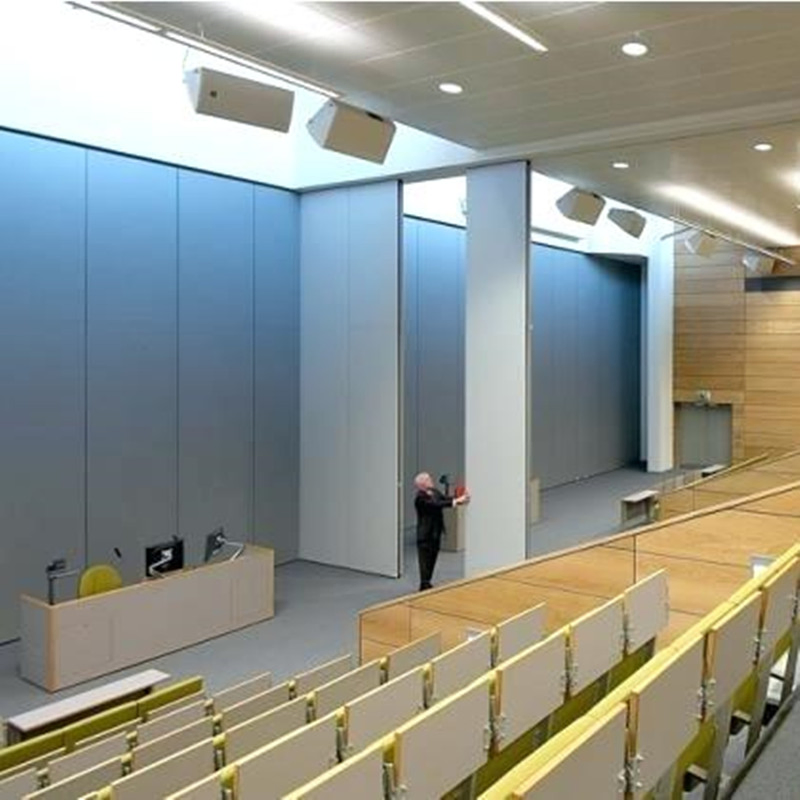

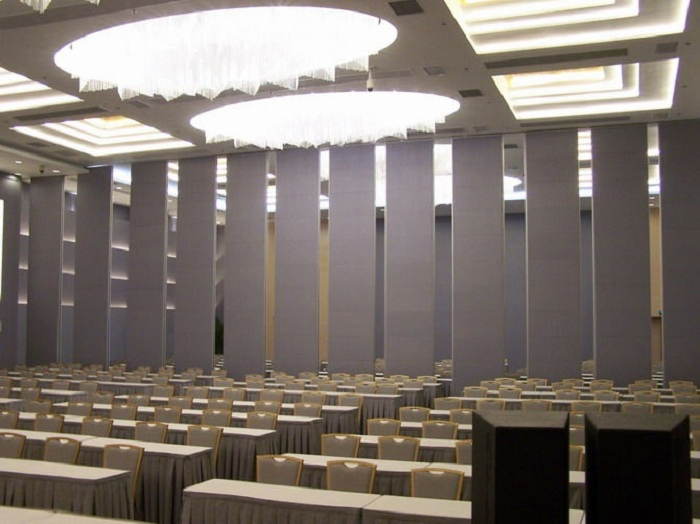

Our partitions are used in a number of different applications to deliver greater functionality and sound control, including office buildings, gymnasiums, classrooms, hotels, hospitals, retail, banks, and conference and exhibition centers. Every project is unique and demands individualized attention to design, product selection, installation, and service.

Technical Details

Series	BG65	BG85	BG100
Panel suspension	Top hung only	Top hung only	Top hung only
Track system	Single or twin point	Single or twin point	Single or twin point
Panel thickness	65mm	85mm	100mm
Max height	4000mm	6000mm	18000mm
Panel width	500-1230mm	500-1230mm	500-1230mm
Frame construction	Aluminum frame	Aluminum frame	Aluminum frame
Sound insulation	20-32dB Rw	28-36dB Rw	32-50dB Rw
Weight	Approx 22-35kg/sq M	Approx 25-40kg/sq M	Approx 30-48kg/sq M

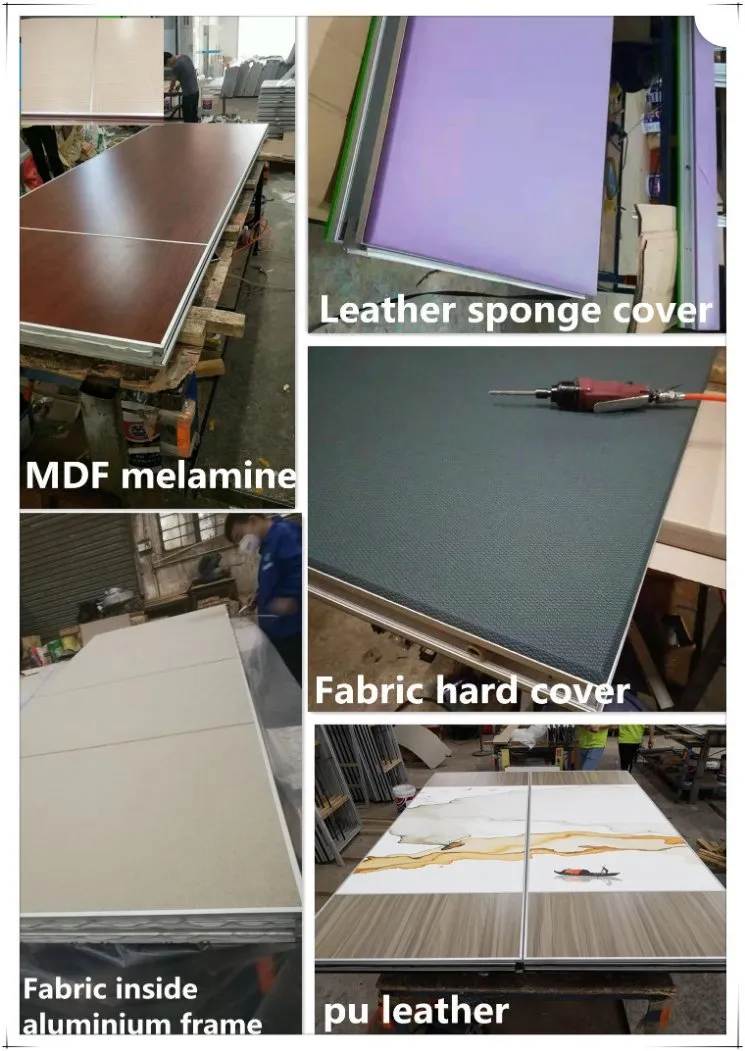

Finish Pattern and Effect

Movable Partition Features

Hanging on ceiling: The floor without a track, just put the rail mounted on the ceiling.
Excellent Quality: Each piece of partition can turn around 360 degree.
Stable and secure: Stable and reliable, not easy to swing.
Energy efficient: Divide large space into small space to reduce air conditioning power consumption.
Heatproof & fireproof: Good heat insulation performance with effective fire prevention materials.
Elegant appearance: Surface can be customized to unite with indoor adornment.

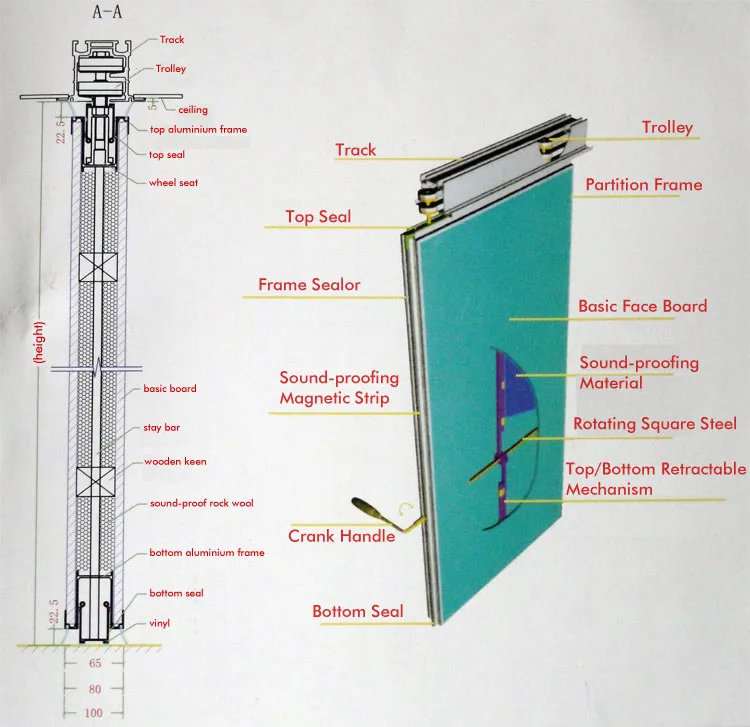

System Components

Tracks: Made of anodized aluminium 6063-T5 materials.

Wheels/Rollers: Carrier for panels, flexible movement, bearing > 1600 KGS.

Rubber/vinyl seal: Made of NBR+PVC, perfect for sound insulation.

Rock Wool: Density of 60kg/m3 for noise and heat reduction.

Retractable mechanism: Controls top and bottom seals for acoustic performance.

MDF board: 9 mm thickness, high density 760kg/m3.

Our Services

Factory direct pricing
Quality assurance and rigorous testing
Quick shipping (within 5-10 days for standard orders)
Small order welcome
Warranty period of more than 3 years
Support for OEM & ODM designs

Frequently Asked Questions

What preparation is required on site?

A beam or truss should be built for track installation. The minimum distance from the false ceiling to the top ceiling is 180mm.

How is the partition wall installed?

We provide an installation manual and video guidance. Technical supervision can also be requested for the installation process.

What is the standard lead time?

The typical lead time ranges from 7 to 10 days depending on the quantity and customization requirements.

How are the goods transported and packed?

Sea transport is most common. Items are packed in carton paper with MDF battens protecting all corners and edges.

What is the procurement procedure?

First, provide shop drawings or dimensions (height and width). Second, we provide layout drawings for confirmation. Third, we provide a final quote based on confirmed designs.
