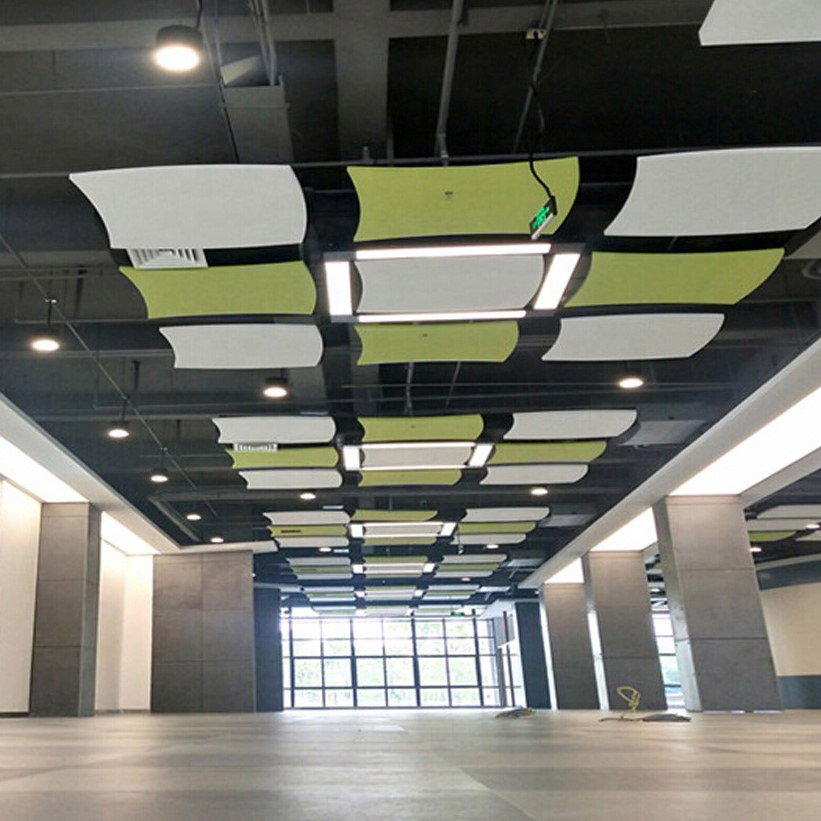

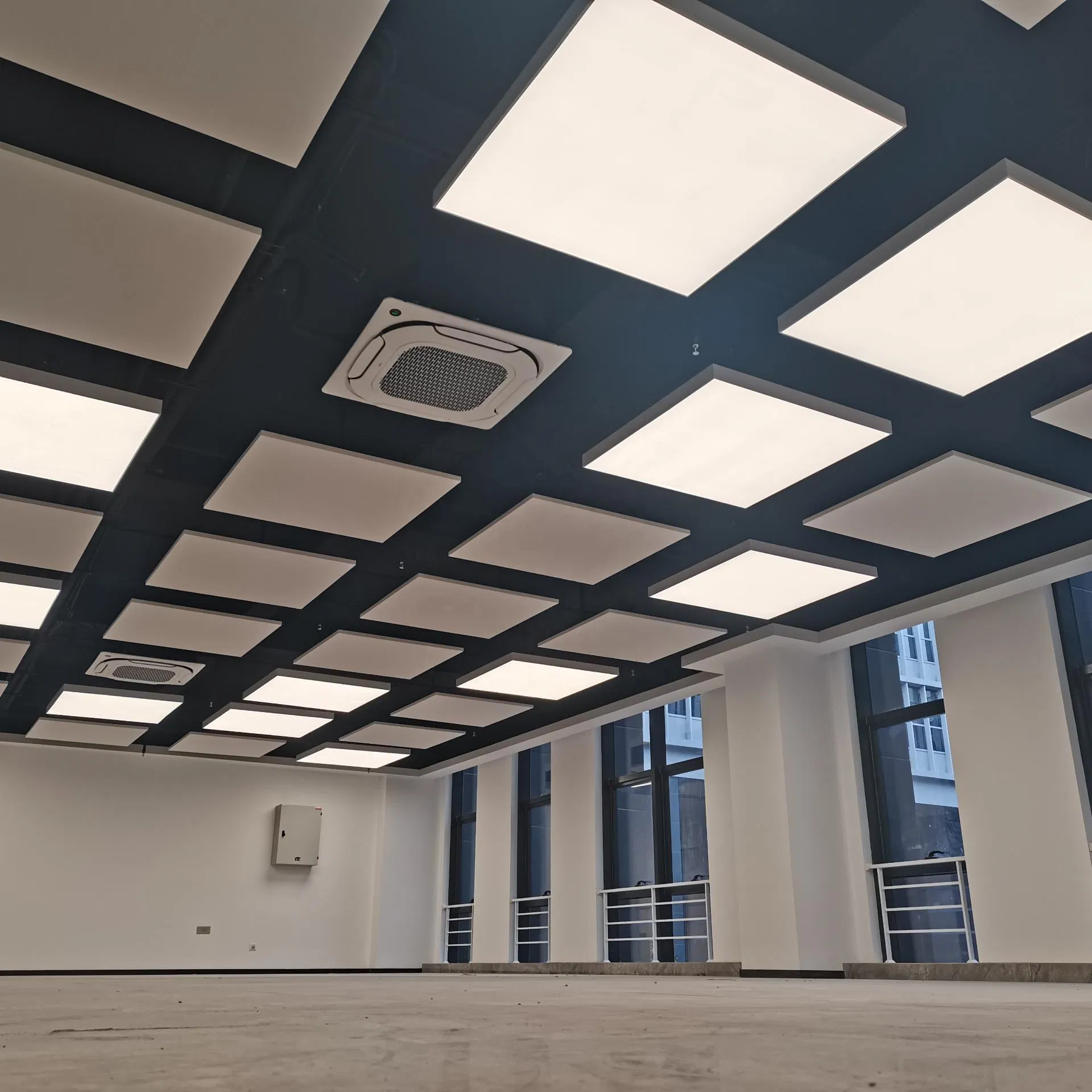

Acoustical ceiling clouds are a professional option for reducing reverberations and improving intelligibility in any space. Designed to hang from the ceiling, they capture ambient energy by absorbing sound hitting the face of the panel while trapping powerful reflections from the ceiling on the back side.

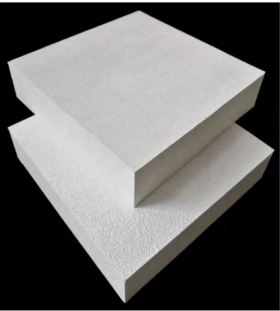

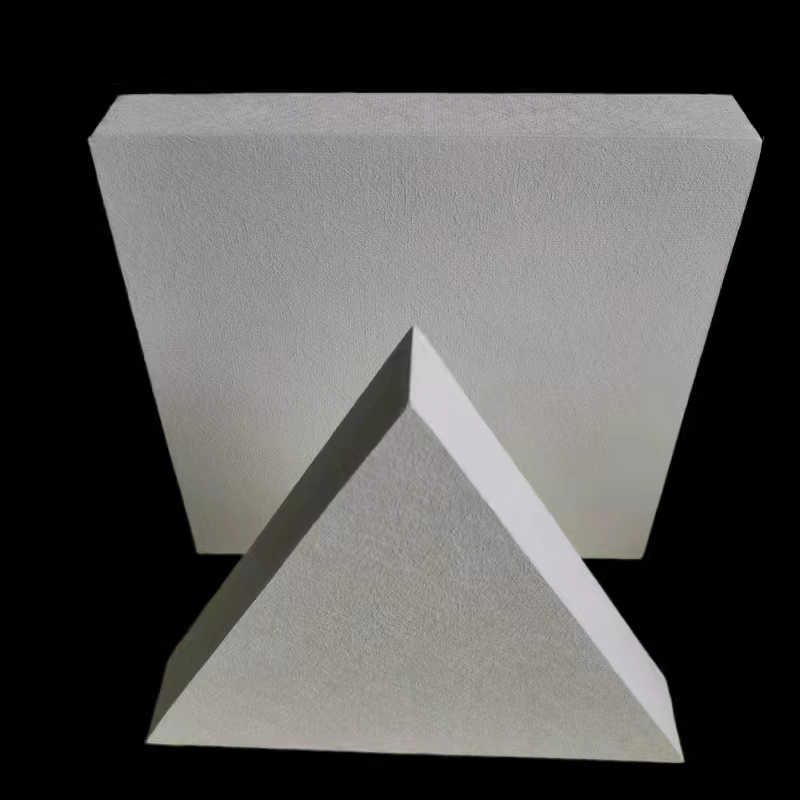

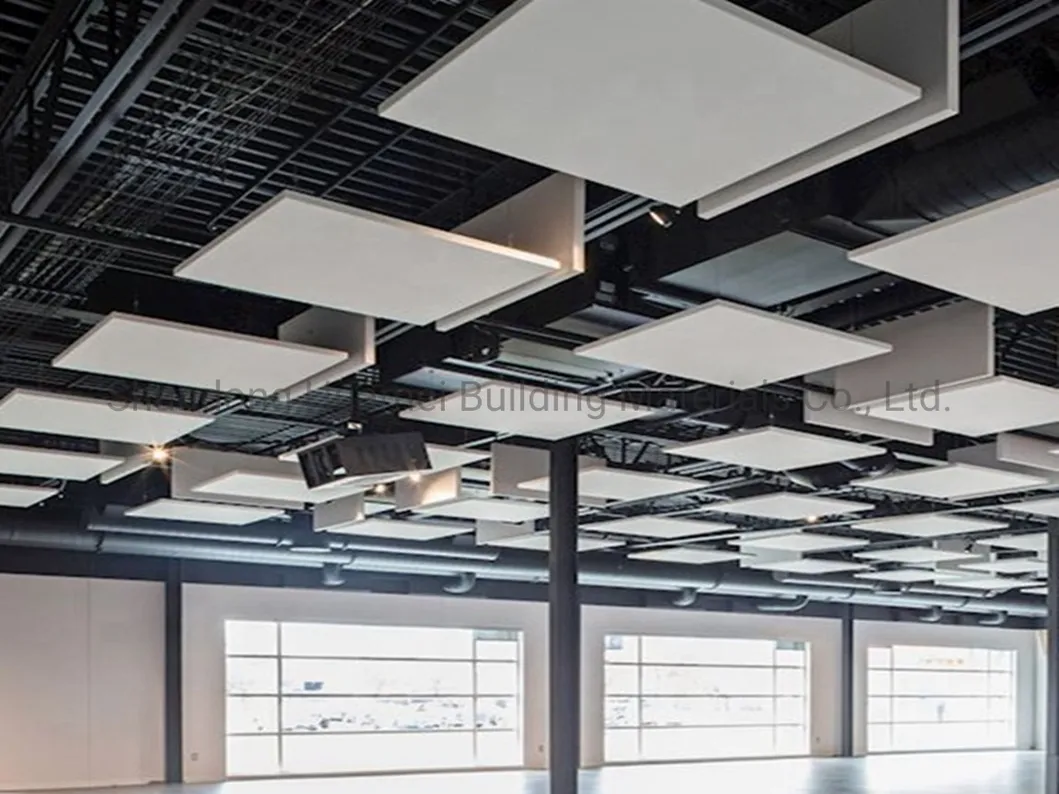

Size: 1200x1200x40mm | Weight: 7kg/pcs. Manufactured from high density glass wool with fiberglass felt on all sides. Edges are straight cut and fully wrapped.

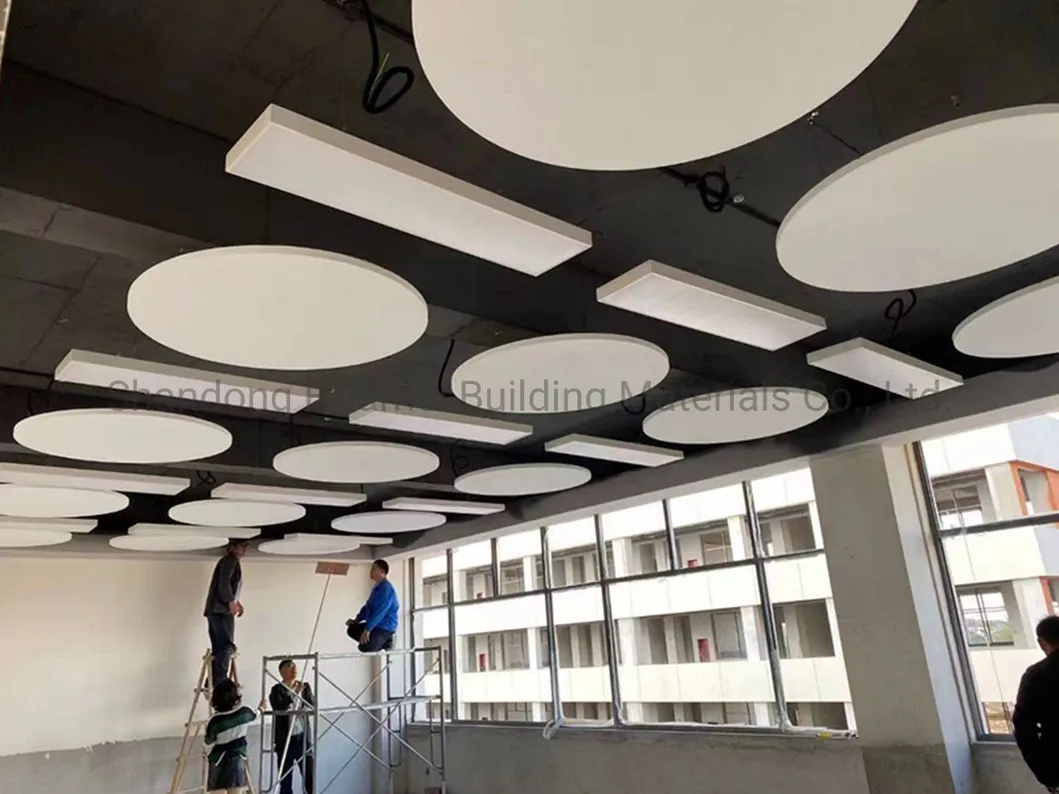

Size: Φ1200x40mm | Weight: 5.5kg/pcs. High density glass wool construction. Provides creative, architecturally pleasing solutions for bold designs.
Size: Φ1200x40mm | Weight: 4.5kg/pcs. Laboratory tested for performance (NRC 0.9) and fire safety (Class-A1 rating by SGS).

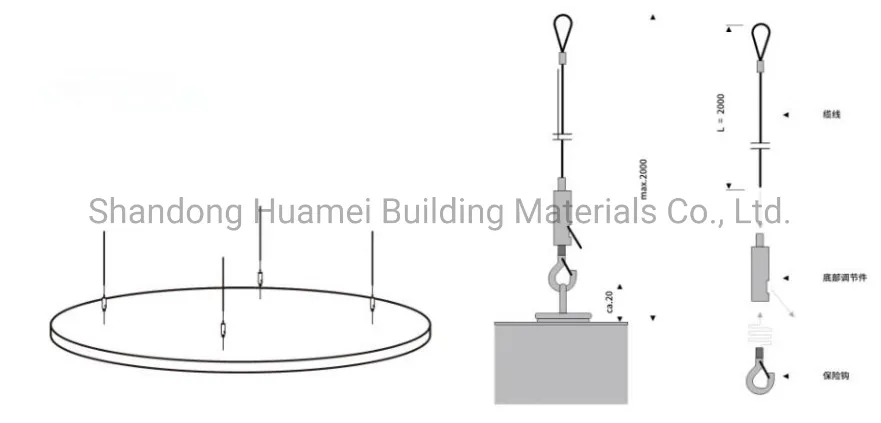

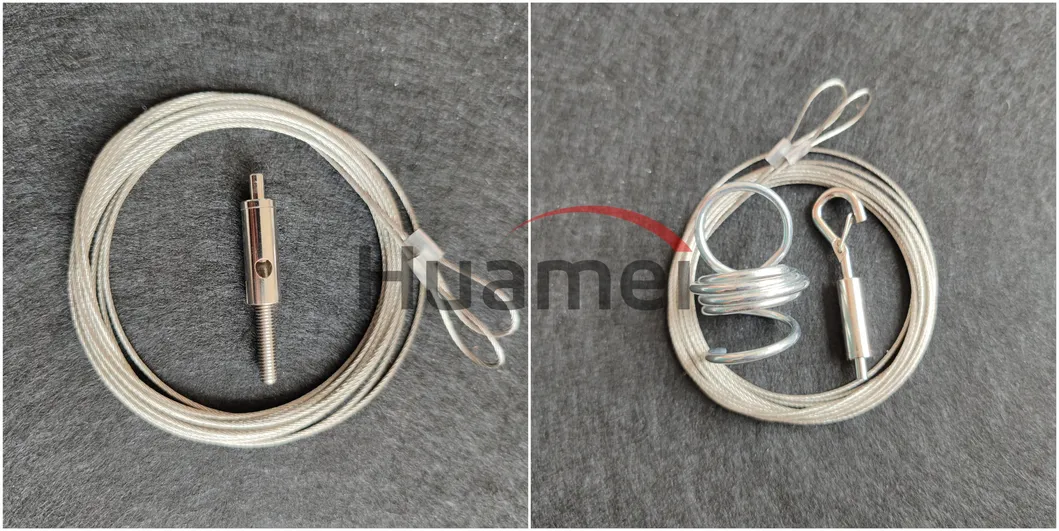

The suspension accessories system is engineered for stability and ease of adjustment, composed of spiral springs, 2m cables, and adjusting hooks.
| Property | Details |
|---|---|
| Surface Finishing | Special painted laminated with decorative fiberglass tissue |
| Surface Designs | White plane / white point / black plane or other colors |
| NRC | 0.8-0.9 (ENISO354:2003 ENISO11654:1997) |
| Fire-Resistant | Class A (EN13501-1:2007+A1:2009) |
| Thermal-Resistant | ≥0.4(m².k)/W |
| Humidity | Stable with RH up to 95% at 40°C, no sagging or warping |
| Moisture Rate | ≤1% |
| Light Reflectivity | 0.85 |
| Density | 120-130kg/cbm |

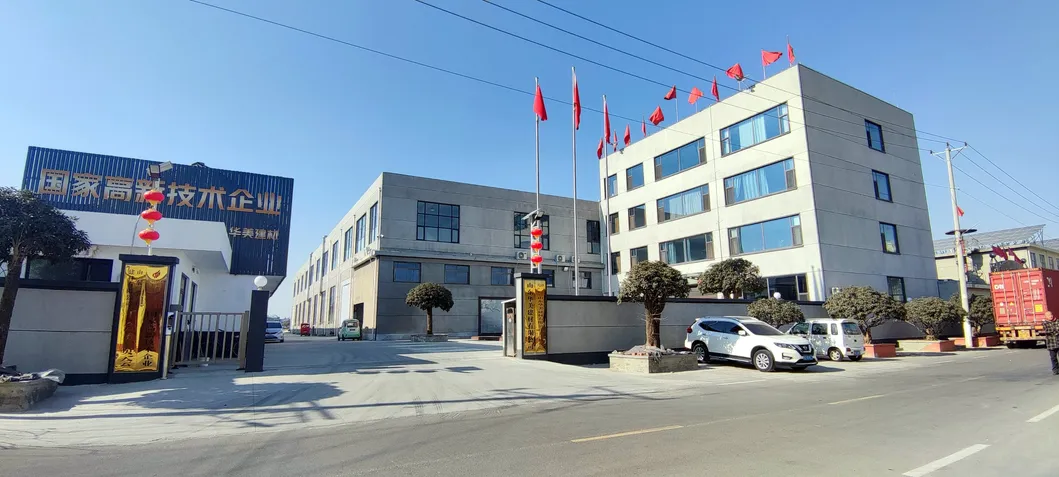

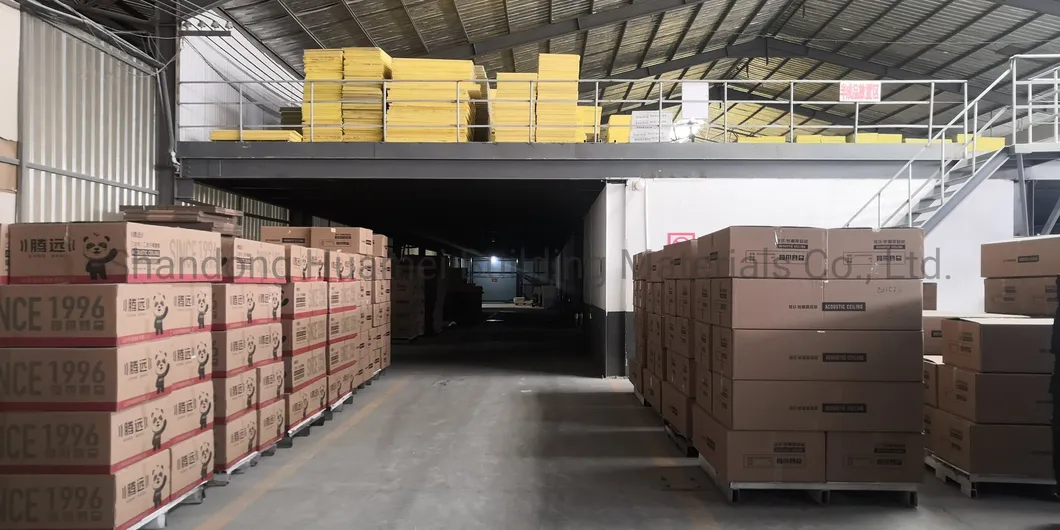

Our production facility specializes in fiberglass ceiling products, rock wool ceiling products, gypsum ceiling products, and acoustic suspended panels. Our products are exported worldwide including the Middle East, Southeast Asia, South America, Australia, Africa, and Europe.
A: They are designed for superior sound absorption (NRC 0.9), reducing echo and reverberation in large open spaces such as offices, hotels, and studios.
A: Yes, the panels have achieved a Class A1 fire-resistant rating, making them safe for use in all types of commercial and residential buildings.

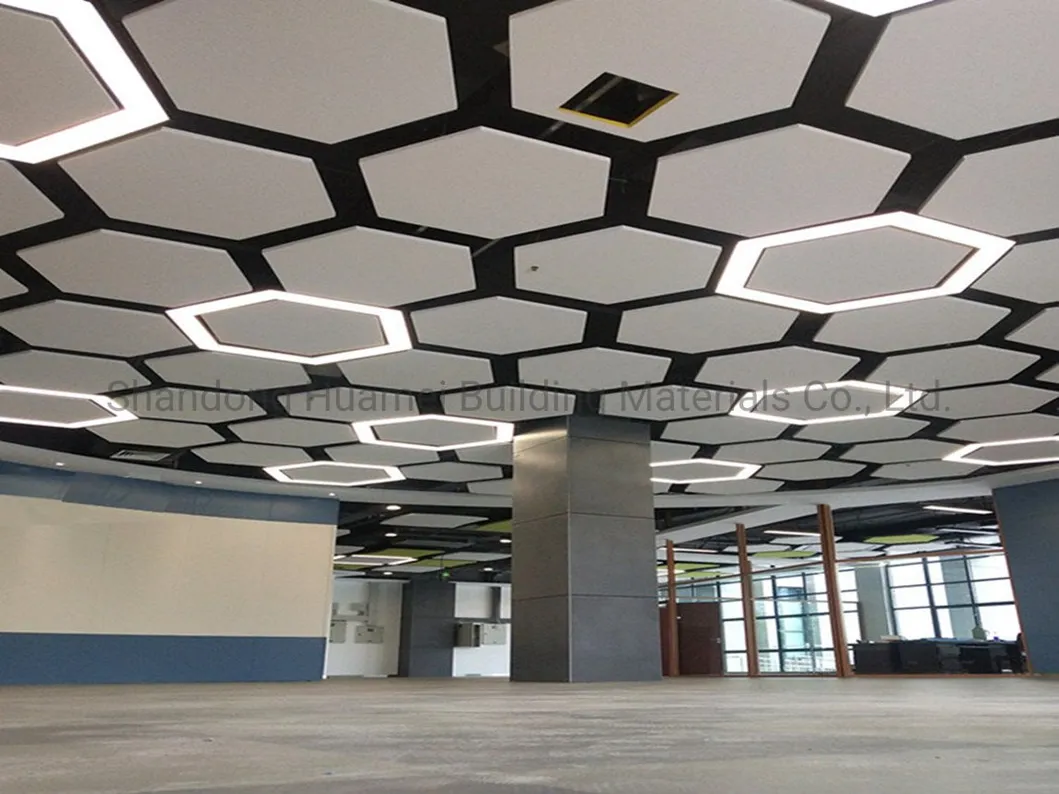

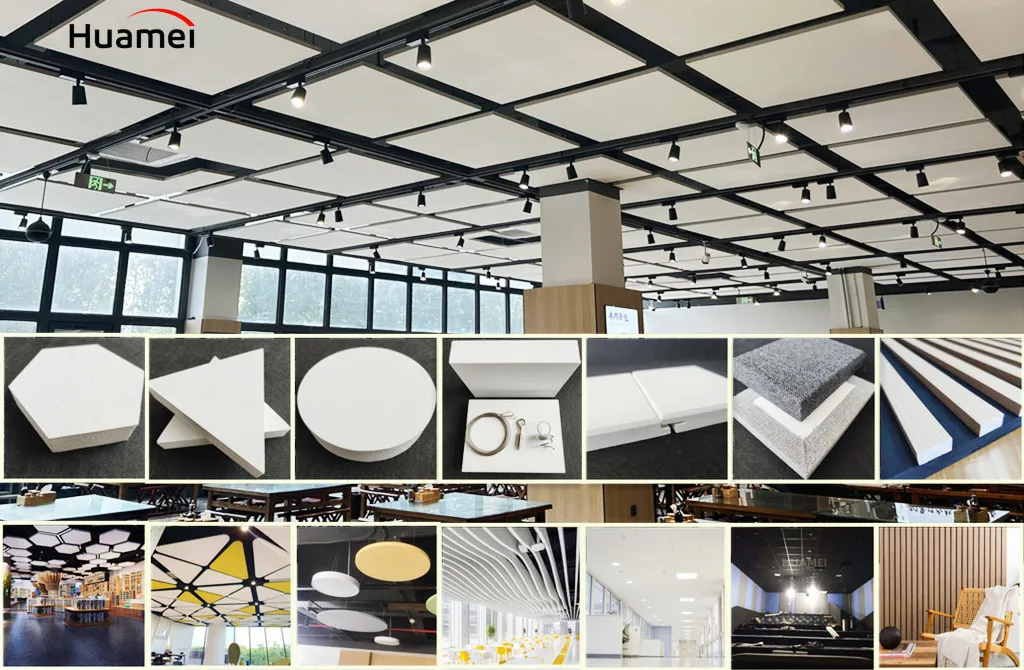

A: Absolutely. We offer square, round, hexagon, and triangle shapes, and colors can be customized to match your interior design requirements.
A: They are dimensionally stable even in high humidity environments (up to 95% RH at 40°C), meaning they will not sag, warp, or delaminate.
A: No, the system uses a simple spiral spring and cable suspension kit that allows for quick installation and easy height adjustment.
A: The clouds are manufactured from high-density glass wool finished with a decorative fiberglass tissue surface.
