Dubuild Panel
1 / 5
| Color | Blue, Brown, Wood Grain, Black, Red, Yellow, Green, Grey, Customizable |
| Surface Treatment | Fiberglass Tissue |
| Eco-Friendly | E0 |
| Flame Retardant Properties | A1 |
| Thickness | 30mm, 40mm, 50mm, 60mm, 70mm etc |
| Size | Customizable |
| Shape | Customizable |
| Application | Dust Free Room, Public, Hotel, Office, Household |
| NRC | 0.9 |

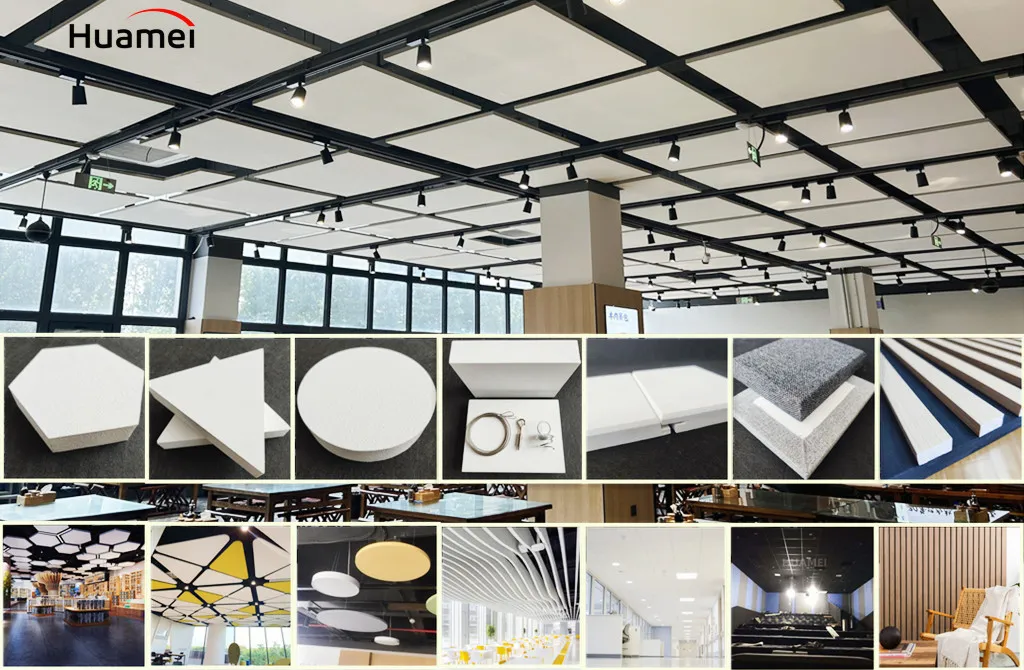

| Shapes | Square, Circle, Hexagon, Triangle, Rectangle etc |
| Function | Sound-Absorption, Fireproof, Moistureproof, Heat Insulation |
| Main Materials | Glasswool, Fiberglass Tissue |
| Delivery Date | 10 Days After Deposit |
| Transport Package | 6-10PCS/Carton |
| Specification | 1200x1200mm, 1200x1800mm, 1200x2400mm or customized |
| HS Code | 70198090 |
| Production Capacity | 200000 Pieces/Year |

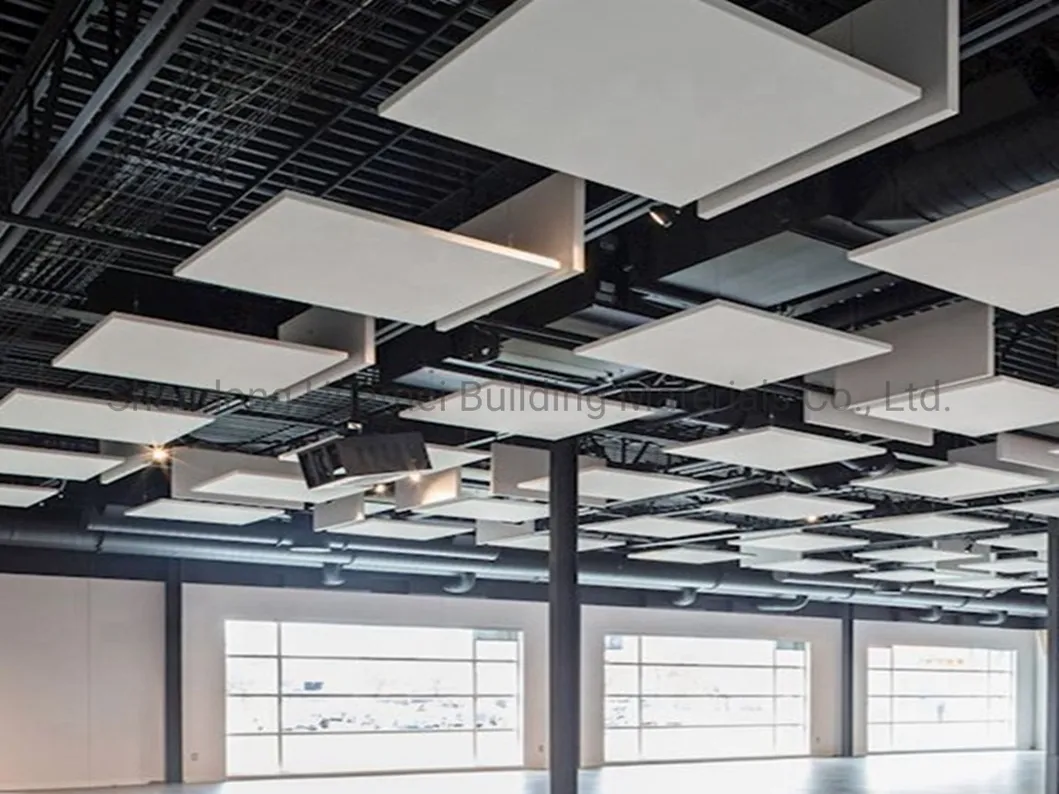

1. Acoustic Ceiling Clouds - Square Shape

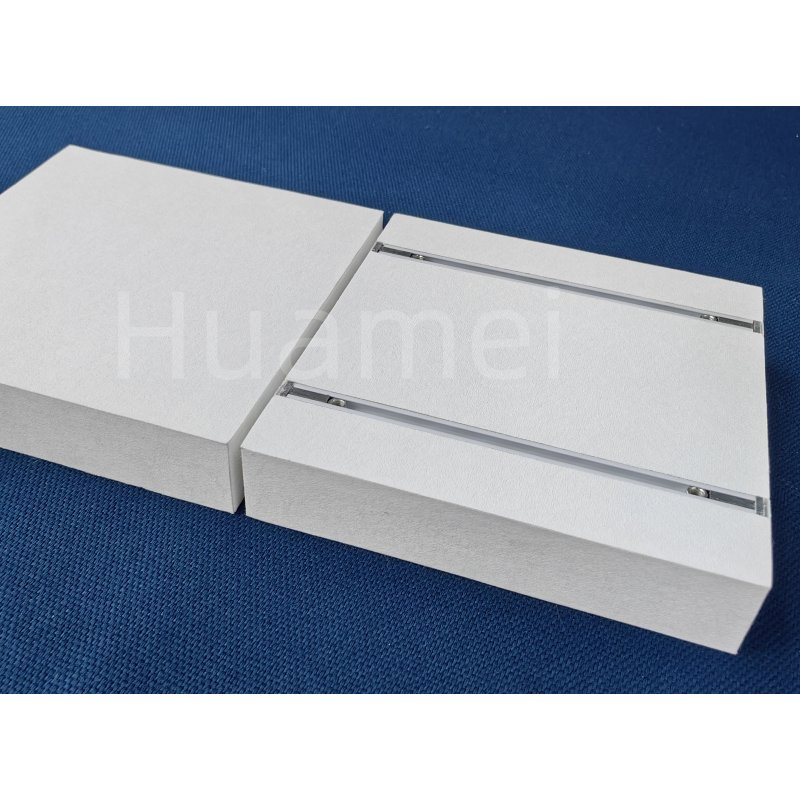

Square acoustic ceiling clouds are 1200x1200x40mm in size with a weight of 7kg/pcs. Manufactured from high-density glass wool with fiberglass felt on all sides. Edges are straight-cut and wrapped by fiberglass felt.

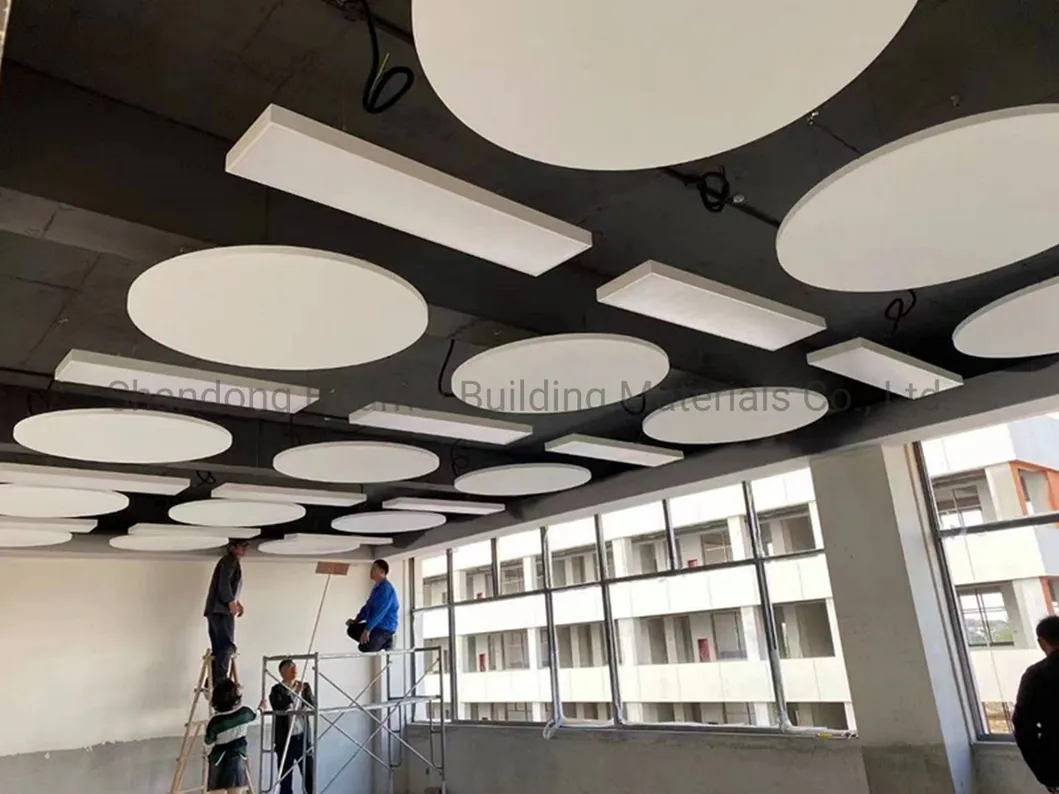

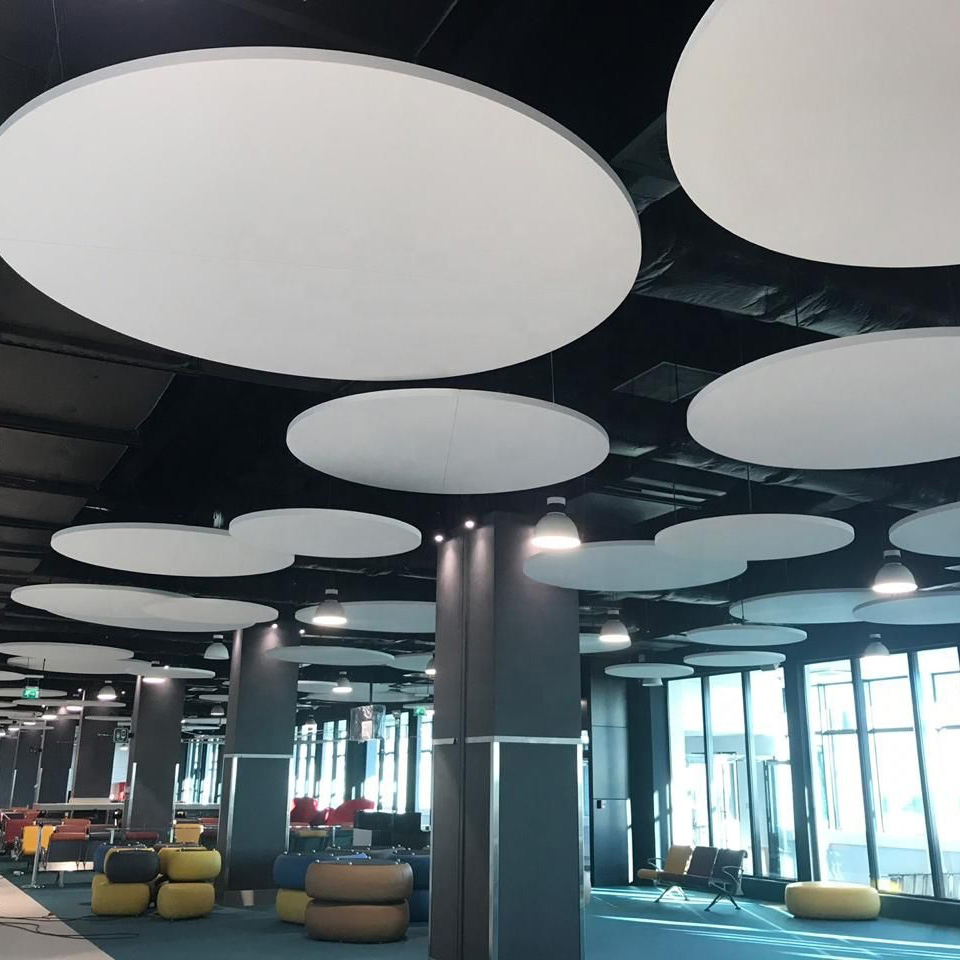

2. Acoustic Ceiling Clouds - Round Shape
Round acoustic ceiling clouds are Φ1200x40mm in size with a weight of 5.5kg/pcs. These clouds capture ambient energy by absorbing sound as it hits the face of the panel, trapping reflections from the ceiling on the back side.

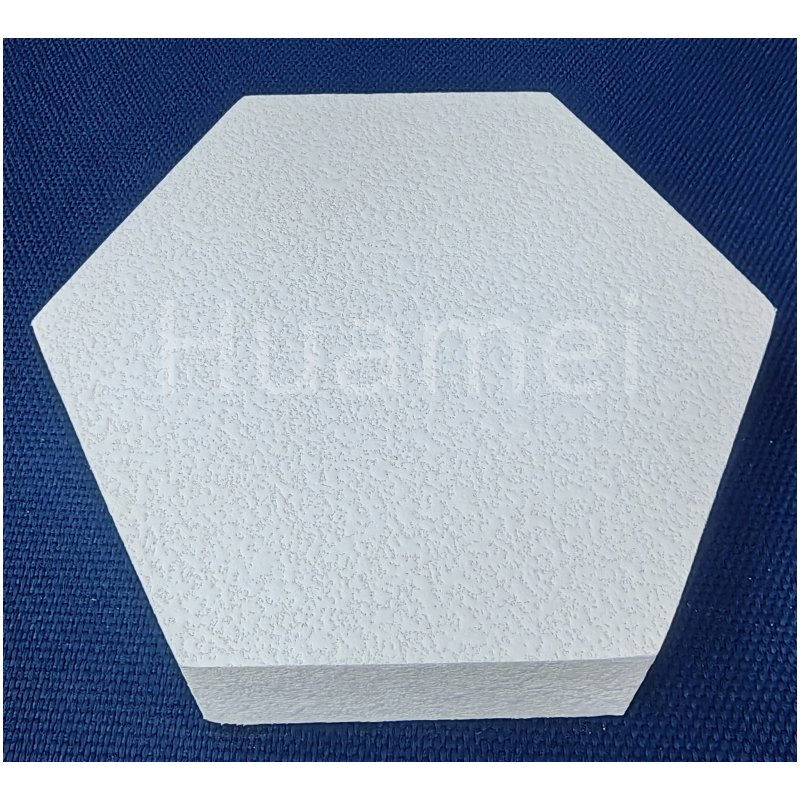

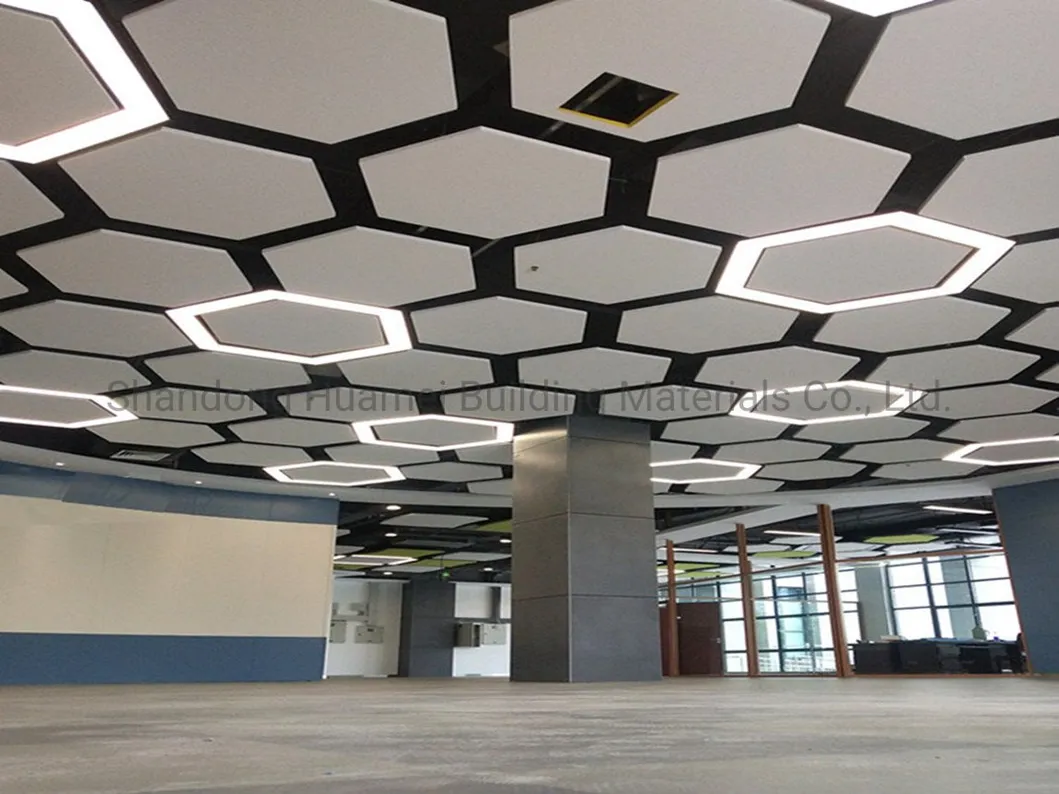

3. Acoustic Ceiling Clouds - Hexagon Shape
Hexagon acoustic ceiling clouds are Φ1200x40mm in size with a weight of 4.5kg/pcs. Laboratory tested for acoustic performance (NRC 0.9) and fire safety (Class-A1 rating by SGS).

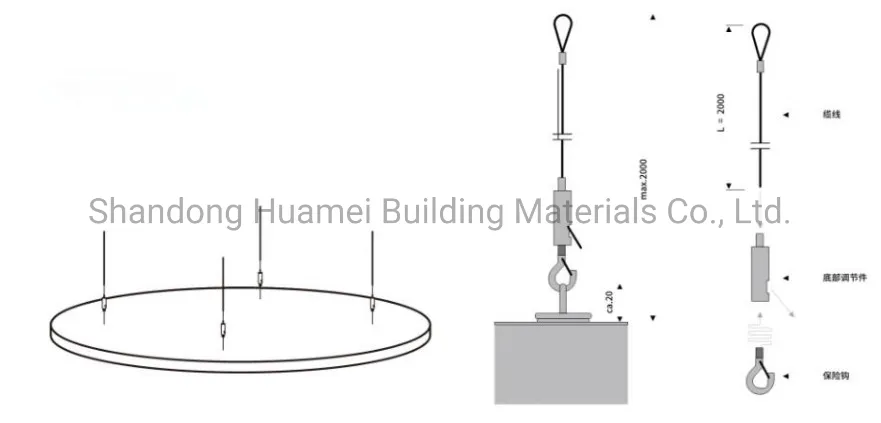

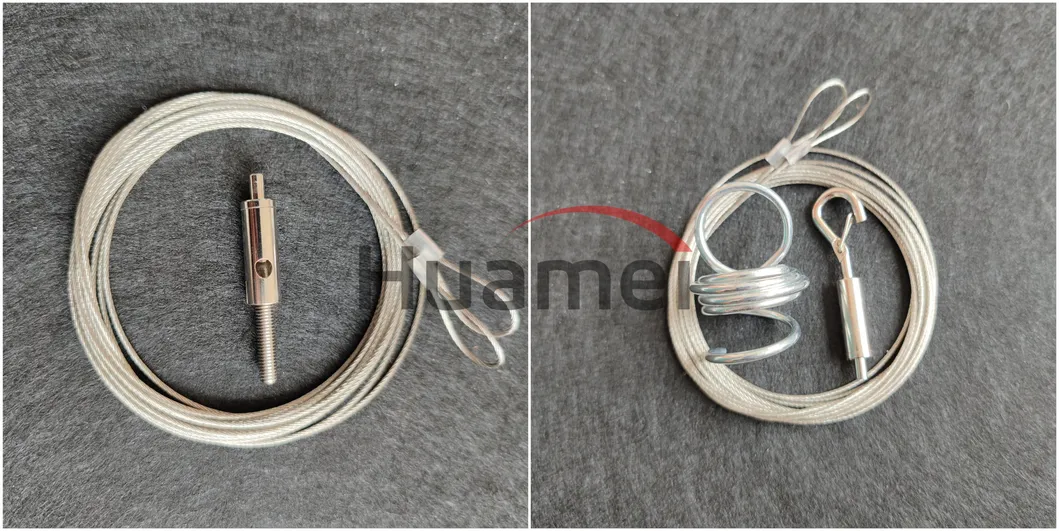

The suspension accessories are composed of a spiral spring, 2m cable, and an adjusting hook for easy and flexible mounting.
| Main Materials | High density glasswool and fiberglass tissue |
| Surface Finishing | Special painted laminated with decorative fiberglass tissue |

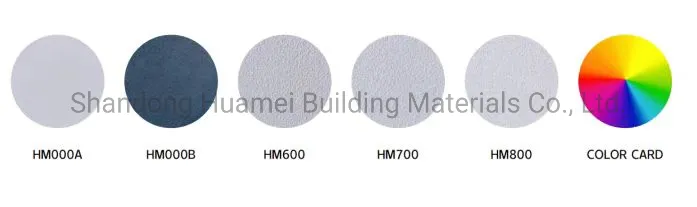

| Surface Designs | White plane / white point / black plane or other colors |
| NRC | 0.8-0.9 (Tested by SGS ENISO354:2003) |
| Fire-Resistant | Class A (Tested by SGS EN13501-1) |
| Thermal-Resistant | ≥0.4(m².k)/W |
| Humidity | Stable with RH up to 95% at 40°C |
| Moisture Rate | ≤1% |
| Light Reflectivity | 0.85 |
| Density | 120-130kg/cbm |

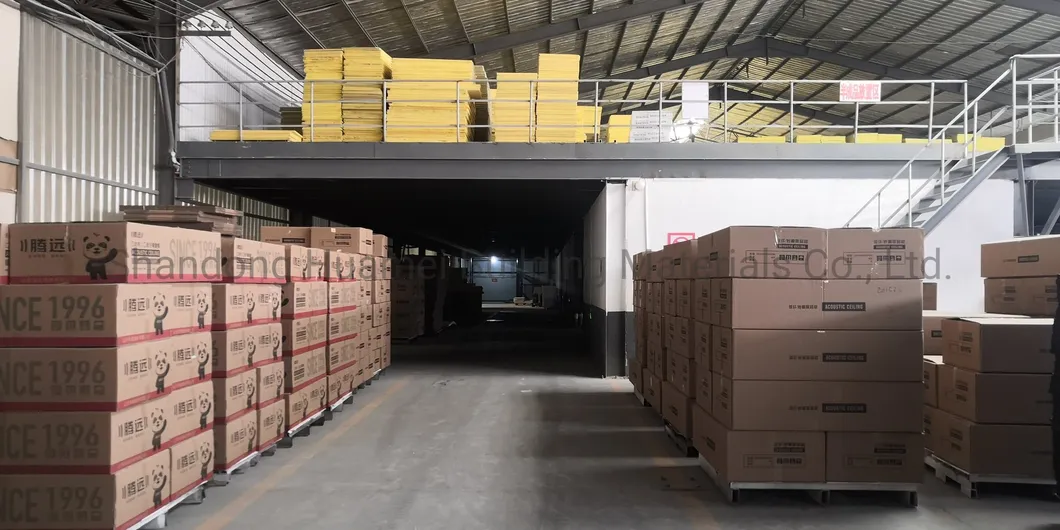

Our production history spans nearly 20 years, focusing on fiberglass ceiling products, rock wool ceilings, gypsum ceilings, and acoustic suspended panels. With an annual capacity of 5,000,000 SQM, our products are waterproof, moisture-proof, and fireproof.
