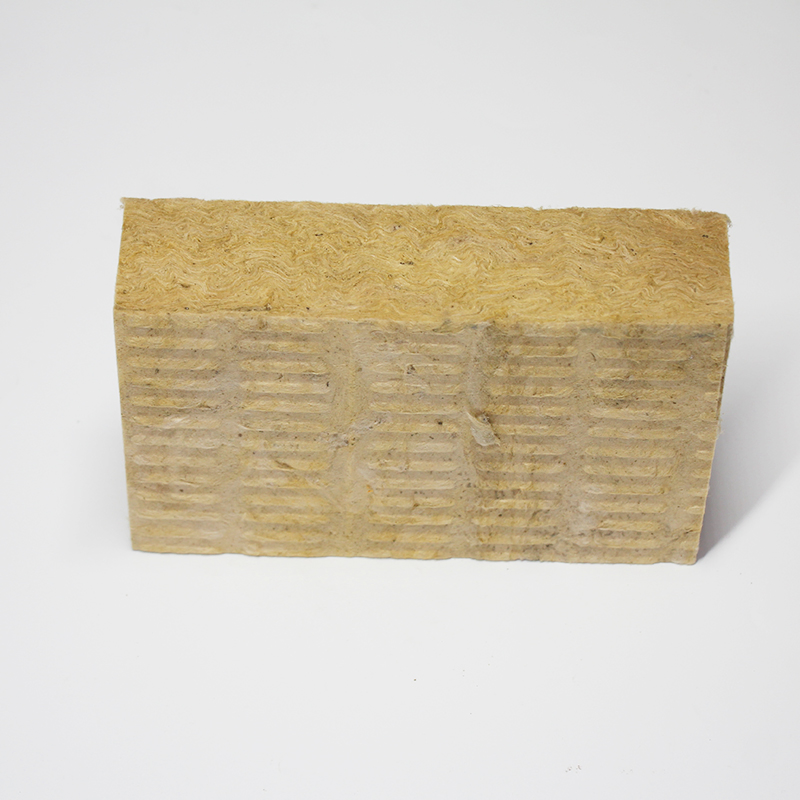

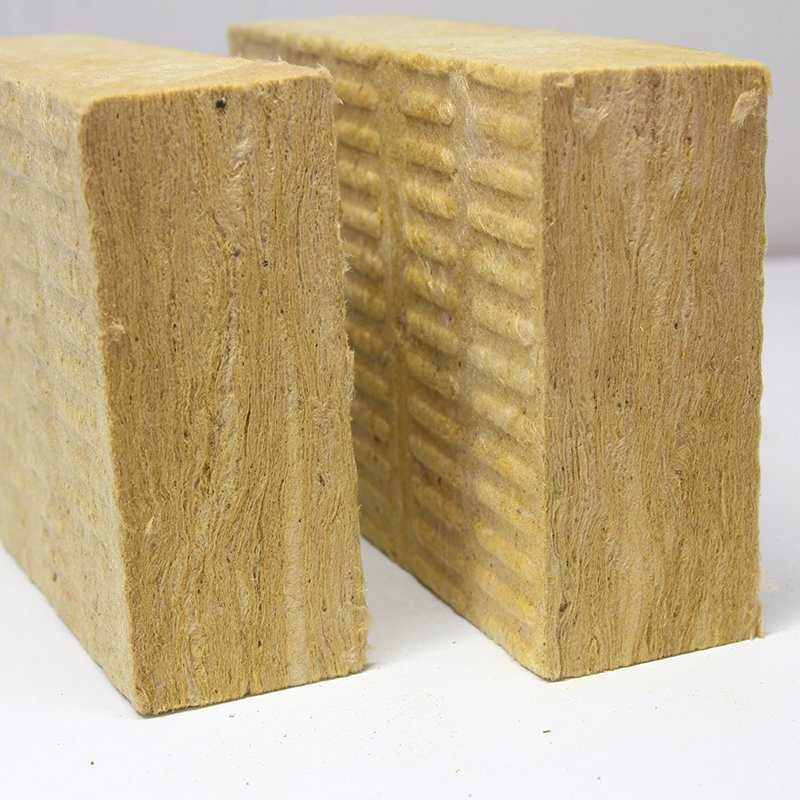

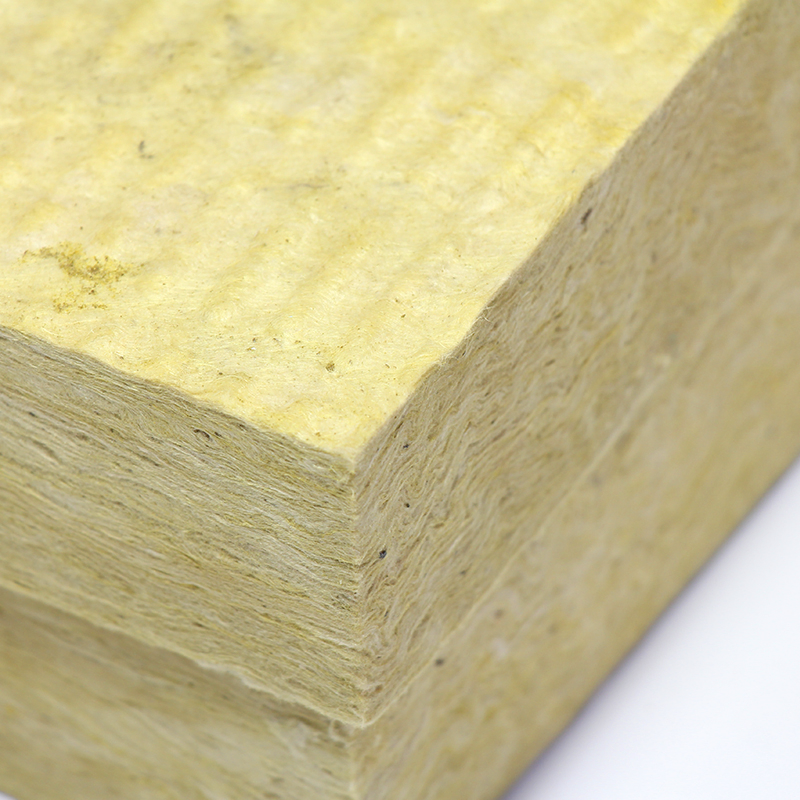

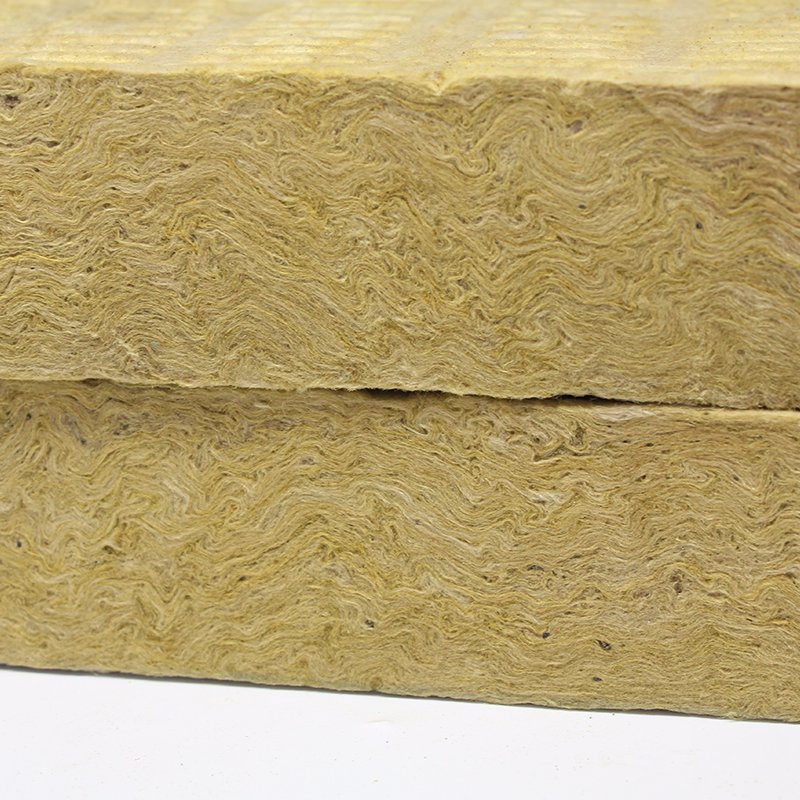

Thermal Insulation Rockwool Board High-Density Insulation for Superior Heat & Sound Control

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
GF Rock Wool Board
Length
1200mm
Width
600mm
Density
40-180kg/M3
Thickness
20-150mm
Thermal Conductivity
0.036-0.038W/M.K
Fire Protection
Grade A
Moisture Resistance
More Than 99%
Acidity Coefficient
More Than 1.8
Refractoriness
800-1400°C
Usage
Interior Tiles, Industrial Insulation
Color
Yellow
HS Code
6806109090
Capacity
70tons/Day
Product Key Features
High-density Insulation: Superior insulation capabilities increase energy efficiency and sound absorption. Perfect for residential and commercial wool wall insulation.
Fire-resistant Safety: A reliable and durable solution against fire hazards. Grade A incombustible material for maximum property protection.
Sound Absorption: Dense structure effectively absorbs sound waves, creating a peaceful and quiet environment by reducing noise levels.
Durable Construction: Sturdy design that withstands wear and tear, ensuring long-lasting insulation efficiency for many years.
Eco-Friendly Material: Made from natural and recycled materials, reducing environmental impact and promoting sustainable building practices.
Technical Data Sheets
Product Code GF-WQ1 GF-WQ2 GF-WQ3
Density (kg/m³) 40-80 80-120 120-180
Thickness (mm) 40-150
Size (mm) 1200 X 600
Performance Metric GF-WQ1 GF-WQ2 GF-WQ3 Unit Standard
Compressive Strength ≥40 ≥60 ≥80 KPa EN826
Tensile Strength ≥7.5 ≥10 ≥15 KPa GB/T 149-2003
Thermal Conductivity (25ºC) ≤0.040 W/(m.k) GB/T 10295
Fire Protection Incombustible Material A Level GB 8624-2007
Moisture Resistance ≥99 % GB/T 10299
Melting Temperature ≥ 1000 ºC DIN4102-17
Product Applications
  • Petrochemical industry: Ideal for heat insulation and sound absorption of equipment in petroleum, power, and chemical sectors.

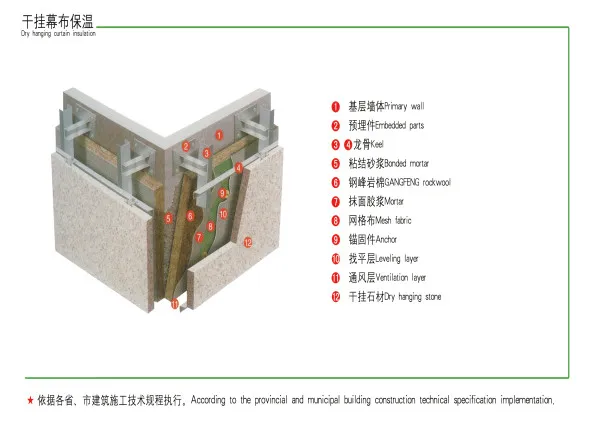

  • Construction industry: Used for partitions, curtain walls, roofs, and fences to provide superior insulation.
  • Mining & Industrial: Effective for heat preservation and fireproofing in industrial kilns, ovens, and large storage tanks.
  • Pipe Insulation: Widely applied for sound absorption and heat preservation of piping systems in the building field.

Whether you need a specific size or shape, our Thermal Insulation Rockwool Board can be tailored to fit your requirements, providing you with a seamless and efficient insulation solution.

?Frequently Asked Questions
Q1: What is the fire rating of this rock wool board?
The board is classified as Grade A Incombustible Material, with a melting temperature exceeding 1000°C, providing excellent fire protection.
Q2: Can it be used for soundproofing?
Yes, its high-density structure is specifically designed for superior sound absorption, making it ideal for noise reduction in residential and industrial buildings.
Q3: Is the rock wool board resistant to moisture?
Yes, our rock wool board features high moisture resistance, with a rate of more than 99%, ensuring performance even in humid environments.
Q4: What sizes and thicknesses are available?
The standard size is 1200mm x 600mm, with thicknesses ranging from 20mm up to 150mm. Custom sizes can also be tailored to specific project needs.
Q5: Is this material environmentally friendly?
Absolutely. Our insulation board is made from natural and recycled materials, making it a sustainable and eco-friendly choice for modern construction.
Q6: What are the main industries that use this product?
It is widely used in the petrochemical industry, construction (for roofs and walls), mining for industrial kilns, and for large-caliber pipe insulation.
