High-Quality Gypsum Board Automatic Making/Production Equipment/Machine/Machinery/Line for Global Distribution

Customization:	Available
After-sales Service:	One-Stop Delivery Service, Technical Support and T
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

XY-107

Product Type

Full-Automatic Board Making Machine

Automatic Grade

Automatic

Power Source

Electric

Certification

CE, ISO

Application

Building Materials Machinery

Condition

New

Customized

Advantage

Environment Friendly and Energy Conservation

Fuel

Gas, Oil, Coal

Voltage

380V/50Hz

Capacity

2-30 Million Square Meters Per Year

Technical Specifications

Parameter Item	Standard Specification
Face Paper Weight	200g/m2
Back Paper Weight	180g/m2
Thickness Range	0.4 ~ 0.46 mm
Air Permeability	0.85 ~ 1.60 μm/Pa·s
Water Absorption	15 ~ 30 g/m2
Longitude Tensile Strength	≥12.5 kN/m
Latitude Tensile Strength	≥3.5 kN/m
Latitude Wet Expansion Rate	≤2%
Water Content	10 ± 2%
Paper Roll Diameter	< 2.0 m

Product Features & Process

Product Overview

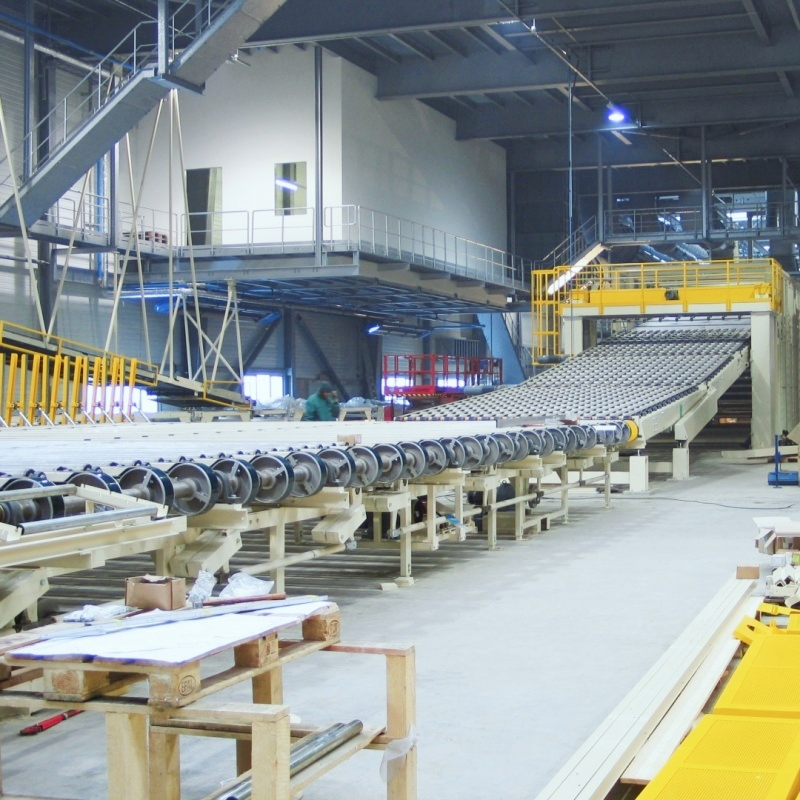

A fully automated, high-efficiency manufacturing system designed for standard, water-resistant, and fire-resistant gypsum boards. Utilizes intelligent control systems for customized production in construction partitions and ceilings.

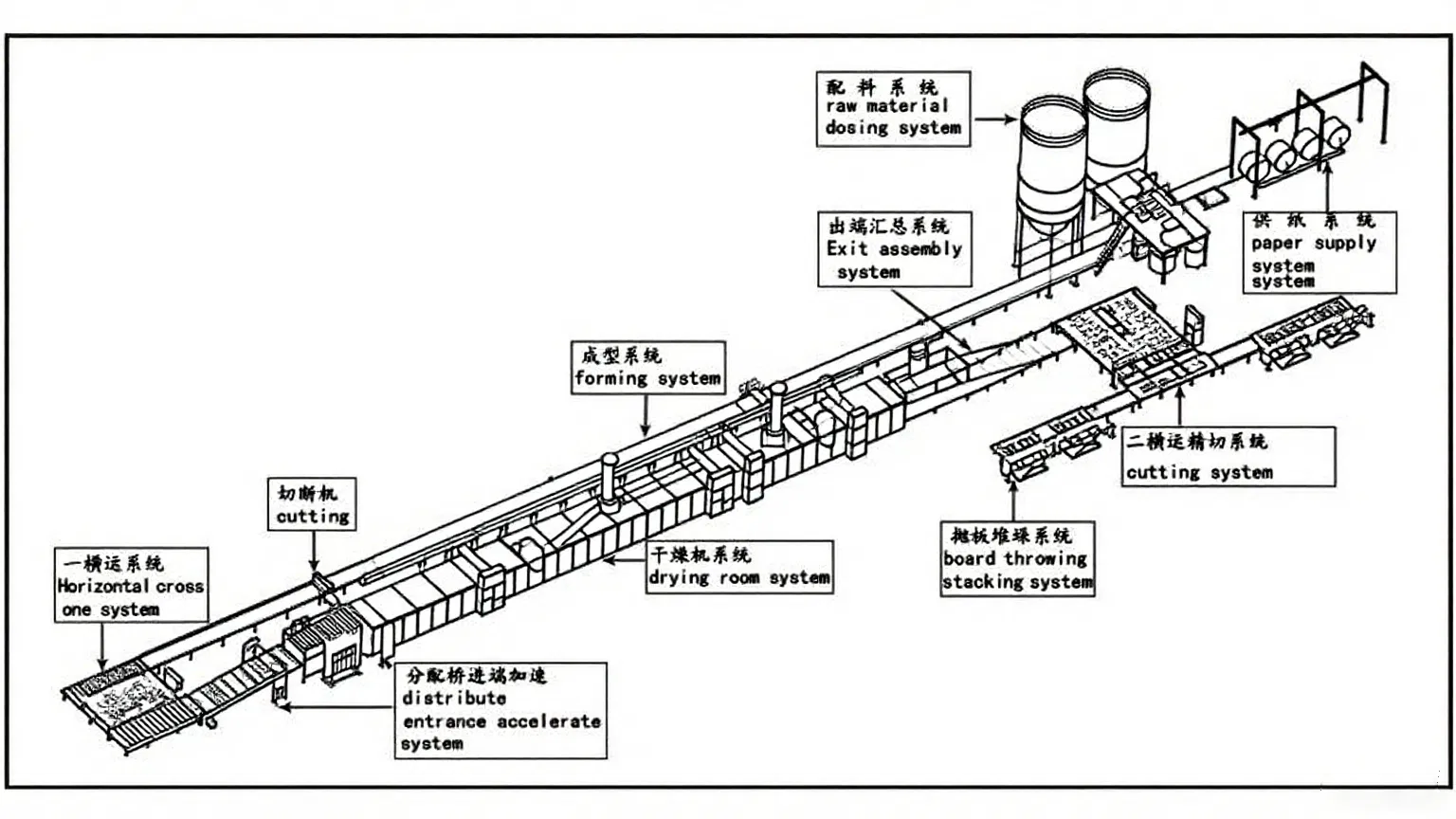

Production Process

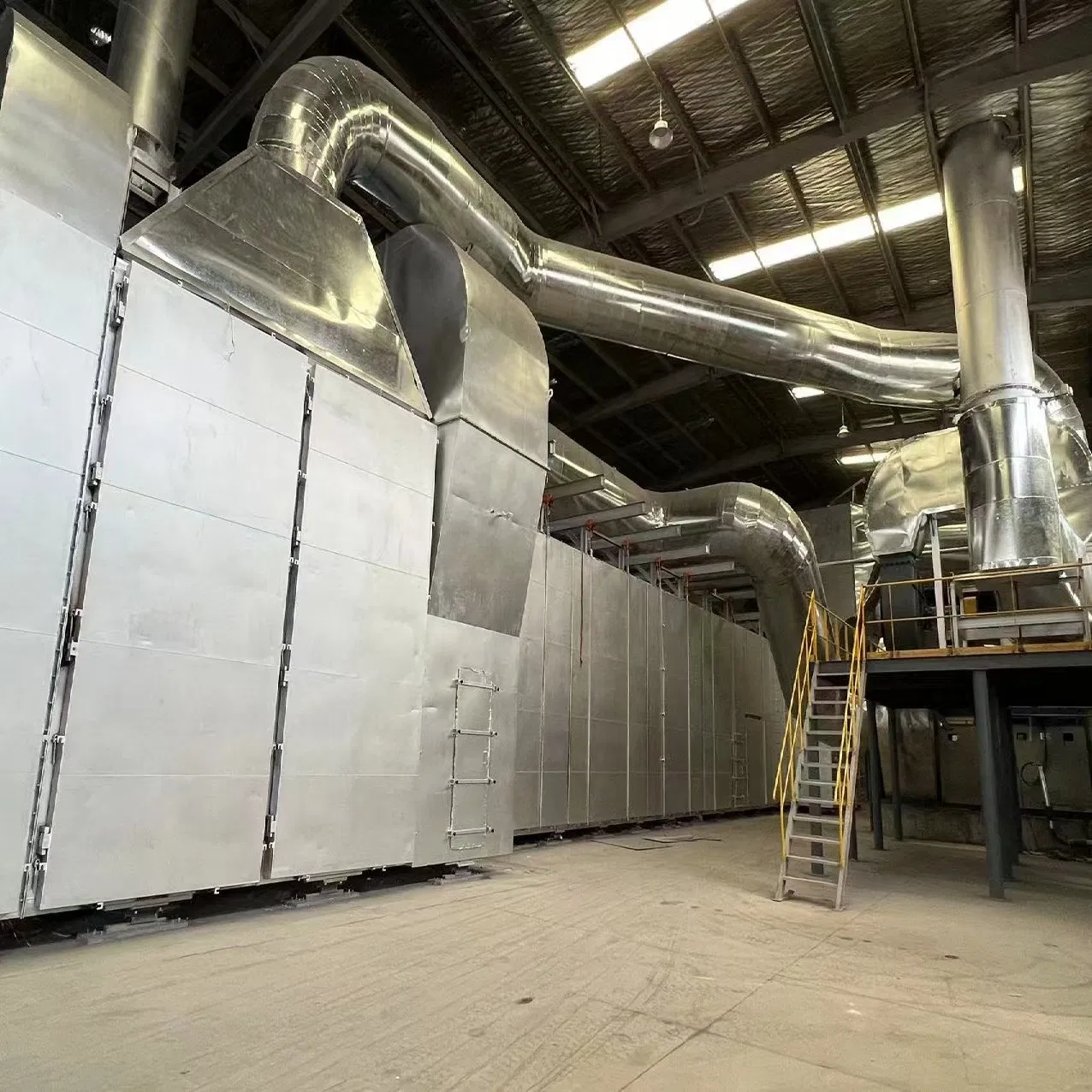

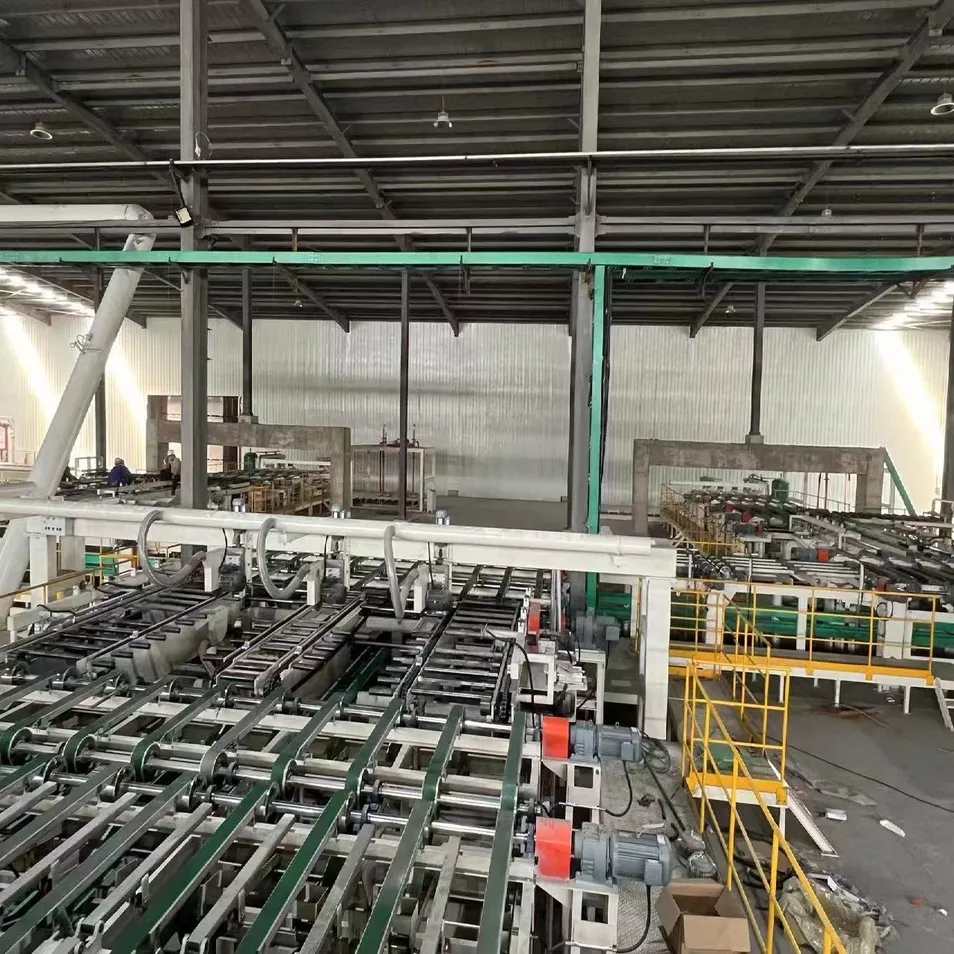

Includes raw material processing (crushing/calcining), forming system (slurry pouring between paper), drying system (multi-layer kilns), and automated cutting/packaging.

Key Advantages

Energy-saving design reducing consumption by 20–30%. Features global brand core parts (Siemens/ABB) and 100% by-product gypsum utilization with zero wastewater discharge.

Core Technical Parameters

Output Capacity

5M - 20M m² per line (Configurable)

Board Thickness

9.5 - 25 mm

Board Width

600 - 1220 mm

Drying Energy

≤1.2 kg standard coal/m²

Automation

PLC + Touchscreen intelligent control

Noise Level

< 75 dB

Frequently Asked Questions

How to choose the right production capacity for a gypsum board line?

Our lines offer 2–30 million m²/year capacity. Choose based on market demand, budget, and plant size. For regional markets, lower capacity is suitable; for larger markets, higher capacity is recommended.

What fuels can be used for the production line?

Available fuels include coal, natural gas, heavy oil, and diesel. Natural gas is clean and efficient, while coal offers lower costs but requires environmental treatment.

How important is raw material preparation?

It is critical. High-purity gypsum powder ensures board strength, while quality additives and water-resistant facing paper improve durability and prevent cracks or deformation.

How does automation improve production stability?

The PLC system automates dosing, mixing, and drying, adjusting parameters in real-time to minimize human error and ensuring continuous production with fault detection alarms.

How is fire resistance ensured in the boards?

Gypsum releases water when heated, forming a steam barrier to block flames. Our production strictly follows international standards (like GB 9775-2008) to guarantee fire resistance.

How is product quality consistency maintained?

Through strict raw material checks and full process automation. Key parameters like mixing time and temperature are precisely controlled, and finished boards undergo tests for strength and water absorption.
