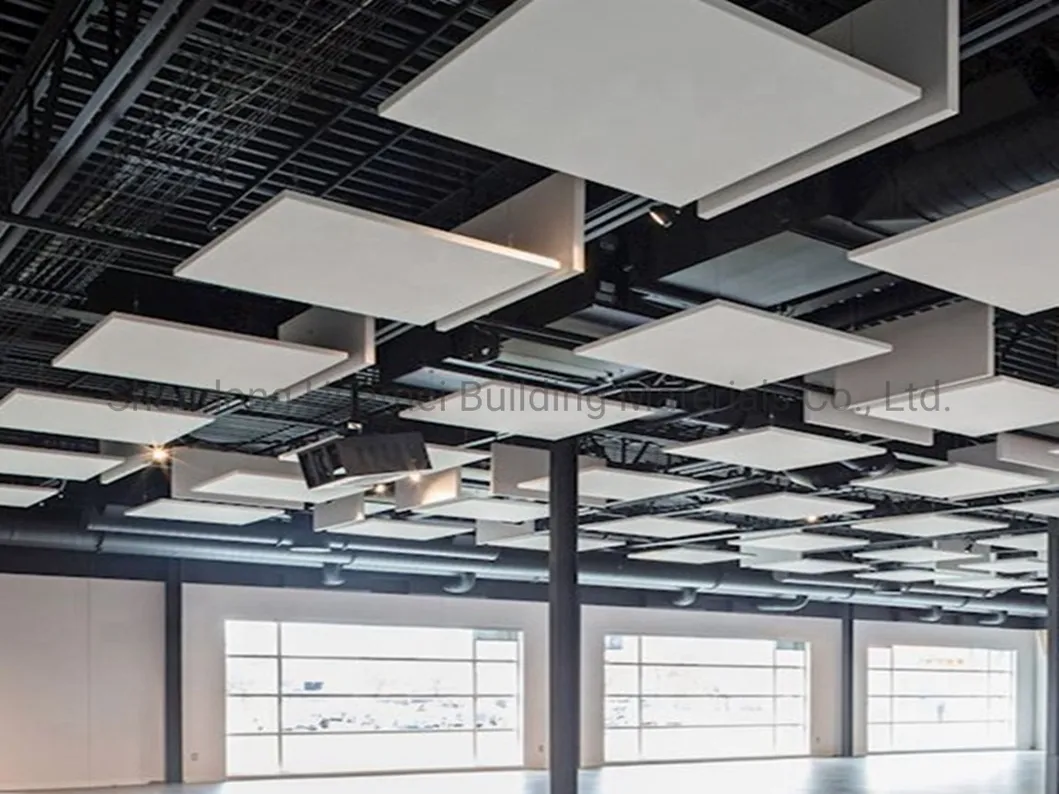

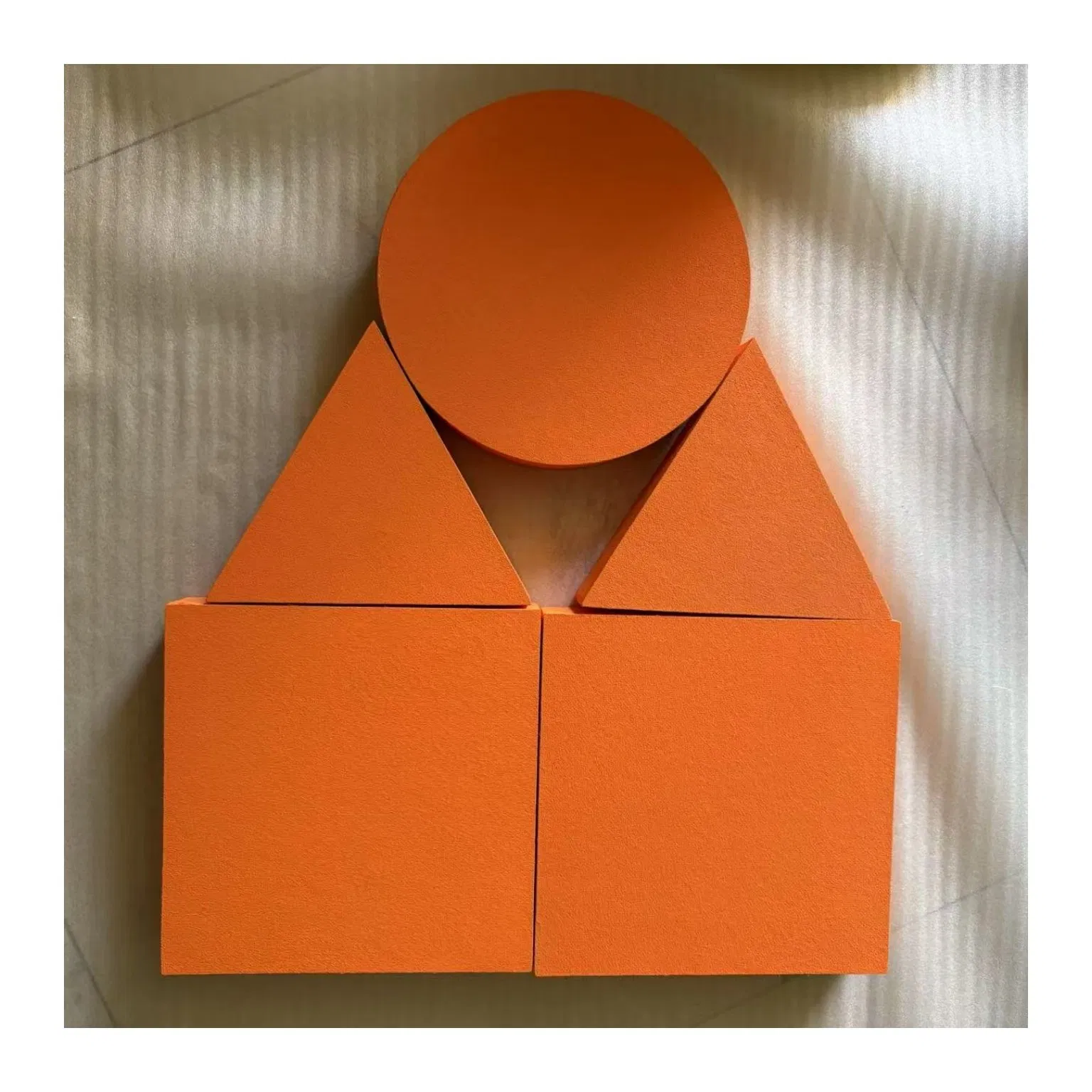

Square acoustic ceiling clouds are 1200x1200x40mm size with a weight of 7kg/pcs. Manufactured from high density glass wool with fiberglass felt on all sides. The edges are straight cut and wrapped by fiberglass felt.

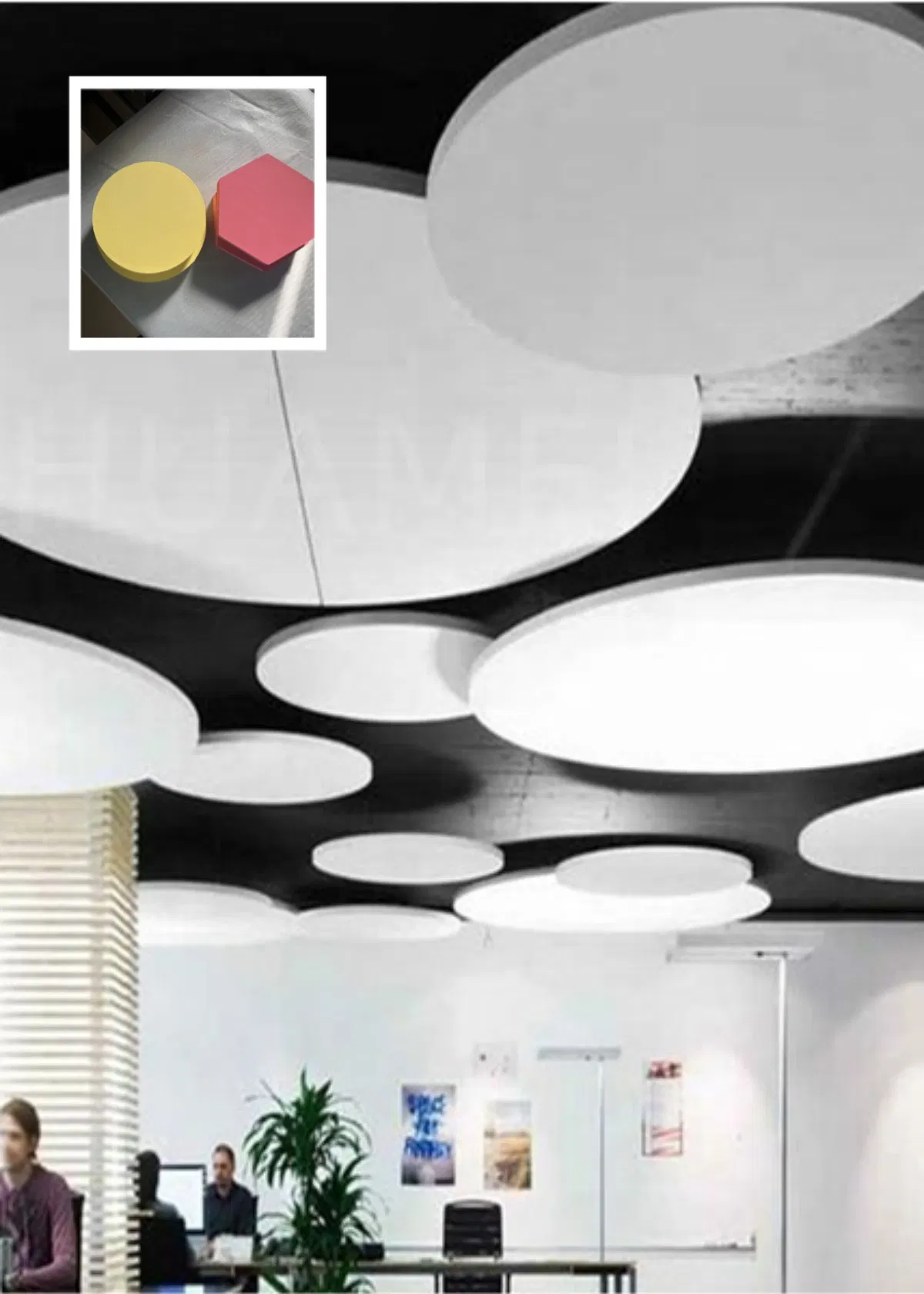

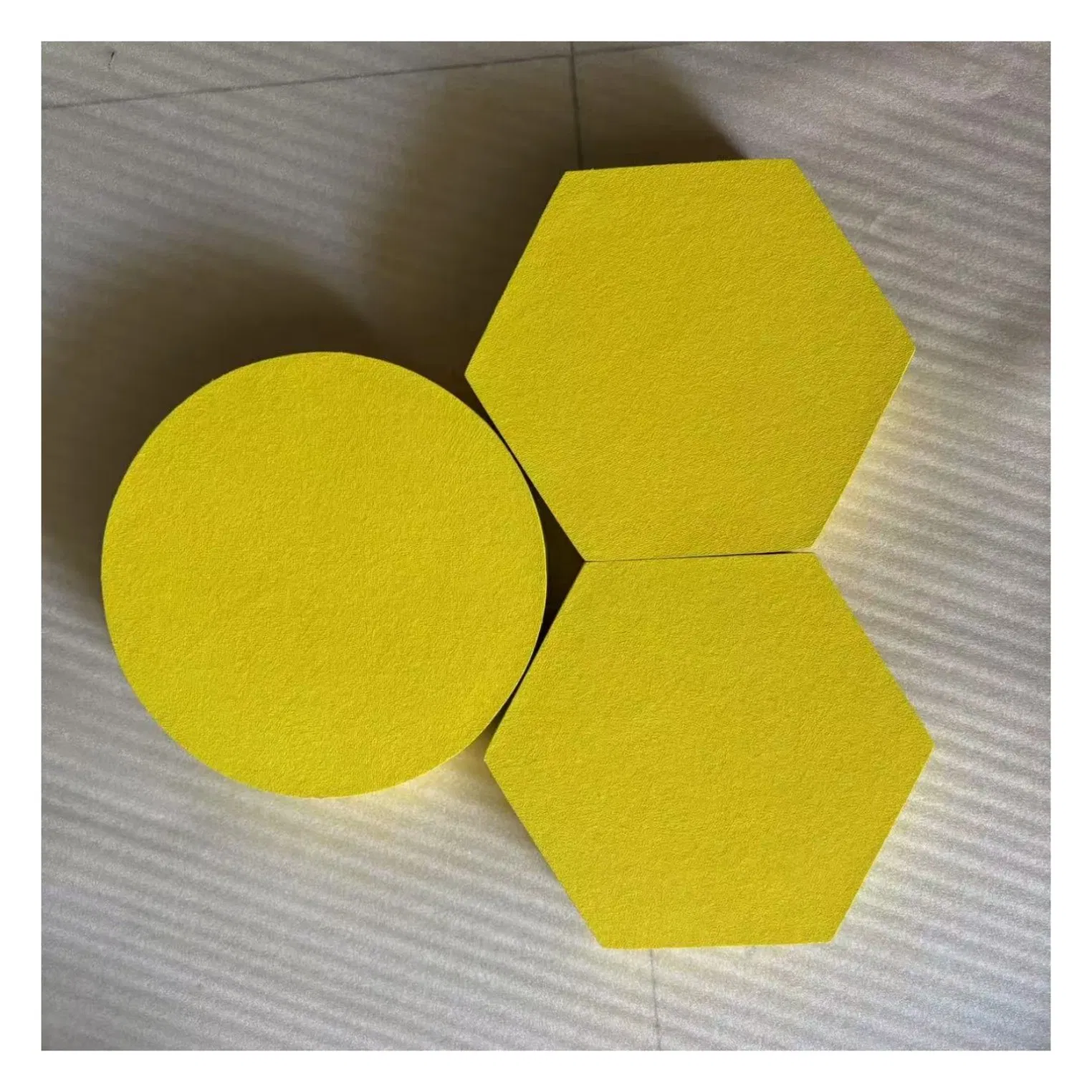

Round acoustic ceiling clouds are Φ1200x40mm size with a weight of 5.5kg/pcs. These clouds offer creative solutions that are bold and architecturally pleasing for improving intelligibility in any space.

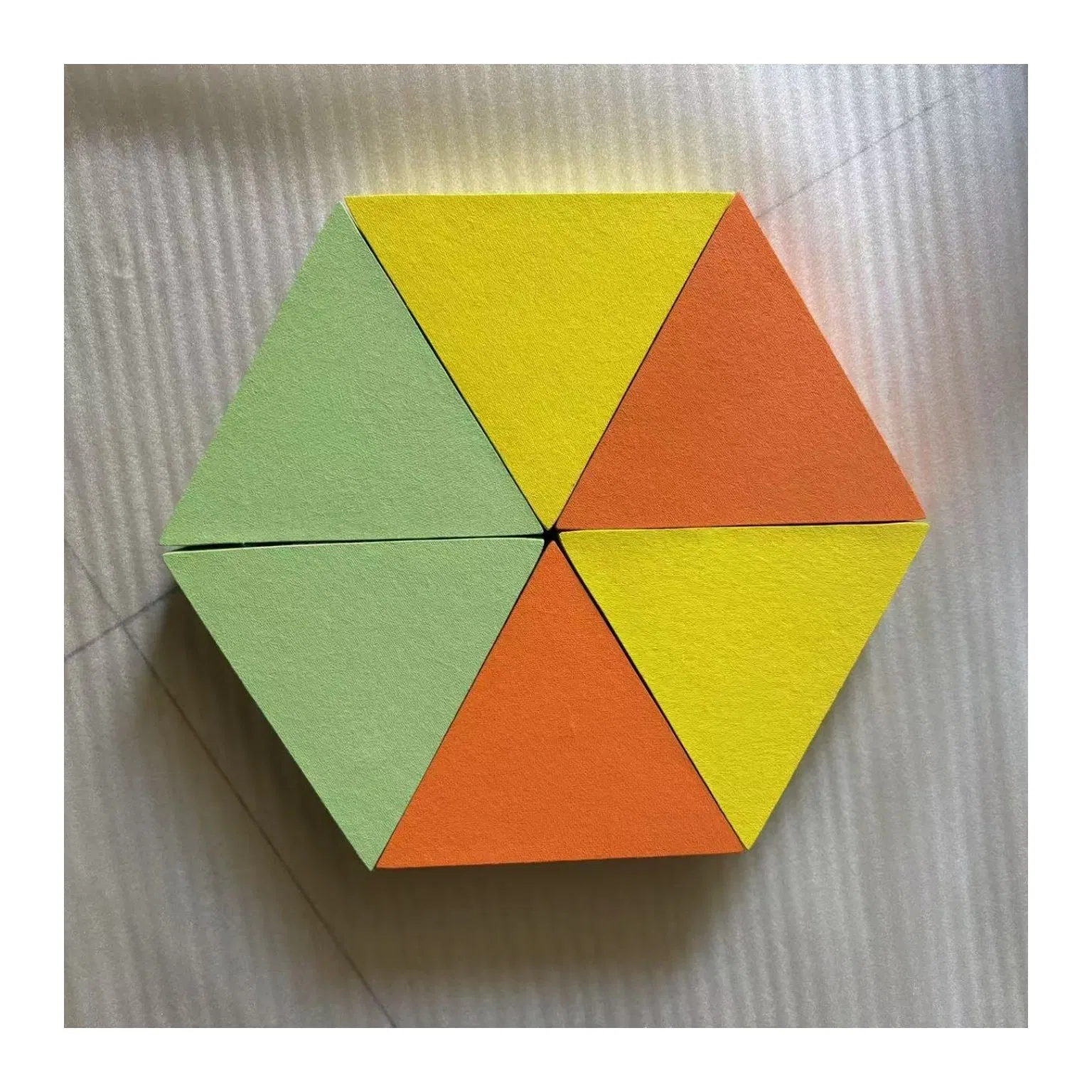

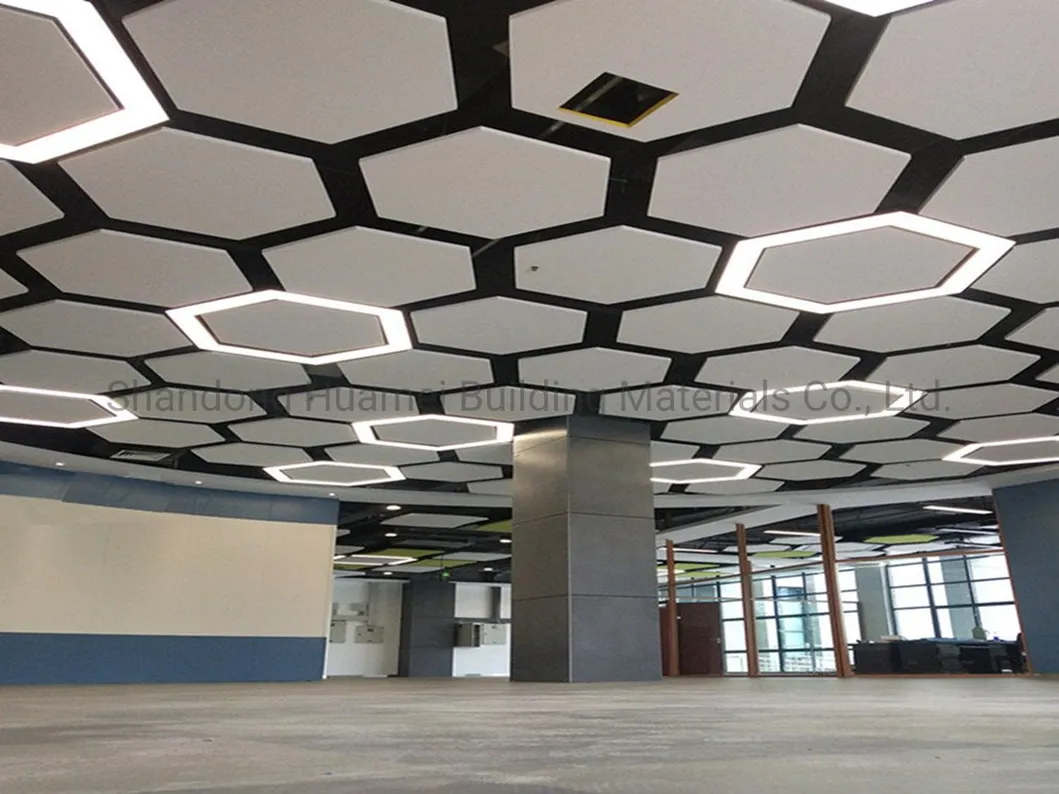

Hexagon acoustic ceiling clouds are Φ1200x40mm size with a weight of 4.5kg/pcs. Laboratory tested for acoustic performance (NRC 0.9) and fire safety, achieving a Class-A1 rating by SGS.

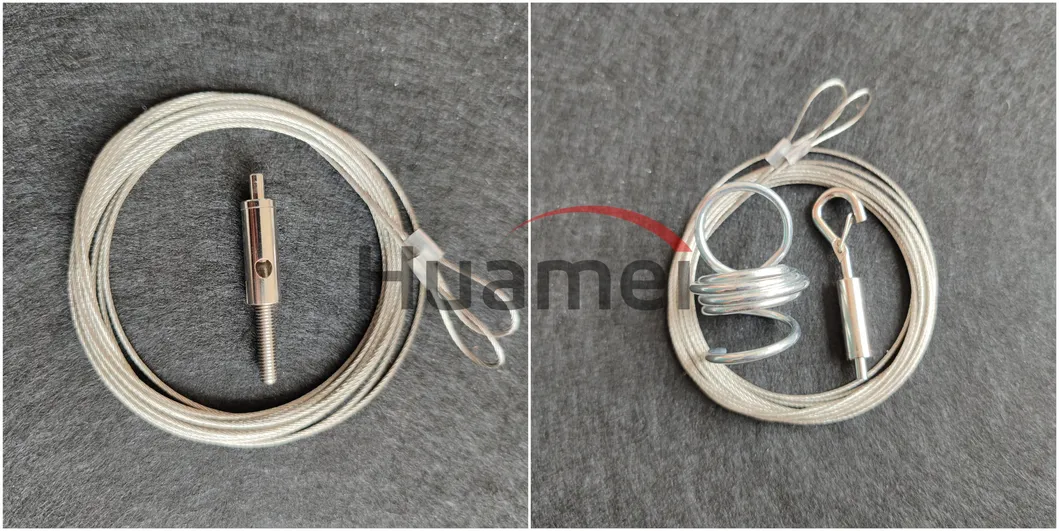

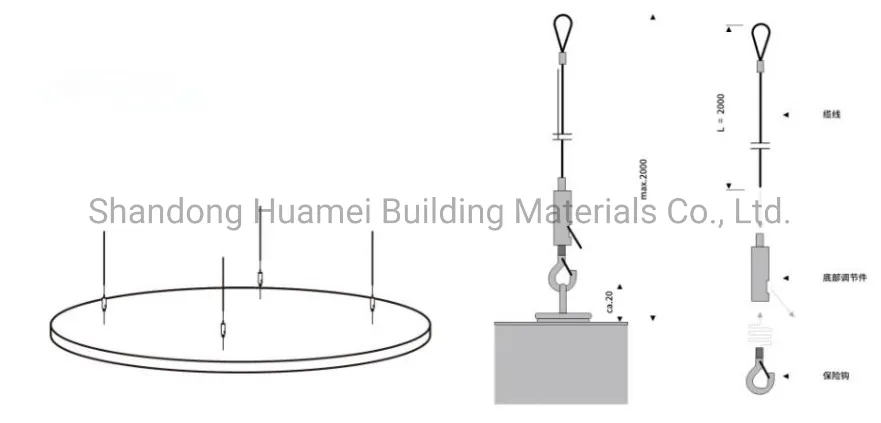

The suspension accessories are composed of a spiral spring, 2m cable, and an adjusting hook. Designed to hang from the ceiling to capture ambient energy and trap powerful reflections.
| Main materials | High density glasswool and fiberglass tissue |
| Surface finishing | Special painted laminated with decorative fiberglass tissue |
| Surface designs | White plane / white point / black plane or other colors |
| NRC | 0.8-0.9 (Tested by SGS) |
| Fire-Resistant | Class A (EN13501-1:2007+A1:2009) |
| Humidity | RH up to 95% at 40°C, no sagging or warping |
| Light Reflectivity | 0.85 |
| Density | 120-130kg/cbm |
Main product range includes fiberglass ceiling products, rock wool ceiling products, and acoustic suspended panels. The annual production capacity reaches 5,000,000 SQM, serving markets globally including Europe, America, and the Middle East.
