Basic Information
Usage
Dust/Smoke Removal, Oxygen Adding
Panel
EPS/PU/Honey Comb/HPL/Magnesium
Door
Steel/SS/HPL/Aluminum
HVAC System
Temperature & Humidity Control
Window
Tempered/Ultra Clear/Ground Glass
FFU Quantity
Based on Cleanliness
Accessories

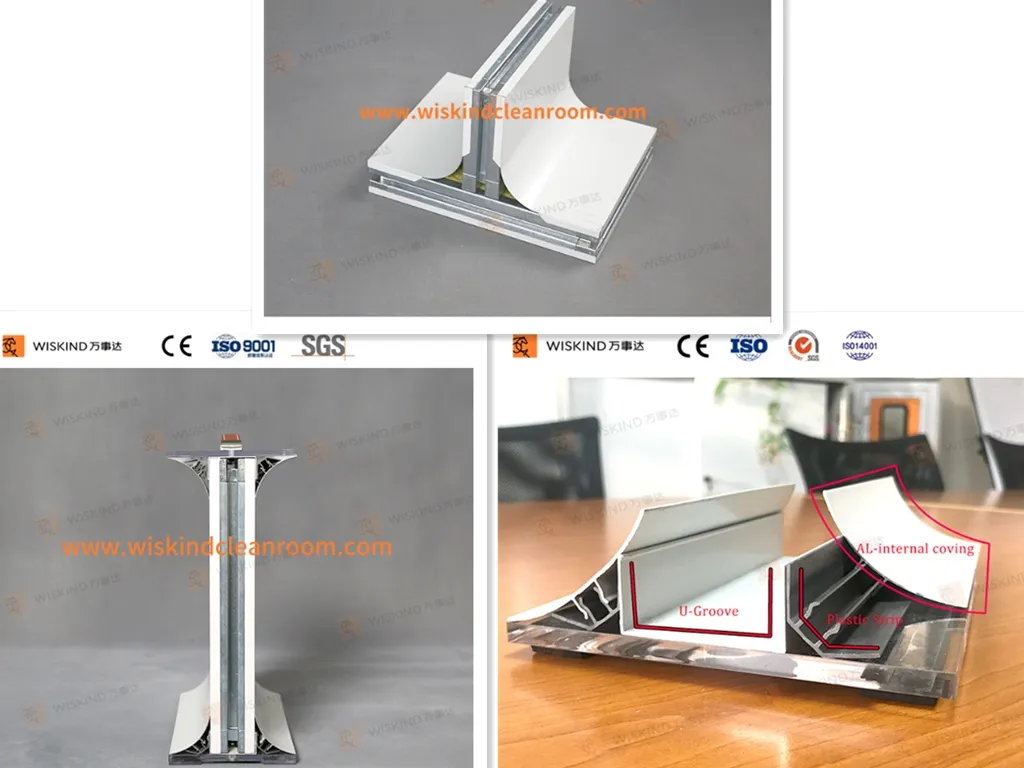

Aluminum Profile
Company Profile
Our group has a 41-year history and is involved in metal facades, roofs, cold room systems, steel buildings, modular systems, and cleanroom systems. We have focused on the cleanroom area for more than 11 years and have become a leading manufacturer of cleanroom panels, doors, and windows.
We are market leaders for the pharmaceutical industry and hospitals. Our products are exported globally to regions including the USA, Russia, UAE, Israel, Southeast Asia, and more. We are committed to being the most influential enterprise in cleanroom enclosures, holding certifications such as FM, CE, SGS, ISO9001, and ISO14001.
Product Description
We offer 5 different cleanroom wall systems adaptable to various modular environments. These products feature excellent performance, factory prefabrication, and easy on-site installation. Solutions include quick-detachable systems, VHP resistant agents, anti-condensation frames, and automatic typesetting.
Our systems utilize various core materials tailored for fireproofing, heat preservation, noise reduction, and moisture resistance to meet diverse cleanroom requirements.

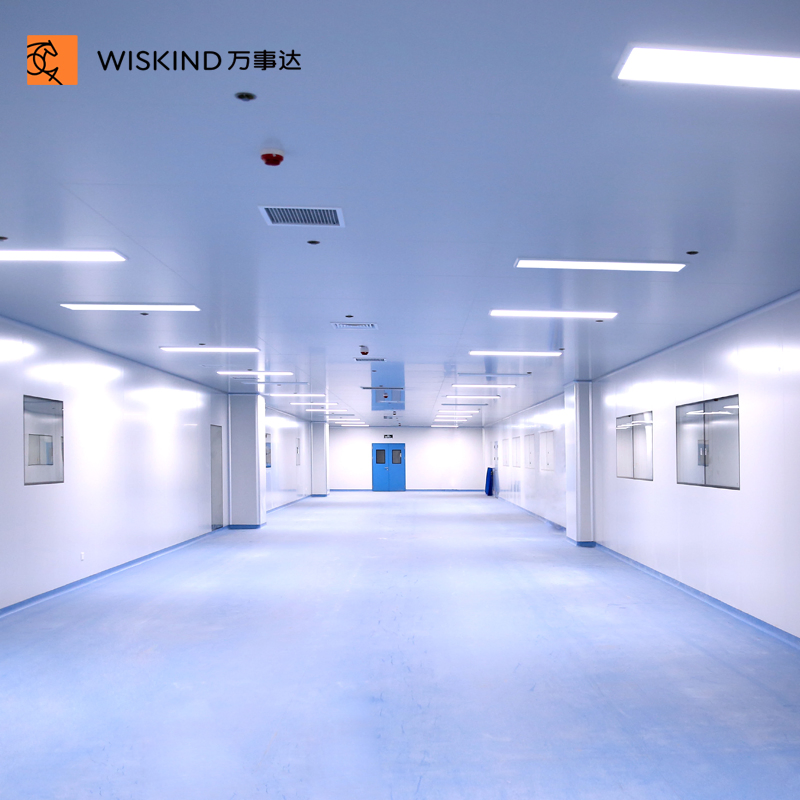

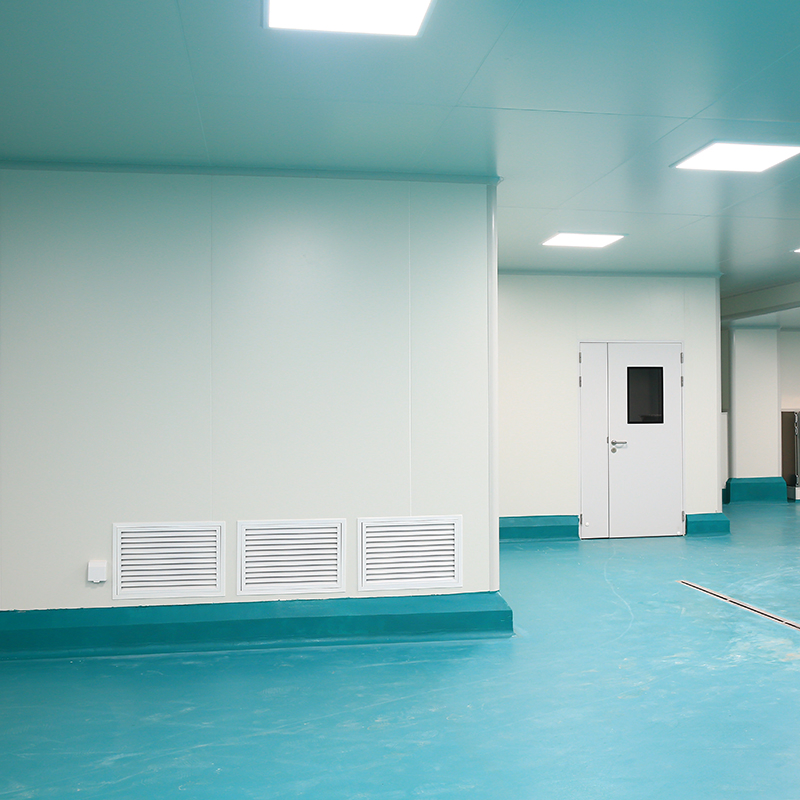

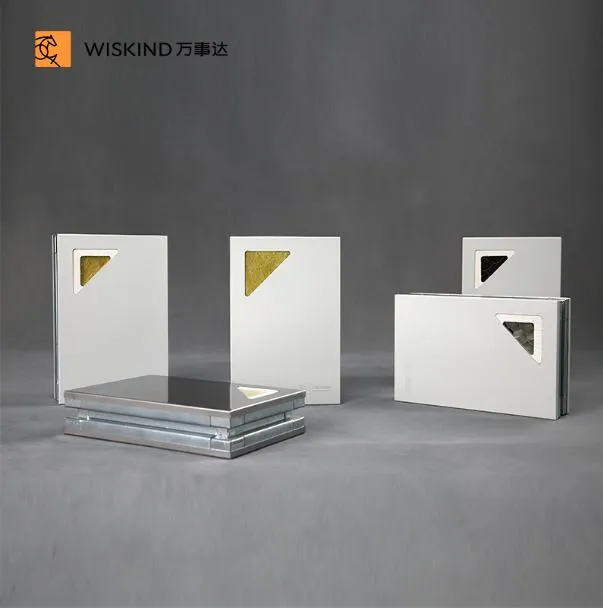

Cleanroom Panel System
| Standard Width | 980mm, 1180mm |
| Max Length | 7500mm |
| Wall Thickness | 50mm, 75mm, 100mm, 150mm |
| Outer Plate | PPGI, Al-Mg-Mn Alloy, SS Steel, HPL, VCM |
| Core Material | PU, Rock Wool, Magnesium, Honeycomb, EPS |
| Application | Pharmaceutical, Electronic, Food Cleanrooms |

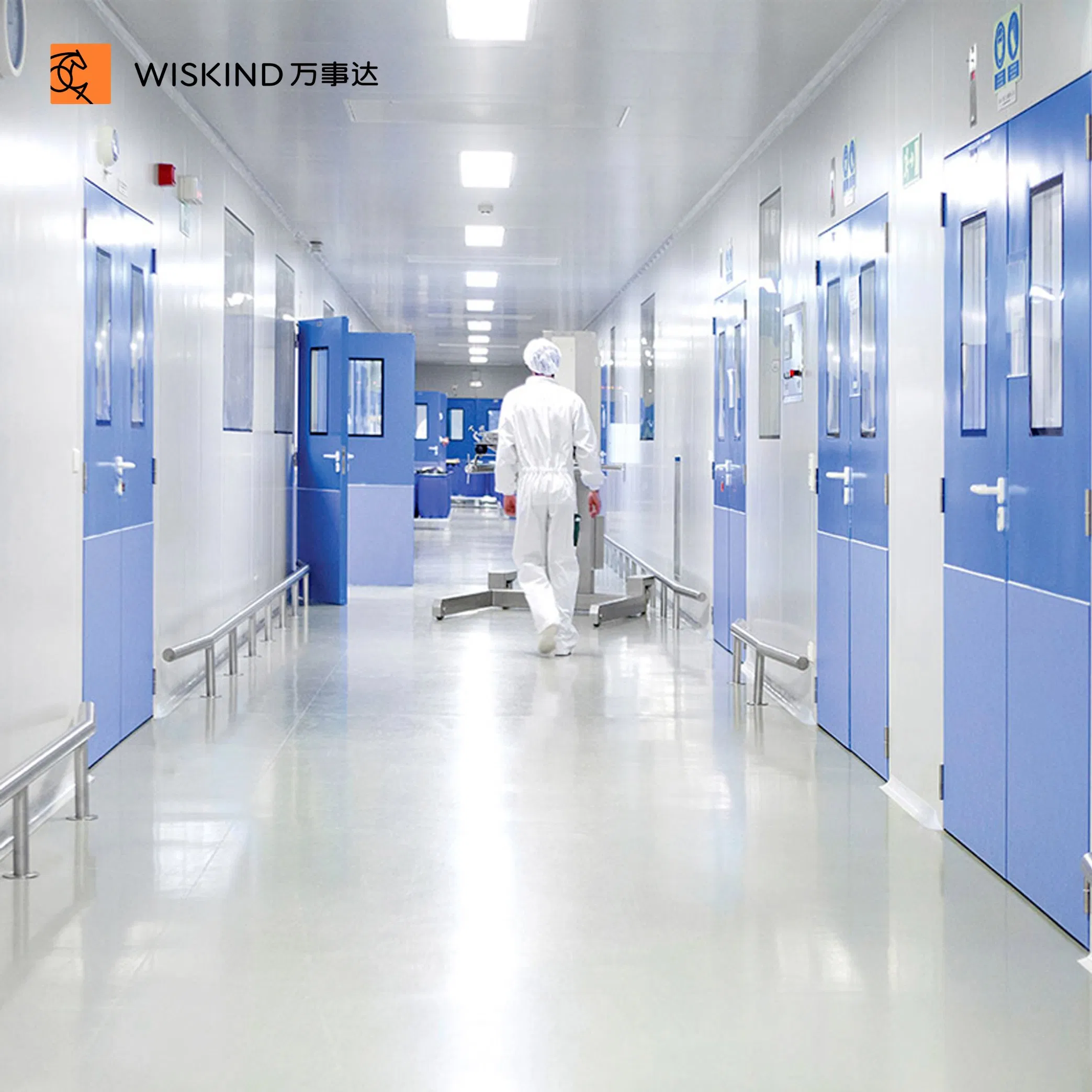

Cleanroom Door System
Available Door Types

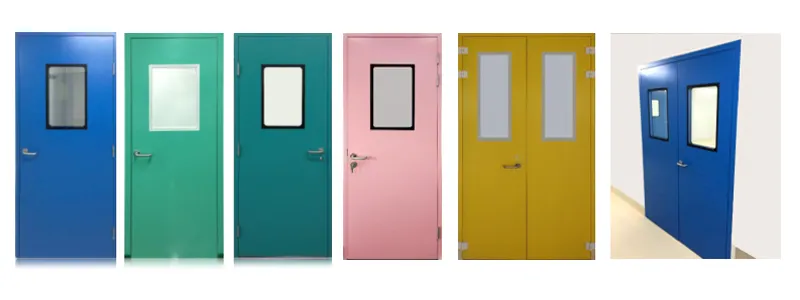

Cleanroom Steel Door

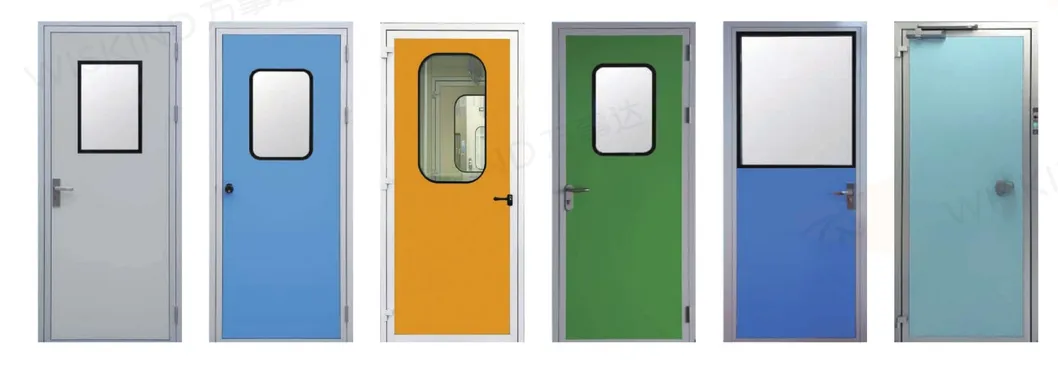

Aluminum Profile Steel Door

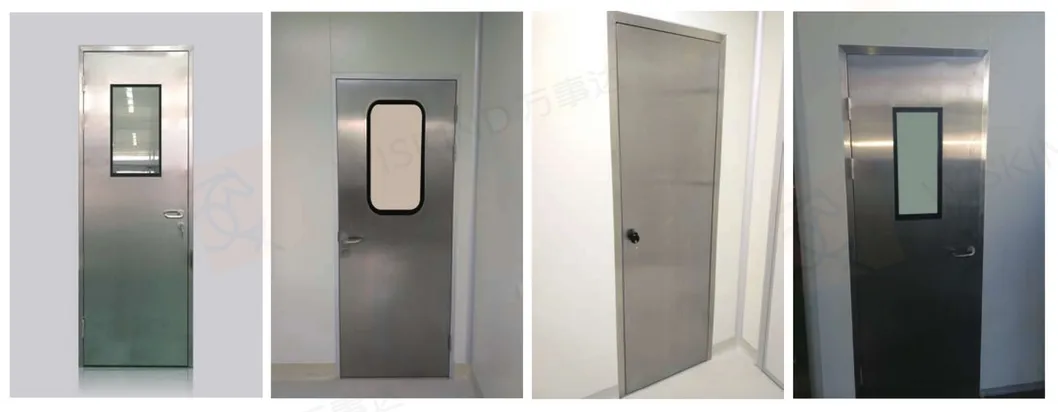

304 Stainless Steel Door

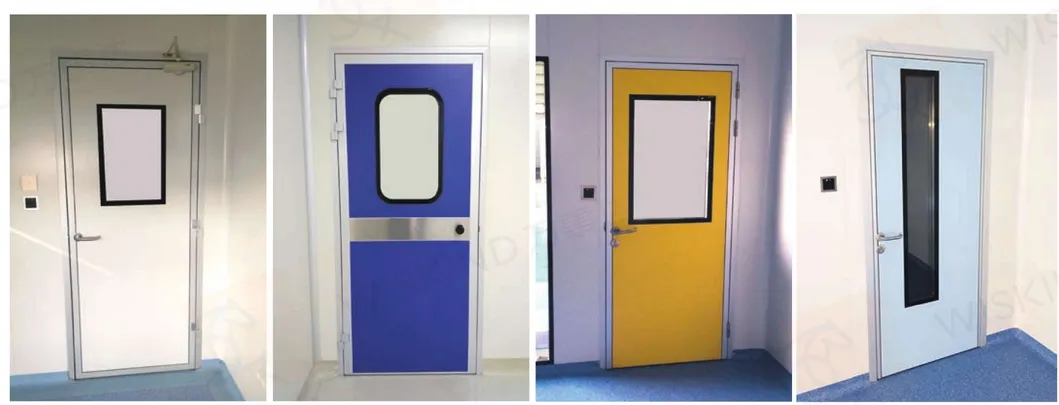

Cleanroom HPL Door
| Specification | 900x2100mm, 1200x2100mm (Customizable) |
| Frame Thickness | 1.2mm Galvanized Sheet |
| Leaf Thickness | 1.0mm Galvanized Sheet |
| Filler | Paper/Aluminum Honeycomb |
| Locks | 304 SS Handle, Elbow Pressure, Safety Bar |

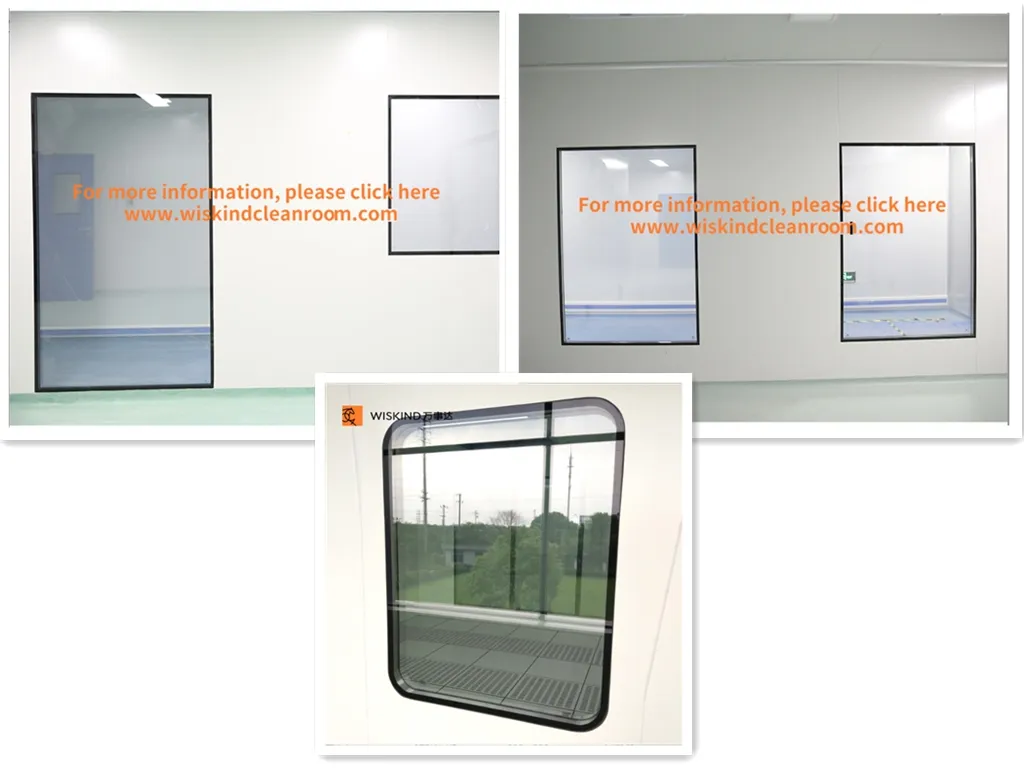

Cleanroom Window System
| Glass | 5mm TCK Double Glazing |
| Window Frame | Aluminum Alloy |
| Frame Shape | Round Corner / Right Angle |
| Thickness | 50mm, 75mm, 100mm |
| Color | White, Black |

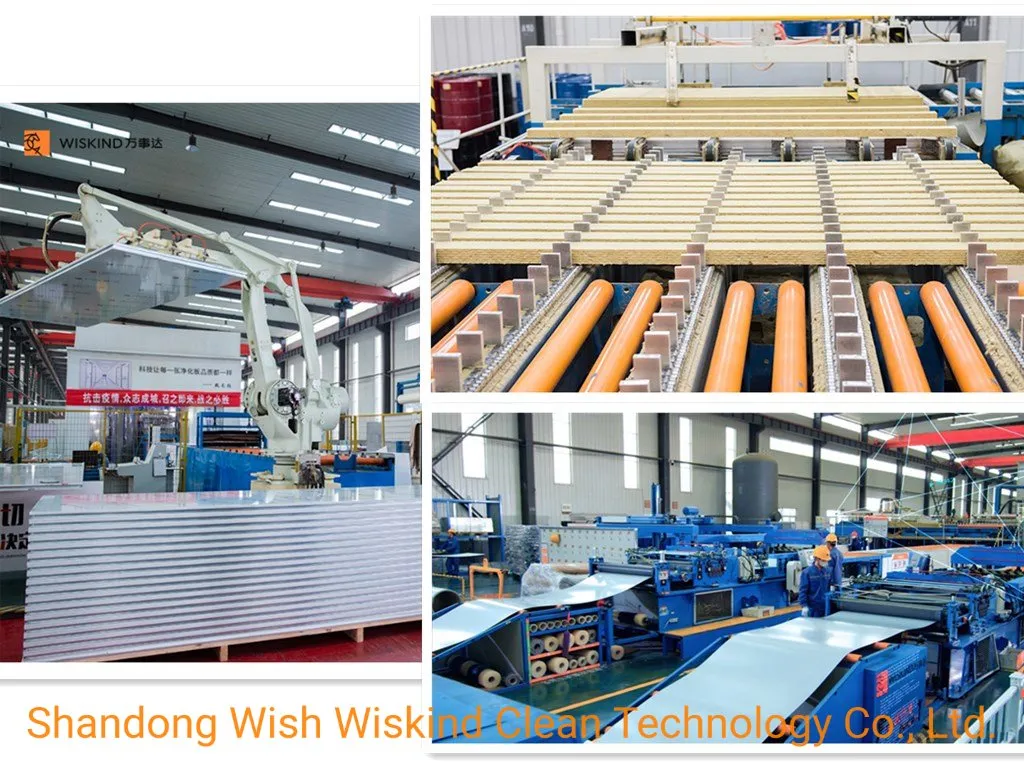

Advanced Production Line
Utilizing world-class automatic production equipment from PUMA, RAS, and ACL (Italy), we have developed high-efficiency automatic cleanroom panel lines. These lines are 6-8 times more efficient than traditional methods, incorporating robotic palletizing and high-precision temperature control.
Our facilities include over 20 sets of advanced door and window production equipment, ensuring leading-edge quality through high-precision automation and CNC bending technologies.
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer with 41 years of experience and a modern standard plant of 1,000,000 m².
What is the lead time for orders?
Budgeting and design take 3-7 days. Production typically takes 15-30 days depending on specifications.
What is your core competitiveness?
We operate the world's first automatic production line, which is 6-8 times more efficient than manual lines, ensuring lower costs and higher quality.
Do you provide installation support?
Our panels are designed for easy assembly. We provide instruction videos and can send professional supervisors to your site.
Can you provide samples?
Yes, we provide free samples. We only ask that customers cover the freight costs.
What are the payment terms?
Standard terms are 30% T/T prepaid and 70% T/T before delivery.
Welcome to partner with us for your cleanroom needs!
