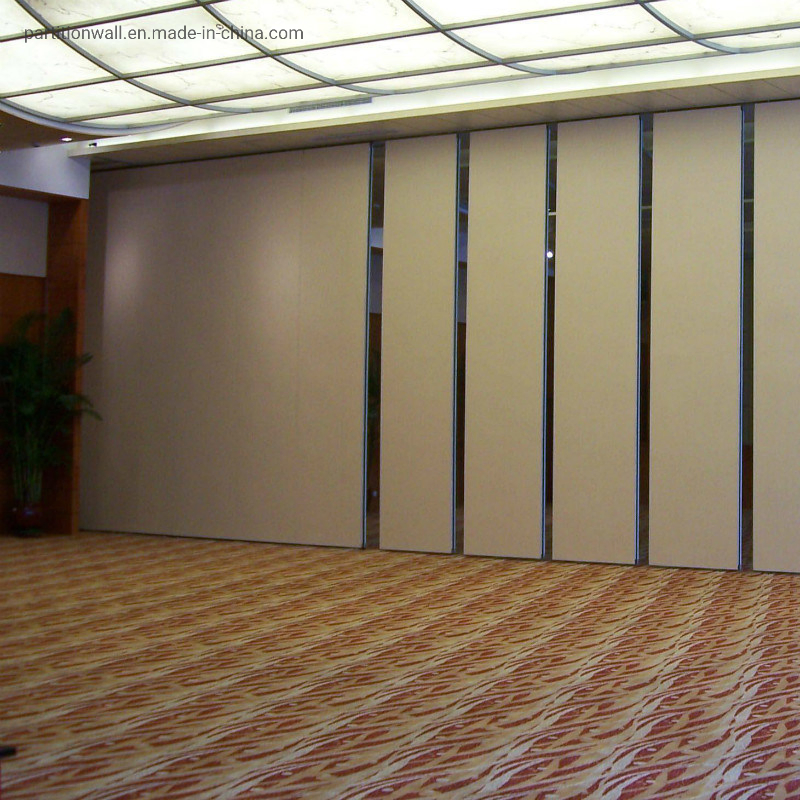

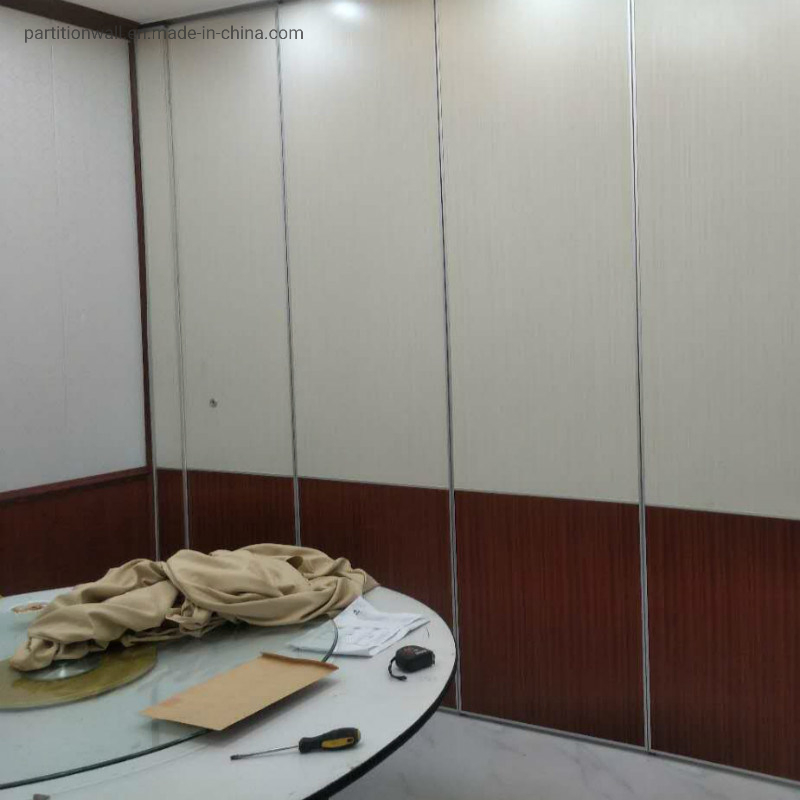

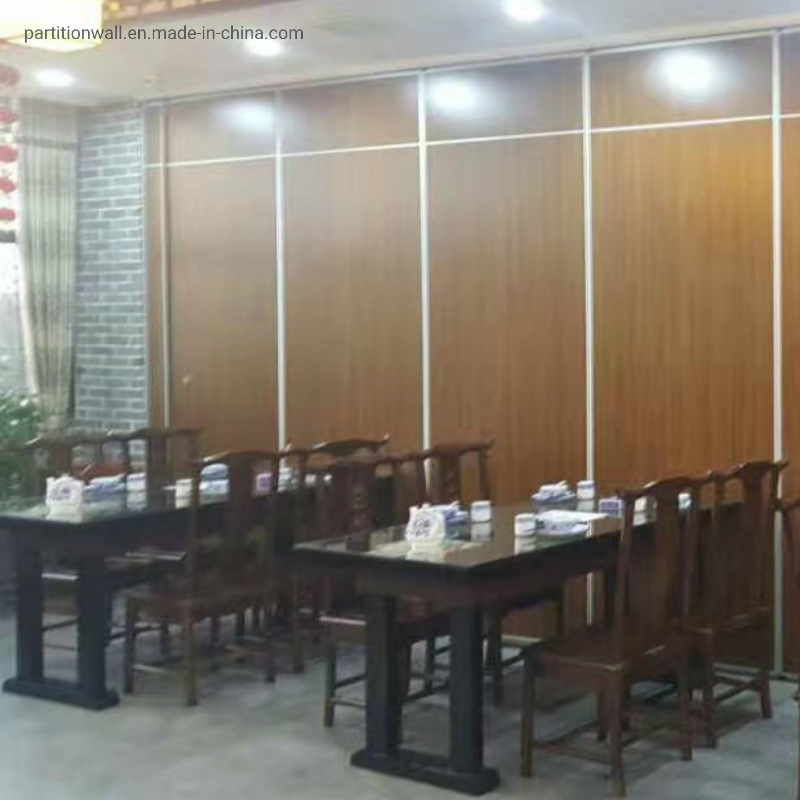

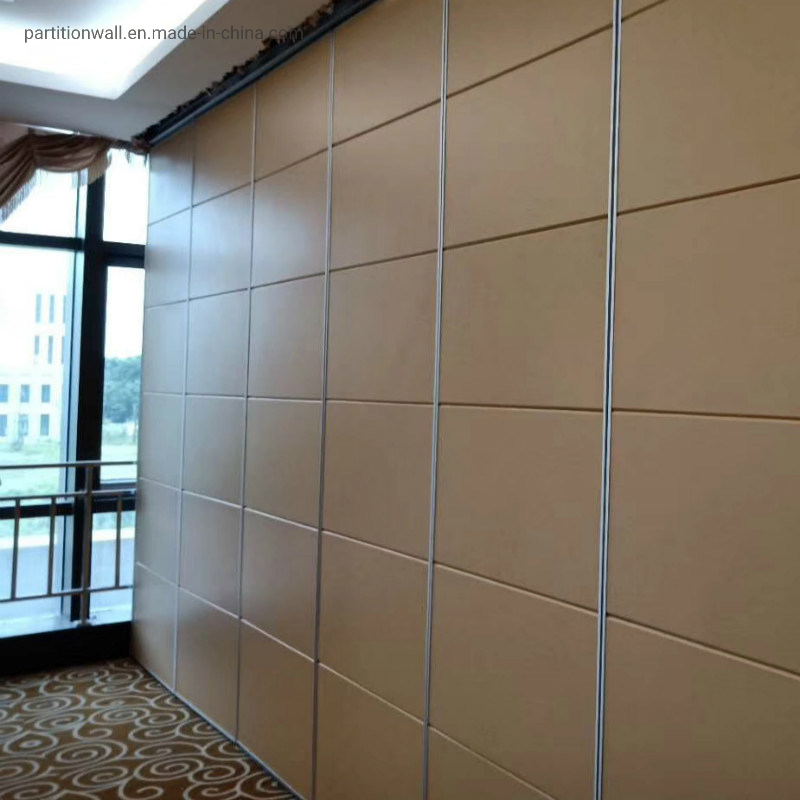

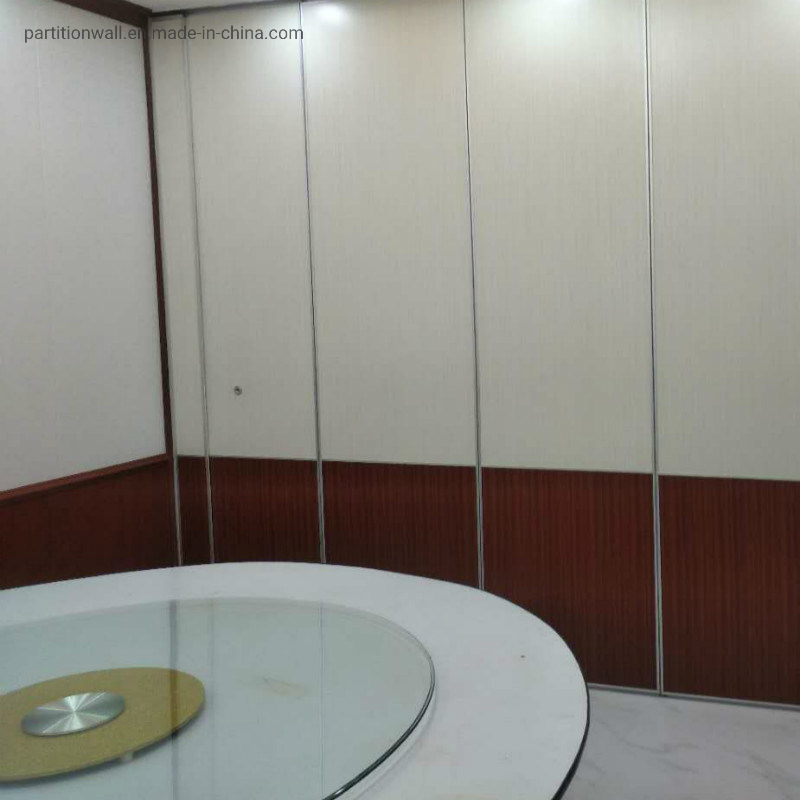

Wooden Office Walls Movable Folding Acoustic Partition for Meeting Room
Wooden Office Walls Movable Folding Acoustic Partition for Meeting Room
Wooden Office Walls Movable Folding Acoustic Partition for Meeting Room
Wooden Office Walls Movable Folding Acoustic Partition for Meeting Room
Wooden Office Walls Movable Folding Acoustic Partition for Meeting Room
1 / 5
Wooden Office Walls Movable Folding Acoustic Partition for Meeting Room
Wooden Office Walls Movable Folding Acoustic Partition for Meeting Room
Wooden Office Walls Movable Folding Acoustic Partition for Meeting Room
Wooden Office Walls Movable Folding Acoustic Partition for Meeting Room
Wooden Office Walls Movable Folding Acoustic Partition for Meeting Room

Wooden Office Walls Movable Folding Acoustic Partition for Meeting Room

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Technical Specifications
Model NO.
Series 65 Acoustic Partition Wall
Certification
ISO9001
Material
Wooden / Aluminum Frame
Thickness
65 mm
Panel Height
Less Than 4 M
Panel Width
800-1200 mm
Soundproof Rate
22-32dB
Weight
20-30 Kg/Sqm
Surface Options
Melamine, Fabric, Leather
Application
Banquet Hall, Hotel, Meeting Room
Capacity
5000sq/Month
HS Code
940310
Wooden Office Movable Walls & Acoustic Partitions

Acoustic partition walls provide a speedy and convenient way to separate spaces. These systems utilize a top-hung mechanism, eliminating the need for any floor tracks, which maintains the integrity of your flooring and prevents tripping hazards.

Constructed from a high-density aluminum frame, specialized rubber seals, and superior sound insulation cotton, these sliding walls offer excellent acoustic performance. The integrated insulation rubber around each panel effectively prevents sound leakage between divided areas.

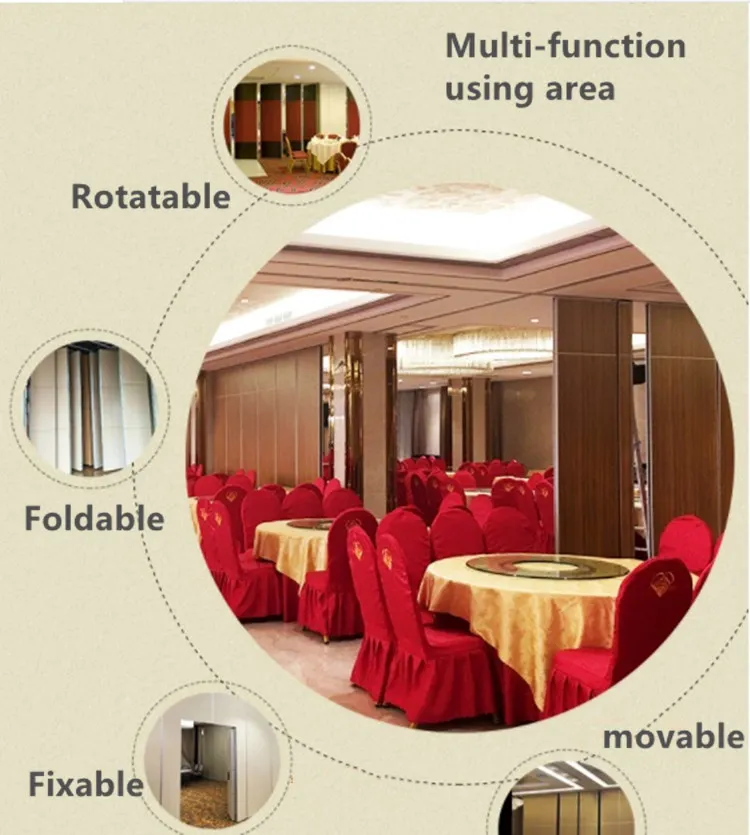

Acoustic Partition Wall System
Series BG65 BG85 BG100
Panel SuspensionTop hung only
Panel Thickness65mm85mm100mm
Max Height4000mm6000mm8000mm
Panel Width600-1230mm
Sound Insulation20-32dB RW30-38dB RW35-45dB RW
Weight20-30 kg/sq M22-35kg/sq M28-40kg/sq M
Finish MaterialsPlywood, MDF, Laminate, Melamine, Fabric, Leather, etc.
Key Features & Benefits
  • Space Management: Individual panels can be stored away for maximum space usage.
  • Durability: Robust aluminum frame construction for demanding environments.
  • Quick Operation: Hinged pair panels and effortless top/bottom seals for easy setup.
  • Versatility: Wide range of surface finishes to match any interior design.
  • Stability: Top hung supported system ensures smooth movement without floor tracks.

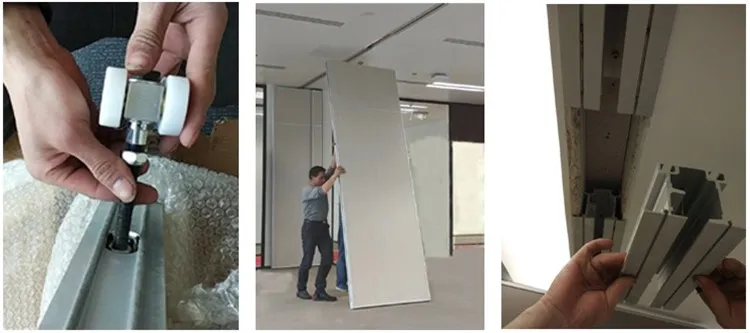

Movable Wall Construction

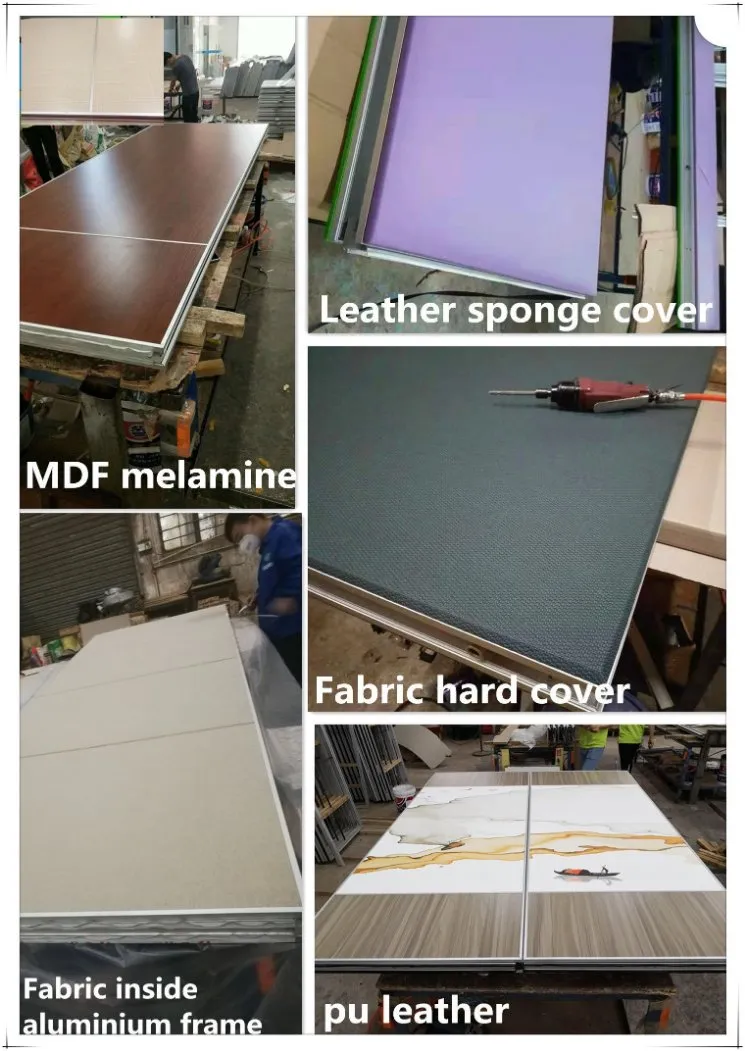

Surface Options
Premium Components & Accessories

Our systems include high-quality components designed for longevity and performance:

  • Tracks: Anodized 6063-T5 aluminum for smooth operation.
  • Rollers: Heavy-duty carriers with pulley bearings supporting over 1600 KGS.
  • Seals: Durable Nitrile Butadiene Rubber (NBR+PVC) for perfect sound insulation.
  • Core Material: High-density rock wool (60kg/m3) for noise and heat reduction.
  • Mechanism: Precision retractable system for effortless locking and sealing.

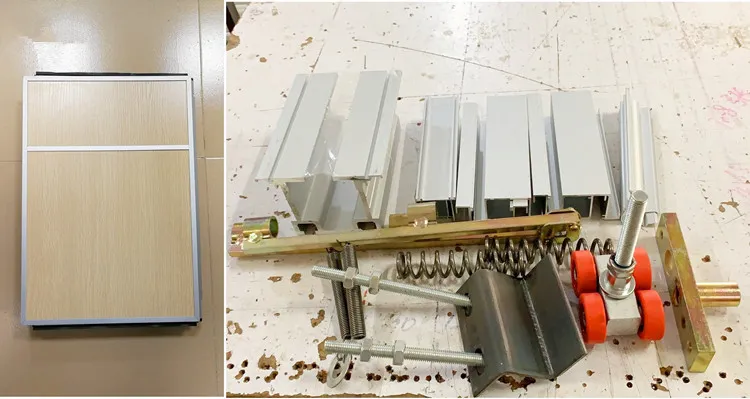

Wall Accessories

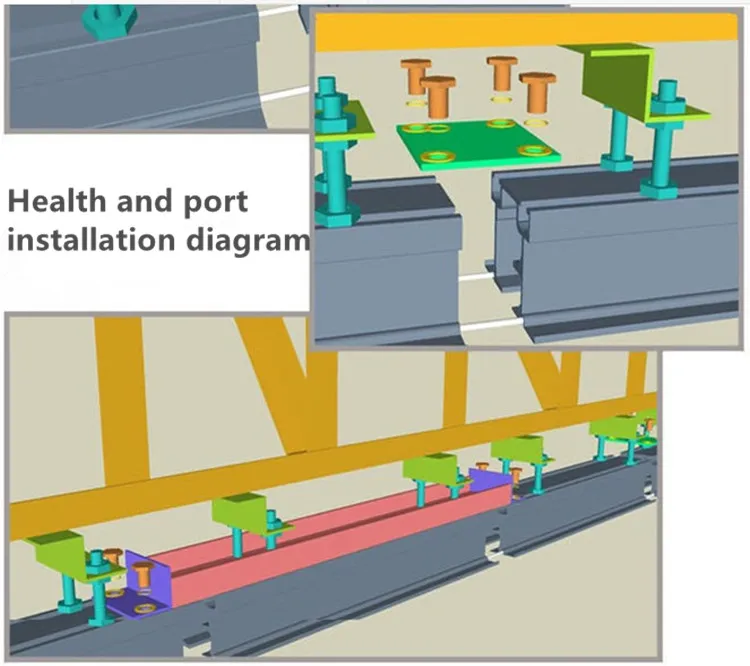

Installation Step 1

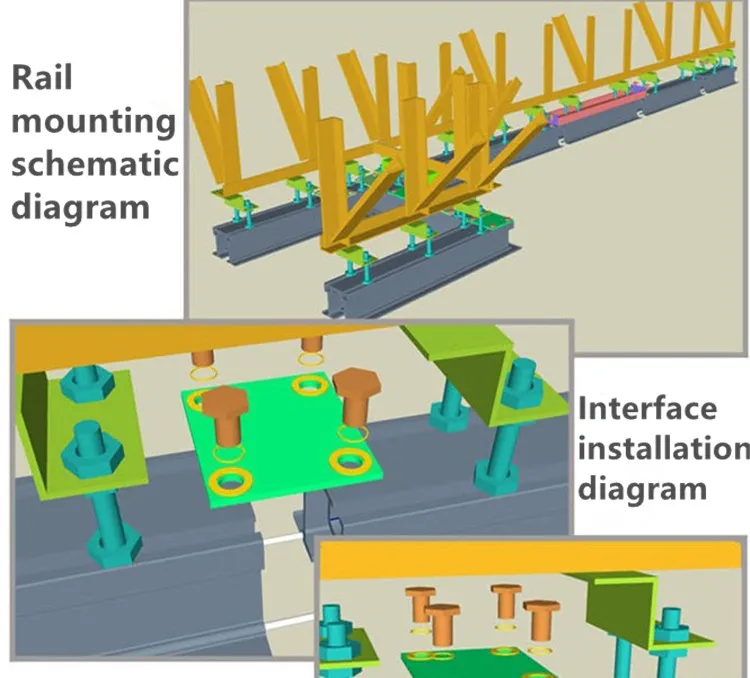

Installation Step 2
Quality Packaging & Professional Service

We ensure all panels are protected using carton packing and MDF boards during transportation to prevent damage. Our engineering department provides tailored solutions, including installation drawings and video guidance.

Packing and Shipping
Quality Service
Frequently Asked Questions
Is a floor track required for these partitions?
No, our system is top-hung, meaning the panels are supported by an aluminum ceiling track. There is no need for any tracks on the floor.
What is the sound insulation capability?
Depending on the series chosen (65mm, 85mm, or 100mm), the soundproof rate ranges from 22dB to 45dB RW, making it ideal for meeting rooms and banquet halls.
What surface finishes are available?
We offer a wide variety of finishes including Melamine (MDF), Fabric, Leather, Plywood, Laminate, Mirror, and even custom-printed PU leather.
How are the panels moved and stored?
The panels move flexibly on multi-directional wheels/rollers. When not in use, they can be stacked away in a designated storage area to maximize space.
Do you provide installation support?
Yes, we provide detailed installation drawings and videos. Our engineers are also available to provide guidance on proper installation techniques.
Can the panels be customized for height?
Absolutely. We offer different series to accommodate various heights: the 65mm series for up to 4m, 85mm for up to 6m, and the 100mm series for heights up to 8m.
