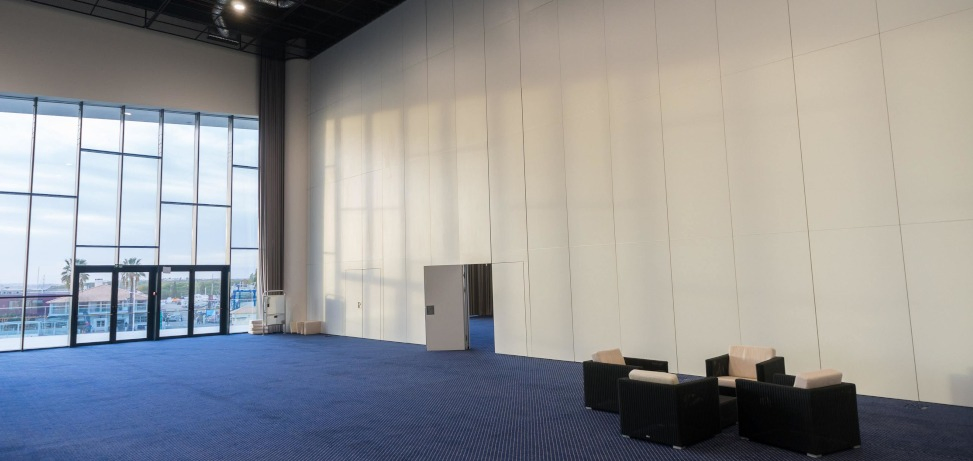

Top-Notch Movable Operable Partition Acoustic Sliding Walls

Customization: Available
After-sales Service: Yes
Warranty: Yes

Product Description

Basic Info
Model NO.
CN-MW01
Style
Modern
Color
Customized
Certification
CE, ISO9001
Material
Glass
Frame
Aluminum Profile
Glass
8-25 Tempered Glass
Height
2.5-4 Meters
Acoustic
38-56dB
Origin
China
Product Description

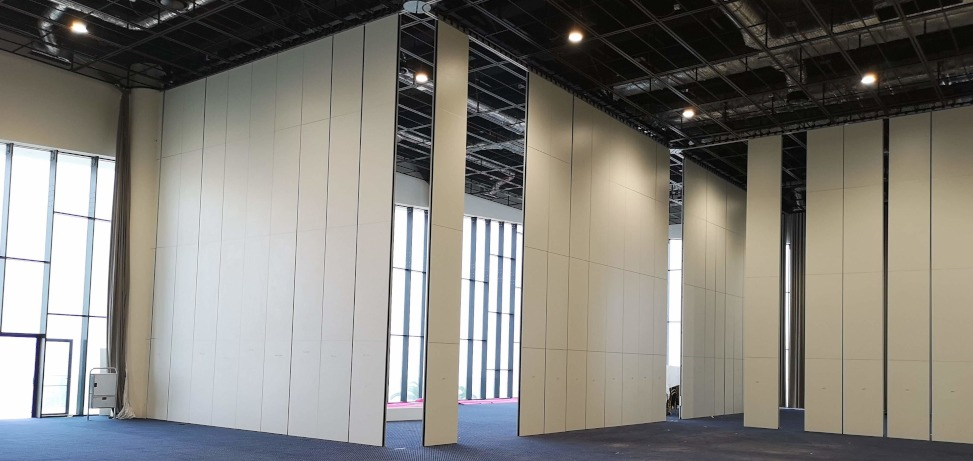

Top-Notch Movable Operable Partition Acoustic Sliding Walls

We service all types of operable walls, room dividers and acoustical divider partitions. The Trendy Sliding Acoustic Wall is a revolutionary addition to the world of movable operable partitions. Crafted with utmost precision and designed to perfection, this acoustic operable wall is set to redefine the way you perceive interior spaces.

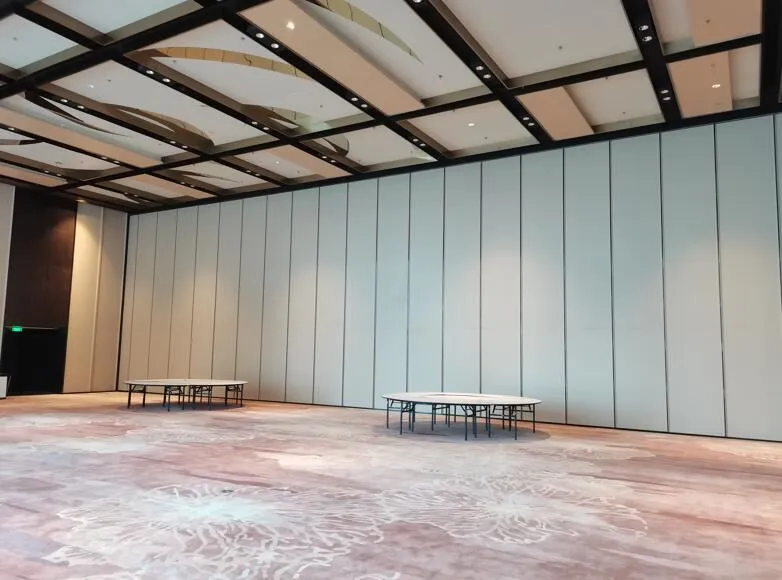

Acoustic Sliding Walls
With its seamless sliding mechanism and exceptional soundproofing capabilities, this sliding acoustic wall is the epitome of elegance and functionality. It is meticulously engineered to provide a versatile solution for dividing spaces while maintaining acoustic integrity.

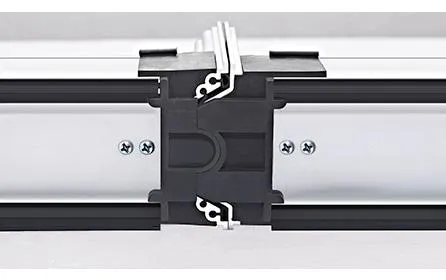

Lock-up set

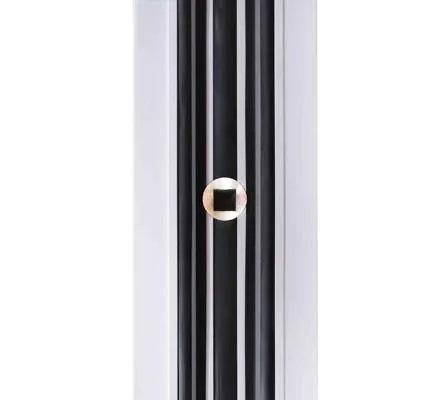

Retractable Pressure Seals

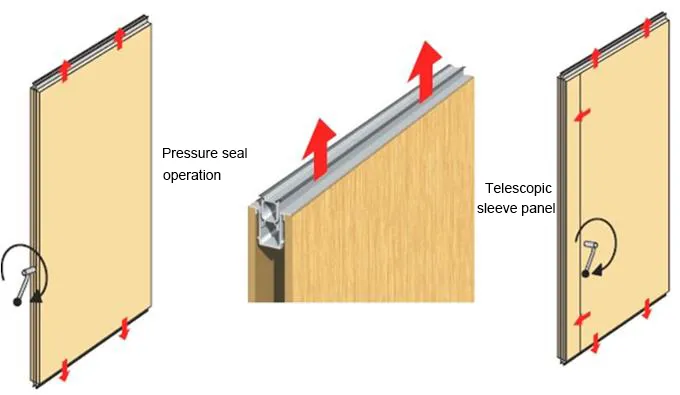

Technical Mechanics:
  • Our easy lock-up set: Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.
  • Telescopic sleeve panel: Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. The rubber sealing strip on the side edge of telescopic panel can seal the wall tightly.
Panel Mechanism
Features & Benefits
Movable, top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement
Combines elegance with robust construction
Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies for smooth and silent movement
Exceptional sound reduction index (38-54) dB

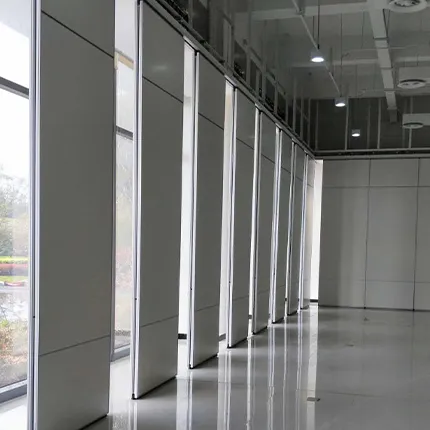

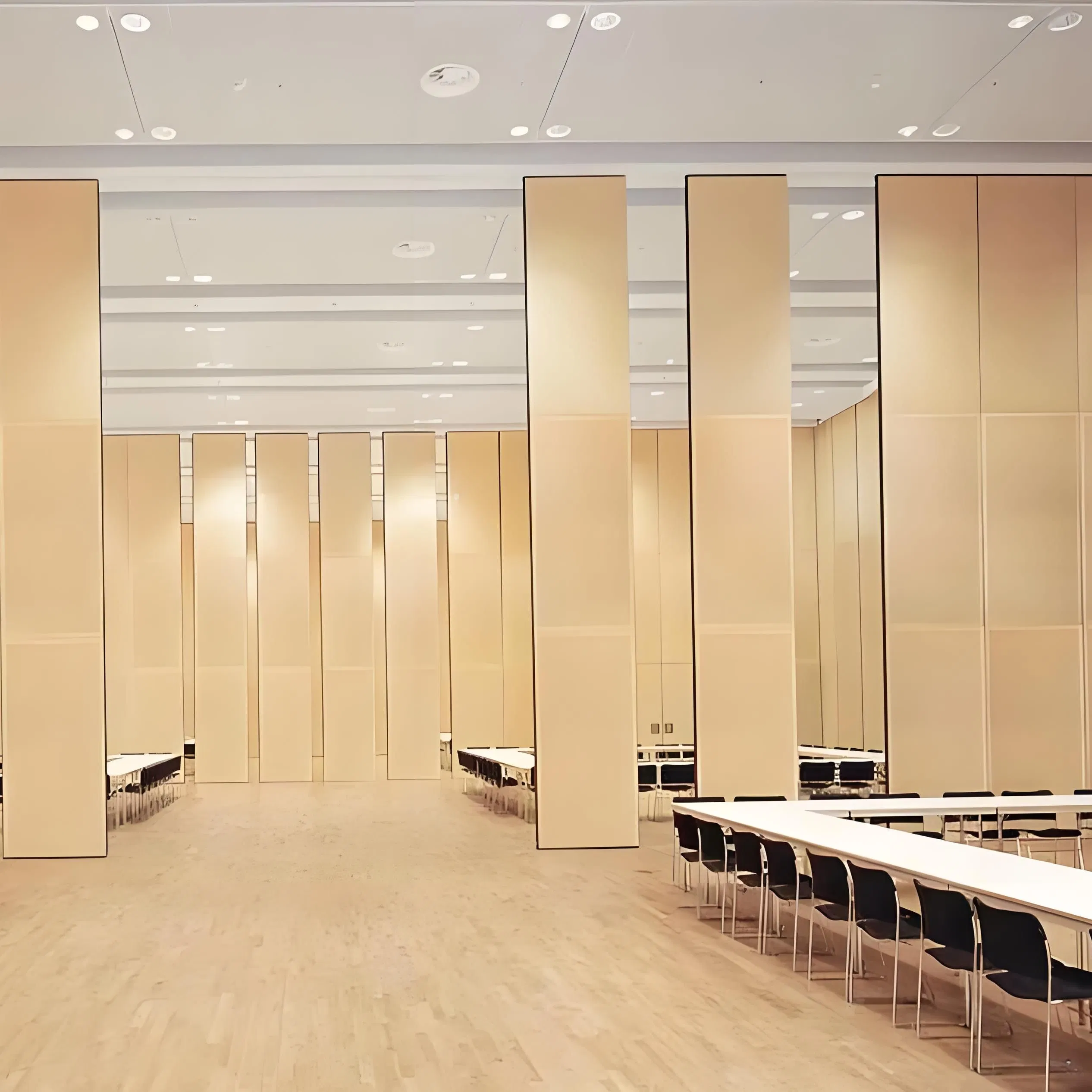

Operable Walls

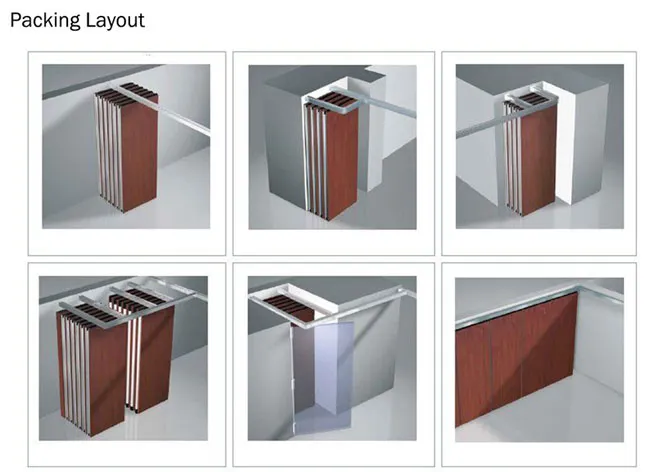

Stacking Positions
Technical Specifications
Parameter Details
Panel SuspensionTop hung system without the need for a floor track
Panel Width600mm - 1200mm
Track MaterialAluminum OR Steel Track
Panel FramesHeavy-duty steel-gusseted aluminum inner frames
Panel FaceMDF, Plywood, Woven fabric, Leather, Natural wood veneer, Melamine
Sound Insulation40-56dB Rw
Service Process
1
The client provides architecture drawings; we provide design scheme and quotation.
2
Client confirms design; production begins after payment confirmation.
3
Packaging and numbering according to international export requirements for shipping.
4
Provide detailed installation instructions, shop drawings, and weight clearances.
5
Technical support and installation guidance provided upon request.
Manufacturing Facility
Our facility covers an area of more than 12,000 square meters. It is equipped with state of the art hydraulic press brake bending machines, automatic cutting machines for aluminum and MDF boards, and complete processing equipment including drilling, milling, and lamination press machines.

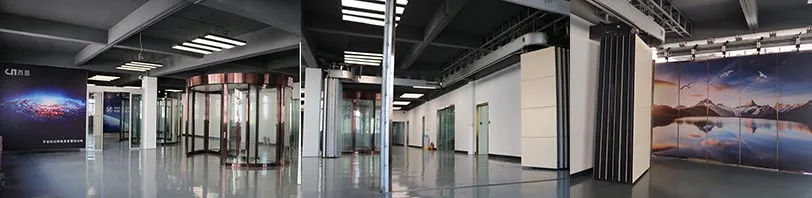

Factory Overview

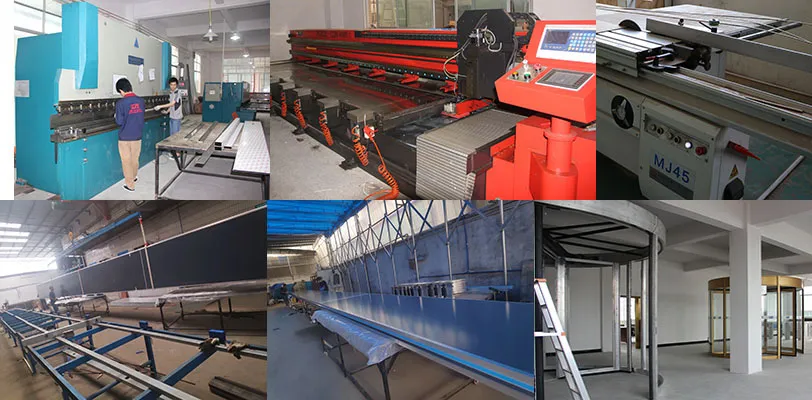

Production Line
Frequently Asked Questions
How to support the weight of the operable wall partition?
The system is supported by an overhead track. This usually requires pre-fabricated steel or iron beams secured to the structure at calculated intervals according to the wall weight.
Are these partitions truly soundproof?
Yes, our movable wall system is soundproof. We use different acoustic material fillings and sound-absorbing panels to achieve ratings from 36dB to 56dB depending on requirements.
What surface finishes are available?
Various finishes are available including melamine, laminates, wood veneer, paint, wallpaper, and professional sound-absorption boards.
How do I install the mobile partitions?
We provide detailed installation guides, drawings, and videos. For large projects, we can send technicians to guide your local team through the process.
What is the standard lead time for an order?
Depending on the square footage and customization requirements, the lead time typically ranges from 25 days to 90 days.
What is the warranty for the partition system?
A 3-year quality warranty is provided, covering the frame, hardware, and accessories under correct operational conditions.
