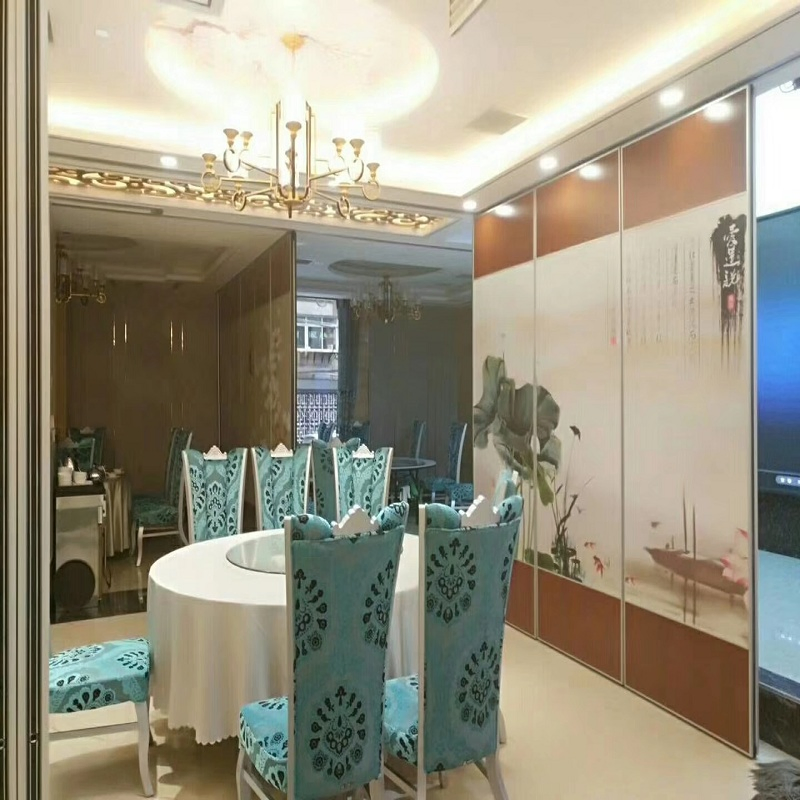

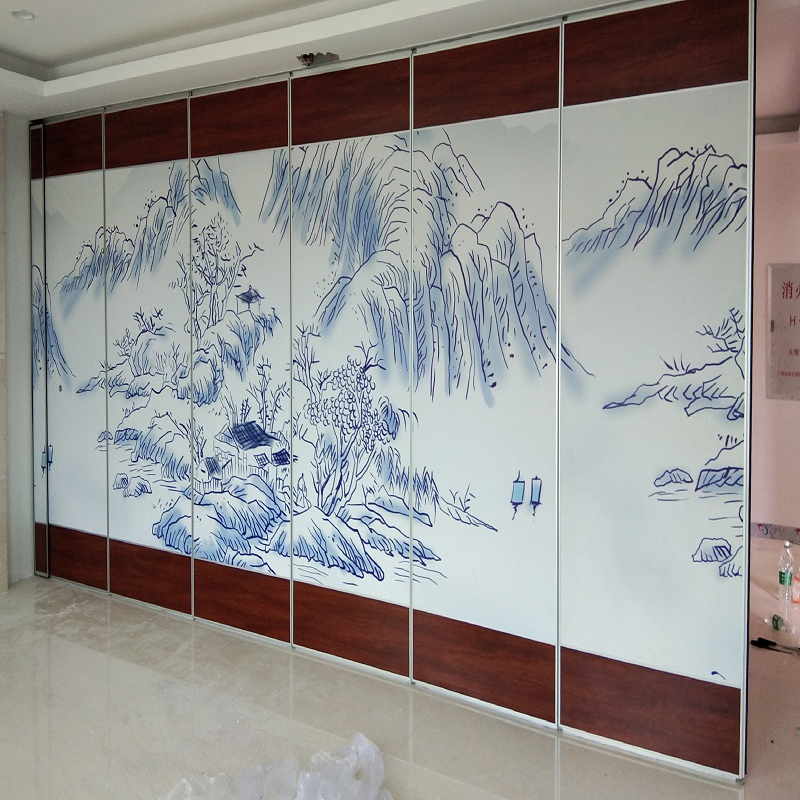

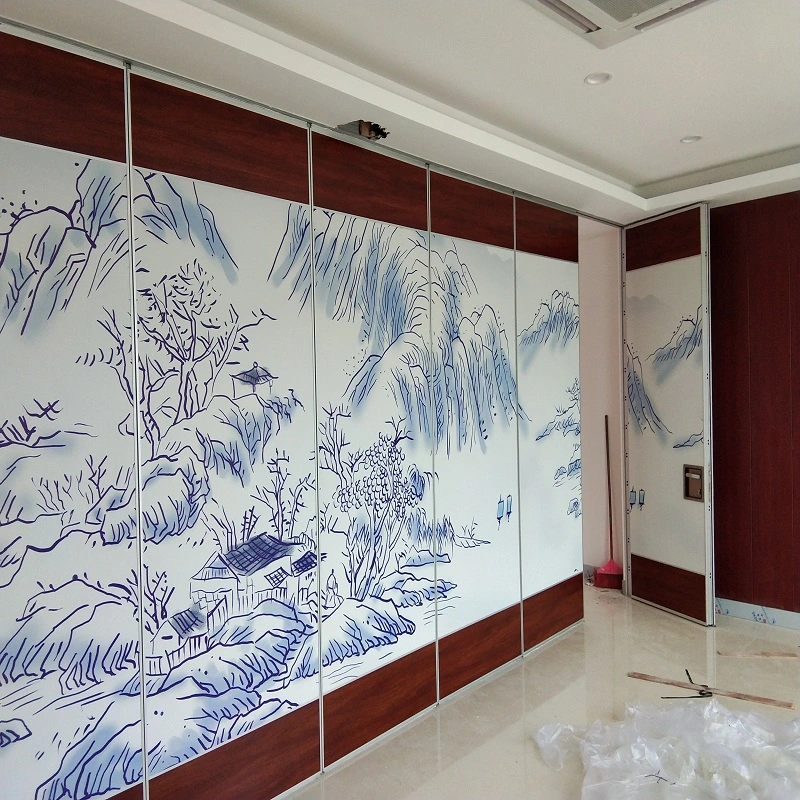

Multi Color Hotel Acoustic Movable Sound Proof Operable Walls / Restaurant Partition Wall
Multi Color Hotel Acoustic Movable Sound Proof Operable Walls / Restaurant Partition Wall
Multi Color Hotel Acoustic Movable Sound Proof Operable Walls / Restaurant Partition Wall
Multi Color Hotel Acoustic Movable Sound Proof Operable Walls / Restaurant Partition Wall
Multi Color Hotel Acoustic Movable Sound Proof Operable Walls / Restaurant Partition Wall
1 / 5
Multi Color Hotel Acoustic Movable Sound Proof Operable Walls / Restaurant Partition Wall
Multi Color Hotel Acoustic Movable Sound Proof Operable Walls / Restaurant Partition Wall
Multi Color Hotel Acoustic Movable Sound Proof Operable Walls / Restaurant Partition Wall
Multi Color Hotel Acoustic Movable Sound Proof Operable Walls / Restaurant Partition Wall
Multi Color Hotel Acoustic Movable Sound Proof Operable Walls / Restaurant Partition Wall

Multi Color Hotel Acoustic Movable Sound Proof Operable Walls / Restaurant Partition Wall

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
85 mm restaurant partition walls
Material
Wood & Aluminum Alloy
Condition
New
Feature
Sound Proofing
Thickness
85 mm (3 1/4 Inch)
Finish
Melamine Surface
Height
2 - 4 Meters
Based Board
9 mm MDF Board
Capacity
50000 Sqm Per Month
HS Code
94031000
Multi Color Hotel Acoustic Movable Sound Proof Operable Walls

This banquet hall operable partition walls project features a height of 3.76 meters across 185 square meters. The system utilizes a Melamine Surface (Color: CS-3061F) to provide both aesthetic appeal and superior acoustic performance.

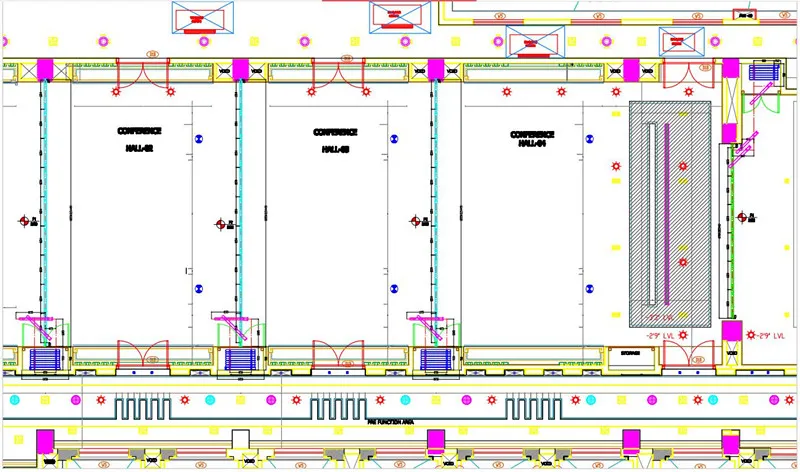

Partition Wall Project 1

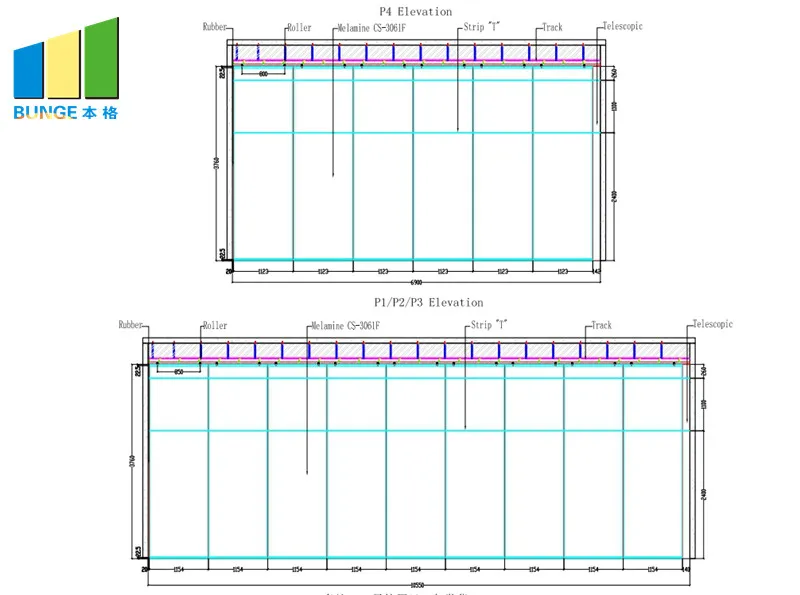

Partition Wall Project 2
Partition Wall Project 3
Technical Parameters
Series BG65 BG85 BG100
Panel Suspension Top hung only Top hung only Top hung only
Panel Thickness 65mm 85mm 100mm
Max Height 4000mm 6000mm 18000mm
Sound Insulation 28-38dB Rw 28-42dB Rw 32-50dB Rw
Finish Material Plywood, MDF, Laminate, Melamine, Fabric, Leather, Fireproof board, etc.

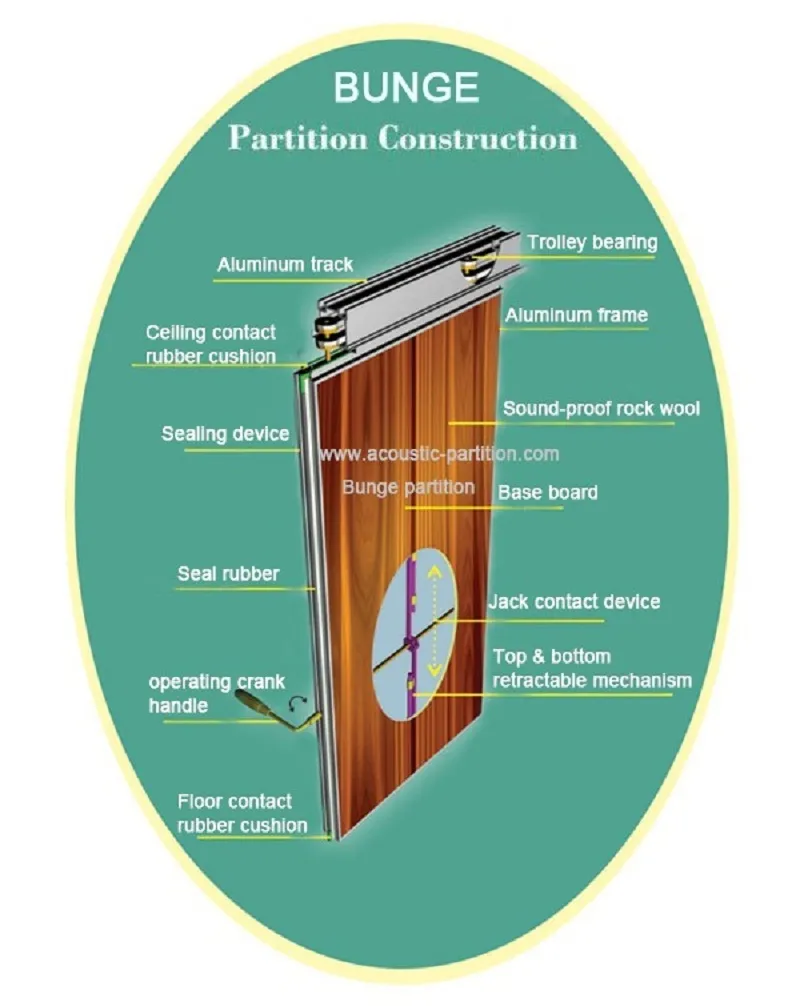

Technical Drawing
Key Features & Benefits
  • Hanging System: Ceiling rails only, no floor tracks required, protecting your carpet and flooring.
  • Fully Customizable: Tailored sizes, colors, and surface materials to match your interior design.
  • Flexible Space Management: Divide large spaces into smaller rooms quickly; panels park easily when not in use.
  • Easy Operation: Designed for simplicity, allowing a single person to manage the entire setup.
  • Diverse Finishes: Over 60 colors and multiple surfaces including MDF, Melamine, Fabric, and Leather.
  • Access Options: Single or double pass doors can be integrated for easy entry and exit.

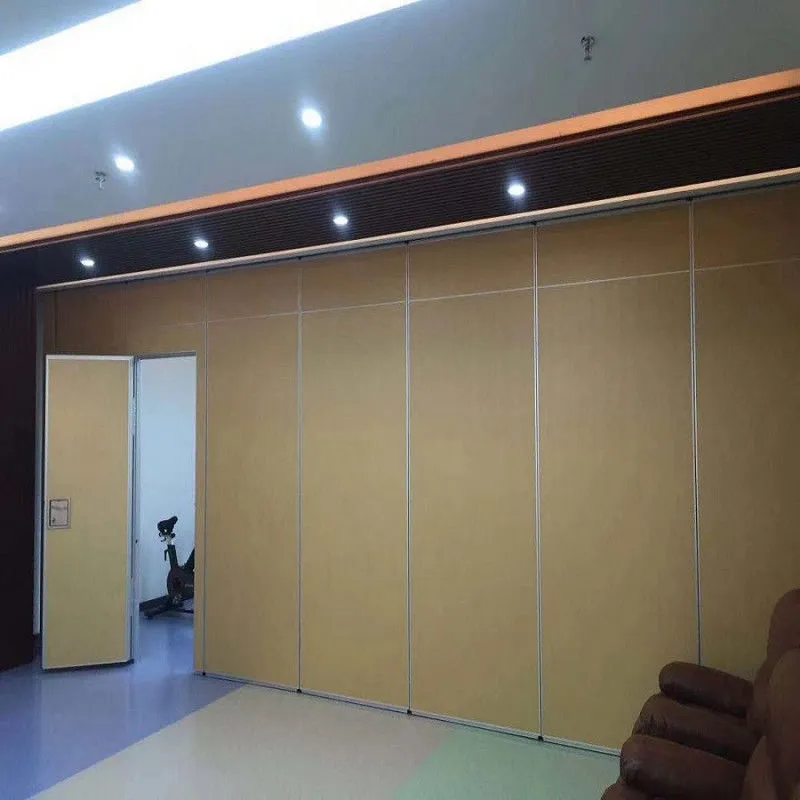

Operation Detail
Surface Options

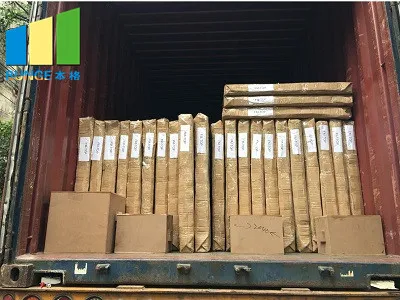

Packaging & Delivery

We ensure quick production cycles (5-7 days) and safe shipping using reinforced wooden box packaging.

Packaging 1
Packaging 2
Frequently Asked Questions
1. Do these partition walls require a floor track?
No, the system is top-hung, meaning it only requires ceiling rails. This prevents damage to your floor or carpet.
2. What is the sound insulation capability of the walls?
Depending on the series chosen (65mm, 85mm, or 100mm), the sound insulation ranges from 28dB to 50dB Rw.
3. Can I customize the surface material?
Yes, we offer a wide variety of finishes including Melamine, MDF, Plywood, Fabric, Leather, and even fireproof boards.
4. How long does the production take?
The typical production time is very efficient, usually taking only 5 to 7 days.
5. Is it difficult to move the panels?
Not at all. The system is designed for easy operation, and a single person can typically move and lock the panels into place.
6. What is the maximum height available for these walls?
Our ultra-high systems can reach up to 18 meters, while standard restaurant partitions typically range between 2 to 6 meters.
