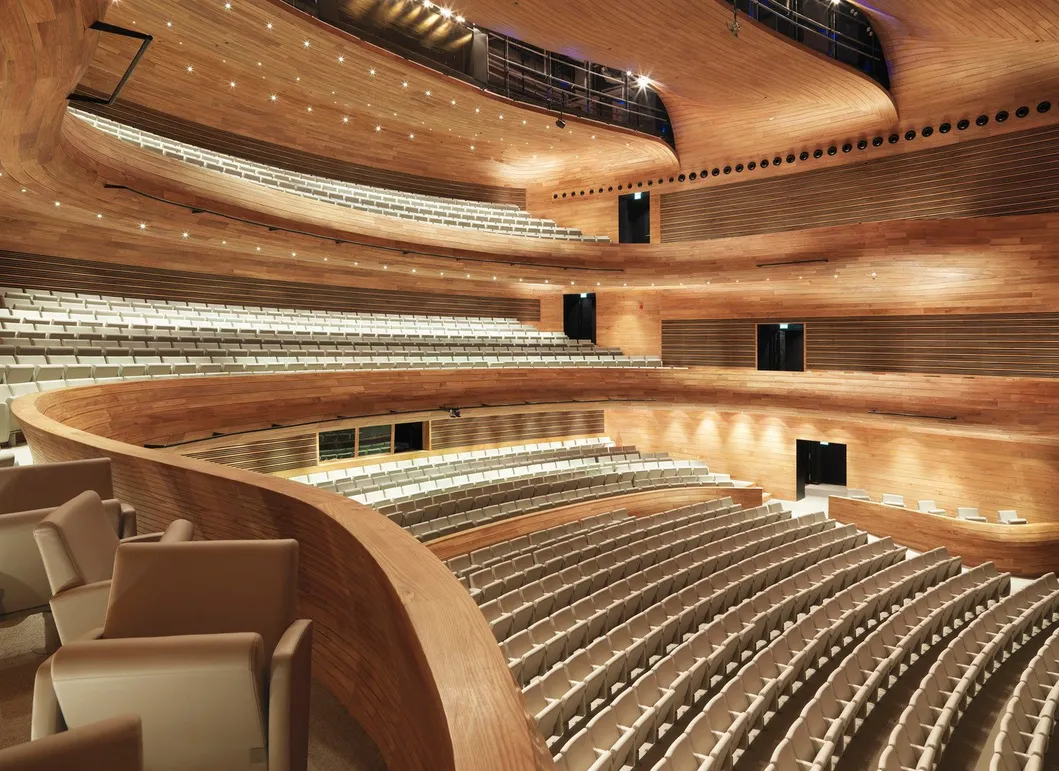

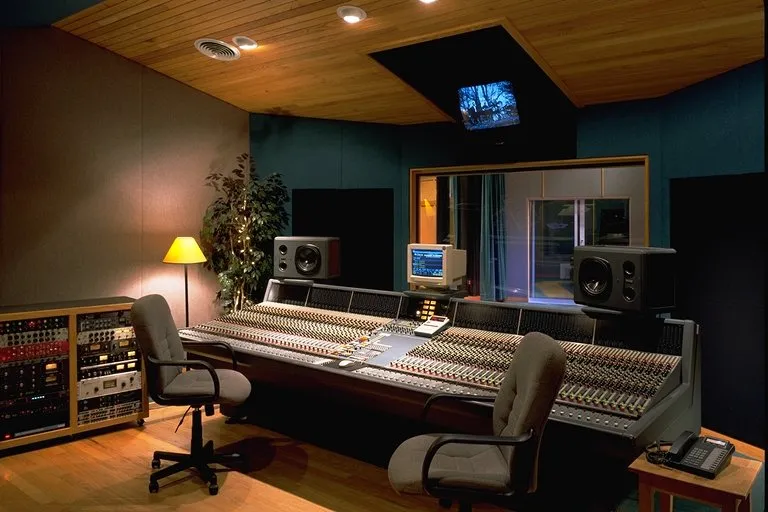

The Wooden Timber Acoustic System utilizes aesthetically pleasing wood plank panels to create exquisite wall and ceiling treatments. The system focuses on creating high-performance acoustical products with an exceptional visual appearance.
With perforated panels, it is possible to achieve installations that meet high levels of absorption and a superior aesthetic standard at a competitive cost. Using different patterns and groove widths, varying levels of absorption and diverse aesthetic results can be obtained.
Acoustical Wooden Acoustic Panels come in a variety of configurations to meet all acoustical requirements. They balance sound reflection and absorption through precise perforations. Using perforated rigid materials in conjunction with absorptive backings allows for aesthetically pleasing finishes while providing excellent acoustic performance.
Our production process selects wood veneers sliced from hand-picked logs bonded to fire-retardant medium density fiberboard. A manufacturing application of two coats of UV polyacrylate lacquer ensures consistent quality for each panel on every project. The reverse side of each panel features a layer of felt acoustic textile.
| Feature | Details |
|---|---|

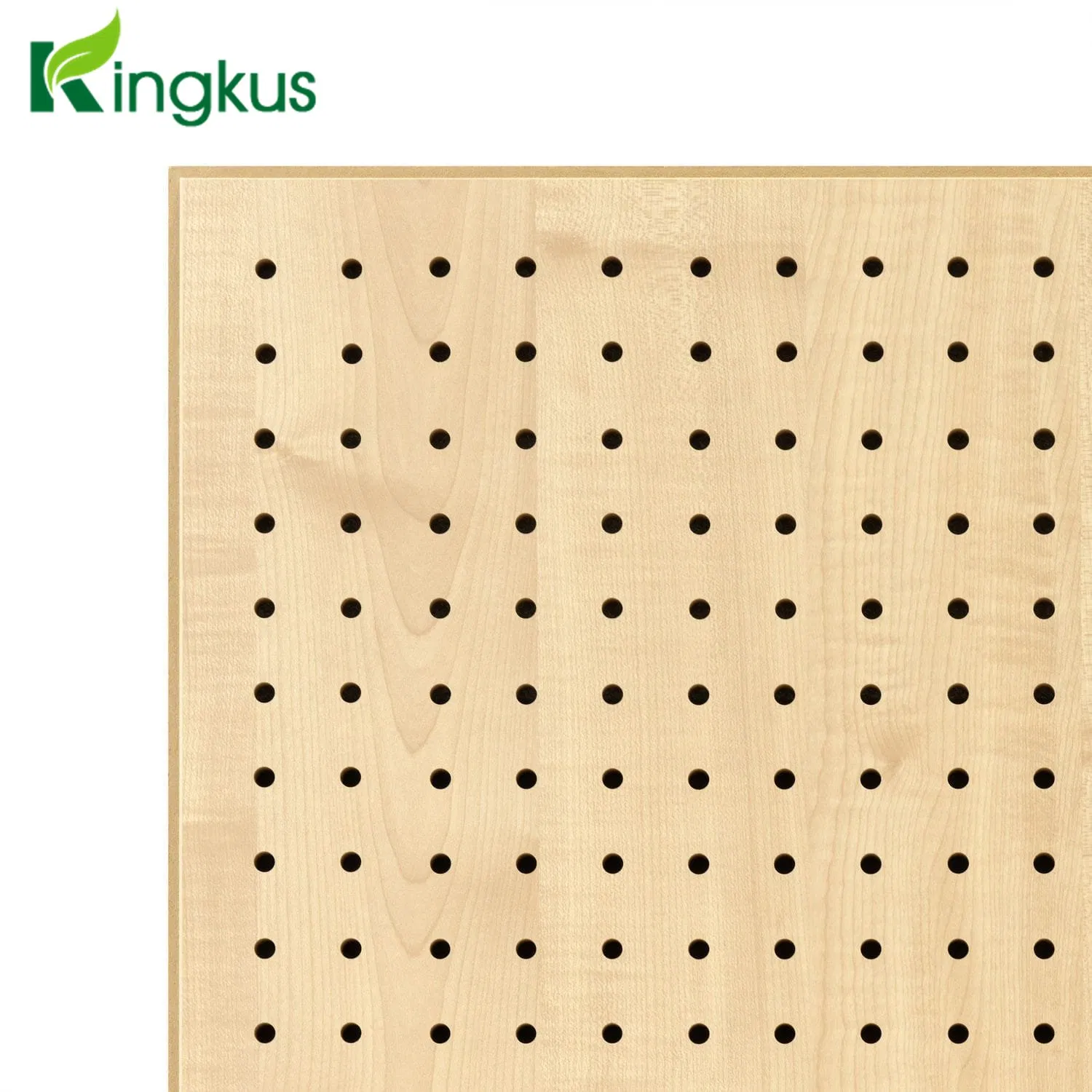

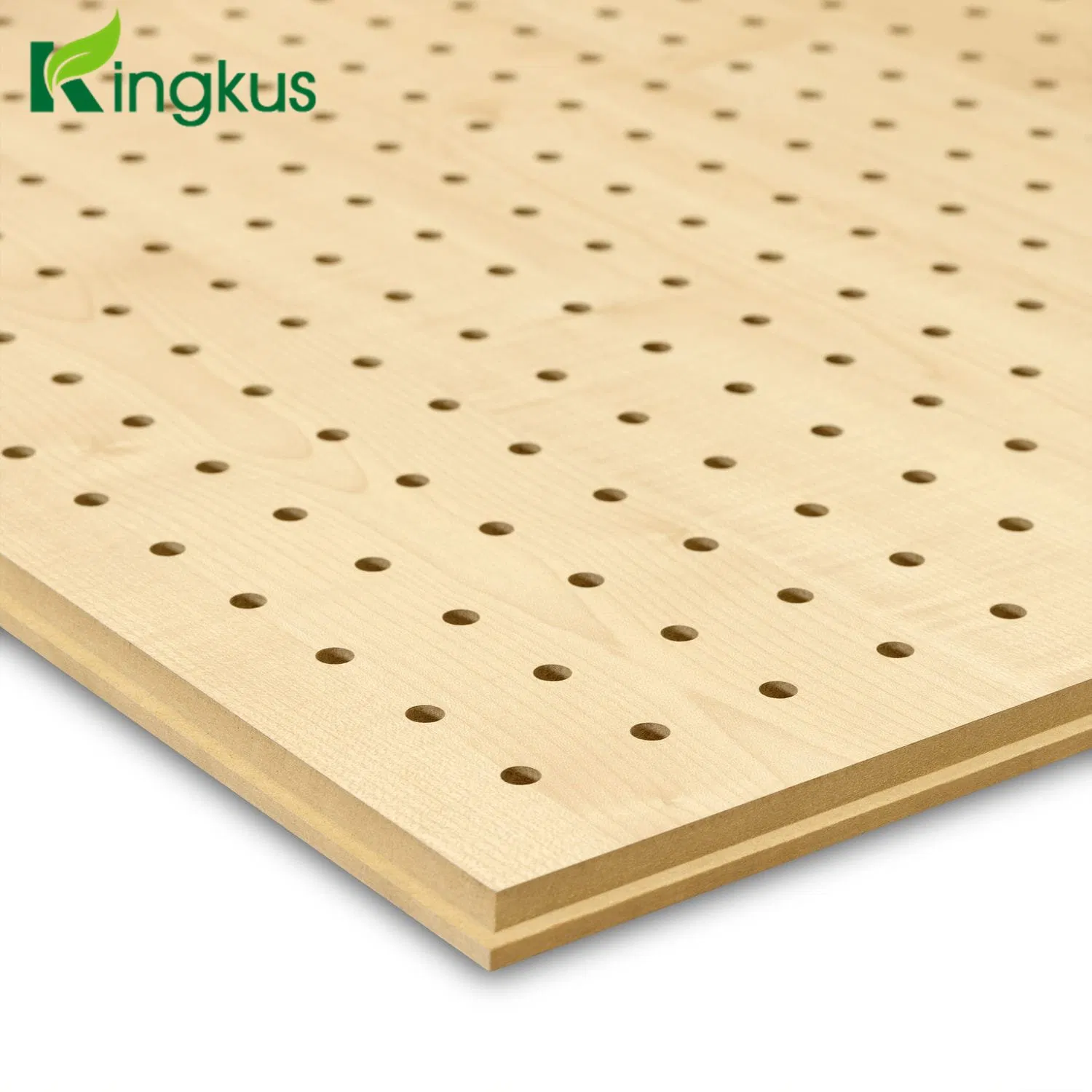

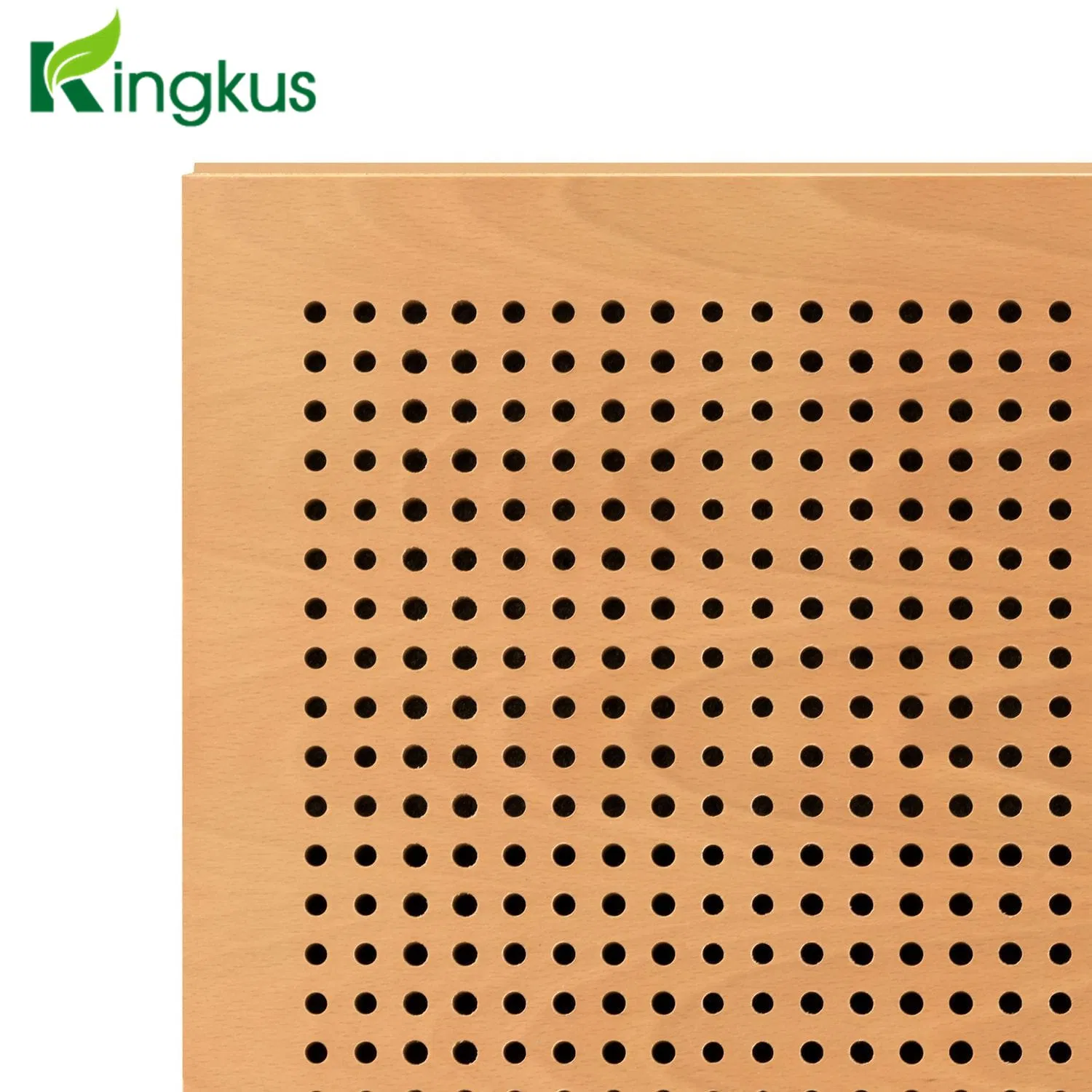

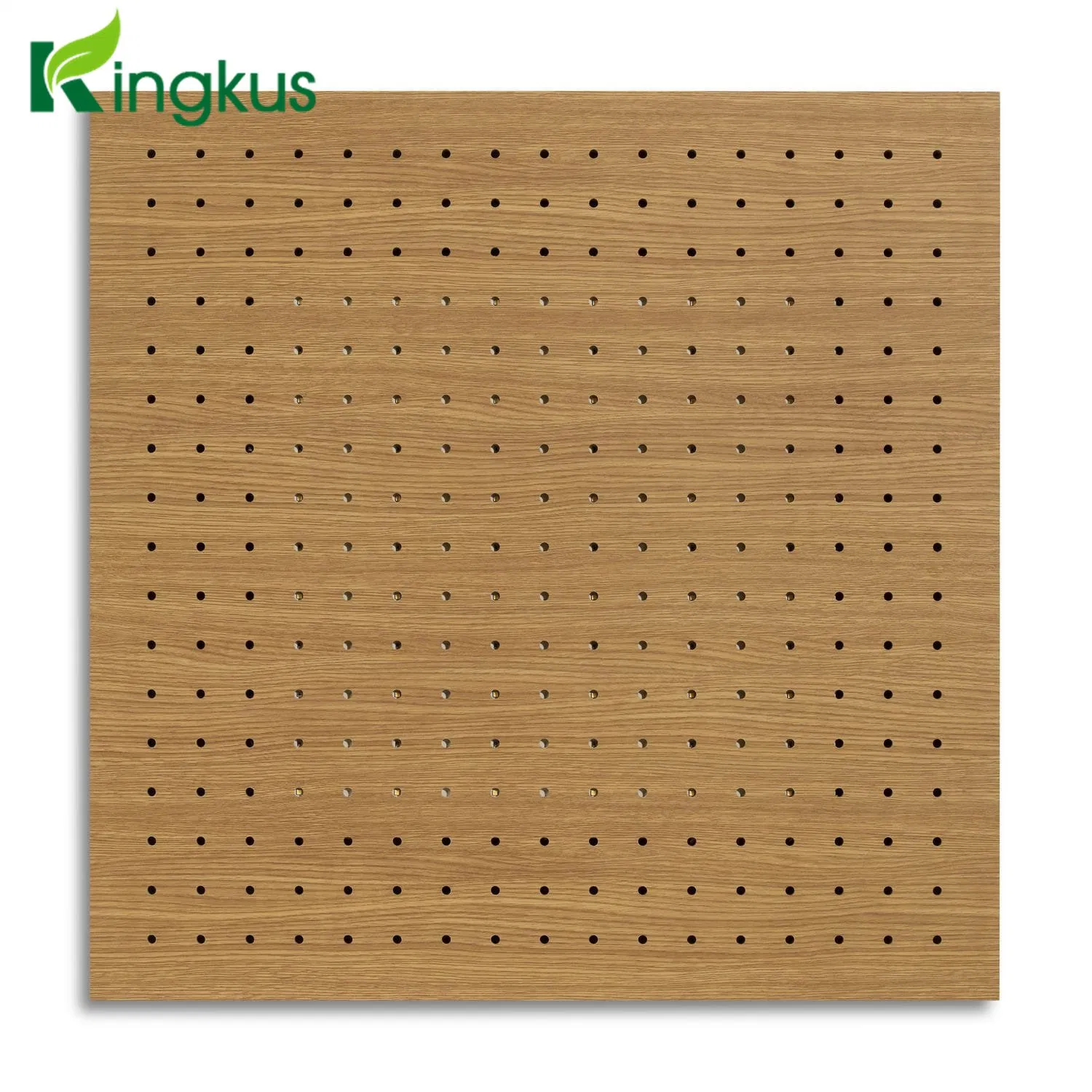

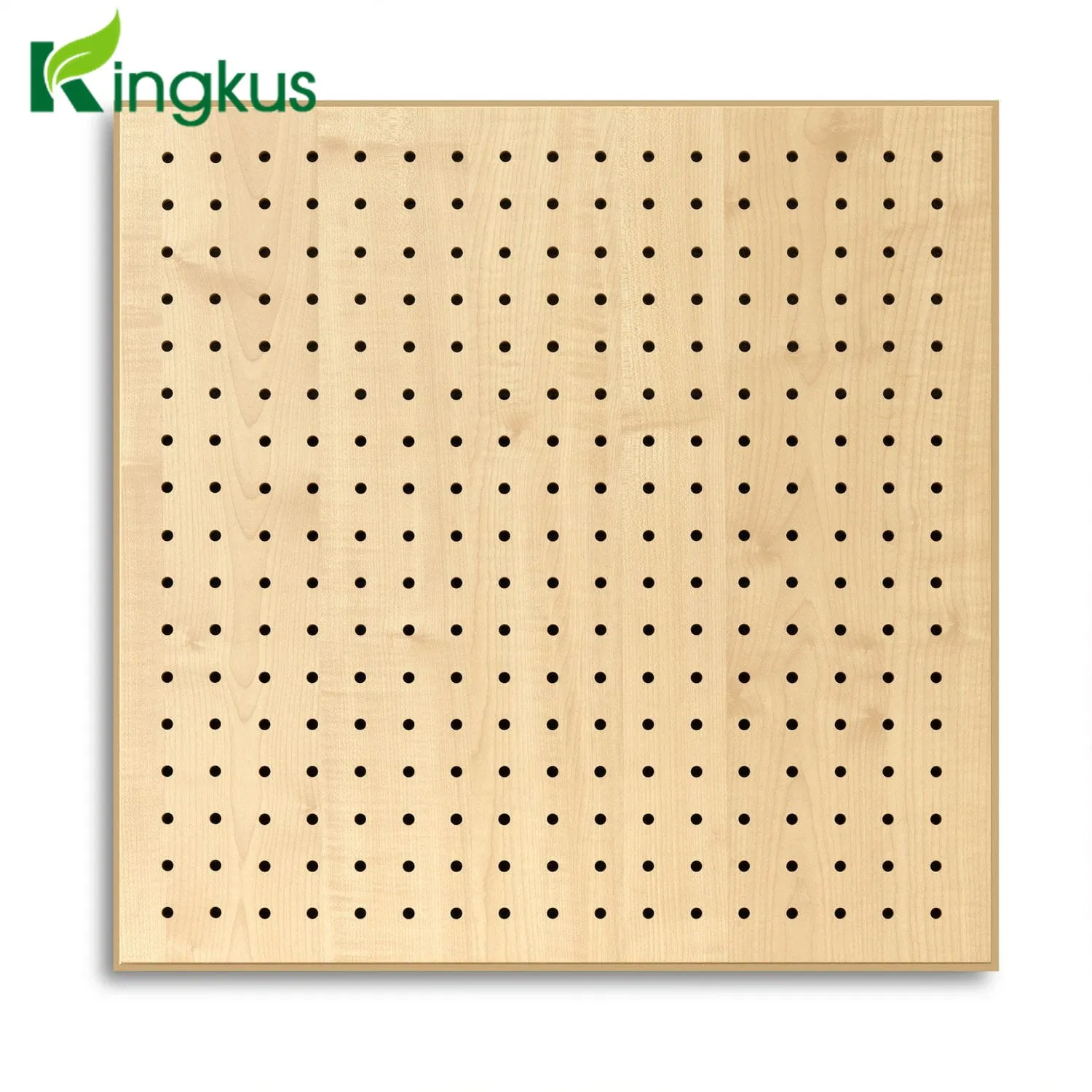

| Model | P316 Perforated wooden panel |
| Specification | Hole 3mm, Center to Center 16mm |
| Thickness Options | 12mm / 15mm(16mm) / 18mm |
| Surface Finishes | Melamine / Wooden Veneer with Varnish / Painting / HPL |
| Core Material | E0 MDF / B1 MDF / Magnesium composited |
| Installation | Aluminum keel and clips, wood frame, gun nail |
| Tests Passed | Eco protection, sound absorption, flame retardant |
| Model | Specification Code | NRC Rating | Open Area |
|---|---|---|---|
| P316 | P/M/V-P-3/8-16-16 | 0.85 | 3% |
| PL316 | P/M/V-PL-3/8-16-16 | 0.85 | 3% |
| P616 | P/M/V-P-6/6-16-16 | 0.87 | 11% |
| PL616 | P/M/V-PL-6/6-16-16 | 0.87 | 11% |
| P916 | P/M/V-P-9/9-16-16 | 0.92 | 25% |
| PL916 | P/M/V-PL-9/9-16-16 | 0.92 | 25% |
