Premium-Quality Movable Operable Partition Acoustic Walls

1 / 5

Premium-Quality Movable Operable Partition Acoustic Walls

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Style

Modern

Color

Customized

Certification

CE, ISO9001

Material

Aluminum Frame

Panel Height

3000mm~16000mm

Panel Width

600mm~1200mm

Sound Insulation

40-56dB

Fire Rating

1.5 Hours

Frame Material

6063-T6 Aluminum Alloy

Surface Finish

MDF, Plywood, Fabric, Vinyl

Panel Weight

Max 550kg/Panel

Production Capacity

10000 Square Meters Per Year

Product Description

Premium-Quality Movable Operable Partition Acoustic Walls

We service all types of operable walls, room dividers and acoustical divider partitions. Designed to meet the diverse needs of modern spaces, this sliding acoustic wall system offers unparalleled flexibility and superior sound control, making it the ideal choice for any environment.

Crafted with meticulous attention to detail, our movable operable partition is engineered to deliver exceptional performance and durability. Constructed with high-quality materials, this partition ensures long-lasting functionality, allowing you to effortlessly transform your space as needed. Whether you require a temporary division for conferences, meetings, or events, or a permanent solution for creating separate areas within a larger space, our operable partition is the perfect solution.

Key Mechanism & Seals

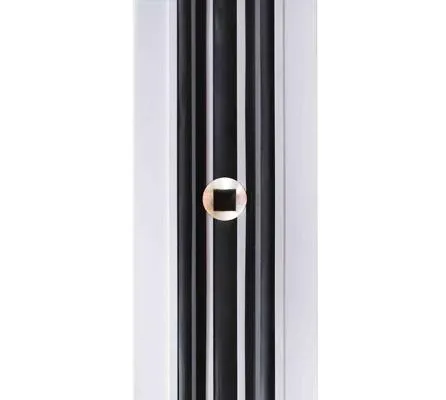

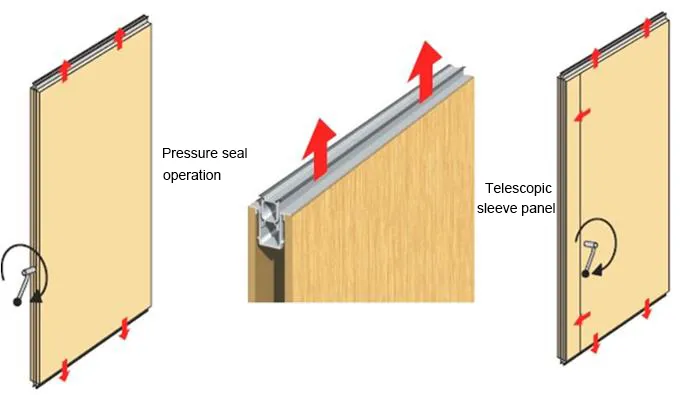

Retractable Pressure Seals: Once the panel is positioned, they are sealed in place with retractable pressure seals. Top and bottom seals are extended and retracted by a single 180°turn removable operating handle.

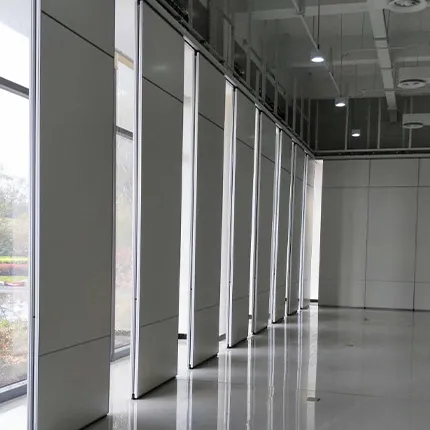

Telescopic Sleeve Panel: Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. The rubber sealing strip on the side edge of telescopic panel can seal the wall tightly to reach acoustic integrity.

Features & Benefits

Movable, top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles

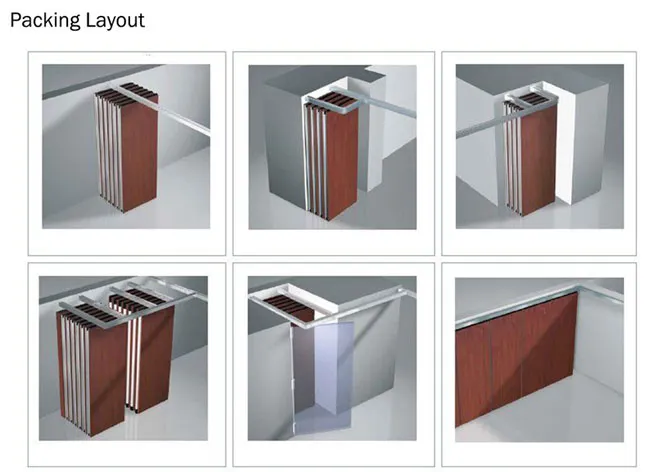

Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies provide smooth and silent movement
Various levels of sound reduction (40-56dB)

Technical Information

Feature	Specification Details
Panel Suspension	Top hung system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames.
Top & bottom seals	Retractable seals ensure effortless movement and locking.
Panel face	MDF, Plywood, woven fabric, Leather, Natural wood veneer, Melamine, etc.
Finishes	Satin anodised or polyester powder coating in various colors.

Product Selection Guide

Model Type	65mm Series	80mm Series	100mm Series
Max Height	4000mm	6000mm	16000mm
Sound Insulation	40dB Rw	45-50dB Rw	50-56dB Rw
Weight (approx)	33-40kg/sqm	43-50kg/sqm	63-70kg/sqm

Service Process

1. Design & Quote: Provide architecture drawings and requirements. We create the scheme and quotation.

2. Production: Production begins after design confirmation and payment according to the agreement.

3. Packaging & Shipping: Packages are clearly marked and packed for international export standards.

4. Technical Support: We provide detailed installation instructions, plans, elevations, and shop drawings.

5. Installation Guidance: Experienced supervisors can be sent to direct the installation and commissioning upon request.

Frequently Asked Questions

1. Is the movable partition soundproof?

Yes, our systems are engineered for soundproofing. We use various acoustic fillings and seals to achieve ratings from 36dB to 56dB, depending on the panel thickness and project requirements.

2. How is the partition supported?

The system is top-hung, meaning it is supported by an overhead track. No floor tracks are needed. A support steel structure must be built on-site to carry the full weight of the wall.

3. What surface finishes are available?

We offer a wide range of finishes including melamine, laminate, wood veneer, fabric, leather, and even professional sound-absorbing perforated boards.

4. What is the typical lead time?

Depending on the project area and customization requirements, the lead time usually ranges from 25 days to 90 days.

5. How are the products packed for transport?

We use corrugated paper packaging and MDF batten covers for all corners. Panels, tracks, and fittings are packed separately to ensure safety during sea transport.

6. What is the warranty for the partition system?

We provide a 3-year quality warranty covering the frame, hardware, and accessories under correct operation. Replacement parts are provided in case of quality issues.
