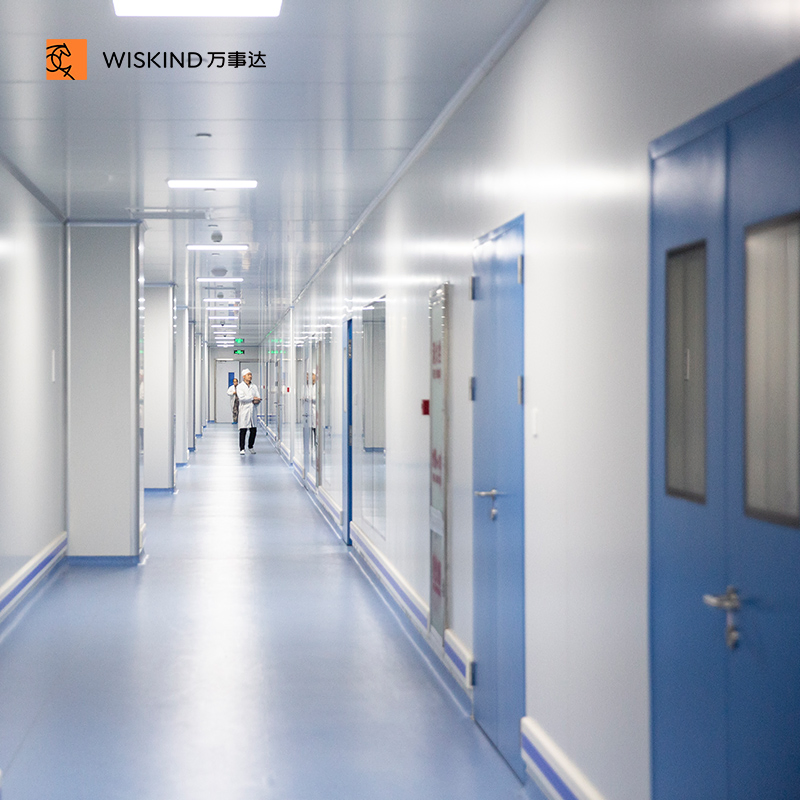

50mm/75mm/100mm Rockwool/Paper Honeycomb/Aluminum Honeycomb/EPS/PU Sandwich Wall Cleanroom System for Food

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
Window Tck 50mm, 75mm, 100mm
Application
Laboratories, Operating Rooms, Pharmaceutical
Usage
Dust/Smoke Removal, Humidification, Electronic, Food
Panel Thickness
50mm
Panel Width
980mm
Floor Type
PVC Floor
Panel Core
EPS/PU/Honey Comb/HPL/Magnesium
Single Door
900mm*2100mm, 1000mm*2100mm
Double Door
1200mm*2100mm, 1500mm*2100mm
Window Spec
980mmx1200mm, 1963mmx1200mm
Lighting
LED Lighting
HVAC System
Temperature & Humidity Control
Production
2 Million Sqm/ Year
HS Code
94069090

Product Overview

The company specializes in R&D, manufacturing, and sales of cleanroom systems, ceiling systems, and a comprehensive range of specialized doors and windows. Founded in the late 1970s, the enterprise focuses on cleanroom containment system research and development, covering an area of 1000 mu with a dedicated staff of over 1700 people.

With over 41 years of experience in industry research and resource integration, we have become a professional service provider for cleanroom containment systems, holding certifications including FM, CE, SGS, ISO9001, and ISO14001.

Cleanroom System Overview

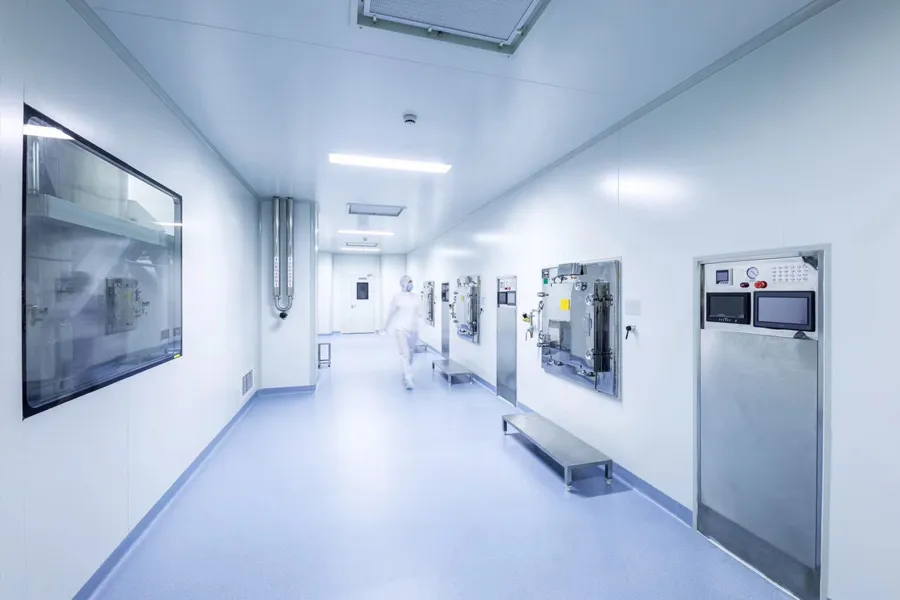

Wall System Detail

Cleanroom Wall & Ceiling Systems

We offer 5 distinct cleanroom panels adaptable to various modular systems. These products feature excellent performance, factory prefabrication, and easy on-site module installation. Solutions include quick detachable systems, VHP resistant agent panels, and anti-condensation frames.

Handmade Cleanroom Panel Parameters
Width980mm
Max Length7500mm
Wall Thickness50mm
Steel Thickness0.4-0.8mm
Outer Plate MaterialPPGI, Al-mg-Mn Alloy, SS Steel, Ti-Zn, HPL, VCM
CoatingPE, PVDF, HDP
Core MaterialPU, Rock Wool, Magnesium, Honeycomb, Plaster, EPS
ApplicationPharmaceutical, Electronic, Food Cleanrooms

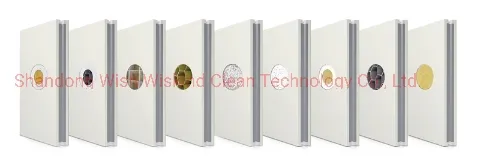

Panel Structure

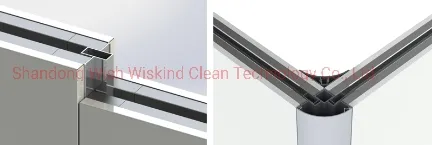

Installation Detail

Key Advantages

  • Verified core material fire ratings for enhanced safety.
  • Modular installation via aluminum profiles for fast assembly.
  • Full factory customization to meet non-standard requirements.
  • Diversified core materials for thermal insulation, noise reduction, and moisture resistance.
  • Superior flatness and aesthetics with stable product quality.
  • Pre-assembled hole reinforcements and pipeline boxes to reduce secondary pollution.

Steel Cleanroom Door Parameters

Specification900x2100mm, 1000x2100mm, 1200x2100mm, 1500x2100mm (Customizable)
Door Frame TCK1.2mm Galvanized Sheet
Door Leaf TCK1.0mm Galvanized Sheet
FillerPaper Honeycomb, Aluminum Honeycomb
Window5mm+5mm TCK Double Glass
Surface TreatmentElectrostatic Resin Powder Coating
Hardware304 Stainless Steel Handle Lock & Hinges
SealingAutomatic Bottom Pressing Sealing Strip

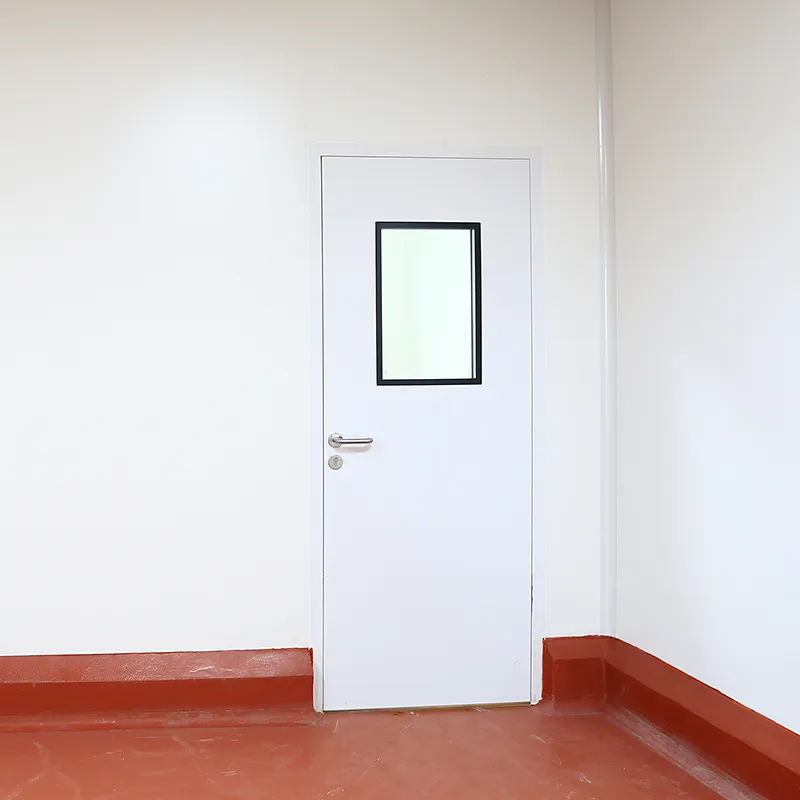

Cleanroom Door

Quality Assurance & Innovation

An independent quality assurance center manages raw material inspection, product testing, and process audits. We utilize advanced equipment like the American spectral hue meter for color consistency and conduct rigorous tests for acid and alkaline resistance.

Our high-quality rock wool core is specially waterproofed (hydrophobic rate ≥98%) with a melting temperature up to 1000°C. We implement TPM5S on-site management and a C-QTC quality system to ensure zero defects.

Testing Lab

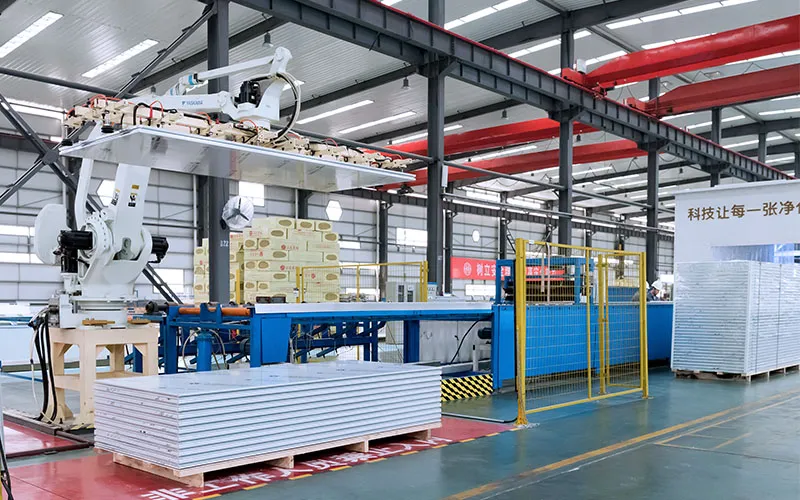

Production Line
Quality Inspection

Frequently Asked Questions

What is the typical lead time for orders?
Budgeting and design take 3-7 days after receiving the deposit. Standard production takes 15-30 days, depending on special size requirements.
What is your core competitiveness in the industry?
We operate the world's first automatic production line, increasing efficiency by 6-8 times compared to traditional manual lines, ensuring lower costs and higher quality.
Do you provide installation support?
Yes. While we don't have a construction team, our modular design allows for easy assembly. We provide detailed instructions, videos, and can send professional supervisors to your site.
How many types of cleanroom products do you offer?
We offer over 30 different products, including wall panel systems, ceiling systems, specialized doors, and windows.
Can I request product samples?
Yes, we provide samples free of charge. We only ask that the customer covers the freight costs.
What are your standard payment terms?
Our standard terms are 30% T/T prepaid and 70% T/T before delivery. Other arrangements can be discussed for long-term cooperation.

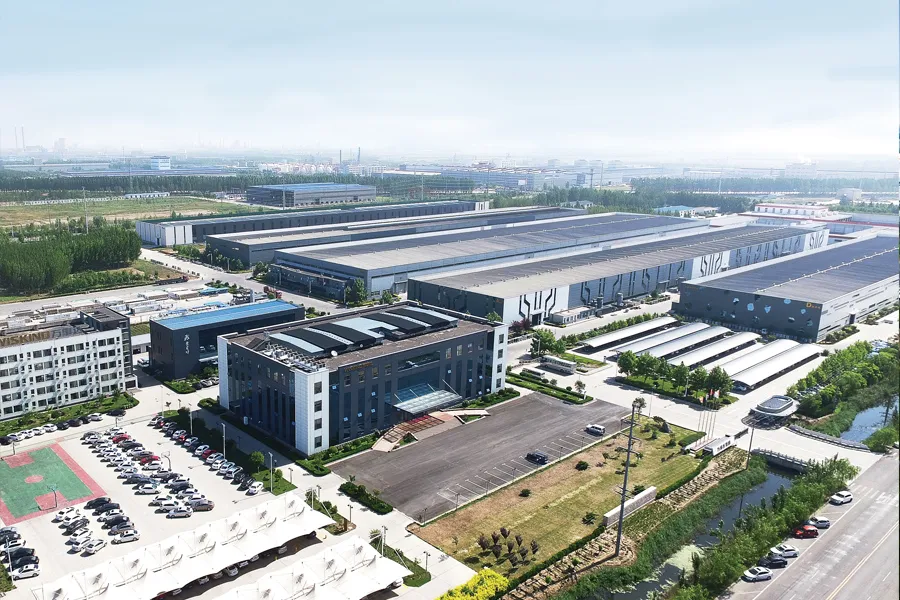

Manufacturing Facility
