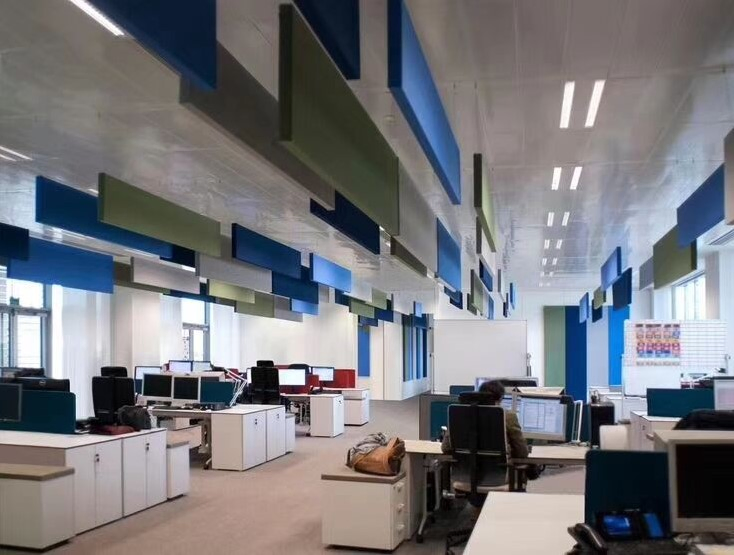

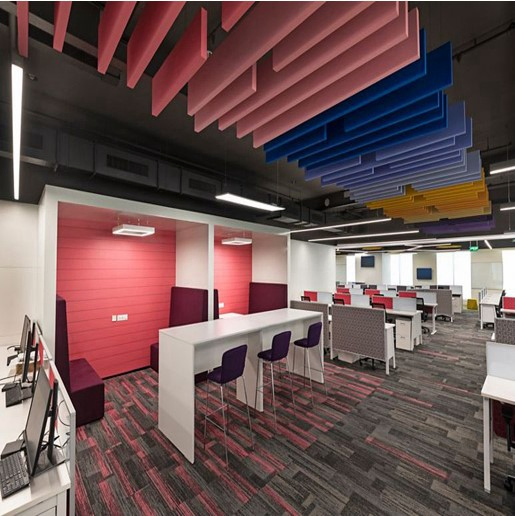

Acoustic Ceiling Baffles are a tasteful option for reducing reverberations and improving intelligibility in any space. Designed to hang from the ceiling, they capture ambient energy by absorbing sound as it hits the face of the panel while trapping powerful reflections from the back side.

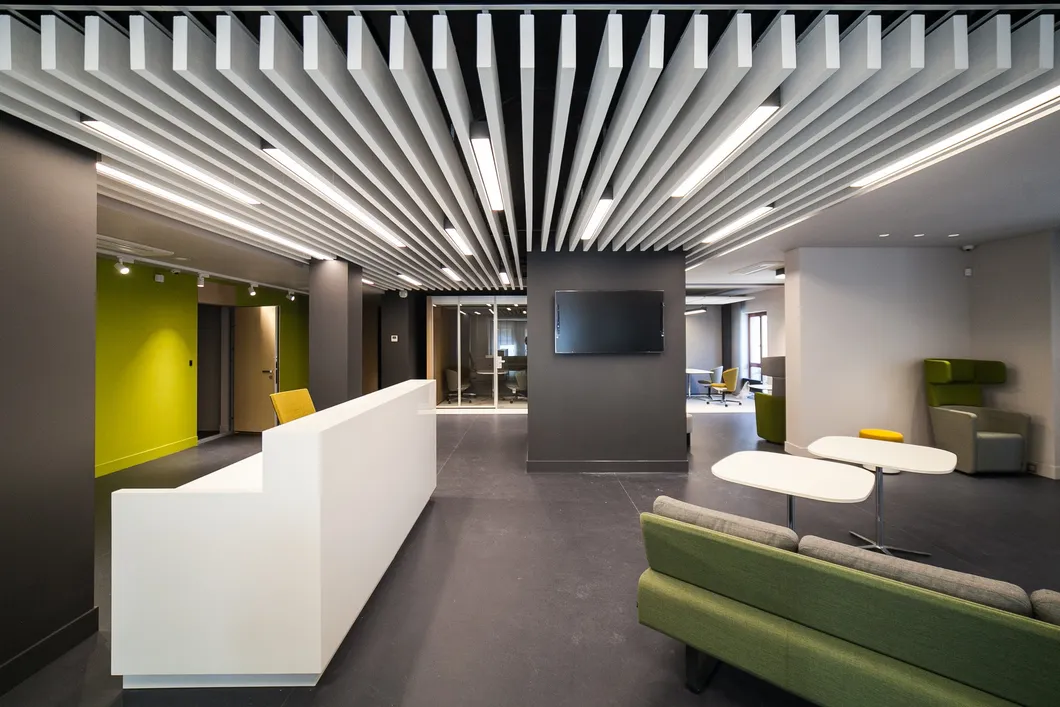

1. Acoustic ceiling baffles - 1200x200mm
Size: 1200x200x40mm | Weight: 1.3kg/pcs. Manufactured from high density glass wool with fiberglass felt on all sides. Edges are straight cut and wrapped.

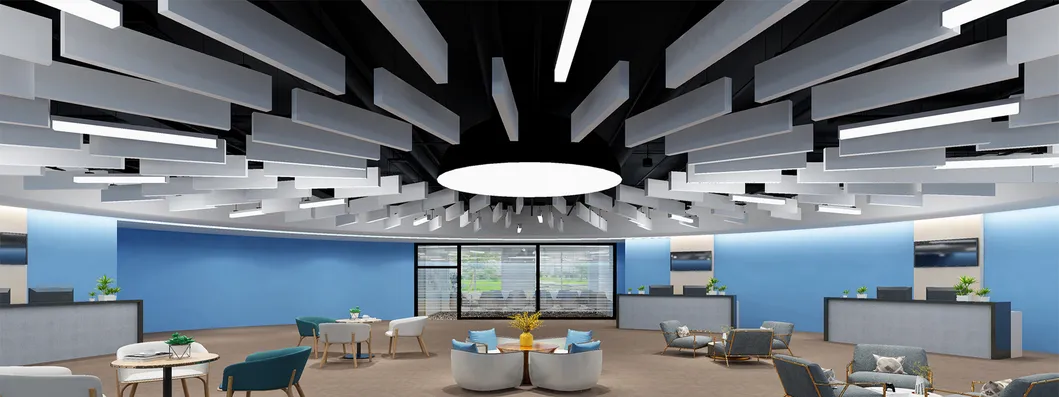

2. Acoustic ceiling baffles - 1200x300mm
Size: 1200x300x40mm | Weight: 1.8kg/pcs. Offers unique shapes and sizes for architects and designers to create bold, architecturally pleasing creative solutions.

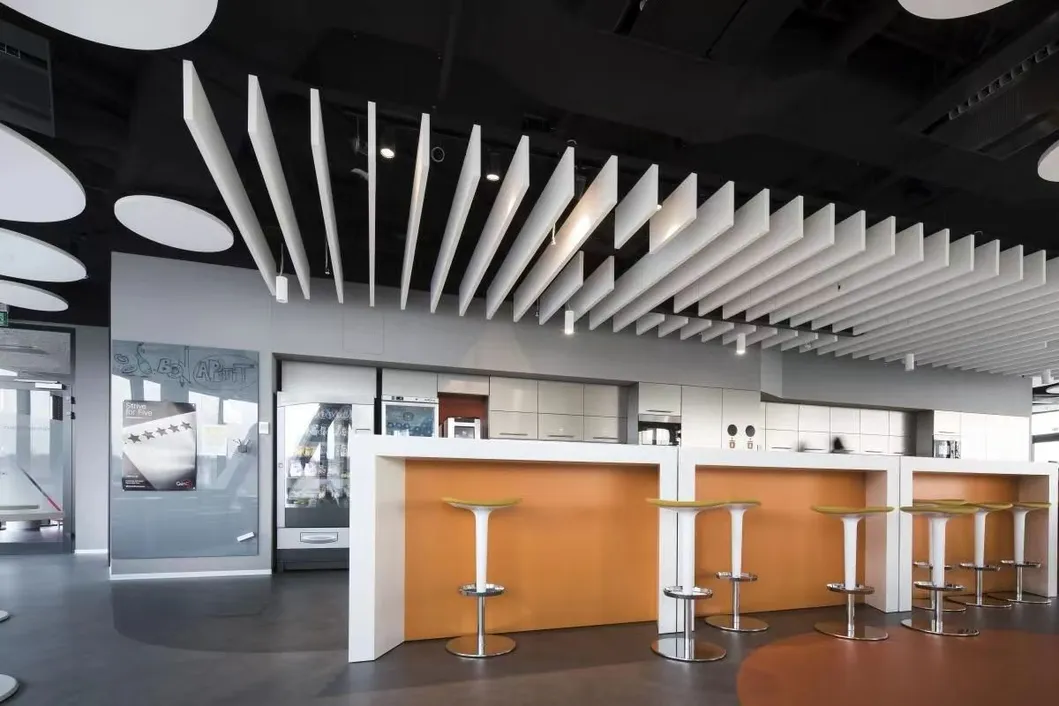

3. Acoustic ceiling baffles - 1200x400mm
Size: 1200x400x40mm | Weight: 2.4kg/pcs. Laboratory tested for performance (NRC 0.9) and fire safety (Class-A1 rating by SGS).

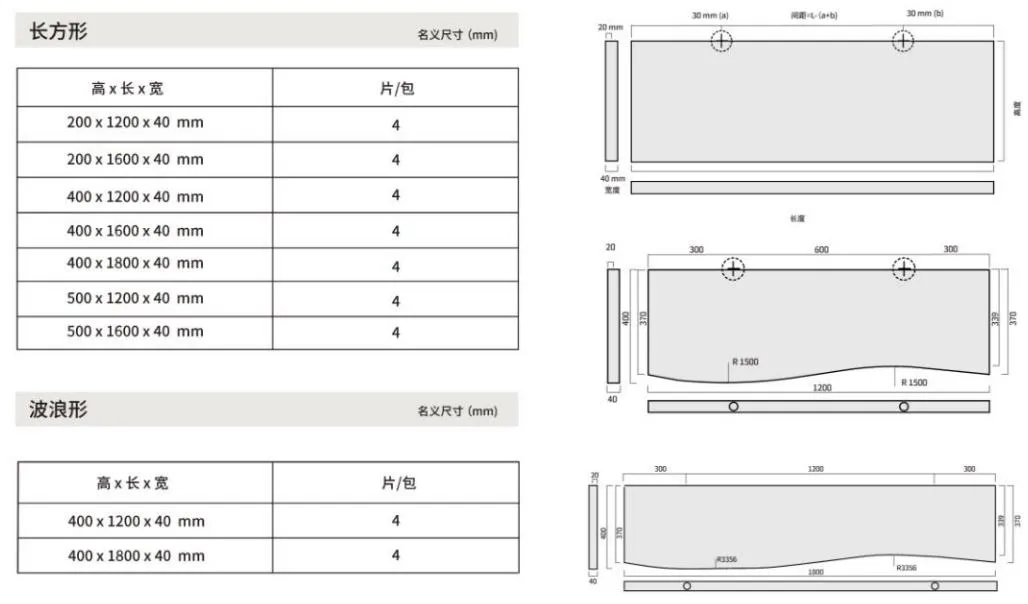

Shapes & Installation

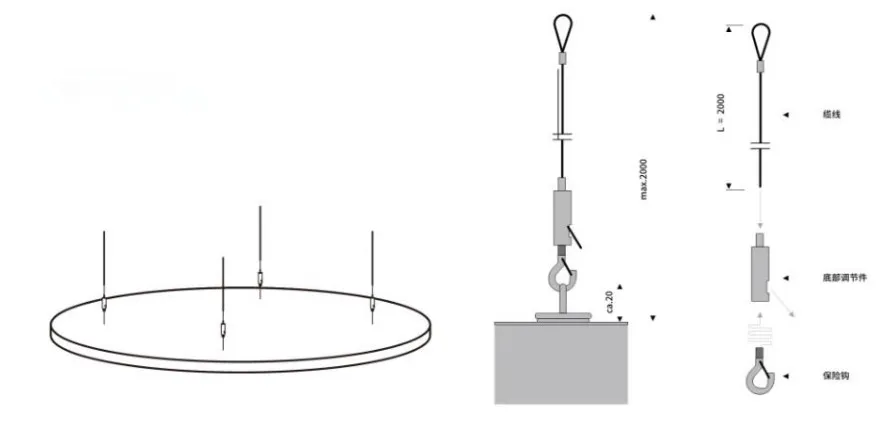

The suspension accessories are composed of a spiral spring, 2m cable, and an adjusting hook for easy installation.
Color Options
Technical Data
| Main Materials | High density glasswool and fiberglass tissue |
| Surface Finishing | Special painted laminated with decorative fiberglass tissue |
| Surface Designs | White plane / white point / black plane or other colors |
| NRC | 0.8-0.9 (Tested by SGS ENISO354:2003) |
| Fire-Resistant | Class A1 (Tested by SGS EN13501-1) |
| Humidity | Stable with RH up to 95% at 40°C, no sagging or warping |
| Moisture Rate | ≤1% |
| Light Reflectivity | 0.85 |
| Density | 120-130kg/cbm |

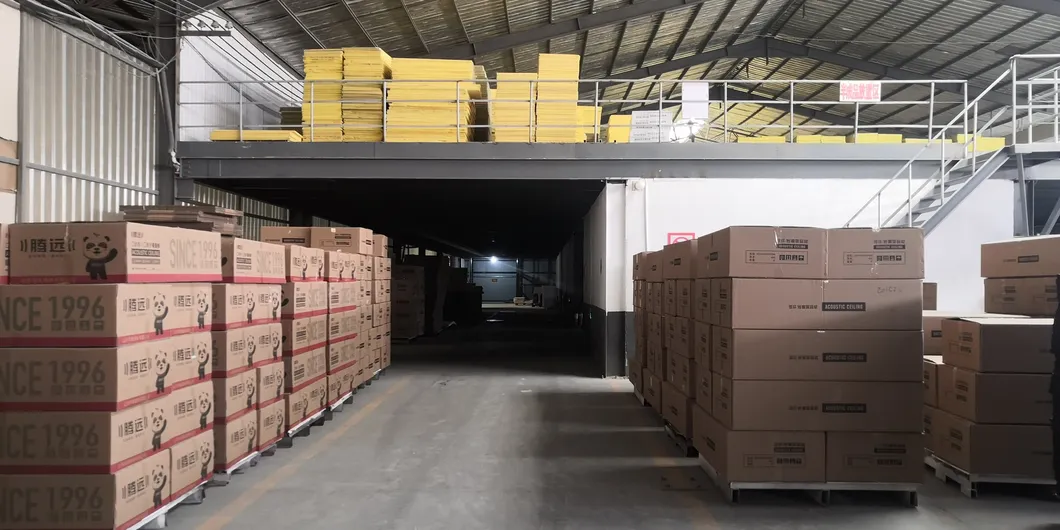

Production & Quality
We are a specialized factory integrating research, development, production, and sales of ceiling and wall decoration products. With nearly 20 years of history, our annual production capacity reaches 5 million square meters, serving markets across Europe, America, Middle East, and Southeast Asia.
Certificates & Global Presence
Frequently Asked Questions
What is the primary material used in these acoustic baffles?
The baffles are manufactured from high-density glass wool, finished with a decorative fiberglass felt on all sides for optimal sound absorption.
What is the fire safety rating of this product?
These acoustic ceiling baffles have achieved a Class-A1 fire rating, the most stringent safety classification, as tested by SGS.
How effective are they at absorbing sound?
The product has a Noise Reduction Coefficient (NRC) of 0.8 to 0.9, making it highly effective at reducing reverberation and ambient noise.
Can these baffles be used in humid environments?
Yes, they are dimensionally stable in environments with relative humidity (RH) up to 95% at 40°C, resisting sagging, warping, or delaminating.
What sizes are available for the ceiling baffles?
Standard sizes include 1200x200mm, 1200x300mm, and 1200x400mm with thicknesses ranging from 30mm to 70mm. Customized sizes are also available.
What is included in the installation kit?
The suspension system typically includes a spiral spring, a 2-meter cable, and an adjustable hook for precise positioning.
