■ Basic Specifications
Model NO.
25mm Fabric Wrapped Panel
Fire Rating
ASTM Class A / Class B1
Installation
Adhesive / Wooden Keel

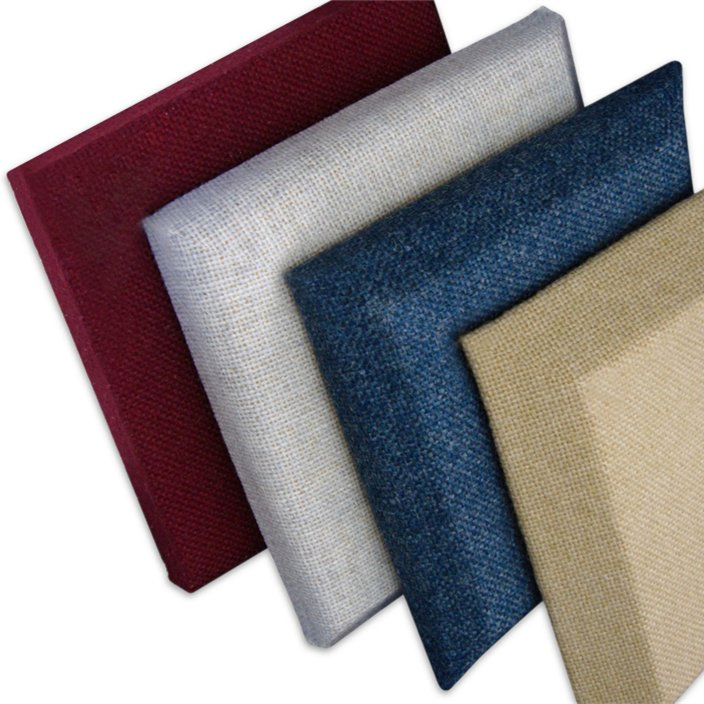

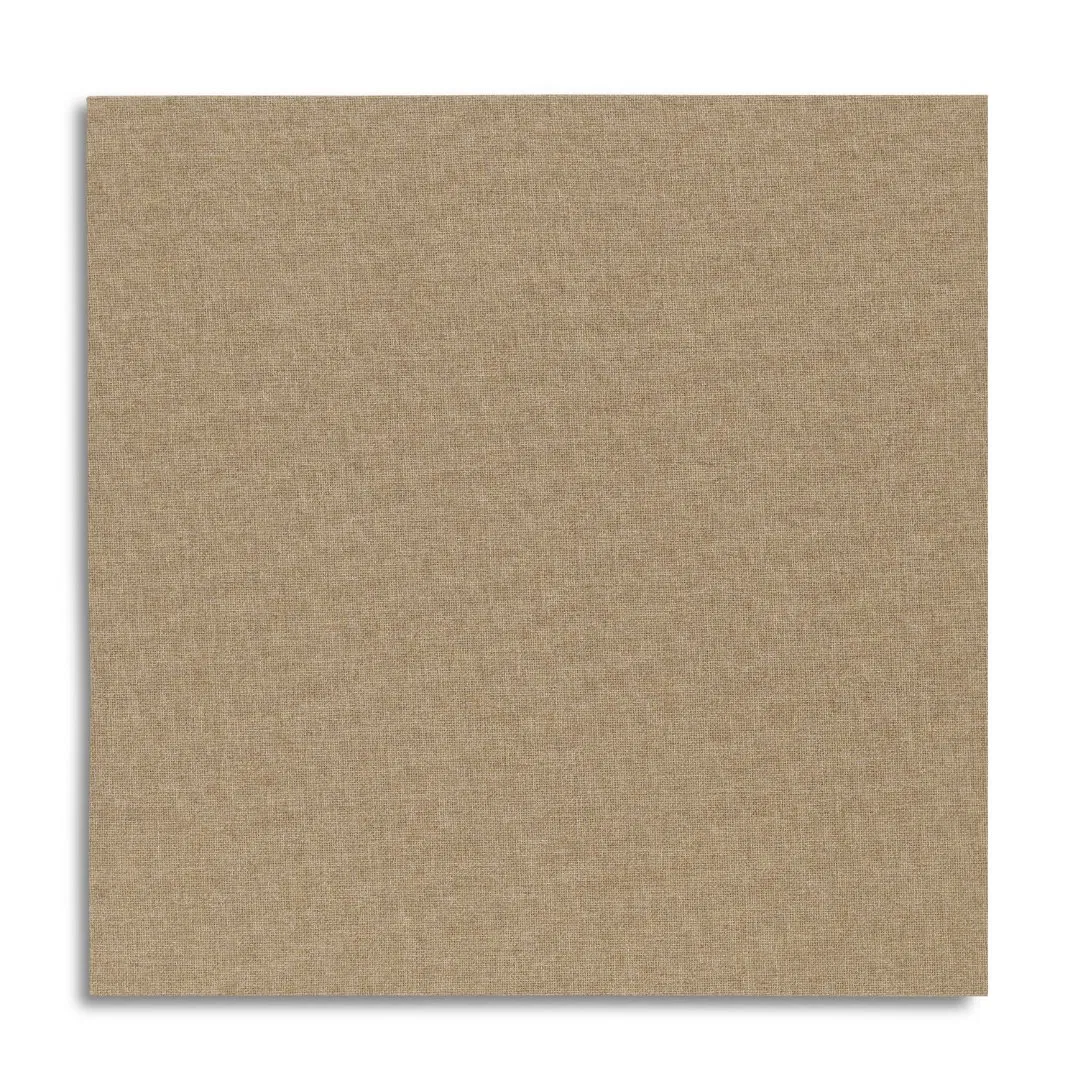

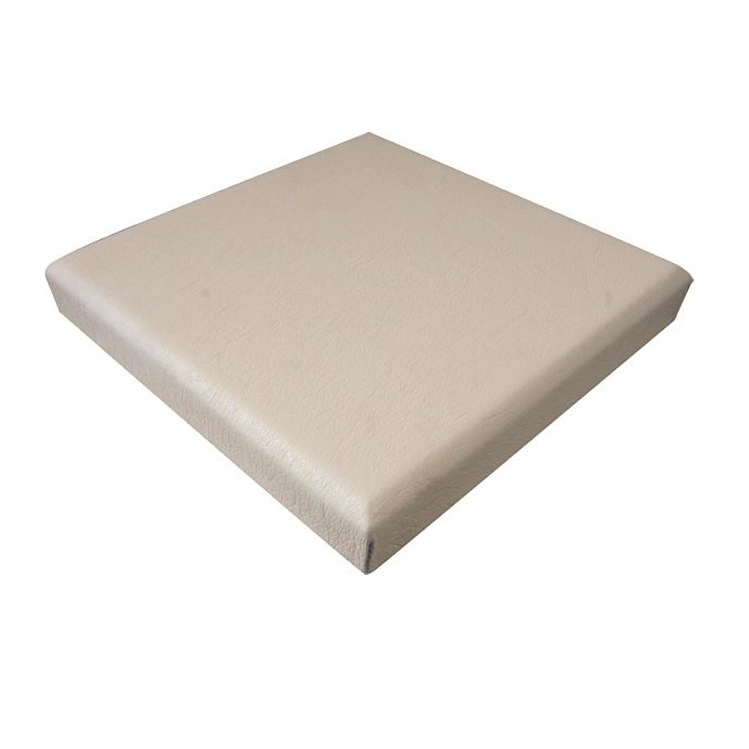

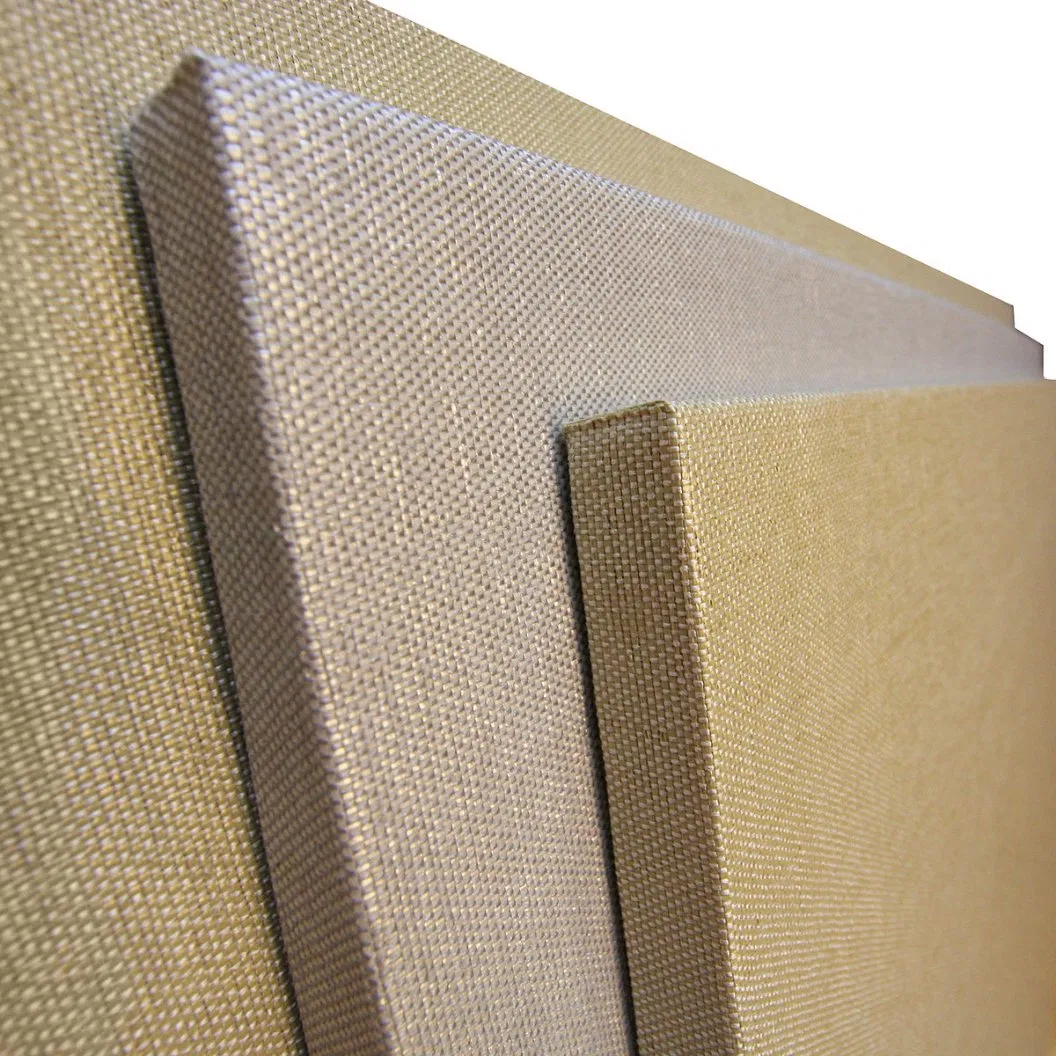

■ Product Description
Fabric wrapped acoustic panels are a premier solution for sound absorption and noise control across various environments. Designed for both public and private spaces, these panels cater to diverse requirements, including sound absorption, barrier performance with mass vinyl septums, and high-impact resistance.
Utilizing an advanced fabric track system, these panels combine high-resolution imaging with superior acoustical performance. They effectively reduce echo and reverberation while introducing an elegant aesthetic to any room. Constructed with an extruded track system and a semi-rigid fiberglass core, they arrive fully assembled and ready for installation.
✔
Enhanced Intelligibility: Significantly improves speech clarity by eliminating background echo.
✔

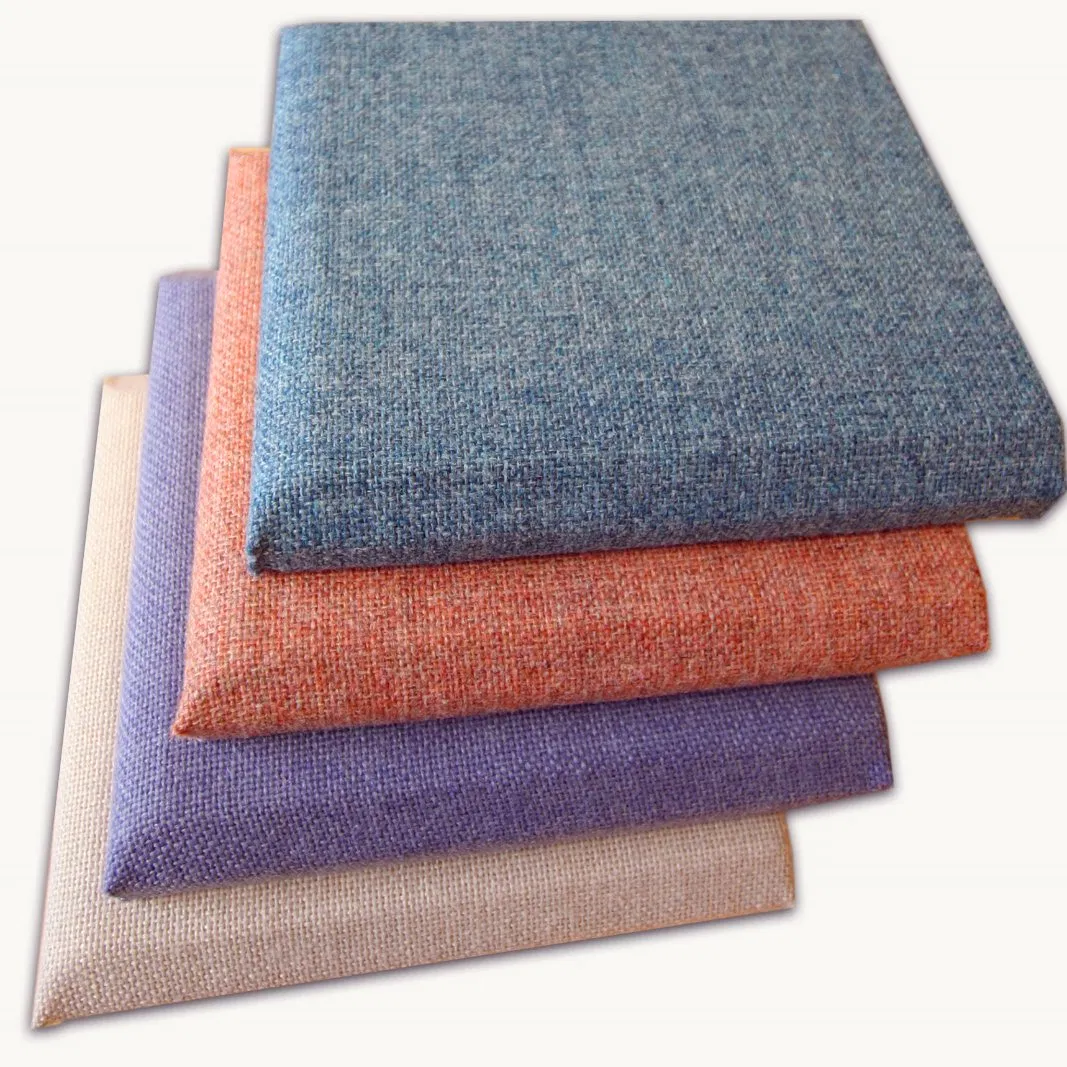

Custom Aesthetics: Supports high-resolution custom artwork and various fabric finishes.
✔
Versatile Application: Ideal for studios, auditoriums, offices, and residential spaces.
■ Sound Absorption Performance
| Thickness / HZ |
125 |
250 |
500 |
1000 |
2000 |
4000 |
NRC |
| 25mm |
0.14 |
0.27 |
0.80 |
1.11 |
1.14 |
1.14 |
0.85 |
| 50mm |
0.22 |
0.81 |
1.24 |
1.30 |
1.21 |
1.16 |
1.15 |

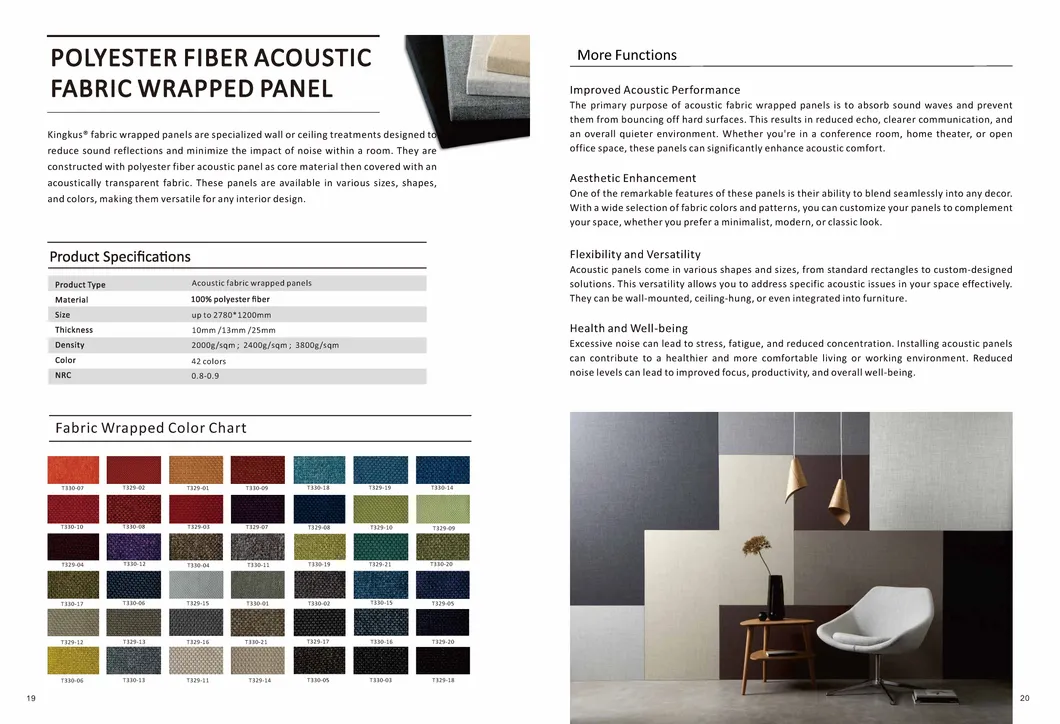

■ Visual Display & Color Chart

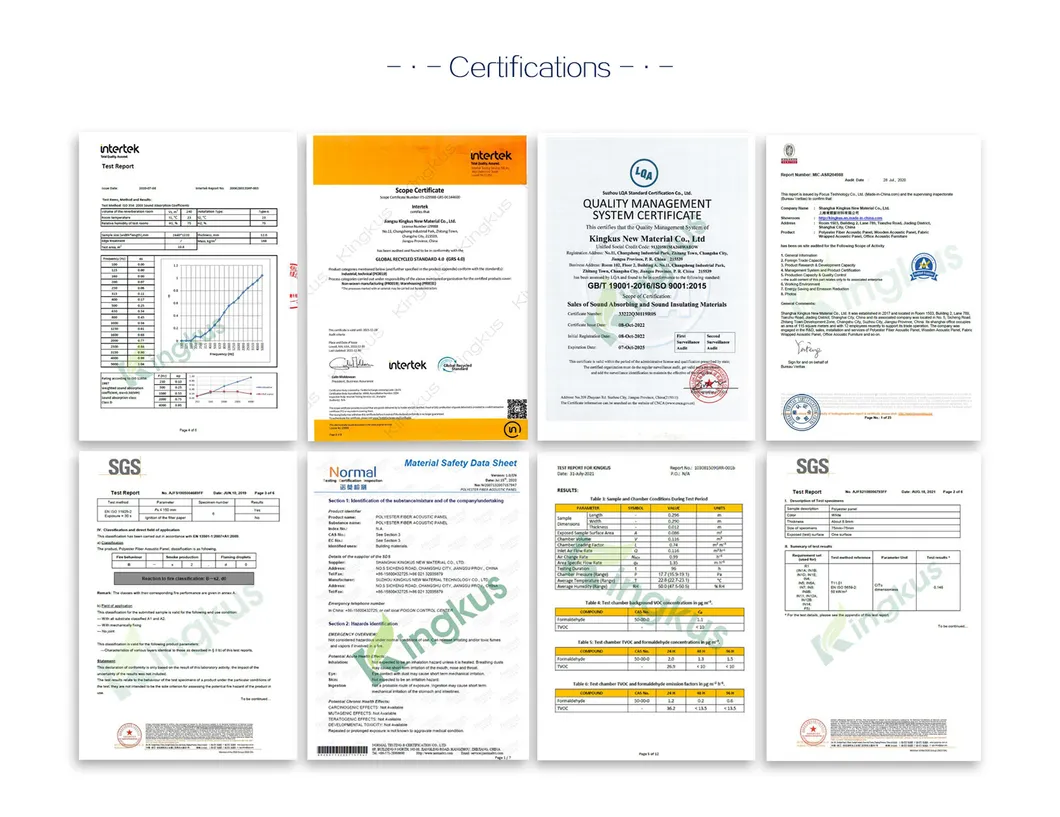

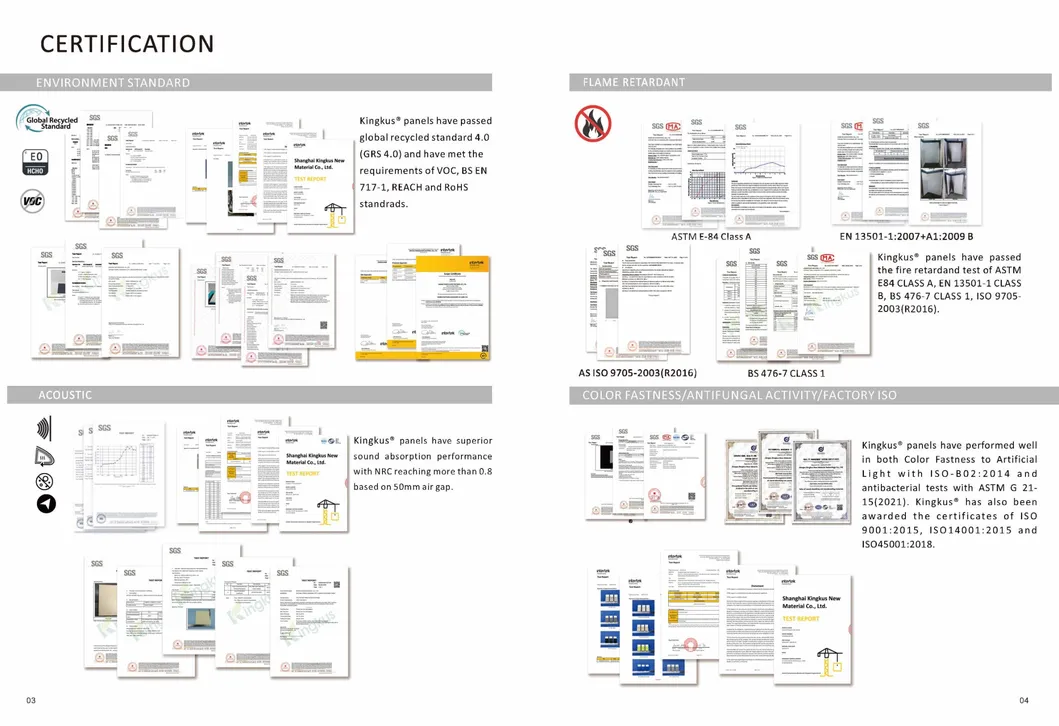

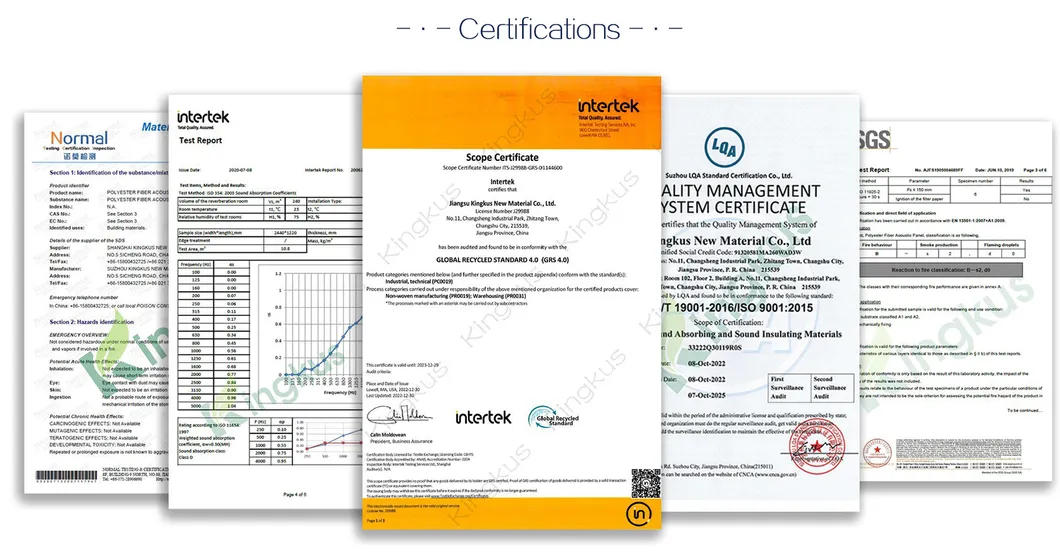

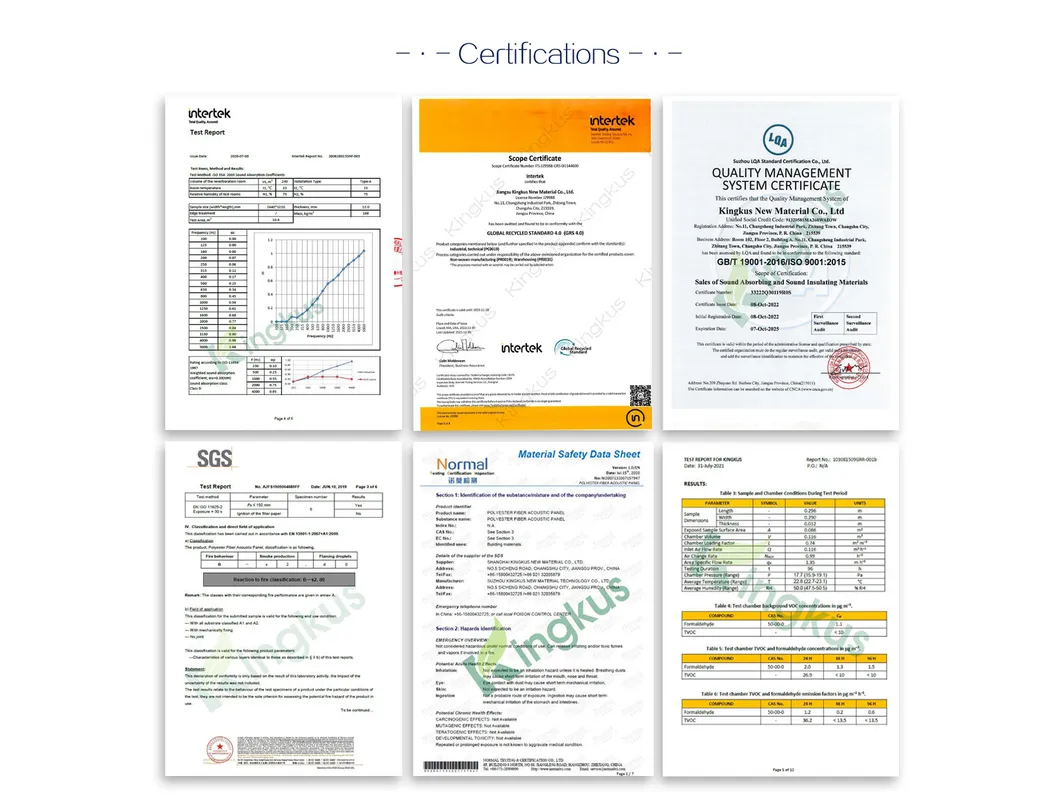

■ Product Certification
Frequently Asked Questions
What are the primary benefits of fabric-wrapped acoustic panels?
They provide exceptional sound absorption (NRC up to 1.15), reduce echo, and improve speech intelligibility while offering a customizable designer look for any interior.
What core materials are used in these panels?
The panels use a 98kg/m3 high-density, semi-rigid fiberglass acoustical board, which provides superior noise control compared to standard foam.
Are the acoustic panels fire-resistant?
Yes, the panels meet stringent safety standards, including ASTM Class A and Class B1 fire ratings, making them suitable for public commercial buildings.
Can I customize the panels with my own images?
Absolutely. The system supports high-resolution custom artwork, digital images, and photographs, which can be printed directly onto the fabric surface.
How are these panels installed on walls?
Installation is versatile and can be done using professional-grade adhesive glue or by mounting them onto a wooden keel system for a more permanent structure.
What sizes and thicknesses are available?
Standard sizes go up to 2400*1200mm, with thickness options of 25mm and 50mm depending on the level of sound absorption required.
