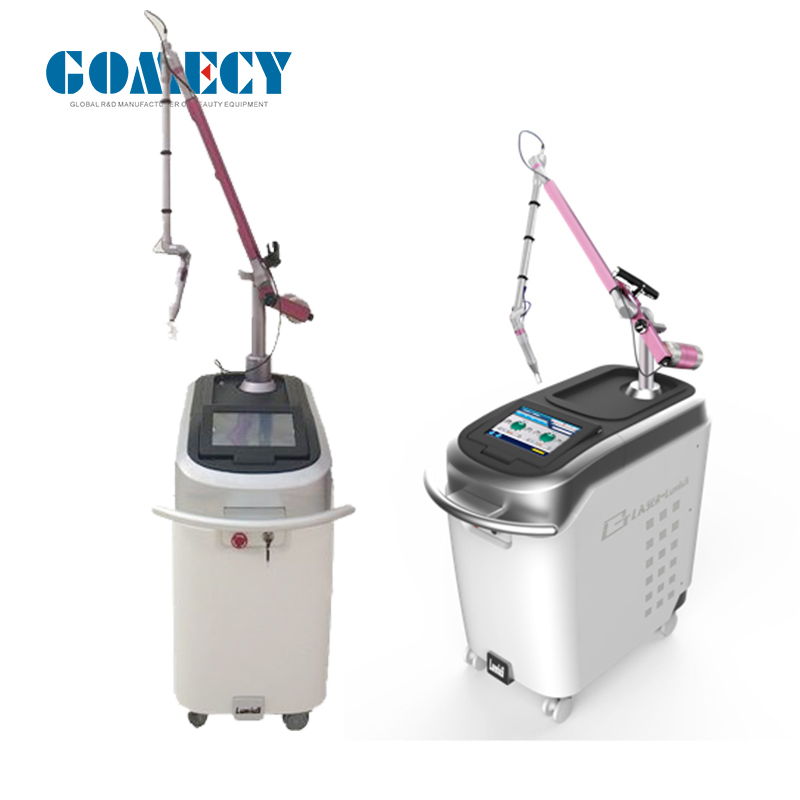

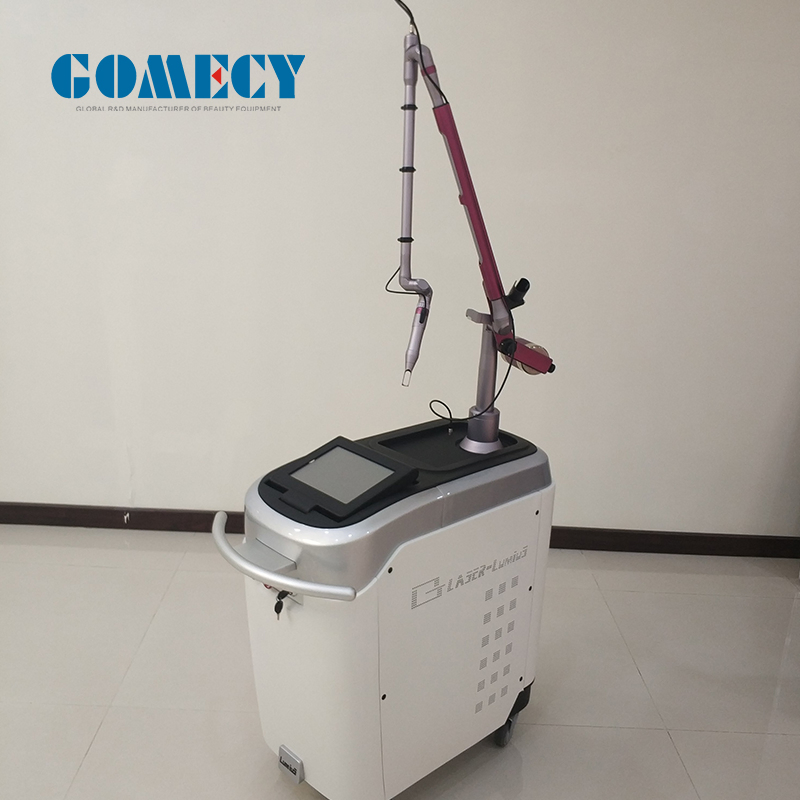

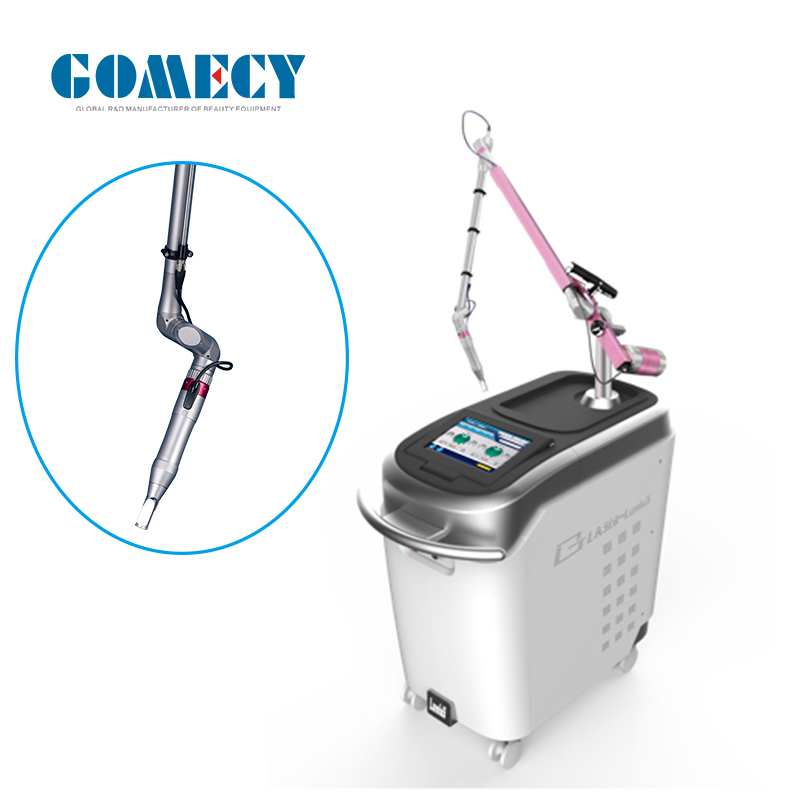

Tattoo Scar Mole Freckle Pico Laser Tattoo Removal

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.
GMS Q5
Laser Heads
4PCS (1064nm & 532nm)
Pulse Energy
1000mj@1064nm; 500mj@532nm
Spot Size
2-10mm Adjustable
Repetition Rate
1-10Hz Adjustable
Cooling System
Air + Water Cooling
Transport Package
Aluminum Case
Specification
127*124*57CM, 180KG
💡 Treatment Principle

Tattoo Scar Mole Freckle Pico Laser Tattoo Removal

The Q-Switched (QS) laser is the most effective way to remove natural or artificial (tattoo) pigmentation, while minimizing the risk of damage to surrounding tissue. Uses an active Q-switched laser to deliver photo acoustic shockwaves to the target area through high laser intensities in short nanosecond pulses.

The mechanical Q-switched effect works by vibrating and breaking up the pigment in the lesion or the ink particles in the tattoo. As the area heals, the body's immune system flushes away the shattered pigment, revealing lighter, clear skin with minimal risk of scarring or hyper pigmentation.

Then pigments expand in top speed and explode. The superficial epidermis would be bounded out of body, other part of the pigments would split into granules which would be engulfed by macrophages, then exclude by the lymphatic system finally.

🎯 Professional Applications
  • Removal of tattoos in any colors
  • Treatment of benign moles, sun and age spots
  • Melasma and hormonal stains treatment
  • Treatment of hyperpigmentation and capillary vessels
  • Skin resurfacing and rejuvenation
  • Removal of acne scars
Key Features

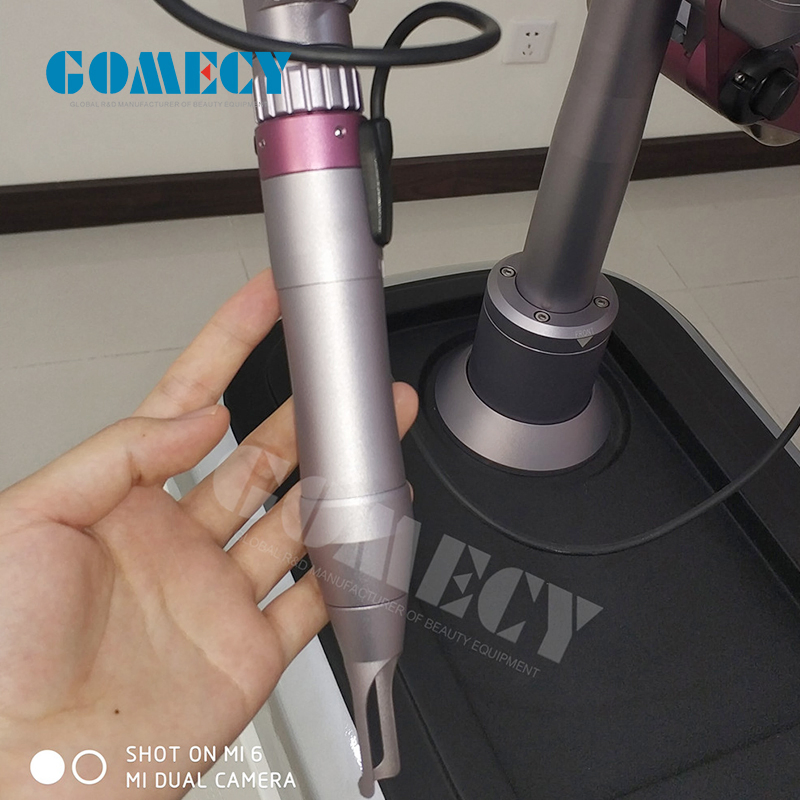

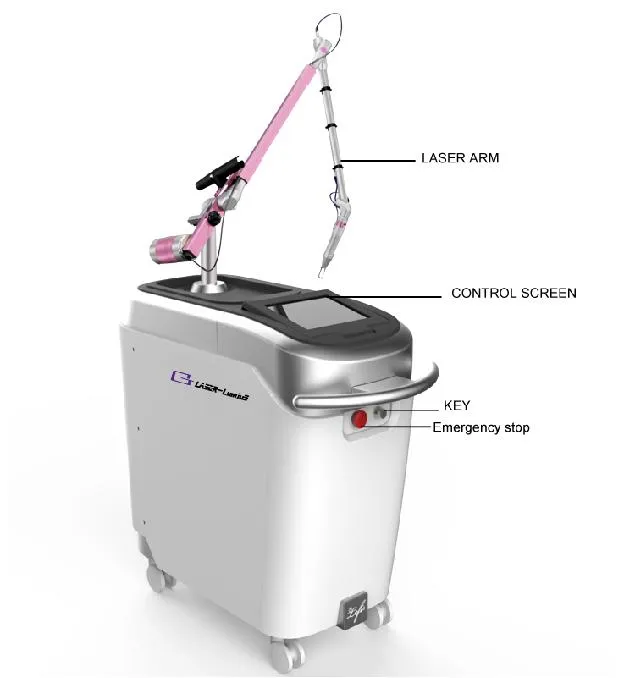

1. South Korea imported 7 joint articulated arm: 360 treatment without dead angle and ensure the highest energy output with minimum energy loss.

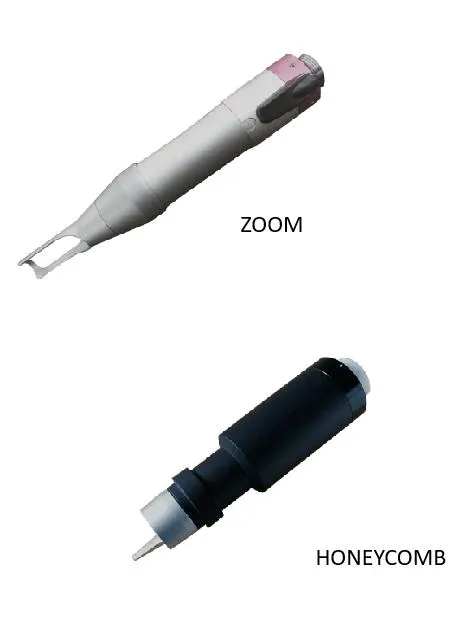

2. Variety of Wavelengths: 1064nm for dermal lesions; 532nm for epidermal red/yellow/coffee tattoos; Honeycomb Handpiece for wrinkles.

3. High peak power: 1200mj single pulse energy for strong pigment crushing ability.

4. Aiming beam (635nm): For targeted and precise treatment.

5. High quality laser source: USA imported Q switch and laser bar.

6. Short pulse width: Efficient destruction of target pigment with minimal thermal damage.

7. Flat-top hat Beam: Ensures energy is delivered efficiently while minimizing surrounding tissue damage.

⚙️ Technical Parameters
ModelGMS-Q5
Laser TypeElectro-optical Q-switched Nd Yag laser
Pulse Width2ns-6ns
Wavelength1064nm, 532nm
Pulse Energy≤1000mj@1064nm / ≤500mj@532nm
Genesis mode15000mj/cm²
PTP mode50% energy increasing
Aiming BeamDiode 655nm (red)
Frequency1-10Hz
Spot Diameter2~10mm Adjustable
Light Transmission7 Joints arm imported from Korea
Cooling SystemClosed-off water circulation + Wind cooling
VoltageAC220V±10% 50HZ / 110V±10% 60HZ
Net Weight85kg
Dimension62*128*130cm
Before & After Results
Frequently Asked Questions
What kind of tattoos can be removed with the GMS Q5?
The GMS Q5 is equipped with multiple wavelengths (1064nm and 532nm), allowing it to effectively remove tattoos of almost any color, including dark pigments and brighter colors like red, yellow, and coffee.
How does the 7-joint articulated arm benefit the treatment?
The South Korean imported 7-joint arm allows for 360-degree treatment without dead angles. It ensures maximum energy output and minimizes energy loss during transmission for more consistent results.
Is the treatment safe for the surrounding skin?
Yes. The Q-switched technology and flat-top hat beam ensure that energy is delivered precisely to the pigment. This minimizes thermal damage to the surrounding normal tissue, reducing the risk of scarring.
What other skin conditions can this laser treat?
Besides tattoo removal, it is highly effective for treating benign moles, sun spots, melasma, hormonal stains, hyperpigmentation, and acne scars, as well as general skin rejuvenation.
What makes the cooling system of this machine reliable?
The GMS Q5 utilizes a dual cooling approach combining closed-off water circulation and wind cooling, allowing the machine to operate stably during high-frequency treatments.
What is the advantage of the USA imported Q-switch?
The USA imported Q-switch and laser bar provide a high-quality laser source that ensures high peak power and a short pulse width, which is critical for efficient pigment destruction.
