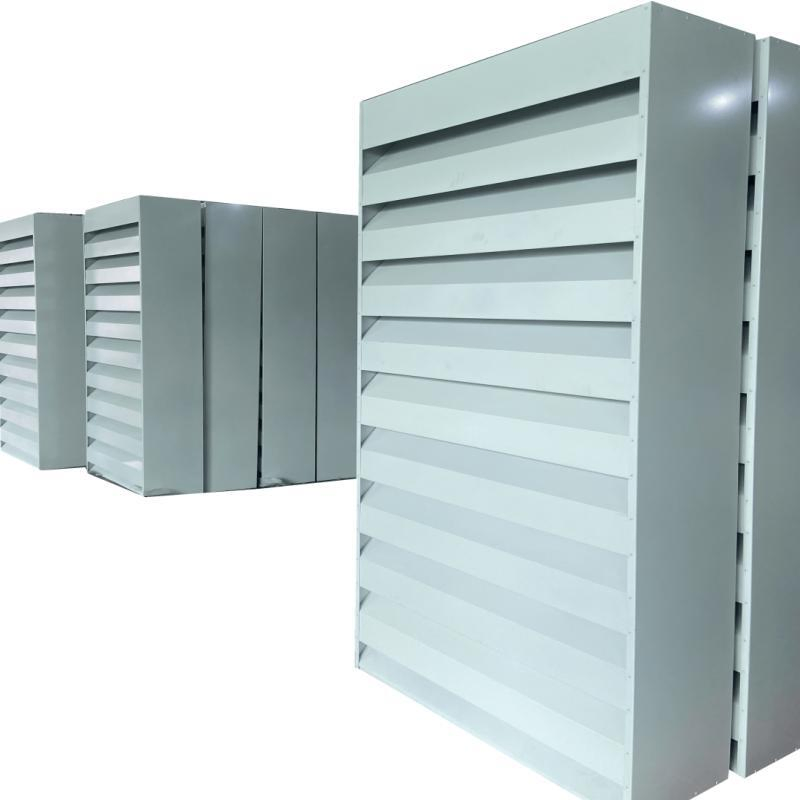

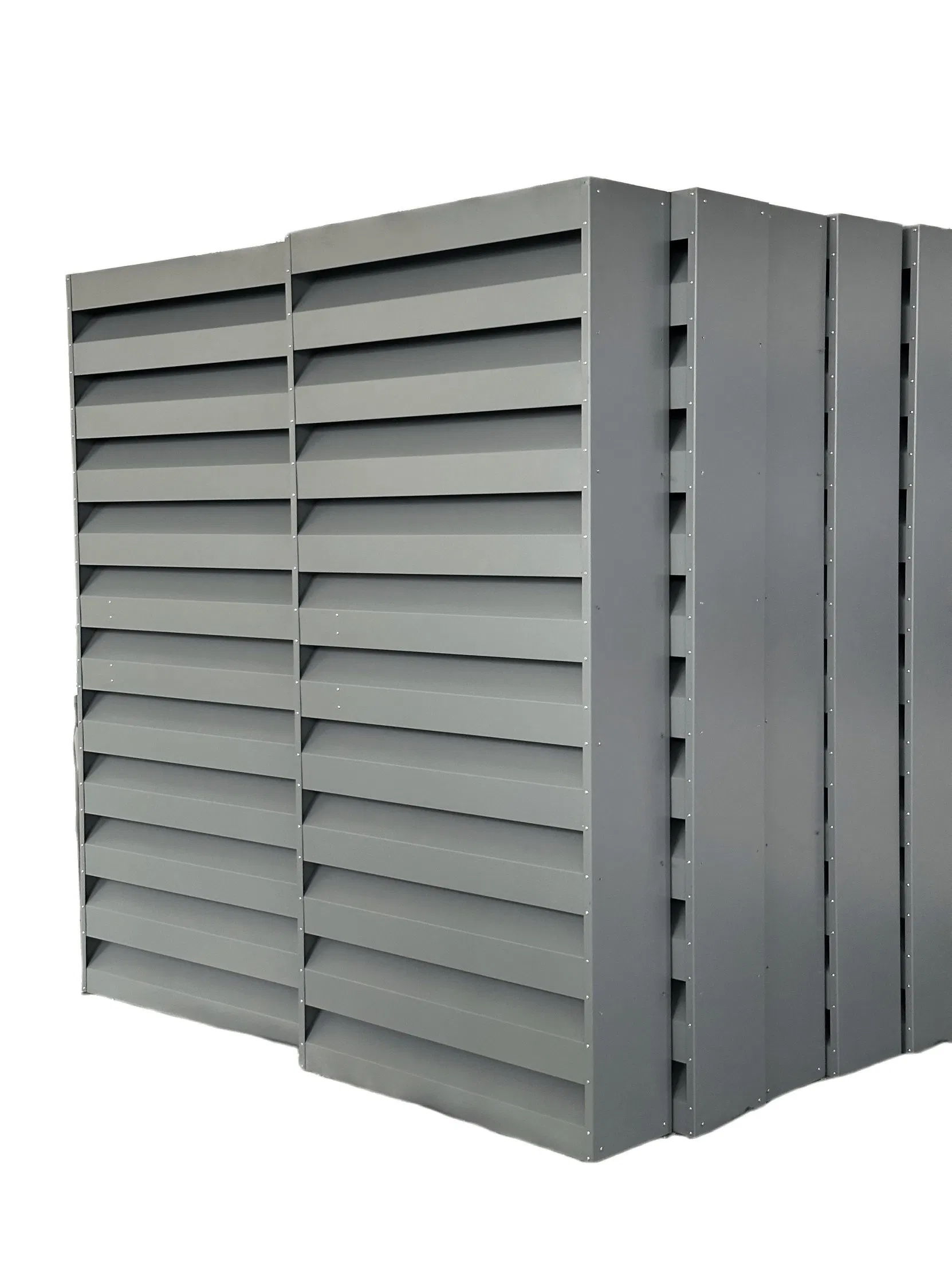

Us Standard Acoustic Louvers - Revolutionizing Sound Control Systems

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.
NCC-02
Type
Modern
Open
Closed
Material
Aluminum
Glass Kind
Frame Glass Curtain Wall
Construction
Frame Type
Layers
Double
Shape
Standard Plane
Capacity
2000 M2/Month
Origin
China
D

Product Description

NCC is a leading manufacturer of noise cancelling louvers worldwide, with sturdy, durable, and high-performance products applied globally.

Application Scenarios

  • Air inlet of ventilation systems
  • Outdoor units (Cooling towers)
  • Machine room air inlets
  • Data center vents
  • Water pump room air inlets
  • Transformer/Substation sound insulation
  • Construction machinery radiators
  • Soundproof enclosure ventilation
  • Wind turbine vents

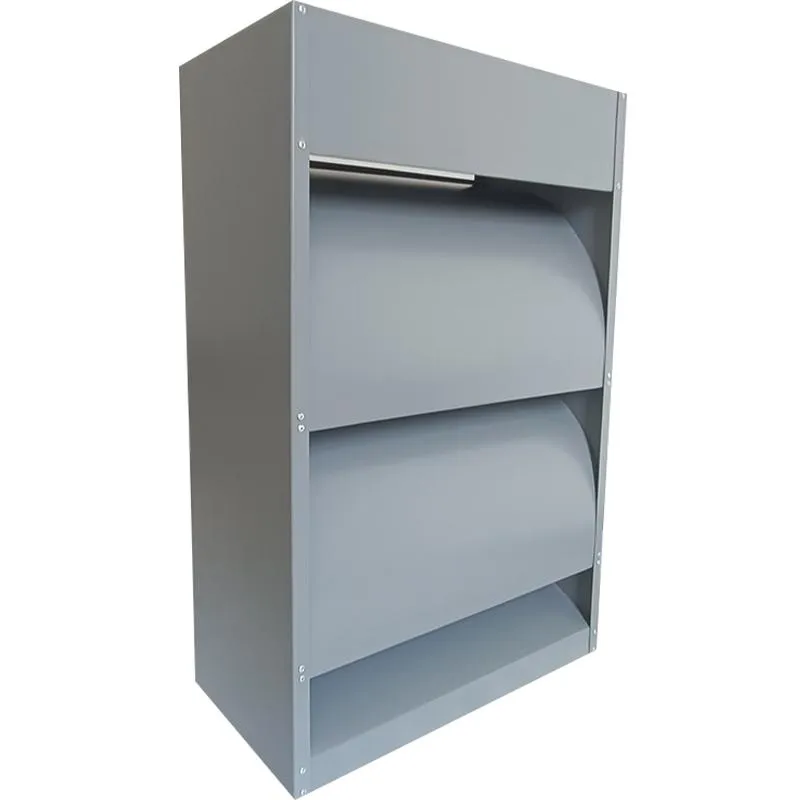

Acoustic Louvers Design

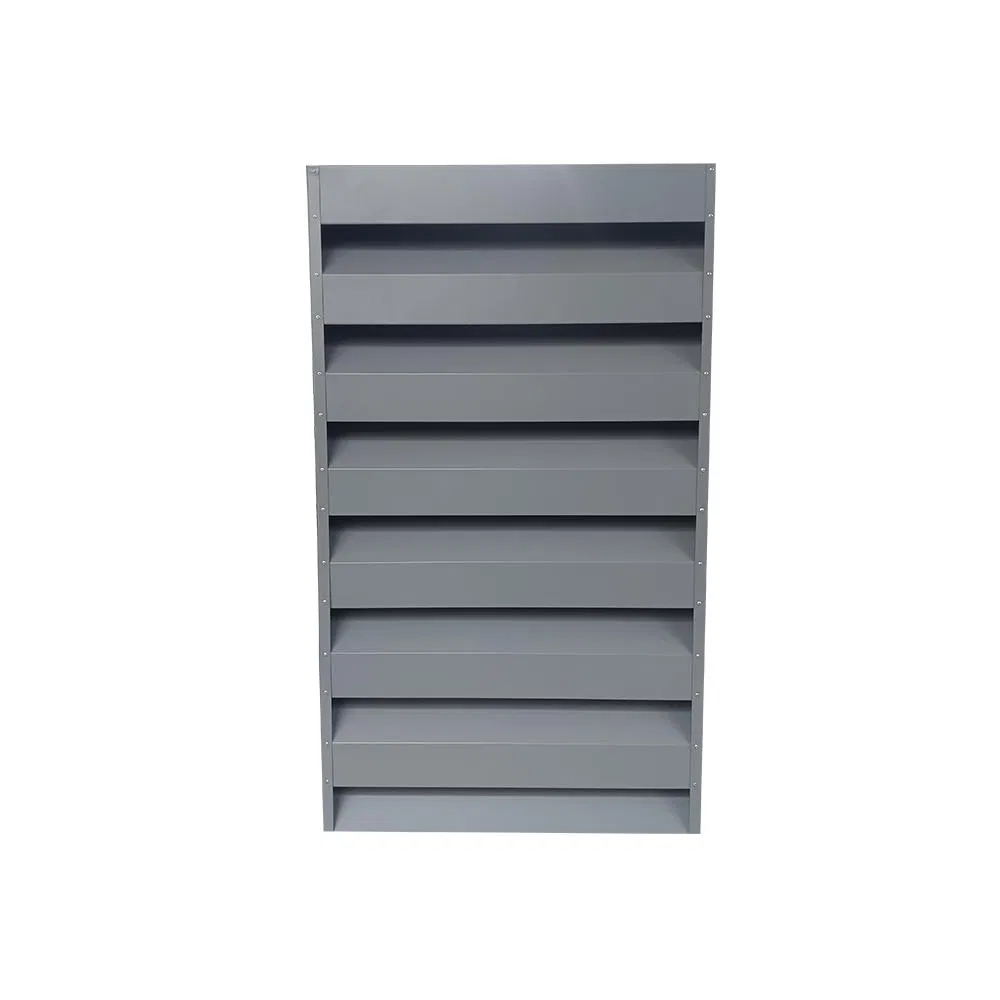

Acoustic Louvers Specification
A

Our Advantages

NCC louvers can be made into sound absorption louvers with a single or double leaf structure with a minimum structural height of 850mm. Sizes are customizable to fit any installation hole.
  • Equipped with joint locks, latches, and handles.

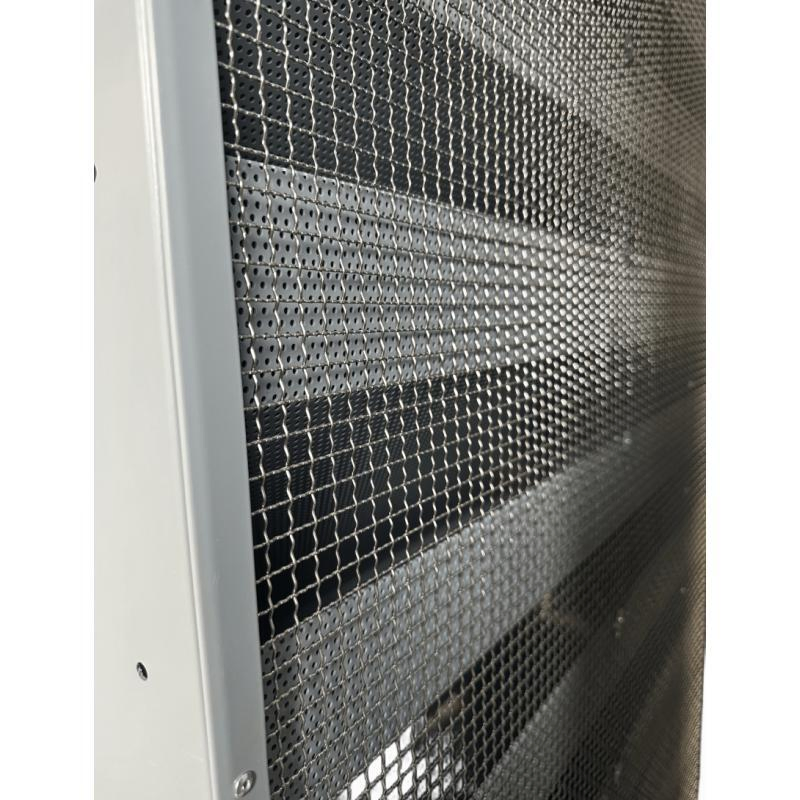

  • Available with bird guards and insect nets upon request.
  • Finished with polyester powder coating.
  • Material options: Galvanized steel, stainless steel, or aluminum.
  • Weather resistant sealing plates to prevent rain/snow infiltration.
  • Modular design suitable for any vent size.
  • Horizontal blade arrangement for aesthetics and acoustic performance.

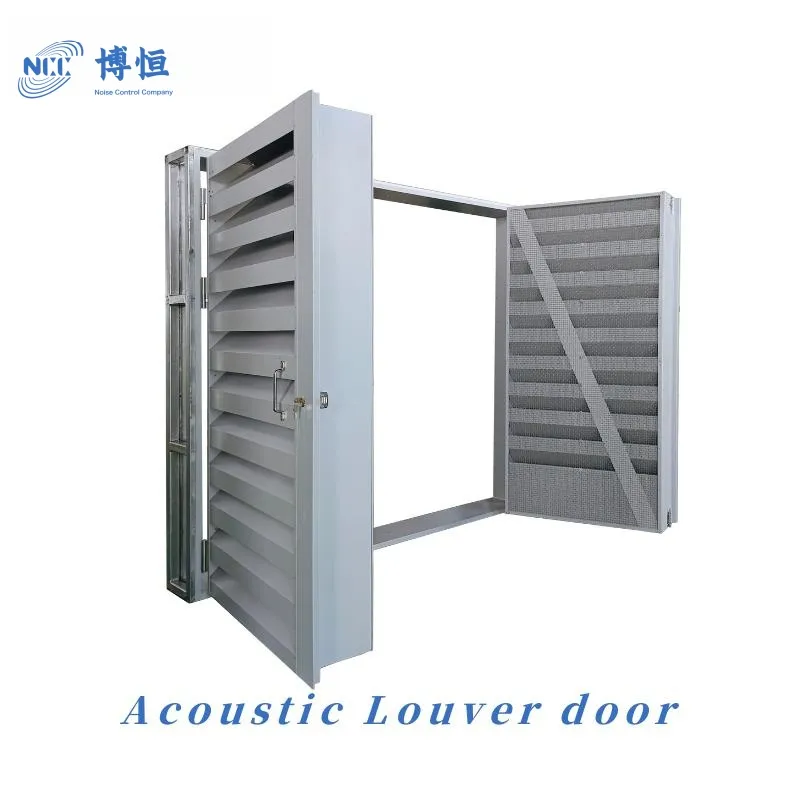

Louvers Advantage 1

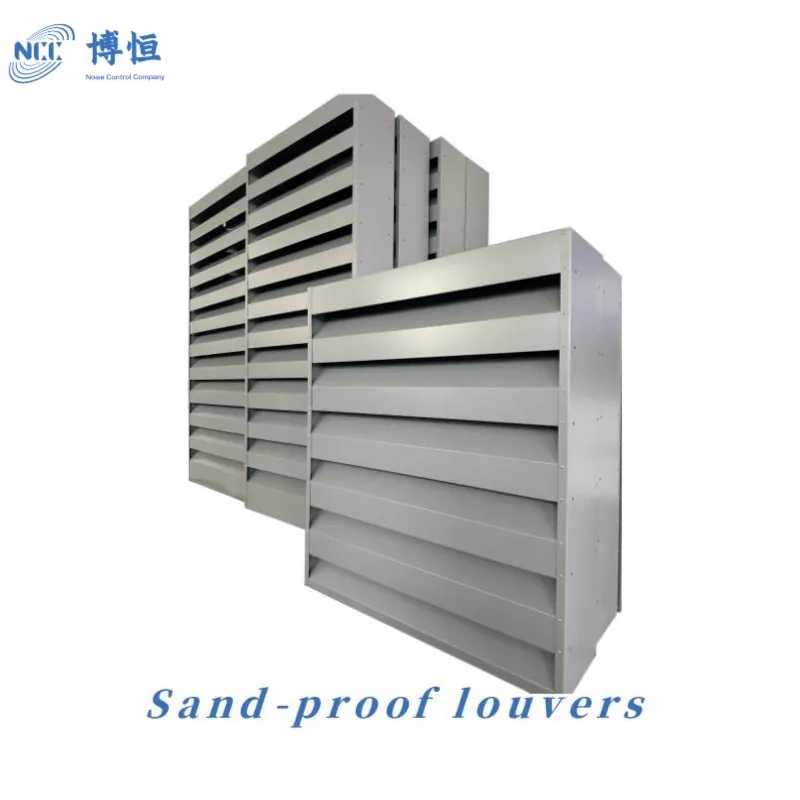

Louvers Advantage 2
P

Product Parameters

Wing Curved Louver - Sound Transmission Loss (dB)

Octave Band Centre Frequency,Hz Louvre Depth (mm) 63 125 250 500 1k 2k 4k 8k
Model NR30056111212151210
Model 2NR600611152024272621
Model NLP3004681013976
Model 2NLP600510131522181513

Linear Louver - Sound Transmission Loss (dB)

Octave Band Centre Frequency,Hz Louvre Depth (mm) 63 125 250 500 1k 2k 4k 8k
SL-10010055679141614
SL-1501505681014181514
SL-30030067101117171413
SL-60060068112430332929
L

Laboratory Testing

We operate a high-end acoustic laboratory to ensure quality. For all bespoke products, we enforce rigorous pre-production sample testing. As depicted, external noise can reach 80.1 dB while internal laboratory measurements drop to 36.4 dB or lower.

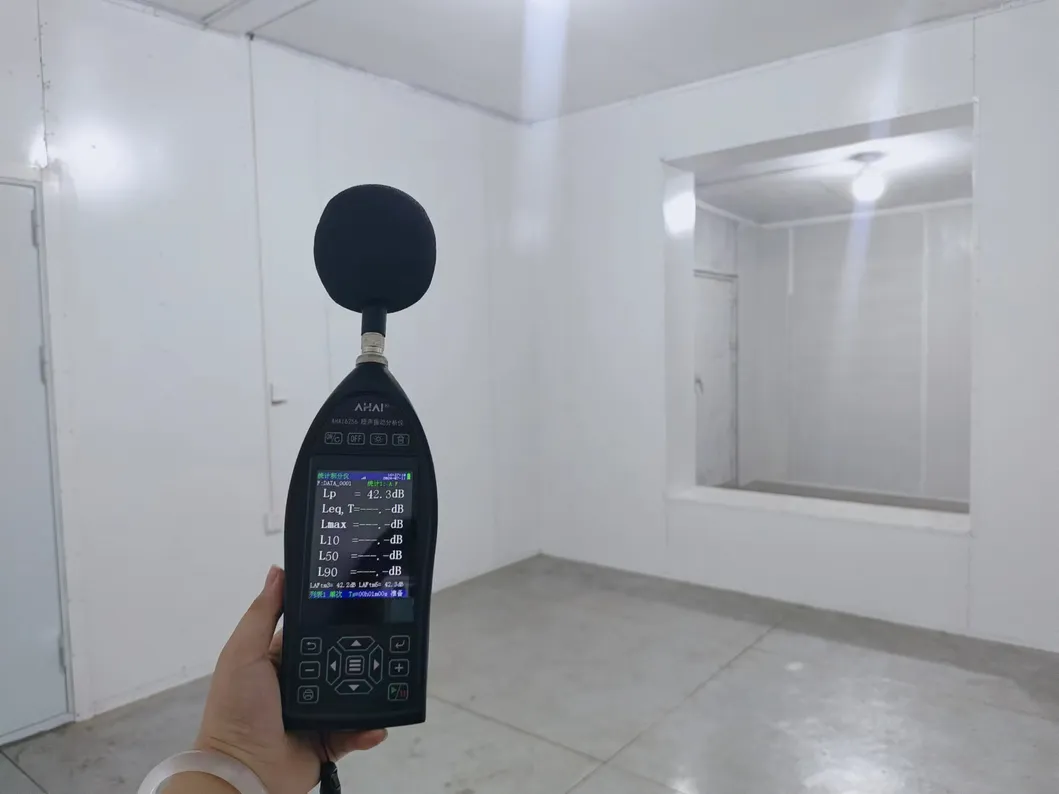

Laboratory Setup

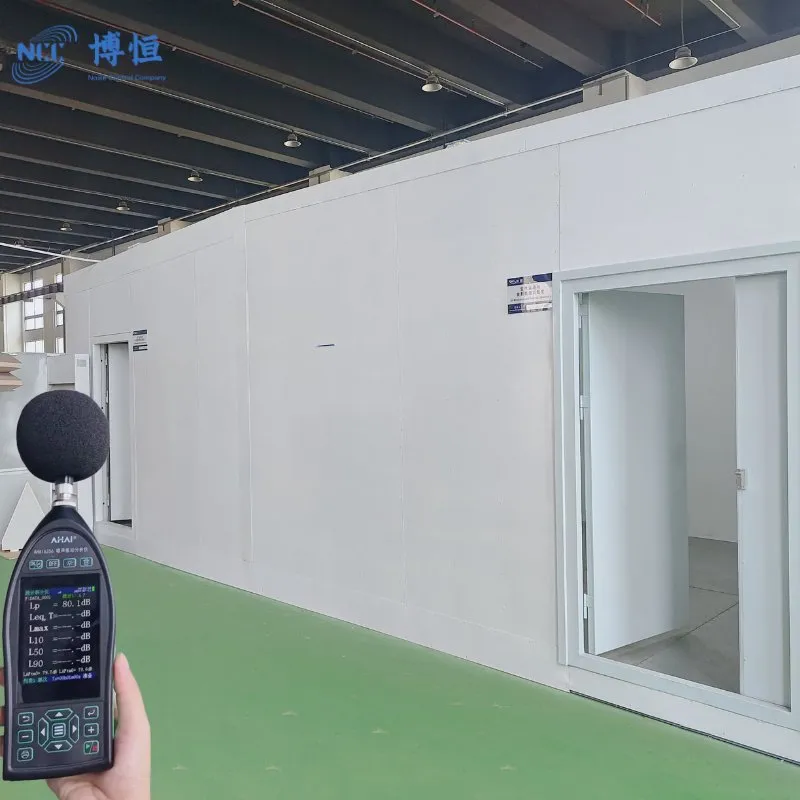

Testing Data

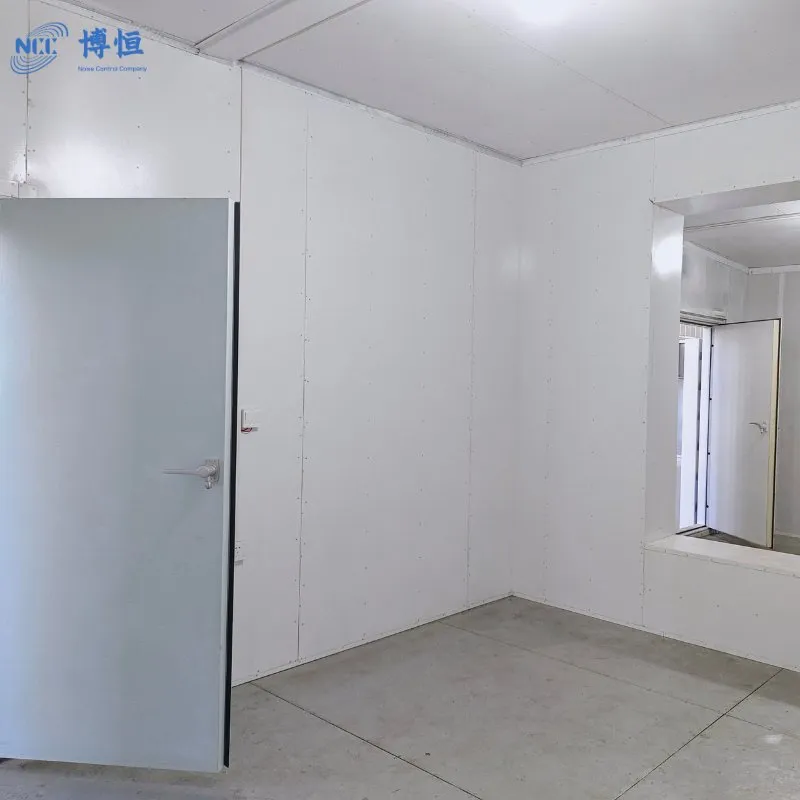

Testing Process
R

Testing Report & Shipping

All reports meet American Standards; sound testing is conducted with Intertek.

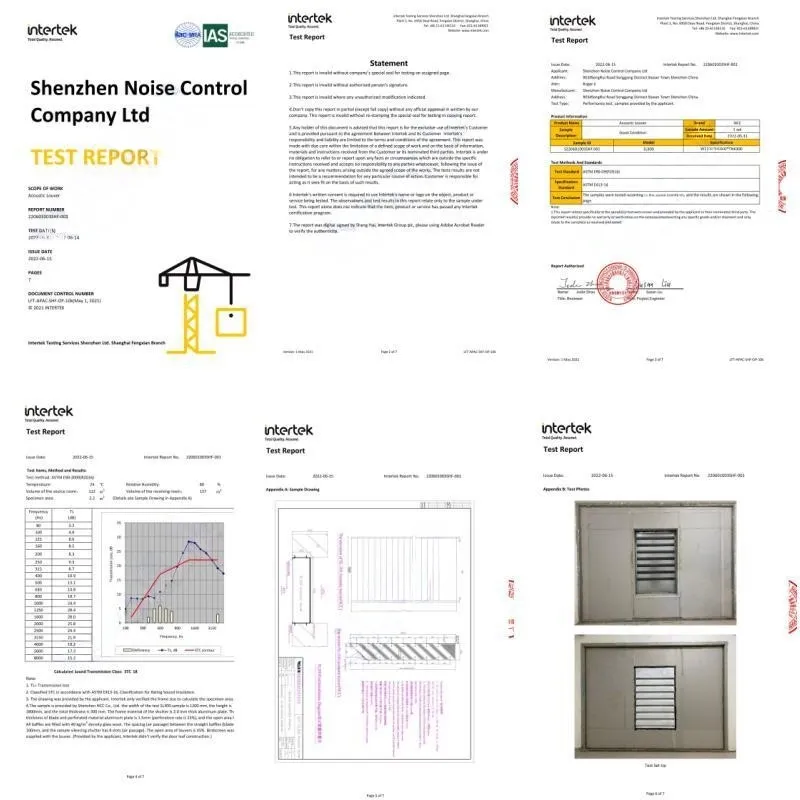

Intertek Testing Report

Packaging & Shipping

Packaging 1
Packaging 2

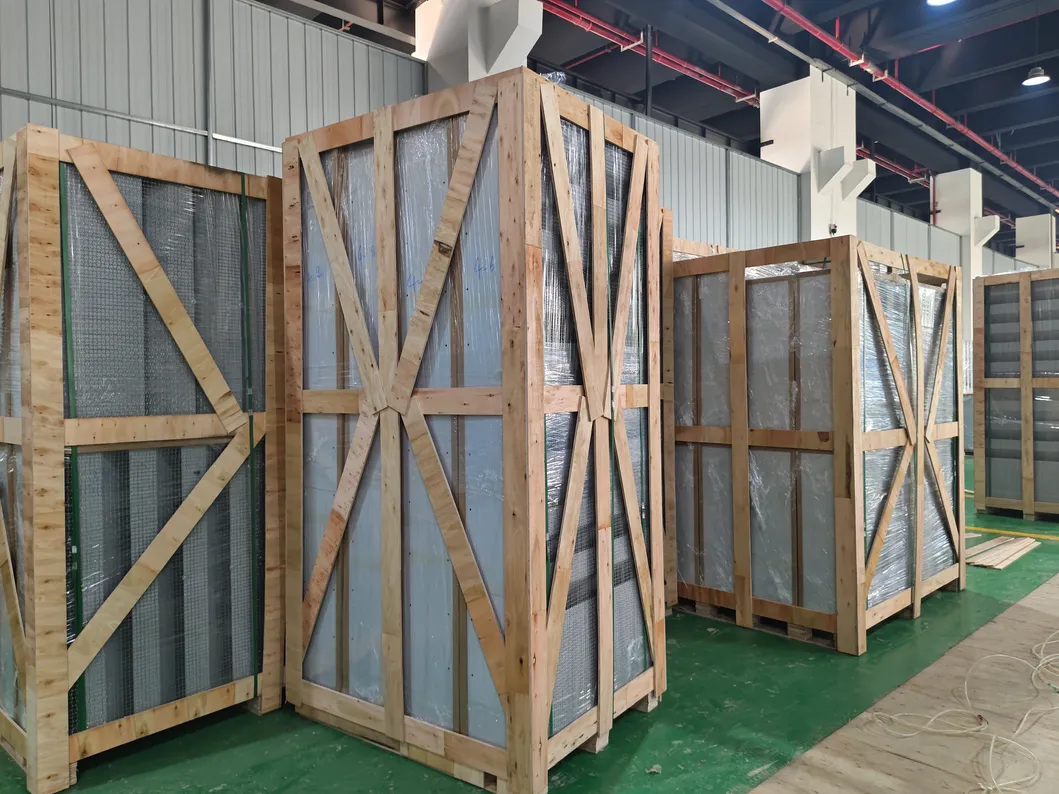

Shipping 1
C

Company Profile

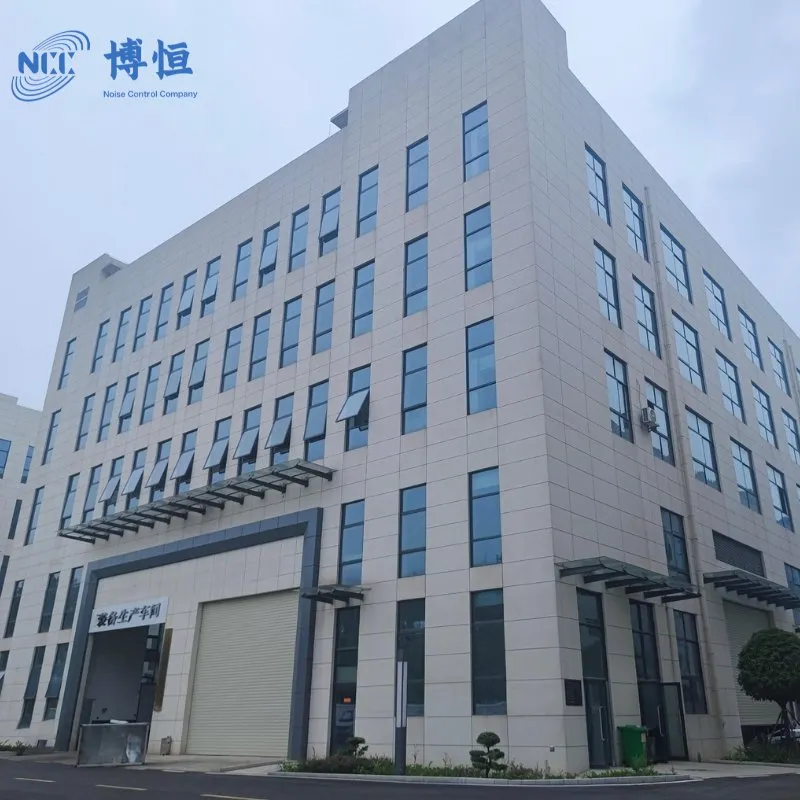

NCC Factory
NCC is a supplier of noise control services and acoustic products. We provide professional solutions for aerospace, commercial buildings, medical, industrial engineering, and power equipment. With over 70 years of experience, we provide one-stop solutions from consulting and design to manufacturing and installation.
?

Frequently Asked Questions

1. What materials are used for your acoustic louvers?
Our acoustic louvers are typically manufactured using high-quality galvanized steel, stainless steel, or aluminum, depending on the environment and customer requirements.
2. Can the louvers be customized to specific sizes?
Yes, we provide modular designs that can be customized to fit any "vent" size or installation hole, ensuring a perfect fit for your project.
3. Are the louvers weather-resistant?
Absolutely. Our louvers are equipped with weather-resistant sealing plates designed to prevent the infiltration of rain and snow while maintaining airflow.
4. What kind of noise reduction can I expect?
Performance varies by model and depth. For example, our SL-600 model can provide up to 33 dB of transmission loss at certain frequencies. Detailed transmission loss data is provided in our parameters table.
5. Do you provide testing reports for your products?
Yes, all our acoustic products undergo rigorous laboratory testing. Our reports meet American Standards and are conducted with recognized bodies like Intertek.
6. Can these louvers prevent insects or birds from entering?
Yes, we can equip our acoustic louvers with stainless steel or galvanized bird nets and insect nets upon request to meet your facility's safety and hygiene standards.
