Dubuild Panel
1 / 5
| Model NO. | 16/16/6mm |
| Color | Oak Veneer |
| Environmental Certification | E0 |
| Fire Rating | Class B / Class A |

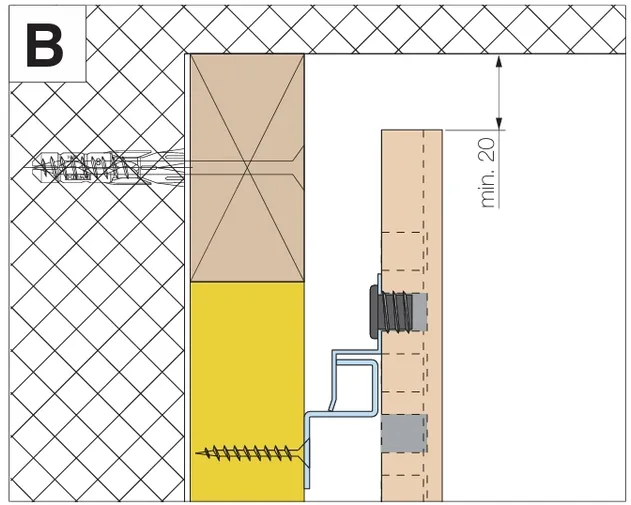

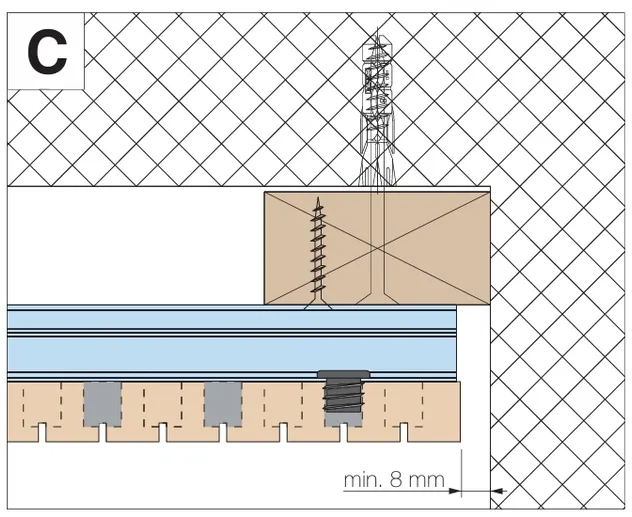

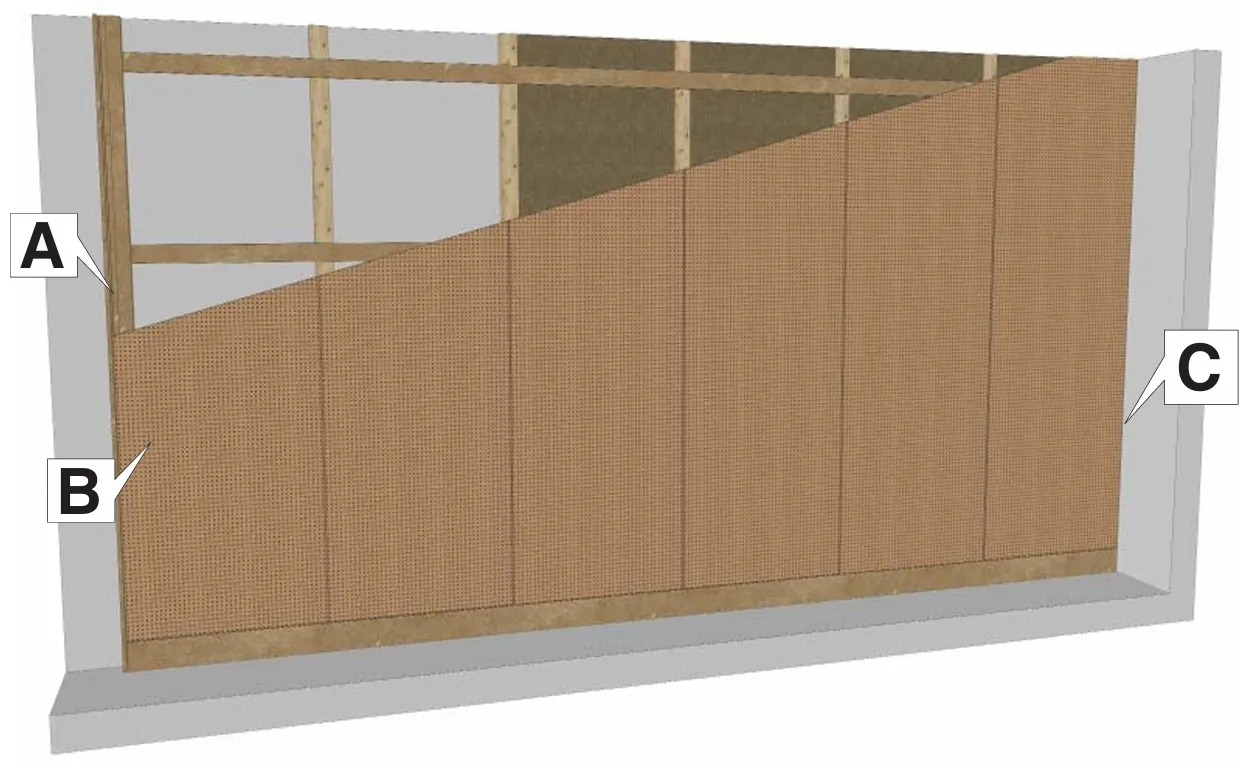

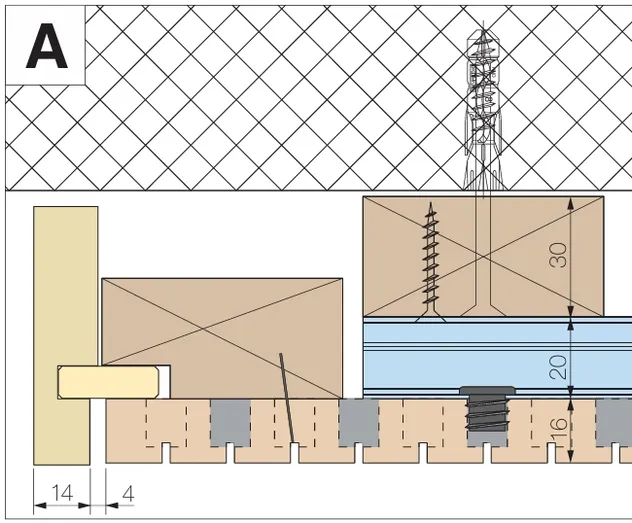

| Installation Method | Clip System |
| Pattern | Rectangle |
| Thickness | 15mm MDF |
| Formaldehyde | En717 |
| Core | MDF (Red or Black) |
| Finish | Laminate or Veneer |
| Specification | Standard max 2400*1200mm L*W |
| Origin | China |
| HS Code | 4411149900 |
| Package Size | 1220.00cm * 1220.00cm * 1020.00cm |
| Package Gross Weight | 675.590kg |
| Transport Package | Pallet / Wooden Carton |
Explore our collection of perforated acoustic panels which offer a perfect balance between aesthetics and acoustic functionality.

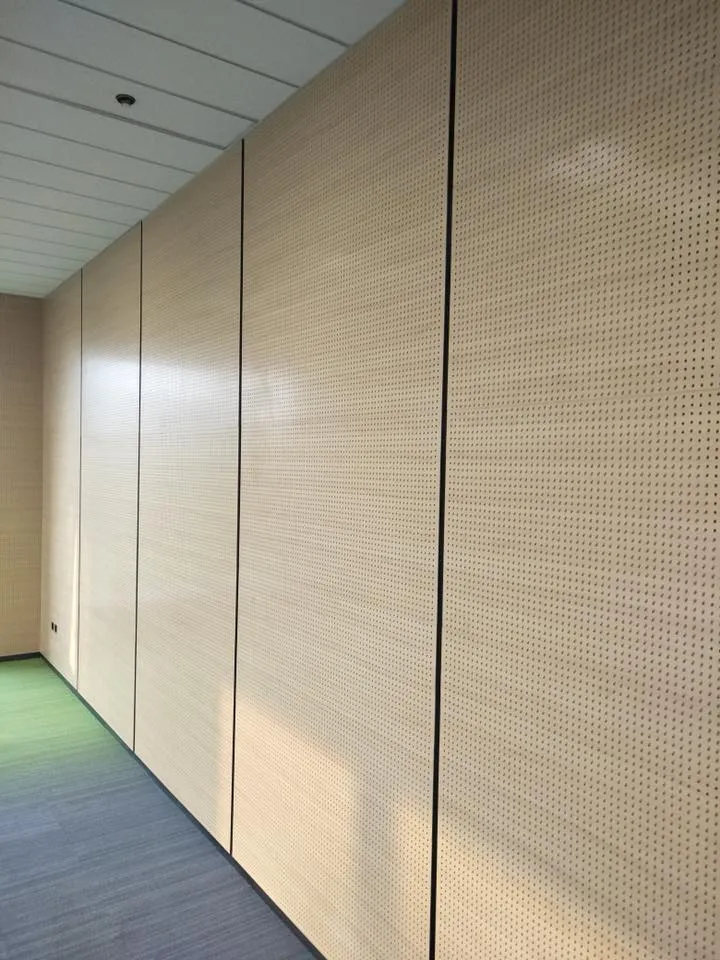

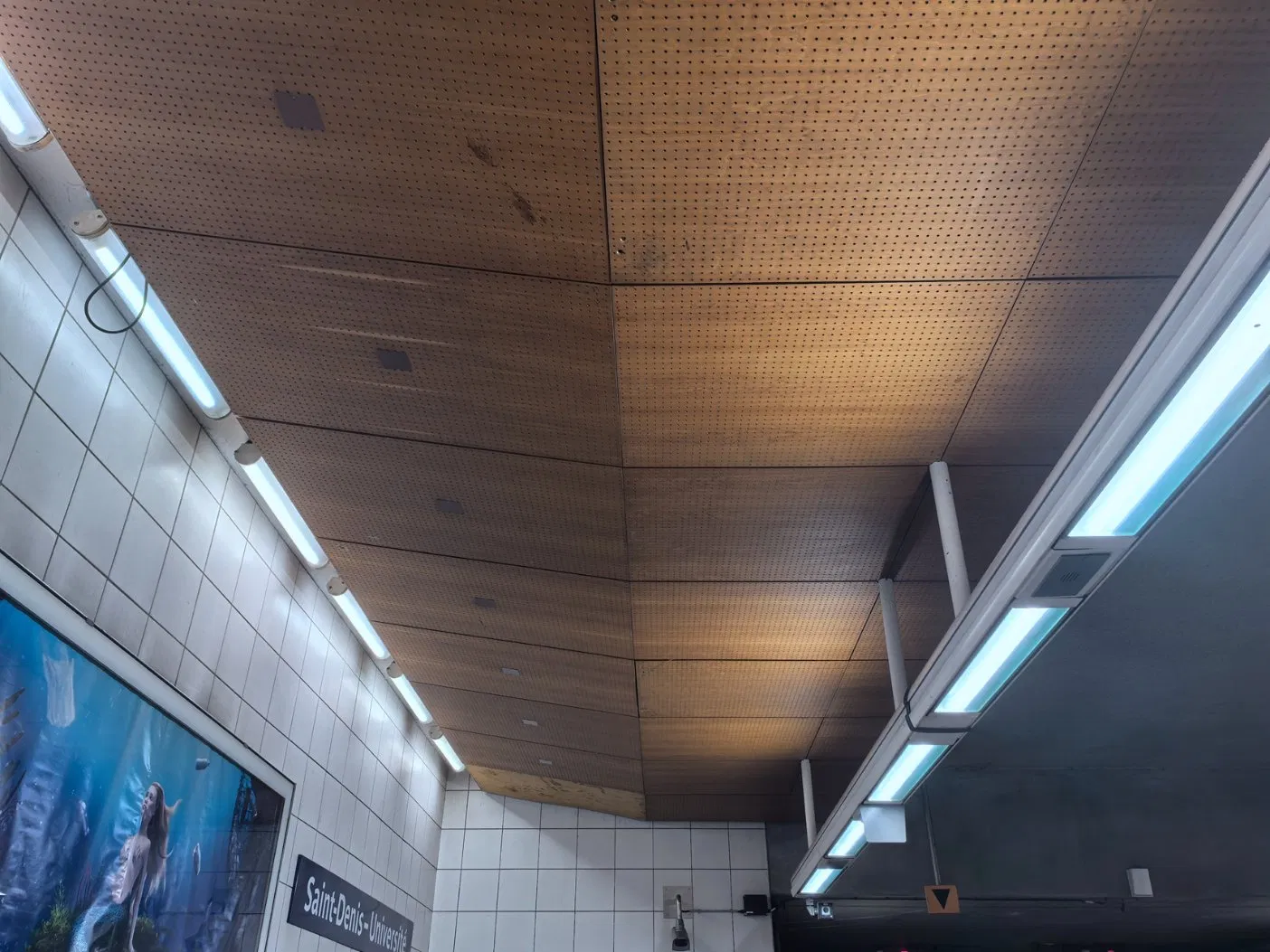

The acoustic panels are expertly designed with different dia hole perforations that help reduce noise and improve acoustic quality in spaces where sound control is necessary. Ideal for applications in offices, educational institutions, and public spaces where subtle sound absorption and a modern look are essential.

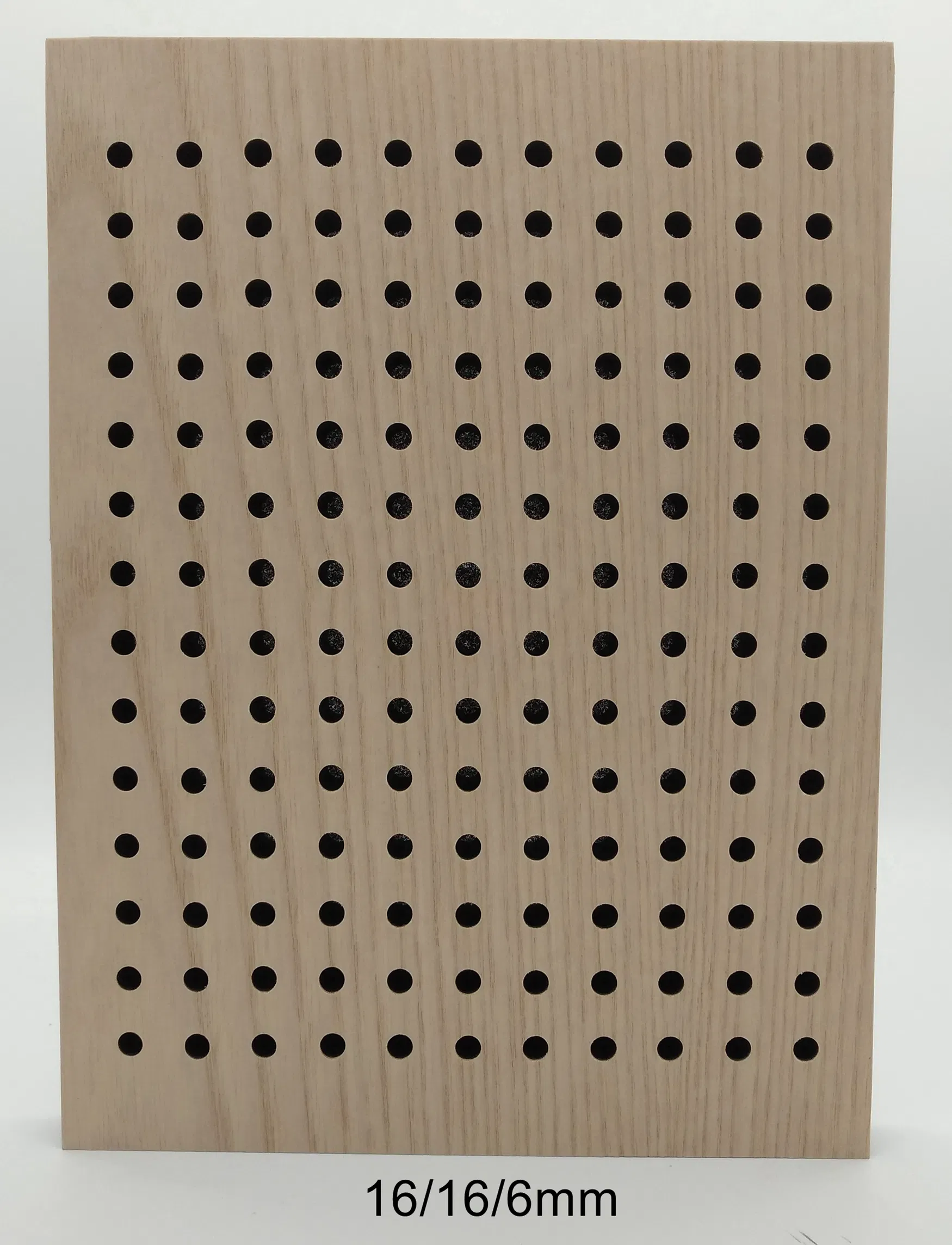

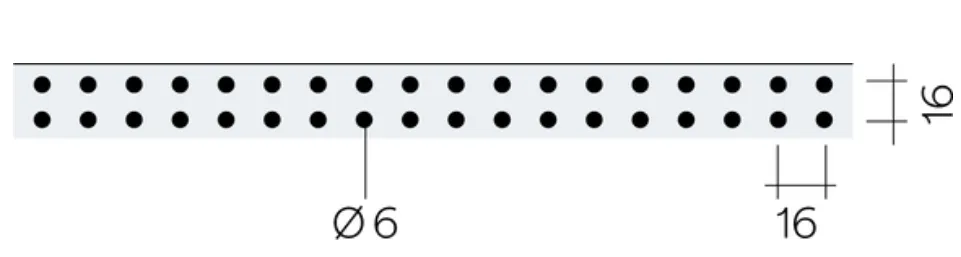

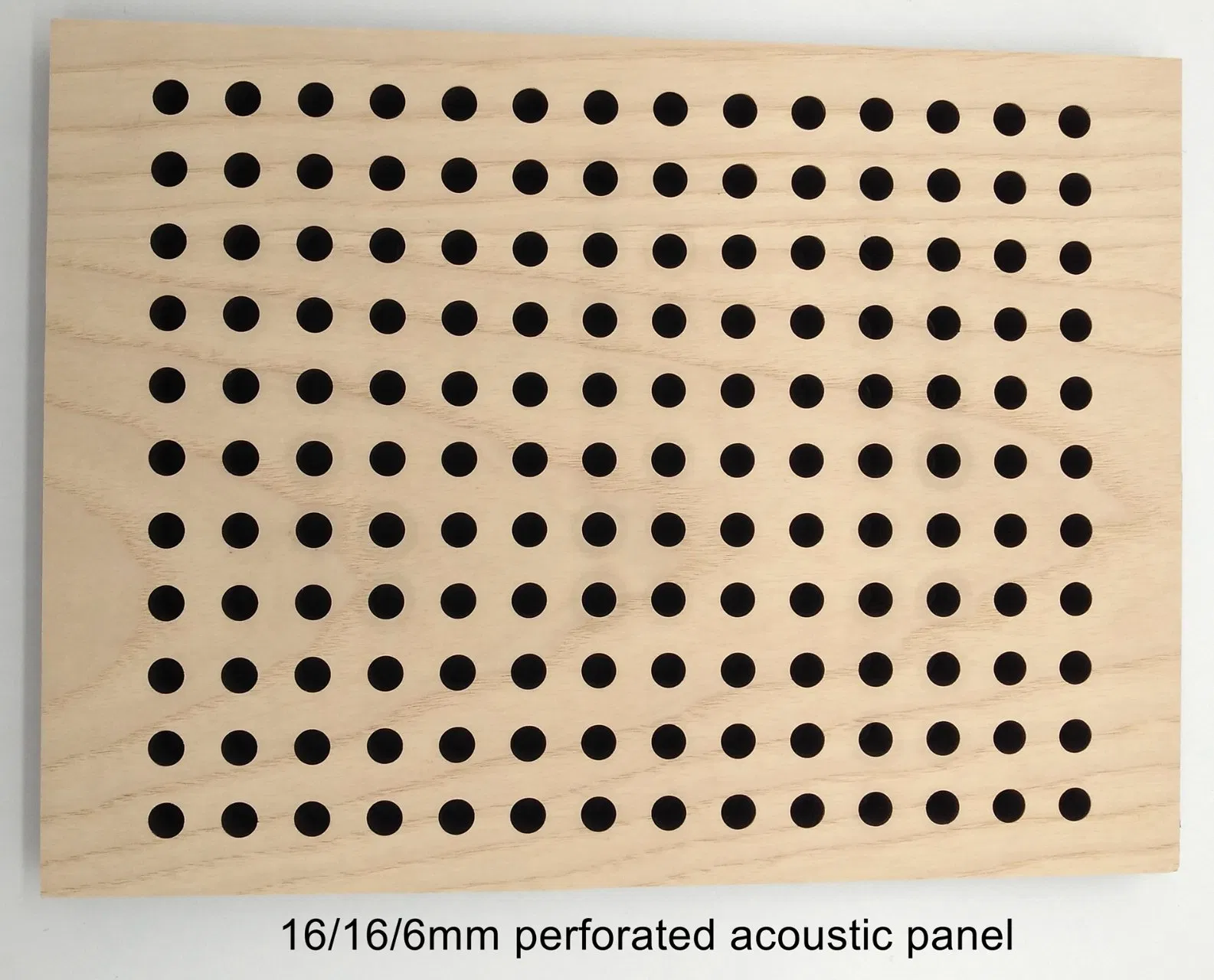

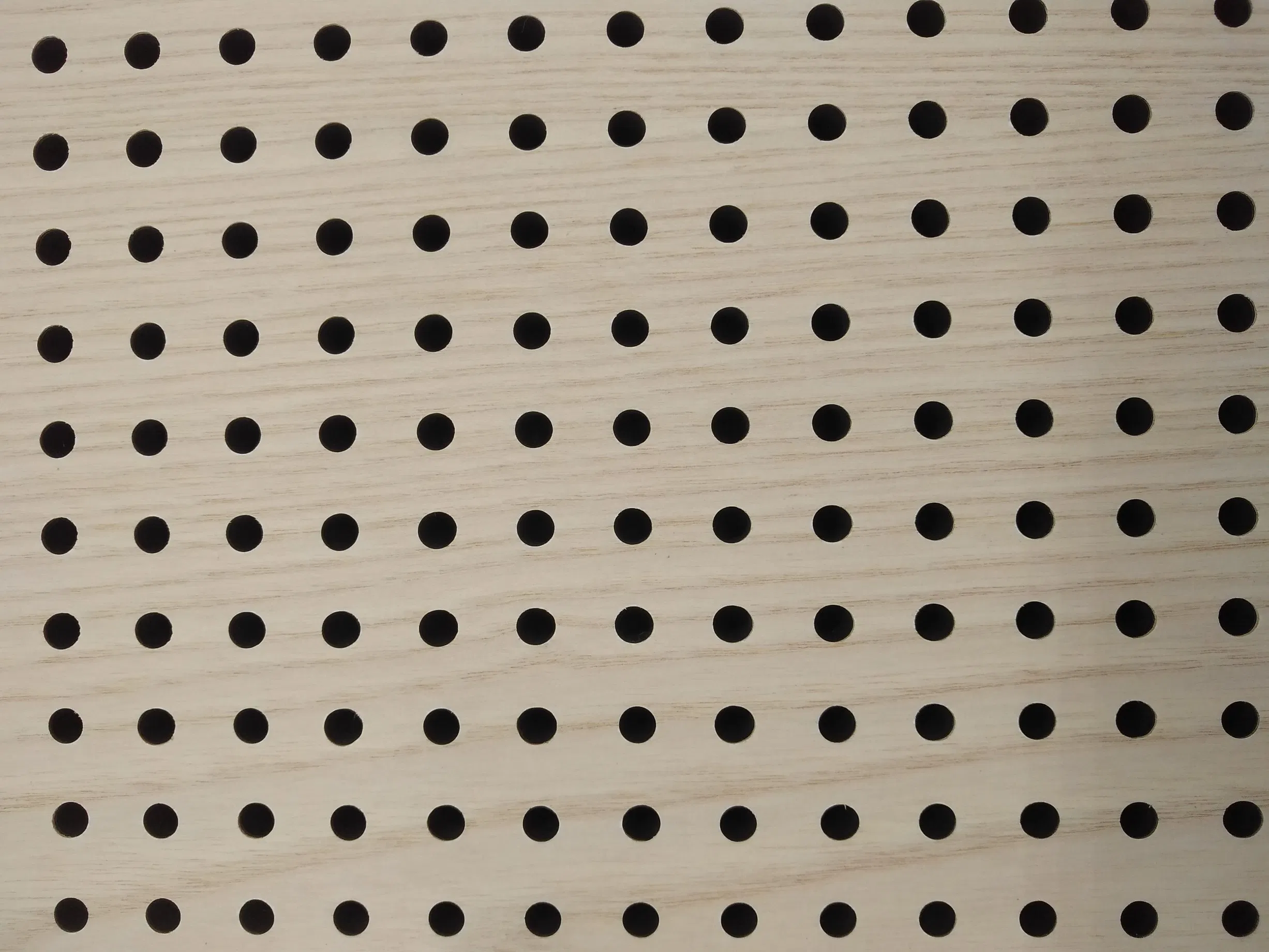

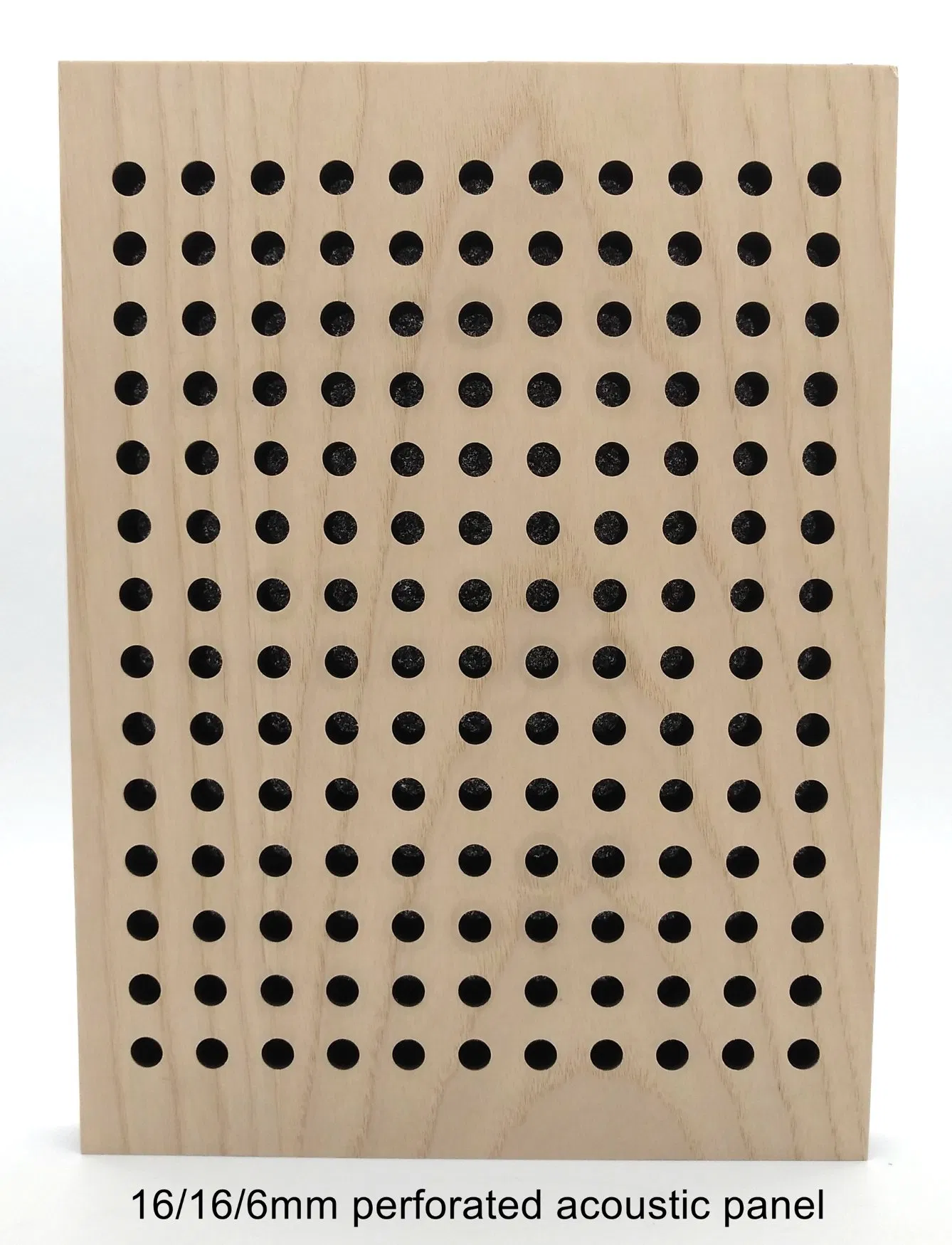

| Perforation | 16/16/6mm (16mm gap, 6mm hole diameter) |

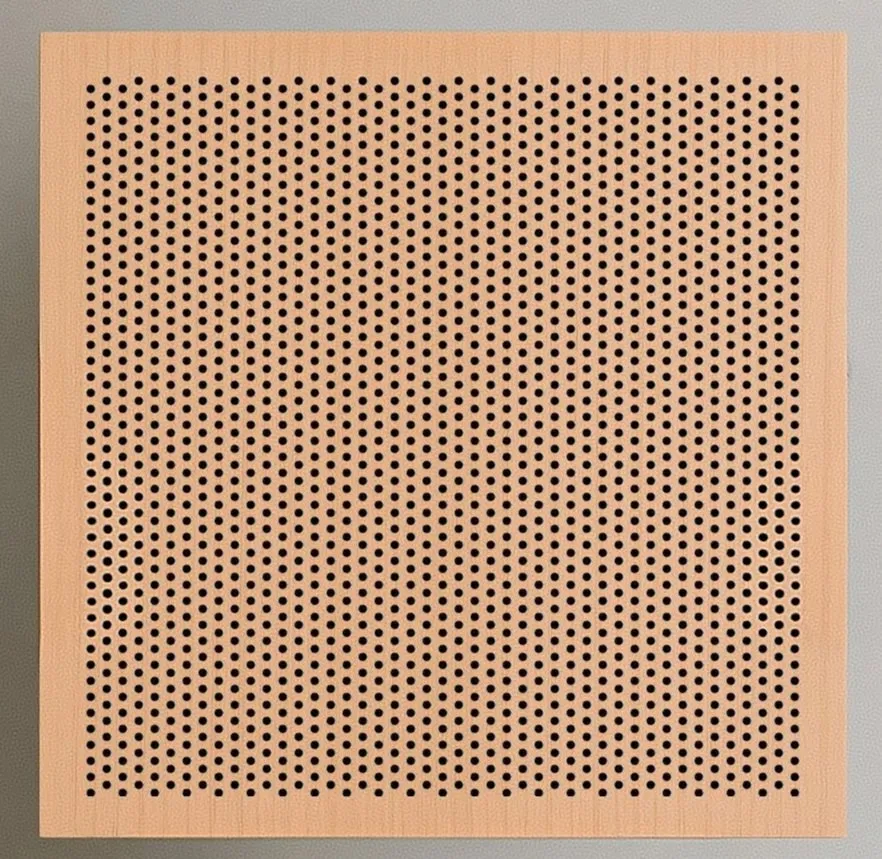

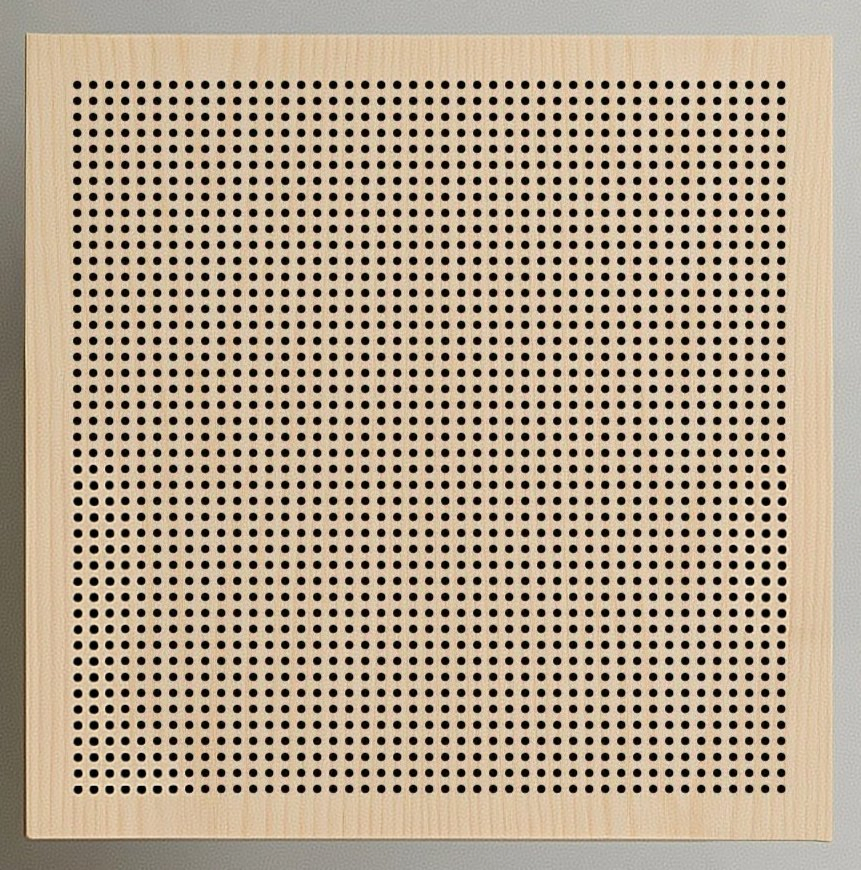

| Machining Patterns | 1. Staggered hole arrangement; 2. Straight hole arrangement |
| Finish Options | Laminate, Veneer, or RAL colors |
| Core Thickness | 15mm, 18mm, or 21mm MDF |
| Panel Size | Standard: 2400*1200mm; Custom: Max 3020*1220mm |

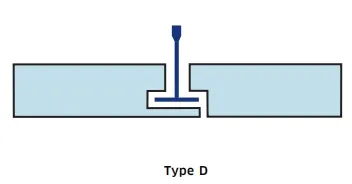

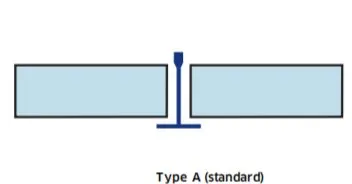

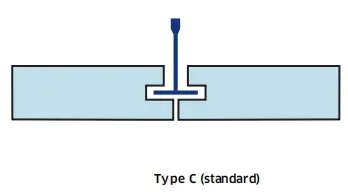

| Panel Edge | Type A (90° clean cut), Type C (Grooved), Type D (Tongue & Grooved) |
| Backing | Soundtex black fleece |

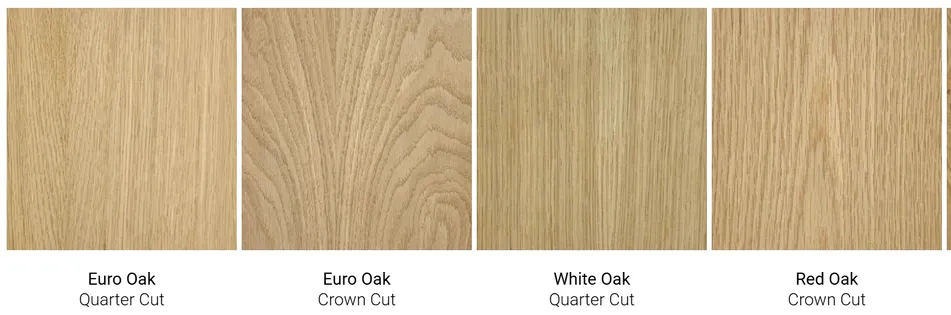

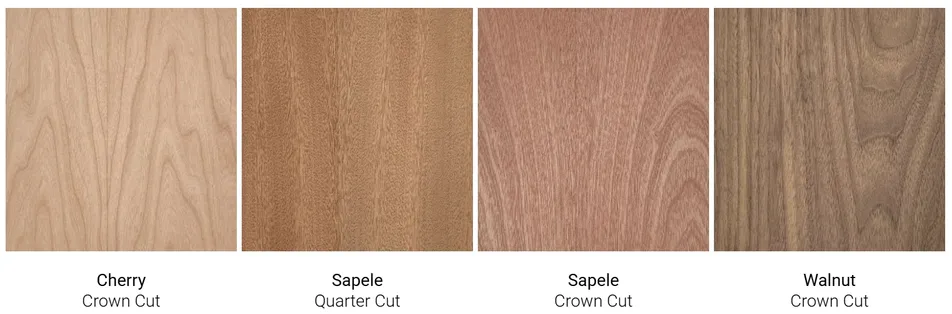

| Feature | Natural Veneer | Engineered Veneer |
| Grain Pattern | Unique & random; includes knots and natural variations. | Uniform & consistent; straight and even grain. |
| Color Consistency | Variable; requires careful book-matching. | Highly consistent across every single panel. |
| Sustainability | Depends on source. | Generally higher; uses fast-growing species. |
| Cost | Higher for rare species. | Moderate to high; generally cheaper than exotic wood. |

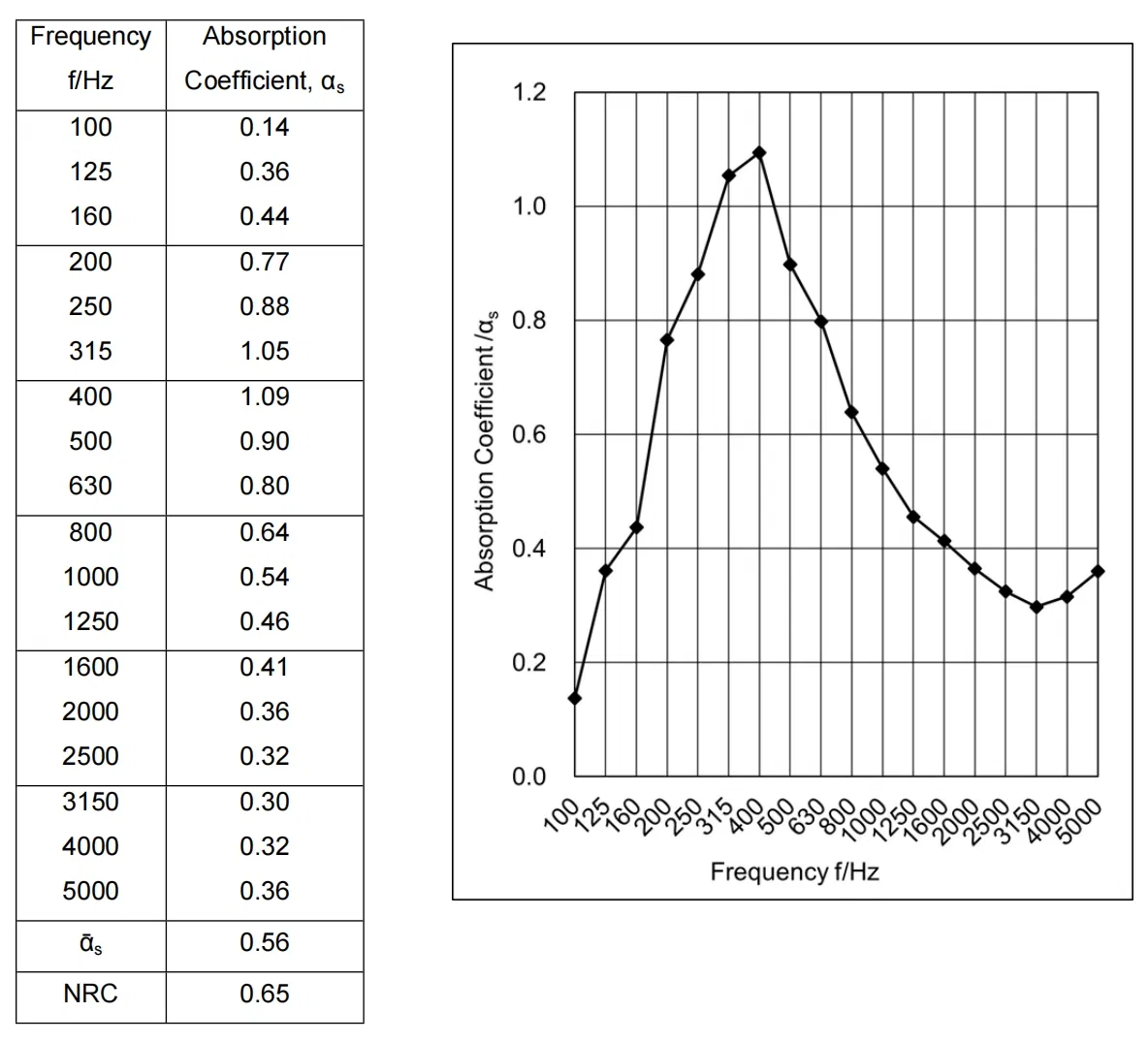

Sound Absorption: NRC data result is 0.65 (Based on ISO354:2003).
Fireproof: Class A (Tested in accordance with ASTM E84).

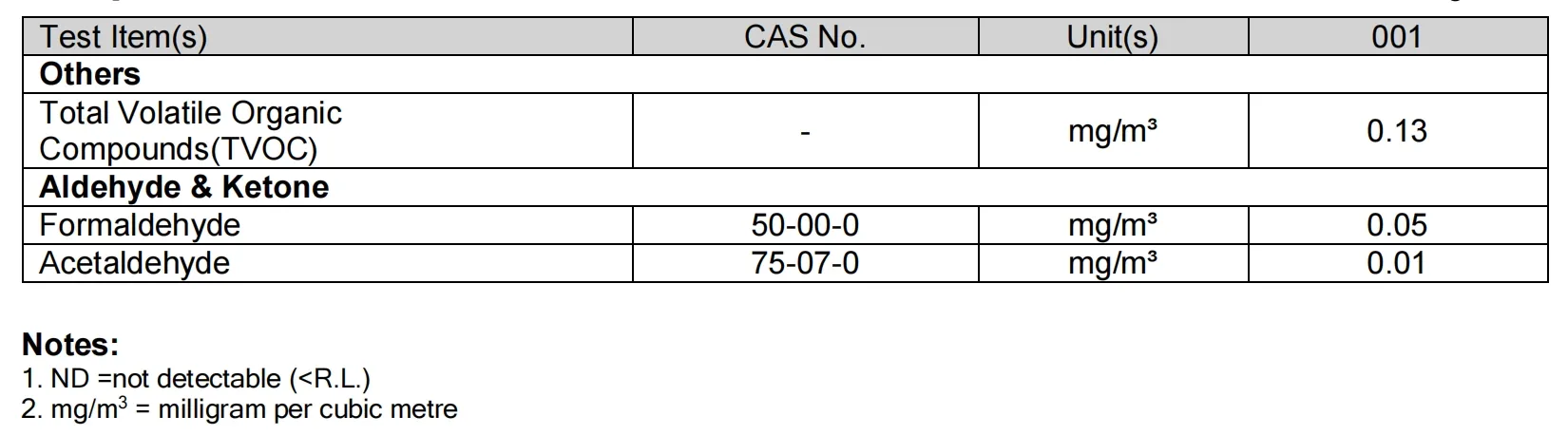

Eco-friendly: Formaldehyde 0.05mg/m³ (ISO16000 standards).

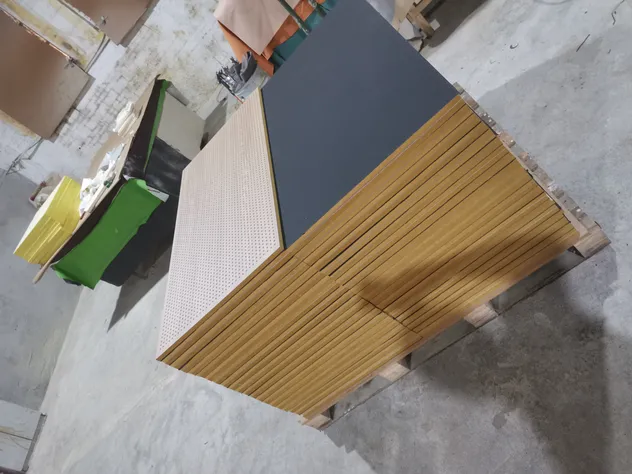

Rest assured, your goods are well protected during transit:
