Acoustic Panel for Ceiling and Wall Sound Absorption

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
9mm plain panel
Surface
Smooth Surface
Application
Meeting Room, Theater, Music Hall, Gym, etc.
Base Material
100% Recycled Polyester Fiber
NRC
0.3
Eco-Friendly Grade
E0
Fireproof Grade
B1
Warranty
10 Years
Certification
CE, ASTM, ISO
Installation
Pasting Directly with Spray Glue, Hot Melt Glue
Product Description

Discover the limitless design flexibility of polyester fiber acoustic panels; a lightweight and semi-rigid panel that has sound absorbing properties. Designed with solid color throughout, these panels have the potential to be used in a large array of spatial design and interior solutions.

More than just a traditional interior acoustic panel; polyester fiber acoustic panels can be employed as a base material for creative solutions where design and aesthetics are important.

The panel is made from 100% polyester fiber. Containing a minimum of 75% post-consume recycled material (PET bottle-flake), it is completely safe, non-toxic, non-allergenic and non-irritant.
Product Details
Product Type9mm 100% polyester fibre acoustic panels
Material100% polyester fiber. Minimum 75% recycled
Surface TypeSmooth and durable
FeatureSafe, non-toxic, non-irritant and non-allergenic
Density2000g/sqm (222.22kg/m3)
Color Options72 colors
Standard Size2440*1220*9mm

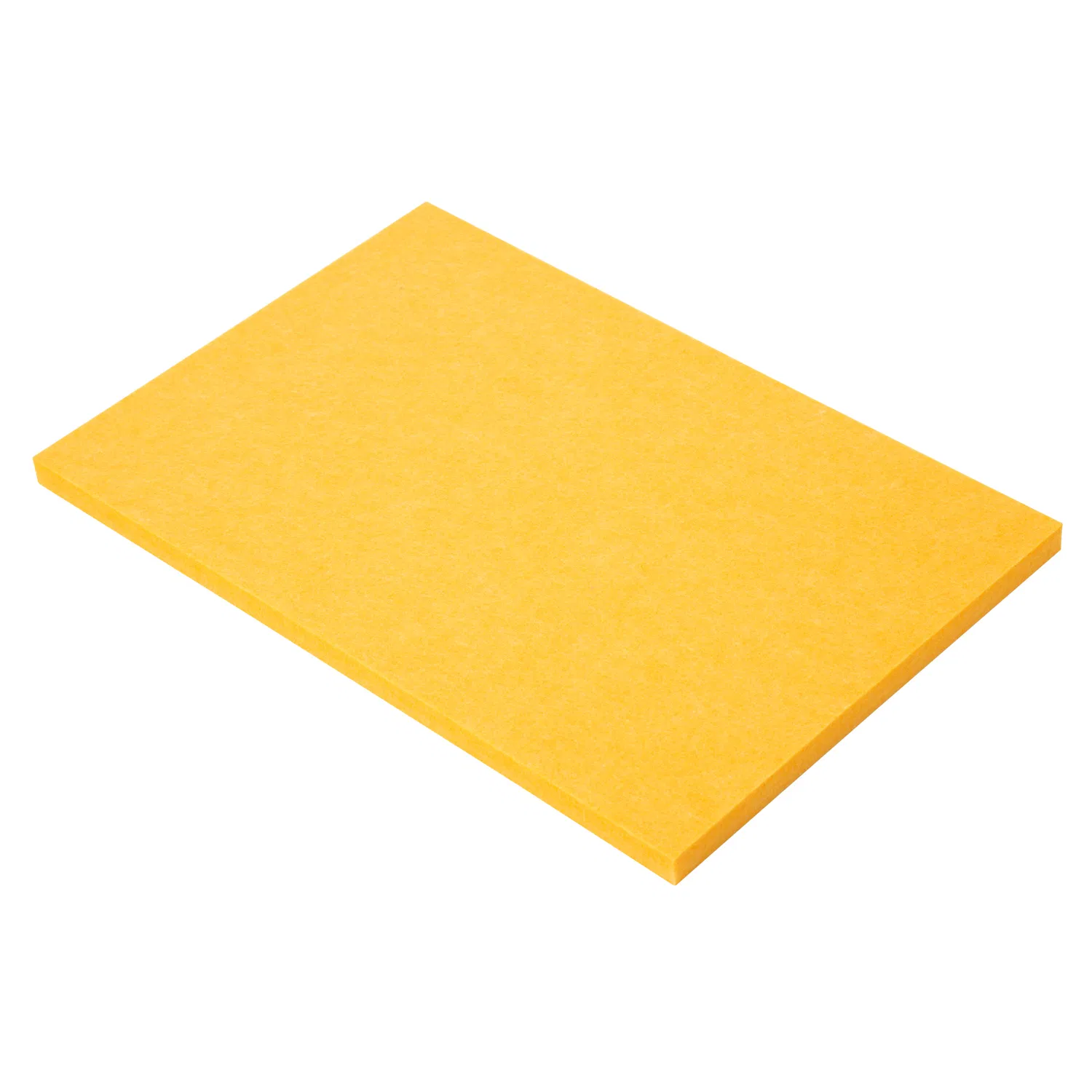

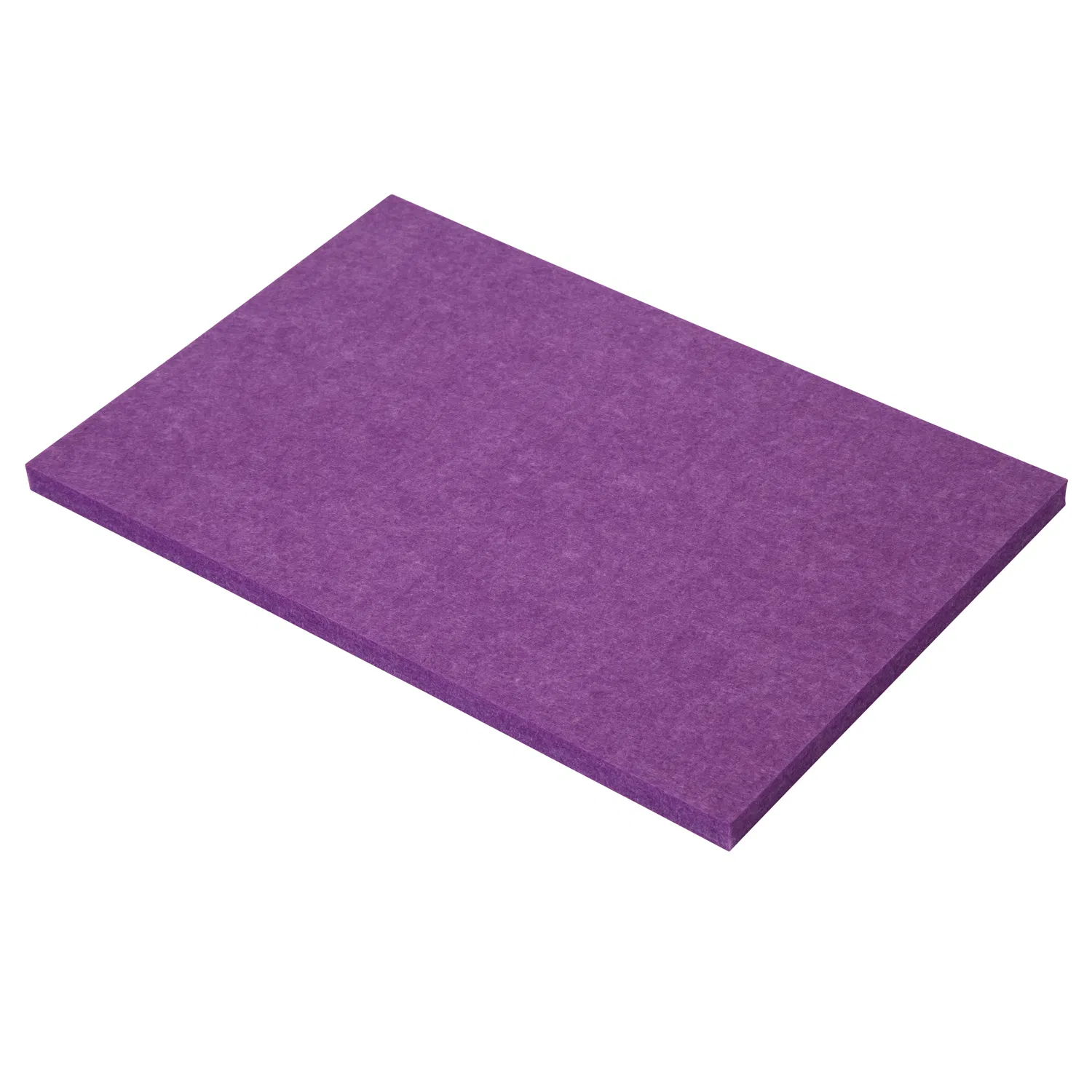

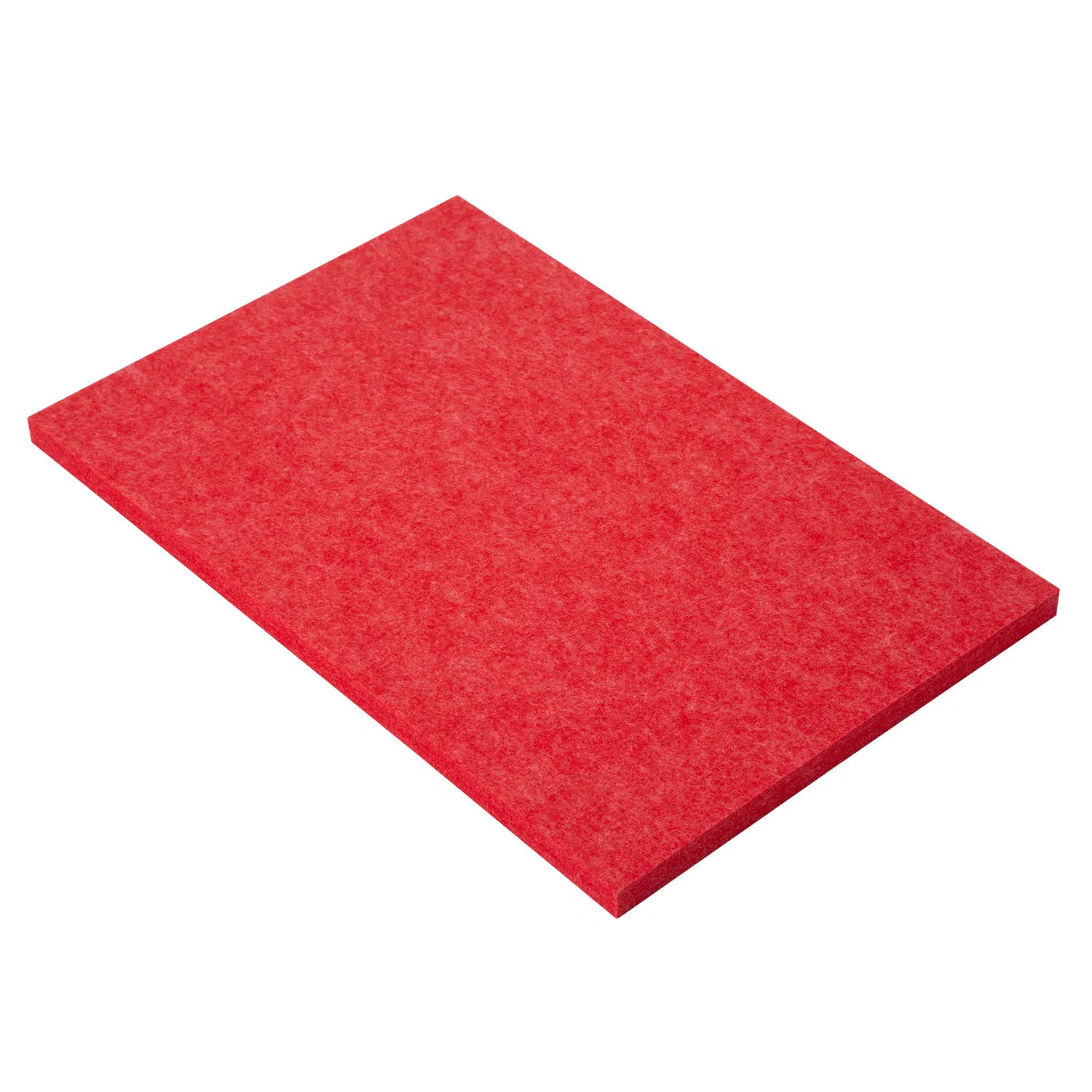

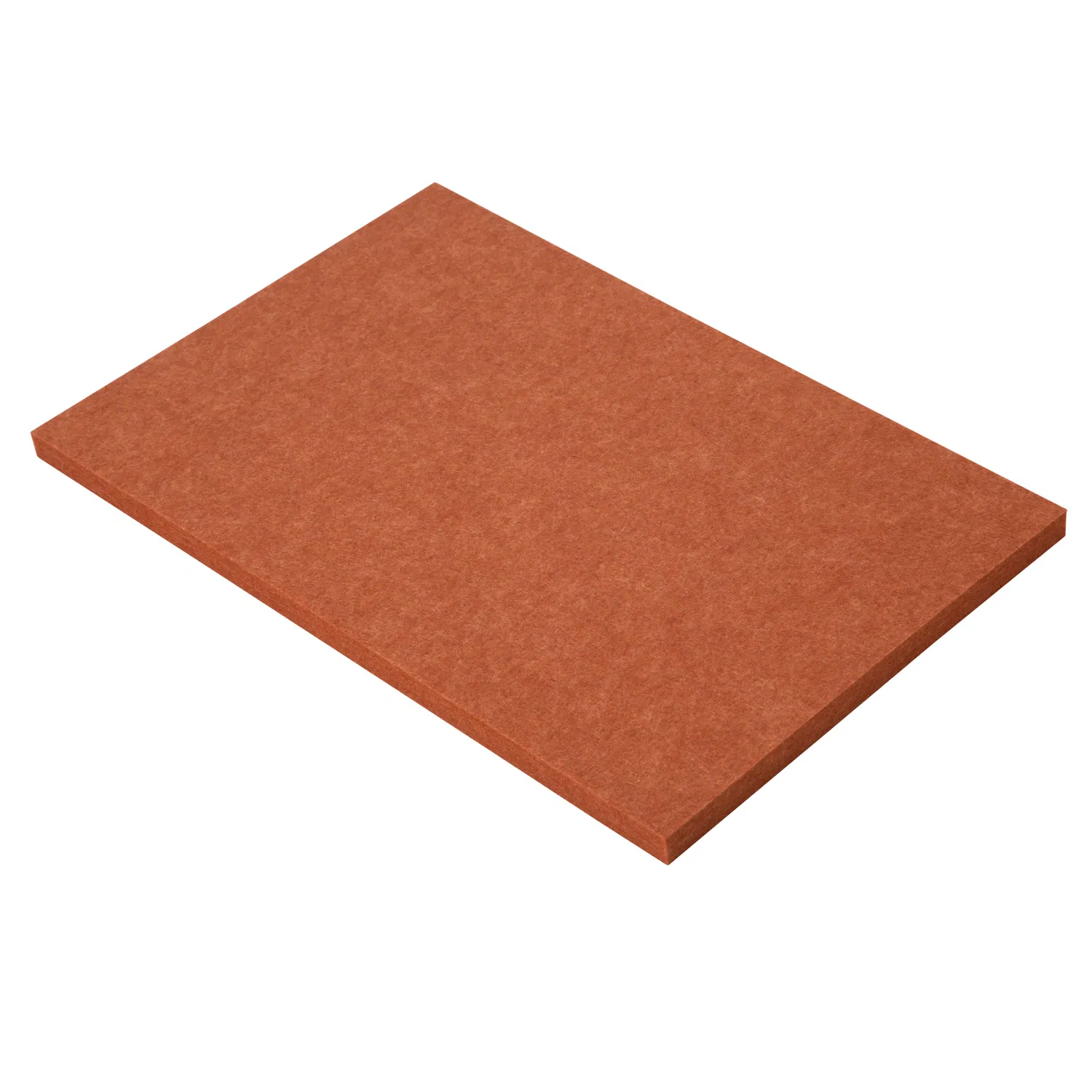

Acoustic Panel Display

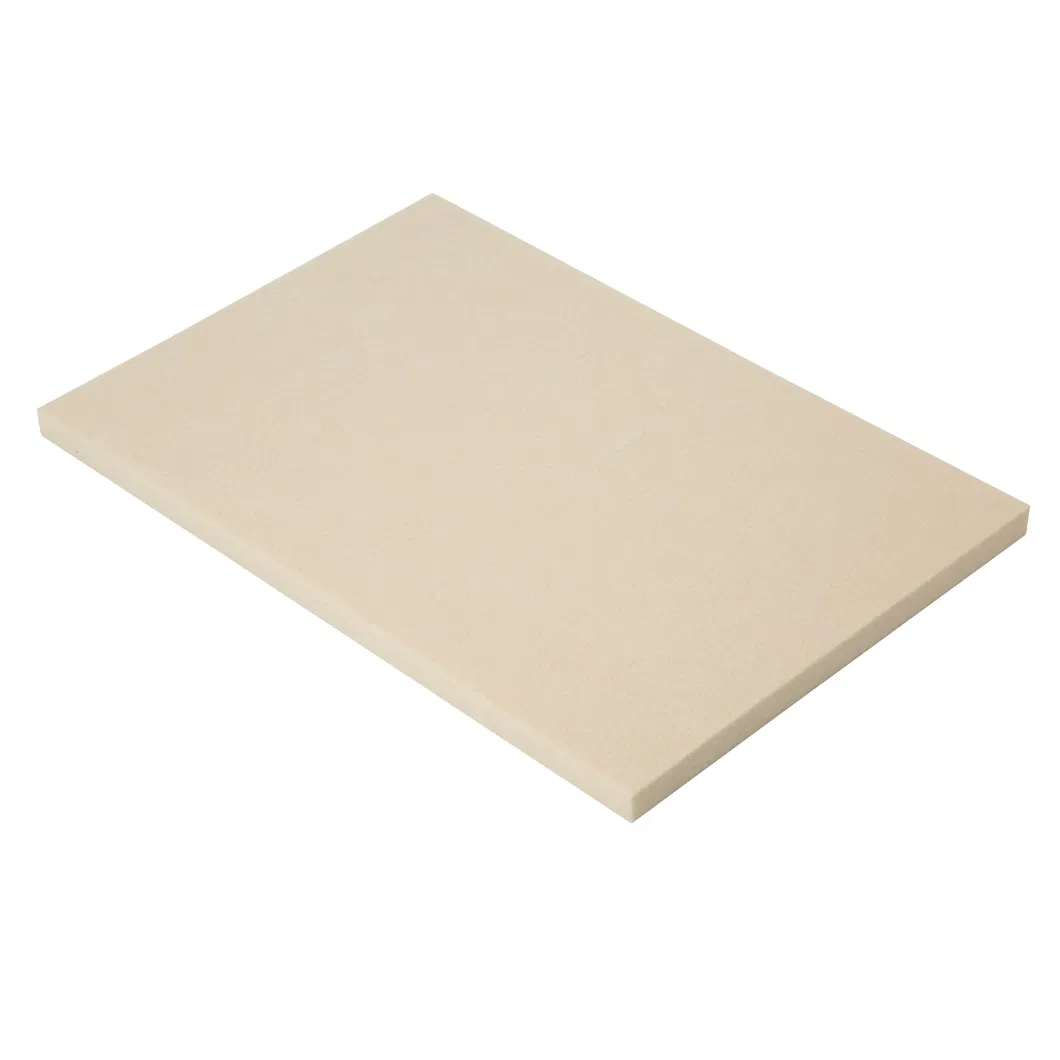

Acoustic Panel Detail

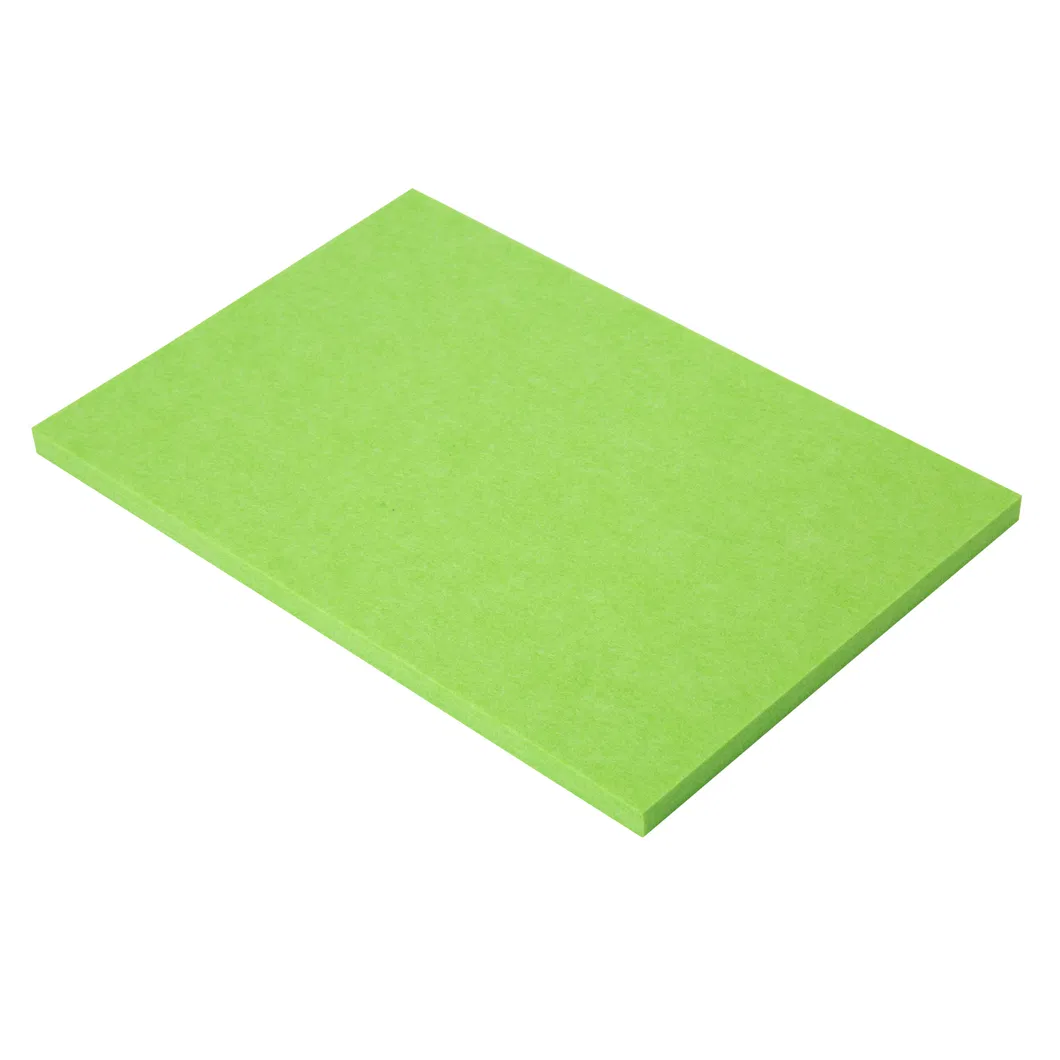

Acoustic Panel Colors
Interior Application

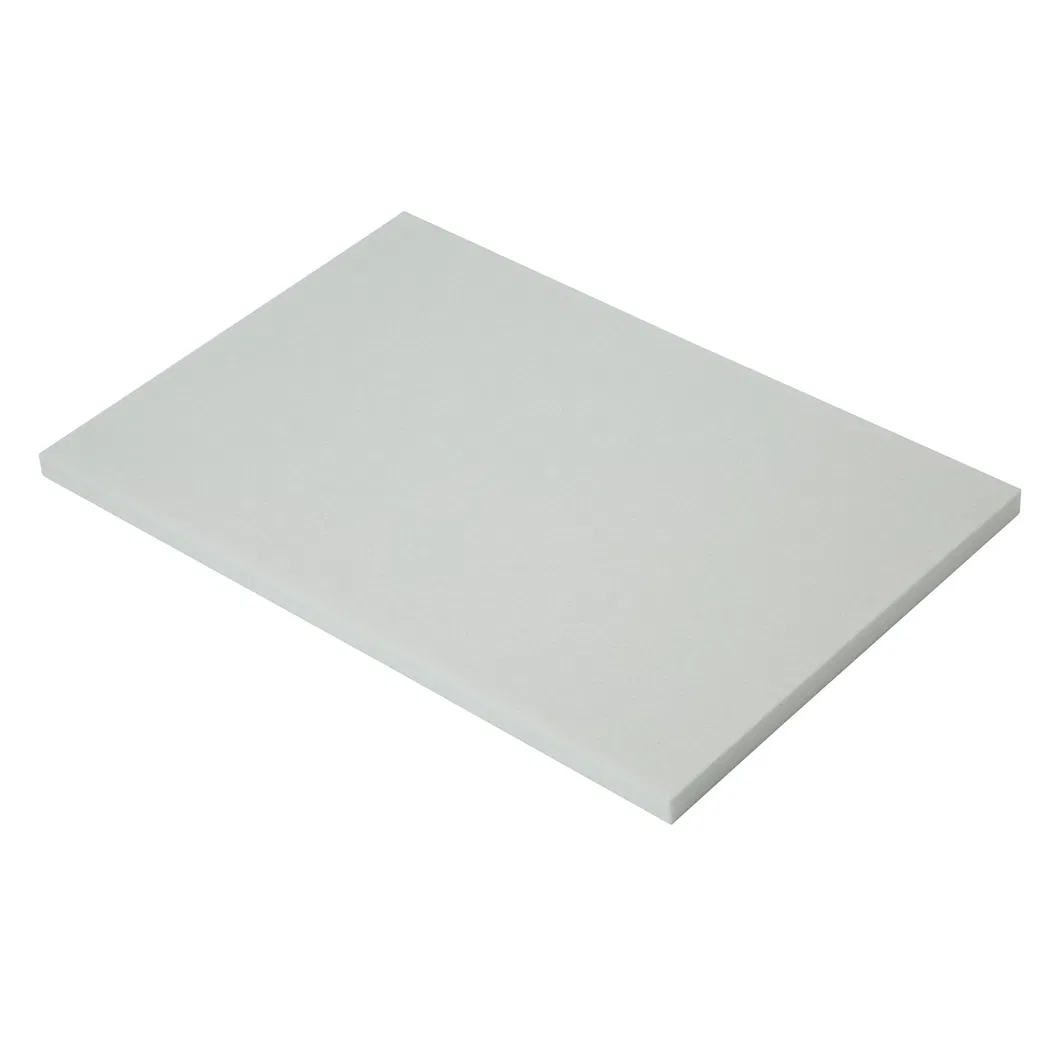

Panel Texture

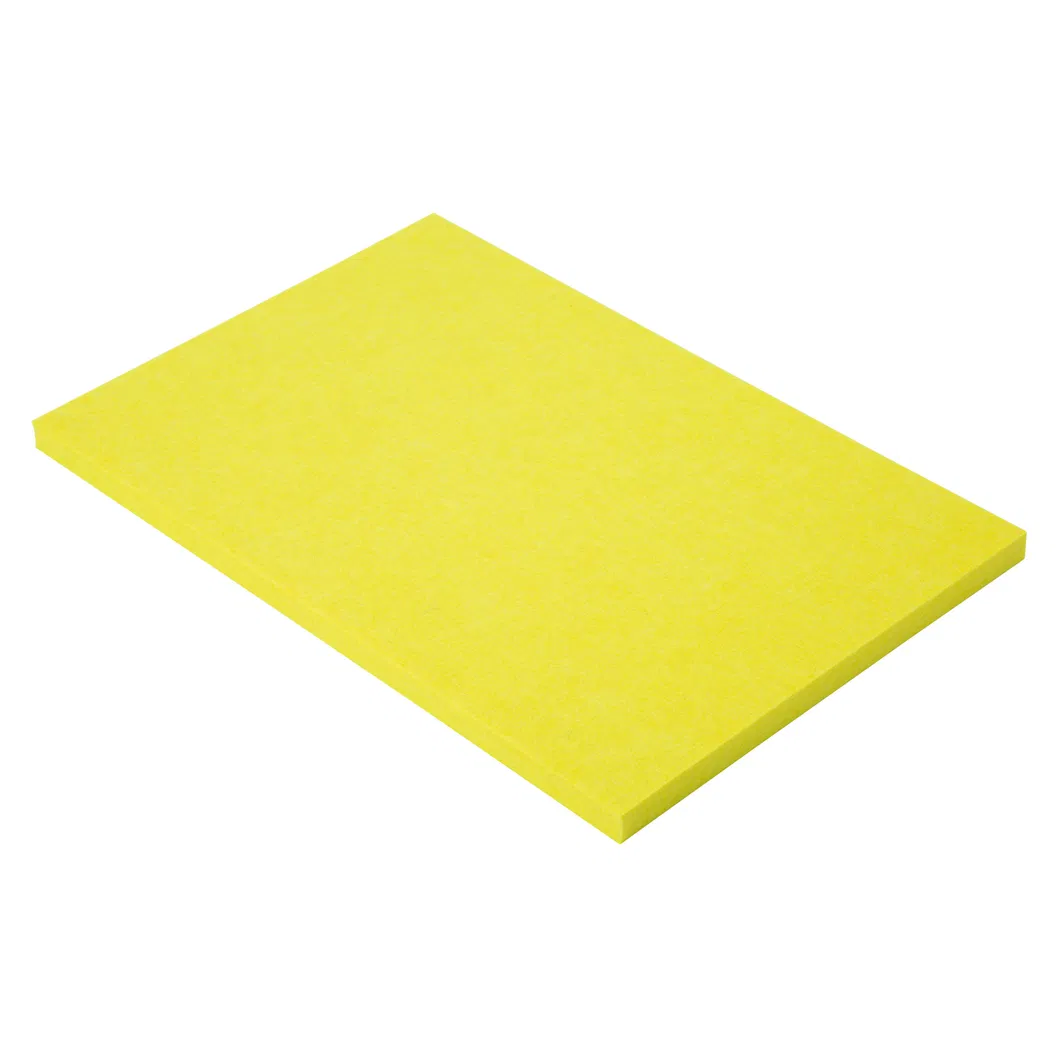

Sound Absorption Board
Extended Specifications
Panel Dimensions: 2440*1220mm (Custom sizes available)
Thickness: 3mm, 5mm, 9mm, 12mm, 15mm, 20mm, 24mm, 48mm
Weight/Density References:
  • 9mm: 1500g/sqm - 2000g/sqm
  • 12mm: 2300g/sqm - 2400g/sqm
  • 15mm: 2400g/sqm (160kg/m3)
  • 24mm: 3800g/sqm (158kg/m3)

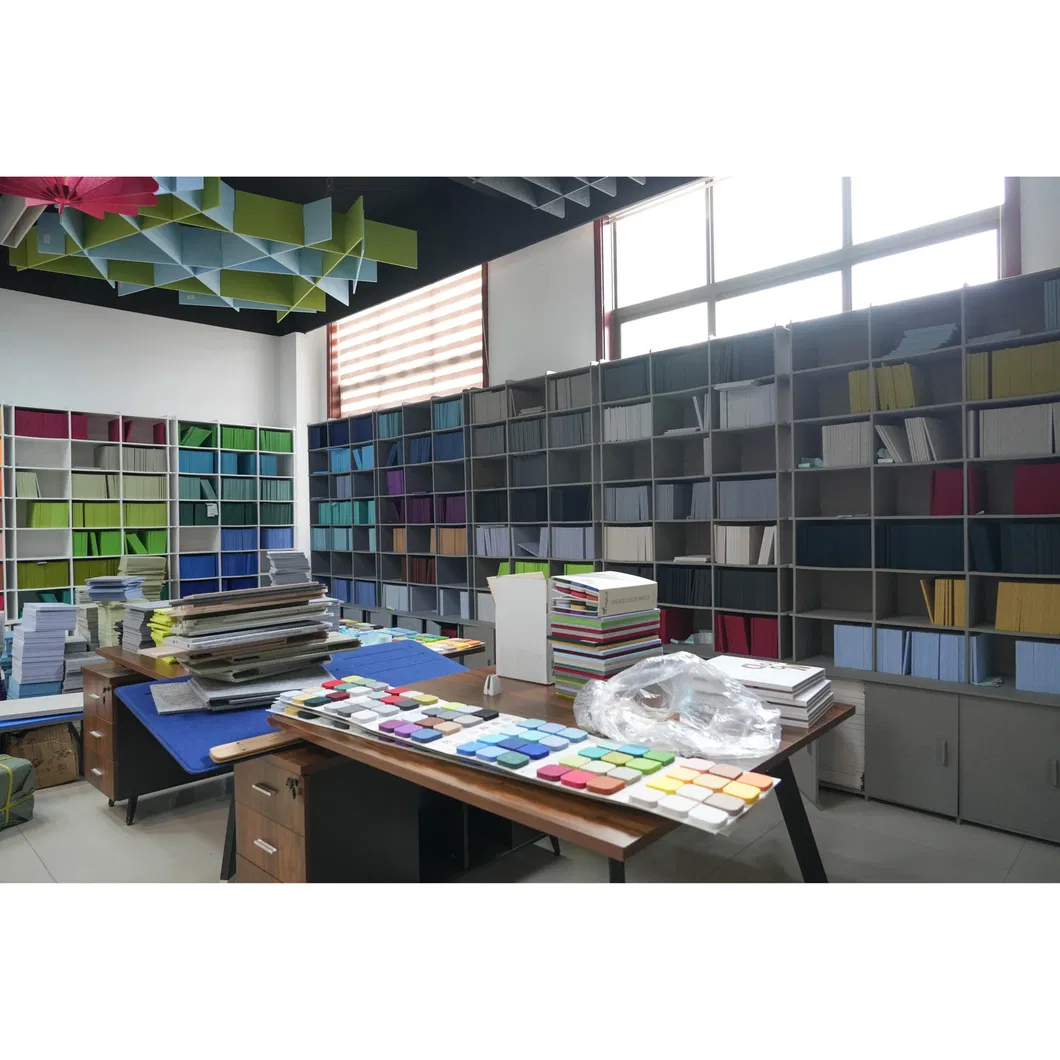

Technical Drawing 1 Technical Drawing 2
Compliance & Test Reports
EN13501-12007 Class B
ASTM E84 Class A / Class C
BS 476 Part 7 class 1Y fire rated
BS EN 717-1 E0 Formaldehyde-free
NRC EN 13964;2004+A1:2006
EN 12667-2001 Thermal Conductivity
Environmental Commitment

We are committed to best practice through ISO 9001 and ISO 14001 accredited Quality and Environmental Management Systems. Our products contain a minimum of 75% recycled polyester fiber ensuring comparatively low embodied energy. Off-cuts and manufacturing waste are re-used or recycled wherever possible.

These panels support safer indoor air quality and will not become potential airborne pollutants as they contain no chemical binders or formaldehyde.

Color Options
Available Color Chart

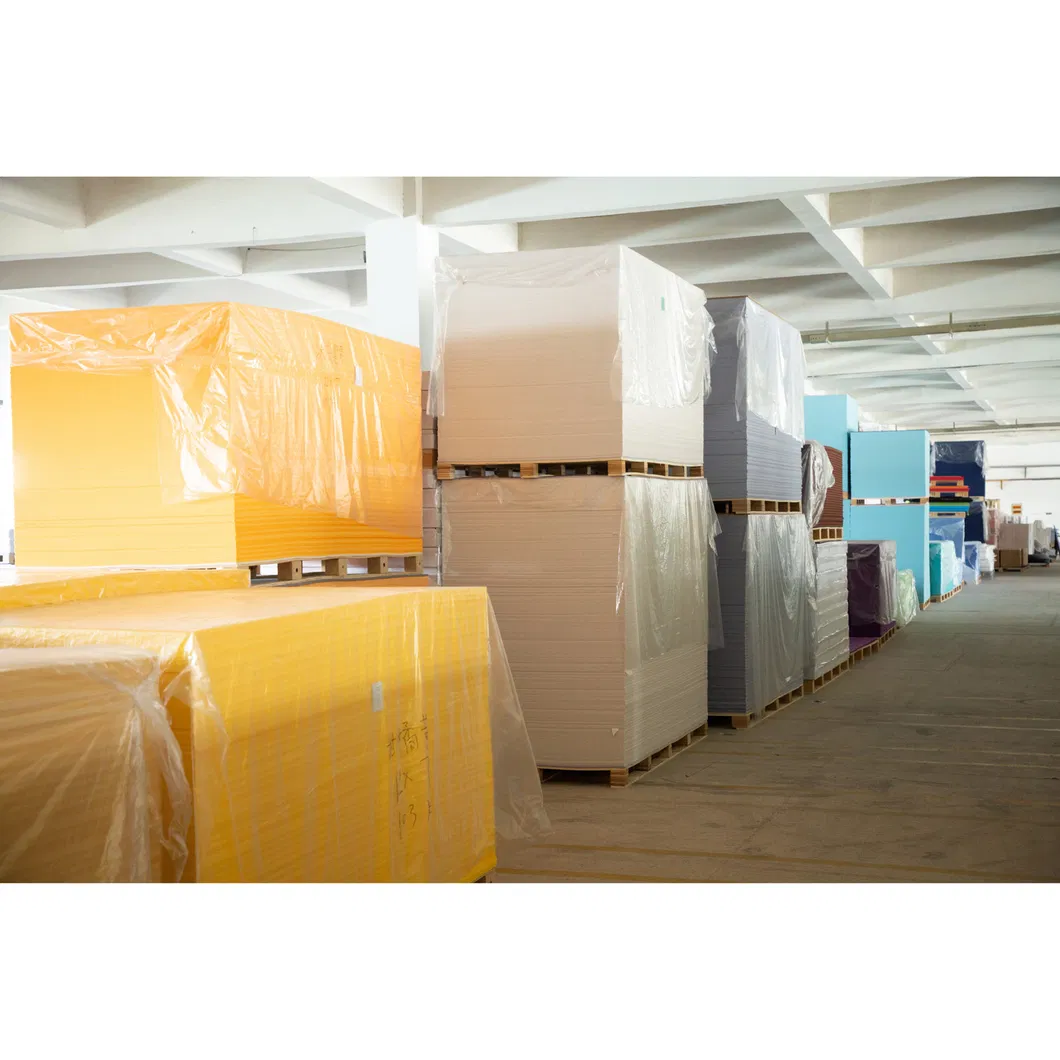

Material Testing

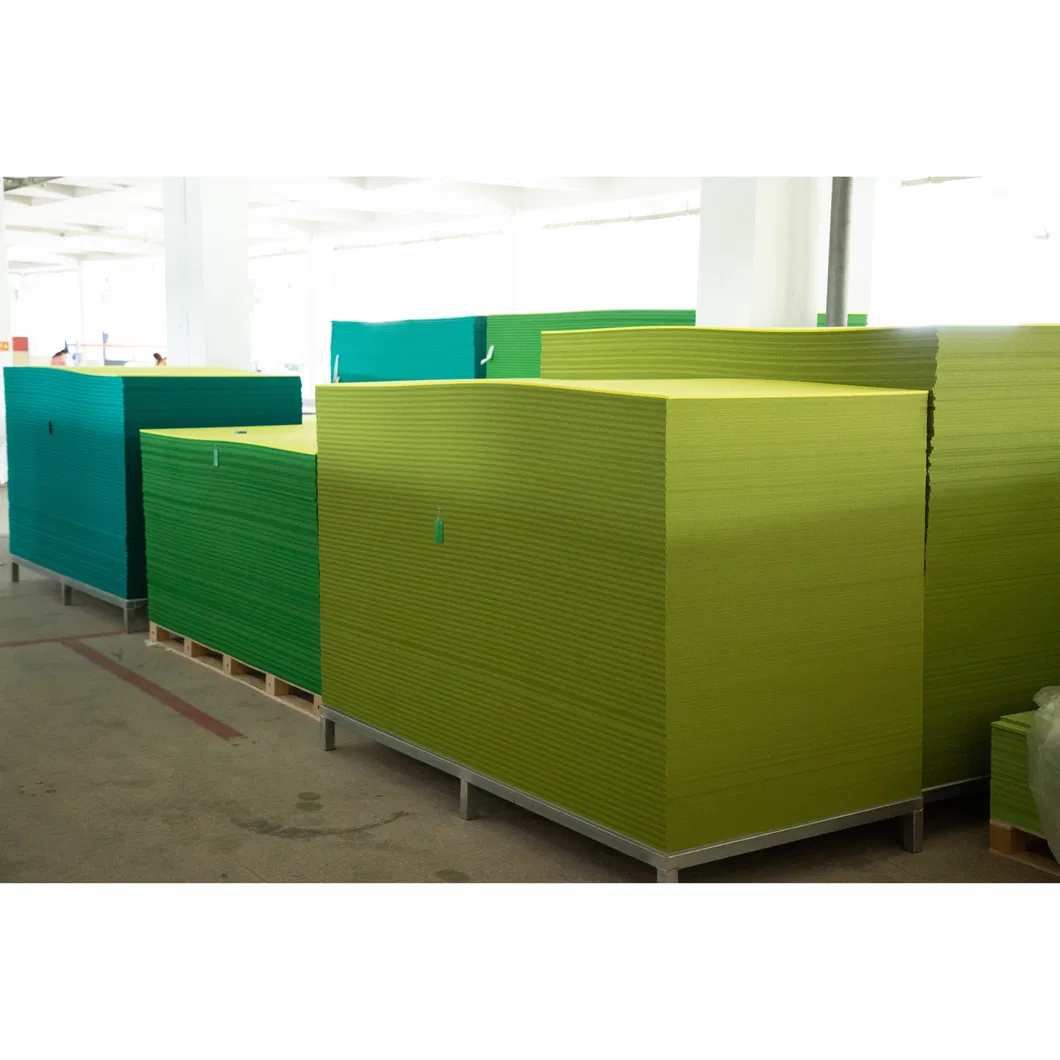

Quality Control
Packaging & Delivery
Package Size
248.00cm * 126.00cm * 11.00cm
Gross Weight
35.000kg
Transport
Pallet, Carton and Plastic Film
Certification

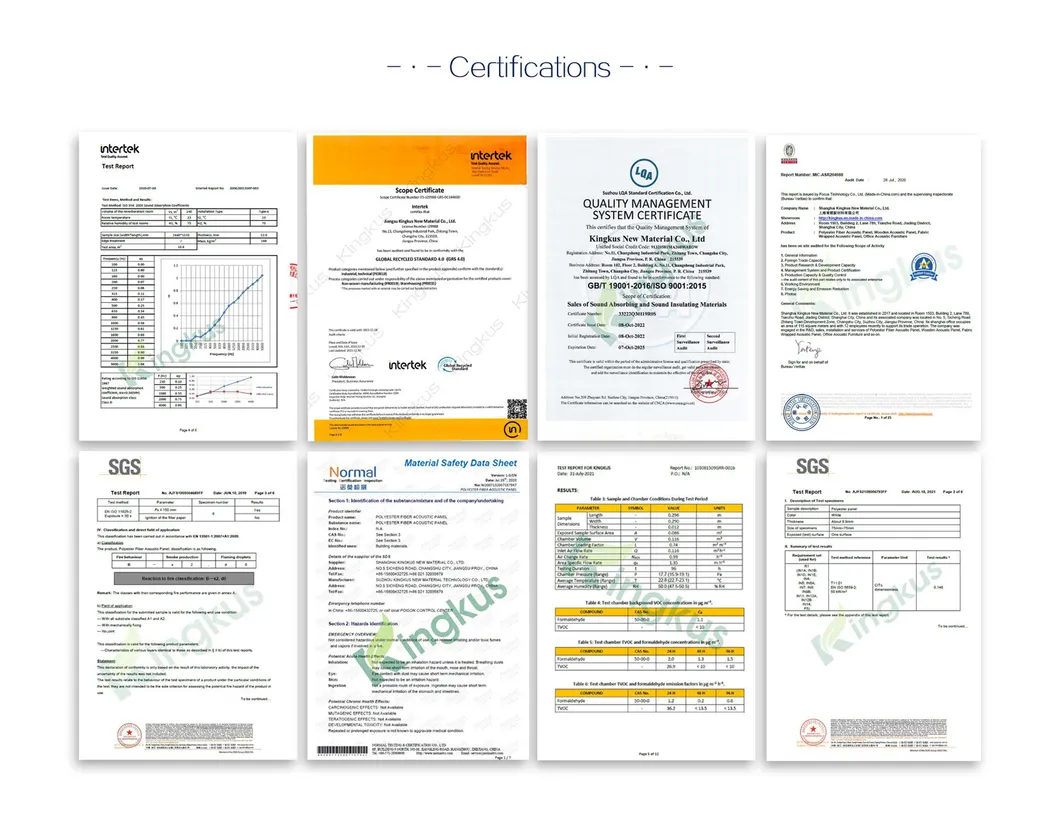

Product Certificates
Frequently Asked Questions
Q1: What are the primary materials used in these acoustic panels? A1: The panels are made from 100% polyester fiber, containing at least 75% post-consumer recycled PET material (recycled bottle-flakes).
Q2: Are these panels fire resistant? A2: Yes, they meet multiple international standards including EN13501-1 Class B, ASTM E84 Class A, and BS 476 Part 7 Class 1Y.
Q3: How are the panels installed on walls or ceilings? A3: Installation is simple and can be done by pasting the panels directly using spray glue or hot melt glue.
Q4: Are the panels environmentally friendly? A4: Absolutely. They are Formaldehyde-free (E0 grade), non-toxic, non-allergenic, and the uncontaminated panels are fully recyclable.
Q5: What is the standard size and can they be customized? A5: The standard panel dimension is 2440*1220mm with various thicknesses (3mm to 48mm), and custom sizes can be requested.
Q6: Do these panels help with sound absorption (NRC)? A6: Yes, they have excellent sound-absorbing properties with NRC ratings tested according to EN 13964 and ISO 354 standards.
