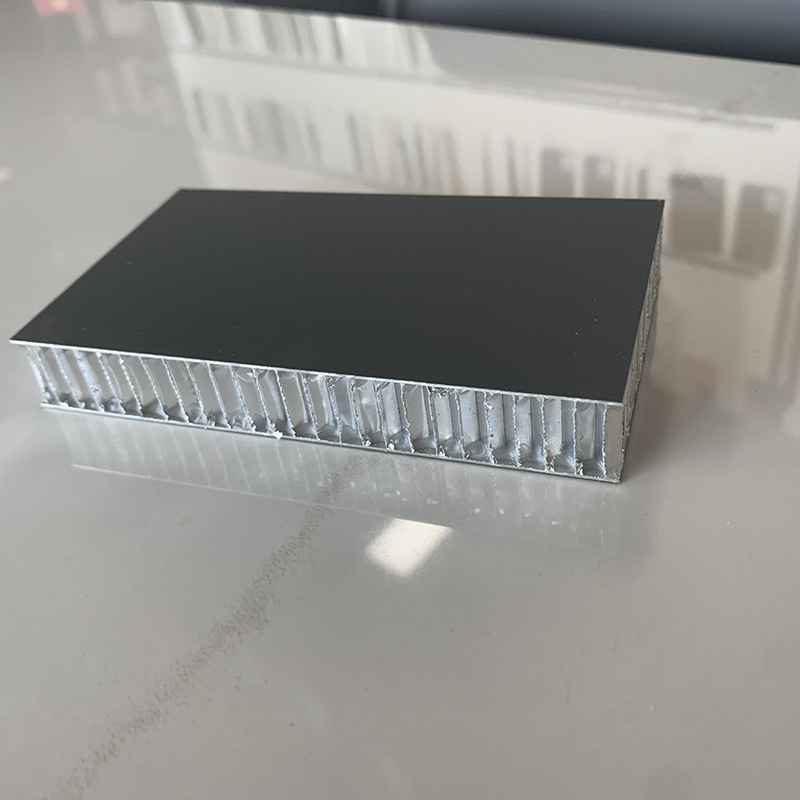

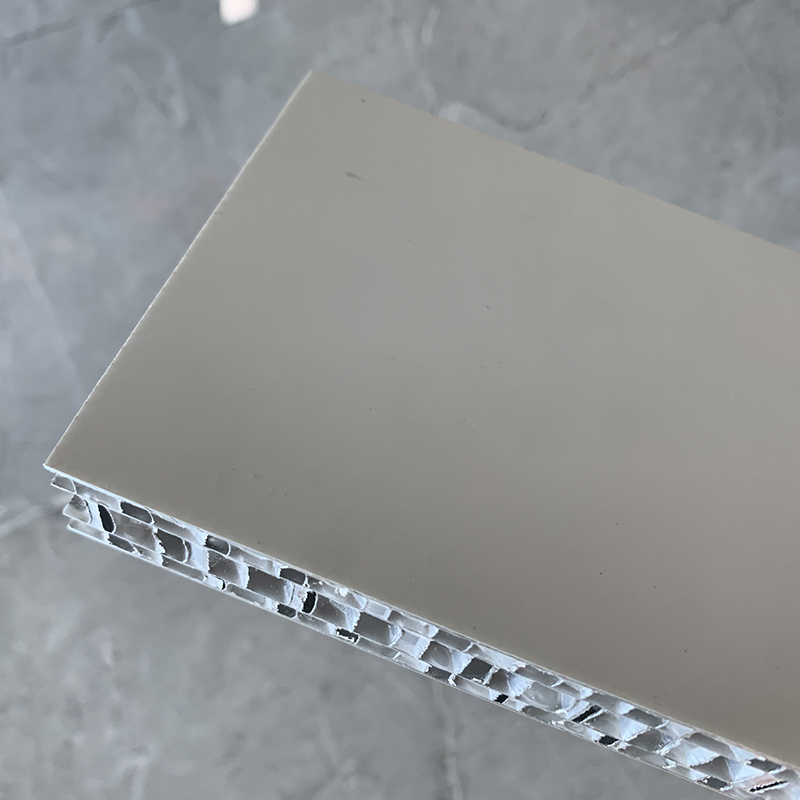

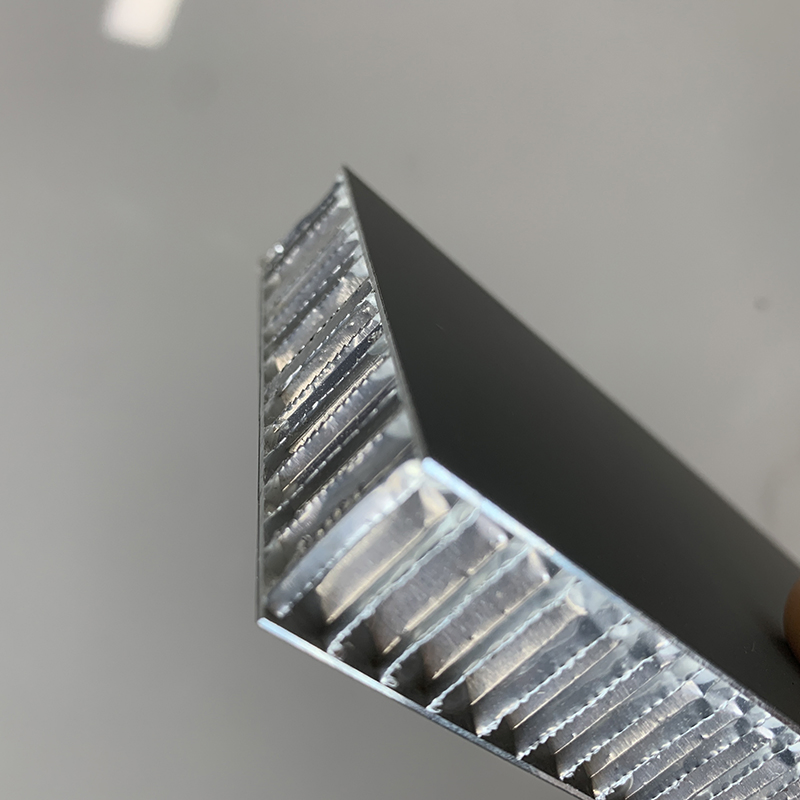

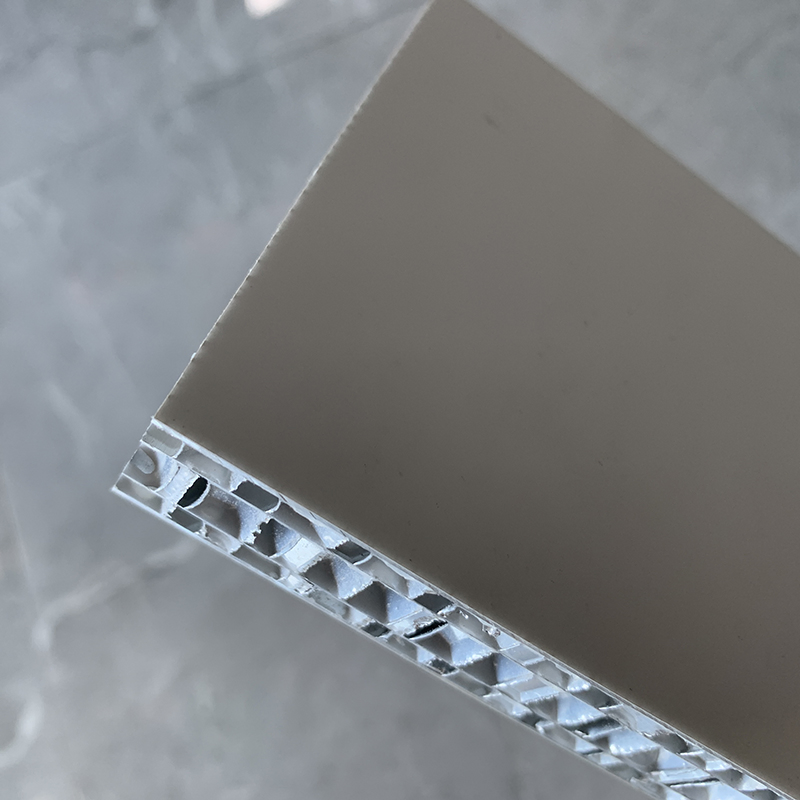

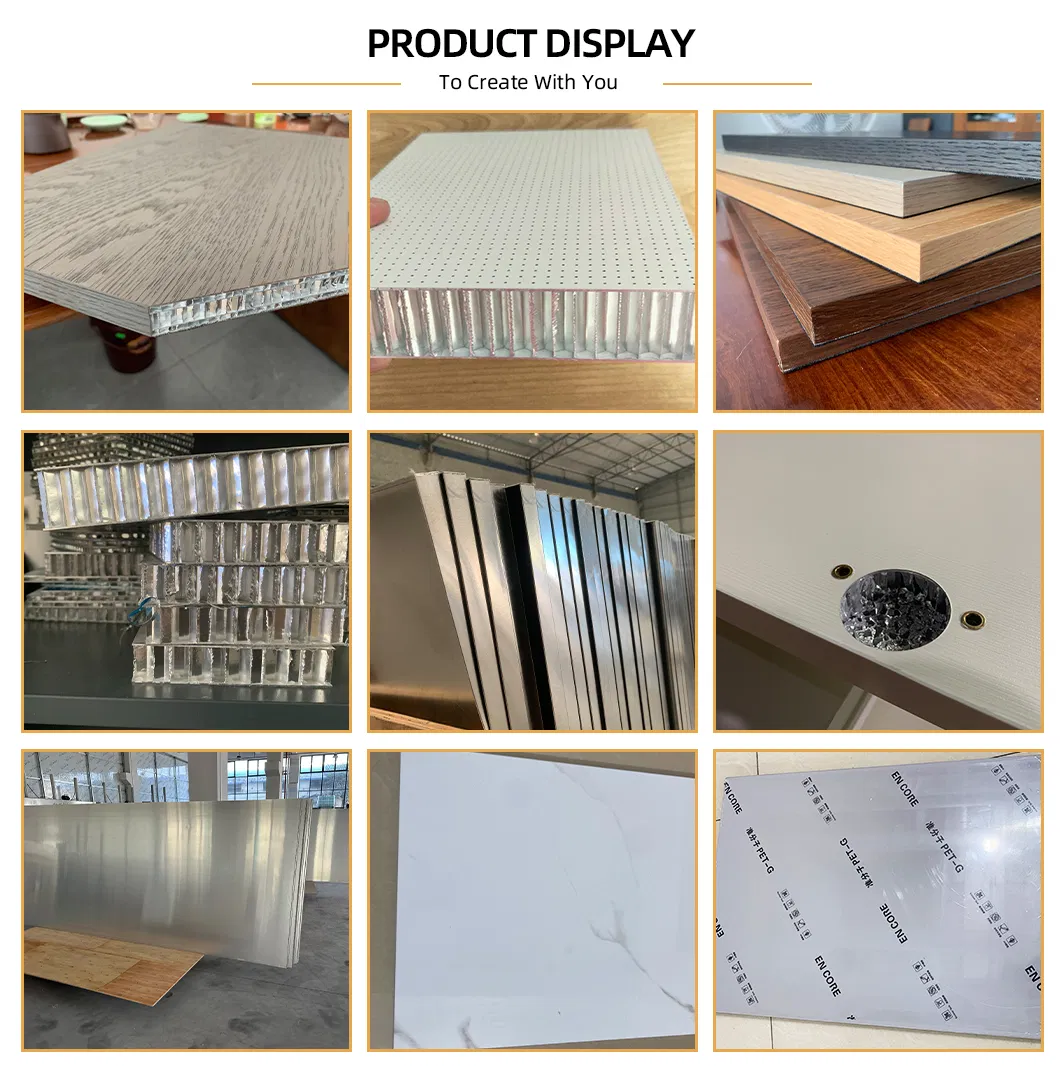

Aluminum Honeycomb Panel Features:

• Ultra-light and high-strength: Weight is only 1/5~1/8 of traditional stone, while bending strength is increased by 3~5 times.
• Flat and non-deformed: The honeycomb core disperses stress and avoids temperature-induced deformation.
• Easy Processing: Supports cutting, bending, punching, and complex curved designs (radian ≥ R500).
• Fast Installation: Dry hanging system shortens construction periods by more than 50%.

Environmental & Fire Performance:

• 100% Recyclable: Sustainable aluminum panels and cores.
• Low-Energy Production: 70% energy-saving compared to mining natural stone.
• Class A Fire Resistance: Non-combustible material with a melting point of 660℃.
• Non-Toxic: Zero formaldehyde release and extremely low smoke density.

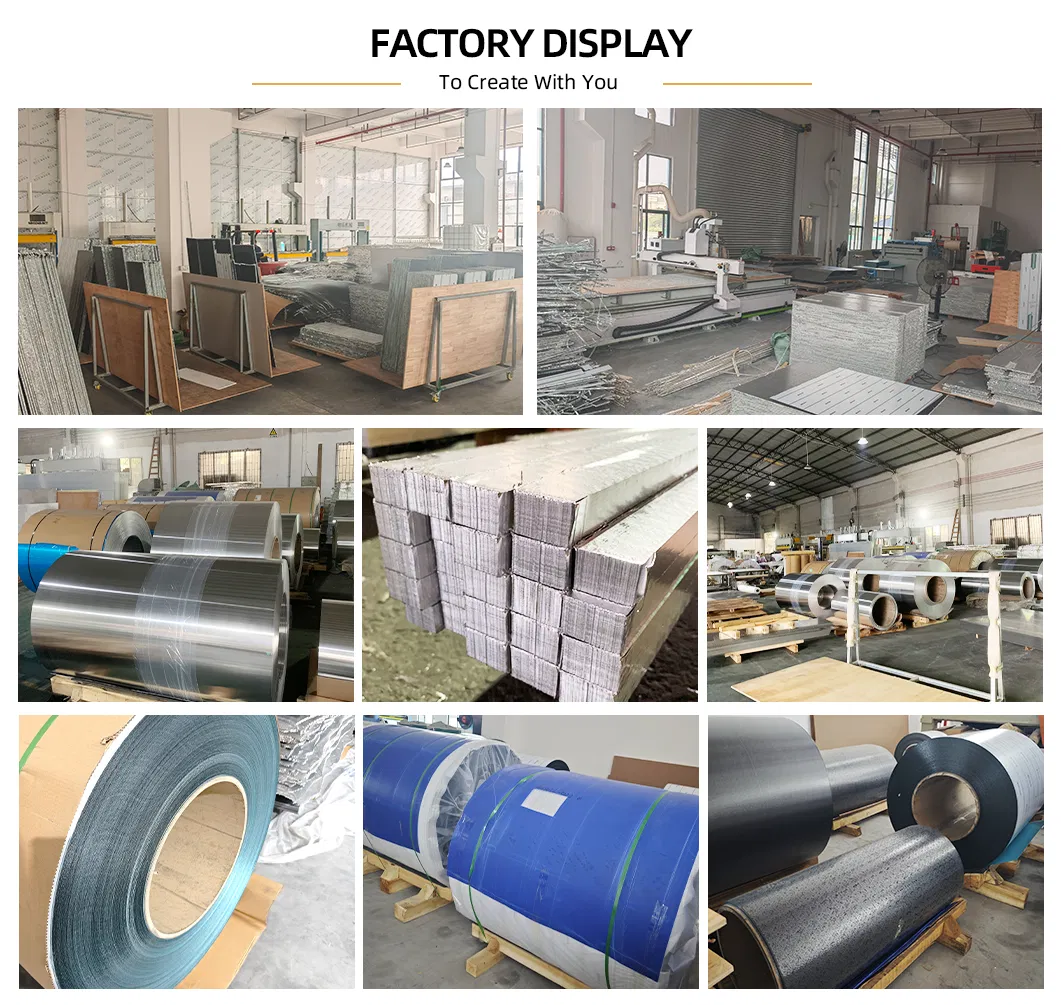

Leveraging over 10 years of specialized expertise in advanced honeycomb composite panels, we deliver precision-engineered solutions for architectural facades, interior systems, and industrial applications worldwide. Our 15,000m² production base is equipped with automated cutting lines, CNC routers, and vacuum hot-press bonding systems.

Our panels empower iconic projects across architecture (curtain walls, ceilings), transportation (high-speed train interiors, marine bulkheads), and specialized spaces like hospitals and cleanrooms.

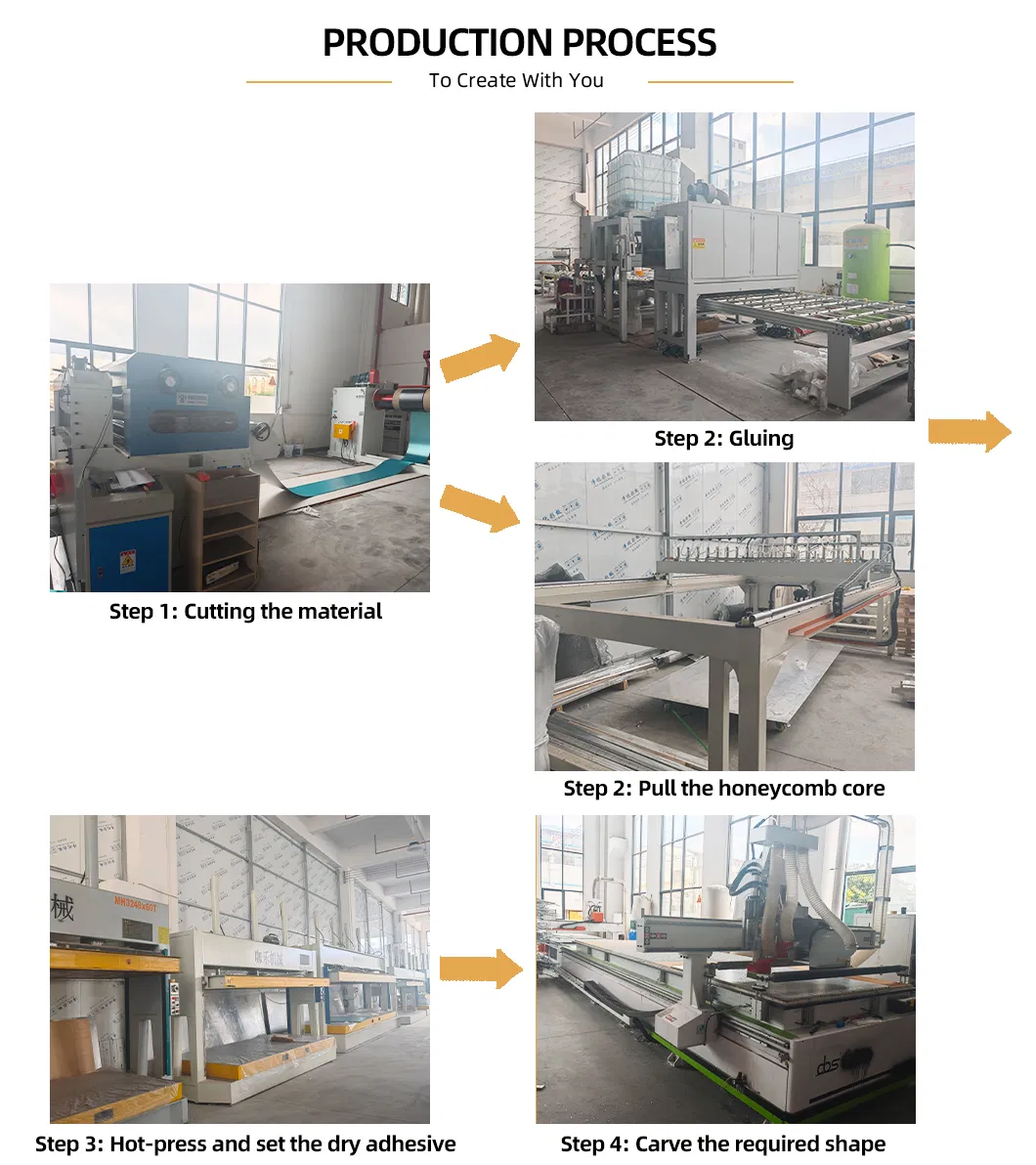

• 1. Raw Material Preparation: AA3003/AA5052 aluminum coils and foil expanded to target cell sizes.
• 2. Face Sheet Pre-Treatment: Chemical conversion and PVDF coating cured at 230℃.
• 3. Core Stabilization: Resin impregnation and density control (40-100kg/m³).
• 4. Composite Bonding: Vacuum hot-pressing at 0.8-1.2MPa for maximum bond strength.
• 5. Post-Processing: CNC waterjet cutting and edge sealing with high accuracy.
• 6. Quality Control: Peel tests (≥7N/mm) and salt spray resistance (>4000h).

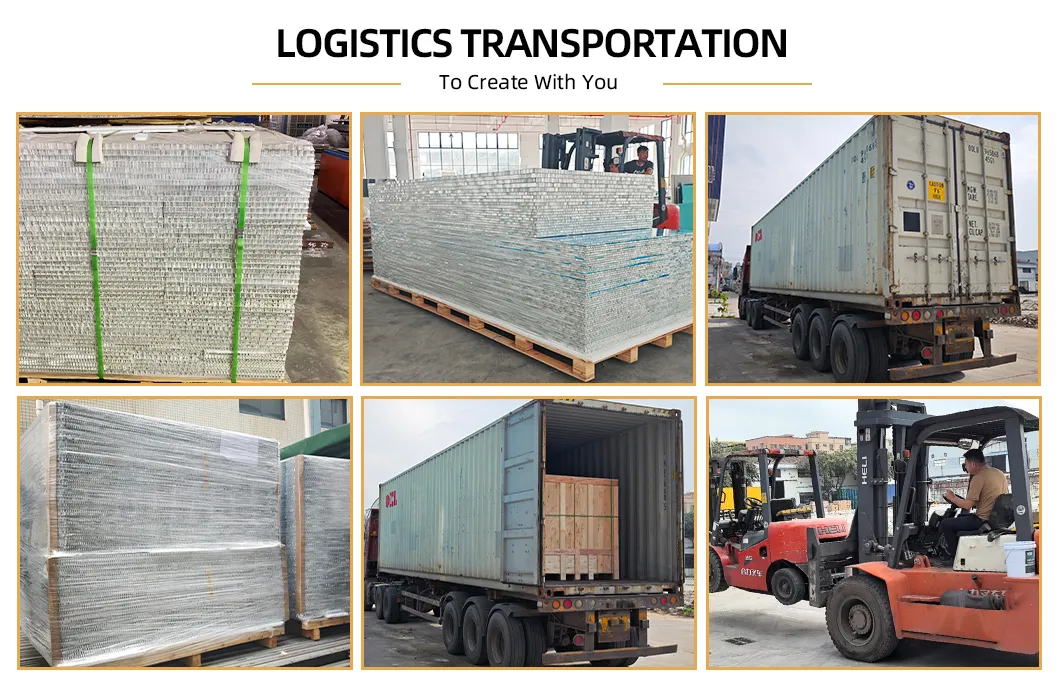

Products are carefully packed in reinforced plywood boxes to ensure safety during international transit. Standard modules are secured with protective films and buffers to prevent surface scratches.
