The new antimicrobial plate can continuously kill viruses and bacteria on the surface of objects under visible light. This technology for bacteria, fungi, mold and other harmful germs can gradually decompose their cell walls or cell membranes.

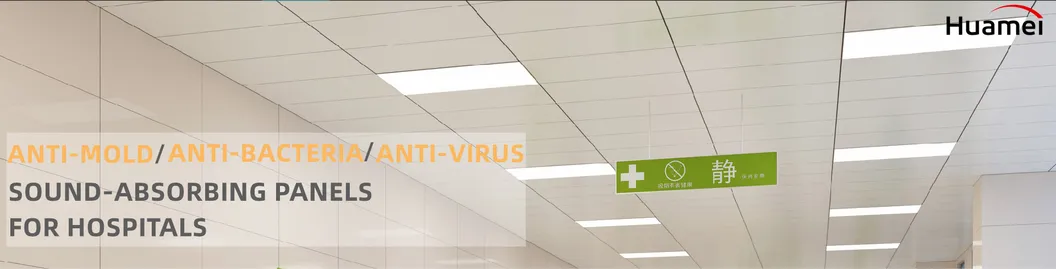

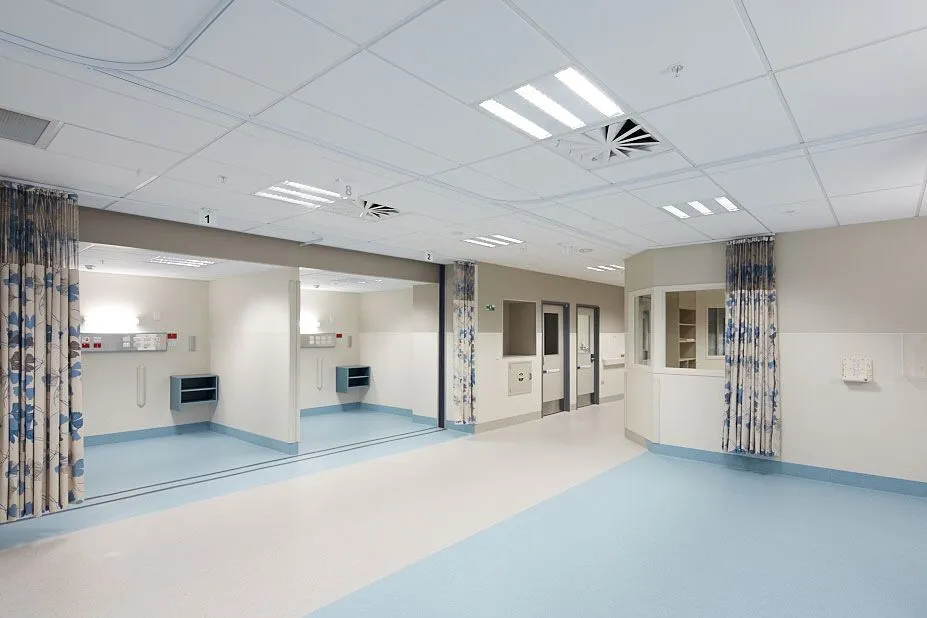

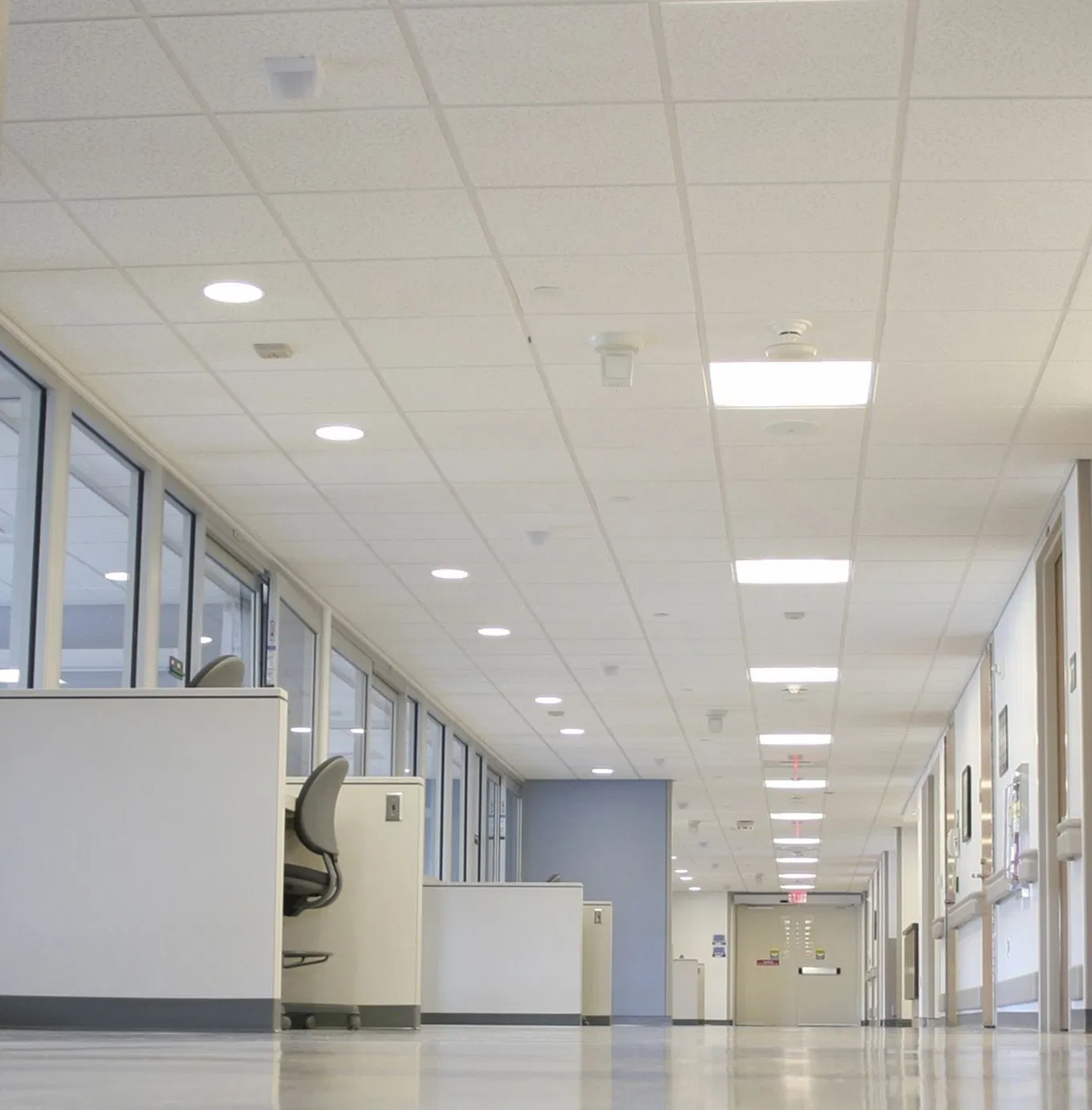

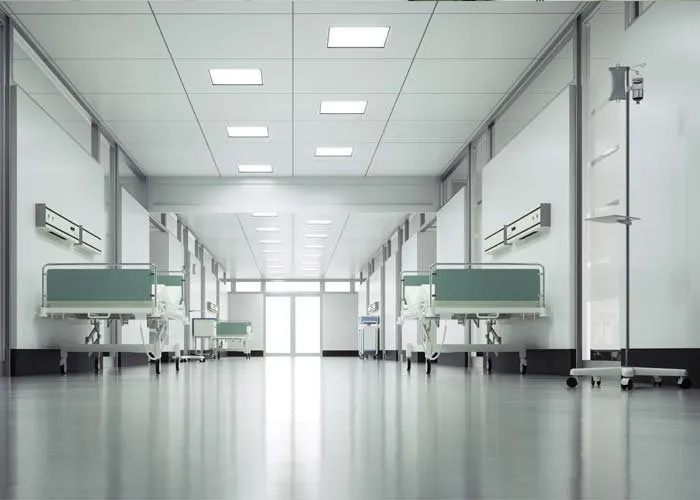

Fiberglass Acoustic panels are widely used in hospitals, schools, offices, and theaters. It effectively avoids large-scale public health events and serves as an excellent antibacterial purification product for public spaces.

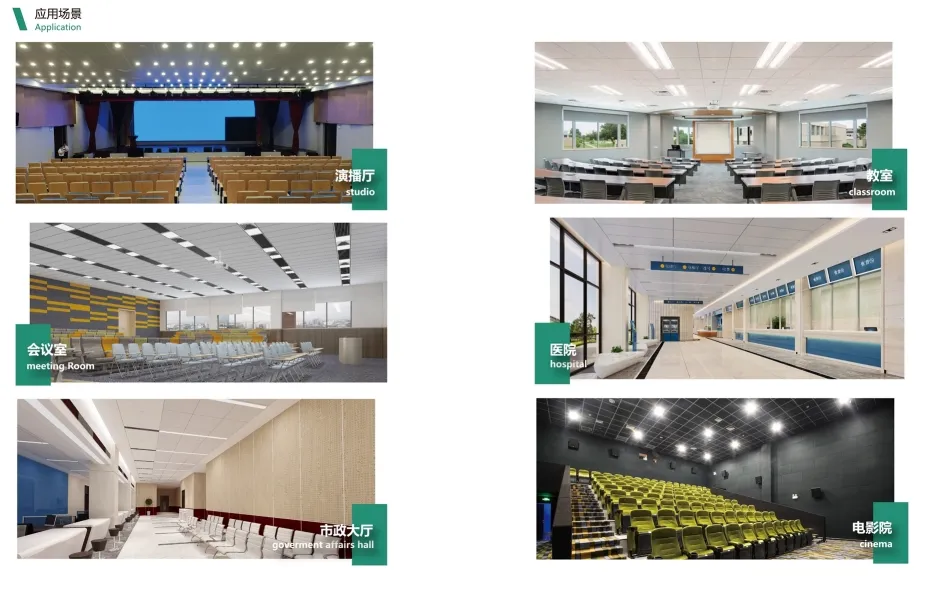

Fiberglass acoustic Ceiling panels feature excellent fire resistance (Fire-rated Grade A1) and superior sound insulation (NRC > 0.9). Ideal for radio stations, studios, gyms, and conference rooms where sound absorption quality is critical.
Composed of rock fiber, the fiberglass ceiling belongs to incombustible materials. Tested by national authorities, the fire rating is Class A (non-combustible) from the base plate to the decorative surface.
| Property | Specification |
|---|---|

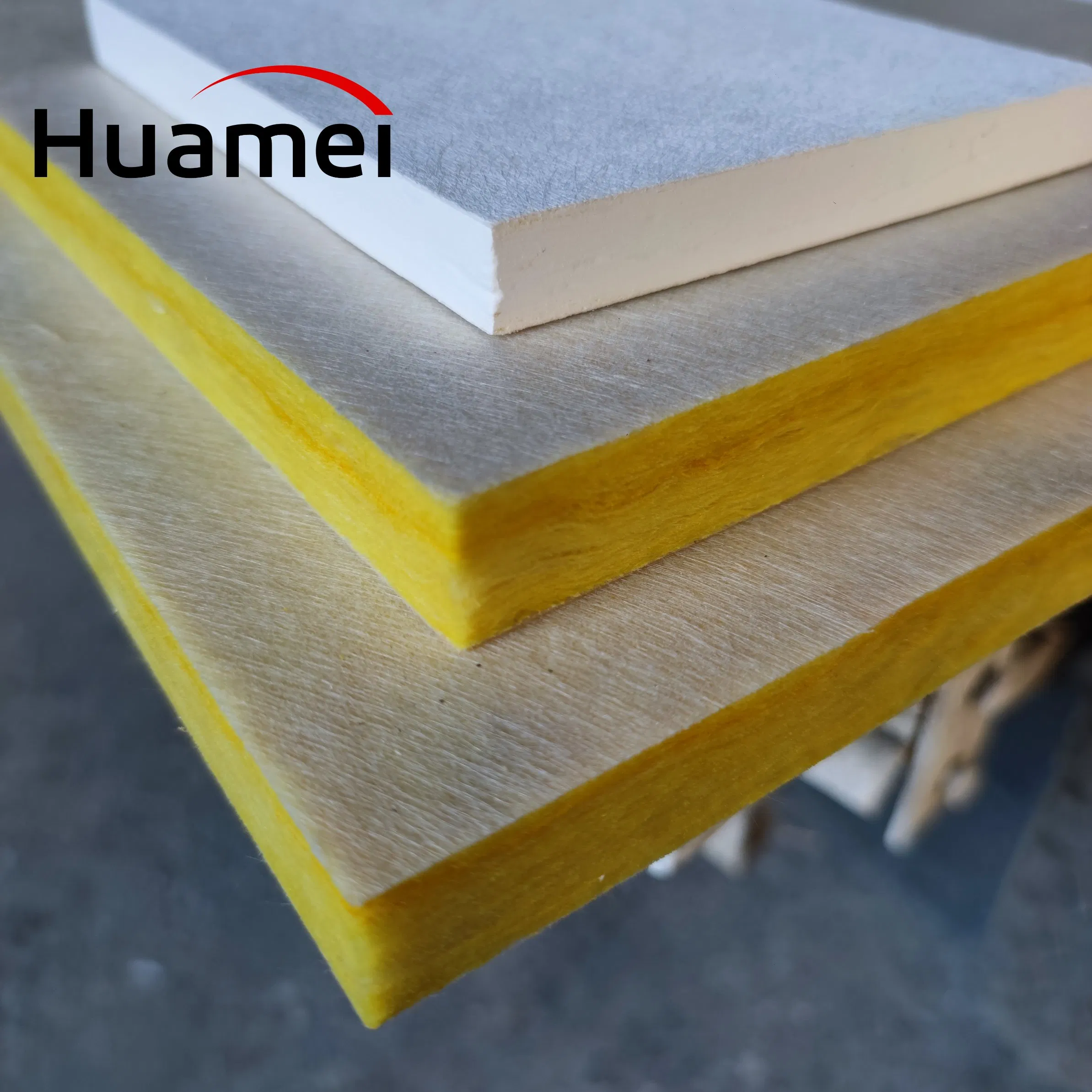

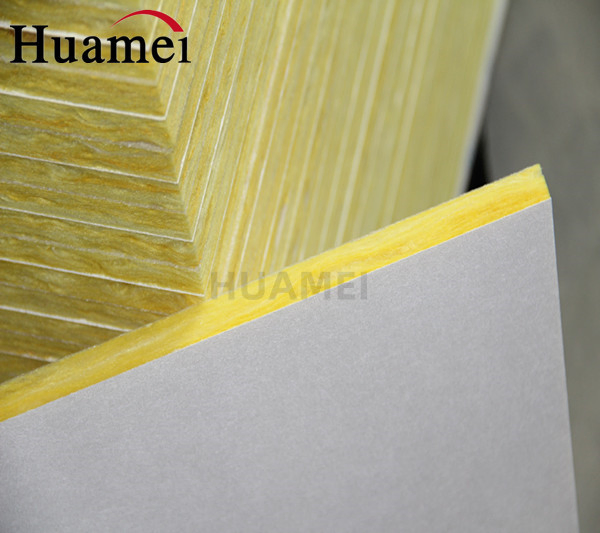

| Main Material | Torrefaction compounded high density fiberglass wool |

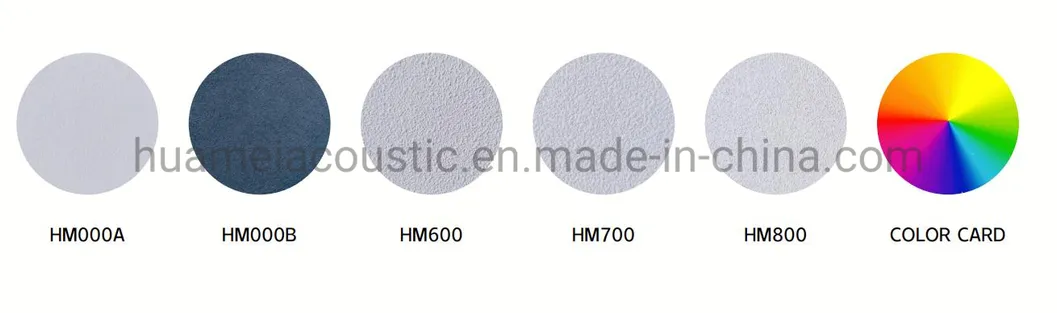

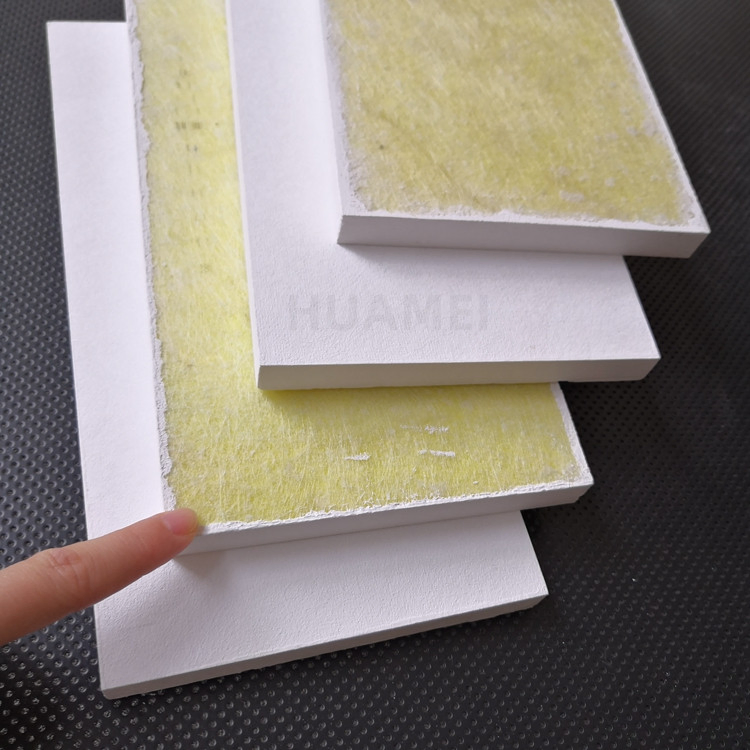

| Face | Special painted laminated with decorative fiberglass tissue |
| NRC | 0.8-1.0 (Tested by SGS / National Authorities) |
| Fire-Resistant | Class A (EN13501-1 / GB8624-2012) |
| Thermal-Resistant | ≥0.4(m2.k)/W |
| Humidity | Stable with RH up to 95% at 40°C |
| Density | 100kg/m3 (Special density available) |
| Size (mm) | Thickness (mm) | Packing (pcs/ctn) | Loading Quantity (sqm) |
|---|---|---|---|
| 600*600 | 12mm | 25 | 4788 SQM |
| 600*1200 | 12mm | 25 | 4788 SQM |
| 600*600 | 15mm | 20 | 3830.4 SQM |
| 600*600 | 20mm | 15 | 2872.8 SQM |
| 600*600 | 25mm | 12 | 2298.2 SQM |
* Other special sizes can be customized upon request.
