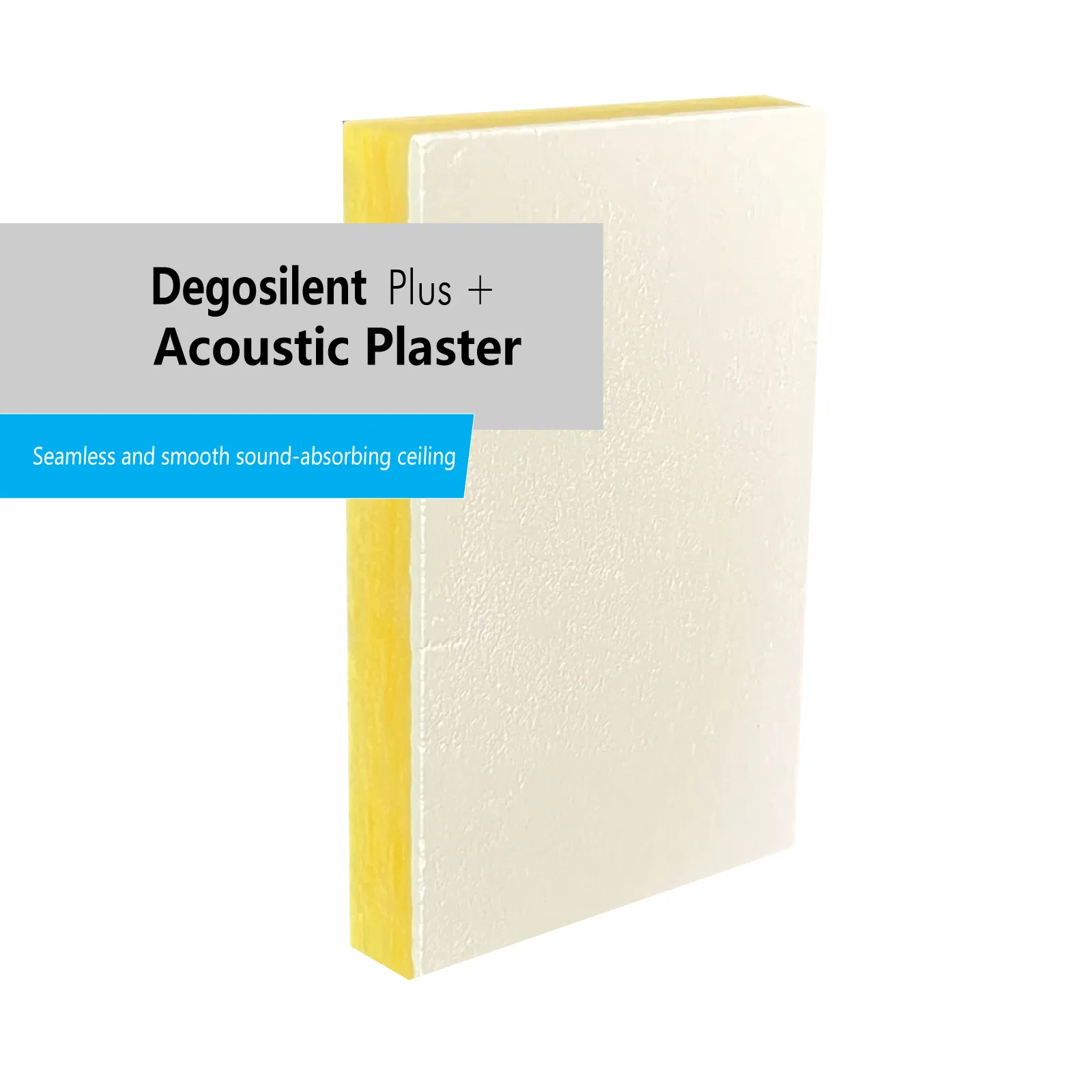

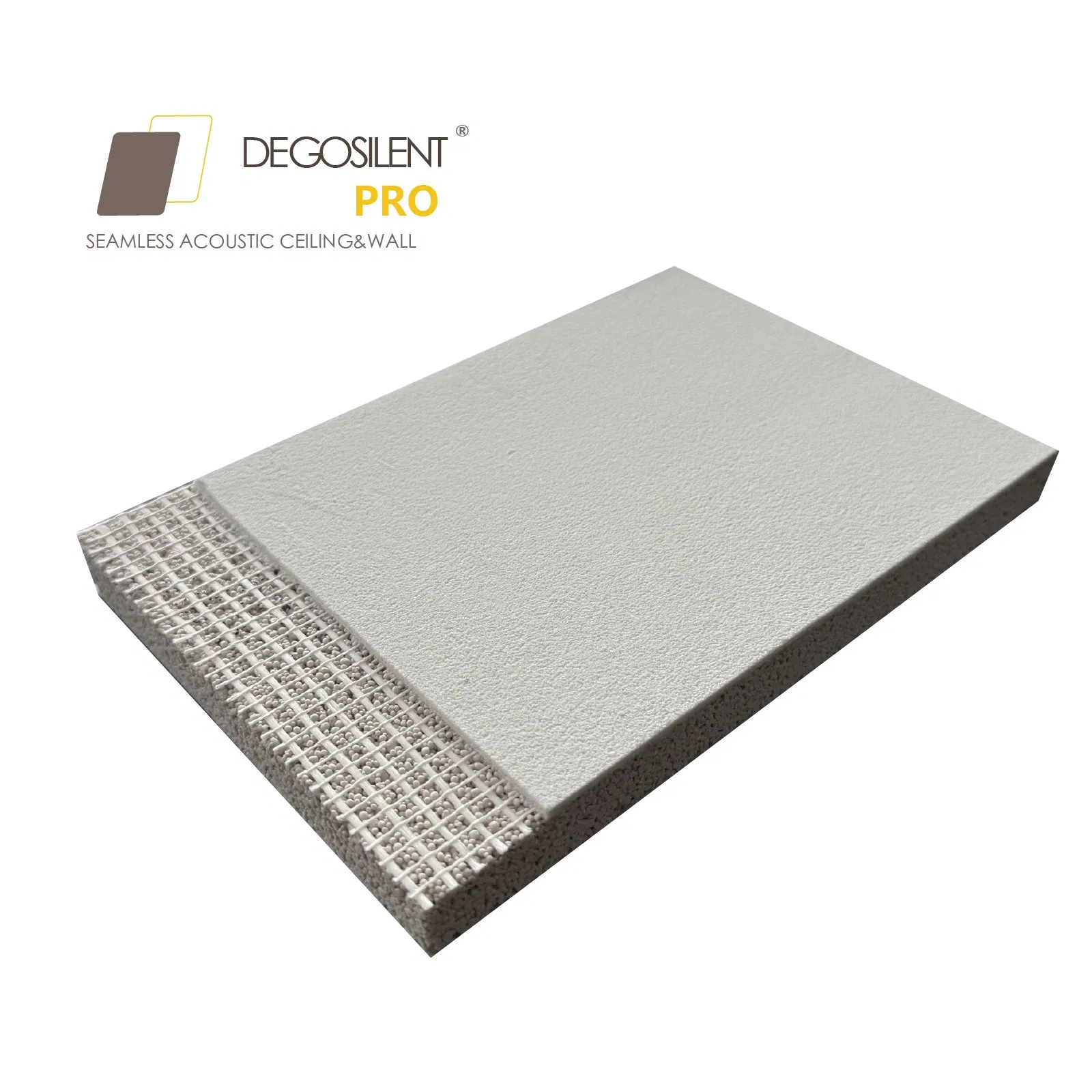

SEAMLESS ACOUSTIC SYSTEM

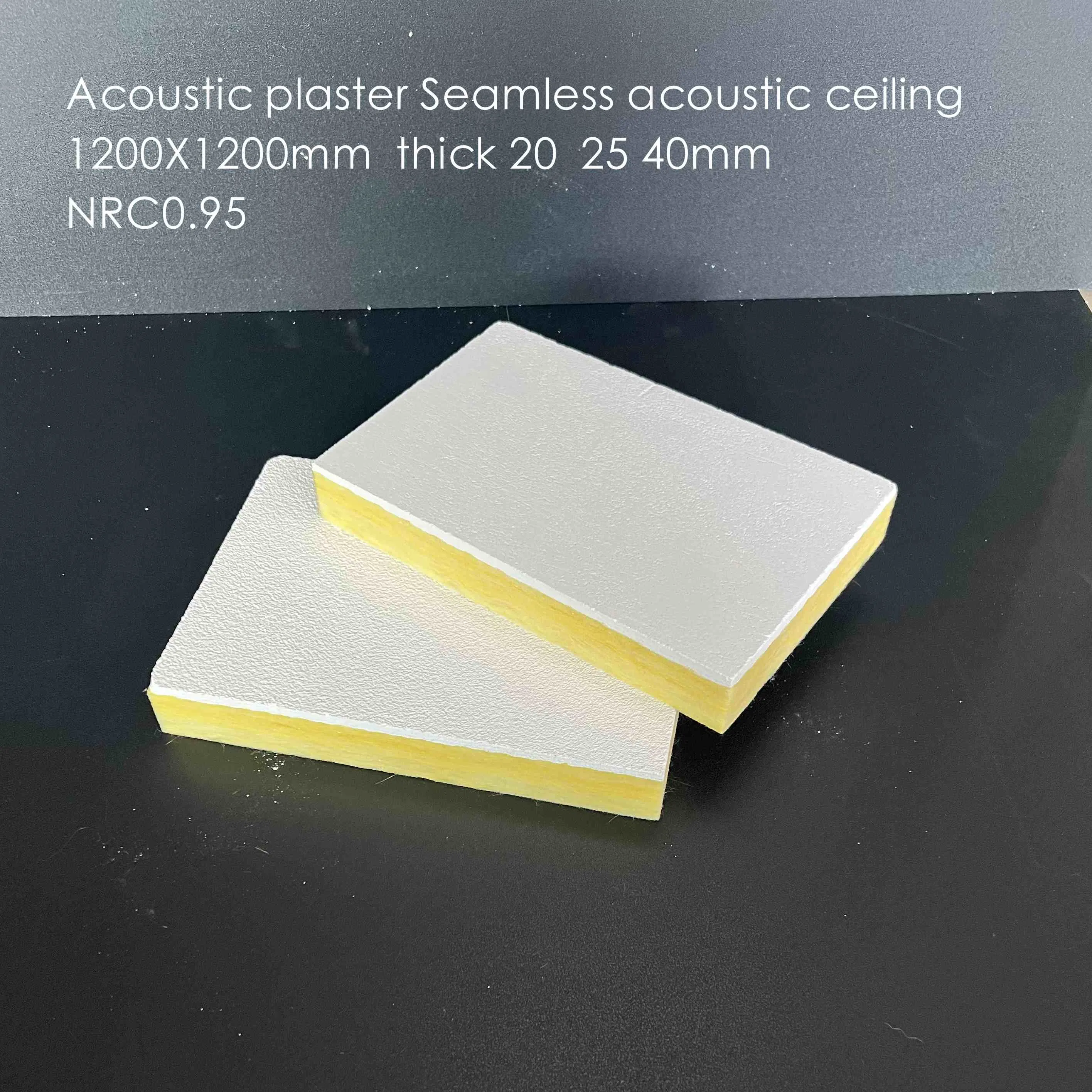

The system consists of a combination of sound-absorbing panels and sound penetration coating in a one- or two-layer set-up. Because of the wide variety of structures and thicknesses, it meets virtually every optical and acoustical requirement. Available in multiple system thicknesses starting from 30 up to 65 mm. It is a high-quality acoustic system that absorbs unwanted noise in large, commercial spaces.
Detailed Description:

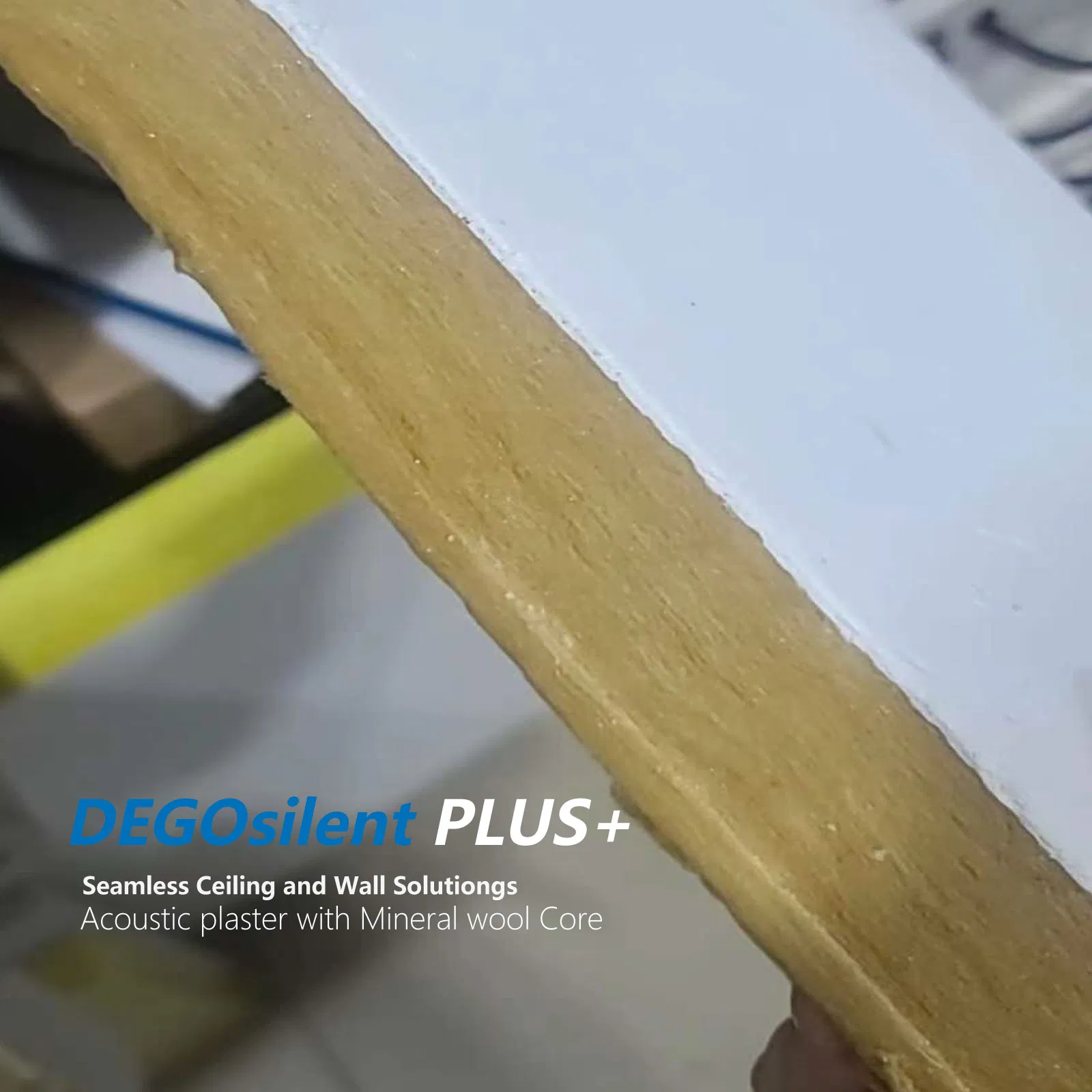

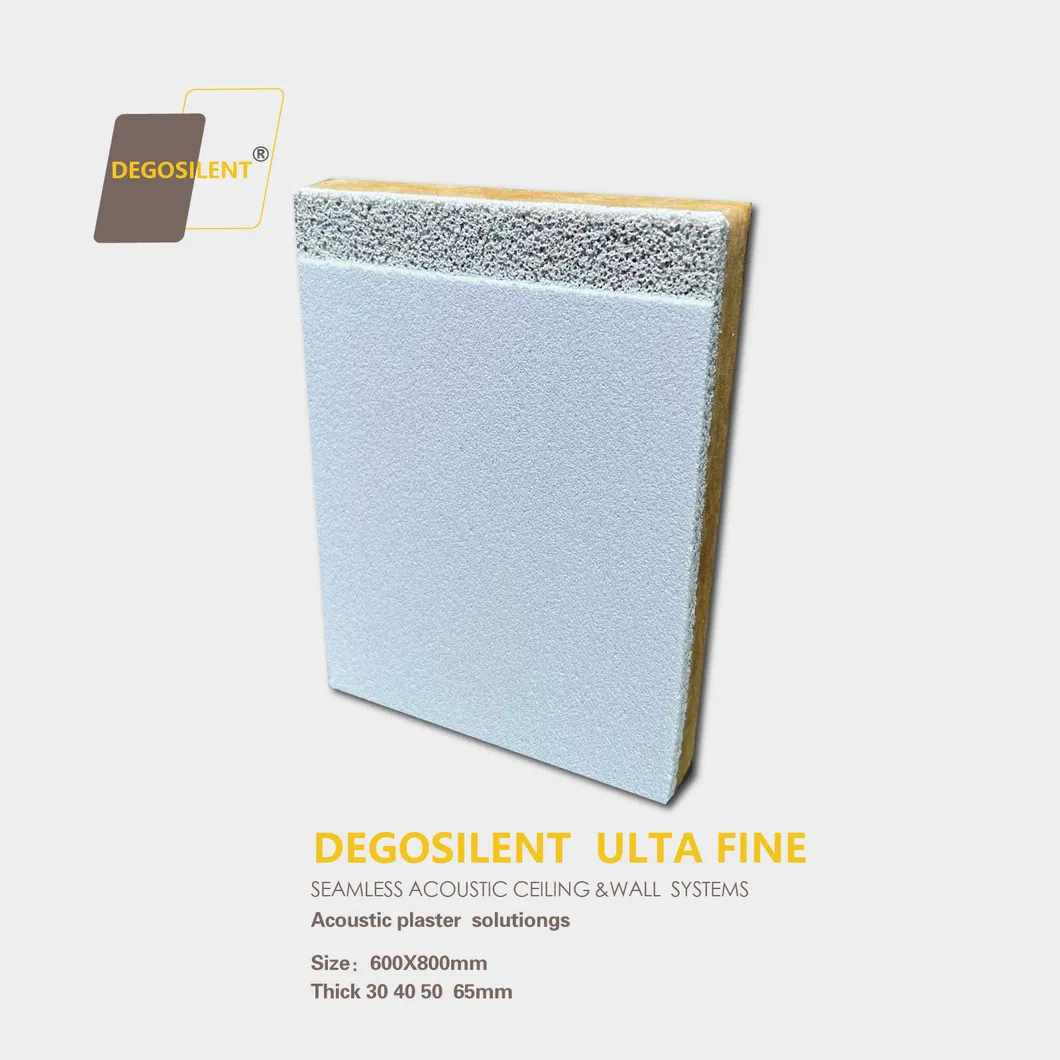

Smooth, seamless system for reducing reverberation time. May be used on vertical, horizontal, inclined or curved surfaces. Consists of precoated mineral fibre panels adhered to a stable substrate such as gypsum board or concrete.
Technical Data:
Thickness: 30, 40, 50mm
NRC: 0.80 - 0.90
Sound Absorption: 39 dB to 49 dB
Fire Class: A2
Moisture Resistance: Up to 95% RH
High-density glass fiber wool panels with an elegant white surface. Ideal for high noise environments, providing outstanding acoustic performance to downgrade background noise and reverberation.
Details:
- Material: Fiberglass wool (Fireproof A2)
- Sizes: 1200x600, 1200x1200mm
- Fixed: Light steel keel system
Superior modern acoustic solution that delivers a monolithic design. Combines functionality and aesthetics for ceilings, allowing for straightforward integration of lighting and ventilation.
Product Data:

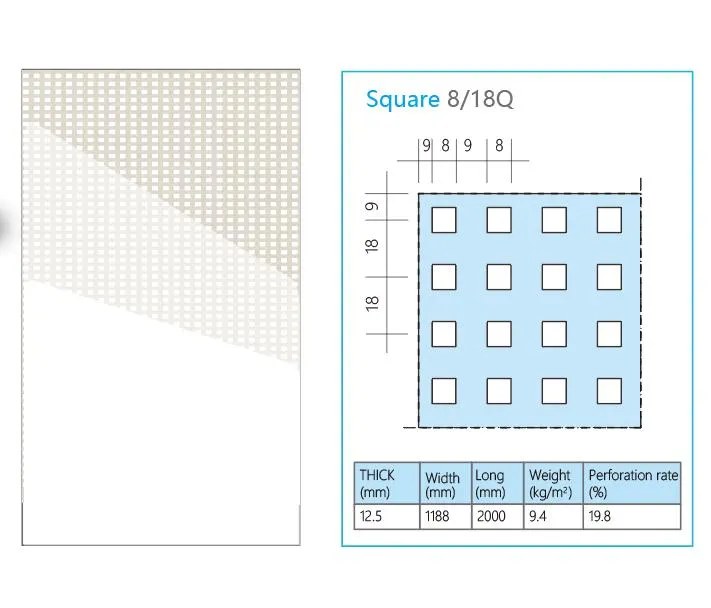

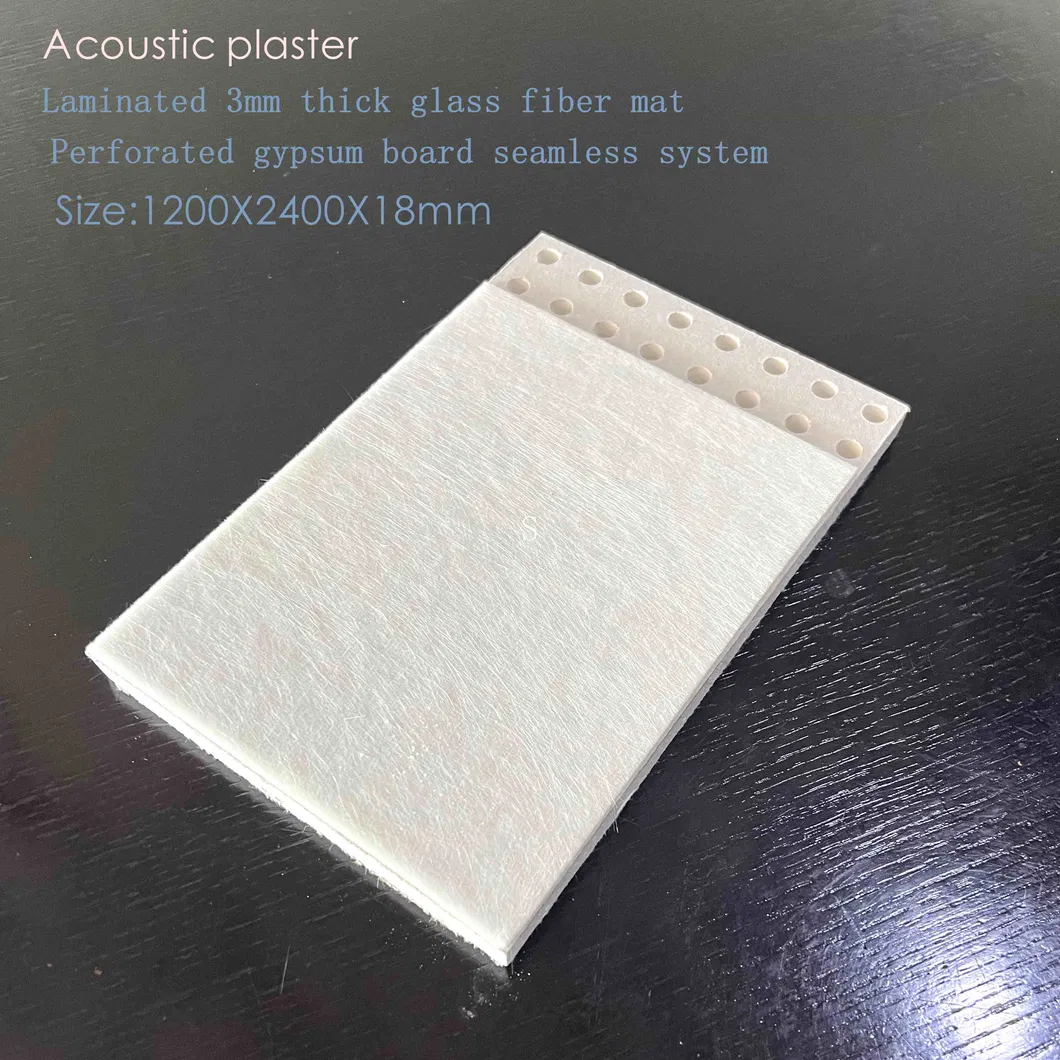

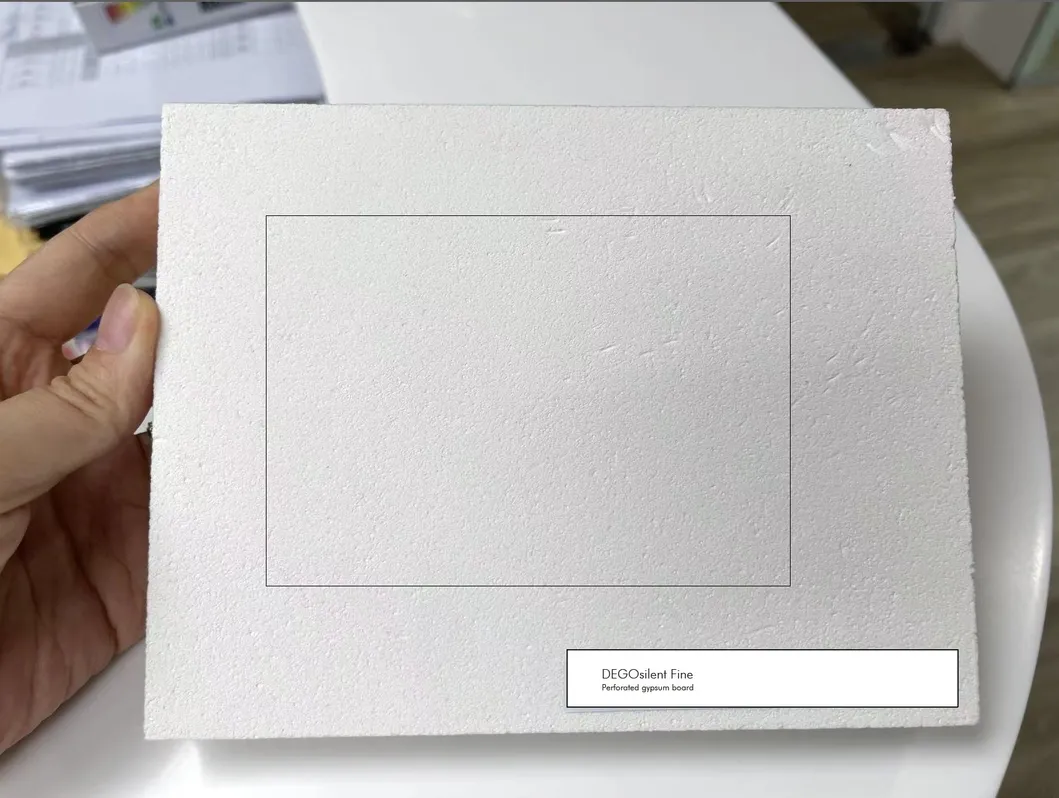

- Material: High open area perforated gypsum board
- Surface: Inorganic acoustic painted (12.5mm thick)
- Edge: Square

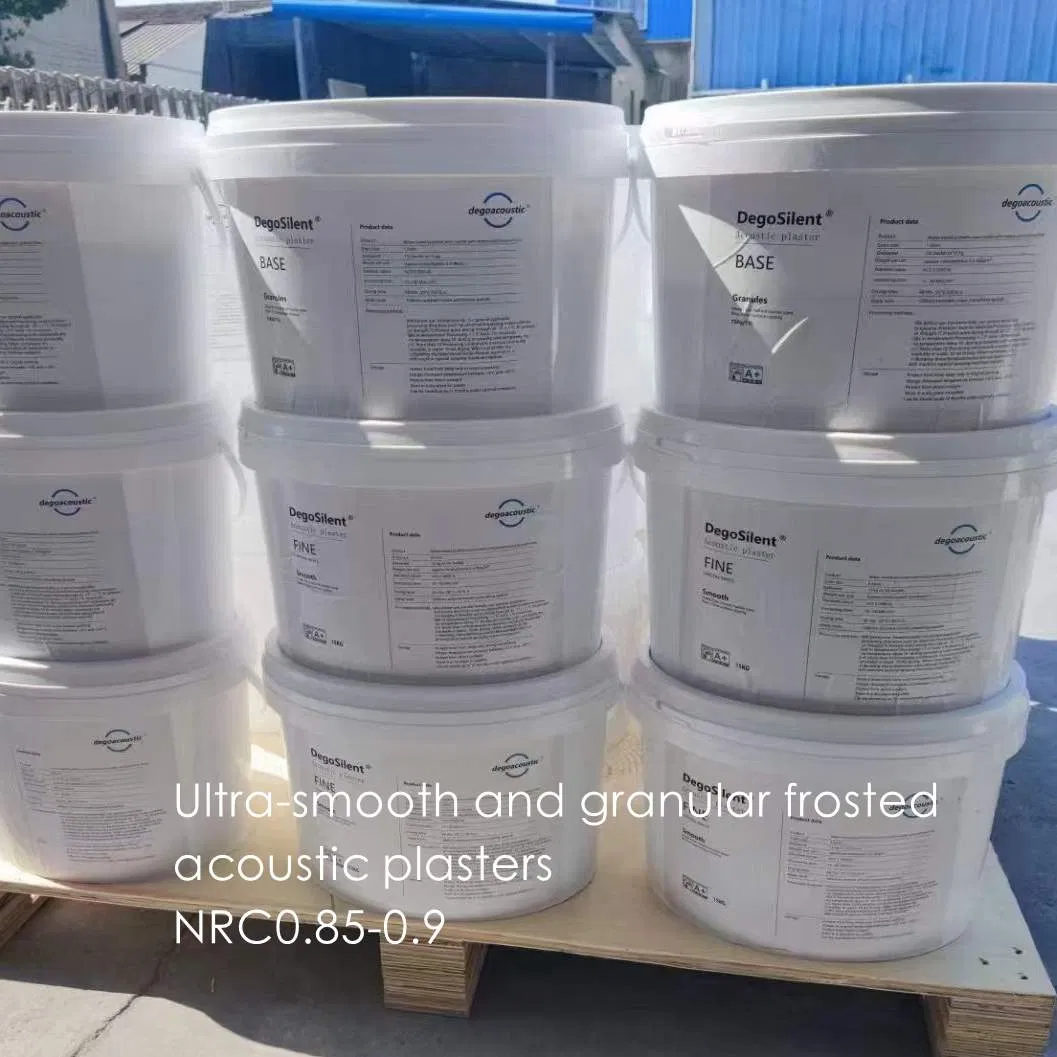

| Materials | Acoustic coating (paste, mixed) | Fireproof | A2-S1d0 En1350-1 |
| Face | Ultra smooth, Granules | Standard colours | RAL 9016 / NCS S300 |
| Size | 1200X600, 1200X1200, 1200X2400MM | Sound absorption | NRC 0.85 - 0.95 |
| Thick | 25, 30, 40MM | Painting Thick | 2-3MM |
| Fixing | Mechanical gaskets/screws | Suspension | Metal keel/direct concrete |
Expertly manufactured acoustic panels, baffles, and ceiling tiles. Covering glass fiber, rock wool, mineral wool, and gypsum materials. Providing high-quality acoustic control for modern interior designs.
